ABB传动调试软件DriveWindow介绍

··DriveWindow是一种用于ACS600、ACS800、ACS6000 和DCS600调试和维护的Windows应用程序。

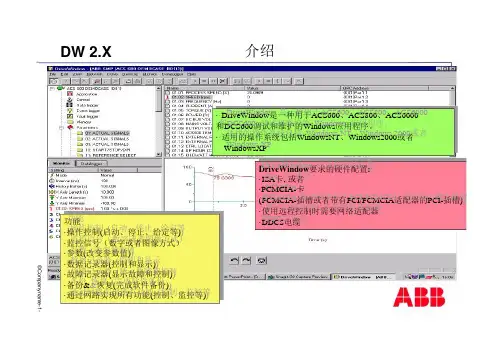

··适用的操作系统包括WindowsNT、Windows2000或者WindowsXP功能·操作控制(启动、停止、给定等))·监控信号（数字或者图像方式）·参数(改变参数值))·数据记录器(控制和显示))·故障记录器(显示故障和控制))·备份&&恢复(完成软件备份))·通过网路实现所有功能(控制、监控等)) DriveWindow要求的硬件配置::·ISA卡,,或者·PCMCIA-卡(PCMCIA-插槽或者带有PCI/PCMCIA适配器的PCI-插槽)) ·使用远程控制时需要网络适配器·DDCS电缆DW 2.X 介绍DriveWindow 是一种用于ACS600、ACS800、ACS6000和DCS600 调试和维护的Windows 应用程序。

适用的操作系统包括Windows NT、Windows 2000或者Windows XP功能·操作控制(启动、停止、给定等·监控信号（数字或者图像方式）·参数(改变参数值·数据记录器(控制和显示·故障记录器(显示故障和控制·备份恢复(完成软件备份·通过网路实现所有功能(控制、监控等DriveWindow要求的硬件配置·ISA 卡或者·PCMCIA-卡(PCMCIA-插槽或者带有PCI/PCMCIA 适配器的PCI-插槽·使用远程控制时需要网络适配器·DDCS 电缆©Companyname-1-DW 2.X 启动程序11或者双击程序图标只有当传动处于远程控制模式下时，大多 2数操作才可以实现。

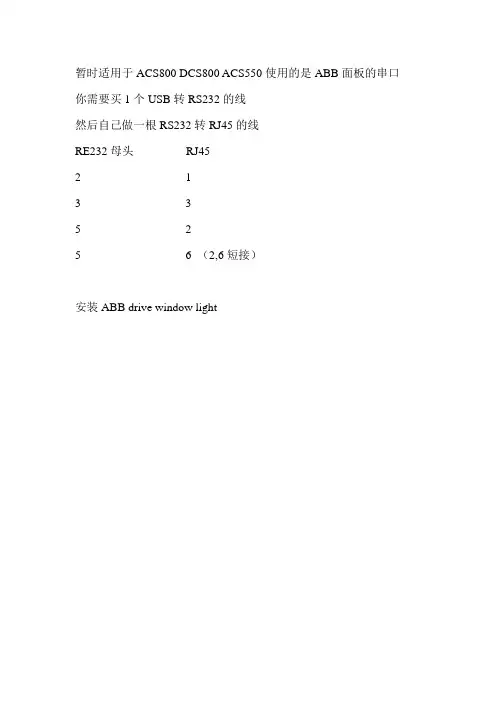

暂时适用于ACS800 DCS800 ACS550使用的是ABB面板的串口你需要买1个USB转RS232的线
然后自己做一根RS232转RJ45的线
RE232母头RJ45
2 1
3 3
5 2
5 6 （2,6短接）
安装ABB drive window light
使用自制的RS232转RJ45的线，通过ABB面板串口。

连接RS232转USB线连接电脑。

打开drive window light
我的drive window light 是中文版的可以网上去下个中文的替换下ABB变频器参数设置软件2.7 UP 2.92版本汉化
这个是打开的界面.
选择文件菜单下的新建在线装置。

正在加载中
加载成功之后会显示参数列表
打开装置菜单下参数与信号下的上载全部参数。

把参数全部上载。

把下载下来的全部参数另存。

然后看下另存的文件大小应该不小于100KB。

那就是完整的参数文档。

如果小于旧说明全部参数没有上传请重新再来。

注意：因为是9.6K的传输速率所以在上传全部参数与另存的时候会很慢注意这时不要去动电脑，否则程序会无法响应。

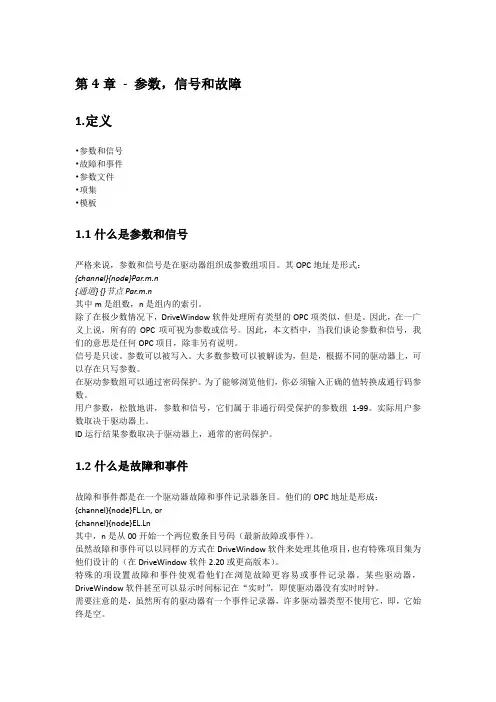

第4章- 参数，信号和故障1.定义•参数和信号•故障和事件•参数文件•项集•模板1.1什么是参数和信号严格来说，参数和信号是在驱动器组织成参数组项目。

其OPC地址是形式：{channel}{node}Par.m.n{通道} {}节点Par.m.n其中m是组数，n是组内的索引。

除了在极少数情况下，DriveWindow软件处理所有类型的OPC项类似，但是。

因此，在一广义上说，所有的OPC项可视为参数或信号。

因此，本文档中，当我们谈论参数和信号，我们的意思是任何OPC项目，除非另有说明。

信号是只读。

参数可以被写入。

大多数参数可以被解读为，但是，根据不同的驱动器上，可以存在只写参数。

在驱动参数组可以通过密码保护。

为了能够浏览他们，你必须输入正确的值转换成通行码参数。

用户参数，松散地讲，参数和信号，它们属于非通行码受保护的参数组1-99。

实际用户参数取决于驱动器上。

ID运行结果参数取决于驱动器上，通常的密码保护。

1.2什么是故障和事件故障和事件都是在一个驱动器故障和事件记录器条目。

他们的OPC地址是形成：{channel}{node}FL.Ln, or{channel}{node}EL.Ln其中，n是从00开始一个两位数条目号码（最新故障或事件）。

虽然故障和事件可以以同样的方式在DriveWindow软件来处理其他项目，也有特殊项目集为他们设计的（在DriveWindow软件2.20或更高版本）。

特殊的项设置故障和事件使观看他们在浏览故障更容易或事件记录器。

某些驱动器，DriveWindow软件甚至可以显示时间标记在“实时”，即使驱动器没有实时时钟。

需要注意的是，虽然所有的驱动器有一个事件记录器，许多驱动器类型不使用它，即，它始终是空。

1.3什么是参数文件参数文件有文件扩展名DWP，它包含（内部ASCII格式）的信息有关驱动器的参数和信号。

没有一个驱动器的所有参数都在那里。

此外组，分别不低于通行码的保护在保存时，有下载过程中所需要的参数，应用属性，驱动器属性，而不支行。

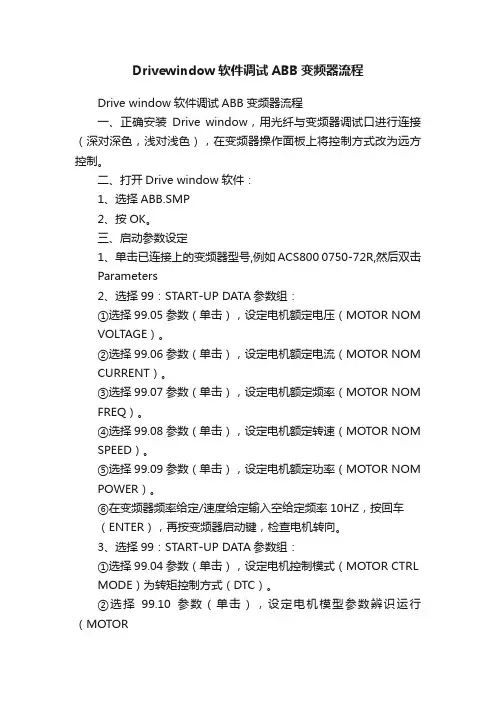

Drivewindow软件调试ABB变频器流程Drive window软件调试ABB变频器流程一、正确安装Drive window，用光纤与变频器调试口进行连接（深对深色，浅对浅色），在变频器操作面板上将控制方式改为远方控制。

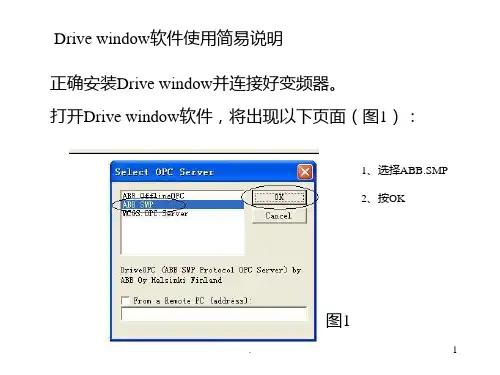

二、打开Drive window软件：1、选择ABB.SMP2、按OK。

三、启动参数设定1、单击已连接上的变频器型号,例如ACS800 0750-72R,然后双击Parameters2、选择99：START-UP DATA参数组：①选择99.05参数（单击），设定电机额定电压（MOTOR NOMVOLTAGE）。

②选择99.06参数（单击），设定电机额定电流（MOTOR NOMCURRENT）。

③选择99.07参数（单击），设定电机额定频率（MOTOR NOMFREQ）。

④选择99.08参数（单击），设定电机额定转速（MOTOR NOMSPEED）。

⑤选择99.09参数（单击），设定电机额定功率（MOTOR NOMPOWER）。

⑥在变频器频率给定/速度给定输入空给定频率10HZ，按回车（ENTER），再按变频器启动键，检查电机转向。

3、选择99：START-UP DATA参数组：①选择99.04参数（单击），设定电机控制模式（MOTOR CTRLMODE）为转矩控制方式（DTC）。

②选择99.10参数（单击），设定电机模型参数辨识运行（MOTORID RUN MODE）为标准辨识（STANDARD）电机转动或简化辨识（REDUCED）电机不转。

③在变频器频率给定/速度给定输入空给定为0，按启动键，电机进入辨识运行状态。

注意：变频器报的警告信息FF30,是需要对电机进行辨识的故障代码；FF33是选择电机辨识运行的故障代码；FF32是已经进行电机辨识励磁故障代码；以上故障代码均属正常现象，继续传动就可以。

四、变频器监控参数设定设置监控的参数，选中参数后再按曲线选择键进行确认，参数与所选择的曲线颜色相对应，也可选择更多的参数进行监控显示，举例如下：1、选择01：ACTUAL SIGNA参数组①选择01.02参数（双击），设定电机转速（SPEED）计算值。

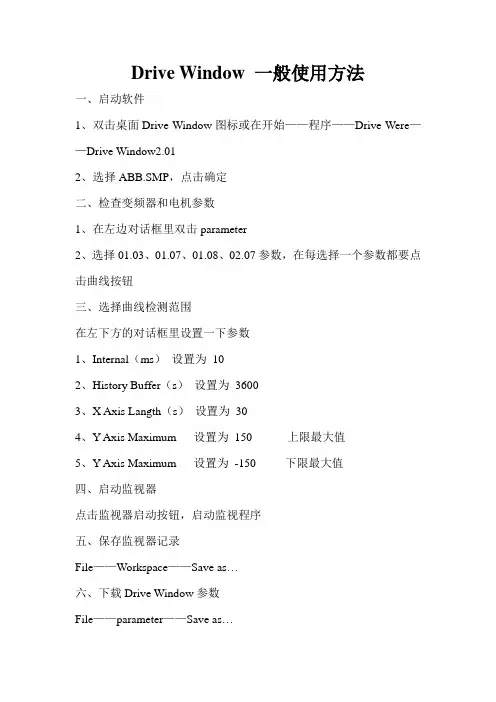

Drive Window使用指南Drive Window使用指南《数据监控》一、首先打开Drive Window工具二、选择ABB.SMP，单击OK，进入如下画面三、双击左上方的蓝色区域，向下移动滚动条，找到Parameters并双击四、单击01：ACTUAL SIGNALS，在右侧上方显示出许多参数五、单击所需要监控的参数，然后分别点击Add Monitored I ems；Activate/Deactivate Items or I tem Set；Lock/Unlock I ems三个按钮，一般监控输出频率、输出电流、输出力矩、输出功率、直流母线电压、模块温度六条曲线。

五、双击Parameters，只显示选中的参数六、设置历史缓冲区时间：双击History Buffer，在弹出对话框中填入所需时间，单位为秒，尽量设置长一些，一般设为20000，然后单击OK。

七、设置X轴长度，双击X Axis Length （s），一般设置为100即可。

八、设置Y轴最大值，双击Y Axis Maximum，一般设置为650，大于所监控数据中的最大值即可。

九、设置Y轴最小值，双击Y Axis Minimum，设置为0。

十、单击启动监控按钮Start or Continue Monitoring，即可对所选参数进行监控。

十一、监控过程中如果想查看过去的波形，可按下暂停键Pause Monitoring，查看结束，按下启动按钮会继续监控，暂停期间的数据不会丢失。

十二、监控结束：按下停止按钮Stop Monitoring。

十三、按下停止按钮后必须把以前的曲线删除后才能重新启动监控。

（重要曲线需要先保存）十四、保存曲线：单击File，找到Graph目录下的Save All并单击，在弹出对话框中选择存放位置和文件名，再点击保存即可。

《软件备份》一、Drive Window与电脑、ABB主板连接正常后，单击菜单栏的file，找到System Software－New－Backup Package并单击二、单击菜单栏的file，找到System Software子菜单Back All并单击此时，Drive Window自动开始备份，如下图所示：三、备份完成后，单击菜单栏的file，找到System Software子菜单SaveAs并单击四、在弹出对话框中选择保存位置和想要保存的文件名，点击保存即可。

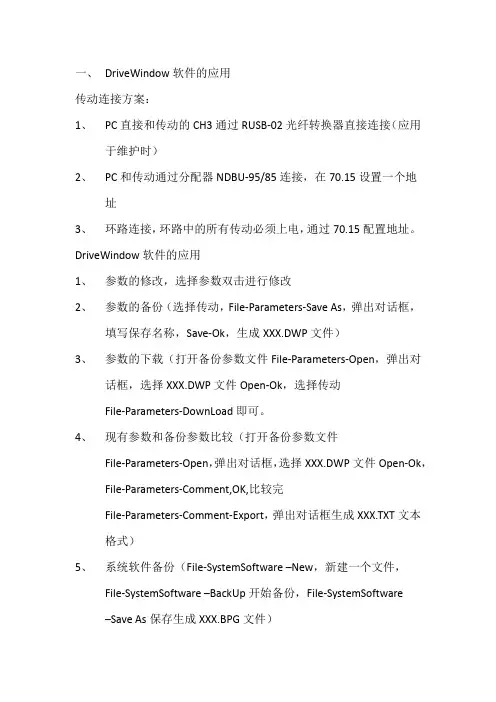

一、DriveWindow软件的应用传动连接方案：1、PC直接和传动的CH3通过RUSB-02光纤转换器直接连接（应用于维护时）2、PC和传动通过分配器NDBU-95/85连接，在70.15设置一个地址3、环路连接，环路中的所有传动必须上电，通过70.15配置地址。

DriveWindow软件的应用1、参数的修改，选择参数双击进行修改2、参数的备份（选择传动，File-Parameters-Save As，弹出对话框，填写保存名称，Save-Ok，生成XXX.DWP文件）3、参数的下载（打开备份参数文件File-Parameters-Open，弹出对话框，选择XXX.DWP文件Open-Ok，选择传动File-Parameters-DownLoad即可。

4、现有参数和备份参数比较（打开备份参数文件File-Parameters-Open，弹出对话框，选择XXX.DWP文件Open-Ok，File-Parameters-Comment,OK,比较完File-Parameters-Comment-Export，弹出对话框生成XXX.TXT文本格式）5、系统软件备份（File-SystemSoftware –New，新建一个文件，File-SystemSoftware –BackUp开始备份，File-SystemSoftware–Save As保存生成XXX.BPG文件）6、系统软件下载（File-SystemSoftware –Open打开备份文件，File-SystemSoftware –Restore选择想要恢复的传动单元，YES，在恢复期间不要对传动或者DriveWindow程序做任何操作，一旦中断只能返厂处理，因此软件的下载必须谨慎操作）7、工作区的创建（File-WorkeSpace –SaveAs保存成XXX.DWDW文件，下次使用可以直接打开）8、故障记录器的建立（DataLogger只有在满足条件的状态下才会记录数据，Trigged By设置触发条件，Trig Variable设置触发的变量的地址，TrigLevel 设置触发的变量的等级）二、BlackBox数据的提取方法1）使用提取工具BlackBox＿UpLoad.exe2）进入Dos命令，WIN7系统按Shift，右键打开Dos命令窗口直接进入black.box命令行3）AMC34板上的第二块子板可以保存BlackBox数据，属于LX015XXX版本的固件，主要有（DataLogger1和2、Events\Faults\Alams\改变的参数、软件的版本、用户功能最近20次IGCT开关组合的情况）4）固件下装后执行L-ACSXXX之后会自动生成BlackBox文件夹，包括BlackBox＿UpLoad.exe文件，在命令窗口可以执行以下命令行，常用命令blackbox＿upload1/bb＿upload＿data/mbaud=8读取blackbox数据文件，blackbox＿upload1/dl＿upload＿data/mbaud=8读取datalogger数据文件。

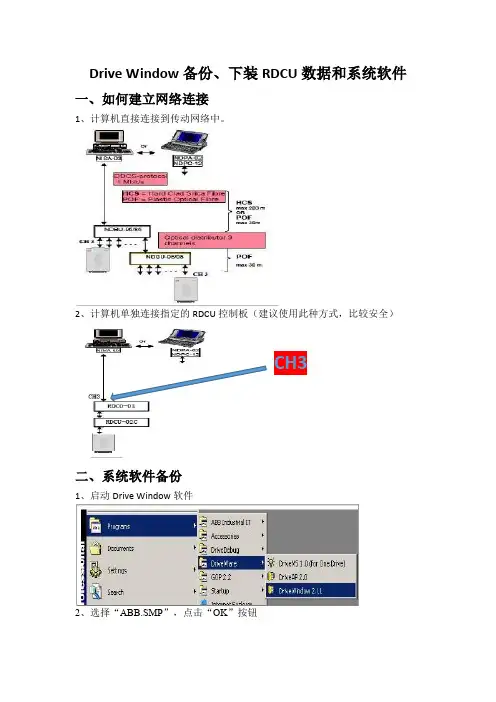

Drive Window备份、下装RDCU数据和系统软件一、如何建立网络连接1、计算机直接连接到传动网络中。

2、计算机单独连接指定的RDCU控制板（建议使用此种方式，比较安全）CH3二、系统软件备份1、启动Drive Window软件2、选择“ABB.SMP”，点击“OK”按钮3、选中file下拉菜单中System Software子菜单New子菜单中的Backup Package4、打开已经存在的备份，从新备份。

5.0.0、备份网络内的所有传动点5.1.0备份单个传动点5.1.1选中要备份的传动点。

6、备份进行中7、保持备份包8、或者选中save as选择存储位置9、退出备份四、系统软件恢复1、修改目标RDCU内参数70.15，修改ch3的地址和要恢复参数的地址一致2、打开系统软件备份包3、选择恢复4、等待搜索5、选择要恢复的传动点yes6、确认要恢复传动点参数吗？点8、退出备份包五、参数备份3、启动Drive Window软件4、选择“ABB.SMP”，点击“OK”按钮5、如果通讯正常，会自动连接网络内的所有传动点，选中需要备份的传动点。

4、选择File下拉菜单中Parameter下子菜单中的Save As6、选择存储位置和存储的名字，点击save确认，备份完成。

六、参数恢复1、选择File下拉菜单中Parameter下子菜单中Open2、打开要恢复的传动点参数。

3、选中要把参数恢复到的目标RDCU7、修改目标RDCU参数70.15，修改ch3的地址和要恢复参数的地址一致6、选择File下拉菜单中Parameter下子菜单中Download7、点击弹出对话框的OK8、点击YES9、点击yes10、下装进行中。

Drive Window使用指南Drive Window使用指南《数据监控》一、首先打开Drive Window工具二、选择，单击OK，进入如下画面三、双击左上方的蓝色区域，向下移动滚动条，找到Parameters并双击四、单击01：ACTUAL SIGNALS，在右侧上方显示出许多参数五、单击所需要监控的参数，然后分别点击Add Monitored Iems；Activate/Deactivate Items or Item Set；Lock/Unlock Iems三个按钮，一般监控输出频率、输出电流、输出力矩、输出功率、直流母线电压、模块温度六条曲线。

五、双击Parameters，只显示选中的参数六、设置历史缓冲区时间：双击History Buffer，在弹出对话框中填入所需时间，单位为秒，尽量设置长一些，一般设为20000，然后单击OK。

七、设置X轴长度，双击X Axis Length （s），一般设置为100即可。

八、设置Y轴最大值，双击Y Axis Maximum，一般设置为650，大于所监控数据中的最大值即可。

九、设置Y轴最小值，双击Y Axis Minimum，设置为0。

十、单击启动监控按钮Start or Continue Monitoring，即可对所选参数进行监控。

十一、监控过程中如果想查看过去的波形，可按下暂停键Pause Monitoring，查看结束，按下启动按钮会继续监控，暂停期间的数据不会丢失。

十二、监控结束：按下停止按钮Stop Monitoring。

十三、按下停止按钮后必须把以前的曲线删除后才能重新启动监控。

（重要曲线需要先保存）十四、保存曲线：单击File，找到Graph目录下的Save All并单击，在弹出对话框中选择存放位置和文件名，再点击保存即可。

《软件备份》一、Drive Window与电脑、ABB主板连接正常后，单击菜单栏的file，找到System Software－New－Backup Package并单击二、单击菜单栏的file，找到System Software子菜单Back All并单击此时，Drive Window自动开始备份，如下图所示：三、备份完成后，单击菜单栏的file，找到System Software子菜单Save As并单击四、在弹出对话框中选择保存位置和想要保存的文件名，点击保存即可。

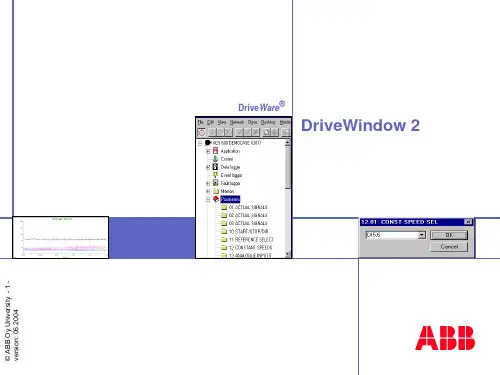

a m e -1-•DriveWindow 是一种用于ACS600、ACS800、ACS6000和DCS600调试和维护的Windows 应用程序。

•适用的操作系统包括Windows NT 、Windows 2000或者Windows XP •DriveWindow 是一种用于ACS600、ACS800、ACS6000和DCS600调试和维护的Windows 应用程序。

•适用的操作系统包括Windows NT 、Windows 2000或者Windows XP功能·操作控制(启动、停止、给定等)·监控信号（数字或者图像方式）·参数(改变参数值)·数据记录器(控制和显示)·故障记录器(显示故障和控制)·备份& 恢复(完成软件备份)·通过网路实现所有功能(控制、监控等)功能·操作控制(启动、停止、给定等)·监控信号（数字或者图像方式）·参数(改变参数值)·数据记录器(控制和显示)·故障记录器(显示故障和控制)·备份& 恢复(完成软件备份)·通过网路实现所有功能(控制、监控等)DriveWindow 要求的硬件配置:·ISA 卡, 或者·PCMCIA-卡(PCMCIA-插槽或者带有PCI/PCMCIA 适配器的PCI-·使用远程控制时需要网络适配器·DDCS 电缆DriveWindow 要求的硬件配置:·ISA 卡, 或者·PCMCIA-卡(PCMCIA-插槽或者带有PCI/PCMCIA 适配器的PCI-插槽·使用远程控制时需要网络适配器·DDCS 电缆1工具栏状态栏离线或通信中断没有运转运转(正转)故障警告传动状态浏览树面板监控器/数据记录器Trend Settings Panel 桌面窗口大小可以改变双击电机以打开浏览树只有在传动单元处于远程控制时，大多数操作才能进行。

Drive Window使用指南Drive Window使用指南《数据监控》一、首先打开Drive Window工具二、选择ABB.SMP，单击OK，进入如下画面三、双击左上方的蓝色区域，向下移动滚动条，找到Parameters并双击四、单击01：ACTUAL SIGNALS，在右侧上方显示出许多参数五、单击所需要监控的参数，然后分别点击Add Monitored I ems；Activate/Deactivate Items or I tem Set；Lock/Unlock I ems三个按钮，一般监控输出频率、输出电流、输出力矩、输出功率、直流母线电压、模块温度六条曲线。

五、双击Parameters，只显示选中的参数六、设置历史缓冲区时间：双击History Buffer，在弹出对话框中填入所需时间，单位为秒，尽量设置长一些，一般设为20000，然后单击OK。

七、设置X轴长度，双击X Axis Length （s），一般设置为100即可。

八、设置Y轴最大值，双击Y Axis Maximum，一般设置为650，大于所监控数据中的最大值即可。

九、设置Y轴最小值，双击Y Axis Minimum，设置为0。

十、单击启动监控按钮Start or Continue Monitoring，即可对所选参数进行监控。

十一、监控过程中如果想查看过去的波形，可按下暂停键Pause Monitoring，查看结束，按下启动按钮会继续监控，暂停期间的数据不会丢失。

十二、监控结束：按下停止按钮Stop Monitoring。

十三、按下停止按钮后必须把以前的曲线删除后才能重新启动监控。

（重要曲线需要先保存）十四、保存曲线：单击File，找到Graph目录下的Save All并单击，在弹出对话框中选择存放位置和文件名，再点击保存即可。

《软件备份》一、Drive Window与电脑、ABB主板连接正常后，单击菜单栏的file，找到System Software－New－Backup Package并单击二、单击菜单栏的file，找到System Software子菜单Back All并单击此时，Drive Window自动开始备份，如下图所示：三、备份完成后，单击菜单栏的file，找到System Software子菜单SaveAs并单击四、在弹出对话框中选择保存位置和想要保存的文件名，点击保存即可。
