绝缘电阻测试仪用户手册REV 02023.07尊敬的用户:您好！感谢您选购全新的优利德仪器，为了正确使用本仪器，请您在本仪器使用之前仔细阅读本说明书全文，特别有关“安全注意事项”的部分。
如果您已经阅读完本说明书全文，建议您将此说明书进行妥善的保管，与仪器一同放置或者放在您随时可以查阅的地方，以便在将来的使用过程中进行查阅。
优利德科技（中国）股份有限公司版权所有。
如果原购买者自购买该产品之日起三年内，将该产品出售或转让给第三方，则保修期应为自原购买者从UNI-T或授权的UNI-T分销商购买该产品之日起三年内。
探头及其他附件和保险丝等不受此保证的保护。
如果在适用的保修期内证明产品有缺陷，UNI-T可自行决定是修复有缺陷的产品且不收部件和人工费用，或用同等产品（由UNI-T决定）更换有缺陷的产品。
UNI-T作保修用途的部件、模块和更换产品可能是全新的，或者经修理具有相当于新产品的性能。
所有更换的部件、模块和产品将成为UNI-T的财产。
以下提到的“客户”是指据声明本保证所规定权利的个人或实体。
为获得本保证承诺的服务，“客户”必须在适用的保修期内向UNI-T通报缺陷，并为服务的履行做适当安排。
客户应负责将有缺陷的产品装箱并运送到UNI-T指定的维修中心，同时预付运费并提供原购买者的购买证明副本。
如果产品要运送到UNI-T维修中心所在国范围内的地点，UNI-T应支付向客户送返产品的费用。
如果产品送返到任何其他地点，客户应负责支付所有的运费、关税、税金及任何其他费用。
本保证不适用于由于意外、机器部件的正常磨损、在产品规定的范围之外使用或使用不当或者维护保养不当或不足而造成的任何缺陷、故障或损坏。
UNI-T根据本保证的规定无义务提供以下服务：a) 修理由非UNI-T服务代表人员对产品进行安装、修理或维护所导致的损坏；b) 修理由于使用不当或与不兼容的设备连接造成的损坏；c) 修理由于使用不符合本说明书要求的电源而造成的任何损坏或故障；d) 维修已改动或者与其他产品集成的产品（如果这种改动或集成会增加产品维修的时间或难度）。

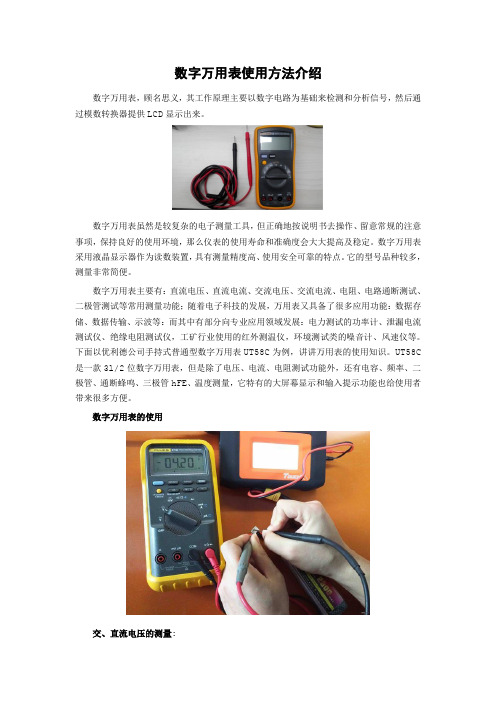

数字万用表使用方法介绍数字万用表，顾名思义，其工作原理主要以数字电路为基础来检测和分析信号，然后通过模数转换器提供LCD显示出来。
数字万用表虽然是较复杂的电子测量工具，但正确地按说明书去操作、留意常规的注意事项，保持良好的使用环境，那么仪表的使用寿命和准确度会大大提高及稳定。
数字万用表采用液晶显示器作为读数装置，具有测量精度高、使用安全可靠的特点。
它的型号品种较多，测量非常简便。
数字万用表主要有：直流电压、直流电流、交流电压、交流电流、电阻、电路通断测试、二极管测试等常用测量功能；随着电子科技的发展，万用表又具备了很多应用功能：数据存储、数据传输、示波等：而其中有部分向专业应用领域发展：电力测试的功率计、泄漏电流测试仪、绝缘电阻测试仪，工矿行业使用的红外测温仪，环境测试类的噪音计、风速仪等。
下面以优利德公司手持式普通型数字万用表UT58C为例，讲讲万用表的使用知识。
UT58C 是一款3l/2位数字万用表，但是除了电压、电流、电阻测试功能外，还有电容、频率、二极管、通断蜂鸣、三极管hFE、温度测量，它特有的大屏幕显示和输入提示功能也给使用者带来很多方便。
数字万用表的使用交、直流电压的测量:将电源开关置于ON位置，根据需要将量程开关拨至DCV(直流)或ACV(交流)范围内的合适量程，红表笔插人V/Ω孔，黑表笔插入COM孔，然后将两只表笔连接到被测点上，液晶显示器上便直接显示被测点的电压。
在测量仪器仪表的文流电压时，应当用黑表笔去接触被测电压的低电位端(如信号发生器的公共接地端或机壳)，从而减小测量误差。
注意：如果在不知道被测电压的范围时．建议将档位拔到最高档(1000V)，然后根据显示屏读数来转换到较合适的量程，确保测试结果的准确。
实际UT58C在使用者选择量程时，显示屏上均会提示你相应需要选择的表笔输入位置(交直流电压、电阻、频率均使用“COM”、“Hz/V/Ω”两个输入端来进行测试。
交流电压V与直流电压V的测试方法相同。
数字万用表说明书优利德UNI-T58B1、交流直流电压测量将红表笔插入V插孔，黑表笔插入COM插孔；将功能量程开关置于或电压测量档，并将表笔并联到待测电源或负载上；从显示器上直接读取被测电压值，交流测量显示值为正弦有效值（平均值响应）；仪表的输入阻抗均约为10M欧姆，这种负载在高阻抗的电路中会引起测量上的误差；大部分情况下如果电阻在10K欧姆以下，误差可以忽略；不要输入高于1000V的电压，测量更高的电压是有可能的，但有损坏仪表的危险；在测量高电压时，要特别注意避免触电；在完成所有的测量操作后，要断开表笔与被测电路的连接；2、交直流电流测量将红表笔插入“μA”“mA”或“A”插孔，黑表笔插入COM插孔；将功能量程开关置于安培直流与交流电流测量档，并将仪表表笔串联到待测电路中；从显示器上直接读取被测电流值，交流测量显示值为正弦波有效值；（平均值响应）；注意：在仪表串联到待测回路之前，应先将回路中的电源关闭；测量时应使用正确的输入端口和功能档位，如不能估计电流的大小，应从高档量程开始测量；大于10A电流测量时，因安培输入端口没有设置保险丝，为了安全使用每次测量时间应小于10S，间隔时间应大于15M；当表笔插在电流端子上时，切勿把表笔测试针并联到任何电路上，会烧断仪表内部保险丝和损坏仪表；在完成所有的测量操作后，应先关断电源再断开表笔与被测电路的连接，对大电流的测量更为重要；3、电阻测量将红表笔插入Ω插孔，黑表笔插入COM插孔；将功能开关置于欧姆测量档，并将表笔并联到被测电路上；从显示器上直接读取被测电阻值；注意：如果被子测电阻开路或阻值超过仪表最大量程时，显示器将显示1；当测量在线电阻时，在测量前必须先将被测电路内所有电源并断，并将所有电容器放尽残余电荷，才能保证测量正确；在低阻测量时，表笔会带来约0.1Ω到0.2Ω电阻的测量误差；为获得精确读数，应首先将表笔短路，记住短路显示值，在测量结果中减去表笔短路显示值，才能确保测量精度；如果表笔短路时的电阻值不小于0.5Ω时，应检查表笔是否有松脱现象或其它原因；测量1MΩ以上的电阻时，可能需要几秒后读数才会稳定，这对于高阻的测量属于正常，为了获得稳定读数尽量选用短的测试线；不要输入高于直流60V或交流30V以上的电压，避免伤害人身安全；在完成所有的测量操作时，要断开表笔与被测电路的选择；4、二极管测量将红表笔插入有二极管符号标志的插孔，黑表笔插入COM插孔，红表笔极性为正，黑表笔极性为负；将功能开关置于标有二极管符号标志的档位，红表笔接到被子测二极管的正极，黑表笔执着到二管的负极；从显示器上直接读取被子测二极管的近似正向PN结压降值，单位是毫伏，对硅PN结而言，一般约为500到800mV确认为正常值；如果被测二极管开路或极性反接时，显示为1，当测量在线二极管时，在测量前必须首先将被测电路内所有电源并断，并将所有电容器放尽残余电荷；二极管没试开路电压约为3V；不要输入高于直流60V或交流30V以上的电压，避免伤害人身安全；5、电容器测量将转接插座插入伏特与毫安二插孔，量程开关置于标有电容符号、标有单位F的合适档位，然后将被测电容插入转接插座CX对应插孔，从显示器上直接读取被测电容值；如果被测电容短路，容值勤超过仪表的最大量程，显示器将显示1；所有的电容在测试前必须全部放尽残余电荷；大于10μF的电容，测量时，会需要较长的时间；属正常；不要输入高于直流60V或交流30V以上的电压，避免伤害人身安全；在完成所有的测量操作后，取下转接插座；6、如果是C型，可以测量温度和频率7、三极管HFE测量将转接插座插入伏特与毫安的二插孔；量程开关置于HFE档位，然后将被测NPN或PNP型三极管插入转接插座对应插孔位；从显示器上直接读取被测三极管HFE近似值；不要输入高于直流60V或交流30V以上的电压；在完成所有的测量操作后，取下转接插座；8、数据保持HOLD在任何测量情况下，当按下HOLD键时，仪表显示随即保持测量结果，再按一次HOLD键时，仪表显示保持测量结果自动解锁，随机显示当前测量结果；9自动关机功能当连续测量时间超过约15分钟，显示器将消隐显示，仪表进入微功耗休眠状态，如果唤醒仪表重新工作，连续按二次POWER按键开关即可。
文件名称： UT58A手持万用表安全操作规程文件编号：版本号：A版文件密级：公开文件状态：批准、实施受控标识：受控拟制：x x x xxxx年 x 月 x日评审：x x x xxxx年 x 月 x日会签：审核：x x x xxxx年 x 月 x日批准：x x x xxxx年 x 月 x日修订页目录1. 目的 (1)2. 适用范围 (1)3. 角色和职责 (1)4. 安全操作要求 (1)5. 工作内容 (2)5.1. 综合指标 (2)5.2. 运行环境 (2)5.3. 技术指标 (2)5.4. 设备仪器功能名称 (3)5.4.1. 测量操作说明 (4)5.5. 结束生产 (9)5.5.1. 日常生产结束 (9)5.6. 禁止项目 (9)6. 日常点检及保养 (9)6.1.1. 日常点检............................................................................................... 错误！未定义书签。
6.1.2. 设备维护与保养 (10)6.2. 注意事项 (10)7. 相关文件和记录 (10)UT58A手持万用表操作规范1.目的依据UT58A型新型标准数字万用表使用手册，规范UT58A手持万用表设备的操作流程，使操作员工达到安全操作、使用、日常维护事项定义，确保设备长期稳定运行，提升使用寿命与质量。
2.适用范围本规程适用于公司UT58A手持万用表的操作、点检、维护和保养。
3.角色和职责4.1)使用本机人员经过培训后操作。
2)请按照规程里有关的操作说明使用仪表，否则可能消弱或失去仪表为您提供的安全保护。
3)使用前要检查仪表和表笔，谨防任何损坏或不正常的现象，如果发现异常情况：如表笔线裸露、机壳损坏、液晶显示器无显示等，请不要使用。
严禁使用没有后盖和后盖没有盖好的仪表，否则有电击危险。
4)表笔破损必须更换，并换上同样型号或相同电器规格的表笔。
(See Figure 5)forOverviewWarningTo avoid electric shock or personal injury, read the “Safety Information”, carefully before using the Meter.Digital Multimeters Model UT58A, UT58B and UT58C are 2000-count hand-held instruments with remarkable features: ex-large LCD, steady operations, overload protection for all ranges and unique structure. The Meter can measure AC/DC voltage, AC/DC current, resistance, capacitance, temperature, frequency, transistor, diode and continuity, and is equipped with data hold, full icon display and sleep mode functions.Unpacking InspectionIn the event you find any missing or damaged part, please contact your dealer immediately.1 English Operating Manual2 Test Lead3 Multi-Purpose Socket4 Point Contact Temperature Probe (UT58B/UT58C only)59V Battery (NEDA 1604, 6F22 or 009P)Item DescriptionQty 1 pc 1 pair 1 pc 1 pc 1 pcSafety InformationThis Meter complies with the standards IEC61010:Pollution Degree 2, Overvoltage Category (CAT. II 1000V,CAT. III 600V) and Double Insulation.CAT . II: Local level, appliance, PORTABLE EQUIPMENT etc., with smaller transient voltage overvoltages than CAT. IIICAT. III: Distribution level, fixed installation, with smaller transient overvoltages than CAT. IVUse the Meter only as specified in this operating manual,otherwise the protection provided by the Meter may be impaired.In this manual, a Warning identifies conditions and actions that pose hazards to the user, or may damage the Meter or the equipment under test.A Note identifies the information that user should pay WarningTo avoid possible electric shock or personal injury,and to avoid possible damage to the Meter or to the equipment under test, adhere to the following rules:●Before using the Meter inspect the case. Do not use the Meter if it is damaged or the case (or partof the case) is removed. Look for cracks or missing plastic. Pay attention to the insulation around the connectors.●Inspect the test leads for damaged insulation orexposed metal. Check the test leads for continuity. Replace damaged test leads with identical model number or electrical specifications before using the Meter.●Do not apply more than the rated voltage, as marked on the Meter, between the terminals or between any terminal and grounding.●The rotary switch should be placed in the right position and no any changeover of range shall be made during measurement to prevent damage of the Meter.●When the Meter working at an effective voltage over 60V in DC or 30V rms in AC, special care should be taken for there is danger of electric shock.●Use the proper terminals, function, and range for your measurements.●If the value to be measured is unknown, use the maximum measurement position and reduce the range step by step until a satisfactory reading is obtained.do not alter the internal circuit of the Meter randomly.●Soft cloth and mild detergent should be used to clean the surface of the Meter when servicing.No abrasive and solvent should be used to prevent the surface of the Meter from corrosion, damage and accident.●The Meter is suitable for indoor use.●Turn the Meter power off when it is not in useand take out the battery when not using for a long time.●Constantly check the battery as it may leak when it has been using for some time, replace the battery as soon as leaking appears. A leaking battery will damage the Meter.●Do not use or store the Meter in an environmentof high temperature,humidity,explosive,inflammable and strong magnetic field. The performance of the Meter may deteriorate after dampened.●When using the test leads, keep your fingers behind the finger guards.●Disconnect circuit power and discharge all high -voltage capacitors before testing resistance, continuity, diodes, capacitance or current.●Before measuring current, check the Meter’s fuses and turn off power to the circuit before connecting the Meter to the circuit.●Replace the battery as soon as the battery indicator appears. With a low battery, the Meter might produce false readings that can lead to electric shock and personal injury.●Remove test leads, test clips and temperature probe from the Meter and turn the Meter power off before opening the Meter case.●When servicing the Meter, use the replacement parts with the same model or identical electrical specifications.●To avoid any damage to the meter or any accident,(Figure 1)The Meter Structure (See Figure 1)1.LCD Display.2.HOLD Button.3. Rotary Switch.4. Input Terminals.5.POWERFunctional ButtonsBelow table indicated for information about the functional button operations.(Figure 2)(See Figure 2)(Figure 3)WarningTo avoid harms to you or damages to the Meter from electric shock, please do not attempt to measure voltages higher than 1000V although readings may be obtained.The DC Voltage ranges are: 200mV, 2V, 20V, 200V and 1000V.The AC Voltage ranges are: 2V, 20V, 200V and 750V Measurement OperationA. Measuring DC and AC Voltage (See Figure 4)(See Figure 3)T HzV or V ΩCOM input terminal.2. Set the rotary switch to an appropriate measurement position in V or V range.3. Connect the test leads across with the object to be measured.The measured value shows on the display.(figure 4)WarningNever attempt an in-circuit current measurement where the open circuit voltage between terminals and ground is greater than 250V .If the fuse burns out during measurement, the Meter may be damaged or the operator himself may be hurt.WarningTo avoid damages to the Meter or to the devices under test, disconnect circuit power and discharge all the high-voltage capacitors before measuring resistance.The resistance ranges are:Model UT 58A/UT58B:200Ω,2k Ω,20k Ω,2M Ω,20M Ω and 200M Ω.Model UT 58C:200Ω, 2k Ω, 20k Ω, 2M Ω and 20M Ω.V Ω (UT58C)orV Ω COM terminal.2. Set the rotary switch to an appropriate measurement position in Ω range.3. Connect the test leads across with the object being measured.The measured value shows on the e proper terminals, function, and range for the measurement. When the testing leads are connected to the current terminals, do not parallel them across any circuit.The DC Current ranges are:Model UT58A/ UT58B: 20µA,2mA,20mA,200mA and 20A.Model UT58C: 2mA, 200mA, 20A The AC Current ranges are: 2mA, 200mA and 20ATo measure current, do the following:1.Turn off power to the circuit. Discharge all high- voltage capacitors.2. Insert the red test lead into the A or µAmA (UT58A) or mA (UT58B/UT58C) terminal and the black test lead into the COM terminal.3.Set the rotary switch to an appropriate measurement position in A or A range.4. Break the current path to be tested. Connect the red test lead to the more positive side of the break and the black test lead to the more negative side of the break.5. Turn on power to the circuit.The measured value shows on the display.(Figure 6)Note●The test leads can add 0.1to 0.2Ω of error to the slow- resistance measurement. To obtain accurate readings in low-resistance, short-circuit the input terminals beforehand and record the reading obtained (called this reading as X). (X) is the additional resistance from the test lead. Then use the equation:measured resistance value (Y) – (X)=accurate readings of resistance.●If the input terminal short-circuit reading 0.5,check the test leads for any looseness or other cause.●For high resistance (>1M Ω), it is normal taking several seconds to obtain a stable reading; select short test leads for stable and precise readings.●When the resistance is higher than the maximum range or in open circuit condition, the Meter displays “1”.●When resistance measurement has been completed, disconnect the connection between the testing leads and the circuit under test.WarningTo avoid damage to the Meter or to the equipment under test, disconnect circuit power and discharge all high-voltage capacitors before measuring diodes.To avoid harms to you, please do not attempt to input voltages higher than 60V DC or 30V rms AC.Use the diode test to check diodes, transistors, and other semiconductor devices. The diode test sends a current through the semiconductor junction, and then measures the voltage drop across the junction. A good silicon junction drops between 0.5V and 0.8VTo test out a diode out of a circuit, connect the Meter as follows:V Ω V Ω 3. component, place the red test lead on the component’sattention to.(See Figure 6)(See Figure 7)3. Remove the 3 screws from the case bottom, and Fused Protection for uA mA Input Terminals:G. Measuring TemperatureI. Measuring Frequency (UT58C Only)anode and place the black test lead on the component’s cathode.The measured value shows on the display.●The open-circuit voltage is around 3V.●When diode testing has been completed, disconnect the connection between the testing leads and the circuit under test.WarningTo avoid harms to you, please do not attempt to input voltages higher than 60V DC or 30V rms AC.To avoid damages to the Meter or to the devices under test, disconnect circuit power and discharge all the high-voltage capacitors before testing for continuity.To test for continuity, connect the Meter as below:VΩ (UT58C)orV Ω 2. Set the rotary switch to measured.4. The buzzer does not sound if the resistance of a circuit under test is >70ΩThe buzzer sounds continuously if the circuit is in good condition with resistance value 10Ω.The measured value shows on the display and the unit is Ω.forPOWERMaximum Voltage or Current between input Terminals and Grounding: According to different functional input protection value.● CE Version: 0.5A, 250V fast type, 5x20mm.●Maximum Display : 1999,updates 2~3 times/ second.●Range : Manual ranging.●Polarity display : Automatically ●Overloading : Display “1”.●Low Battery Indication : Display “ ”.●Temperature: Operating: 0C~40C (32F~104F);Storage : -10C~50C(14F~122F)●ElectromagneticCompatibility : In a radio field of 1 V/m,Overall Accuracy = SpecifiedAccuracy + 5% of Range;in a radio field of more than1 V/m, no assigned accuracyis specified.●Battery Type : One piece of 9V (NEDA1604 or 6F22 or 006P).●Dimensions : 179x88x39mm.●Weight : Approx.380g (including holster and battery)●Safety/Compliances : IEC61010 CAT II 1000V, CATIII 600V overvoltage●Certificate:●Relative Humidity : 75%@00C~300C;50%@300C~400CRemarks:●Input Impedance: approx.10M Ω.●Frequency response: 40Hz~1kHz< 500V; 40Hz~400Hz > 500VThe 500Hz reading is for reference●Display sinewave RMS value(AVG response)Accuracy SpecificationsAccuracy:(a% reading + b digits),guarantee for 1 year.Operating temperature:18C~28C.Relative humidity: 75%RH.Remarks:●At 20A Range:For continuous measurement 10 seconds and interval time between 2 measurement greater than 15 minutes.Remarks:●Frequency reaponse: 40Hz~400Hz●At 20A Range:For continuous measurement 10 seconds and interval time between 2 measurement greater than theK. Frequency ( UT58C only)Range Resolution Overload ProtectionAccuracy2kHz 1Hz 20kHz 10Hz±(1.5%+5) 250V ACMaintenanceThis section provides basic maintenance information including battery and fuse replacement instruction.WarningDo not attempt to repair or service your Meter unless you are qualified to do so and have the relevantcalibration, performance test, and service information.To avoid electrical shock or damage to the Meter, do not get water inside the case.A. General Service●Periodically wipe the case with damp cloth and mild detergent. Do not use chemical solvent.●To clean the terminals with cotton bar with detergent, as dirt or moisture in the terminals can affect readings.●Turn the Meter off when it is not in use and take out the battery when not using for a long time.●Do not store the Meter in place of humidity, high temperature, explosive, inflammable and strong magnetic fieldWarningTo avoid electrical shock or arc blast, or personal injury or damage to the Meter, use specified fuses ONLY in accordance with the following procedure.To replace the Meter’s fuse:1. Turn the Meter off and remove all connections from the terminals.2. Remove the holster from the Meter.3. Remove the 3 screws from the case bottom, and separate the case top from the case bottom.4. Remove the fuse by gently prying one end loose, then take out the fuse from its bracket.5.Install ONLY replacement fuses with the identical type and specification and make sure the fuse is fixed firmly in the bracket.Fuse: 0.5A, 250V, fast type,φ5x20mm6. Rejoin the case bottom and case top, and reinstall the 3 screws and holster.Replacement of the fuses is seldom required. Burning of a fuse always results from improper operation.C.Replacing the Battery (See Figure 10)To replace the Meter’s battery:1. Turn the Meter power off and remove all connections from the terminals.2. Remove the holster from the Meter.separate the case top from the case bottom.4. Remove the battery from the battery connector.5. Replace with a new 9V battery (NEDA1604, 6F22 or 006P).6. Rejoin the case bottom and case top, and reinstall the 3 screws and the holster.WarningTo avoid false readings, which could lead to possible electric shock or personal injury, replace the battery as soon as the battery indicator “ ” appears.** END **This operating manual is subject to change without notice.(See Figure 9)P/N:110401104226X DATE:2018.06.26 REV.8。
