直流无刷电机驱动器ATE33035(MC33035)使用说明

产品说明MC33035是高性能第二代单片无刷直流马达控制电路。

它包含实现开环、三相或四相马达控制所需的全部功能。

此电路包括转子位子检测器，温度补偿基准，锯齿波振荡器，三个集电极开路的高速驱动器，和三个高电流的图腾柱低速驱动器，适用于驱动功率MOSFET 管。

此控制器还包含一些有保护特点的电路，如欠电压锁定，时间延迟可选的周期接周期限流控制，内部过热保护电路和一个独特的故障输出，易于和微控制系统连接。

典型的马达控制功能包括开环速率，前进/后退方向，运行使能和动态制动。

MC33035是专门为电气相位为60°/300°或120°/240°的马达电路设计的，并能有效的控制无刷直流马达。

DIP-24SOP-24• 10 ~ 30 V 工作电压 • 欠电压锁定• 6.25 V 基准传感器工作电源 • 闭环伺服应用中的误差放大器• 高电流驱动，可控制外部三相MOSFET 电桥• 周期接周期限流控制 • 管脚输出的电流感应基准 • 内部过热保护电路• 60°/300°或120°/240°传感器相位可选 • 通过外部MOSFET 电桥可有效控制产品归类产品型号工作温度封装MC33035DW SOP–24 MC33035PTA =-40° to +85°CDIP-24管脚连接低速驱动输出传感器输入/PWN 输入°选择典型原理图此器件包含了285个有效的晶体管。

极限参数参数符号范围单位电源电压VCC 40 V数字输入(管脚3, 4, 5, 6, 22, 23) – VrefV 振荡器输入电流（源电流或陷电流）IOSC 30 mA 误差放大器输入电压范围(管脚 11, 12，注1)VIR –0.3 ~ Vref V误差放大器输出电流（源电流或陷电流，注2）IOut 10 mA 电流检测输入电压（管脚9，15）VSense –0.3~5.0V故障输出电压VCE(Fault) 20 V故障输出陷电流ISink(Fault) 20 mA高速驱动电压(管脚1, 2, 24) VCE(top) 40 V高速驱动陷电流(管脚1, 2, 24) ISink(top) 50 mA低速驱动工作电压(管脚 18) VC 30V 低速驱动输出电流（源电流或陷电流，管脚19, 20, 21）IDRV 100 mA 功率消耗和热特性DIP-24最大功耗@ TA = 85°C 过热电阻，结对空SOP-24最大功耗@ TA = 85°C 热敏电阻，结对空电阻PDRθJAPDRθJA86775650100mW°C/WmW°C/W工作结温TJ 150°C环境温度TA –40 ~ +85 °C贮存温度Tstg –65~+150°C电气特性(除非特别制定，否则VCC = VC = 20 V, RT = 4.7 k, CT = 10 nF, TA = 25°C)参数符号最小值典型值最大值单位基准部分基准输出电压(Iref = 1.0 mA) TA = 25°CTA = –40°~ +85°C Vref5.95.826.24–6.56.57V线路调整(VCC = 10~30 V, Iref = 1.0mA)Regline -- 1.5 30 mV负载调整(Iref = 1.0~20 mA) Regload -- 16 30 mV输出短路电流(注 3) ISC 40 75 – mA基准欠电压锁定阈值 Vth4.04.55.0V误差放大器输入偏移电压(TA = –40° ~ +85°C) VIO -- 0.4 10 mV输入偏移电流(TA = –40°∼+85°C) IIO -- 8.0 500 nA输入偏置电流(TA = –40° ~ +85°C) IIB -- -46 -1000 nA输入共模电压VICR (0 V ~ Vref) V开环电压增益(VO = 3.0 V, RL = 15 k) AVOL 70 80 -- dB输入共模抑制比 CMRR5586--dB 电源抑制比(VCC = VC = 10 to 30 V) PSRR 65 105 -- dB输出电压摆浮高电平状态(RL = 15 k to Gnd) 低电平状态(RL = 15 k to Vref)VOHVOL4.6–5.30.5–1.0V振荡单元振荡频率 fOSC222528kHz 频率随电压改变(VCC = 10~30 V) ∆fOSC/∆V – 0.01 5.0 %锯齿波峰值电压 VOSC(P)–4.14.5V锯齿波谷值电压 VOSC(V)1.21.5–V逻辑输入输入阈值电压(管脚3, 4, 5, 6, 7, 22, 23)高电平状态低电平状态VIHVIL3.0--2.21.7--0.8V传感器输入(管脚4, 5, 6)高电平输入电流(VIH = 5.0 V) 低电平输入电流(VIL = 0 V)IIHIIL-150-600-70-337-20-150µA前进/后退，60°/120°可选(管脚3, 22, 23)高电平输入电流(VIH = 5.0 V) IIHIIL-75-300-36-175-10-75µA低电平输入电流(VIL = 0 V)输出使能高电平状态输入电流(VIH = 5.0 V) 低电平状态输入电流VIL =0V IIHIIL-60-60-29-29-10-10µA限流比较仪阈值电压 Vth85101115mV 输入共模电压 VICR--3.0--V输入偏置电流 IIB---0.9-5.0µA输出和电源单元高速驱动输出饱和陷电压(Isink = 25 mA) -- 0.51.5 V高速驱动输出关闭状态漏电流(VCE = 30 V) -- 0.06100 µA高速驱动输出转换时间(CL = 47 pF, RL = 1.0 k)上升时间下降时间trtf––10726300300ns低速驱动输出电压高电平状态(VCC = 20 V, VC = 30 V, Isource = 50 mA)低电平状态(VCC =20V, VC = 30V, Isink = 50 mA) VOHVOL(VCC-2.0)--(VCC-1.1)1.5--2.0V故障输出饱和陷电压(Isink = 16 mA) VCE(sat) -- 225 500 mV 故障输出关闭状态漏电流(VCE = 20 V)IFLT(leak) -- 1.0 100 µA欠电压锁定驱动输出允许 (VCC 或VC 增加)滞后Vth(on)VH8.20.18.90.2100.3V电源电流管脚17 (VCC = VC = 20 V)管脚17 ( VCC = 20 V, VC = 30 V) 管脚18 ( VCC = VC = 20 V)管脚18 (VCC = 20 V, VC = 30 V) ICCIC--------12143.55.01620 06.010mA注： 1.输入共模电压或输入信号电压不能低于-0.3V。

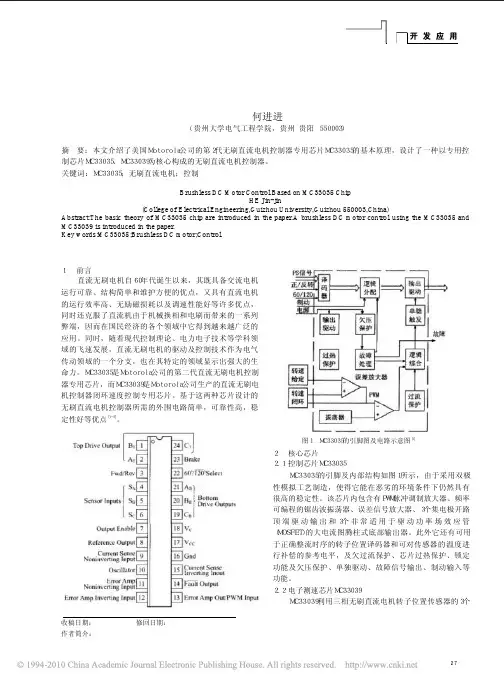

开 发 应 用基于ＭＣ３３０３５的无刷直流电机控制器何进进（贵州大学电气工程学院，贵州 贵阳 ５５０００３） 摘 要：本文介绍了美国Ｍｏｔｏｒｏｌａ公司的第２代无刷直流电机控制器专用芯片ＭＣ３３０３５的基本原理，设计了一种以专用控 制芯片ＭＣ３３０３５、ＭＣ３３０３９为核心构成的无刷直流电机控制器。

关键词：ＭＣ３３０３５；无刷直流电机；控制 Brushless DC Motor Control Based on MC33035 Chip HE Jin-jin (College of Electrical Engineering,Guizhou University,Guizhou 550003,China) Abstract:The basic theory of MC33035 chip are introduced in the paper.A brushless DC motor control using the MC33035 and MC33039 is introduced in the paper. Key words:MC33035;Brushless DC motor;Control１前言 直流无刷电机自６０年代诞生以来，其既具备交流电机运行可靠、结构简单和维护方便的优点，又具有直流电机 的运行效率高、无励磁损耗以及调速性能好等许多优点， 同时还克服了直流机由于机械换相和电刷而带来的一系列 弊端，因而在国民经济的各个领域中它得到越来越广泛的 应用。

同时，随着现代控制理论、电力电子技术等学科领 域的飞速发展，直流无刷电机的驱动及控制技术作为电气 传动领域的一个分支，也在其特定的领域显示出强大的生 命力。

ＭＣ３３０３５是Ｍｏｔｏｒｏｌａ公司的第二代直流无刷电机控制 器专用芯片，而ＭＣ３３０３９是Ｍｏｔｏｒｏｌａ公司生产的直流无刷电 机控制器闭环速度控制专用芯片。

基于这两种芯片设计的 无刷直流电机控制器所需的外围电路简单，可靠性高，稳 定性好等优点［１－２］。

前言本款产品适合驱动持续工作电流在10A以下、额定电压范围在12V～40V之间的任何一款三相直流无刷霍尔电机。

具有免维护、长寿命、低速下总能保持最大转矩等优势。

本产品广泛应用于针织设备、医疗设备、食品机械、电动工具、园林机械、智能家居等电气自动化控制领域。

本手册阐述了该驱动器的的功能、安装、调试、维护、运行等方面的内容。

使用产品前，请认真阅读本手册并熟知本产品的安全注意事项。

在使用本款产品时，若有疑问，请仔细查阅产品说明书或致电我公司售后服务部，我们将竭诚为您服务。

安全注意事项警示标志：危险：表示该操作错误可能危及人身安全！注意：表示该操作错误可能导致设备损坏！注意事项：安装：防止灰尘、腐蚀性气体、导电物体、液体及易燃物侵入，并保持良好的散热条件。

接线：请由专业人员仔细阅读完使用说明之后进行接线作业；接线必须在电源断开的状态下进行，防止电击。

通电前：接通电源前检查并保证接线的准确无误；请确认输入电源与驱动器的额定工作电压及极性是否一致；通电中：驱动器接通电源后，请勿直接接触输出端子，有的端子上有高电压，非常危险；请确保在驱动器指示灯熄灭后再对驱动器的接线端子进行插拔；请勿对驱动器随意进行耐高压与绝缘性能试验；请勿将电磁接触器、电磁开关接到输出回路。

目录前言 (1)安全注意事项 (2)目录 (3)一．概述 (5)1．型号说明 (5)2．功能参数 (5)3．功能特点 (6)二．端口说明 (7)1．接口定义 (7)2．接线示意图 (8)3．安装尺寸 (9)三．功能与使用 (10)1．出厂说明 (10)2．操作步骤说明 (10)2.1外置电位器调速 (11)2.2外部电压调速 (11)2.3外部PWM信号调速 (11)2.4CAN总线控制 (11)3．功能端子说明 (12)3.1F/R端子：正反转功能 (12)3.2EN端子：使能功能 (12)3.3BRK端子：刹车抱死功能 (12)3.4SV端子：外部调速端子 (13)3.5PG端子：电机转速信号输出 (13)3.6ALM端子：报警输出 (13)3.7PWR/ALM：指示灯 (14)一．概述本款驱动器适用于对直流无刷有霍尔电机进行转速控制，其最大的优点是在低速时总能控制电机保持最大转矩。

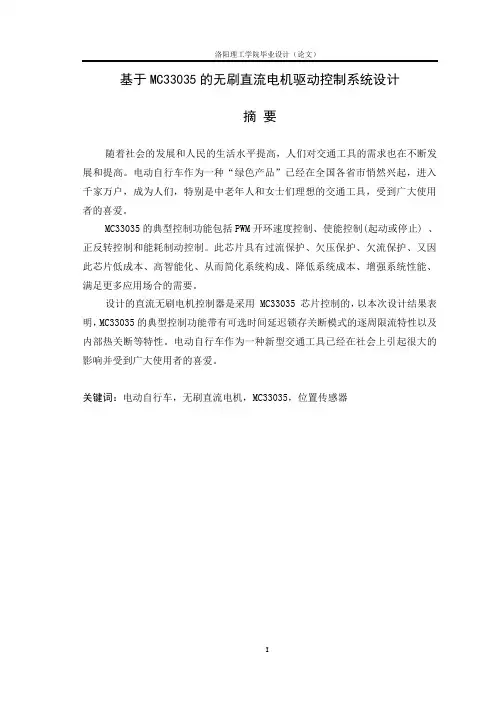

基于MC33035的无刷直流电机驱动控制系统设计摘要随着社会的发展和人民的生活水平提高，人们对交通工具的需求也在不断发展和提高。

电动自行车作为一种“绿色产品”已经在全国各省市悄然兴起，进入千家万户，成为人们，特别是中老年人和女士们理想的交通工具，受到广大使用者的喜爱。

MC33035的典型控制功能包括PWM开环速度控制、使能控制(起动或停止) 、正反转控制和能耗制动控制。

此芯片具有过流保护、欠压保护、欠流保护、又因此芯片低成本、高智能化、从而简化系统构成、降低系统成本、增强系统性能、满足更多应用场合的需要。

设计的直流无刷电机控制器是采用 MC33035 芯片控制的，以本次设计结果表明，MC33035的典型控制功能带有可选时间延迟锁存关断模式的逐周限流特性以及内部热关断等特性。

电动自行车作为一种新型交通工具已经在社会上引起很大的影响并受到广大使用者的喜爱。

关键词：电动自行车，无刷直流电机，MC33035，位置传感器THE BRUSHLESS DC MOTOR DRIVE SYSTEM DESIGNBASED ON MC33035 CHIPABSTRACTWith the rapid development of technology, new energy technologies in recent years have been widely used. For example, the small size, light weight, high efficiency, low noise, large capacity and high reliability features such as permanent magnet brushless DC motor-driven bike.MC33035 Typical control functions include open loop PWM speed control so that it can control (start or stop), reversing control and braking control. This chip is overcurrent protection, undervoltage protection, under current protection, and therefore chip cost, high intelligence, which simplifies the system structure, lower system costs, increase system performance to meet the needs of more applications.The design of the brushless DC motor controller is controlled by MC33035 chip to this design results show that, MC33035 typical time delay control with an optional latch-by-week shutdown mode current limiting characteristics, and internal thermal shutdown characteristics. Electric bicycles as a mode of transportation has caused a great impact on society and loved by the majority of users.KEY WORDS: electric-bicycle, brushless DC motor, MC33035, position sensors目录前言 (1)第1章电动自行车简介 (2)1.1 电动自行车的发展 (2)1.1.1 电动自行车的发展前景 (2)1.1.2 电动自行车的未来 (2)1.2 电动自行车的结构 (3)1.3 电动自行车的动力分析 (5)第2章电动自行车无刷电机原理分析 (7)2.1 电动自行车无刷直流电动机的发展 (7)2.2 无刷直流电机（BLDCM）的基本结构与工作原理 (7)2.2.1 无刷直流电机的工作原理 (8)2.2.2 无刷直流电机的基本结构 (10)2.3 直流无刷电机的控制原理 (11)第3章电动自行车控制器单元电路分析 (13)3.1 电动自行车控制器的功能 (13)3.2 无刷电机控制器单元电路分析 (14)3.2.1 无刷直流电机调速原理 (14)3.2.2 速度调速器的结构 (15)3.2.3 速度把 (17)3.3 限速电路 (20)3.4 刹车电路 (21)3.5防飞车电路 (23)3.6 巡航电路 (24)第4章无刷直流电机MC33035芯片及其工作原理 (25)4.1 MC33035芯片介绍 (25)4.2 MC33035芯片内部功能 (27)4.3 MC33035芯片的内部结构及工作原理 (29)4.3.1 MC33035芯片的内部结构及特点 (29)4.3.2 MC33035芯片的工作原理 (31)第5章基于MC33035芯片的电动自行车控制器电路 (33)5.1电动自行车控制器的研究及发展 (33)5.2 基于MC33035芯片的无刷控制器电路 (35)5.2 三相六步电机控制电路 (37)5.3 有刷电机控制电路 (39)结论 (42)谢辞 (43)参考文献 (44)外文资料翻译 (46)前言当交通拥堵、空气污染日益成为困扰现代都市的老大难问题时，电动自行车作为一种环保、便捷、健康的绿色交通工具应运而生。

直流无刷电机工作原理与控制方法用A TE33035（替代MC33035）可以很方便的控制直流无刷电机。

直流无刷电机既具有交流电机的结构简单、运行可靠、维护方便等优点，又具备直流电机的运行效率高、无励磁损耗以及调速性能好等优点。

由于传统的直流电机均采用电刷以机械方法进行换向，因而存在相对的机械摩擦，由此带来了噪声、火化、无线电干扰以及寿命短等缺点。

随着电力电子工业的飞速发展，许多高性能半导体功率器件，如GTR、MOSFET、IGBT、IPM 等相继出现，以及高性能永磁材料的问世，均为直流无刷电机的广泛应用奠定了坚实的基础。

直流无刷永磁电机的基本组成：主要由电机本体、位置传感器和电子开关电路三部分组成。

其定子绕组一般制成多相（三相、四相、五相不等），转子由永久磁钢按一定极对数（p=2,4,…）组成。

图1. 三相两极直流无刷电机组成三相定子绕组分别连接到电子开关线路中相应的功率开关器件，A、B、C相绕组分别与功率开关管V1、V2、V3相接。

位置传感器跟踪与电机转子转轴相连接的部件。

此处采用光电器件作为位置传感器，以三只功率晶体管V1、V2和V3构成功率逻辑单元。

三只光电器件VP1、VP2和VP3的安装位置各相差120度，均匀分布在电动机一端。

借助安装在电机轴上的旋转遮光板的作用，使从光源射来的光线依次照射在各个光电器件上，并依照某一光电器件是否被照射到光线来判断转子磁极的位置。

常见的位置传感器有以下几种：电磁式位置传感器、光电式位置传感器、磁敏式位置接近传感器。

当定子绕组的某一相通电时，该电流与转子永久磁钢的磁极所产生的磁场相互作用而产生转矩，驱动转子旋转，再由位置传感器将转子磁钢位置变换成电信号，去控制电子开关线路，从而使定子各项绕组按一定次序导通，定子相电流随转子位置的变化而按一定的次序换相。

由于电子开关线路的导通次序是与转子转角同步的，因而起到了机械换向器的换向作用。

图2. 各相绕组的导通示意图三相永磁无刷直流电机转子位置传感器输出信号VP1、VP2、VP3在每360 电角度内给出了6个代码，按其顺序排列，6个代码是101、100、110、010、011、001。

无刷直流电机控制器MC33035的原理及应用无刷直流电机控制器MC33035的原理及应用摘要：MC33035是美国安森美公司开发的高性能第二代单元无刷直流电机控制器，它包含开环三相或四相电机控制所需的全部有效功能。

该器件由具有良好整流序列的转子位置译码器、可提供传感器功率的温度补偿参考、频率可编程的锯齿波振荡器、完全可访问的误差放大器以及三个非常适用于驱动大功率MOSFET的大电流推挽底部驱动器组成，因而是一种功能齐全的电机控制器。

文中介绍了MC33035的特点功能和工作原理，给出了由它组成的三相六步全波电机控制和H型电机有刷控制等两种电机控制电路。

关键词：无刷直流电机控制 MC330351 概述MC33035无刷直流电机控制器采用双极性模拟工艺制造，可在任何恶劣的工业环境条件下保证高品质和高稳定性。

该控制器内含可用于正确整流时序的转子位置译码器，以及可对传感器的温度进行补偿的参考电平，同时它还具有一个频率可编程的锯齿波振荡器、一个误差信号放大器、一个脉冲调制器比较器、三个集电极开路顶端驱动输出和三个非常适用于驱动功率场效应管（MOSFET）的大电流图腾柱式底部输出器。

此外，MC33035还有欠锁定功能，同时带有可选时间延迟锁存关断模式的逐周限流特性以及内部热关断等特性。

其典型的电机控制功能包括开环速度、正向或反向、以及运行使能等。

2 管脚排列及功能定义MC33035的管脚排列如图1所示，各引脚功能定义见表1。

表1 MC33035的管脚功能定义定管脚编号符号功能定义1，2，24 BT，AT，CT 三个集电极开路顶端驱动输出，用于驱动外部上端功率开关晶体管3 Fwd/Rev 正向/反向输入，用于改变电机转向4，5，6 SA,SB,SC 三个传感器输入，用于控制整流序列7 Ooutput Enable 输出使能，高电平有效。

该脚为高电平时，可使电机动8 Reference Output 此输出为振荡器定时电容CT提供充电电流，并为误差放大器提供参考电压，也可以向传感器提供电源表2 三相六步换向器真值表输入60度SA SB SC 120度SA SB SC 正向/反向使能电流检测顶部驱协AT BT CT 底部驱动AB BB CB1 0 0 1 0 0 1 1 01 1 0 1 1 0 1 1 01 1 1 0 1 0 1 1 00 1 1 0 1 1 1 1 00 0 1 0 0 1 1 1 00 0 0 1 0 1 1 1 01 0 0 1 0 0 0 1 01 1 0 1 1 0 0 1 01 1 1 0 1 0 0 1 00 1 1 0 1 1 0 1 00 0 1 0 0 1 0 1 00 0 0 1 0 1 0 1 01 0 1 1 1 1 X X X0 1 0 0 0 0 X X XV V V V V V X 0 X V V V V V V X 1 X 表中,V表示六个有效传感器或驱动组合中的一个，X表示无关；输入逻辑0定义为小于85mV，逻辑1为于115mV3 工作原理MC33035的内部结构框图如图2所示。

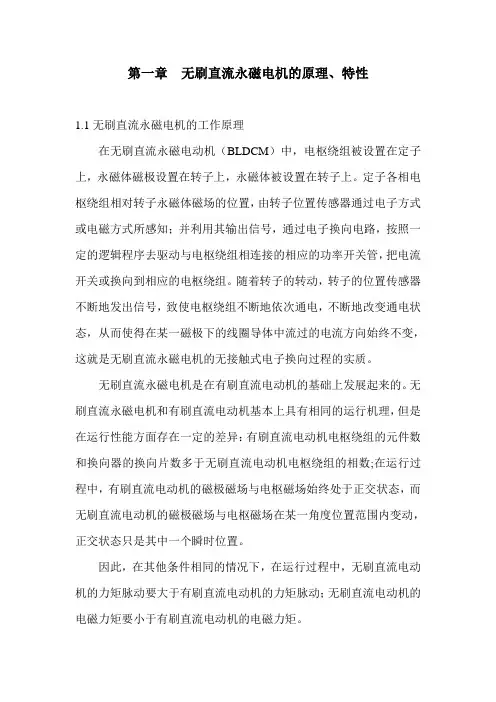

第一章无刷直流永磁电机的原理、特性1.1无刷直流永磁电机的工作原理在无刷直流永磁电动机（BLDCM）中，电枢绕组被设置在定子上，永磁体磁极设置在转子上，永磁体被设置在转子上。

定子各相电枢绕组相对转子永磁体磁场的位置，由转子位置传感器通过电子方式或电磁方式所感知；并利用其输出信号，通过电子换向电路，按照一定的逻辑程序去驱动与电枢绕组相连接的相应的功率开关管，把电流开关或换向到相应的电枢绕组。

随着转子的转动，转子的位置传感器不断地发出信号，致使电枢绕组不断地依次通电，不断地改变通电状态，从而使得在某一磁极下的线圈导体中流过的电流方向始终不变，这就是无刷直流永磁电机的无接触式电子换向过程的实质。

无刷直流永磁电机是在有刷直流电动机的基础上发展起来的。

无刷直流永磁电机和有刷直流电动机基本上具有相同的运行机理，但是在运行性能方面存在一定的差异：有刷直流电动机电枢绕组的元件数和换向器的换向片数多于无刷直流电动机电枢绕组的相数;在运行过程中，有刷直流电动机的磁极磁场与电枢磁场始终处于正交状态，而无刷直流电动机的磁极磁场与电枢磁场在某一角度位置范围内变动，正交状态只是其中一个瞬时位置。

因此，在其他条件相同的情况下，在运行过程中，无刷直流电动机的力矩脉动要大于有刷直流电动机的力矩脉动；无刷直流电动机的电磁力矩要小于有刷直流电动机的电磁力矩。

1.2电子换向在无刷直流永磁电动机中，来自转子位置传感器的信号，经处理后按照一定的逻辑程序，驱使某些与电枢绕组相连接的功率开关晶体管在某一瞬间到通或截止，迫使某些原来没有电流的电枢绕组开始流通电流，某些原来有电流的电枢绕组内开始关断电流或改变电流的流通方向，从而迫使电子磁状态的产生变化。

我们把这种利用电子电路来实现电枢绕组内电流变化的物理过程称为电子换向。

每换流一次，定子磁状态就改变一次，连续不断地换流，就会在工作气隙内产生一个跳跃式的旋转磁场。

在此情况下，永磁体磁场和电枢磁场之间的相互关系如图1.1所示。

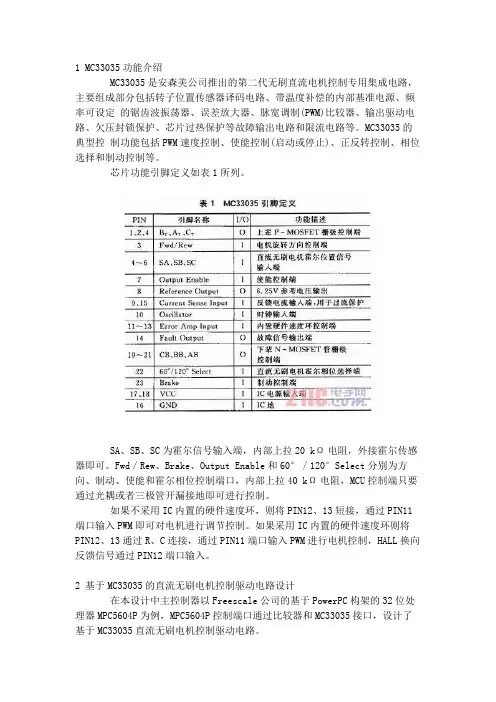

1 MC33035功能介绍MC33035是安森美公司推出的第二代无刷直流电机控制专用集成电路，主要组成部分包括转子位置传感器译码电路、带温度补偿的内部基准电源、频率可设定的锯齿波振荡器、误差放大器、脉宽调制(PWM)比较器、输出驱动电路、欠压封锁保护、芯片过热保护等故障输出电路和限流电路等。

MC33035的典型控制功能包括PWM速度控制、使能控制(启动或停止)、正反转控制、相位选择和制动控制等。

芯片功能引脚定义如表1所列。

SA、SB、SC为霍尔信号输入端，内部上拉20 kΩ电阻，外接霍尔传感器即可。

Fwd／Rew、Brake、Output Enable和60°／120°Select分别为方向、制动、使能和霍尔相位控制端口，内部上拉40 kΩ电阻，MCU控制端只要通过光耦或者三极管开漏接地即可进行控制。

如果不采用IC内置的硬件速度环，则将PIN12、13短接，通过PIN11端口输入PWM即可对电机进行调节控制。

如果采用IC内置的硬件速度环则将PIN12、13通过R、C连接，通过PIN11端口输入PWM进行电机控制，HALL换向反馈信号通过PIN12端口输入。

2 基于MC33035的直流无刷电机控制驱动电路设计在本设计中主控制器以Freescale公司的基于PowerPC构架的32位处理器MPC5604P为例，MPC5604P控制端口通过比较器和MC33035接口，设计了基于MC33035直流无刷电机控制驱动电路。

传统的直流无刷电机控制驱动电路采用MPC5604P、预驱动IC和MOSFET 实现，其中包括电压泵即自举电路。

本设计是基于直流无刷电机控制芯片MC33035实现的，MC33035实现预驱动和电子自动换向功能，采用MC33035实现直流无刷电机的控制驱动电路，既简化了电路设计，同时也减轻了MPC5604P 的运算量。

MPC5604P和MC33035之间通过光耦或者比较器实现电平转换。

丹东奥拓电子有限公司 201505 ATE/QB 01.06-2015 共1页 第1页 技术交流

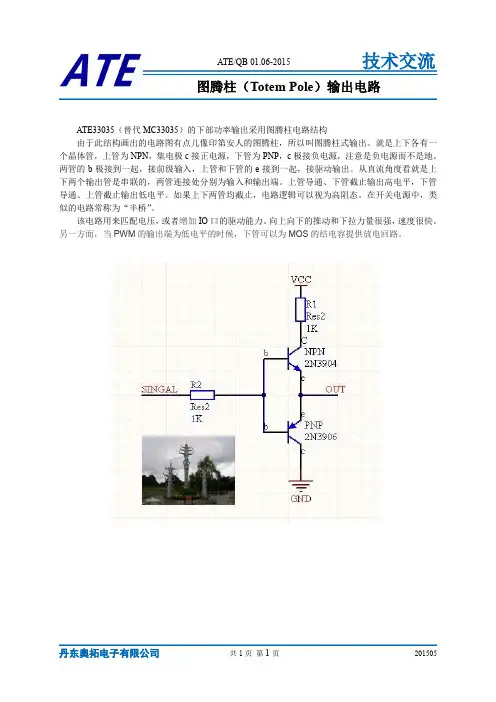

ATE33035（替代MC33035）的下部功率输出采用图腾柱电路结构
由于此结构画出的电路图有点儿像印第安人的图腾柱，所以叫图腾柱式输出。

就是上下各有一个晶体管，上管为NPN ，集电极c 接正电源，下管为PNP ，c 极接负电源，注意是负电源而不是地。

两管的b 极接到一起，接前级输入，上管和下管的e 接到一起，接驱动输出。

从直流角度看就是上下两个输出管是串联的，两管连接处分别为输入和输出端。

上管导通、下管截止输出高电平，下管导通、上管截止输出低电平。

如果上下两管均截止，电路逻辑可以视为高阻态。

在开关电源中，类似的电路常称为“半桥”。

该电路用来匹配电压，或者增加IO 口的驱动能力。

向上向下的推动和下拉力量很强，速度很快。

另一方面，当PWM 的输出端为低电平的时候，下管可以为MOS 的结电容提供放电回路。

图腾柱（Totem Pole ）输出电路。

MC33035是MOTOROLA公司第二代无刷直流电动机控制专用集成电路，外接功率开关器件和电子测速器MC33039，可构成闭环调速系统来控制三相（全波或半波）、两相或四相无刷直流电机。

它通过下侧半桥输出PWM对电机进行调速。

2MC33035的功能和组成2．1功能——可控制电机正反转；——实现电机刹车制动；——启停功能；——可选择三相无刷直流电机传感器相位差60°或120°；——欠压封锁保护，IC过热保护和故障输出。

2．2组成——转子位置传感器译码电路；——限流电路；——具有温度补偿的6.24V内部基准电源；——RT、CT可变锯齿波振荡电路；——脉宽调制比较器；——误差放大器；——输出驱动电路；——欠压、过热保护以及故障电平输出。

2．3引脚功能参见表1。

表 1 MC33035的引脚功能3MC33035的应用图1是MC33035与MC33039构成的闭环三相无刷直流电机控制电路图。

其电路各部分功能介绍：1）脚4、5、6是传感器位置信号输入，MC33035通过对输入位置信号译码对应输出驱动电机。

这三个信号与TTL电平兼容。

当输入全“0”或“1”表示非法信号。

故障输出端（引脚14）输出有效低电平。

通过选择引脚22来确定输入三相信号相位差为60°还是120°。

2）阻容RT、CT与内部振荡器产生锯齿波，作为PWM载波信号。

锯齿波幅值为1.5V～4.1V。

为防止噪声干扰，载波频率不宜过低，但频率太高容易使功率管过热，建议载波频率为20kHz～30kHz。

锯齿波是由引脚8输出6.24V参考电压经RT对CT充电，通过内部电路放电所产生。

由引脚11给定速度电压以及来自MC33039引脚5的速度方波信号经积分形成斩波信号与锯齿波形成PWM，参见图2，CT、误差输出PWM、内部锁存、上桥、下桥、错误信号对应时间关系如图3。

构成闭环的主要原理是当负载改变（如变大），则电机速度下降，测速器MC33039引脚5输出方波密度变低，此信号经积分形成斩波信号后幅值抬高，则使输出PWM占空比加大，输出电流增加，自然速度逐渐提高，以达到输出跟踪输入。
