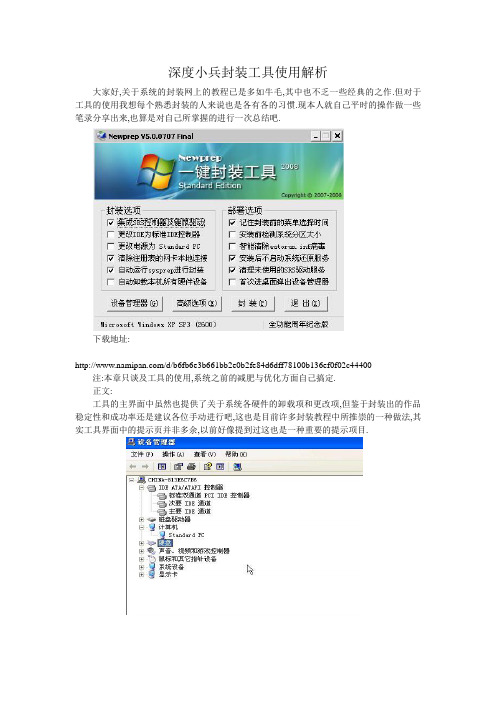

深度小兵封装工具使用解析大家好,关于系统的封装网上的教程已是多如牛毛,其中也不乏一些经典的之作.但对于工具的使用我想每个熟悉封装的人来说也是各有各的习惯.现本人就自己平时的操作做一些笔录分享出来,也算是对自己所掌握的进行一次总结吧.下载地址:/d/b6fb6e3b661bb2e0b2fe84d6dff78100b136ef0f02c44400 注:本章只谈及工具的使用,系统之前的减肥与优化方面自己搞定.正文:工具的主界面中虽然也提供了关于系统各硬件的卸载项和更改项,但鉴于封装出的作品稳定性和成功率还是建议各位手动进行吧,这也是目前许多封装教程中所推崇的一种做法,其实工具界面中的提示页并非多余,以前好像提到过这也是一种重要的提示项目.在此还是有必要说明:卸载驱动时,提示你是否重启,切记不要点击"是". "系统设备"这一项不需要进行设置操作!第一:先运行小兵封装工具,会自动在系统盘创建SYSPREP 文件夹,并自动生成所需的微软部署工具以及自动应答文件这个考虑的很周到,比自由天空等一些封装工具要方便一些.其中NEWPREP.INI 就是该封装工具所生成的配置文件,系统部署以及所调用的一些工具都要写入该文件里.接着将准备好调用的工具放入SYSPREP 这个文件夹里.注:该文件夹下的所有文件将在系统部署后自动删除,所以对于登陆系统后所要调用可修改注册名和作品单位或者你保持默认得了 这个是计算机名,星号标示随机产生,不过一般都是通过封装工具使其以系统安装的日期来自动命名.,在此可保持不变.的工具,要记得放在系统盘中的其他位置.点击高级选项,进入封装主界面中,分别调用系统在部署的每个阶段中所需要的各类工具.在这里我需要说明的是,不同的封装工具所集成的项目也是大同小异的,唯有细节上注意就行了.为了便于大家的理解,我再次简单的说明一下:PCNAME--------根据时间给计算机命名的,这个最好在系统部署前调用.DRIVERS这个是调用了自由天空的驱动包和自带的驱动选择工具关于注册后运行的程序一般是为了封装出的系统体积在预算的范围之内事先进行了极限压缩.而在系统部署后解压的.一般是系统盘中安装程序所在的目录:Program files以及其他体积较大的安装程序,如OFFICE.我为了节省时间,所以随意的调用了些工具和打包好的常用绿色工具.大家见谅啊,关键是工具的使用.呵呵.SRSFINISHER这个是多余磁盘控制器驱动服务的清理工具,是调用自由天空的.虽然小兵的也可以,但是没有可视化界面,自己觉得不爽!首次进系统的这几个项目中:AUTOSC这个工具是为了自动设定分辨率的,小兵的工具中没有集成这个,哎,还是可以了,没有太完美的东西吗!你说呢???呵呵显示系统隐藏文件这个是批处理文件,为右键添加了此功能.很方便,但是需要注意的是尽量在系统登录后调用,因为在此之前封装工具可能给清理了.删除驱动这个工具就不用多说了吧,目的也是为了删除驱动包自解压后用过的文件,有提示,你也可以保留的.最后不要忘记再系统的SYSTEM32文件夹中放入一张自己喜欢的图片啊.一定是SETUP名和JPG格式的!!!!!!好了,最后再次检查无误后就可以回到主界面点击封装了..封装过后,我们再看看其中的配置文件.这仅仅是其中的一部分,小兵的封装工具中许多功能都没有显示出来,其实我们均可在其中的配置文件中加以更改就可以了.关于更多配置文件的详细解析,大家可以查看我所打包的在其他网站上发的忒子.谢谢关于DLLCACHE的文件备份如果你事先已经清除了,那么就没有必要进行此操作了.最后还原一些系统原有的设置,进入PE系统在进行一次垃圾的清理,比如WINDOWS下的.LOG文件的清理.进行GHOST -Z9最大压缩备份后,就可以了.关于容量问题,以后讨论.本章主要介绍的是小兵封装工具的使用,封装中所牵扯到的其他问题,比如如何使用7Z 极限压缩打包后自释放到指定的目录里,如何优化等将在以后的章节中为大家详细讲解.希望大家多提意见,我会不断的完善.。
Arbin软件使用简介本文档就测试的一般流程做一简单介绍.一:编写流程文件.1.打开软件如图2.右击Schedule文件夹点击New Schedule Files新建流程文件3:双击打开流程文件,编辑完后点击保存按钮即可4:进行安全保护设置(重要)设置好安全保护后,Schedule编写完成.二:加载流程文件(schedule).1:点击软件主界面中火箭图标.2:弹出两个窗口(监视控制窗口和DAQ)3:监视控制窗口中,在相应的通道号上鼠标右击Schedule Name对应的方格,再左击Assign 选项,在弹出的窗口中,将编辑好的流程文件加载进来。
(例如要在第2通道上做测试)三:连接机器上对应的通道线,I+ V+接电池正极,I- V-接电池负极.四:设置主机IP地址五:接好电池后,便可开始测试.在弹出的窗口中,输入结果数据文件的名字(如下图),最后点击OK按钮,测试正式开始。
如果测试运行中,想要暂停测试,可以点击工具栏上的按钮。
暂停测试后,如果想恢复测试,那么点击按钮,在弹出的窗口中,点击OK按钮确认即可恢复测试.六:data watcher(查看数据)1:打开data watcher 2实时更新图形:3:设置坐标量程点击data实时显单击Chartsetting:Enable Zoom4:保存当前图形对当前图拍照截七:导出Excel表格1:单击Launch Excel单击Launch 2:单击Add-Ins3:单击Import Data 4:选择数据源和表格形式单击单击Import选择文设置输出路输出表5:表格导出完成控制类型介绍.1.搁置 rest.例搁置30秒(DV_Time≥1表示1秒钟采一个点):2.恒流充电或放电 Current(A)(正表示充电,负表示放电).例 1A充电至1A 放电至3.恒压 Voltage(V) (一般接在恒流之后使用)例恒压截止电流为.4.倍率充电或放电 C-Rate (正为充电,负为放电)例在第1通道做1Ah电池5倍率充电至测试做倍率测试,首先要在batch文件设置被测电池的容量.双击Batch Files 文件夹下面的文件,在对应的通道Capacity(Ah)填入被测电池容量.倍率测试其实可以直接用恒流来做,转化为相应的恒流即可.如1Ah的电池用5倍率充电,相当于用恒流1×5=5A 充电.5.恒功率充电或放电Power(W). (正为充电,负为放电).例 50W恒功率将电池充电至.50W恒功率将电池放电至.6.恒负载放电 Load(Ohm)例电池对10欧姆恒负载放电至7.设置循环 Set Variable(s)例第1步至第3步循环50次8.电流斜坡 Current Ramp(A) (注意斜率可正可负)例起始为1A,斜率为的电流斜坡对电池充电15秒.例秒时间,电流从1A上升到73A.这种情况的话,我们要自行计算它的斜率.dI/sec=(73-1)/=40有两种设定方法(推荐使用第2种,控制更稳定):9.电压斜坡 Voltage Ramp(V) (注意电压一般只为正)与电流斜坡基本一致,不再赘述.10.电流阶梯Current Staircase(A)例阶梯电流初始为1A,每3S增加2A,对电池充电15S.11.电压阶梯 Voltage Staircase(V)与电流阶梯基本一致,不再赘述.12.直流内阻 Intrenal Resistance例用振幅为5,脉宽为10ms的脉冲测内阻.如果将上述schedule中的Offset:0改为 Offset:3,则图像相对于X轴整体上移3个单位,如下图:13.恒流恒压 CCCV 和CCCP(建议使用CCCV)例恒流1A充至恒压,截止电流为.CCCP设置与CCCV一致,不再赘述.截止条件介绍.1.当前步运行时间 PV_CHAN_Step_Time例搁置15秒,就是说,该步以时间作为截止条件.2.当前电流值 PV_CHAN_Current (一般用于恒压作为截止条件)如恒压,截止电流为.3.当前电压值 PV_CHAN_Voltage(即当前电池电压)例 1A充电至或1A放电至4.当前测试时间 PV_CHAN_Test_Time (用得较少)从测试开始计时. 必须每步都添加此条件.例测试运行30分钟就停止,不管当前在运行那一步.(例子为充电,搁置,放电3步)注意Goto Step 项选的是End Test.点击下图中下拉菜单中的More,将有更多的截止条件.因为大都是不常用的,不一一介绍,如果需要用到,可电话或E-mail联系我们.采点条件介绍.1.按时间间隔采点 DV_Time例搁置15秒,每隔1秒采一个点.2.按电流的变化量采点 DV_Current例恒压,截止电流为,每1秒采一个点,另外,电流每增加或减少采一个点.3.按电压的变化量采点 DV_Voltage例恒流1A充至,每1秒采一个点,另外,电压每升高或降低采一个点.特别注意:在编写Schedule的时候,很多控制类型都要选择电流量程(Current Range)。
neusar使用手册
Neusar是一个功能强大的软件,它提供了许多功能和工具,以帮助用户更高效地管理和分析数据。
以下是Neusar的使用手册,包括安装、基本功能和高级功能的介绍。
1. 安装Neusar.
下载Neusar安装程序并双击运行。
按照安装向导的指示完成安装过程。
安装完成后,打开Neusar软件。
2. 基本功能。
数据导入,Neusar支持导入各种格式的数据,如CSV、Excel等。
用户可以通过简单的操作将数据导入到Neusar中。
数据管理,Neusar提供了数据筛选、排序、删除等功能,帮助用户更好地管理数据。
数据分析,Neusar内置了各种数据分析工具,用户可以通过这些工具进行数据分析和可视化。
3. 高级功能。
数据建模,Neusar支持数据建模和预测分析,用户可以利用这些功能进行复杂的数据分析。
数据挖掘,Neusar提供了数据挖掘工具,帮助用户发现数据中的隐藏模式和规律。
自定义功能,Neusar还支持用户自定义功能和脚本编程,用户可以根据自己的需求扩展Neusar的功能。
总结,Neusar是一款功能丰富的数据管理和分析软件,它提供了丰富的功能和工具,帮助用户更高效地进行数据管理和分析。
通过本使用手册的介绍,用户可以快速上手Neusar,并充分利用其强大的功能。
希望以上内容能够帮助你更好地了解Neusar软件的使用方法。
ARLEQUIN 使用说明引言Arlequin是一款优秀的人类遗传学数据分析软件,其名字来源于法语“Arlecchino”,是一个十七世纪意大利著名喜剧人物的名字。
这个喜剧人物具有多个面目,可以根据需要,多个角色之间轻而易举的相互转变。
Arlequin软件包如此取名,大概是为了说明此款软件能够满足遗传分析方面的需求。
Arlequin软件包提供了许多方法和统计学检验来从遗传学和人口统计学数据(如大量的分子序列数据和传统的等位基因频率等)中挖掘信息。
Arlequin 软件有着友好的Java图形操作界面,便于使用者操作。
Arlequin软件包由Stefan Schneider、David Roessil和Laurent Excoffier三人完成。
Arlequin软件包下载和升级的网址为:http://anthro.unige.ch/arlequin。
下载后的Arlequin软件包基本由Arlequin20_zip.exe 和jre117-win32.exe组成,在运行Arlequin程序之前,需要先安装jre117-win32.exe。
Arlequin20_zip.exe 是个自解压的程序,点击此程序将文件释放到所选择的目录,就可以运行了。
在上述网址还提供了一个升级包arlpatch2001.zip,修正了原软件里边的一些bug,并提高了某些计算程序的精确性;下载后解压,直接运行即可。
Arlquin 功能概述:Molecular diversity (分子多态性)Mismatch distribution (错配分布)Haplotype frequency estimation (单倍型频率估计)Linkage disequilibrium (连锁不平衡):检测不同位点上等位基因的非随机关联Hardy-Weinberg equilibrium (哈温—伯格平衡)Tajima`s neutrality test (Tajima中性检验)Fu`s neutrality test (Fu中性检验)Ewens-watterson neutrality test (Ewens-watterson中性检验)以上三个中性检验都是基于无限位点模型,适用于DNA sequence 和RFLP单倍型。
