T echnical Specification 7-6105-C 2014-12-18Sandvik DL411-7Production Drills1/4© 2014 S a n d v i k M i n i n g a n d C o n s t r u c t i onThe San dvik DL411-7 is an electro-hydraulic lon g-hole drilling rig for large-scale production drilling in underground mines.The rig has been design ed for vertical an d in clin ed plane rings and fans, parallel long production holes as well as long single holes. The 360° rotation and parallel coverage, together with wide tilt an gle ran ges forwards an d backwards, make the boom suitable to various drilling applications.Instrumentation and data drilling with various auto-mation option s allow maximum performan ce with superior drilling accuracy. Proven CAN-based tech-nology on board allows the operator to set the unit for any rock conditions. It also makes the upgrade of automation level easy, an d has a fault fin din g sys-tem, which reduces downtime.The machin e is based on a proven carrier for high mobility. Tramming is done from the operator's plat-form, and drilling from a remote position next to the machine.Carrier NC7N Boom ZR30Drilling module LFRC1600Rock drill HL710Hole diameter 64-102 mm Hole length Up to 54 m Control system TPC LH Cornering 3400 mmT otal weight21 000 kg(depending on options)2/4Coverage areaMAXIMUM DRIFT SIZEMINIMUM DRIFT SIZEDrilling Module HWW pH R LF16043245324514502100LF16053550355017502100LF16063855385520502100Included 100mm clearance on each sideAll dimensions in mm Rock DrillHL710Percussion power 19.5 kW Percussion pressure Max. 190 bar Percussion rate 42-52 Hz Rotation speedMax. 180 rpm Rotation torque (OMT250)Max. 1335 Nm Hole size64 - 102 mm Recommended drill steel 38-51 mm rods 64 mm tubes Shank adapter T38, T45, T51Weight 245 kg Length1035 mm Profile height286 mmShank lubrication deviceAir /oil mist, SLUShank lubrication compressor CT10, 1m³/min (7 bar)Air consumption 200 - 300 l/min Oil consumption 250 - 550 g/h #Power extractorHL710Technical Specification 2_1750Boom typeZR30Parallel coverage 3000mm Weight2 800kg Roll-over angle360°BoomTechnical Specification 4_1810LFRC160x x=4’ / 5’ /6’Capacity 29+1 rods/tubes Feed force 31kNFeed extensionLF1604: 1000mm LF1605: 1100mm LF1606: 1400mm Rod retainerPito 16Cuttings collectorCC1016Readiness for double tools Rods/T ubesStinger extensionLF1604: 1500mm LF1605/6: 1700mm#Sequence control Automatic rod/tube changing #Front stingerRequired for downholes Technical Specification 3_1557#Visual angle indicators Spirit levels#TMS DDSDrilling direction, depth and speed #Fan automation 360° fan drilling(Incl. one hole data drilling)#One hole data drillingAutomated single hole drillingInstrumentation optionsTechnical Specification 5_9202# Additional options features/components * Alternative options features/components3/4Machine dimensionsFEED L LF1604 3 000LF1605 3 300LF16063 600All dimensions in mmPowerpackHPP755 (55kW)Percussion pump 100cc variable displacement Rotation pump45cc variable displacement Boom movements pump28cc variable displacement Filtration size20 microns (pressure)10 microns (return)Oil tank volume 270 liters T ank filling Electric pump *T ank filling Manual pumpOil coolerWater cooled.Cooling capacity 1x45kW*Oil coolerAir cooled. Cooling capacity 2x30kWN/A with water hose reel*Biodegradable oils Shell Naturelle HFE46/HFE68#Vacuum pump for hydraulic oilHydraulic systemT ype TPC LHPower control Adjustable full powerAdjustable collaring power Anti-jamming control Adjustable anti-jamming pressureRotation control Adjustable rotation speed Flushing control Water flushing flow and pressure controlDrilling control panelPortable with cable remote control panel, 20m cableControl systemTechnical Specification 5_1300#Pressure cleaning system with reel5-15 bar#High pressure cleaning system with reelMax. 180 bar Cleaning system#Greasing unit with reel,pump and nozzleManual#Automatic greasing systemCarrier, boom and cassetteGreasing systems and optionsT otal input power 80 kW Main switchMSE 10Standard voltages 380-690 VAC *Optional voltage 1000 VACStarting method Star delta starter 380 VAC-690 VAC Soft starter 480 VAC, 575 VAC (USC)Direct on Line (DOL) 1000 VAC Voltage fluctuation ±10%Cable reelTCR3E with spooling system Cable reel control Control at operator station Batteries2x12V , 145Ah *Sealed AGM batteries 2x12V , 50Ah#Electric cable rubber or PUR Depending on voltage (see spec 5-4100)#Ground fault and overcurrent protection VYK #Auxiliary outlet 1 x 230V , 16A #Remote control for reel(s)At rear end #Three phase network outlet voltage readiness 380-690VAC only#Battery jump start FlushingWater flushing flow and pressure control. Air-mist flushing, optionWater pump WBP3Water pump capacity 215 l/min Water pump inlet pressure 2-7 bar Flushing water pressure Max. 20 bar*Optional compressorCT16 (11kW , 1.6m 3/min) orCT28 (18.5kW , 2.8m 3/min)External air connection IP5 air cleaner #Air mist flushing packages External water/air connection#End of the hole flushing1x60l air receivers, requires CT16 compressor#Water hose reel + hose THR2.5E +38mm (1½”), 65 metersFlushing system and options#Hand held fire extinguisher 1 pcs #Manual fire suppression system 6 nozzles #Automatic fire suppression system 6 nozzles #FS1000above 0°CFire suppression system and optionsTech. Spec. 5-9800# Additional options features/components * Alternative options features/components4/4Sandvik Mining and Construction OyP .O Box 100. FIN-33311 T ampere, Finland T el. +358 205 44 121, Fax +358 205 44 Sandvik Mining and Construction reserves the right to change this specification without further notice.© 2014 S a n d v i k M i n i n g a n d C o n s t r u c t i o nTramming dimensionsT ramming speedHorizontal: 15 km/h 14% = 1:7 = 8° 6,5km/h Gradeability / Inclination Max. 15° / 5°#Reduced tramming speed3rd gear lockoutT rammingSafety canopyFOPS (ISO 3449)Sound pressure level according to EN791Operator station: 102 dB(A)Emitted: 127 dB(A)SeatErgonomic, adjustableFor tramming including seat belt Reversing alarm Standard#Reversing cameraOn machine rear and side Operator’s stationFront lights(combined working and driving) 4 x 35W HID (24V) Rear working lights 2 x 35W HID (24V) Rear driving lights2 x 35W HID (24V) Parking Rear brake/park lights 2 x Red LEDPortable working lights 2 x 35W HID (24V) Positioning lights2 x Laser type Stair and service lights LED#Amber flashing lightFlashing (24V)Lights and options#RegionalAUS, USC, EUR *Harsh water packagesBasicSee spec sheet 5-9100PackagesCarrierNC7NCarrier type Wheel mounted, frame steering Frame steering ± 40°Rear oscillation ± 10°Ground clearance 320 mmDiesel engineMB OM904LA, 110kW , Tier 3Exhaust catalyser+muffler StandardT ransmission Hydrodynamic, Spicer T20 000Axles SpicerT yres 12.00-20/20RL*T yres12.00-20/28PR ECR *Optional tyresFoam filled tyresService Brakes, park and emergency SAHR type, fail safe wet disc brakes Fuel tank 140 litersHydraulic jacksFront frame stabilizer TJ60 (rear)Hand throttle Standard #Fast filling systemComplete #Wheel chocks and holders2 piecesCarrier#Spare rock drill #Spare wheel assembly Standard or foam filled #Special tools for rock drill #DocumentationExtra manualsExtra items# Additional options features/components * Alternative options features/components。

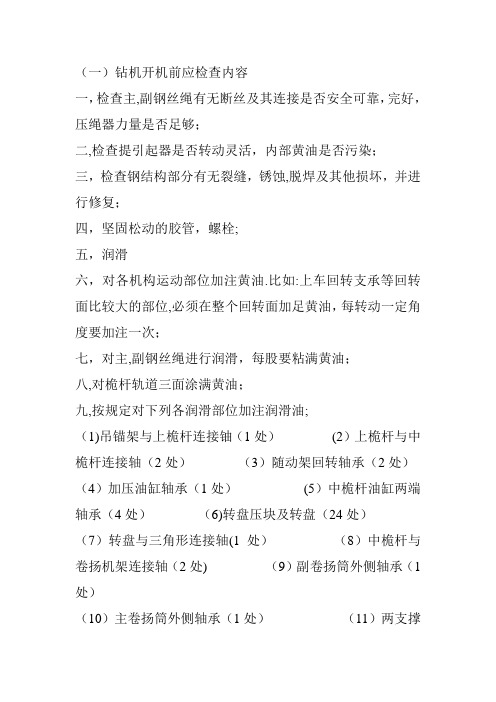

（一）钻机开机前应检查内容一，检查主,副钢丝绳有无断丝及其连接是否安全可靠，完好，压绳器力量是否足够；二,检查提引起器是否转动灵活，内部黄油是否污染；三，检查钢结构部分有无裂缝，锈蚀,脱焊及其他损坏，并进行修复；四，坚固松动的胶管，螺栓;五，润滑六，对各机构运动部位加注黄油.比如:上车回转支承等回转面比较大的部位,必须在整个回转面加足黄油，每转动一定角度要加注一次；七，对主,副钢丝绳进行润滑，每股要粘满黄油；八,对桅杆轨道三面涂满黄油；九,按规定对下列各润滑部位加注润滑油;（1)吊锚架与上桅杆连接铀（1处）(2）上桅杆与中桅杆连接轴（2处）（3）随动架回转轴承（2处）（4）加压油缸轴承（1处）(5）中桅杆油缸两端轴承（4处）（6)转盘压块及转盘（24处）（7）转盘与三角形连接轴(1处）（8）中桅杆与卷扬机架连接轴（2处) （9）副卷扬筒外侧轴承（1处）（10）主卷扬筒外侧轴承（1处）（11）两支撑杆两端连接轴（4处）(12)变幅油缸两端轴承（4处）(13)动臂两端连接轴（3处）（二）在钻机施工中，必须随时对钻机做好以下几个方面的日常维护工作；1，每班工作前都要给钻杆引器（钢丝绳连接体)，加注黄油; 注意：给提引器一端黄油嘴注油时一定要把另一端的端的黄油嘴拧开。

这样有利于把以前所注的黄油排挤出来。

反之可能会把提引器里油封挤坏，含有细沙泥的脏水很容易进入,会磨损轴承降低提引器的灵敏性。

注意：已经改进的新提引器，维护方式请咨询SANY用户服务.2,每班工作前都要给钻杆随动导向架（钻杆上支架）轴承加注黄油;3，经常检查钢丝绳是否完好；4，经常检查油管,密封圈的破损情况，准备备件应付急需；5，随时注意电路继电器是否老化,及早准备备件；6，检查钻杆提引器（钢丝绳连接体)轴承转动是否灵活,如果损坏应马上更换；7，经常检查螺栓，销轴是否磨损,断裂，如有损坏要立即更换。

8,旋挖钻机润滑点示意图及各润滑点的润滑频率01,吊锚架大滑轮轴2处每天加润滑脂一次02,吊锚架小滑轮轴2处每周加润滑脂一次03，吊锚架与上桅杆连接轴1处每周加润滑脂一次04，上桅杆与中桅杆连接轴2处每周加润滑脂一次05,提引器与中桅杆连接轴1处每班次加润滑脂一次06,随动架回转轴承2处每班次加润滑脂一次07，加压油缸轴承1处每周加润滑脂一次08，中桅杆油缸两端轴承4处每周加润滑脂一次09，转盘压块及转盘24处每周加润滑脂一次10，转盘与三角形连接轴1处每周加润滑脂一次11，中桅杆与卷扬机架连接轴2处每周加润滑脂一次12，副卷扬筒外侧轴承1处每周加润滑脂一次13，主卷扬筒外侧轴承1处每天加润滑脂一次14，两支撑杆两端连接轴4处每周加润滑脂一次15,变幅油缸两端轴承4处每周加润滑脂一次16,动臂两端连接轴3处每周加润滑脂一次注：对于上述加油点的处数与次数，如有变动,请咨询SANY 用户服务部。

台钻平常保护保养点检记录表
设备型号：设备编号：保养人：保养时间：年月使用部门：班组长：
序
保养日期保养内容
号
12345678910 1112 1314 15 1617 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1机身及工作台周围干净
2除去杂物灰尘
3按润滑表要求对个润滑处进行加油
4调治传动皮带松紧度
5调治刃具缝隙
6在加工面涂上除锈油
7检查各电气线路及开关接触可否优异
异常办理记录
序
异常情况及办理结果办理人签字确认人签字日期
号
注： 1、本表每日由保养负责人按要求逐项进行点检并记录，每个月由管理人员收集、整理、保存。

2、每日生产前后都要对设备进行保养，保养后，用“√”标示，“×”表示有异常情况。

3、应在“异常情况记录”栏予以记录，并联系相关人员办理。
