C61F-GP说明书

MOTHERBOARD USER’S

GUIDE

深圳市顶星科技有限公司

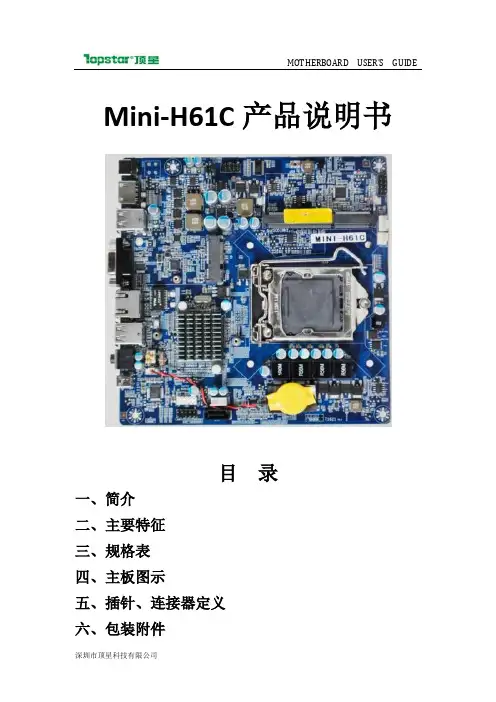

Mini-H61C产品说明书

目 录

一、简介

二、主要特征

三、规格表

四、主板图示

五、插针、连接器定义

六、包装附件

MOTHERBOARD USER’S

GUIDE

深圳市顶星科技有限公司

一、简介

超薄设计，符合Intel Thin Mini-ITX规范；支持半卡WIFI；支持19V适配器或电源板供电。

二、主要特征

超薄设计，符合Intel Thin Mini-ITX规范；

支持DC19V供电，全固电容；

支持双SATAII、Mini-PCIE扩展，支持半\全卡WIFI；

丰富的后I/O扩展，USB、VGA、HDMI、Audio齐备。

三、 规格表

PCB Size 170x170 mm，Thin Mini-ITX

Power 3+1Phase，Support 65W CPU

CPU Intel LGA1155 Socket

Support Intel i7\i5\i3\Pentium\Celeron CPU

Chipset Intel H61

Memory 1*SO-DIMM DDR3 1333MHz

MAX 4GB

Expansion 1* Mini-PCIE（HalfCardFor WIFI）

1* SATAII

LAN GIGA LAN 10\100\1000M

Audio HD 5.1

Back I/O 1* DC JACK

1* HDMI

1* VGA

1* RJ45

4* USB2.0

1* LINE OUT

Internal

I/O 1* USB2.0 Header

1* F_Panel

1* F_Audio

1* COM

1* CPU Fan +1* SYS Fan

YSFC-G61感应卡挂式消费机说明书

目 录

1 产品功能及技术参数 2

1.1 产品简介 ................................................................................................................................. 2

1.2 产品外观 ................................................................................................................................. 2

1.3 键盘说明 ................................................................................................................................. 2

1.4 1.4 产品功能 ........................................................................................................................... 3

1.5 1.5 技术参数 ........................................................................................................................... 3

1.6 1.6 使用卡类 ........................................................................................................................... 4
