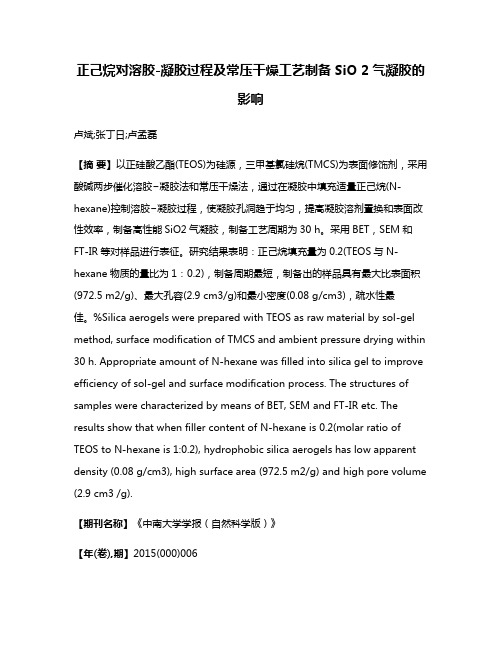

正己烷对溶胶-凝胶过程及常压干燥工艺制备SiO 2气凝胶的影响卢斌;张丁日;卢孟磊【摘要】以正硅酸乙酯(TEOS)为硅源，三甲基氯硅烷(TMCS)为表面修饰剂，采用酸碱两步催化溶胶−凝胶法和常压干燥法，通过在凝胶中填充适量正己烷(N-hexane)控制溶胶−凝胶过程，使凝胶孔洞趋于均匀，提高凝胶溶剂置换和表面改性效率，制备高性能SiO2气凝胶，制备工艺周期为30 h。
采用BET，SEM和FT-IR等对样品进行表征。
研究结果表明：正己烷填充量为0.2(TEOS与N-hexane物质的量比为1：0.2)，制备周期最短，制备出的样品具有最大比表面积(972.5 m2/g)、最大孔容(2.9 cm3/g)和最小密度(0.08 g/cm3)，疏水性最佳。
%Silica aerogels were prepared with TEOS as raw material by sol-gel method, surface modification of TMCS and ambient pressure drying within 30 h. Appropriate amount of N-hexane was filled into silica gel to improve efficiency of sol-gel and surface modification process. The structures of samples were characterized by means of BET, SEM and FT-IR etc. The results show that when filler content of N-hexane is 0.2(molar ratio of TEOS to N-hexane is 1:0.2), hydrophobic silica aerogels has low apparent density (0.08 g/cm3), high surface area (972.5 m2/g) and high pore volume (2.9 cm3 /g).【期刊名称】《中南大学学报（自然科学版）》【年(卷),期】2015(000)006【总页数】7页(P2020-2026)【关键词】SiO 2气凝胶;溶胶-凝胶法;常压干燥法;正己烷;胶粒双电层结构【作者】卢斌;张丁日;卢孟磊【作者单位】中南大学材料科学与工程学院，湖南长沙，410083;中南大学材料科学与工程学院，湖南长沙，410083;中南大学材料科学与工程学院，湖南长沙，410083【正文语种】中文【中图分类】O648二氧化硅气凝胶具有极高的比表面积(800~1 500 m2/g)、极大的孔洞率(85%~99%)、极低的热传导率(5 mW/(m·K))和独特的声学性能等，因此，在很多领域发挥重要作用，如用作高性能催化剂、保温涂料、超绝热材料、窗体材料等[1−4]。
