Product Specification for Li-ion Polymer Battery 聚合物锂离子电池产品规格书Model电芯型号: 702427(PCM)惠州基安比新能源有限公司HUIZHOU MARKYN NEW ENERGY CO.,LTD.电话: ************传真: ************TEL: ************ FAX : ************SPECIFICATION AMENDMENT RECORDS规格书变更记录1. Scope适用范围：This document describes the Product Specification of the Li-Polymer Rechargeable Battery supplied by Huizhou Markyn New Energy Co., LTD.本规格书描述了惠州基安比新能源有限公司的可充电锂离子聚合物电池的产品性能指标。
2. Description 说明2.1 Description: Li-Polymer Battery类型：锂离子聚合物电池2.2 Model: 702427型号：7024273. Specification产品规格4. Battery Cell Performance Criteria 电芯性能标准4.1 Standard testing environment标准测试环境Unless specifically stated otherwise, tests must be done within one month of delivery and the number of charging-recharging cycles is fewer than 5. The following is test conditions:Test conditions:Ambient Temperature：23ºC ± 2ºCAmbient Humidity：65±20%RH除非另有说明，测试应在电池出货的1个月内进行，且充放电循环的次数少于5次。
高能一次锂亚硫酰氯电池ER14250基本技术标
准
1.产品种类和产品型号：
2、基本特性：
3.
4.外观：电池表面无划伤、裂纹、脏污、变形及电解液泄漏等缺陷。
焊脚焊点清晰、平整、牢固，无氧化、虚焊、断裂、脱落等不可靠现象。
5、标示日期编码：
在电池外套标贴上标示生产日期。
方法：MM—YY 月—年
年
月
6.性能
10mA/330欧姆测试性能≥70h，工作中点电压≥3.35 V。
8mA/428欧姆测试性能≥95h，工作中点电压≥3.40V。
7.安全
7.1符合UL1642安全标准
7.2符合UN38.3安全运输标准
7.3符合欧标CE标准
7.4符合RoHS指令，无有毒有害物质
7.5提供MSDS（材料说明）资料
8.运输包装：
－电池在运输过程中，应避免日晒、火烤、雨淋、水浸及与腐蚀性物质放在一起。
－运输和装卸中的冲击、震动应限制在最小程度。
－对于纸质的包装箱堆放高度不超过 1.5 米时，包装无变形、破损、散落。
防水、防潮包装
－电池长途运输时，如是船运，应放在远离发动机的地方；夏季不应该长期滞留在不通风的环境内。
（学习的目的是增长知识，提高能力，相信一分耕耘一分收获，努力就一定可以获得应有的回报）。
Specification Approval Sheet Name：Polymer Lithium-Ion BatteryModel： CELLEVIA BATTERIES LP103035SPEC：3.7V/ 1050mAhNumber: 103035Specification Modification RecordsContent1.Scope:This specification describes the Product Specification of chargeable Polymer Lithium-IonBattery produced by Cellevia.Any copies are invalid without our company’s approval2.Model :3.Cell parameters Index:3.2 Parameters of batterythe temperature.4.Electronic Characteristics test and inspection:4.1 Standard testing environmentUnless special stated, tests should be done within one month of delivery and thecharging-recharging times is less than 5 times. The following is test conditions: Ambient Temperature： 25℃±0.5℃Ambient Humidity： 65 ±20%4.2 The requirement of measure instrument(1) The measure instrument is passed tested by qualified institute.(2) The accuracy of the size instrument is not more than 0.01mm.(3) The accuracy of multimeter is not less than 0.5%. while measure the voltage, theinternal resistance mustn’t less than 10KΩ.(4) The principal of the internal resistance is 1KHz LCR, the accuracy is 0.2%.(5) The internal resistance is changeable, it varies according to the temperature and thecharging mode. And it is relevant to the PTC and the length and the Capacity of the drawing line.(6) The current accuracy of the battery test system is more than ±0.1%,isobaricallyaccuracy is ±0.5%, timer accuracy is less than ±0.1%.(7) The accuracy of the temperature meter is less than ±0.5℃.4.3 Visual inspectionAny visual inspection defects will affect the electronic characteristics, such as cracks,leakage, and flaw, are not inexistence.Notes： The Max. voltage while charging is not more than 4.25V.The Max.protective voltage designed on PCB board should not more than4.3V.5. Storage and others5.1 Long Period StorageIf the cell has been stored for 3 month, it should be transfer to a dry and cool environment. Storage Voltage is between 3.6V and 3.9V and the storage conditions as Item 4.1.5.2Any matters that this specification does not cover should be conferred between theSpecification Approval sheet6.Drawing6.1 Assembly diagram(not in scale)Model ：LP10303531.0MAX30adhesive wire black AWG2660wire red (+)AWG26507030351050m A hE V I A B A T T E R I E S 3,7 V! Danger●Strictly prohibits heat or throw cell into fire.●Strictly prohibits throw and wet cell in liquid such as water, gasoline or drink etc.●Strictly prohibits use leave cell close to fire or inside of a car where temperature may be above60°C. Also do not charge / discharge in such conditions.●Strictly prohibits put batteries in your pockets or a bag together with metal objects such asnecklaces. Hairpins,coins, or screws. Do not store or transportation batteries with such objects.●Strictly prohibits short circuit the (+) and (-) terminals with other metals.●Do not place Cell in a device with the (+) and (-) in the wrong way around.●Strictly prohibits pierce Cell with a sharp object such as a needle.●Strictly prohibits disassemble or modify the cell.●Strictly prohibits welding a cell directly.●Do not use a Cell with serious scar or deformation.●Thoroughly read the user’s manual before use, inaccurate handling of lithium ion rechargeablecell may cause leakage, heat, smoke, an explosion, or fire, capacity decreasing.! Warning●Strictly prohibits put cell into a microwave oven, dryer, or high-pressure container.●Strictly prohibits use cell with dry cells and other primary batteries, or new and old battery orbatteries of a different package, type, or brand.●Stop charging the Cell if charging is not completed within the specified time.●Stop using the Cell if abnormal heat, odor, discoloration, deformation or abnormal condition isdetected during use, charge, or storage.●Keep away from fire immediately when leakage or foul odor is detected.●If liquid leaks onto your skin or clothes, wash well with fresh water immediately.●If liquid leaking from the Cell gets into your eyes, do not rub your eyes. Wash them well with cleanedible oil and go to see a doctor immediately.! Caution●Before using the Cell, be sure to read the user’s manual and cautions on handling thoroughly.●Charging with specific charger according to product specification. Charge with CC/CV method.Strictly prohibits revered charging. Connect cell reverse will not charge the cel. At the sametime, it will reduce the charge-discharge characteristics and safety characteristics, this will leadto product heat and leakage.●Store batteries out of reach of children so that they are not accidentally swallowed.●If younger children use the Cell, their guardians should explain the proper handling.●Before using the Cell, be sure to read the user’s manual and cautions on handling thoroughly.●Batteries have life cycles. If the time that the Cell powers equipment becomes much shorter thanusual, the Cell life is at an end. Replace the Cell with a new same one.●When not using Cell for an extended period, remove it from the equipment and store in aplace with low humidity and low temperature.●While the Cell pack is charged, used and stored, keep it away from objects or materials with staticelectric charges.●If the terminals of the Cell become dirty, wipe with a dry clothe before using the Cell.●Storage the cells in storage temperature range as the specifications, After full discharged, wesuggest that charging to 3.9~4.0V with no using for a long time.●Do not exceed these ranges of the following temperature ranges.Charge temperature range : 0 °C to 45 °C;Discharge temperature range : -20 °C to 60 °C.(When using equipment)Handling Precaution and GuidelineFor LIP (Lithium-Ion Polymer) Rechargeable BatteriesPrefaceThis document of ‘Handling Precautions and Guideline LIP Rechargeable Batteries’shall be applied to the battery cells manufactured by CELLEVIA.Note (1): The customer is requested to contact CELLEVIA in advance, if and when the customer needs other applications of operating conditions than those described in this document. Additional experimentation may be required to verify performance and safety under such condition.Note (2): CELLEVIA will take no responsibility for any accident when the cell is used under other condition.Note (3): CELLEVIA will inform, in a written form, the customer of improvement(s) regarding proper use and handling of the cell, if it is deemed necessary.1. Charging 1.1ChargingCurrent:Charging current should be less than maximum charge current specified in theSpecification Approval Sheet.1.2 Charging Voltage:Charging voltage should be less than the maximum nominal voltage 4.2V, andthe charging voltage upper limited is 4.30V(single pack).1.3 Charging Temperature:The cell should be charged within the range specified in this Specification ApprovalSheet.1.4 Notes:Since charging with constant current or constant voltage, reverse charging isprohibited. In case of the cell is connected improperly, the cell cannot be charged.Simultaneously, the reverse charging may cause damaging to the cell whichmay lead to degradation of cell performance and damage the cell safety, andcould cause heat generation or leakage.2. Discharging Current:The cell shall be discharged at less than the maximum discharge current specified in the Specification Approval Sheet. High discharging current may reduce the discharging capacity significantly or cause over-heat.3. Discharging TemperatureDischarging Temperature should be within the range specified in this Specification Approval Sheet.4.Over-DischargeOver-discharging will cause cell low-performance and function loss. The cell would be in a over-discharged state by its self-discharge characteristic. In order to prevent over-discharging, the cell shall be charged periodically to maintain between 3.6V and 3.9V.5. Protective Circuit Module5.1 The cell / battery pack shall be with a PCM that can protect cell / battery packproperly. PCM shall have functions of(1) Overcharging prevention(2) Over-discharging prevention(3) Over current prevention to maintain safety and prevent significant deteriorationof cell performance. The over current can occur by external short circuit.5.2 Overcharging ProtectionOvercharging prevention function shall stop charging if any cell of the battery packreaches 4.30V.5.3 Over-discharging protectionOver-discharging protection function shall monitor the voltage of every cell in the pack, and work to avoid further drop in the cell voltage of 2.5V or less.6. StorageCells should be stored in proper temperature specified in Specification ApprovalSheet.7. AppearanceIt shall be free from any defects such as remarkable scratches, breaks, cracks,discoloration, leakage or deformation .8. Notice△!8.1 Handling of cells:Avoid any short-circuit, it will caused the pole hot and lost electronic functions.Soft packing is very damaged by sharp edge parts such as needles and knives.Avoid cells touch with sharp edge part, when handling and storage.Beside the poles is the sealed edge. Don’t bend or fold dealing edge, for it is a sensitive part.Don’t open the folding edge on both sides of the cells.Don’t bend the tabs, for the tabs are not so stubborn.Avoid mechanical shock to the cells.Don’t put the cells into the heater, washing machine or high-voltage container.Don’t use the charger without any safety guarantee, and recommend you use specified charger.You should immediately stop charging, as cell is overheating, delivery any smell, changed color, distortion etc.Before Children use batteries, adults should explain the usage first.Before use batteries, please read the handling guideline carefully and fully understand.Away from the static-electronic field, while using, charging and storing cells.Don’t put the cells together with metal conductors such as chains, barrette, bolt into the pocket or stored them together.Don’t use metal conductor to shortcut the positive and negative poles.Don’t mis-assemble the positive pole with the negative one.8.2 Notice for Designing Battery Pack8.2.1 Package DesignBattery pack should have sufficient strength and battery should be protected from mechanical shock.No sharp edge components should be inside the pack containing the battery.5The overcharge threshold voltage should not be exceed 4.30V (single pack) The over-discharge threshold voltage should not be lower than 2.V (singlepack)The PCM should have short protection built inside.8.3 Notice for Assembling Battery Pack8.3.2 Tab connectionUltrasonic welding or spot welding is recommended to connect battery withPCM or other parts. If apply manual solder method to connect tab with PCM, below notice is veryimportant to ensure battery performance.8.3.2.1 The solder iron should be temperature controlled and ESDsafe.8.3.2.2 Soldering temperature should not exceed 350℃. 8.3.2.3 Soldering time should not be longer than 3 seconds . 8.3.2.4 Keep battery tab cold down before next time soldering.8.3.2.5 Directly heat cell body is strictly prohibited. Battery shouldbe damaged by heat above approx. 60℃.8.3.3 Cell fixingThe battery should be fixed to the battery pack by its large surface area. No sharp edge at the assembling position.No cell movement in the battery pack should be allowed.9.Others9.1 The disassembling may generate internal shout circuit in the cell, which may causegassing, firing, or other problem.9.2 Prohibition of dumping of cells into fireNever incinerate or dispose the cells in fire, for these may cause firing of the cells. 9.3 The cells should never be soaked with liquids such as water, drinks or oil.9.4 Prohibit using the cells mixed with different manufactories. Prohibit using new cellsmixed with old ones.▲Special Notice: If the cell isn’t used for a long time, Please Keep the cells in half-charged state, which is keeping them unfully charged or incompletely discharged. Recharge the cells and use half of the power after 2-3months. Store the cells in cool and dry place. It will protect the cell from damage effectively and long-term.10. StatementIf our specifications material, product process or product control system has changed, the information will be transmitted to consumer by way of written with quality and reliability data.。
History of specification规格书修订记录Date Contents Remarks 2018-05-12First issue A0Content/目录1.Scope/适用范围Page42.Cell Specification/电芯规格说明Page4/53.Battery/Cell performance test Criteria/电池性能标准Page6 3.1Appearance inspection by visual/外观目测Page6 3.2Environmental test condition/外界环境条件Page6 3.3Electrical characteristics/电气特性Page6 3.4Mechanical characteristics/机械特性Page73.5Safety performance/安全性能Page7/84.Cell initial Dimensions/电芯初始尺寸Page84.2Picture of assembled battery组合电池图5.Protection Circuit保护电路5.1PCM parameter PCM参数6.Circuit topology Drawing and PIN Explanation电路布线图和焊盘说明6.1PCM BOM保护板物料清单6.2Assembled cell parameters包装后电芯组参数附录Page9 Page9 Page9 Page10 Page10 Page101.Scope/适用范围2.Cell Specification/电芯产品规格No.Item项目Specification性能1Rated Capacity额定容量3000mAh,0.2C discharging2Minimum Capacity最小容量3000mAh,0.2C discharging3Normal Voltage标称电压3.70V4O.C.V出厂电压 3.80-4.2V5Charge Ending Voltage充电截止电压4.20±0.03V6Discharge Ending Voltage放电截止电压3.0V7Standard charging method标准充电方式0.5C constant current charge to 4.2V,then constantvoltage4.2V charge till charged current declines to≤0.01C,0℃～45℃8Charge current充电电流Standard charge:0.5CRapid charge:1.0C9charging Time充电时间Standard charge:5.5～6.5hRapid charge:1.5～2.5h10Max.Charging Current最大充电电流1.0C(5℃～+45℃)11Standard dischargingCurrent标准放电电流0.5C constant current discharge to3.0V.10℃～+60℃12Max.Discharging Current最大放电电流1.0C(10℃～+60℃)13Operating environment工作环境Charging:0℃-45℃,65%±25%RHDischarging:10℃-60℃,65%±25%RH14Cell Impedance单电芯内阻＜45mohm，(4.2V AC1KHz measured)15Dimension of Single Cell单电芯尺寸Thickness Max8.0mmWidth Max56.5mmHeight Max60.5mm3.Picture of single cell单体电芯图Items Description Dimension and SpecT电芯厚度Max:8.0mmW电芯宽度Max:56.5mmH电芯长度Max:60.5mmC Tab间距18±2.0mmB Tab宽度 4.0±0.1mmD顶封宽度 4.0±0.5mmA极耳胶外露Max:2.0mmE极耳长度8.0±1.5mmFig.(1)The Dimension of Single Cell图(1)单体电池尺寸图4.Picture of assembled battery组合电池图Fig.(2)The Dimension of Assembled Battery图(2)组合电池外形尺寸图厚度T 宽度W 长度L 线径Ø线型插头型号Max:8.1Max:57.0Max:63.00.9UL1007/24#XH2.54-2P备注：UNIT 单位：MM5.产品规格及电气参数Product Specification and Electrical Parameters序号Item项目Specification性能1Assembled Mode组合方式1P2Normal Capacity标称容量≥3000mAh,0.2C discharging3Normal Voltage标称电压3.7V4Impedance成品内阻＜103mohm，(100%charge AC1KHz measured)5Assembly Dimension装配尺寸Thickness Max8.1mmWidth Max57.0mmHeight Max63.0mm4.Battery/Cell performance test Criteria/电池性能标准4.1Appearance inspection by visual/外观目测There shall be no such defect as rust,leakage,which may adversely affect commercial value of battery.电池外观应没有锈渍、污渍、漏液等影响商业价值的缺陷存在。
锂离子电池规格书SpecificationForLithium-ion Rechargeable Battery电芯型号: N18650CNPCell Type : N18650CNPDocument No P/PR03/PB-D-N18650CNP revised date 2018-5-3 Version A/01 Pages 13 Approved Checked Designed李艳斌邱沫马奇会Contents 目录1Preface前言2Definition定义2.1Standard charge method 标准充电方式2.2Standard discharge method 标准放电方式2.3Nominal capacity 标称容量3Cell type and dimension电芯型号及尺寸3.1Description and type 电芯说明及型号3.2Cell dimension电芯尺寸4Battery characteristics电池特性5Technical requirements技术要求5.1Battery usage conditions 电池使用环境5.2Battery testing conditions 电池实验环境5.3Requirement of the testing equipment 测量仪表要求5.4Electrochemical characteristics 电化学特性5.5Environmental characteristics 环境适应性能5.6Safety characteristics 安全性能6Package picture包装图片7Shipment出货8Warranty质量保证9Storage and shipment requirement存储及运输要求10Warning and cautions in handling the lithium-ion battery电池使用时警告事项及注意事项11The restriction of the use of hazardous substances有害物质控制要求12Contact information联系方式13Version history修订履历1Preface前言This specification describes the type, dimension, performance, technical characteristics, warnings and cautions of the lithium-ion rechargeable battery. The specification only applies to N18650CNP fresh batterys supplied by Shenzhen BAK Power Battery Co., Ltd.本标准描述了圆柱型锂离子电池的型号、尺寸、特性、技术要求及注意事项。

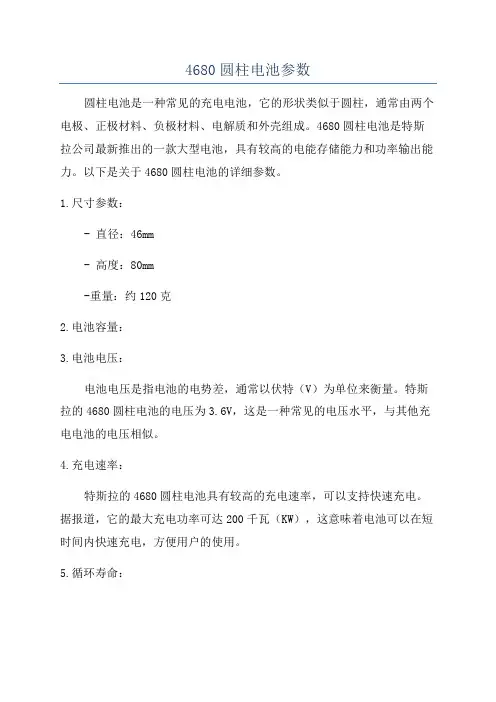

4680圆柱电池参数圆柱电池是一种常见的充电电池，它的形状类似于圆柱，通常由两个电极、正极材料、负极材料、电解质和外壳组成。
4680圆柱电池是特斯拉公司最新推出的一款大型电池，具有较高的电能存储能力和功率输出能力。
以下是关于4680圆柱电池的详细参数。
1.尺寸参数：- 直径：46mm- 高度：80mm-重量：约120克2.电池容量：3.电池电压：电池电压是指电池的电势差，通常以伏特（V）为单位来衡量。
特斯拉的4680圆柱电池的电压为3.6V，这是一种常见的电压水平，与其他充电电池的电压相似。
4.充电速率：特斯拉的4680圆柱电池具有较高的充电速率，可以支持快速充电。
据报道，它的最大充电功率可达200千瓦（KW），这意味着电池可以在短时间内快速充电，方便用户的使用。
5.循环寿命：循环寿命是指电池可以被充电和放电的次数。
特斯拉的4680圆柱电池显示出较好的循环寿命，据报道，其寿命可以达到3000次以上。
这意味着用户可以通过充电和放电来重复使用电池，使电池的使用寿命更长。
6.成本效益：7.安全性能：特斯拉的4680圆柱电池在安全性方面进行了一系列改进。
它采用了热敏感分离剂和多重安全保护机制，以减少电池的发热和过充过放的风险。
这有助于提高电池的安全性能，降低火灾和爆炸的风险。
总结：特斯拉的4680圆柱电池具有较高的容量、较低的成本、较快的充电速率、较长的循环寿命和较高的安全性能。
这些优点使得4680圆柱电池在电动汽车、能源存储和其他领域有着广泛的应用前景。
特斯拉公司已经开始使用这种电池并计划在未来大规模生产。
这将为可持续发展和清洁能源的推广做出积极贡献。

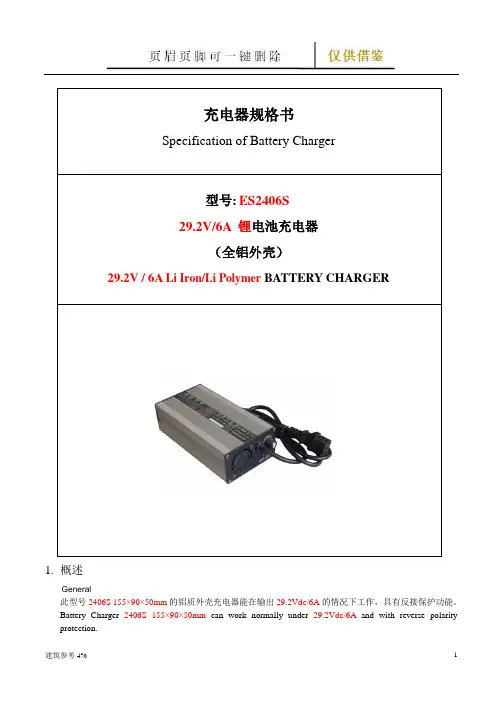

充电器规格书Specification of Battery Charger型号:ES2406S29.2V/6A 锂电池充电器（全铝外壳）29.2V / 6A Li Iron/Li Polymer BATTERY CHARGER1.概述General此型号2406S 155×90×50mm的铝质外壳充电器能在输出29.2Vdc/6A的情况下工作，具有反接保护功能。
Battery Charger 2406S 155×90×50mm can work normally under 29.2Vdc/6A and with reverse polarity protection.2.主要参数最大输出功率Max.output power 输入电压Inputvoltage最高输出电压Output voltage误差范围Combinedregulation输出电流Output current误差范围Combinedregulation180W 220Vac 29.2V+/-0.2Vdc +/-0.2V 6A +/-0.2A 3.环境条件序号No. 项目Item技术参数Technical specification备注Remark1 湿度Humidity 5~95% 带包装With package2 海拔Altitude ≤3000m正常工作Work normally4.技术特征Electrical characteristics4.1 输入特征：序号No.项目Item 技术参数Technical specification 备注Remark1额定输入电压Rated input voltage220Vac220Vac2电压输入范围Input voltage range180-240Vac3频率AC input voltage frequency50～60 Hz4.2 输出特征和充电模式：序号No.项目Item技术参数Technical specification备注Remark1恒流CC(constant current)≤29.2Vdc, 6A2恒压CV(constant voltage)29.2Vdc, 6A↓3 浮充Float stage 无20%CC4效率Power efficiency≥90%输入电压=220Vac, 额定负载Vin=110/220Vac,rated load 4.3 保护特征：序号No. 项目Item技术参数Technical specification备注Remark1过压保护Over voltageprotection是Yes2限压保护Software overvoltage protection充电器设置的最大输出电压不会超过电池的最大充电电压。
Contents 目录1Preface 前言2Definition 定义Nominal capacity 标称容量Standard charge method 标准充电方式Standard discharge method 标准放电方式3Cell type and dimension电芯型号及尺寸Description and model 电芯说明及型号Cell dimension 电芯尺寸4Cell characteristics电芯特性5Technical requirements技术要求Cell usage conditions 电芯使用环境Cell testing conditions 电芯实验环境Requirement of the testing equipment 测量仪表要求Electrochemical characteristics 电化学特性Environmental characteristics and safety characteristics 环境适应性能与安全性能6Package picture 包装图片7Shipment 出货8Warranty 质量保证9Storage and Shipment Requirement 存储及运输要求10Warning and cautions in handling the lithium-ion cell 电芯使用时警告事项及注意事项11The restriction of the use of hazardous substances 有害物质控制要求12Contact information 联系方式13Version history 修订履历1preface 前言2This specification describes the type and dimension, performance, technical characteristics, warning and caution of the lithium ion rechargeable cell. The specification only applies to N18650CL-29 cell supplied by Zhengzhou BAK Battery Co., Ltd.本标准描述了圆柱型锂离子电芯的外型尺寸、特性、技术要求及注意事项。
版本/状态A/0锂/亚硫酰氯电池技 术 规 格 书电池型号：ER14335编制： 日期：审核： 日期：批准： 日期：客户确认： 日期：版本/状态A/0- 2 -1. 目的1.1 对武汉力兴（火炬）电源有限公司出品的锂电池的产品规格、测试方法进行规范，避免因测试条件、方法的不同引起偏差。
1.2 指导客户正确选择和使用我公司电池。
2. 产品类别和产品型号表13．产品基本特性表2序号 项目 特性 1 标称容量*1600 mAh 2 放电容量(1mA 放电终止电压2.0V)1500±100 mAh3 标称电压** 3.6V4 工作温度范围 -55～+85℃5 最大脉冲电流 100 mA6 最大连续放电电流 50 mA7 结构及成分 亚硫酰氯、锂、乙炔黑、隔膜及不锈钢外壳等8标准重量13g* 标称容量：数值是在3.6K Ω/1mA 、20±2℃、截止电压为2.0V 的条件下测得的。
（所测得的容量值会随着放电电流、温度以及截止电压的不同而变化）** 标称电压：数值是在36K Ω/0.1mA 、20±2℃的条件下测得的。
类别 型号 锂亚柱式电池ER14335版本/状态A/0- 3 -4. 外形示意图及尺寸 4.1 外形示意图见下图1 (H 代表高度,Ф代表直径)4.2 外形尺寸（尺寸单位：mm ）表3电池型号 直径 ( mm ) 高度( mm ) ER14335≤14.5≤33.55．外观电池的外观整洁，标志清晰，正负极标识正确，壳底和假盖表面无变形、锈迹、污点及泄漏。
6．特性 6.1电性能 表4序号 项目 测试条件常温一年内性能常温储存一年后性能开路电压 室温 20±2 ℃ 3.63～3.70V 3.63～3.72V 低温 -40±2 ℃ 3.63～3.70V 3.63～3.72V 1高温 60±2 ℃ 3.63～3.74V3.63～3.74V工作电压 放电负载：3.6K Ω室温 20±2 ℃ ≥3.3V ≥3.2V 低温 -40±2 ℃ ≥2.9V ≥2.8V 2 高温60±2 ℃≥3.35V≥3.25V版本/状态A/0- 4 -表4 续序号 项目 测试条件常温一年内性能常温储存一年性能放电负载：6.98K Ω 工作寿命终止电压：2.0V室温 20±2 ℃ ≥2500hrs ≥2300hrs 低温 -40±2 ℃ ≥1250hrs ≥1000hrs 3高温 60±2 ℃≥2250hrs ≥2100hrs室温 放电负载：0.66K Ω 4容量快速检测终止电压：2.0V≥250hrs≥235hrs6.2性能检验6.2.1每项试验的样品数为6只。
锂亚柱式电池——WR346151、适用范围该规格书适用于武汉昊诚能源科技有限公司生产的锂亚柱式电池WR34615；2、目的规定WR34615电池的性能指标、检测方法、特性以及注意事项；3、电池类型功率型锂-二氧化硫电池；4、基本特征及应用4.1基本性能参数序号项目特性备注4.1.1 型号WR346154.1.2额定电压 2.9V4.1.3额定容量8000mAh 以200mA电流在23±2℃环境下放电到2.0V 4.1.4最大恒定电流4000mA4.1.5最大脉冲电流5000mA4.1.6工作温度-54～65℃4.1.7 储存温度-60～30℃4.1.8电池气密性测试无电解液泄漏正常使用时4.1.9外形尺寸如上图4.1.10重量100.0g4.1.11 自放电率≤1%每年4.3 锂/亚硫酰氯电池特点（1）单体电压高为3.6V，体积小，比功率高。
（2）能瞬时提供高倍率或大电流脉冲。
（3）能在较宽负载和温度范围内（-40℃～85℃）使用，具有低内阻和稳定的放电电压。
（4）可以小电流连续放电兼提供大电流脉冲。
放电时间5年或更长；电池放电特性好，在低、中负载下能够平稳输出90%以上的容量。
4.4应用领域本产品广泛应用于：（1）民用水表、煤气表、电表、烟雾及防盗报警及智能仪器仪表。
救生仪、信号灯、专业无线电动工具。
（2）不同类型军事电子装置和通讯设备、便携式电台、夜视仪、枪瞄仪、导航全定位装置、水下武器、声纳浮标、导弹等。
5、警告（1）严禁将电池正负极直接短接：将电池短路会使电池发热或导致爆炸。
（2）严禁将电池抛入火中，电池加热到85℃以上时会导致电池漏液着火或爆炸。
（3）严禁直接将电池焊接时间过长，长时间焊接电池壳体会导致电池爆炸或漏液。
（4）严禁充电，充电会导致内部短路，从而会引起着火或爆炸。
（5）严禁强制放电：将电池串联连接进行强制放电会引起电池发热漏液或爆炸。
（6）严禁自己将电池串并联连接：自行将电池并联，串联连接可能会导致漏液着火或爆炸。
碳酸铁锂圆柱电池型号
碳酸铁锂圆柱电池作为一种新型的锂离子电池，具有较高的能量密度、良好的循环寿命和较低的自放电率。
在我国，碳酸铁锂圆柱电池的应用逐渐广泛，尤其在电动汽车、储能等领域。
常见的碳酸铁锂圆柱电池型号包括：
1. 18650 型电池：这是一种直径为 18mm、高度为 65mm 的锂离子电池，具有较高的能量密度和较长的循环寿命。
广泛应用于电动汽车、储能系统、电动工具等领域。
2. 21700 型电池：这是一种直径为 21mm、高度为 70mm 的锂离子电池，由于其体积较大，能量密度较高，适用于电动汽车、太阳能储能系统、电动自行车等场景。
3. 26650 型电池：这是一种直径为 26mm、高度为 65mm 的锂离子电池，具有优秀的容量和高一致性特点，逐步成为新一代储能设备的首选电池。
4. 32650 型电池：这是一种直径为 32mm、高度为 65mm 的锂离子电池，具有较大的体积能量密度，适用于电动汽车、储能系统、电动工具等场景。
以上仅为部分碳酸铁锂圆柱电池型号，实际应用中，根据不同场景和需求，还有其他型号的电池。
值得注意的是，碳酸铁锂圆柱电池的生产和应用仍在不断发展和完善中，未来有望取代部分传统锂离子电池，成为新能源领域的重要支撑。
圆柱电池尺寸与容量对照表
圆柱形电池是一种常见的电池类型，广泛应用于各种电子产品中。
圆柱形电池的尺寸和容量是两个重要的参数，它们直接影响到电池的性能和使用寿命。
下面是一个圆柱形电池尺寸与容量对照表，供大家参考。
以上表格中的数据仅供参考，实际产品尺寸和容量可能因品牌、生产工艺等因素而有所不同。
在选择圆柱形电池时，建议根据具体的产品需求和规格要求进行选择，并参考相关品牌和生产商提供的技术规格和参数。
