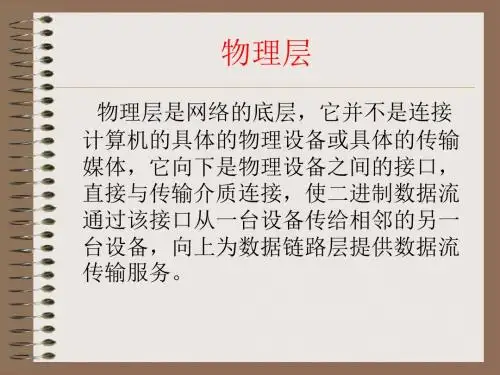

第二章物理层2-01 物理层要解决哪些问题？物理层的主要特点是什么？答：物理层要解决的主要问题：（1）物理层要尽可能地屏蔽掉物理设备和传输媒体，通信手段的不同，使数据链路层感觉不到这些差异，只考虑完成本层的协议和服务。
（2）给其服务用户（数据链路层）在一条物理的传输媒体上传送和接收比特流（一般为串行按顺序传输的比特流）的能力，为此，物理层应该解决物理连接的建立、维持和释放问题。
（3）在两个相邻系统之间唯一地标识数据电路。
物理层的主要特点：①由于在OSI之前，许多物理规程或协议已经制定出来了，而且在数据通信领域中，这些物理规程已被许多商品化的设备所采用，加之，物理层协议涉及的范围广泛，所以至今没有按OSI的抽象模型制定一套新的物理层协议，而是沿用已存在的物理规程，将物理层确定为描述与传输媒体接口的机械、电气、功能和过程特性。
②由于物理连接的方式很多，传输媒体的种类也很多，因此，具体的物理协议相当复杂。
2-02 归层与协议有什么区别？答：规程专指物理层协议。
2-03 试给出数据通信系统的模型并说明其主要组成构建的作用。
答：源点：源点设备产生要传输的数据。
源点又称为源站。
发送器：通常源点生成的数据要通过发送器编码后才能在传输系统中进行传输。
接收器：接收传输系统传送过来的信号，并将其转换为能够被目的设备处理的信息。
终点：终点设备从接收器获取传送过来的信息。
终点又称为目的站。
传输系统：信号物理通道。
2-04 试解释以下名词：数据，信号，模拟数据，模拟信号，基带信号，带通信号，数字数据，数字信号，码元，单工通信，半双工通信，全双工通信，串行传输，并行传输。
答：数据：是运送信息的实体。
信号：则是数据的电气的或电磁的表现。
模拟数据：运送信息的模拟信号。
模拟信号：连续变化的信号。
基带信号（即基本频带信号）：来自信源的信号。
像计算机输出的代表各种文字或图像文件的数据信号都属于基带信号。
带通信号：把基带信号经过载波调制后，把信号的频率范围搬移到较高的频段以便在信道中传输（即仅在一段频率范围内能够通过信道）。

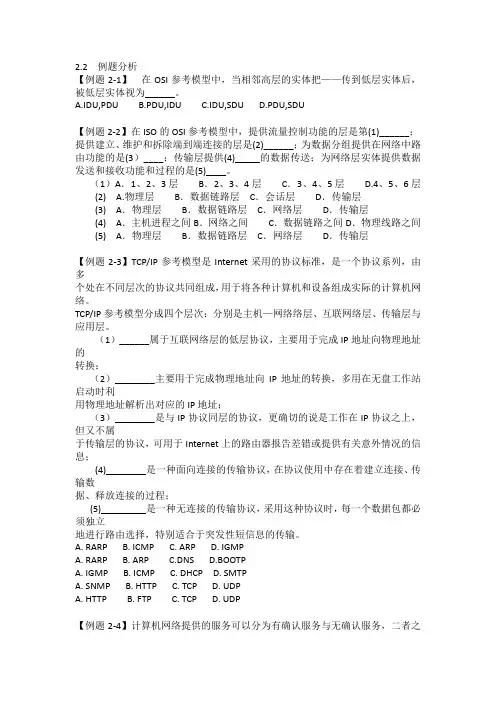

2.2 例题分析【例题2-1】在OSI参考模型中，当相邻高层的实体把——传到低层实体后，被低层实体视为______。
A.IDU,PDUB.PDU,IDUC.IDU,SDUD.PDU,SDU【例题2-2】在ISO的OSI参考模型中，提供流量控制功能的层是第(1)______；提供建立、维护和拆除端到端连接的层是(2)______；为数据分组提供在网络中路由功能的是(3）____；传输层提供(4)_____的数据传送；为网络层实体提供数据发送和接收功能和过程的是(5)____。
（1）A．1、2、3层B．2、3、4层C．3、4、5层 D.4、5、6层(2) A.物理层B．数据链路层C．会话层D．传输层(3) A．物理层B．数据链路层C．网络层D．传输层(4) A．主机进程之间B．网络之间C．数据链路之间D．物理线路之间(5) A．物理层B．数据链路层C．网络层D．传输层【例题2-3】TCP/IP参考模型是Internet采用的协议标准，是一个协议系列，由多个处在不同层次的协议共同组成，用于将各种计算机和设备组成实际的计算机网络。
TCP/IP参考模型分成四个层次：分别是主机—网络络层、互联网络层、传输层与应用层。
（1）______属于互联网络层的低层协议，主要用于完成IP地址向物理地址的转换：（2）________主要用于完成物理地址向IP地址的转换，多用在无盘工作站启动时利用物理地址解析出对应的IP地址；（3）________是与IP协议同层的协议，更确切的说是工作在IP协议之上，但又不属于传输层的协议，可用于Internet上的路由器报告差错或提供有关意外情况的信息；(4)________是一种面向连接的传输协议，在协议使用中存在着建立连接、传输数据、释放连接的过程；(5)_________是一种无连接的传输协议，采用这种协议时，每一个数捃包都必须独立地进行路由选择，特别适合于突发性短信息的传输。
A. RARPB. ICMPC. ARPD. IGMPA. RARPB. ARPC.DNSD.BOOTPA. IGMPB. ICMPC. DHCPD. SMTPA. SNMPB. HTTPC. TCPD. UDPA. HTTPB. FTPC. TCPD. UDP【例题2-4】计算机网络提供的服务可以分为有确认服务与无确认服务，二者之间有什么区别？在下列情况中，请说明哪些可能是有确认服务或无确认服务？哪些可？哪些两者皆不可？（1）建立连接（2）数据传输（3）释放连接2.3基础习题一、填空题1.在计算机网络中，_____和______的集合称为网络体系结构。
