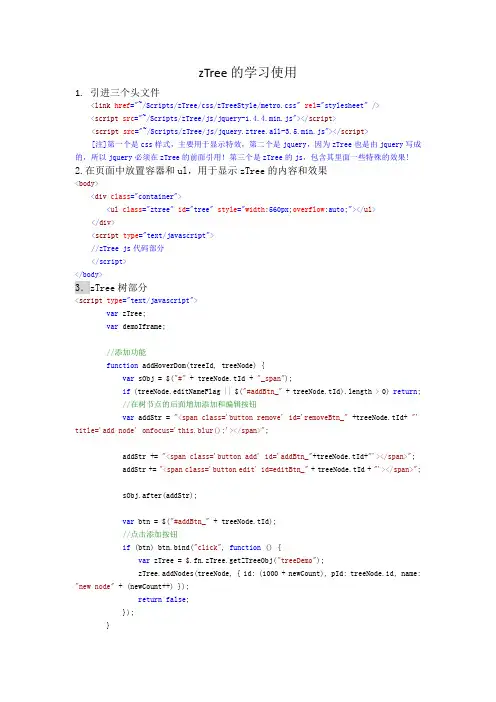

zTree的学习使用1.引进三个头文件<link href="~/Scripts/zTree/css/zTreeStyle/metro.css"rel="stylesheet"/><script src="~/Scripts/zTree/js/jquery-1.4.4.min.js"></script><script src="~/Scripts/zTree/js/jquery.ztree.all-3.5.min.js"></script>[注]第一个是css样式，主要用于显示特效，第二个是jquery，因为zTree也是由jquery写成的，所以jquery必须在zTree的前面引用！第三个是zTree的js，包含其里面一些特殊的效果! 2.在页面中放置容器和ul，用于显示zTree的内容和效果<body><div class="container"><ul class="ztree"id="tree"style="width:560px;overflow:auto;"></ul></div><script type="text/javascript">//zTreejs代码部分</script></body>3．zTree树部分<script type="text/javascript">var zTree;var demoIframe;//添加功能function addHoverDom(treeId, treeNode) {var sObj = $("#" + treeNode.tId + "_span");if (treeNode.editNameFlag || $("#addBtn_" + treeNode.tId).length > 0) return;//在树节点的后面增加添加和编辑按钮var addStr = "<span class='button remove' id='removeBtn_"+treeNode.tId+ "' title='add node' onfocus='this.blur();'></span>";addStr += "<span class='button add' id='addBtn_"+treeNode.tId+"'></span>";addStr += "<span class='button edit' id=editBtn_" + treeNode.tId + "'></span>";sObj.after(addStr);var btn = $("#addBtn_" + treeNode.tId);//点击添加按钮if (btn) btn.bind("click", function () {var zTree = $.fn.zTree.getZTreeObj("treeDemo");zTree.addNodes(treeNode, { id: (1000 + newCount), pId: treeNode.id, name: "new node" + (newCount++) });returnfalse;});}//删除功能function removeHoverDom(treeId, treeNode) {$("#addBtn_" + treeNode.tId).unbind().remove(); $("#editBtn_" + treeNode.tId).unbind().remove(); $("#removeBtn_"+treeNode.tId).unbind().remove(); }//树节点的设置var setting = {//添加checkbox，true为有，false为没有check: {enable: true},//添加特殊的控件view: {addHoverDom: addHoverDom,//添加按钮removeHoverDom: removeHoverDom,//移除按钮dbClickExpand: false,//双击不可用selectedMulti: false,//多选不可用},//数据格式data: {//简单数据类型simpleData: {enable: true,idKey: "id",//节点pIdKey: "pId",//父节点rootPId: ""//根节点}},//回发操作callback: {//点击之前beforeClick: function (treeId, treeNode) {var zTree = $.fn.zTree.getZTreeObj("tree");//判断是否是父节点if (treeNode.isParent) {zTree.expandNode(treeNode);returnfalse;}else {demoIframe.attr("src", treeNode.file + ".html");returntrue;}}}};//树节点内的内容var zNodes = [//基本功能演示{ id: 1, pId: 0, name: "[core] 基本功能演示", open: true },{ id: 101, pId: 1, name: "最简单的树 -- 标准 JSON 数据", file:"core/standardData" },{ id: 102, pId: 1, name: "最简单的树 -- 简单 JSON 数据", file:"core/simpleData" },{ id: 103, pId: 1, name: "不显示连接线", file: "core/noline" },{ id: 104, pId: 1, name: "不显示节点图标", file: "core/noicon" },{ id: 105, pId: 1, name: "自定义图标 -- icon 属性", file: "core/custom_icon" }, { id: 106, pId: 1, name: "自定义图标 -- iconSkin属性", file:"core/custom_iconSkin" },{ id: 107, pId: 1, name: "自定义字体", file: "core/custom_font" },{ id: 115, pId: 1, name: "超链接演示", file: "core/url" },{ id: 108, pId: 1, name: "异步加载节点数据", file: "core/async" },{ id: 109, pId: 1, name: "用zTree方法异步加载节点数据", file: "core/async_fun" }, { id: 110, pId: 1, name: "用zTree方法更新节点数据", file: "core/update_fun" }, { id: 111, pId: 1, name: "单击节点控制", file: "core/click" },{ id: 112, pId: 1, name: "展开 / 折叠父节点控制", file: "core/expand" },{ id: 113, pId: 1, name: "根据参数查找节点", file: "core/searchNodes" },{ id: 114, pId: 1, name: "其他鼠标事件监听", file: "core/otherMouse" },//复/单选框功能{ id: 2, pId: 0, name: "[excheck] 复/单选框功能演示", open: false },{ id: 201, pId: 2, name: "Checkbox 勾选操作", file: "excheck/checkbox" },{ id: 206, pId: 2, name: "Checkbox nocheck演示", file: "excheck/checkbox_nocheck"}, { id: 207, pId: 2, name: "Checkbox chkDisabled演示", file:"excheck/checkbox_chkDisabled" },{ id: 208, pId: 2, name: "Checkbox halfCheck演示", file:"excheck/checkbox_halfCheck" },{ id: 202, pId: 2, name: "Checkbox 勾选统计", file: "excheck/checkbox_count" }, { id: 203, pId: 2, name: "用zTree方法勾选 Checkbox", file:"excheck/checkbox_fun" },{ id: 204, pId: 2, name: "Radio 勾选操作", file: "excheck/radio" },{ id: 209, pId: 2, name: "Radio nocheck演示", file: "excheck/radio_nocheck" }, { id: 210, pId: 2, name: "Radio chkDisabled演示", file:"excheck/radio_chkDisabled" },{ id: 211, pId: 2, name: "Radio halfCheck演示", file: "excheck/radio_halfCheck"}, { id: 205, pId: 2, name: "用zTree方法勾选 Radio", file: "excheck/radio_fun" }, //编辑功能演示{ id: 3, pId: 0, name: "[exedit] 编辑功能演示", open: false },{ id: 301, pId: 3, name: "拖拽节点基本控制", file: "exedit/drag" },{ id: 302, pId: 3, name: "拖拽节点高级控制", file: "exedit/drag_super" },{ id: 303, pId: 3, name: "用zTree方法移动 / 复制节点", file: "exedit/drag_fun" }, { id: 304, pId: 3, name: "基本增 / 删 / 改节点", file: "exedit/edit" },{ id: 305, pId: 3, name: "高级增 / 删 / 改节点", file: "exedit/edit_super" },{ id: 306, pId: 3, name: "用zTree方法增 / 删 / 改节点", file: "exedit/edit_fun"}, { id: 307, pId: 3, name: "异步加载&编辑功能共存", file: "exedit/async_edit" }, { id: 308, pId: 3, name: "多棵树之间的数据交互", file: "exedit/multiTree" },//大数据演示{ id: 4, pId: 0, name: "大数据量演示", open: false },{ id: 401, pId: 4, name: "一次性加载大数据量", file: "bigdata/common" },{ id: 402, pId: 4, name: "分批异步加载大数据量", file: "bigdata/diy_async" },{ id: 403, pId: 4, name: "分批异步加载大数据量", file: "bigdata/page" },//组合功能演示{ id: 5, pId: 0, name: "组合功能演示", open: false },{ id: 501, pId: 5, name: "冻结根节点", file: "super/oneroot" },{ id: 502, pId: 5, name: "单击展开/折叠节点", file: "super/oneclick" },{ id: 503, pId: 5, name: "保持展开单一路径", file: "super/singlepath" },{ id: 504, pId: 5, name: "添加自定义控件", file: "super/diydom" },{ id: 505, pId: 5, name: "checkbox / radio 共存", file: "super/checkbox_radio" }, { id: 506, pId: 5, name: "左侧菜单", file: "super/left_menu" },{ id: 513, pId: 5, name: "OutLook样式的左侧菜单", file:"super/left_menuForOutLook" },{ id: 507, pId: 5, name: "下拉菜单", file: "super/select_menu" },{ id: 509, pId: 5, name: "带 checkbox 的多选下拉菜单", file:"super/select_menu_checkbox" },{ id: 510, pId: 5, name: "带 radio 的单选下拉菜单", file:"super/select_menu_radio" },{ id: 508, pId: 5, name: "右键菜单的实现", file: "super/rightClickMenu" },{ id: 511, pId: 5, name: "与其他 DOM 拖拽互动", file: "super/dragWithOther" }, { id: 512, pId: 5, name: "异步加载模式下全部展开", file: "super/asyncForAll" }, //其他扩展功能演示{ id: 6, pId: 0, name: "其他扩展功能演示", open: false },{ id: 601, pId: 6, name: "隐藏普通节点", file: "exhide/common" },{ id: 602, pId: 6, name: "配合 checkbox 的隐藏", file: "exhide/checkbox" },{ id: 603, pId: 6, name: "配合 radio 的隐藏", file: "exhide/radio" }];//初始化树$(document).ready(function () {var t = $("#tree");t = $.fn.zTree.init(t, setting, zNodes);demoIframe = $("#testIframe");demoIframe.bind("load", loadReady);var zTree = $.fn.zTree.getZTreeObj("tree");zTree.selectNode(zTree.getNodeByParam("id",101));});//数据加载function loadReady() {var bodyH = demoIframe.contents().find("body").get(0).scrollHeight, htmlH = demoIframe.contents.find("html").get(0).scrollHeight, maxH = Math.max(bodyH, htmlH), minH = Math.min(bodyH, htmlH),h = demoIframe.height() >= maxH ? minH :maxH;if (h < 530) h = 530;demoIframe.height(h);}</script>4．显示的效果。
