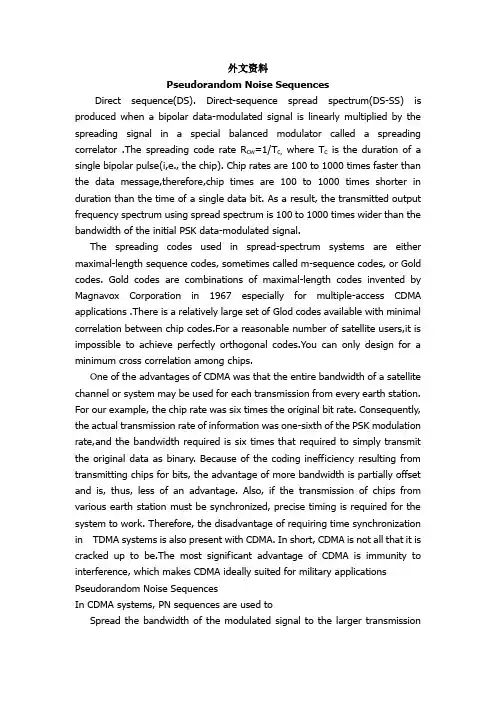

外文资料Pseudorandom Noise SequencesDirect sequence(DS). Direct-sequence spread spectrum(DS-SS) is produced when a bipolar data-modulated signal is linearly multiplied by the spreading signal in a special balanced modulator called a spreading correlator .The spreading code rate R cw=1/T c,where T c is the duration of a single bipolar pulse(i,e., the chip). Chip rates are 100 to 1000 times faster than the data message,therefore,chip times are 100 to 1000 times shorter in duration than the time of a single data bit. As a result, the transmitted output frequency spectrum using spread spectrum is 100 to 1000 times wider than the bandwidth of the initial PSK data-modulated signal.The spreading codes used in spread-spectrum systems are either maximal-length sequence codes, sometimes called m-sequence codes, or Gold codes. Gold codes are combinations of maximal-length codes invented by Magnavox Corporation in 1967 especially for multiple-access CDMA applications .There is a relatively large set of Glod codes available with minimal correlation between chip codes.For a reasonable number of satellite users,it is impossible to achieve perfectly orthogonal codes.You can only design for a minimum cross correlation among chips.One of the advantages of CDMA was that the entire bandwidth of a satellite channel or system may be used for each transmission from every earth station. For our example, the chip rate was six times the original bit rate. Consequently, the actual transmission rate of information was one-sixth of the PSK modulation rate,and the bandwidth required is six times that required to simply transmit the original data as binary. Because of the coding inefficiency resulting from transmitting chips for bits, the advantage of more bandwidth is partially offset and is, thus, less of an advantage. Also, if the transmission of chips from various earth station must be synchronized, precise timing is required for the system to work. Therefore, the disadvantage of requiring time synchronization in TDMA systems is also present with CDMA. In short, CDMA is not all that it is cracked up to be.The most significant advantage of CDMA is immunity to interference, which makes CDMA ideally suited for military applications Pseudorandom Noise SequencesIn CDMA systems, PN sequences are used toSpread the bandwidth of the modulated signal to the larger transmissionbandwidthDistinguish between the different user signals by utilizing the same transmission bandwidth in the multiple access scheme.PN squences are not random; they are deterministic, periodic sequences. The following are the three key properties of an ideal PN sequence:1.The relative frequencies of 0 and 1 are each 1/2.2.The run length(of 0s or 1s)are: 1/2 of all run lengths are of length 1; 1/4are of length 2;1/8 are of length 3; and so on.3.If a PN sequence is shifted by any nonzero number of elements, theresulting sequence will have an equal number of agreements and disagreements with respect to the original sequence.PN sequence are generated by combining the outputs of feedback shift registers. A feedback shift register consists of consecutive two-stage memory or storage stages and feedback lobic. Binary sequences are shifted register in response to clock pulses. The contents of the stages are olgically combined to produce the input to the first stage. The initial contents of the stages and feedback olgic determine the successive contents of the stages. A feedback shift register and its output are called linear when the feedback logic consists entirely of modulo-2 adders.To demonstrate the properties of a PN a binary sequence, we consider a linear feedback shift register(see Fig. 1) that has a four-stage register for storage and shifting, a modulo-2 adder, and a feedback path from adder to the input of the register.The operation of the shift register is controlled by a sequence of clock pulses. At each clock pulse the contents of each stage in the register is shifted by one stage to the right. Also, at each clock pulse the contents of stages x3 and x4 are modulo-2 added, and the result is fed back to stage x1. The shift register sequence is defined to be the output of stage x4. W assume that stage x1 is initially filled with a 0 and the other remaining stages are filled with 0, 0, and 1; i.e., the initial state of the register is 0 0 0 1. Next, we perform the shifting, adding , and feeding operations, where we obtain the results after each cycle that is shown in Table 1.We notice that the contents of the registers repeat after 24-1=15 cycles. The output sequence is given as 0 0 0 1 0 0 1 1 0 1 0 1 1 1 1 ,where the left-most bit is the earliest bie. In the output sequence, the total number of 0s is 7 and total number of 1s is 8; the numbers differ by 1.If a linear feedback shift register reached the 0 state an some time, it would always remain in the 0 state and the output sequence would subsequently be all 0s. Since there are exactly 2n-1 nonzero states, the period of a linear n-stage shift register output sequence can not exceed 2n-1.The output sequences are classified as either maximal length or nonmaximal length. Maximal-length sequences are the longest sequences that can be generated by a given shift register of a given length. In the binary shift register sequence generators, the maximal length sequence is 2n-1 chips, where n is the number of stages in the shift registers. Maximal-length sequences have this property for an n-stage linear feedback shift register: the sequence repetition period in clock pulses is T0=2n-1. If a linear feedback shift register generates a maximal sequence, then all of its nonzero output sequences are maximal, regardless of the initial stage. A maximal sequence contains(2n-1-1) 0s and (2n-1) 1s per period.Figure1 Four-Stage Linear Feedback Shift Register二、译文伪随机序列直接序列(DS)。

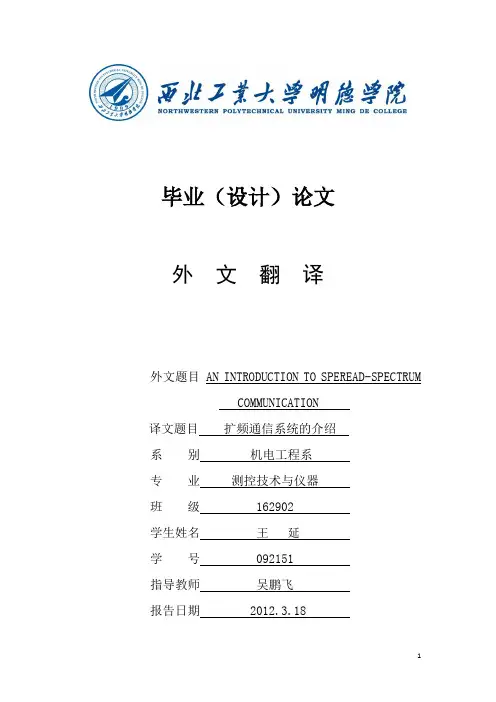

毕业（设计）论文外文翻译外文题目AN INTRODUCTION TO SPEREAD-SPECTRUMCOMMUNICATION译文题目扩频通信系统的介绍系别机电工程系专业测控技术与仪器班级 162902学生姓名王延学号 092151指导教师吴鹏飞报告日期 2012.3.18AN INTRODUCTION TO SPEREAD-SPECTRUMCOMMUNICATIONIntroductionAs spread-spectrum techniques become increasingly popular,electrical engineers outside the field are eager for understandable explanations of the technology.There are books and websites on the subject,but many are hard to understand or describe some aspects while ignoring others(e.g.,the DSSS technique with extensive focus on PRN-code generation).The following discussion covers the full spectrum(pun intended).A Short HistorySpread-spectrum communications technology was first described on paper by an actress and a musician!In 1941 Hollywood actress Hedy Lamarr and pianist George Antheil described a secure radio link to control torpedoes.They received U.S.Patent #2.292.387.The technology was not taken seriously at that time by the U.S.Army and was forgotten until the 1980s, when it became active.Since then the technology has become increasingly popular for application that involve radio links in hostile environments.Typical applications for the resulting short-range data transceivers include satellite-positioning systemsGPS，3Gmobile telecommunications,W-LAN(IEEE®802.11a,IEEE 802.11b,IEEE 802.11g),and Bluetooth®.Spread-spectrum techniquesalso aid in the endless race between communication needs and radio-frequency availability-situations where the radio spectrum is limited and is,therefore,an expensive resource.Theoretical Justification for Spread SpectrumSpread-spectrum is apparent in the Shannon and Hartley channel-capacitytheorem:C=B×log2(1+S/N) (Eq.1)I n this equation,C is the channel capacity in bits per second (bps),which is the maximum data rate for a theoretical bit-error rate (BER).B is the required channel bandwidth in Hz,and S/N is the signal-to-noise power ratio.To be more explicit,one assumes that C,which represents the amount of information allowed by the communication channel,also represents the desired performance.Bandwidth (B) is the price to be paid,because frequency is a limited resource.The S/N ratio expresses the environmental conditions or the physical characteristics (i.e., obstacles ,presence of jammers ,interferences,etc.).There is an elegant interpretation of this equation,applicable for difficult environments,for example,when a low S/N ratio is caused by noise and interference.This approach says that one can maintain or even increase communication performance (high C) by allowing or injecting more bandwidth (high B), even when signal power is below the noise floor. (The equation does not forbid that condition!)Modify Equation 1 by changing the log base from 2 to e (the Napier Ian number) and by noting that in=loge.Therefore:C/B= (1/ln2) ×ln(1+S/N)=1.443×ln(1+S/N) (Eq.2) Applying the MacLaurin series development forln(1+x)=x-x2/2+x3/3-x4/4+…+(-1)k+1xk/k+…:C/B=1.443×(S/N-1/2×(S/N)2+1/3×(S/N)3-…) (Eq.3) S/N is usually low for spread-spectrum applications. (As just mentioned, the signal power density can even be below the noise level.) Assuming a noise level such that S/N <<1,Shannon's expression becomes simply:C/B≈1.443×S/N (Eq.4) Very roughly:C/N≈S/N (Eq.5) Or:N/S≈B/C (Eq.6) To send error-free information for a given noise-to-signal ratio in the channel,therefore,one need only performs the fundamental spread-spectrum signal-spreading operation:increase the transmitted bandwidth.That principle seems simple and evident.Nonetheless,implementation is complex,mainly because spreading the baseband (by a factor that can be several orders of magnitude) forces the electronics to act and react accordingly,which,in turn,makes the spreading and dispreading operations necessary.DefinitionsDifferent spread-spectrum techniques are available,but all have one idea in common:the key (also called the code or sequence) attached to the communication channel.The manner of inserting this code defines precisely the spread-spectrum technique.The term "spread spectrum" refers to the expansion of signal bandwidth,by several orders of magnitude in some cases,which occurs when a key is attached to the communication channel.The formal definition of spread spectrum is more precise:an RF communications system in which the baseband signal bandwidth is intentionally spread over a larger bandwidth by injecting a higher frequency signal (Figure 1).As a direct consequence,energy used in transmitting the signal is spread over a wider bandwidth,and appears as noise.The ratio (in dB) between the spread baseband and the original signal is called processing gain.Typical spread-spectrum processing gains run from 10dB to 60dB.To apply a spread-spectrum technique,simply inject the corresponding spread-spectrum code somewhere in the transmitting chain before the antenna (receiver).Conversely,you can remove the spread-spectrum code (called a dispreading operation) at a point in the receive chain before data retrieval.A dispreading operation reconstitutes the information into its original bandwidth.Obviously,the same code must be known in advance at both ends of the transmission channel. (In somecircumstances,the code should be known only by those two parties.)Figure 1.Spread-spectrum communication systemBandwidth Effects of the Spreading OperationFigure 2 illustrates the evaluation of signal bandwidths in a communication link.Figure 2.Spreading operation spreads the signal energy over a wider frequencybandwidth.Spread-spectrum modulation is applies on top of a conventional modulation such as BPSK or direct conversion.One can demonstrate that all other signals not receiving the spread-spectrum code will remain ad they are,that is,unspread.Bandwidth Effects of the Dispreading OperationSimilarly,dispreading can be seen in Figure 3.Figure 3. The dispreading operation recovers the original signal.Here a spread-spectrum demodulation has been made on top of the normal demodulation operations.One can also demonstrate that signals such as an interferer or jammer added during the transmission will be spread during the dispreading operation!Waste of Bandwidth Due to Spreading Is Offset by Multiple Users Spreading results directly in the use of a wider frequency band by a factor that corresponds exactly to the "processing gain" mentioned earlier.Therefore spreading does not spare the limited frequency resource.That overuse is well compensated,howeverby the possibility that many users will share the enlarged frequency band (Figure 4).Figure 4. The same frequency band can be shared by multipleUsers with spread-spectrum techniques.Spread Spectrum Is a Wideband Technology In contrast to regular narrowband technology,the spread-spectrum process is a wideband technology.W-CDMA and UMTS, for example,are wideband technologies that require a relatively large frequency bandwidth, compared to narrowband radio.Benefits of Spread SpectrumResistance to Interference and Ant jamming EffectsThere are many benefits to spread-spectrum technology.Resistance to interference is the most important advantage.Intentional or unintentional interference and jamming signals are rejected because they do not contain the spread-spectrum key. Only the desired signal,which has the key, will be seen at the receiver when the dispreadingoperation is exercised.See Figure 5.Figure 5. A spread-spectrum communication system.Note that the interferer’s energy is spread while the data signal is dispread in the receive chain.You can practically ignore the interference,narrowband or wideband,if it does not include the key used in the dispreading operation.That rejection also applies to other spread-spectrum signals that do not have the right key.Thus different spread-spectrum communications can be active simultaneously in the same band,such as CDMA.Note that spread-spectrum is a wideband technology,but the reverse is not true:wideband techniques need not involve spread-spectrum technology.Resistance to InterceptionResistance to interception is the second advantage provided by spread-spectrum techniques.Because no authorized listeners do not have the key used to spread the original signal,those listeners cannot decode it.Without the right key,the spread-spectrum signal appears as noise or as an interferer. Scanning methods can break the code,however,if the key is short.) Even better,signal levels can be below the noise floor,because the spreading operation reduces the spectral density.See Figure 6.(Total energy is the same,but it is widely spread in frequency.) The message is thus made invisible,an effect that is particularly strong with the direct-sequence spread-spectrum (DSSS) technique. (DSSS is discussed in greater detail below.) Other receivers cannot “see” the transmission;they only register a slight increase i n the overall noise level!Figure 6.Spread-spectrum signal is buried under noise level.The receiver cannotseethetransmission without the right spread-spectrum keys.Resistance to Fading (Multipath Effects)Wireless channels often include multiple-path propagation in which the signal has more than one path from the transmitter to the receiver (Figure 7).Such multipath can be caused by atmospheric reflection or refraction, and by reflection from the ground or from objects such as buildings.Figure 7.Illustration of how the signal can reach the receiver over multiple paths.The reflected path (R) can interfere with the direct path (D) in a phenomenon called fading.Because the dispreading process synchronizes to signal D,signal R is rejected even though it contains the same key. Methods are available to use the reflected-path signals by dispreading them and adding the extracted results to the main one.Spread Spectrum Allows CDMANote that spread spectrum is not a modulation scheme,and should not be confused with other types of modulation.One can,for example,use spread-spectrum techniques to transmit a signal modulated by PSK or BPSK.Thanks to the coding basis,spread spectrum can also be used as another method for implementing multiple access (i.e.,the real or apparent coexistence of multiple and simultaneous communicationlinks on the same physical media).So far,three main methods are available.FDMA-Frequency Division Multiple AccessFDMA allocates a specific carrier frequency to a communication channel.The number of different users is limited to the number of “slices” in the frequency spectrum (Figure 8).Of the three methods for enabling multiple access,FDMA is the least efficient in term of frequency-band usage.Methods of FDMA access include radio broadcasting,TV,AMPS,and TETRAPOLE.Figure 8.Carrier-frequency allocations among different users in a FDMA system.TDMA-Time Division Multiple AccessWith TDMA the different users speak and listen to each other according to a defined allocation of time slots (Figure 9).Different communication channels can then be established for a unique carrier frequency.Examples of TDMA are GSM,DECT,TETRA,and IS-136.Figure 9. Time-slot allocations among different users in a TDMA system.CDMA-Code Division Multiple AccessCDMA access to the air is determined by a key or code (Figure 10).In thatsince,spread spectrum is a CDMA access.The key must be defined and known in advance at the transmitter and receiver ends.Growing examples are IS-95 (DS), IS-98,Bluetooth,and WLAN.扩频通信系统的介绍简介扩频技术越来越受欢迎，就连这一领域以外的电器工程师都渴望能够深入理解这一技术。

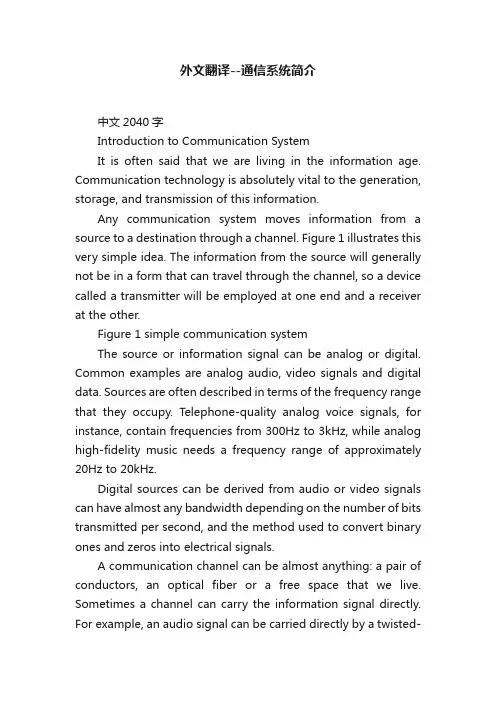

外文翻译--通信系统简介中文2040字Introduction to Communication SystemIt is often said that we are living in the information age. Communication technology is absolutely vital to the generation, storage, and transmission of this information.Any communication system moves information from a source to a destination through a channel. Figure 1 illustrates this very simple idea. The information from the source will generally not be in a form that can travel through the channel, so a device called a transmitter will be employed at one end and a receiver at the other.Figure 1 simple communication systemThe source or information signal can be analog or digital. Common examples are analog audio, video signals and digital data. Sources are often described in terms of the frequency range that they occupy. Telephone-quality analog voice signals, for instance, contain frequencies from 300Hz to 3kHz, while analog high-fidelity music needs a frequency range of approximately 20Hz to 20kHz.Digital sources can be derived from audio or video signals can have almost any bandwidth depending on the number of bits transmitted per second, and the method used to convert binary ones and zeros into electrical signals.A communication channel can be almost anything: a pair of conductors, an optical fiber or a free space that we live. Sometimes a channel can carry the information signal directly. For example, an audio signal can be carried directly by a twisted-pair telephone cable. On the other hand, a radio link through free space cannot be used directly for voice signals. Such situation require the use of a carrier wave will be altered, or modulated m, by the information signals in such a way that the information can be recovered at the destination. When a carrier is used, the information signal is also known as the modulating signals.Technology is at the core of many new and emerging digital information products and applications that support the information society. Such products and applications often require the collection, sometimes in real time. The ability of technology to handle real world signals digitally has made it possible to create affordable, innovative; and high quality products and applications for large consumer market for example: digital cellular mobile phone, digital television and video games. The impact of is also evident in many other areas, such as medicine and healthcare. For example: in patient monitors for intensive care, digital X-ray appliances, advanced cardiology and brain mapping systems and so on, digital audio, for example: CD players; audio mixers and electronic music and so on. And personal computer systems for example: disks for efficient data storage and error correction, moderns, sound cards and video conferencing and so on.Most of the major cities in the domestic bus stop artificial voice. Every one of the key points from the driver or attendant to stop by voice. But sometimes due to various factors such as weather, vehicle congestion,flight attendants are feeling the effects of the changes. There being given the station's reporting stations, especially for passengers not familiar with the topography of the city, causinga lot of unnecessary trouble. Well thus affect the image of a city construction window, then developed automatic stop system inevitable. As required before the docking system bus GPS information (latitude and longitude information, etc.), longitude and latitude information generated by the distance between bus stops with the message that this is going to experience the tedious, use the micro-controller difficult to achieve, and when using chips, the proper solution of this problem.Using radians per second in the mathematics dealing with modulation makes the equation simpler. Of course, frequency is usually given in hertz, rather than in radians per second, when practical devices are being discussed. It is easy to convert between the two systems per second, when practical devices are being discussed. It is easy to convert between the two systems by recalling from basic AC theory, ω=2πf.In modula tion, the parameters that can be changed are amplitude E, frequency ω,and phase θ. Combin ations are also possible. For example, many schemes for transmitting digital information use both amplitude and phase modulation.Multiplexing is the term used in communications to refer to the combining of two or more information signals. When the available frequency range is divided among the signals, the process is known as frequency-division multiplexing (FDM).Radio and television broadcasting, in which the available spectrum is divided among many signals, are everyday examples of FDM. There are limitations to the number of signals that can be crowded into a given frequency range because each requires a certain bandwidth, For example, a television channel only occupies s given bandwidth of 6MHz in 6~8MHz bandwidth of VHF.Parallel DSP chip to enhance the performance of a traditional improved through the use of multiply-add units and the Harvard structure, it goes far beyond the computational capabilities of the traditional microprocessor. A reasonable inference is: chip operations by increasing the number of modules and the corresponding number of bus linking computational modules. The chip can be doubled to enhance the overall operational capacity. Of course, such an inference two preconditions must be met : First, the memory bus bandwidth as necessary to meet the increase in the number of enhanced data throughput; In addition, various functional units involved in the parallel scheduling algorithm is its complexity can be achieved.An alternative method for using a single communication channel to send many signals is to use time-division multiplexing (TDM). Instead of dividing the available bandwidth of the channel among many signals, the entire bandwidth is used for each signal, but only for a small part of the time. A nonelectronic example is the division of the total available time on a television channel among the various programs transmitted. Each program uses the whole bandwidth of the channel, but only for part of the time.It is certainly possible to combine FDM and TDM, For example, the available bandwidth of acommunication satellite is divided among a number of transmitter-receiver combinations called transponders. This is an example of FDM. A single transponder can be used to carry a large number of digital signals using TDM.This course presents a top-down approach to communications system design. The course will cover communication theory, algorithms and implementation architectures for essential blocks in modern physical-layercommunication systems (coders and decoders, filters, multi-tone modulation, synchronization sub-systems). The course is hands-on, with a project component serving as a vehicle for study of different communication techniques, architectures and implementations. This year, the project is focused on WLAN transceivers. At the end of the course, students will have gone through the complete WLAN System-On-a-Chip design process, from communication theory, through algorithm and architecture all the way to the synthesized standard-cell RTL chip representation.通信系统简介人们常说我们正生活在一个信息时代，通信技术对信息的产生，存储与转换有着至关重要的作用。

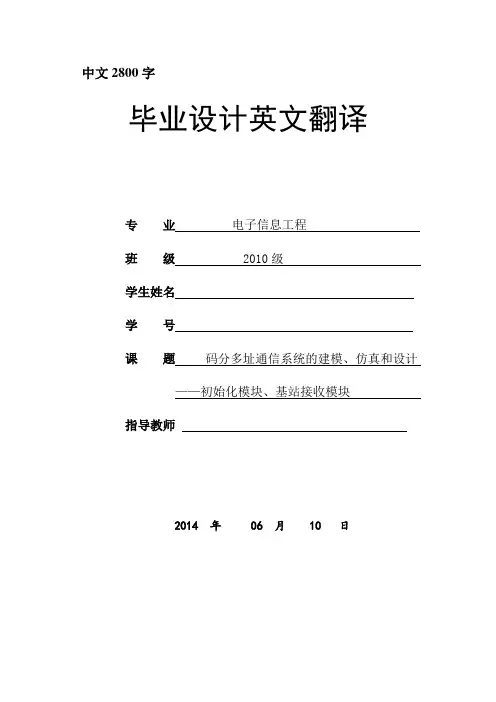

中文2800字毕业设计英文翻译专业电子信息工程班级2010级学生姓名学号课题码分多址通信系统的建模、仿真和设计——初始化模块、基站接收模块指导教师2014 年06 月10 日译文原文1.1 The basic concept of spread-spectrum communicationSpread spectrum communication’s basic characteristics, is used to transmit information to the signal bandwidth(W) is far greater than practical required minimum(effective) bandwidth (F∆),as the radio of processing gain P G.=/G P∆FWAs we well know,the ordinary AM,FM,or pulse code modulation,GP value in the area more than 10 times,collectively,the “narrow-band communication”,and spread-spectrum communication GP values as hundred or even thousands of times, can be called “broadband communication”.Due to the spread-spectrum signal,it is very low power transmitters,transmission space mostly drowned in the noise,it is difficult to intercepted by the other receiver ,only spreading codes with the same (or random PN code) receiver, Gain can be dealt with ,and despreading resume the original signal.1.2 The technology superiority of spread-spectrum communication.Strong anti-interference, bit error rate is low. As noted above, the spread spectrum communication system due to the expansion of the transmitter signal spectrum, the receiver despreading reduction signal produced spreading gain, thereby greatly enhancing its interference tolerance. Under the spreading gain, or even negative in the signal-to-noise ratio conditions, can also signal from the noise drowned out Extraction, in the current business communications systems, spread spectrum communications systems, spread spectrum communication is only able to work in a negative signal-to-noise ratio under the conditions of communication .Anti-multi-path interference capability, increase the reliability of system. Spread-spectrum systems as used in the PN has a good correlation, correlation is very weak. Different paths to the transmission signal can easily be separated and may intime and re-alignment phase, formation of several superimposed signal power, thereby improving the system’s performance to receive increased reliability of the system.Easy to use the same frequency, improving the wireless spectrum utilization. Wireless spectrum is very valuable,although long-wave microwave have to be exploited, and still can not meet the needs of community. To this end, countries around the world are designed spectrum management, users can only use the frequency applications,rely on the channel to prevent the division between the channel interference.Due to the use of spread-spectrum communication related receive this high-tech,low signal output power(“a W,as a general-100mW),and will work in the channel noise and thermal noise in the background,easy to duplicate in the same area using the same frequency,can now all share the same narrow-band frequency communication resources.Spread-spectrum communication is digital communication,particularly for digital voice and data transmission with their own encryption, only in the same PN code communication between users, is good for hiding and confidential in nature, facilitating communication business. Easy to use spread-spectrum CDMA communications, voice compression and many other new technologies, more applicable to computer networks and digitization of voice,image information transmission.Communication in the most digital circuits, equipment, highly integrated, easy installation, easy maintenance, but also very compact and reliable. The average failure rate no time was very long.1.3 Spread spectrum communication systemSpread spectrum communication,namely, spread spectrum communications (Spread spectrum communication), with fiber-optic communications,satellite communications,with access to the information age as the three major high-tech communications transmission. Spread spectrum communication is to send the information to be pseudo-random data is coded(Spread spectrum sequence: spread sequence) modulation, spread spectrum and then the realization of transmission; thereceiving end is using the same modem code and related processing, the restoration of the original data. Spread spectrum communication system has three main characteristics.(1) Carrier is an unpredictable, or so-called pseudo-random broadband signal.(2) Carrier data bandwidth than the modulation bandwidth is much wilder.(3) Receiving process is generated by local broadband carrier signal and receiving a copy of the signal to the broadband signal to achieve.The main way of spread spectrum are as follows: Direct Sequence Spread Spectrum(DSSS) using high-speed pseudo-random code on to the low-speed data transmission spread spectrum modulation; Frequency-hopping system using pseudo-random code to control the carrier frequency in a wider band of the change; TH is the data transmission time slot is a pseudo-random; chirp frequency system is a linear extension of the process of change. Combination of a number of ways of hybrid systems are often applied.The most important measure pf spread-spectrum system is an indicator of spreading gain, also known as processing gain. It is precisely because of the spread spectrum system itself with its performance characteristics with a series of advantages.1.4 Code division multiple accessCode division multiple access (CDMA) is a channel access method used by various radio communication technologies. It should not be confused with the mobile phone standards called cdmaOne, CDMA2000(the 3G evolution of cdmaOne) and WCDMA (the 3Gstandard used by GSM carrier), which are often referred to as simply CDMA, and use CDMA as an underlying channel access method.One of the concepts in data communication is the idea of allowing several transmitters to send information simultaneously over a signal communication channel. This allows several users to share a band of frequencies (see bandwidth). This concept is called multiple access. CDMA employs spread-spectrum technology and a special coding scheme( where each transmitter is assigned a code) to allow multiple user to be multiplexed over the same physical channel. By contrast, time division multipleaccess (FDMA) divides it by frequency. CDMA is a form of spread-spectrum signaling, since the modulated coded signal has a much higher data bandwidth than the data being communicated.1.5 Spread-spectrum characteristic of CDMAMost modulation schemes try to minimize the bandwidth of this signal since bandwidth is a limited resource. However, spread spectrum use a transmission bandwidth that is several orders of magnitude greater than the minimum required signal bandwidth. One of the initial reasons for doing this was military applications including guidance and communication systems. These system were designed using spread spectrum because if its security and resistance to jamming. Asynchronous CDMA has some level of privacy built in because the signal is spread using a pseudo-random code; this code makes the spread spectrum signals appear random or have noise-like properties. A receiver cannot demodulate this transmission without knowledge of the pseudo-random sequence used to encode the data. CDMA also resistant to jamming. A jamming signal only has a finite amount of power available to jam the signal. The jammer can either spread its energy over the entire bandwidth of the signal or jam only part of the entire signal.CDMA can also effectively reject narrow band interference. Since narrow band interference affects only a small portion of the spread spectrum signal, it can easily be removed through notch filtering without much loss of information. Convolution encoding and interleaving can be used to assist in recovering this lost data. CDMA signal are also resistant to multipath fading. Since the spread spectrum signal occupies a large bandwidth only a small portion of this will undergo fading due to multipath at any give time. Like the narrow band interference this will result in only a small loss of data and can be overcome.Another reason CDMA is resistant to multipath interference is because the delayed versions of the transmitted pseudo-random code, and will thus appear as another user, which is ignored at the receiver. In other words, as long as the multipath channel induces at least one chip of delay, 天the multipath channel induces at least one chip of delay,the multipath signals will arrive at the receiver.in other words, as long as the multipath channel induces at least one chip of delay, the multipath signalswill arrive at the receiver such that they are shifted in time by at least one chip from the intended signal. The correlation properties of the pseudo-random codes are such that this slight delay causes the multipath to appear uncorrelated with the intended signal, and it is thus ignored.Some CDMA devices use a rake receiver, which exploits multipath delay components to improve the performance of the system. A rake receiver combines the information from several correlators, each one tuned to a different path delay, producing a stronger version of the signal than a simple receiver with a signal correlation tuned to the path delay of the strongest signal.Frequency reuse is the ability to reuse the same radio channel frequency at other cell sites within a cellular system. In the FDMA and TDMA systems frequency planning is and important consideration. The frequencies used in different cells must be planned carefully to ensure signals from different cells do not interfere with each other. In a CDMA system, the same frequency can be used in every cell, because channelization is done using the pseudo-random codes. Reusing the same frequency in every cell eliminates the need for frequency planning in a CDMA system; however, planning of the different pseudo-random sequences must be done to ensure that the received signal from one cell does not correlate with the signal from a nearby cell.Since adjacent cell use the same frequencies, CDMA systems have the ability to perform soft handoffs. Soft handoffs allow the mobile telephone to communication simultaneously with two or more cells. The best signal quality in selected until the handoff is complete. This is different from hard handoffs utilized in other cellular systems. In a hard handoff situation, as the mobile telephone approaches a handoff, signal strength may vary abruptly. In contrast, CDMA systems use the soft handoff, which is undetectable and provides a more reliable and higher quality signal.Concluding remarksspread-spectrum technology in the initial stages of development, it has become a theory and a major technological breakthrough. Later in the development process is the improvement and hardware performance improved. Development to thepresent,spread-spectrum technology and the theory has been almost perfect,mainly from the point of view of overall performance, and the other new technology applications. Therefore, the application has been driven by the development of spread-spectrum technology is a power driving force, the future wireless communication systems, such as mobile communication. Wireless LAN, global personal communications, spread-spectrum technology will certainly play an important role.译文正文1.扩频通信系统概述扩频通信，即扩展频谱通信（Spread spectrum communication)，它与光纤通信、卫星通信，一同誉为进入信息时代的三大高技术通信传输方式，扩频通信是将待传送的信息数据被伪随机码调制，实现频谱扩展后再传输；接收端则采用相同的编码进行解调及相关处理，恢复原始信息数据。

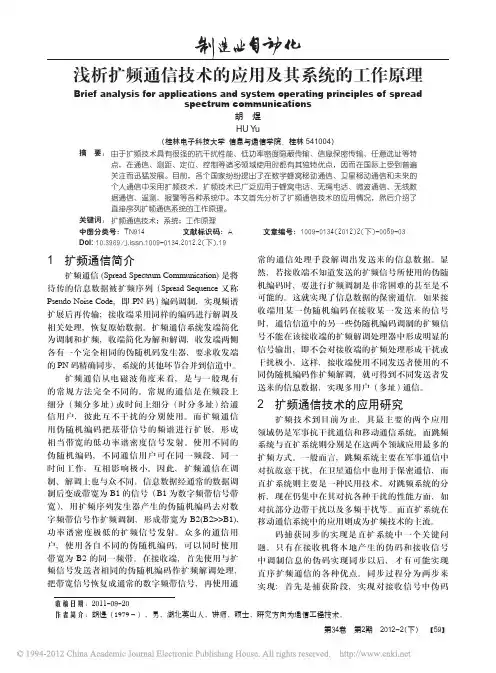

第34卷 第2期 2012-2(下) 【59】收稿日期：2011-09-20作者简介：胡煜（1979－），男，湖北英山人，讲师，硕士，研究方向为通信工程技术。

1 扩频通信简介扩频通信 (Spread Spectrum Communication) 是将待传的信息数据被扩频序列（Spread Sequence 又称 Pseudo Noise Code ，即 PN 码）编码调制，实现频谱扩展后再传输；接收端采用同样的编码进行解调及相关处理，恢复原始数据。

扩频通信系统发端简化为调制和扩频，收端简化为解和解调，收发端两侧各有一个完全相同的伪随机码发生器，要求收发端的 PN 码精确同步，系统的其他环节合并到信道中。

扩频通信从电磁波角度来看，是与一般现有的常规方法完全不同的。

常规的通信是在频段上细分（频分多址）或时间上细分（时分多址）给通信用户，彼此互不干扰的分别使用。

而扩频通信用伪随机编码把基带信号的频谱进行扩展，形成相当带宽的低功率谱密度信号发射。

使用不同的伪随机编码，不同通信用户可在同一频段、同一时间工作，互相影响极小。

因此，扩频通信在调制、解调上也与众不同。

信息数据经通常的数据调制后变成带宽为 B1 的信号（B1 为数字频带信号带宽），用扩频序列发生器产生的伪随机编码去对数字频带信号作扩频调制，形成带宽为 B2(B2>>B1),功率谱密度极低的扩频信号发射。

众多的通信用户，使用各自不同的伪随机编码，可以同时使用带宽为 B2 的同一频带。

在接收端，首先使用与扩频信号发送者相同的伪随机编码作扩频解调处理，把带宽信号恢复成通常的数字频带信号，再使用通常的通信处理手段解调出发送来的信息数据。

显然，若接收端不知道发送的扩频信号所使用的伪随机编码时，要进行扩频调制是非常困难的甚至是不可能的。

这就实现了信息数据的保密通信。

如果接收端用某一伪随机编码在接收某一发送来的信号时，通信信道中的另一些伪随机编码调制的扩频信号不能在该接收端的扩频解调处理器中形成明显的信号输出，即不会对接收端的扩频处理形成干扰或干扰极小。

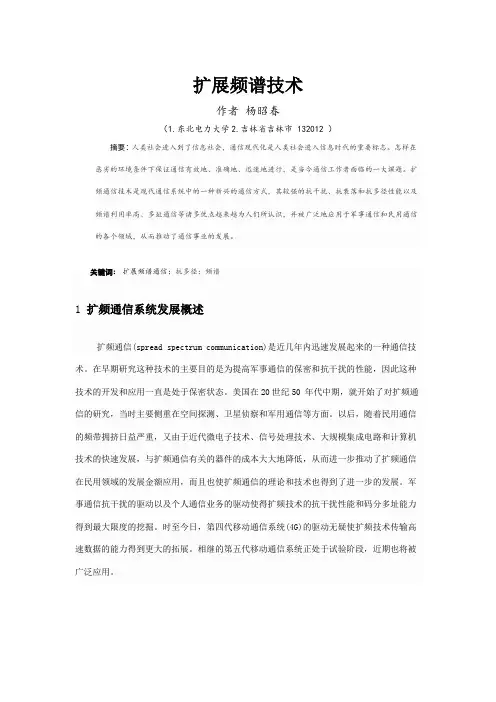

扩展频谱技术作者杨昭春（1.东北电力大学2.吉林省吉林市 132012 ）摘要:人类社会进入到了信息社会，通信现代化是人类社会进入信息时代的重要标志。

怎样在恶劣的环境条件下保证通信有效地、准确地、迅速地进行，是当今通信工作者面临的一大课题。

扩频通信技术是现代通信系统中的一种新兴的通信方式，其较强的抗干扰、抗衰落和抗多径性能以及频谱利用率高、多址通信等诸多优点越来越为人们所认识，并被广泛地应用于军事通信和民用通信的各个领域，从而推动了通信事业的发展。

关键词：扩展频谱通信；抗多径；频谱1 扩频通信系统发展概述扩频通信(spread spectrum communication)是近几年内迅速发展起来的一种通信技术。

在早期研究这种技术的主要目的是为提高军事通信的保密和抗干扰的性能，因此这种技术的开发和应用一直是处于保密状态。

美国在20世纪50 年代中期，就开始了对扩频通信的研究，当时主要侧重在空间探测、卫星侦察和军用通信等方面。

以后，随着民用通信的频带拥挤日益严重，又由于近代微电子技术、信号处理技术、大规模集成电路和计算机技术的快速发展，与扩频通信有关的器件的成本大大地降低，从而进一步推动了扩频通信在民用领域的发展金额应用，而且也使扩频通信的理论和技术也得到了进一步的发展。

军事通信抗干扰的驱动以及个人通信业务的驱动使得扩频技术的抗干扰性能和码分多址能力得到最大限度的挖掘。

时至今日，第四代移动通信系统(4G)的驱动无疑使扩频技术传输高速数据的能力得到更大的拓展。

相继的第五代移动通信系统正处于试验阶段，近期也将被广泛应用。

2扩频通信技术简介2.1 概念介绍扩展频谱通信（Spread Spectrum Communication)，扩频通信技术是一种信息传输方式，其信号所占有的频带宽度远大于所传信息必需的最小带宽。

频带的扩展是通过一个独立的码序列来完成，用编码及调制的方法来实现的，与所传信息数据无关；在接收端则用样的码进行相关同步接收、解扩及恢复所传信息数据。

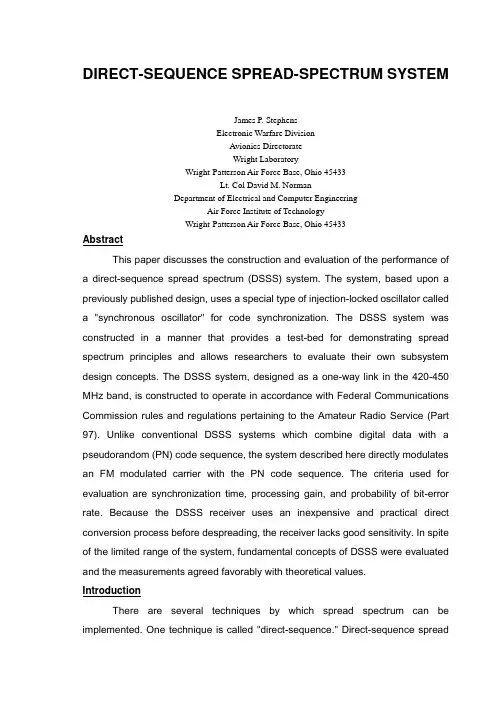

DIRECT-SEQUENCE SPREAD-SPECTRUM SYSTEMJames P. StephensElectronic Warfare DivisionAvionics DirectorateWright LaboratoryWright-Patterson Air Force Base, Ohio 45433Lt. Col David M. NormanDepartment of Electrical and Computer EngineeringAir Force Institute of TechnologyWright-Patterson Air Force Base, Ohio 45433AbstractThis paper discusses the construction and evaluation of the performance of a direct-sequence spread spectrum (DSSS) system. The system, based upon a previously published design, uses a special type of injection-locked oscillator called a "synchronous oscillator" for code synchronization. The DSSS system was constructed in a manner that provides a test-bed for demonstrating spread spectrum principles and allows researchers to evaluate their own subsystem design concepts. The DSSS system, designed as a one-way link in the 420-450 MHz band, is constructed to operate in accordance with Federal Communications Commission rules and regulations pertaining to the Amateur Radio Service (Part 97). Unlike conventional DSSS systems which combine digital data with a pseudorandom (PN) code sequence, the system described here directly modulates an FM modulated carrier with the PN code sequence. The criteria used for evaluation are synchronization time, processing gain, and probability of bit-error rate. Because the DSSS receiver uses an inexpensive and practical direct conversion process before despreading, the receiver lacks good sensitivity. In spite of the limited range of the system, fundamental concepts of DSSS were evaluated and the measurements agreed favorably with theoretical values.IntroductionThere are several techniques by which spread spectrum can be implemented. One technique is called "direct-sequence." Direct-sequence spreadspectrum is achieved in this paper by directly modulating a conventional narrowband frequency-modulated (FM) carrier with a high rate digital code. The direct modulation is binary phase-shift keying (BPSK). The high rate digital code is referred to as a PN (pseudo-noise) code because it exhibits random-like properties which are necessary for providing good spectral characteristics and security.This paper deals with the construction and evaluation of the performance of one particular class of DSSS system that uses a synchronous oscillator for code synchronization. The system, Figure 1, was constructed in a manner that allows a variety of DSSS concepts to be observed, studied, and evaluated. By using modular construction techniques, the system provides a flexible test-bed that is useful for evaluating sub-system design concepts.Figure 1. The DSSS SystemRegulatory AspectsThe operation of a radio transmitter, with a few exceptions, requires a license for the transmitter and usually the operator. In developing this spread spectrum system it was important that the final result be capable of actually radiating so that field tests could be performed as part of the system evaluation. Transmitter radiation in free space leads to the problem of insuring that the system is operating legally.US government agencies, including the military, generally do not require the licensing of radio transmitters provided they are used for official activities. Government and military transmitters do, however, require some type of authorization from a regulating authority. This authorization is necessary to insurethe systematic operation of radio transmitters in a manner which will not cause interference to other stations. To accomplish this, there are governmental committees or military departments that establish frequency allocation standards and other guidelines of operation. These organizations coordinate their activities with the State Department, or in the case of non-governmental operations, the Federal Communications Commission (FCC). The problem of acquiring military or governmental authorization to operate a spread spectrum transmitter was considered arduous for a research activity of this nature. Therefore, the decision was made to provide for transmitter operation in the Amateur Radio Service.The Amateur Radio Service is ideally suited for experimental transmitter operation of this nature. Amateur Radio is a service regulated by the FCC for US citizens to operate radio transmitters for hobby purposes, without business interests, to further the art of radio communications. Radio experimentation, such as this research project provides, is fundamental to the nature of the Amateur Radio ServiceBasic System ConfigurationConstruction of the DSSS system is based upon an article appearing in OST Magazine, May 1989, by Andre' Kestekoot. The system as described by Kesteloot is intended for use in the Amateur Radio Service. For this study, several design modifications were required. The resulting DSSS system, shown in Figure 2, consists of a transmitter unit and a receiver unit. The transmitter consists of an FM exciter, a PN code generator, a double-balanced mixer (DBM), an RF amplifier, a band-pass fitter, and an antenna. The receiver consists of an antenna, an RF preamplifier, a DBM, a PN code generator, a synchronous oscillator, and a narrowband FM receiver.The DSSS system operates as a one-way link in the 420-450 MHz band with an output power of approximately 100 mw. It uses a process called the "stored reference" design approach, in which a replica of the PN code used for spreading the signal is contained within the receiver. The process of demodulation requiresthat the spreading PN code must be synchronized to the stored reference PN code. The process of synchronization is accomplished by a special circuit called a synchronous oscillator. The capability of the synchronous oscillator to perform spread spectrum synchronization is evaluated in this paper.Figure 2a. TransmitterFigure 2b. ReceiverThe PN code generator provides the pseudorandom digital waveform that is used to spread the frequency modulated carrier to produce a DSSS signal. The PN code generator is designed to be programmable from the transmitter and the receiver front panel. The PN code generator can output linear recursive sequences (LRS) for any polynomial up to, and including, degree-12. This class of PN codes is generated by digital feedback shift-registers. A digital shift-register of degree-n is a device consisting of n consecutive binary storage elements. The PN code generator for this system is clocked at the rate of 2.7875 MHz as derived from the FM exciter.The PN code sequence used in this analysis has the following parameters: rc = chip rate = 2.7875 MHzTc = chip time = 362.5 nsn = code sequence polynomial degree = 7N = sequence length = 127 bitsTN = code period = NTc = 46.04 nsSynchronizationThe problem of synchronization in DSSS systems is that of aligning the receiver's locally generated PN code sequence with the spreading modulation superimposed on the incoming signal. This process is often accomplished in two steps. The first step, called "acquisition', consists of bringing the two spreading signals into coarse alignment. Once acquisition has occurred, the second step, called tracking" takes over and continuously maintains fine alignment, usually by means of a feedback loop.The synchronization technique used in the system described here uses a device called a …'synchronous oscillator" (SO). Kesteloot states that the SO provides the function of a phased-locked loop (PLL) while offering several advantages: simpler to implement and better noise immunity. Uzunoglu and White, co-developers of the patented SO, have provided theoretical and experimental results of its performance.The synchronous oscillator is a synchronization network used for both acquisition and tracking. Fundamentally, the SO is a free-running oscillator in the absence of an externally applied signal. In the presence of a signal, the oscillator acquires and tracks the input waveform. An important feature of the SO is its ability to lock and track an input signal whose frequency is an integer multiple or a rational integer number such as 4,114 and 3/2. The SO possesses constant output signal amplitude in the tracking region and an adaptive tracking bandwidth proportional to the input signal level. A phase shift exists between the input and the output of the SO when it is synchronized that depends on the difference between the free-running frequency of the SO and the injected frequency.At the transmitter, the PN code generator is clocked (chip rate) from asource coherently derived from the TA451 exciter. The exciter signal, at 9 times the crystal frequency, is divided by 40 to produce the 2.7875 MHz chip rate. This chip rate is precisely 11160 of the carrier frequency. At the receiver, the output of the SO, which free-runs at approximately 111.5 MHz, is divided by 40 to re-create the transmitted chip rate. The transmitter and receiver chip rates will not be precisely the same because of variations such as oscillator instabilities, doppler, and multipath. Furthermore, the starting point of their respective sequences will not be identical.The output of the receiver DBM, at 446 MHz, is input to the SO completing the feedback path and allowing synchronization. When this occurs, the SO feature of division by an integer is implemented. The input to the SO at 446 MHz is divided by 4 and tracked by the 111.5 MHz oscillator. The SO output is divided by 40, reconditioned, and passed on to drive the receiver PN code generator. The output of PN code generator is applied to the LO port of the DBM to despead the signal.The rate difference between the transmitted sequence and the receiver's locally generated sequence establishes a "sliding correlator" process. When correlation occurs, the signal power over a large bandwidth collapses into a narrowband signal having much greater power per unit bandwidth. The despread DBM output at 446 MHz is instantaneously injected into the synchronous oscillator where acquisition and tracking begin. Provided the rate difference of the two PN code sequences is not outside the tracking ranged of the SO, the oscillator will become "locked‟'.Performance Testing and ResultsTests of synchronization time, processing gain, and bit-error rate were conducted in the laboratory. Tests regarding the ease of synchronization and the communications range were field tested. The effects of interference were conducted in the laboratory. Synchronization time was measured with instrumentation configured as shown in Figure 3. A received signal level of 0 dbm was used to ensure a large SNR. The FSK demodulator was adjusted to keep theHP5326A Interval Timer enabled until it sensed an audio tone of approximately 2 kHz from the receiver. When the DSSS transmitter was keyed, the SYNC pulse was generated from the PN code generator at the code period rate of 1/TN". The SYNC pulse will not be generated until the transmitter is keyed. At the first SYNC pulse, the HP5326A is enabled and disabled when the 2 kHz tone is received by the FSK demodulator. The time difference between the start and stop signals is the total synchronization time. The additional propagation times resulting from the FSK demodulator, the FM narrowband receiver, and the propagation path are small by comparison and are neglected. In fact, these delays are somewhat offset by the fact that the fit SYNC start pulse is actually delayed by one code period equal to 46.04 ps. The mean acquisition time was measured to be 164.1 ms.Figure 3. Block Diagram for Sync-Time MeasurementThe theoretical value of the processing gain was compared to a measured value. By definition, processing gain Gp isGp = Bss / BD (1) Where,Bss = bandwidth of the DSSSBD = minimum bandwidth necessary to send the information in Hz.A null-to-null bandwidth is assumed for the spread spectrum signal and a bounded power spectral density bandwidth (4 kHz) is assumed for the analog voice channel. The measured Gp was determined by the expression.Gp = output SNR / input SNR (2) The theoretical processing gain is 31.4 dB and the measured value was 27.0dB, a difference of only 4.4 dB. This is reasonable allowing for conversion losses and bandwidth approximations.The bit-error rate for audio FSK at 300 bps was measured with instrumentation configured as shown in Figure 4. The DSSS transmitter and receiver were connected directly through a stepped attenuator from 0 to 110 dB in 1 dB increments. The SYNC outputs were connected to the HP1746A oscilloscope to observe that the transmitter and receiver were synchronized.The HP1746A was set to the dual trace (chop) mode to trigger on the transmitter SYNC pulse. The receiver synchronous oscillator TUNE control was adjusted, when needed, to maintain code rate and epoch alignment with the transmitter PN code. The FSK modulator was configured to output 300 bps FSK with 2025 Hz and 2225 Hz tones. The simulated data was generated by an HP8006A word generator.Test data consisted of a PN sequence of length 65535 bits (216 - 1) in order to assure randomness over the measurement interval. However, a time delay of greater than 1 ms was present between the waveform at input A (transmitted waveform) and the waveform at input B (received waveform). This caused excessive errors to be falsely recorded by the counter. To correct this problem, a digital time-delay device was inserted in the measurement system. The digital time-delay device delayed the transmitted waveform by an adjusted amount so that the waveforms were aligned before comparison. In Figure 5, measured data is compared to a theoretical plot of non-coherent FSK for the probability-of-error versus SNR (Eb / No = 2SNR). The large difference between the measured BER and the theoretical curve is attributed to poor receiver sensitivity.Before field tests were conducted, receiver sensitivity was measured in the laboratory to determine the maximum path loss that could be tolerated before the DSSS system lost synchronization. The maximum path loss was measured by connecting the DSSS transmitter, through a stepped attenuator, into the DSSS receiver. Problems with synchronization began at 40 dB of attenuation. Using theexpression for free-space path loss, a predicted range of only 5 to 10 meters was expected.Figure 4. Block Diagram for BER MeasurementFigure 5. BER vs SNRThe effect of co-channel, narrowband interference on the performance of the DSSS system was tested in the laboratory because of the limited range over which the system could operate. The laboratory interference tests were not exhaustive. A CW carrier was input into the DSSS receiver and slowly varied around the receiver frequency of 446 MHz. The DSSS transmitter was keyed and the effects of the CW carrier were observed. The CW carrier and the DSSS signal were initially at equal power levels. As the CW carrier power was increased, the DSSS signal was noticeably affected when the carrier-to-noise ratio was -30 dB. This is consistent with the measured processing gain of 31.4 dB.SummaryThe requirements for a spread spectrum synchronization technique depend largely on the system application. In military applications where anti-jam (AJ) or low-probability-of-intercept (LPI) performance is major factors, synchronizationmust be capable of operating under adverse conditions. Such a synchronization technique must be carefully designed, thereby becoming complex, costly, and difficult to implement. In civilian applications, such as the Amateur Radio Service, spread spectrum is not used to provide AJ or LPI, although resistance to interference may be an important consideration. In these cases, a more practical synchronization technique is desirable; one, that is simple, reliable, and sufficiently fast to support push-to-talk (PTT) operation.The synchronous oscillator used in this system provided a fast and easily implemented means of achieving direct-sequence spread spectrum synchronization for civilian applications where short PN codes may be used. The measured system processing gain agreed favorably with the theoretical value. FSK was implemented at 300 bps and, allowing for poor receiver sensitivity, produced reasonably expected bit-error rate versus SNR performance. The range of the DSSS system was extremely limited; however the range was predicted and verified prior to the field tests. The DSSS system was found to be unaffected by the presence of a CW carrier at the same input power and center frequency of the spread spectrum signal.Although the limited range was disappointing, this does not detract from the research effort. A direct conversion receiver, such as used by the DSSS receiver, is simple, inexpensive, and easy to build. Commercial receivers requiring good sensitivity use a superheterodyne technique. Reference 5 provides additional details regarding this effort.References[1] Federal Communications Commission. Part 97-Amateur Radio Service.Title 47 CFR Ch. I, Section 97.71. Washington: Government Printing Office; 1 Oct 1988[2] Kesteloot, Andre`. “A Practical Direct-Sequence Spread-Spectrum UHFLink.” QST Magazine. 5:14-21(May 89).[3] Uzunoglu, Vasil and Marvin H. White. “The Synchronous Oscillator: ASynchronization and Tracking Network.” IEEE Journal of Solid-State-Circuit. Vol. SC-20. No.6: 1214-1225 (December 1985).[4] Uzunoglu, Vasil and Marvin H. White. “Some Important Properties of Synchronous Oscillators.” Proceedings of IEEE. Vol.74.[5] Stephens. James P. “Direct-Sequence Spread-Spectrum System.”Masters Thesis, Air Force Institute of Technology, 1 June 90.直接序列扩频系统James P. StephensElectronic Warfare DivisionAvionics DirectorateWright LaboratoryWright-Patterson Air Force Base, Ohio 45433Lt. Col David M. NormanDepartment of Electrical and Computer EngineeringAir Force Institute of TechnologyWright-Patterson Air Force Base, Ohio 45433摘要这篇论文讨论了直接序列扩频系统（DSSS系统）的结构和性能评估。
