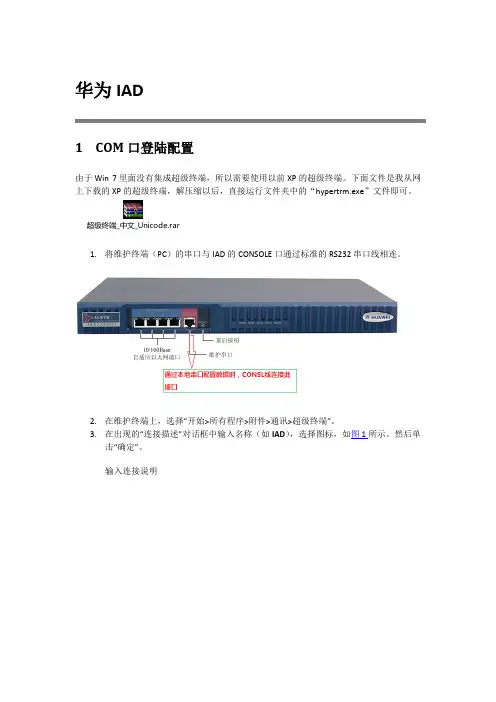

华为IAD1COM口登陆配置由于Win 7里面没有集成超级终端，所以需要使用以前XP的超级终端。

下面文件是我从网上下载的XP的超级终端，解压缩以后，直接运行文件夹中的“hypertrm.exe”文件即可。

超级终端_中文_Unicode.rar1.将维护终端（PC）的串口与IAD的CONSOLE口通过标准的RS232串口线相连。

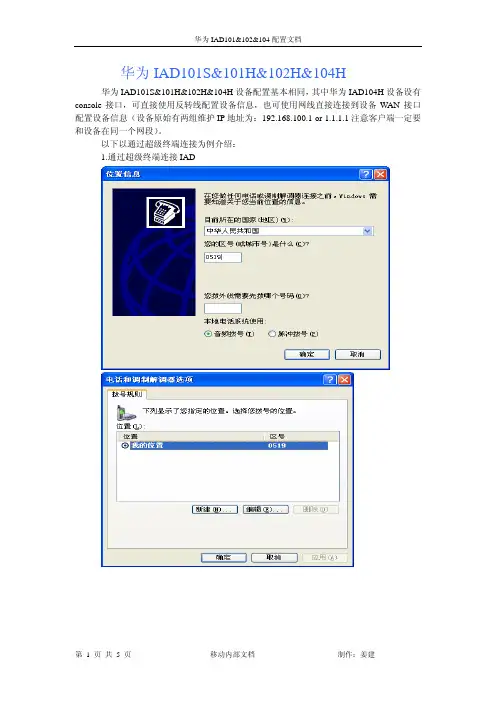

2.在维护终端上，选择“开始>所有程序>附件>通讯>超级终端”。

3.在出现的“连接描述”对话框中输入名称（如IAD），选择图标，如图1所示。

然后单击“确定”。

输入连接说明4.出现“连接到”对话框，在“连接时使用”栏，选择维护终端使用的串口号（可选择COM1，如果登录不成功，再选择COM2），如图2所示。

单击“确定”。

注意：现在的笔记本都没有自带串口，需要去电脑城购买USB转串口的数据线+Console线，安装USB转串口的驱动，确认是否装成功的方法如下：>右击我的电脑>属性>设备管理器选择连接串口5.在弹出的“COM1属性”对话框中，单击“还原为默认值”，如图3所示。

单击“确定”。

串口通讯参数设置在超级终端界面中敲回车键，出现欢迎界面，输入登录用户名（root）和密码（admin）登陆。

显示 TERMINAL> 时，输入enable，回车进入特权模式。

显示TERMINAL# 时，输入configure terminal进入全局配置模式，显示TERMINAL(config)#此时可修改数据。

6.配置IAD 的IP 地址输入命令为：回车；系统会提示是否重启7.验证网络连通重启后，重新登录并ping 如果能PING 通，则联系PBX 郭文彬188****0204朱伟健若不能ping2网口登录配置网口登录需要telnet到IAD上配置，由于WIN7系统默认不开启telnet功能，需要手动打开。

1.点击“运行”----进入“控制面板”-----找到“程序”进入-----点击“打开或关闭windows功能”，会弹出windows功能的对话框，这个对话框里面有许多windows的小功能，再找到Telent客户端，打上勾，确认即可。

IAD104HV300R002Product OverviewIssue V3.0Date 2017-04-26Copyright © Huawei Technologies Co., Ltd. 2017. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.Trademarks and Permissionsand other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.All other trademarks and trade names mentioned in this document are the property of their respective holders.NoticeThe purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.Huawei Technologies Co., Ltd.Address:Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of ChinaWebsite:Product Overview ContentsContents1 Product orientation and features (1)1.1 Product orientation (1)1.2 Product Features (2)2 Product structure (4)2.1 Overview (4)2.2 Hardware structure (4)2.2.1 Front panel (4)2.2.2 Rear panel (5)2.2.3 Software structure (6)3 Product and Networking Application (7)3.1 Overview (7)3.2 Networking Applications (8)3.2.1 Multiple Upstream Modes (9)3.2.2 Shop access (10)3.2.3 Home Access (11)4 Technical Specifications (12)4.1 Technical Specifications (12)4.2 Compliant Standards (13)A Glossary (15)1 Product orientation and features1.1 Product orientationThis product description is about IAD104H V300R001 version.The IAD (Integrated Access Device) 104H (the IAD104H for short) is an importantcomponent of Huawei next generation network (NGN/IMS) solution. It provides small-capacity voice over IP (V oIP) or fax over IP (FoIP) solutions for enterprises and consumerusers.With different access capabilities (IAD104H: four ports) for enterprises, the IAD104H is wellintegrated into enterprise broadband networks and achieves cost-efficient access for remoteenterprise users because of its comprehensive advantages (high quality, high benefits, and costefficiency). Its flexible networking and QoS policies ensure high quality of delay-sensitivevoice services and packet-loss-sensitive fax services for end users.Figure1-1 illustrates thenetworking of the IAD104H.Figure 1-1the location of IAD104H in the network1.2 Product FeaturesThe IAD104H features: high-quality voice, easy installation, convenient management andmaintenance, high reliability and security.High-Quality VoiceThe IAD104H provides high-efficiency and high-quality IP-based voice service, by thefollowing:●Voice Activity Detection (V AD)●Comfort Noise Generation (CNG)●Echo cancellation●Lost-packet compensationEasy InstallationThe IAD104H has a simple box structure and is installed on the desktop or in the corridor.It provides standard external ports and clear marks to facilitate the installation and cableconnection.It uses standard connectors and no special installation tools are needed.It supports auto-configuration through DHCP, which frees end users from manualconfiguration on IAD.ManageabilityThe 104H can be managed in many ways.●Local console manageIAD104H can be managed by local console port, that means computer connect with IADconsole port, using Windows 98, Windows NT, Windows 2000 or Windows XP superterminal software having by the operating system to manage.●TelnetYou can telnet to the system by network ports of the IAD104H for management. Easy MaintenanceThe IAD104H supports the following maintenance methods:●Through network ports for maintenance, you can rapidly and easily set the IAD104H anddetect its status.●Besides the Basic Input/ Output System (BIOS) mode, you can load host softwarethrough network ports by File Transfer Protocol (FTP).●The IAD104H enables device maintenance, fault detection and network managementalarms.High ReliabilityThe IAD104H ensures device reliability by the following:●Watch dog timer(WDT) helps automatic recovery in case of software abnormality.●Power supply and ports can be protected from over-current and over-voltage.High SecurityThe IAD104H realizes high security by the following:●UCEMS implements management on the IAD104H, and the SoftSwitch/IMS completesthe control functions. Before provisioning services, the IAD104H needs to register in theSoftSwitch/IMS for management and service authentication.●When an IAD104H device is put into service, the device ID, secret key, IP address ordomain name of the UCEMS, and IP address or domain name of the SoftSwitch, will beassigned onto the IAD104H. The information will not get lost even if the IAD104H ispowered off.●The IAD104H management system authorizes and authenticates users to preventunauthorized users from login to and operating the device. Users can be divided intocommon users, operators and managers. Authorities are subject to the user level. Even ifusers of different levels enter the same mode, they cannot run the same commands.●The IAD104H offers various logs, such as operation, alarm and debugging logs, torecord device operation and maintenance. Operation logs record user name, login time,login mode, IP address and operations. Alarm logs record major events during systemrunning. Most of such events are alarms. Debugging logs collect debugging information.2 Product structure2.1 OverviewIAD104H designed in box structure, the whole system is constitute of main control board,power board and box. This system doesn’t support online expand, the products we provide touser are fixed configuration.2.2 Hardware structureFigure 2-1the appearance of the IAD104H2.2.1 Front panelThe IAD104H provides indicators on its front panel. Table 1-1 lists names and meanings ofthe indicators.Table 2-1the indicators of IAD104H2.2.2 Rear panelFigure 2-2hows external ports on the IAD104H rear panel.Figure 2-2External ports of the IAD104HT able 2-2 lists functions and amount of the external ports.Table 2-2External ports of the IAD104H2.2.3 Software structureThe software structure of IAD104H is based on Vxworks, it is made of CSP board, CPU andDSP, as showing in Table 2-3.Table 2-3The software structure of IAD104HFrom the software structure, IAD104H can be separated in: management and maintenancemodule, service interface module, semi-permanent service processing module, V oIP serviceprocessing module, protocol processing module, operating system module (VxW orks) andbottom drive processing module. Figure 1-4 shows the relationship of every module.T able 1-5 shows the function of each module of IAD104H.Table 2-4Instruction of each module of IAD104HProduct Overview 3 Product and Networking Application3 Product and Networking Application3.1 OverviewIt provides V oIP access for up to four POTS users, and offers one LAN port and one WANport.Services and FunctionsThe IAD104H provides abundant voice and data services, functions as listed below:●Supporting POTS and enabling Ethernet users to access the IP network●Supporting 802.1p/q●Supporting T.38 fax or transparent transmission of faxes●Supporting Caller Identification Display●Supporting Advice of Charge at the End of Conversation (the IAD of MGCP only)●Enabling calling parties of the card service to redial numbers●Supporting Point-to-Point Protocol over Ethernet (PPPoE)●Supporting Network Address Translation(NA T)●Supporting traditional PSTN services●Supporting G.711 and G.729●Supporting KC charging and polarity reversal charging controlled by the SoftSwitch(IAD of MGCP only)●Supporting Differentiated Services Code point (DSCP)●Supporting Comfort Noise Generation (CNG)●Supporting V AD (Voice Activity Detection)●Cooperating with the SoftSwitch to provide new intellectual and distinctive services,such as Call Transfer Call Waiting , Calling Line Identification Presentation, Designatedpickup , Co-group pickup , Three-party call and Conference call (Note: the aboveservices can be used only after you subscribe them from the operator. For details, contactthe operator)●Supporting Simple Network Management Protocol (SNMP)●Supporting Simple Network Time Protocol (SNTP)●Supporting Dynamic Host Configuration Protocol (DHCP) and DHCP Relay●Supporting usage under execrable environments●Supporting end-to-end signaling tracing, and locating software/hardware faults insidedevices●Supporting IAD authentication by SoftSwitch●Supporting encryption of RFC2833 controlled by SoftSwitch (the IAD of SIP only)●Supporting certifications such as Federal Communications Commission (FCC), Councilof Europe (CE) and China Compulsion Certification (CCC)●Supporting auto-configuration through DHCP, which frees end users from manualconfiguration on IAD.3.2 Networking ApplicationsIAD104H can be applied in the below scene.3.2.1 Multiple Upstream ModesFigure 3-1Upstream modes of IAD104HTable 3-1Noun explain3.2.2 Shop accessFigure 3-2Shop access of IAD104HDescription:ONU realize Ethernet connect to equipment room of enterprise, IAD provide shopintegrate service access.Feature:One-line access, simple Deployment. Each shop access by one line, while providing voice,fax and broadband Internet access, meets the requirement of business office.Flexible service specification Networking. Providing 4 different configurationspecification to satisfy diversiform data, voice and fax application request.Supporting IP-Centrex. Support internal call by short number, improve work efficiency.Supproting Number Portability. It's not necessary to apply to change number and modifyIAD configuration when the relocation. Support plug and play, and fully protect the benefit ofthe merchants, such as telephone and fax number.3.2.3 Home AccessFigure 3-3Home access of IAD104HDescription:ONU is deployed in Residential districts, using the existing LAN SW to access to home.Features:One-line access, simple Deployment. ONU provide 8/16/24 port floor exchange, Eachretail access by one line with IAD, no need line repeatly. At the same time to increase thecustomer satisfaction and reduce deploying cost.PPPoE dial-up automatically. Through IAD’s embedded PPPoE function, PC connectedwith it can access Internet network directly without any other operation, thus simply theprocess of dial-up.Flexible Service CombinationT wo solutions can be provided according to different family requirements:a)Provide standard telephone and internet service;b)Fax service is added on the basis of solution A in SOHO environment.4 Technical Specifications 4.1 Technical SpecificationsTable 4-1IAD104H Technical Specifications4.2 Compliant StandardsThe IAD104H is in compliance with the following standards and protocols.Tone detection/generation●Dual tone multi-frequency (DTMF), call tones (such as dialing tone, busy tone, ring backtone, and offhook prompt tone)●V.17, V.21, V.27ter, V.29 standards●Automatic identification of voice and fax servicesVoice/Multimedia data signal codec●ITU-T G.711 μ-Law (64kbit/s)●ITU-T G.711 A-Law (64kbit/s)●ITU-T G.729Call signal protocol for call control●Internet Engineering Task Force (IETF) MGCP (RFC3435)●SIP (RFC3261)Encapsulation and decapsulation protocols of voice packets●RTP/Real-Time Control Protocol (RTCP) (RFC 1889)●Internet protocols●Transfer Control Protocol (TCP)/IP●User Datagram Protocol (UDP)/IP●Address Resolution Protocol (ARP)/Reverse Address●Resolution Protocol (RARP)●Internet Control Message Protocol (ICMP)●Telnet●Hypertext Transfer Protocol (HTTP) Web Server●Domain Name Server (DNS) Client●DHCP Client●FTP (File Transfer Protocol)/TFTP (Trivial File Transfer Protocol) ClientIP address allocation●Static●DHCP●PPPoEIP fax●Transparent transmission●Transmission mode meets ITU-T T. 38 Real-Time IP G3 fax protocol, with the rate lessthan 14400 bit/sA Glossary Table 4-2Abbreviations。

设备简介SoftCo系列IP语音综合交换设备SoftCo系列语音综合交换机是华为企业语音解决方案的核心设备。

SoftCo整合了软交换、中继网关、信令网关、媒体资源服务器、用户线接入等功能，可以与IAD综合语音接入设备、UA5000一体化接入单元、IP终端等混合组网，提供全面的IP/TDM融合语音通信解决方案。

SoftCo可以通过SIP、H.248等协议与第三方的网关或软交换设备进行互联互通，也可以通过R2、PRI（Primary Rate Interface）、QSIG、SS7、AT0等信令接入传统的PSTN 网络。

SoftCo95001.1.1.1产品结构SoftCo9500机箱外观图SoftCo9500提供2个主控板插槽和8个业务插槽。

下表为SoftCo9500所支持的单板描述：SoftCo9500单板功能和配置说明单板型号说明SC12MCU SoftCo9500的主控板，包含2个100Base-TX接口、1个100Base-TX管理接口和1个Console口。

SC13MRU-128 SoftCo9500的128路语音处理板，包含1个100Base-TX管理接口和1个Console口。

SC11EXU SoftCo9500的模拟用户扩展板，提供4个UEP接口。

每个UEP接口可以连接一个POTS-32用户盒，一块SC11EXU可以最终实现128个POTS电话的接入。

SC12DTU-4E1 SoftCo9500的4口E1数字中继接口板，包含1个Console口。

SC12ATU SoftCo9500的8路模拟环路中继接口板，包含8个FXO（Foreign Exchange Office）接口。

1.1.1.2产品技术指标SoftCo9500主要技术指标1.1.1.3 虚拟ＩＰＰＢＸ功能SoftCo下的每个公司拥有自己的用户号码和总机，公司内部用户可以短号互拨，公司间用户互拨相当于拨打出局电话，可以认为每个公司都是独立使用一台小型PBX 设备。

介绍IAD101S/101/102/104H 设备的命令行使用方法，以及常用配置操作。

登陆配置环境Telnet到待配置的IAD101S/101/102/104H 设备。

此时出现如下界面，并提示输入用户名和密码。

设备默认有一个超级管理者级别的用户，用户名为root，密码为admin。

屏幕上显示“TERMINAL>”的提示符，表示登录系统成功。

IAD101S/101/102/104H 命令行提示符由两部分组成：“固定字符串＋命令模式标识符”。

命令模式标识符表明命令当前所在模式，如“>”表示普通用户模式，“#””表示特权模式。

固定字符串可以在特权模式下使用hostname 配置，系统缺省的固定字符为“TERMINAL”。

例如：将系统缺省的固定主机名修改为iad101h，操作如下。

TERMINAL#hostname iad101hiad101h#命令执行成功后，主机名已经更改为iad101h。

IAD101S/101/102/104H 的命令模式包括：普通用户模式、特权模式、全局配置模式、高级配置模式和以太网交换机模式。

特权模式和全局配置模式具有向下兼容的特点：特权模式下，可执行普通用户模式中的所有命令。

全局配置模式下，可执行普通用户模式和特权模式中的所有命令。

2常用命令IAD101S/101/102/104H常用命令描述如下：进入特权配置模式TERMINAL>enable进入全局配置模式TERMINAL#configure terminal进入以太网交换机配置模式TERMINAL(config)#lanswitch退出当前命令模式进入用户模式disable（任意模式）退出当前命令模式，进入上一级命令模式，也可以退出配置环境exit（任意模式）立即保存TERMINAL #write设置主机名TERMINAL#hostname显示设备版本TERMINAL>display version更改用户密码TERMINAL(config)#terminal user设置本机系统时间TERMINAL#time设置设备所在地域信息TERMINAL(config)# region { CN | HK |BR | EG | GB | CL | SG | US }设置命令行超时时间间隔TERMINAL#terminal timeout注意：为防止系统复位或掉电等意外情况导致数据丢失，请及时使用write 命令保存配置数据。

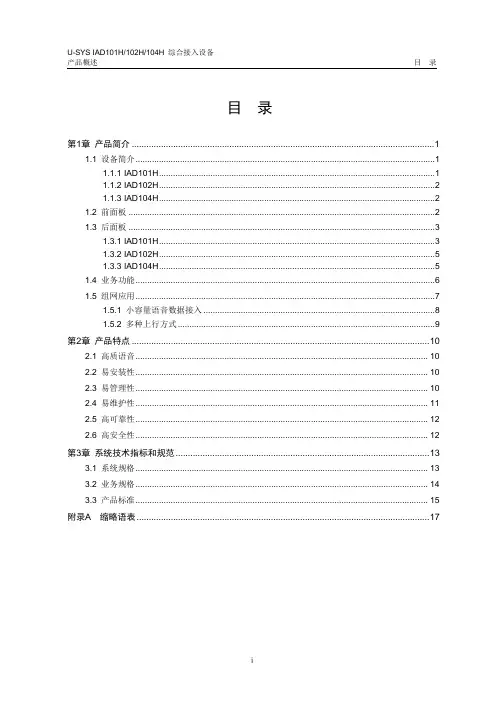

产品概述目录目录第1章产品简介 (1)1.1 设备简介 (1)1.1.1 IAD101H (1)1.1.2 IAD102H (2)1.1.3 IAD104H (2)1.2 前面板 (2)1.3 后面板 (3)1.3.1 IAD101H (3)1.3.2 IAD102H (5)1.3.3 IAD104H (5)1.4 业务功能 (6)1.5 组网应用 (7)1.5.1 小容量语音数据接入 (8)1.5.2 多种上行方式 (9)第2章产品特点 (10)2.1 高质语音 (10)2.2 易安装性 (10)2.3 易管理性 (10)2.4 易维护性 (11)2.5 高可靠性 (12)2.6 高安全性 (12)第3章系统技术指标和规范 (13)3.1 系统规格 (13)3.2 业务规格 (14)3.3 产品标准 (15)附录A 缩略语表 (17)第1章产品简介IAD（Integrated Access Device）101H/102H/104H综合接入设备（下文简称IAD101H/102H/104H）是华为技术有限公司下一代网络NGN（Next GenerationNetwork）解决方案中的重要部件，用于向公司等用户提供小容量VoIP（Voice overIP）/FoIP（Fax over IP）解决方案。

IAD101H/102H/104H作为VoIP/FoIP媒体接入网关，应用于NGN用户接入层，完成模拟话音与IP包之间的转换，并通过包交换网络传送数据。

同时可通过标准MGCP（Media Gateway Control Protocol）和SIP（Session Initiation Protocol）协议，与华为技术有限公司SoftSwitch配合组网，在SoftSwitch控制下完成主被叫间的话路接续。

IAD101H/102H/104H产品外观如图1-1所示。

图1-1IAD101H/102H/104H设备外观图1.1 设备简介1.1.1 IAD101HIAD101H提供1路POTS用户的IP语音接入，支持1个LAN口和1个WAN口，同时支持PSTN“一机双号”。
