AD902B电子狗使用说明书
- 格式:doc
- 大小:252.00 KB
- 文档页数:1
电子狗初次使用方法
拆卸电子狗包装,将电子狗安装在车辆上:
1. 首先找到合适的位置,通常是车辆仪表盘或前挡风玻璃上。
2. 用清洁剂清洁所选位置,确保贴附表面干净无油污。
3. 将电子狗的贴片底面撕下,将其固定在所选位置上,压实并确保牢固。
4. 连接电子狗与车辆点烟器或USB接口,确保供电正常。
启动电子狗:
1. 等待电子狗进行GPS定位,通常需要几分钟的时间。
2. 电子狗定位成功后,屏幕将显示当前车辆所在位置和速度。
3. 根据电子狗的使用说明书设置相关参数,例如超速提醒、路口测速等,以适应个人需求。
注意事项:
1. 在使用电子狗前,确保使用说明书已阅读并理解。
2. 电子狗在日常使用中应保证正常供电。
3. 使用过程中定期检查电子狗的固定情况,确保其不会松脱。
4. 根据实际需要,调整电子狗的音量大小,以确保能够清晰听到警示声音。
5. 电子狗只是辅助工具,驾驶人员仍然需要保持专注和谨慎驾驶。
请注意,本建议仅供参考,具体使用方法还需根据所购买的电子狗产品和使用说明书进行操作。
AD-902B电子狗使用说明书概述‘电子狗’在警戒区域检测到人体运动时发出30秒的现场报警声,恐吓非法入侵者。
电子狗采用双元红外传感器及红外专用IC处理器,可靠性高,误报率低,性价比优,适用于家庭、办公室、商店等防盗场所。
结构示意图结构示意图说明:①电源开关:向上拨打开电源,向下拨关闭电源。
②指示灯:打开电源时亮1秒,进入工作状态。
③灵敏度:中间脚与‘低’连接时探测距离4-7米,与‘高’连接时7-10米。
④红外传感器:感应人体红外信号,请勿用手触摸,表面有污物时,可用棉花蘸无水酒精清洁。
⑥万向座导轨:将电子狗固定在万向支架上。
⑦电池盒:打开电池盒将入4节7号电池。
技术参数1、电源电源:直流6V(4节7号电池)。
2、工作电流:待警≤100uA、报警≤150mA。
3、探测距离:4-10米,水平84度,垂直74度(参见右图)。
4、报警音量:1米围不小于85db。
图3 安装、探测示意图安装事项1、电子狗检测人体相对于镜片横向运动时灵敏度较高,纵向较低。
2、安装时应避免靠近冷热源:如空调出风口、照射等。
3、防护围不能有障碍物。
安装方法1、万向座固定在距离地面约2米处。
2、打开电池盖装入4节7号电池。
3、电子狗固定在万向座上,转动电子狗,使其符合安装要求和探测要求。
使用方法1、打开电源开关,指示灯亮1秒,表示自检正常。
2、开机预热30秒后进入警戒状态,有人入侵时置高响度警号立即鸣响,30秒警号自动关闭,10秒后若检测到人体红外信号将再次报警。
3、报警时关闭电源开关可结束报警。
注意事项1、定期检查电子狗是否正常工作,避免漏报警。
2、开机指示灯暗、报警音量小、误报率高,一般是电池电压不足,请更换电池。
3、环境温度高于300C,探测距离会缩短。
4、发生故障时,可与销售商或安达电子客户服务中心联系解决。
安达电子。

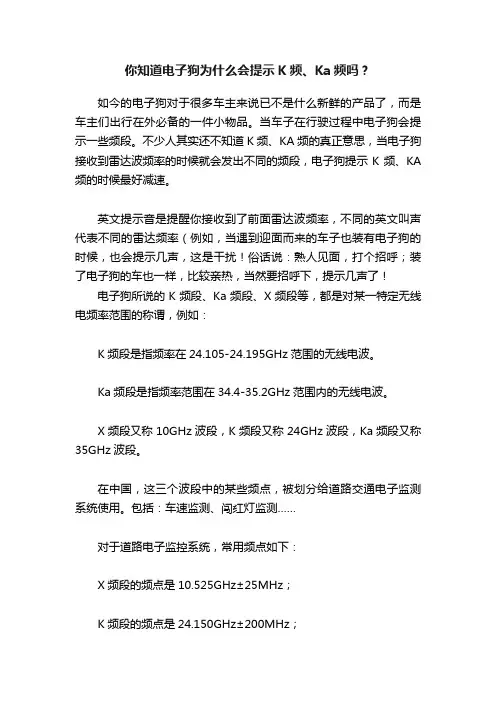

你知道电子狗为什么会提示K频、Ka频吗?如今的电子狗对于很多车主来说已不是什么新鲜的产品了,而是车主们出行在外必备的一件小物品。
当车子在行驶过程中电子狗会提示一些频段。
不少人其实还不知道K频、KA频的真正意思,当电子狗接收到雷达波频率的时候就会发出不同的频段,电子狗提示K频、KA 频的时候最好减速。
英文提示音是提醒你接收到了前面雷达波频率,不同的英文叫声代表不同的雷达频率(例如,当遇到迎面而来的车子也装有电子狗的时候,也会提示几声,这是干扰!俗话说:熟人见面,打个招呼;装了电子狗的车也一样,比较亲热,当然要招呼下,提示几声了!电子狗所说的K频段、Ka频段、X频段等,都是对某一特定无线电频率范围的称谓,例如:K频段是指频率在24.105-24.195GHz范围的无线电波。
Ka频段是指频率范围在34.4-35.2GHz范围内的无线电波。
X频段又称10GHz波段,K频段又称24GHz波段,Ka频段又称35GHz波段。
在中国,这三个波段中的某些频点,被划分给道路交通电子监测系统使用。
包括:车速监测、闯红灯监测……对于道路电子监控系统,常用频点如下:X频段的频点是10.525GHz±25MHz;K频段的频点是24.150GHz±200MHz;Ka频段的频点是34.700GHz±1300MHz。
电子狗主要是监测周围空间是否存在上述三个波段的无线电波,只要存在,就有可能在周围存在无线电道路监测系统,于是电子狗就发出报警。
报警有多种方式,有的是语音报警,有的是声光报警……电子狗就是在报出发现的无线电波波段后,再发出“嘟嘟”的声音报警。
在国内Ku测速没有怎么看到,所以Ku频并不是很重要!主要是K频及Ka频表现要好!市区内主要是报X频和k频,X频大概是一些银行或自动门发出的干扰信号,k频和ka频主要出现在一些路口和高速路上。
如果电子狗说这些频段,说明附近有流动测速器在工作,这个时候最好减速。
电子狗使用指南随着汽车的普及和道路交通的增加,安全驾驶成为每个驾驶员的首要任务。
为了提高驾驶安全性,许多汽车配备了电子狗。
本文将为您介绍电子狗的使用指南,帮助您更好地理解和使用这一工具。
一、电子狗概述电子狗是一种安装在汽车上的智能导航设备,其主要功能是提供超速警示和道路限速信息。
通过GPS定位和地图数据,电子狗能够准确识别当前车辆所处的位置,显示道路限速信息,并在超速时发出警示,有效避免交通违规和事故发生。
二、电子狗使用方法1. 安装:根据电子狗的安装说明,将其正确安装在汽车上。
通常,电子狗应该安装在离驾驶员较近的位置,如仪表板上方或挡风玻璃上方。
确保安装牢固,不会妨碍驾驶员的视线。
2. 开机与设置:按照电子狗的使用手册操作,将其启动并进行基本设置。
包括选择语言、导入地图数据等。
根据个人喜好和需要,可以进行进一步的设置,如警示声音的音量和类型等。
3. GPS定位:电子狗使用GPS定位来确定车辆位置,因此在使用电子狗之前,确保车辆在开阔地带或没有高楼大厦的地方,以获得更准确的定位信息。
4. 路线输入:如果需要导航功能,可以输入目的地的地址或选择已保存的常用地址。
根据电子狗的操作界面,选择正确的目的地,并确认导航路线。
电子狗将指导您按照最优路线到达目的地。
5. 超速警示:电子狗可以识别当前道路限速,并在超速时发出警示。
在驾驶过程中,注意观察电子狗上的显示,确保您的车速不会超过道路限速。
6. 更新地图:定期更新电子狗的地图数据,以保证导航信息的准确性和及时性。
根据电子狗品牌和型号,可以通过官方网站或专门的软件进行地图更新。
7. 维护与保养:定期清洁电子狗的屏幕和机身,防止灰尘和污垢影响显示效果。
同时,避免将电子狗暴露在高温、阳光直射或潮湿环境中,以免损坏设备。
三、使用电子狗的注意事项1. 电子狗是驾驶辅助工具,但并不能完全代替驾驶员的判断和责任。
在任何时候,驾驶员都应保持警觉,遵守交通规则,并根据实际情况做出正确的驾驶决策。

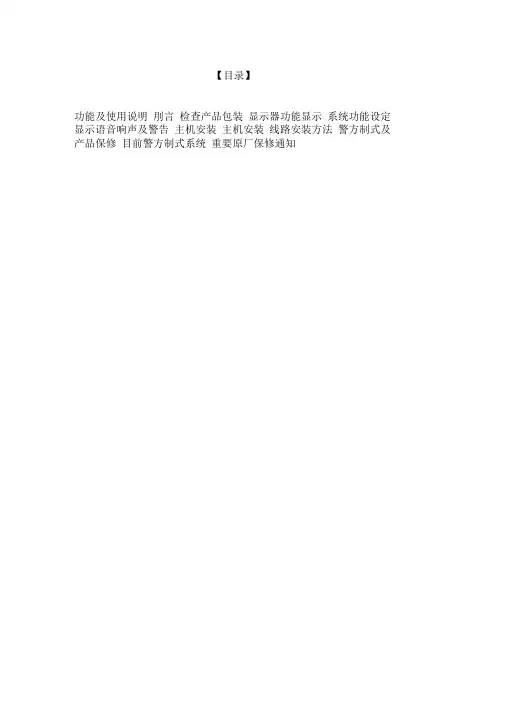

【目录】功能及使用说明刖言检查产品包装显示器功能显示系统功能设定显示语音响声及警告主机安装主机安装线路安装方法警方制式及产品保修目前警方制式系统重要原厂保修通知亲爱的用户:品质的售后服务,保修期内将无偿为您提供维修及帮助。
此 款产品采用我公司独创预警数据算法,以及具有自动的选择 客户当地的数据来更新功能,即使客户换了所在地也会自动 更新新的所在地的数据,确保时刻数据最新。
使用方便:雷达静音设定,提供市区低速的宁静驾驶,保持最佳心 情。
7、炫酷跑车造型,彰显奢华气质。
8、照相点距离递减显示,提前做好安全准备。
9、语音预警:固定测速照相、闯红灯测速照相、雷达测速照相。
10、自动识别频点显示。
11、自动更新数据,追踪定位防盗等,定位防盗开启后,首先非常感谢您使用我们的产品, 这将是您独具慧眼最好的 选择,您在挑选到好的产品同时,也将享受到我们完善、高1、 固定预警和移动测速一体机,安装便捷。
2、 GPS 收星定位迅速,使用简单快捷。
3、 超高感雷达识别,智能过滤杂讯干扰。
4、 当前卫星时间显示,整点报时,把握最佳时机。
5、 8 方向电子罗盘(指南针)显示,随时掌控方向。
6、可通过云狗在线平台,查询车辆的行驶轨迹,现在所在位置等12、海量安全数据库,内置超过60 万笔安全预警数据,每周更新。
13、GPRS永远上网在线,实时检查并更新最新预警数据14、GPS+GPRS吉合,播报当前地的天气预报。
本手册旨在帮助阁下了解产品的使用方法以及相关背景知识,使阁下驾驶得以随心所欲,很爽很安全。
注意事项首次使用本产品时由于电力?卫星记忆等问题有可能需要2~5分钟左右, 卫星正常连线后显示屏上会有明确显示途经隧道?地下室或是高楼林立的市区等密闭空间时,卫星讯号可能无法正常连接,请按照道路交通规则小心驾驶, 待离开述区域本产品会自动连接卫星为确保行车安全,开车途中请尽量不要操作本产品, 应在行车前调试好本产品,本产品的所有显示都会以真人语音方式播报,请安心使用?科技应被我们善用,而不是过度倚赖,当您开始使用本产品时,先详细阅读说明书,并且确定使用及操作无误,将会大幅度降低因使用不当而给您造成的困惑,对本商品多加以了解、操作将会让您在使用过程中更加得心应手,本商品的开发宗旨以倡导出行的安全为主要目标,为预防交通单位立即性的更改相关规定,我们强烈的呼吁您,遵守交通规则,确保行车安全,快快乐乐出门,平平安安回家!本商品出厂均经过严格的品质检测,如果发现有任何疑问, 请立即反映给原购买商家或与我司售后服务中心联系,感谢您对本公司的爱护与支持!检查产品包装 您所购买的驾驶安全预警,产品包装中应该包含以下物品2. 车载充电器4.防滑硅胶垫说明书特别提示:标配车载充电器为12-24V ,有特别需求(例如货车用户)可选配 8-36V 转12V 车载充电器图片仅供标示意,请以实物为准1.主机3.使用说明书1云狗功能设置介绍 起报点: 遇到有警示点时语音开始播报提示的那个地点称 起报点,即整个警示过程的开头。
T306型 电子狗使用说明书T306型 电子狗针对目前市场上同类产品的缺点进行彻底改进的低价格高性能报警器。
采用双元红外传感器结合先进的单片机数字信号技术,具有误报率低、可靠性高、性价比高、外型美观大方等特点。
适合家庭、办公室、楼梯口和沿街店面等场所防盗报警使用。
功能特点:----遥控器代码学习及记忆。
彻底解决遥控器丢失没有地方配制给用户带来的不便 ----可以增加其它无线发射频率为315MHZ 探头或门磁----报警声音大能有效吓阻非法入侵者----报警时可输出开关信号联动其它报警设备(选配)结构示意图:①电源变压器②状态指示灯:警戒延时灯闪烁,报警时常亮 ③输出接口:开关信号接口 ④PUSH2短路插针:在电子狗未上电之前拨掉处于无线编码学习状态 ⑤红外传感器:感应人体释放的热红外信号,请保持其表面干净,请勿用手触摸。
在其表面有污物时,可用棉花球蘸75%的酒精清洁。
⑥万向座导轨:将电子狗固定在万向座上⑦蜂鸣腔:报警后发出报警声⑧电池盒:将电池盖打开,安装电池盒内部的标识将9V 叠层电池装入。
安装工艺要求:——由于电子狗在人体相对于镜片横向运动时红外探测灵敏度最高,而纵向运动灵敏度较差,所以安装时应注意探测器和水平面的夹角和高度,这对防护区域有很大的影响。
安装高度与角度如下图所示:——安装使应避免电子狗靠近冷热源,如冷热出风口、空调出风口、电暖器、冷气机等,避免直对门窗;——电子狗对所防护的范围应可直视,不能有障碍物;——电子狗应与墙面成10-30度的夹角,此时探测距离最远,实际安装时根据情况 调整安装角度。
安装方法:—— 将万向座固定在探测器安装在欲安装的位置,安装高度为2米(如左图所示),将探测器固定在万向座上。
——参照探测器覆盖区域图,调整万向支架以达到最佳的探测效果。
——插上探测器电源插头,探测器上电工作。
使用方法:1、 上电后本机发出一声“嘀”提示声,指示灯闪烁。
如果不进行任何操作,30秒后自动进入“布防”状态。
电子狗使用说明书概述“电子狗”是一种可以随时布防的红外警戒器。
能在检测到防区内有人员移动时发出现场报警声,实现报警吓阻功能。
具有体积小、安装方便的特点。
非常适合家庭、门店、仓库、鱼塘、果园、庭院等场所的防盗报警使用。
一、电源开关在机身右侧,上拨为开机,下拨即关机。
开机指示灯亮一下,表示自检正常,电子狗开始工作。
二、开机30秒延时,30秒后开始探测工作。
如有人进入探测区域,电子狗将发出刺耳报警声;报警声响结束后10秒,若有人员触发电子狗或仍在探测区域活动,将在次报警,周而复始。
三、电子狗报警时,关闭电源开关,即可结束报警。
安装说明一、打开电子狗背部的电池盖,按正负标识装入4节7号电池。
二、安装距离地面2米左右,与墙面成10-30度夹角。
安装时根据情况调整安装角度,以达到最远探测距离。
三、电子狗对所防护的范围不能有障碍物。
四、安装时应避免直接对门窗;避免靠近冷热源,如冷热出风口、空调出风口、电暖器、冷气机等。
注意事项一、如果电子狗开机指示灯暗、报警声变小或误报时,应及时换电池。
二、定期检查电子狗工作是否正常,避免漏报警。
发生故障时,可与销售商或客户服务部联系解决。
技术参数电源:直流6V(4节7号电池)待机电流:100≤uA 报警电流:150≤mA报警声响:1米范围内不小于80db。
红外探测距离:5-8米,左右110度。
LD6010型十户联防报警器使用说明一、联防主机功能简介1、显示方位:报警方位由数码显示准确指出所报警地址。
2、监控范围:本地址用户可自由与其9个用户互防,10个用户地址构成一个联防系统。
3、报警方式:警笛提示、数码显示。
二、联防主机操作说明:1、按下“紧急”键:联防主机声音报警。
2、按下“复位”键,取消报警声音。
3、关闭电源开关,消除数码显示。
4、警笛音量调节:音量开关“顺时针”旋转,警笛音量变大;音量开关“逆时针”旋转,警笛音量变小。
三、遥控说明:当有紧急情况时,按一下遥控器紧急发射按钮,报警主机立即报警,同时与本机联防的其他联防主机同时报警,并显示出当前报警的地址方位。

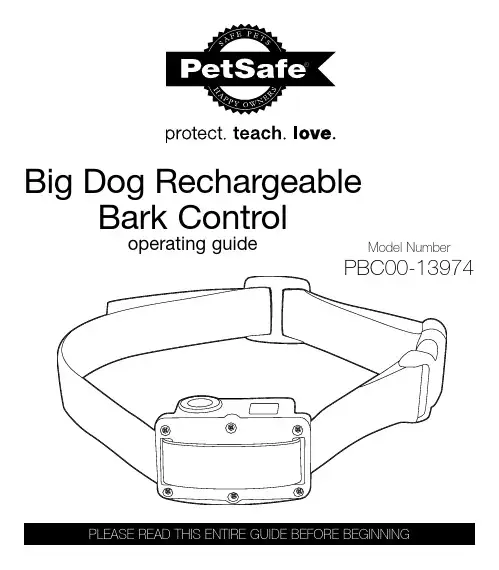

Big Dog RechargeableBark Controloperating guide Model numberPlease read this entire guide before beginningImportant Safety InformationExplanation of Attention Words and Symbols used in this guide This is the safety alert symbol. It is used to alert you to potential personal injury hazards.Obey all safety messages that follow this symbol to avoid possible injury or death.WARNING indicates a hazardous situation which, if not avoided, couldresult in death or serious injury.CAUTION, used with the safety alert symbol, indicates a hazardoussituation which, if not avoided, could result in minor or moderate injury.CAUTION, used without the safety alert symbol, indicates a hazardoussituation which, if not avoided, could result in harm to your pet.Not for use with aggressive dogs. Do not use this Product if your dog isaggressive, or if your dog is prone to aggressive behavior. Aggressive dogs can cause severe injury and even death to their owner and others. If you are unsure whether this product is appropriate for your dog, please consult your veterinarian or certified trainer.Risk of skin damage. Please read and follow the instructions in this manual.Proper fit of the collar is important. A collar worn for too long or made too tight on the pet’s neck may cause skin damage. Ranging from redness to pressure ulcers; this condition is commonly known as bed sores.:Avoid leaving the collar on the dog for more than 12 hours per day.:When possible reposition the collar on the pet’s neck every 1 to 2 hours.:Check the fit to prevent excessive pressure; follow the instructions in this manual.:Never connect a lead to the electronic collar; it will cause excessive pressure on the contacts. :When using a separate collar for a lead, don’t put pressure on the electronic collar.:Wash the dog’s neck area and the contacts of the collar weekly with a damp cloth.:Examine the contact area daily for signs of a rash or a sore.:If a rash or sore is found, discontinue use of the collar until the skin has healed.:If the condition persists beyond 48 hours, see your veterinarian.:For additional information on bed sores and pressure necrosis, please visit our website. These steps will help keep your pet comfortable and safe. Millions of pets are comfortable while they wear stainless steel contacts. Some pets are sensitive to contact pressure. You may find after some time that your pet is very tolerant of the collar. If so, you may relax some of these precautions. It is important to continue daily checks of the contact area. If redness or sores are found, discontinue use until the skin has fully healed.2 Customer Care Center 1-800-732-2677The PetSafe Big Dog Rechargeable Bark Control Collar must be used only on healthy dogs. We recommend that you take your dog to a veterinarian before using the collar if he is not in good health.The Bark Control Collar is not a toy. Keep it away from the reach of children. Use it only for its bark stopping purpose.n et 3www.petsafe.Thank you for choosing the PetSafe brand. You and your pet deserve a companionship that includes memorable moments and a shared understanding together. Our products and training tools promote a lifestyle of protection, teaching, and love—essentials that influence memories for a lifetime. If you have any questions about our products or training your pet, please visit our website at or contact our Customer Care Center at 1-800-732-2677.To get the most protection out of your warranty, please register your product within 30 daysat . By registering and keeping your receipt, you will enjoy the product’sfull warranty and should you ever need to call the Customer Care Center, we will be able to help you faster. Most importantly, PetSafe will never give or sell your valuable information to anyone. Complete warranty information is available online at .Table of ContentsComponents (5)Features (5)How the PetSafe® Big Dog Rechargeable Bark Control Collar Works (5)Key Definitions (6)Charging the Bark Control Collar (6)Fit the Bark Control Collar (7)Choose Between Three Bark Control Settings (7)What to Expect During Use of the Bark Control Collar (9)Frequently Asked Questions (10)Troubleshooting (10)Terms of Use and Limitation of Liability (10)Customer Care International (11)Battery Disposal (11)FCC (12)Perchlorate Battery (12)4 Customer Care Center 1-800-732-2677:10 Levels of progressive static correction:Choose between 3 correction modes to fit your dog’s temperament:Rechargeable battery and digital display:Patented Perfect Bark technology ensures your dog's bark is the only sound that will cause the correction:WaterproofHow the PetSafe® Big Dog Rechargeable Bark Control Collar WorksThe PetSafe Big Dog Rechargeable Bark Control Collar uses several features designed to shorten the training phase and promote good behavior.First, the Big Dog Rechargeable Bark Control Collar has a unique patented sensor that provides the most reliable bark detection available. The Bark Control Collar uses both vibration and sound sensors (dual-detection) to discriminate each bark from other external noises. A static correction is administered through the Contact Points only if both the vibration from the vocal chords and the sound from the bark match the same criteria.n et 5www.petsafe.6 Customer Care Center 1-800-732-2677Key Definitions Digital Display: Displays the current correction mode based on light color(s) and the numeric indicator. Also indicates the condition of the battery.Settings Button: Adjusts the correction mode and the level of correction your dog receives when barking. Also usedto turn the Big Dog Rechargeable Bark Control Collar on and off.Contact Points: Deliver the static correction.Vibration Sensor Probe: Detects the vibrations of your dog’s barking.Charging Jack: For connecting the charging adapter. Although the bark control unit is waterproof, keep the cover in place when not charging to keep debris out of the opening.Sound-Activated Sensor: Detects your dog’s bark. Charging the Bark Control CollarBefore using the PetSafe Big Dog Rechargeable Bark Control Collar for the first time, be sure to charge the unit by following the steps described below.Follow these steps to charge the battery:1. Lift the rubber cover protecting the Charging Jack.2. Connect the charger connector to the Charging Jack.3. Plug the charger into a standard wall outlet. The display light will flash the sequence Green-Blue-Red to indicate that charging has started.4. During charging, keep the Bark Control Collar in an open, well-ventilated area. The display light will flash red twice every 10 seconds to indicate that charging is active.5. When charging is complete, the charger will automatically shut off, preventing overcharging. The display light will flash green twice every 10 seconds to indicate that charging is complete. Note: The battery should fully charge in less than 4 hours.6. Remove the charger from the Charging Jack. The light will flash the sequence Red-Blue-Green to indicate the unit is no longer charging.7. When charging is complete, replace the Charging Jack cover and unplug the battery charger. The Big Dog Rechargeable Bark Control Collar will automatically turn off when the battery charger is connected. Following a charge, turn the unit back on before using.Note: When the unit indicates that the battery is low (battery icon on the display indicates 1 bar or less and/or the light flashes red 3 times every 5 seconds) it is time to recharge the unit. If the battery pack is very low (i.e. been used too long or stored for an extended period of time) it may take some time for the unit to indicate that charging has started. If the unit does not indicate that it is charging after 1 hour, please contact our Customer Care Center.Contact Points Vibration Sensor Probe Digital DisplayCharging Jack (charger attached)Settings Button (Top)(Bottom)Sound Activated SensorBattery LifeAverage battery life is 3 to 6 months, depending on how often your dog barks. However, dueto greater use during your dog’s training, your first battery charge may not last as long. To conserve battery life, turn the Bark Control Collar off when not in use.The Big Dog Rechargeable Bark Control Collar has three bark control settings that allow you to choose how corrections are delivered. The modes are indicated on the digital display by light color(s) and the numeric indicator.1. The patent pending T emperament Learning mode tracks the number of corrections needed to substantially reduce (and in most cases eliminate) the number of nuisance barks. The system provides 10 levels of static correction. It begins with a low-level correction (Level 0). However, if excessive barking continues, the correction intensity will increase with each successive bark (to a maximum of Level 9) until the barking stops. This correction level becomes the starting level the next time the dog barks. Once your dog has learned to reduce his barking, the initial warning corrections are automatically reduced.n et 7www.petsafe.2. The Progressive Correction mode starts at the lowest level (Level 0) and progresses to the next level (to a maximum of Level 9) each time your dog barks within 30 seconds of the previous bark. If your dog does not bark again within 30 seconds, the correction level will automatically reset to Level 0.3. The User-Selected Correction mode allows you to manually select the correction level (0-9). Note: In User-Selected mode, always start training at the lowest level of correction (Level 0). Watch how your dog reacts, and if necessary, progress to the next correction level.Note: As a built-in safety feature, if your dog barks 15 times or more within an 80 second period, the Bark Control Collar will automatically shut off for 3 minutes. This safety feature is active in all three modes of operation.Note: When the operating mode is changed, the correction level is automatically reset to Level 0. The Big Dog Rechargeable Bark Control has a single Settings Button that allows you to turn the unit on and off, display or change the current correction mode, and change the correction level. The following table describes how to perform the different tasks.Task Steps to perform IndicationsTurn the unit on Press and release the settings buttonwhile the unit is off.The light will flash green five times and then display the current correction mode as described on previous page.Turn the unit off Press the settings button until thedisplay goes blank and the red lightappears. Release the button.*The light will flash red four times and the unit will turn off.Display current correction mode Press and hold the settings buttonfor less than 2 seconds beforereleasing it.The unit will display the current correctionmode and battery condition, as describedon previous page, .8 Customer Care Center 1-800-732-2677Change active correction mode 1. Press and hold the settings buttonfor at least 5 seconds.:Mode will advance and be displayed asdescribed on previous page.2. Continue to hold the settingsbutton to advance to the nextavailable mode.:Every 2 seconds the mode will advanceand be displayed.3. When the desired mode isdisplayed, release the button.:The selected mode will be displayedduring this time.4. Once the button has beenreleased for 5 seconds, the newcorrection mode will activate.:The display will flash four times and theunit will resume normal operation usingthe new correction mode.**5. If the settings button is releasedtoo early, simply press it againwithin 5 seconds.:The mode will advance and continue asdescribed in Step 2.* If you continue to hold the settings button for more than 5 seconds, you will begin changing the correction mode. You must release the settings button before attempting to turn off the unit.** The light will flash every five seconds to indicate the current mode.What to Expect During Use of the Bark Control CollarImportant: Do not leave your dog alone the first few times he receives a correction.Place the Big Dog Rechargeable Bark Control Collar properly on your dog and wait nearby until he barks. Most dogs will understand very quickly that the Bark Control Collar is disrupting their urge to bark and will relax and stop barking. Because the static correction from the Bark Control Collar may be surprising or startling at first, some dogs may bark more at the initial correction.On rare occasions, a dog may get into a bark-correction-bark-correction cycle. If this happens, reassure your dog with calm, soothing tones. As your dog relaxes, he will understand that if he becomes quiet, he will not receive any more static corrections. The small minority of dogs that have this reaction will only have it the first time they wear the Bark Control Collar.You should notice a reduction in your dog’s barking within the first couple of days that he wears the Bark Control Collar. At this point, it is important to remember the learning process is still not complete. Dogs will “test” this new learning experience and will increase their attempts to bark. This usually occurs during the second week a dog wears the Bark Control Collar. If this does occur, remain consistent and do not alter your use of the Bark Control Collar. You must place the Bark Control Collar on your dog in every situation when you expect him to be quiet. If your dog is not wearing the Bark Control Collar, he may resume barking and his learning would suffer a setback.www.petsafe.n et 910Customer Care Center 1-800-732-2677Terms of Use and Limitation of Liability 1. Terms of Use This Product is offered to you conditioned upon your acceptance without modification of the terms, conditions and notices contained herein. Usage of this product implies acceptance of all such terms, conditions, and notices.2. Proper Use This Product is designed for use with pets where training is desired. The specific temperament of your pet may not work with this product. We recommend that you not use this product if your pet is less than 8 lbs. or under 6 months old, or if your pet is aggressive. If you are unsure whether this is appropriate for your pet, please consult your veterinarian, certified trainer or contact our Customer Care Center or visit our website at .Proper use includes reviewing the entire Operating and Training Guide provided with your product and any specific Caution statements.3. No Unlawful or Prohibited UseThis Product is designed for use with pets only. This pet training device is not intended to harm, injure, or provoke. Using this product in a way that is not intended could result in violation of Federal, State or local laws.4. Limitation of LiabilityIn no event shall Radio Systems Corporation be liable for any direct, indirect, punitive, incidental, special or consequential damages, or any damages whatsoever arising out of or connected with the use or misuse of this Product. Buyer assumes all risks and liability from the use of this Product.5. Modification of Terms and ConditionsRadio Systems Corporation reserves the right to change the terms, conditions and notices under which this Product is offered.Customer Care InternationalUSA & Canada - Tel: 800-732-2677Monday - Friday 8 AM - 8 PM / Saturday 9 AM – 5 PMAustralia - Tel: 1800 786 608Monday - Friday 8:30 AM - 5 PMNew Zealand - Tel: 0800 543 054Monday - Friday 10:30 AM - 7 PMThis product has the benefit of a limited manufacturer’s warranty. Details of the warranty applicable to this product and its terms can be found at and/or are available by sending a stamped addressed envelope to PetSafe Ltd. Redthorn House, Unit 9, ChorleyWest Business Park, Ackhurst Road, Chorley, Lancashire PR7 1NL, United Kingdom.Separate collection of spent batteries is required in many regions; check the regulations in your area before discarding spent batteries. At the end of the product life, please contact our Customer Care Center to receive instructions on proper disposal of the unit. Please do not dispose of the unit in household or municipal waste. For a listing of Customer Care Center telephone numbers in your area, visit our website at .n et 11www.petsafe.Radio Systems Corporation10427 PetSafe WayKnoxville, TN 379321-800-732-2677400-1636©2012 Radio Systems Corporation FCCThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.CAUTION: Modification or changes to this equipment not expressly approved by Radio Systems Corporation may void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a specific installation. If interference does occur to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures::Reorient or relocate the receiving antenna. :Increase the separation between the equipment and the receiver. :Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. :Consult customer care, the dealer, or an experienced radio/TV technician for help.Perchlorate BatteryPerchlorate Material – special handling may apply. See /hazardouswaste/perchlorate.。

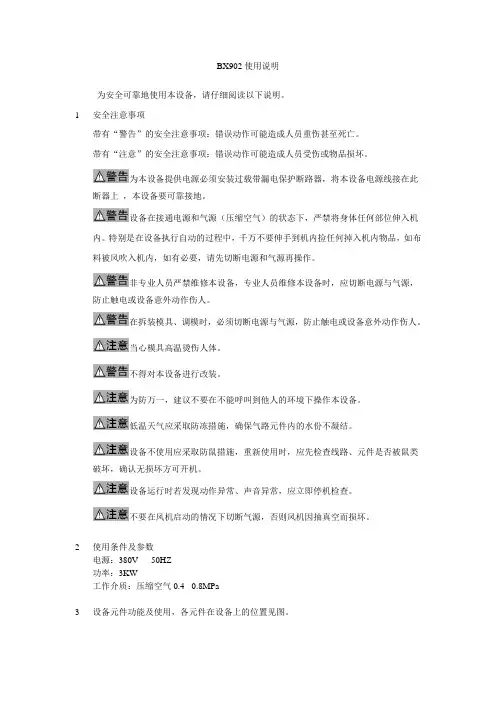

BX902使用说明为安全可靠地使用本设备,请仔细阅读以下说明。
1安全注意事项带有“警告”的安全注意事项:错误动作可能造成人员重伤甚至死亡。
带有“注意”的安全注意事项:错误动作可能造成人员受伤或物品损坏。
为本设备提供电源必须安装过载带漏电保护断路器,将本设备电源线接在此断器上,本设备要可靠接地。
设备在接通电源和气源(压缩空气)的状态下,严禁将身体任何部位伸入机内。
特别是在设备执行自动的过程中,千万不要伸手到机内捡任何掉入机内物品,如布料被风吹入机内,如有必要,请先切断电源和气源再操作。
非专业人员严禁维修本设备,专业人员维修本设备时,应切断电源与气源,防止触电或设备意外动作伤人。
在拆装模具、调模时,必须切断电源与气源,防止触电或设备意外动作伤人。
当心模具高温烫伤人体。
不得对本设备进行改装。
为防万一,建议不要在不能呼叫到他人的环境下操作本设备。
低温天气应采取防冻措施,确保气路元件内的水份不凝结。
设备不使用应采取防鼠措施,重新使用时,应先检查线路、元件是否被鼠类破坏,确认无损坏方可开机。
设备运行时若发现动作异常、声音异常,应立即停机检查。
不要在风机启动的情况下切断气源,否则风机因抽真空而损坏。
2 使用条件及参数电源:380V 50HZ功率:3KW工作介质:压缩空气0.4 - 0.8MPa3 设备元件功能及使用,各元件在设备上的位置见图。
脚踏:启动抽风,将布吸成形。
左启按钮、右启按钮:同时按左启右启设备执行自动。
安全制:按下安全制可让设备有序复位,便锁住控制器,不能执行任何动作,按照安全制上的箭头方向旋转复位,再点击触摸屏上的“退出”,设备就可正常起动工作了。
取消制:脚踏启动抽风后,若因放布不正而使吸布效果不佳,可按下取消制重新操作。
电源开关:用于接通和断开三相电源。
电源指示灯:“控制线路”通电的指示。
电源开关置ON后,电源指示灯不亮并不一定线路无电,因有可能指示灯烧坏、保险丝熔断,但机内和电箱内仍然有电,所以即使在指示灯不亮的情况下也不可触摸接线端子。

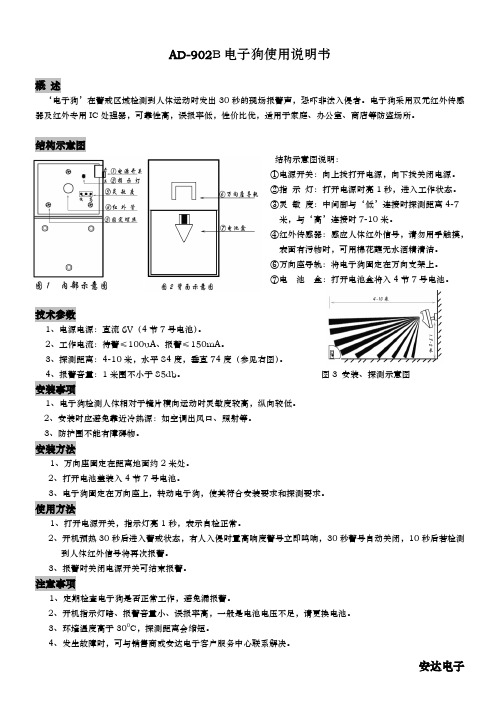

AD902B电子狗使用说明书
概述
‘电子狗’在戒备区域内检测到人体运动时发出30秒的现场报警声,恐吓非法入侵者。
电子狗采纳双元红外传感器及红外专用IC处理器,可靠性高,误报率低,性价比优,适用于家庭、办公室、商店等防盗场所。
结构示意图
结构示意图说明:
①电源开关:向上拨打开电源,向下拨关闭电源。
②指示灯:打开电源时亮1秒,进入工作状态。
③灵敏度:中间脚与‘低’连接时探测距离4-7
米,与‘高’连接时7-10米。
④红外传感器:感应人体红外信号,请勿用手触摸,
表面有污物时,可用棉花蘸无水酒精清洁。
⑥万向座导轨:将电子狗固定在万向支架上。
⑦电池盒:打开电池盒将入4节7号电池。
技术参数
1、电源电源:直流6V(4节7号电池)。
2、工作电流:待警≤100uA、报警≤150mA。
3、探测距离:4-10米,水平84度,垂直74度(参见右图)。
4、报警音量:1米范畴内不小于85db。
图3 安装、探测示意图
安装事项
1、电子狗检测人体相关于镜片横向运动时灵敏度较高,纵向较低。
2、安装时应幸免靠近冷热源:如空调出风口、阳光照耀等。
3、防护范畴内不能有障碍物。
安装方法
1、万向座固定在距离地面约2米处。
2、打开电池盖装入4节7号电池。
3、电子狗固定在万向座上,转动电子狗,使其符合安装要求和探测要求。
使用方法
1、打开电源开关,指示灯亮1秒,表示自检正常。
2、开机预热30秒后进入戒备状态,有人入侵时内置高响度警号赶忙鸣响,30秒警号自动关闭,10秒后若检测
到人体红外信号将再次报警。
3、报警时关闭电源开关可终止报警。
注意事项
1、定期检查电子狗是否正常工作,幸免漏报警。
2、开机指示灯暗、报警音量小、误报率高,一样是电池电压不足,请更换电池。
3、环境温度高于300C,探测距离会缩短。
4、发生故障时,可与销售商或安达电子客户服务中心联系解决。
泉州安达电子。
