i2s 布线规则摘要：1.了解i2S布线规则的背景和意义2.i2S布线规则的基本原理3.i2S布线规则的具体应用4.违反i2S布线规则可能导致的后果5.遵循i2S布线规则的实践建议正文：随着科技的不断进步，尤其是音频领域的不断发展，i2S（Inter-IC Sound）布线规则应运而生。

这是一种针对数字音频接口的布线规范，旨在提高音频传输的质量和稳定性。

本文将详细介绍i2S布线规则的基本原理、具体应用以及遵循这些规则的重要性。

首先，我们要了解i2S布线规则的背景和意义。

在过去的几十年里，音频传输技术不断发展，从模拟音频到数字音频，人们对音频质量的要求越来越高。

然而，数字音频接口的布线设计却面临着许多挑战，如信号干扰、传输速率受限等。

为了解决这些问题，i2S布线规则应运而生。

它为数字音频接口的布线提供了一套完整的规范，有助于降低信号损失，提高音频传输质量。

接下来，我们来了解一下i2S布线规则的基本原理。

i2S布线规则主要包括以下几个方面：1.平衡传输：通过使用差分信号传输技术，降低共模干扰，提高信号传输的稳定性。

2.阻抗匹配：在发送器和接收器之间采用阻抗匹配技术，以减少信号反射和损失。

3.屏蔽：对音频线进行屏蔽，以防止外部电磁干扰对音频信号的影响。

4.信号接地：合理规划信号接地，降低接地噪声对音频信号的干扰。

5.布线间距：合理设置布线间距，降低相邻信号线之间的干扰。

在实际应用中，遵循i2S布线规则可以带来以下好处：1.提高音频传输质量：遵循i2S布线规则可以降低信号损失，使音频信号更加稳定，从而提高音频质量。

2.减少故障：合理规划布线和接地，可以降低系统故障率，提高设备的可靠性和稳定性。

3.简化维护：遵循i2S布线规则，可以使音频系统的布线更加规范、简洁，降低维护成本和时间。

然而，如果违反i2S布线规则，可能会导致以下后果：1.音频信号质量下降：不合理的布线可能导致信号干扰增加，从而降低音频质量。

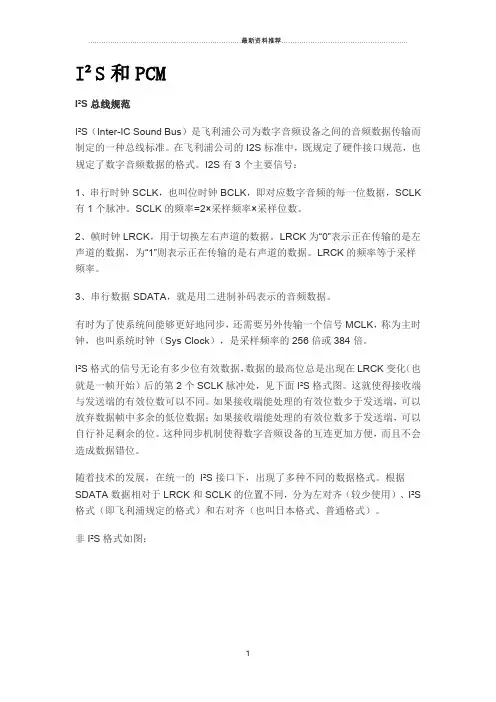

I²S和PCMI²S总线规范I²S（Inter-IC Sound Bus）是飞利浦公司为数字音频设备之间的音频数据传输而制定的一种总线标准。

在飞利浦公司的I2S标准中，既规定了硬件接口规范，也规定了数字音频数据的格式。

I2S有3个主要信号：1、串行时钟SCLK，也叫位时钟BCLK，即对应数字音频的每一位数据，SCLK 有1个脉冲。

SCLK的频率=2×采样频率×采样位数。

2、帧时钟LRCK，用于切换左右声道的数据。

LRCK为“0”表示正在传输的是左声道的数据，为“1”则表示正在传输的是右声道的数据。

LRCK的频率等于采样频率。

3、串行数据SDATA，就是用二进制补码表示的音频数据。

有时为了使系统间能够更好地同步，还需要另外传输一个信号MCLK，称为主时钟，也叫系统时钟（Sys Clock），是采样频率的256倍或384倍。

I²S格式的信号无论有多少位有效数据，数据的最高位总是出现在LRCK变化（也就是一帧开始）后的第2个SCLK脉冲处，见下面I²S格式图。

这就使得接收端与发送端的有效位数可以不同。

如果接收端能处理的有效位数少于发送端，可以放弃数据帧中多余的低位数据；如果接收端能处理的有效位数多于发送端，可以自行补足剩余的位。

这种同步机制使得数字音频设备的互连更加方便，而且不会造成数据错位。

随着技术的发展，在统一的I²S接口下，出现了多种不同的数据格式。

根据SDATA数据相对于LRCK和SCLK的位置不同，分为左对齐（较少使用）、I²S 格式（即飞利浦规定的格式）和右对齐（也叫日本格式、普通格式）。

非I²S格式如图：I²S格式如图：对非I²S格式而言，为了保证数字音频信号的正确传输，发送端和接收端应该采用相同的数据格式和长度。

对I²S格式来说数据长度可以不同。

而且帧时钟LRCK 高低电平对应左右声道的意义也不同？注意I²S总线和I²S格式的区别，I²S总线是一种总线标准，I²S格式是飞利浦制定的数据格式。

一、I2S 总线概述音响数据的收集、处理和传输是多媒体技能的重要组成部分。

众多的数字音频体系现已进入消费市场，例如数字音频录音带、数字声响处理器。

关于设备和生产厂家来说，规范化的信息传输结构能够进步系统的适应性。

I2S(Inter —IC Sound) 总线是飞利浦公司为数字音频设备之间的音频数据传输而拟定的一种总线规范，该总线专责于音频设备之间的数据传输，广泛应用于各种多媒体体系。

二、I2S 总线规范I2S 总线具有三条数据信号线：1、SCK: (continuous serial clock) 串行时钟对应数字音频的每一位数据，SCK 都有1 个脉冲。

SCK 的频率=2×采样频率×采样位数。

2、WS: (word select) 字段（声道）选择用于切换左右声道的数据。

WS 的频率＝采样频率。

指令挑选线表明晰正在被传输的声道。

WS 为“1表”示正在传输的是左声道的数据。

WS 为“0表”示正在传输的是右声道的数据。

WS 能够在串行时钟的上升沿或许下降沿发生改动，并且 WS 信号不需要一定是对称的。

在隶属设备端， WS 在时钟信号的上升沿发生改动。

WS 总是在最高位传输前的一个时钟周期发生改动，这样能够使隶属设备得到与被传输的串行数据同步的时刻，并且使接纳端存储当时的指令以及为下次的指令铲除空间。

3、SD: (serial data) 串行数据用二进制补码表明的音频数据。

I2S 格局的信号不管有多少位有效数据，数据的最高位总是被最先传输(在WS 变化(也就是一帧开始)后的第2 个SCK 脉冲处)，因此最高位拥有固定的位置，而最低位的位置则是依赖于数据的有用位数。

也就使得接纳端与发送端的有用位数可以不同。

假如接纳端能处理的有用位数少于发送端，能够抛弃数据帧中剩下的低位数据；假如接纳端能处理的有用位数多于发送端，能够自行补足剩余的位(常补足为零)。

这种同步机制使得数字音频设备的互连更加便利，并且不会形成数据错位。
