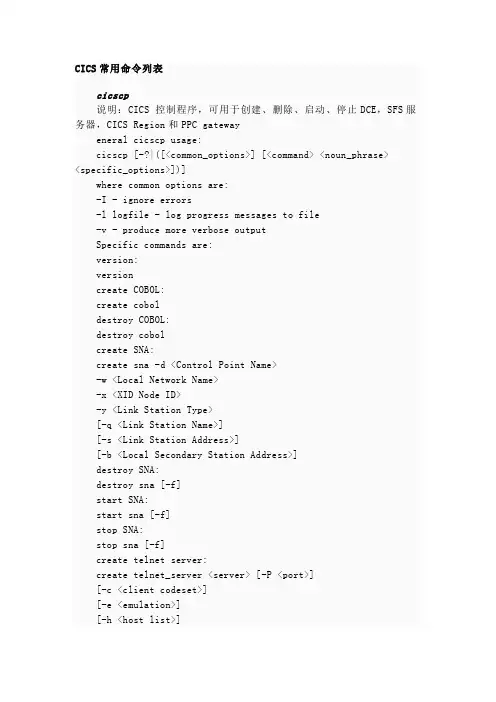

CICS常用命令列表cicscp说明：CICS 控制程序，可用于创建、删除、启动、停止DCE，SFS服务器，CICS Region和PPC gatewayeneral cicscp usage:cicscp [-?|([<common_options>] [<command> <noun_phrase><specific_options>])]where common options are:-I - ignore errors-l logfile - log progress messages to file-v - produce more verbose outputSpecific commands are:version:versioncreate COBOL:create coboldestroy COBOL:destroy cobolcreate SNA:create sna -d <Control Point Name>-w <Local Network Name>-x <XID Node ID>-y <Link Station Type>[-q <Link Station Name>][-s <Link Station Address>][-b <Local Secondary Station Address>]destroy SNA:destroy sna [-f]start SNA:start sna [-f]stop SNA:stop sna [-f]create telnet server:create telnet_server <server> [-P <port>][-c <client codeset>][-e <emulation>][-h <host list>][-l <locale>][-m <model>][-n <netname>][-r <region>][-s <server codeset>][-t <transaction>]destroy telnet server:destroy telnet_server <server> [-f]create SFS server:create sfs_server <server> [-m <model>][attribute overrides for SSD stanza]destroy SFS server:destroy sfs_server <server> [-f]start SFS server:start sfs_server <server> [attribute overrides for SSD stanza] stop SFS server:stop sfs_server <server> [-f]status SFS server:status sfs_server <server>stop sfs_server allcreate PPC gateway server:create ppcgwy_server <server> [-m <model>][attribute overrides for GSD stanza]destroy PPC gateway server:destroy ppcgwy_server <server> [-f]start PPC gateway server:start ppcgwy_server <server> [attribute overrides for GSD stanza]stop PPC gateway server:stop ppcgwy_server <server> [-f]status PPC gateway server:status ppcgwy_server <server>status ppcgwy_server allcreate SNA link:create sna_link [<Link Station Name>]-y <Link Station Type>[-s <Link Station Address>][-b <Local Secondary Station Address>]destroy SNA link:destroy sna_link <Link Station Name> -y <Link Station Type> create region (SFS):create region <region> [-g <group-id>][-i <infile>][-l <c|m|o|r>][-d]create region (DB2):create region <region> [-g <group-id>][-i <infile>][-l <c|m|o|r>][-a <alias> -o <instance>[-u <user[,passwd]>] [-n|-s]]create region (ORACLE):create region <region> -o ORACLE[-g <group-id>][-i <infile>][-l <c|m|o|r>][-u <user[/passwd]>] [-n|-s]destroy region (SFS):destroy region <region> [-f] [-s]destroy region (DB2):destroy region <region> [-f] [-s [-u <user[,passwd]>]] destroy region (ORACLE):destroy region <region> [-f] [-s [-u <user[/passwd]>]]start region:start region <region> [-d <distributed servers>][attribute overrides for RD stanza]stop region:stop region <region> [(-c | -f)]status region:status region <region>status region alldestroy all:destroy all [-f]start all:start allstop all:stop allstatus all:status all使用举例：5.1版本以前：创建DCEcicscp –v create dce -R删除DCE:cicscp -v destroy dce创建Region:cicscp -v create region CICSRGN1启动SFS 服务器：cicscp -v start sfs_server /.:/cics/sfs/SFS_SERVcicsadd说明：添加CICS资源定义Usage: cicsadd {-?|-c className [-r regionName] [-P|-B] [-f fileName] [-m modelId] resourceName[[attributeName=attributeValue]...]}使用举例：以下命令在CICSRGN1中增加一个通讯定义。

COBOL简易教程主要内容1.COBOL语言的基本概念及程序的结构•一个例子●COBOL程序的结构●COBOL源程序的书写格式2.COBOL数据表示•常量•层次的概念•PICTURE语句•数据在内存中的各种形式3.算术运算●变量赋值 (MOVE, MOVE CORR)●算术运算(ADD, SUB, MUL, DIV, COMPUTE等)●内部函数4.字符串处理●合并、分离、取子串、替换等5.程序逻辑控制•条件的分类•IF、EVALUATE●PERFORM6.表处理定义、赋值、引用、查询7.读、写多格式记录文件8.常用语句小结9.子程序1.关于COBOL的初步知识◆COBOL是Common Business Oriented Language (通用商业语言，或称管理语言)的缩写◆最适用于数据处理◆比较接近于自然语言（英语）◆COBOL的结构严谨，层次性强◆COBOL的缺点是比较烦琐。

1.1 一个例子：***************************************************************** * * COBOL TRAINING PROGRAM * * VERSION 2.1.0 COPYRIGHT (C) 2004 * * WISTRON DALIAN SOFTWARE CO., LTD. * * ALL RIGHTS RESERVED. * * * **************************************************************** IDENTIFICATION DIVISION.PROGRAM-ID. EXERCIS6.AUTHOR. QXLU (WISTRON DALIAN).DATE-WRITTEN. 04-06-23.DATE-COMPILED. 04-06-23.*----------------------------------------------------------------* * COMMENT : * * * *----------------------------------------------------------------* ENVIRONMENT DIVISION.CONFIGURATION SECTION.SOURCE-COMPUTER. IBM-3084.OBJECT-COMPUTER. IBM-3084.INPUT-OUTPUT SECTION.FILE-CONTROL.SELECT DDI01 ASSIGN TO "DDI01".SELECT DDO01 ASSIGN TO "DDO01".*DATA DIVISION.FILE SECTION.*FD DDI01 LABEL RECORD IS STANDARD DATA RECORD AREIN-AREA0, IN-AREA1.01 IN-AREA0.05 IN-YEAR-NUM PIC 9(2).05 IN-PRINCIPAL PIC 9(4)V99.05 FILLER PIC X(07).05 RMARK PIC X(01) VALUE X"0A".01 IN-AREA1.05 IN-INTEREST-RATE OCCURS 5 TIMES PIC V999.05 RMARK PIC X(01) VALUE X"0A".FD DDO01 BLOCK 0 RECORDS LABEL RECORD STANDARD RECORDING F.01 PRT-REC.05 FILLER PIC X(79).**===============================================================* WORKING-STORAGE SECTION.01 IN-FILE-DATA.05 YEAR-NUM PIC 9(2).05 PRINCIPAL PIC 9(4)V99.05 INTEREST-RATE-TABLE.15 INTEREST-RATE OCCURS 5 TIMES PIC V999.*01 HEADER0 PIC X(79) VALUE' TABLE OF SIMPLE INTEREST'.01 HEADER1 PIC X(79) VALUE' ************************************'.01 HEADER2 PIC X(79) VALUE' PRINCIPAL 4,000.00 FOR 10 PERIODS'.01 HEADER3 PIC X(79) VALUE SPACE.01 HEADER4 PIC X(79) VALUE' PERIOD INTEREST RATE'.01 HEADER5.05 OUT-I-R OCCURS 5 TIMES PIC BBBBBBBBB.999.01 DETAIL0.05 OUT-PERIOD PIC ZZZ.05 OUT-P-I-S-ITEM OCCURS 5 TIMES.10 FOURSPACES PIC X(04) VALUE SPACE.10 OUT-P-I-SUM PIC 9,999.99.01 CNT-YEAR-NUM PIC 9(2).01 I-R-INDEX PIC 9.01 P-I-SUM PIC 9(6)V99.****************************************************************** * P R O C E D U R E D I V I S I O N * ***************************************************************** PROCEDURE DIVISION.*INPUT-DATA SECTION.OPEN INPUT DDI01.OPEN OUTPUT DDO01.READ DDI01.MOVE IN-YEAR-NUM TO YEAR-NUM.MOVE IN-PRINCIPAL TO PRINCIPAL.READ DDI01.MOVE IN-AREA1 TO INTEREST-RATE-TABLE.*PROCESS-OUTPUT-DATA SECTION.*PRINT HEADERWRITE PRT-REC FROM HEADER0 BEFORE 1.WRITE PRT-REC FROM HEADER1 BEFORE 1.WRITE PRT-REC FROM HEADER2 BEFORE 1.WRITE PRT-REC FROM HEADER3 BEFORE 1.WRITE PRT-REC FROM HEADER4 BEFORE 1.* PRINT INTEREST RATEPERFORM TEST BEFORE VARYING I-R-INDEXFROM 1 BY 1 UNTIL I-R-INDEX > 5MOVE INTEREST-RATE( I-R-INDEX ) TO OUT-I-R( I-R-INDEX )END-PERFORM.WRITE PRT-REC FROM HEADER5 BEFORE 1.*PROCESS & PRINT DETAILSPERFORM PRINT-DETAILVARYING CNT-YEAR-NUM FROM 1 BY 1UNTIL CNT-YEAR-NUM > YEAR-NUM.*CLOSE-FILES SECTION.CLOSE DDI01.CLOSE DDO01.*STOP RUN.**---------------------------------------------------------------** PRINT-DETAIL **---------------------------------------------------------------*PRINT-DETAIL SECTION.*MOVE CNT-YEAR-NUM TO OUT-PERIOD.PERFORM PROCESS-DETAILVARYING I-R-INDEX FROM 1 BY 1 UNTIL I-R-INDEX > 5.WRITE PRT-REC FROM DETAIL0 BEFORE 1.*PRINT-DETAIL-RTN.EXIT.**---------------------------------------------------------------** PROCESS-DETAIL **---------------------------------------------------------------*PROCESS-DETAIL SECTION.*COMPUTE P-I-SUM = PRINCIPAL *( INTEREST-RATE( I-R-INDEX ) * CNT-YEAR-NUM + 1 ).MOVE P-I-SUM TO OUT-P-I-SUM( I-R-INDEX ).*PROCESS-DETAIL-RTN.EXIT.** *** END OF CODING EXERCIS6 ***1.2 COBOL 程序的结构(1/p4)部（Division) 一部可包括若干节节（Section) 一节可包含若干段段（Paragraph) 一段可包含若干句子句子（Sentence) 一个句子可包含若干语句语句(Statement) 制定计算机完成一定的操作子句(Clause) 制定完成某一方面的功能每个程序应包含四个部IDENTIFICATION DIVISION (标识部)主要用来指定源程序名字，也可以写入其他用作备忘的某些信息（如日期、作者等)。

第1章 COBOL简介COBOL是Common Business Oriented Language的缩写，即公用面向商业语言的意思。

在系统地学习COBOL程序设计语言之前，有必要首先对COBOL有一个大致的了解。

本章将分别从背景知识、语法格式、以及实际创建COBOL程序3个方面对其进行简要介绍。

1.1 背景知识在介绍COBOL之前，首先需要了解一下大型机的概念。

大型机也叫主机、大机、mainframe等，属于一种商用高端服务器。

目前大型机主要由IBM公司所生产，最新型号为z系列大型机。

COBOL便是用于大型机上应用软件开发的最主要的程序设计语言。

大型机上的工作大体上可以分为两类，分别为系统方向和开发方向。

系统方向的分工很多，包括使用Tivoli监控系统；使用RACF进行安全管理；使用SMS进行存储管理等等。

开发方向的市场需求相对系统方向则要大得多。

对于开发方向，主要需要掌握以下知识。

❑COBOL：最主要的程序设计语言。

❑JCL：作业控制语言，调用由COBOL编写的程序。

❑VSAM：程序中通常用到的文件类型。

❑DB2：大型机上最主要的数据库，通常以COBOL语言为宿主语言。

❑CICS：用于联机交易的中间件，通常也是以COBOL语言为宿主语言。

对于以上知识，在本书中都有详细介绍。

此外，对于大型机底层的开发，还需要掌握大型机上的汇编语言。

对于大型机汇编语言，在本书中也有具体讲解。

COBOL作为大型机上最主要的程序设计语言，迄今已有40多年的历史。

然而，经过40多年的沧桑，COBOL不仅没有被淘汰，反而在当今愈加流行起来。

关于这一点，主要应该是由以下3个因素所决定的。

❑COBOL广泛应用于广泛应用于银行业、信用卡业、保险业、制造业、航空业等等。

这些领域对于稳定性的要求都是十分高的，因此从很大程度上也保证了COBOL的不可取代性。

❑COBOL自身也在不断发展和更新中。

例如，COBOL本身主要属于面向过程的语言。

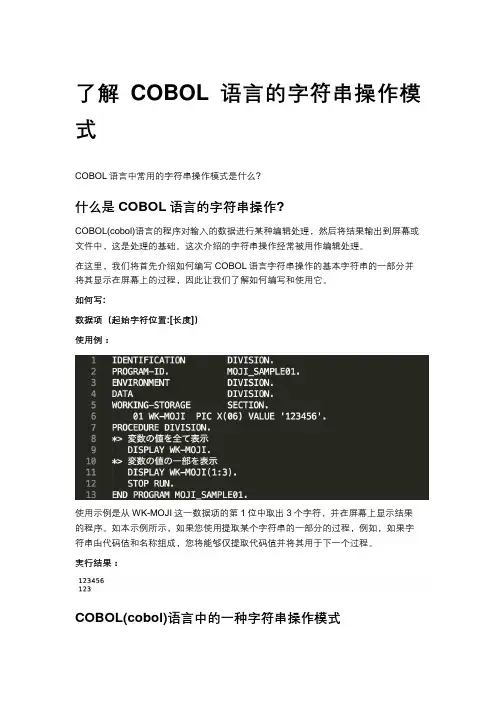

了解COBOL语言的字符串操作模式COBOL语言中常用的字符串操作模式是什么?什么是COBOL语言的字符串操作?COBOL(cobol)语言的程序对输入的数据进行某种编辑处理，然后将结果输出到屏幕或文件中，这是处理的基础。

这次介绍的字符串操作经常被用作编辑处理。

在这里，我们将首先介绍如何编写COBOL语言字符串操作的基本字符串的一部分并将其显示在屏幕上的过程，因此让我们了解如何编写和使用它。

如何写:数据项（起始字符位置:[长度]）使用例：使用示例是从WK-MOJI这一数据项的第1位中取出3个字符，并在屏幕上显示结果的程序。

如本示例所示，如果您使用提取某个字符串的一部分的过程，例如，如果字符串由代码值和名称组成，您将能够仅提取代码值并将其用于下一个过程。

実行结果：COBOL(cobol)语言中的一种字符串操作模式既然您已经了解了如何编写COBOL语言的基本字符串操作，接下来我们将介绍字符串操作的模式。

COBOL语言的字符串操作主要分为四种模式: 1.字符串初始化，2.字符串分割，3.字符串连接，4.使用集体项目进行字符串操作。

让我们按顺序来看看它的写法和使用方法。

怎么写1:初始化字符串INITIALIZE数据项使用例1：使用示例是初始化“123456”的初始值设定的WK-MOJI的数据项的值，并在屏幕上显示结果的程序。

在使用数据项进行编辑处理时，为了防止程序发生故障，通常也会像本使用例那样明确地初始化数据项。

実行结果1：如何编写2:分割字符串利用前面介绍的“字符串的一部分和检索处理”使用例2：使用示例是这样的程序:从WK-MOJI这一数据项的第1位中取出3个字符，从第4位中取出3个字符，并在屏幕上显示结果。

在COBOL（cobol）语言中，可以很容易地实现这样一个数据项的分割和使用。

実行结果2：如何编写3:连接字符串STRING数据项1、数据项2・・DELIMITED BY SIZEINTO数据项3[WITH POINT ER起始字符位置][结束字符串]使用例3：使用示例是将WK-MOJI 1、WK-MOJI 2这些字符串连接起来，存储在WK-MOJI中，然后在屏幕上显示结果的程序。

COBOL 概述COBOL 是Common Business Oriented Language 的缩写。

它不仅是商业数据处理的理想语言，而且广泛用于数据管理领域，因此COBOL 语言也被称为“用于管理的语言”。

一。

COBOL 语言的特点最适于数据处理领域：算数计算量少而逻辑处理量多，输入输出量大，数据间存在着一定的逻辑关系，大量的分类排序；COBOL比较接近英语，容易懂；通用性强，易移植, COBOL结构严谨，层次分明。

二。

COBOL的组成部分：1。

标识部（IDENTIFICATION DIVISION）：用于标识程序名。

2。

环境部（ENVIRONMENT DIVISION）：用于说明程序运行的环境。

3。

数据部（DATA DIVISION）：用于说明程序中涉及的所有数据。

4。

过程部（PROCEDURE DIVISION）：是程序的核心部分，它决定计算机应进行什么操作。

三。

最简单的COBOL 程序举例：COL 1 ---6 7 8 12---72 73---80IDENTIFICATION DIVISION。

PROGRAM-ID。

PSAMPLE1。

ENVIRONMENT DIVISION。

DATA DIVISION。

PROCEURE DIVISION。

DISPLAY …THIS IS A COBOL PROGRAM.‟STOP RUN。

四。

COBOL 源程序的书写格式：第1 至6 列为“标号区”。

第7列为“续行标志区”第8至此11列，称为“A区”。

程序中有些内容如部头，节头，段头，层号01，层号77 及文件描述符FD等应从A区开始写。

第12至此72列，称为“B区”。

写程序中的正文部分。

如过程部中的句子只能从B区开始写。

第73至80列，称为“注释区”。

五。

COBOL字符集包括：数字0 --- 9 ，字母A--- Z ，a --- z , 专用字符：+ - * / = , . ; … ( ) < > $ 及空格。

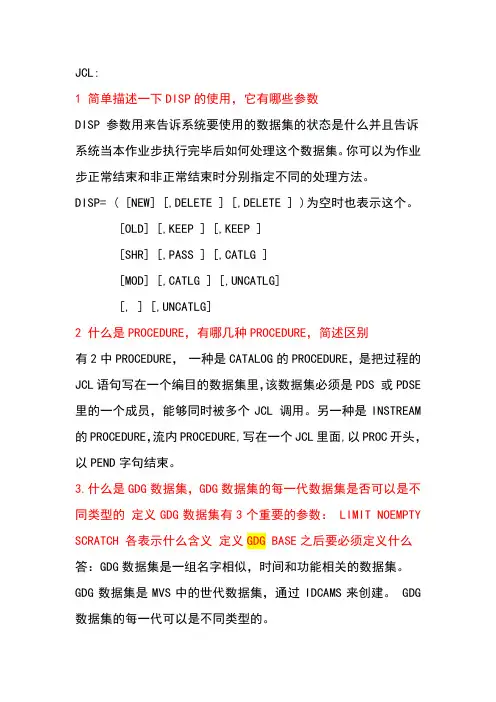

JCL:1 简单描述一下DISP的使用，它有哪些参数DISP 参数用来告诉系统要使用的数据集的状态是什么并且告诉系统当本作业步执行完毕后如何处理这个数据集。

你可以为作业步正常结束和非正常结束时分别指定不同的处理方法。

DISP= ( [NEW] [,DELETE ] [,DELETE ] )为空时也表示这个。

[OLD] [,KEEP ] [,KEEP ][SHR] [,PASS ] [,CATLG ][MOD] [,CATLG ] [,UNCATLG][, ] [,UNCATLG]2 什么是PROCEDURE，有哪几种PROCEDURE，简述区别有2中PROCEDURE，一种是CATALOG的PROCEDURE，是把过程的JCL语句写在一个编目的数据集里，该数据集必须是PDS 或PDSE 里的一个成员，能够同时被多个JCL 调用。

另一种是INSTREAM 的PROCEDURE，流内PROCEDURE,写在一个JCL里面,以PROC开头，以PEND字句结束。

3.什么是GDG数据集，GDG数据集的每一代数据集是否可以是不同类型的定义GDG数据集有3个重要的参数： LIMIT NOEMPTY SCRATCH 各表示什么含义定义GDG BASE之后要必须定义什么答：GDG数据集是一组名字相似，时间和功能相关的数据集。

GDG数据集是MVS中的世代数据集，通过IDCAMS来创建。

GDG 数据集的每一代可以是不同类型的。

3个重要的参数 LIMIT表示这个世代数据集最多可以有多少代； NOEMPTY表示不清空， SCRATCH表示最老的一代是被删除掉的。

定义GDG BASE之后必须定义GDG DSCB才能生效。

4. COND参数是什么意思如果我需要作业步3，只在作业步2返回码是0或者4的时候才执行，如何写COND参数答： COND参数是CONDITION参数，表示什么情况下作业步被执行/不被执行。

COND=(4,LT,STEP2)与IEBGENER有什么区别IEFBR14是起什么作用的IEBCOPY：对分区数据集进行拷贝、压缩或合并IEBGENER:拷贝顺序数据集,或将顺序数据集转为分区数据集IEFBR14实际是一个空程序，什么也不做，只是返回返回码0，但是使用它可以进行JCL 语言的各种处理，如DD 语句中创建数据集等。

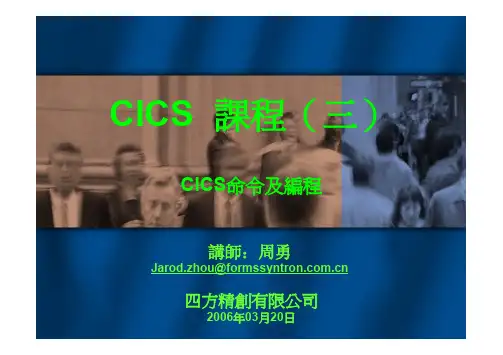

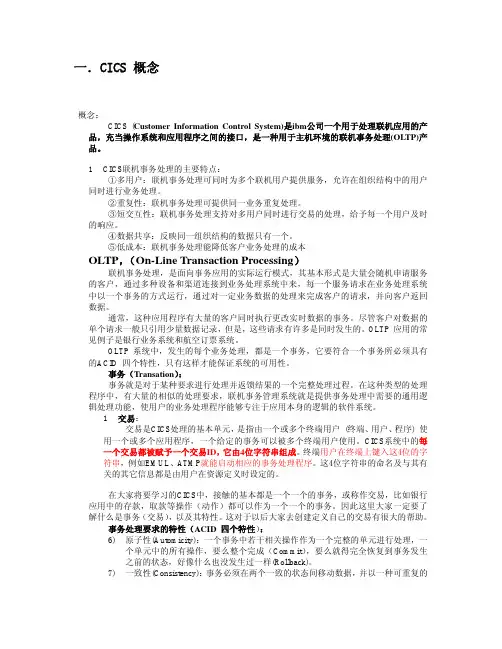

CICS 課程（三）CICS命令及編程講師：周勇Jarod.zhou@四方精創有限公司2006年03月20日CICS 高级语句介绍Transaction (事务)处理CICS 基础语句介绍CICS 相關知識CICS 程序编译、安装CICS 程序访问对象課程目錄貳陸用户在终端输入Trans ID:INQY,对应事务程序为PROG11.确定事务的ID是否在CICS区域定义，没有发出错误信息2.任务管理请求存储并创建表示任务的控制块(TCA= Task Control Area)3.如受安全保护，CICS验证用户的使用权限4.在程序定义表中找到对应的事务程序PROG1的定义信息5.如果PROG1不在内存，程序管理就申请内存将其从程序库装入内存6.CICS复制该程序的工作存储区到与该任务相关的另一存储区。

允许PROG1的单独程序副本被多任务共享7.EIP(EXEC Interface Program)接受程序请求返回异常条件和其他EIB(EXEC Interface Block)信息8.如果PROG1发出EXEC CICS READ 命令来读文件，则文件管理对VSAM发出读记录的请求9.PROG1利用BMS(Basic Map Surpport)来发出已格式化的数据到终端10.VSAM数据集的改变会被系统建立日志以便失败时恢复11.任务结束时，控制返回CICS。

所有与该任务相关的存储被释放，但程序保留在内存，直到无任何任务是用它和该空间要被使用为止1.开发语言•COBOL•Assemble•PL/1•C & C++程序处理逻辑用主语言编写，部分功能用CICS命令来完成2.命令格式EXEC CICS SEND FROM (MSG-AREA) LENGTH (5) END-EXEC.关键字功能选项参数选项参数分隔符EXEC SQL SELECT COLUMN_NAMES INTO:Program_variables FROM Table_name Where Search_condition END-EXEC.3.BMS(Basic Map Support) （BOCHK不使用，只做简单介绍）从终端用户界面发送和接收数据方法：•终端控制（未格式化数据）•BMS（格式化数据流）•图形用户界面MAP用于定义信息如何在终端上显示。

COBOL字符串的操作（―）字符串的合并string一、string语句的基本用法datadivisionworking-storagesection.01first-namepicx(10).01last-namepicx(10).01full-namepicx(20).proceduredivision.move'adam'tofirst-name.move'smith'tolast-name.stringfirst-namedelmitedbyspace''delimitedbysizelast-namedelimitedbyspaceintofull-name.display'firstname:',first-name.display'lastname:',last-name.display'fullname:',full-name.stoprun.输入结果：firstname:adamlastname:smithfullname:adamsmith以上为string语句的基本格式。

其中每项用于合并的字符串后面都要加上delimitedby语句。

delimitedby子句后面有两个选项，分别为space和size。

space:找出前面用作分拆的字符串中第一个发生空格的地方。

将该空格以前的部分展开分拆，空格以后的内容包含该空格在内不参予分拆操作方式。

size:将前面对应的用于合并的字符串中的全部内容进行合并。

另外by后可以接一个变量名称，并且将该变量中保存的字符作为原字符串的截取符。

截取符的用法同space选项类似。

（三）字符串的替代inspect语句inspect语句主要用于对字符串中的指定部分进行替换。

字符串的替换和转换是不同的。

字符串替换是将原字符串中的部分字符替换成其他字符。

转换时保持原字符串的字符不变，只对其格式进行转换。

COBOL+CICS子程序子程序操作1.非CICS平台：静态和动态用于传递的参数必须在01或者77层。

主调用程序通常在工作单元节(除非也被其他调用在连接节），被调用程序参数要定义在连接节中。

参数在主调用程序中分配内存，通常只要求内存空间大小一致，其他不做要求。

参数引用的顺序必须和主程序定义的参数与其顺序和位置一致。

CALL调用和ENTER选择入口地址两种方式。

静态：在调用之前就已经加载，和主程序在同一加载模块，费内存，效率高。

通常情况下都是引用上一次调用后的状态。

除非单独对参数再次初始化。

一个程序改变，所有程序都要进行改动。

如:DA TA DIVISION. --------主程序WORKING-STORAGE SECTION.77 TEST-NUM PIC 99.*PROCEDURE DIVISION.PERFORM INIT-TEST-NUM.CALL 'STATIC-SUB' USING TEST-NUM.DISPLAY TEST-NUM. ---第一次调用25PERFORM INIT-TEST-NUM.CALL 'STATIC-ENTRY' USING TEST-NUM.--对应于子程序的ENTER调用DISPLAY TEST-NUM. ---第二次调用35（子程序数值在内存中没有被释放）PERFORM INIT-TEST-NUM.CALL 'STATIC-SUB' USING TEST-NUM.DISPLAY TEST-NUM. ---第三次调用25（子程序数据已被初始化）STOP RUN.INIT-TEST-NUM.MOVE 10 TO TEST-NUM.DATA DIVISION. --------子程序WORKING-STORAGE SECTION.01 PLUS-NUM PIC 99 V ALUE 15.LINKAGE SECTION.77 MAIN-NUM PIC 99. ---被调用程序参数要定义在连接节中。
