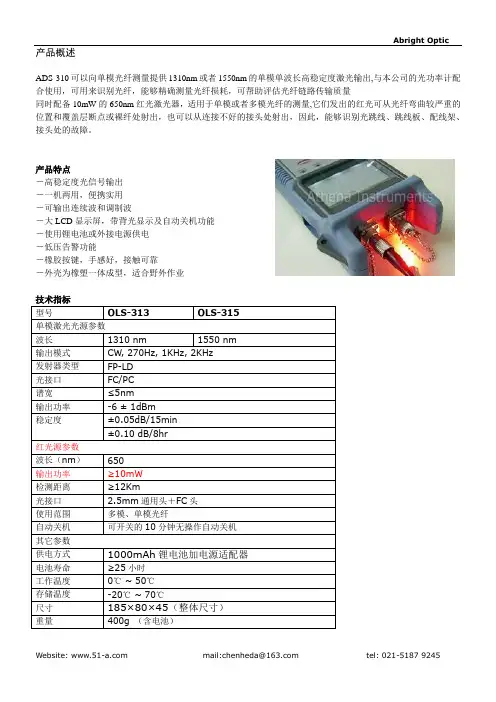

BW10红光源中文说明书

ADS-310可以向单模光纤测量提供1310nm或者1550nm的单模单波长高稳定度激光输出,与本公司的光功率计配合使用，可用来识别光纤，能够精确测量光纤损耗，可帮助评估光纤链路传输质量
同时配备10mW的650nm红光激光器，适用于单模或者多模光纤的测量,它们发出的红光可从光纤弯曲较严重的位置和覆盖层断点或裸纤处射出，也可以从连接不好的接头处射出，因此，能够识别光跳线、跳线板、配线架、接头处的故障。

产品特点
－高稳定度光信号输出
－一机两用，便携实用
－可输出连续波和调制波
－大LCD显示屏，带背光显示及自动关机功能
－使用锂电池或外接电源供电
－低压告警功能
－橡胶按键，手感好，接触可靠
－外壳为橡塑一体成型，适合野外作业
ADS313：单模1310nm稳定光源& 10mW 650nm红光源双输出口ADS315：单模1550nm稳定光源& 10mW 650nm红光源双输出口产品配置清单：。
