SCHURTER GmbH

D – 79346 Endingen

Changes that contribute to technical improvement are subject to alternations Page Production date: Produced by:

Modification date:Modified by: Modification No. Data sheet No.

Index

1 of 9 07.07.2005 Lickert

15.06.2006 M.Fischer 9235

105.9513

- Print date: 6/15/2007 2:39:00 PM

Product manual

Miniature – Push button switches

SMS(Surface mount) and PMS(PCB mount).

CONTENT

1. Product_Description

SMS/PMS_Base_module

SMS/PMS Variable Height

2. Technical data and dimensions

Technical data SMS/PMS

Dimensions SMS/ PMS Base module/Variable Height

Drilling diagram and Solder pads SMS/PMS Base module /Variable height

Circuit Diagram SMS/PMS

3. Part_numbers

Part numbers SMS/PMS Base module/Variable Height

4. Packaging

Packaging SMS/PMS Base Module/Variable Height

¤󰀂EPCOS AG 2010. Reproduction, publication and dissemination of this publication, enclosures

hereto and the information contained therein without EPCOS’ prior express consent is prohibited.Data and signal line chokes

Common-mode chokes, ring core

0.005 … 47 mH, 100 … 1200 mA, 60 °C

Series/Type:B82793C0/S0

Date:July 2010

/

207/10Please read Cautions and warnings and

Important notes

at the end of this document.Rated voltage 42 V AC/80 V DC

Rated inductance 0.005 mH to 47 mH

Rated current 100 mA to 1200 mA

Construction

■Current-compensated double choke

■Ferrite core

■LCP case (UL 94 V-0), silicone potting

■Bifilar winding (B82793C0)

■Sector winding (B82793S0)

Features

■High rated currents, reduced components height

■Qualified to AEC-Q200 (L d󰀂4.7 mH)

■Suitable for reflow soldering

■RoHS-compatible

Function

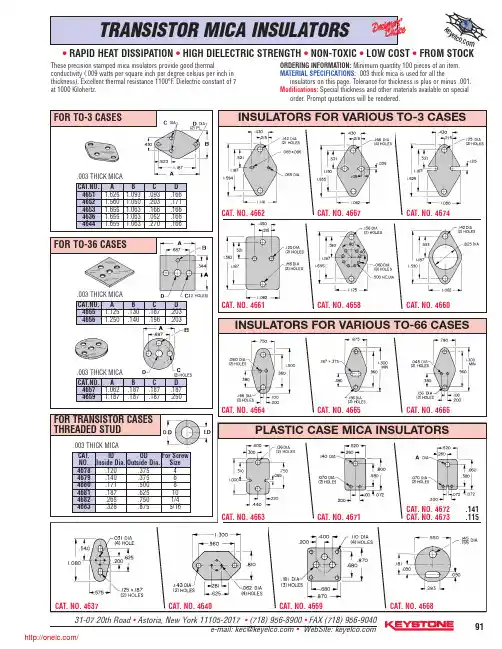

31-07 20th Road • Astoria, New York 11105-2017 • (718) 956-8900 • FAX(718) 956-9040e-mail: kec@ • WebSite: TRANSISTOR MICA INSULATORS

INSULATORS FOR VARIOUS TO-3 CASESThese precision stamped mica insulators provide good thermalconductivity (.009 watts per square inch per degree celsius per inch in thickness). Excellent thermal resistance 1100°F. Dielectric constant of 7 at 1000 Kilohertz.ORDERING INFORMATION: Minimum quantity 100 pieces of an item.MATERIAL SPECIFICATIONS: .003 thick mica is used for all the insulators on this page. Tolerance for thickness is plus or minus .001.Modifications:Special thickness and other materials available on special order. Prompt quotations will be rendered. •RAPID HEAT DISSIPATION•HIGH DIELECTRIC STRENGTH•NON-TOXIC•LOW COST•FROM STOCK

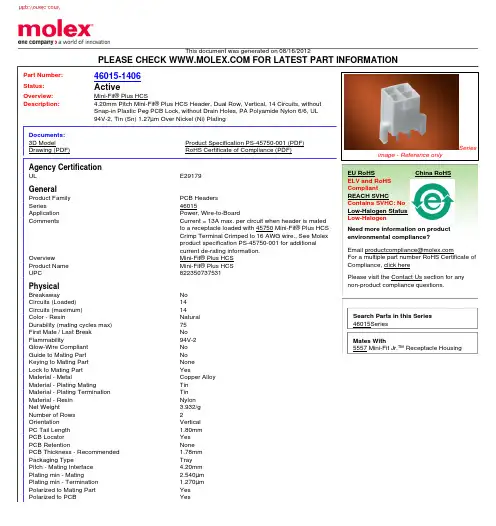

This document was generated on 08/16/2012

PLEASE CHECK FOR LATEST PART INFORMATION

Part Number:46015-1406

Status:Active

Overview:Mini-Fit® Plus HCS

Description:4.20mm Pitch Mini-Fit® Plus HCS Header, Dual Row, Vertical, 14 Circuits, without

Snap-in Plastic Peg PCB Lock, without Drain Holes, PA Polyamide Nylon 6/6, UL

94V-2, Tin (Sn) 1.27µm Over Nickel (Ni) Plating

Documents:

3D ModelProduct Specification PS-45750-001 (PDF)

Drawing (PDF)RoHS Certificate of Compliance (PDF)

Agency Certification

ULE29179

General

Product FamilyPCB Headers

Series46015

ApplicationPower, Wire-to-Board

CommentsCurrent = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit® Plus HCS

Crimp Terminal Crimped to 16 AWG wire., See Molex

product specification PS-45750-001 for additional

current de-rating information.
