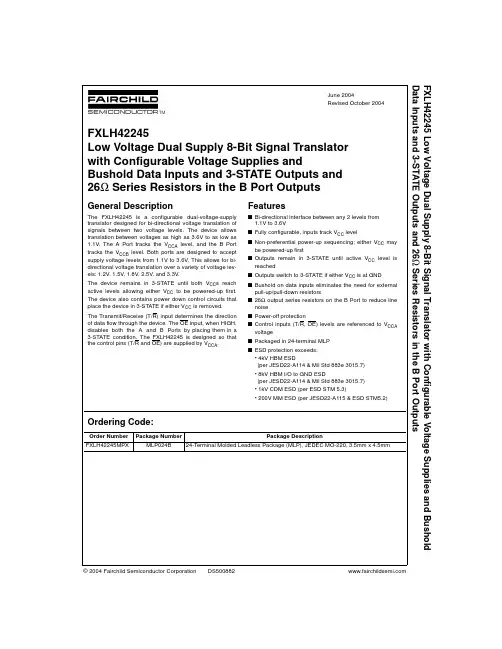

© 2004 Fairchild Semiconductor Corporation DS500882June 2004Revised October 2004FXLH42245 Low Voltage Dual Supply 8-Bit Signal Translator with Configurable Voltage Supplies and Bushold Data Inputs and 3-STATE Outputs and 26Ω Series Resistors in the B Port OutputsFXLH42245Low Voltage Dual Supply 8-Bit Signal Translator with Configurable Voltage Supplies andBushold Data Inputs and 3-STATE Outputs and 26Ω Series Resistors in the B Port OutputsGeneral DescriptionThe FXLH42245 is a configurable dual-voltage-supply translator designed for bi-directional voltage translation of signals between two voltage levels. The device allows translation between voltages as high as 3.6V to as low as 1.1V. The A Port tracks the V CCA level, and the B Port tracks the V CCB level. Both ports are designed to accept supply voltage levels from 1.1V to 3.6V. This allows for bi-directional voltage translation over a variety of voltage lev-els: 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V.The device remains in 3-STATE until both V CC s reach active levels allowing either V CC to be powered-up first.The device also contains power down control circuits that place the device in 3-STATE if either V CC is removed.The Transmit/Receive (T/R) input determines the direction of data flow through the device. The OE input, when HIGH,disables both the A and B Ports by placing them in a 3-STATE condition. The FXLH42245 is designed so that the control pins (T/R and OE) are supplied by V CCA .Featuress Bi-directional interface between any 2 levels from 1.1V to 3.6V s Fully configurable, inputs track V CC levels Non-preferential power-up sequencing; either V CC may be powered-up first s Outputs remain in 3-STATE until active V CC level is reached s Outputs switch to 3-STATE if either V CC is at GND s Bushold on data inputs eliminates the need for external pull-up/pull-down resistors s 26Ω output series resistors on the B Port to reduce line noise s Power-off protections Control inputs (T/R, OE) levels are referenced to V CCA voltage s Packaged in 24-terminal MLP s ESD protection exceeds:• 4kV HBM ESD(per JESD22-A114 & Mil Std 883e 3015.7)• 8kV HBM I/O to GND ESD(per JESD22-A114 & Mil Std 883e 3015.7)• 1kV CDM ESD (per ESD STM 5.3)• 200V MM ESD (per JESD22-A115 & ESD STM5.2)Ordering Code:Order Number Package NumberPackage DescriptionFXLH42245MPXMLP024B24-Terminal Molded Leadless Package (MLP), JEDEC MO-220, 3.5mm x 4.5mm 2F X L H 42245Pin DescriptionsTruth TableH = HIGH Voltage Level L = LOW Voltage Level X = Don’t CareConnection DiagramTerminal Assignments for DQFN(Top Through View)Pin AssignmentsPower-Up/Power-Down SequencingFXL translators offer an advantage in that either V CC may be powered up first. This benefit derives from the chip design. When either V CC is at 0 volts, outputs are in a HIGH-Impedance state. The control inputs (T/R and OE)are designed to track the V CCA supply. A pull-up resistor tying OE to V CCA should be used to ensure that bus con-tention, excessive currents, or oscillations do not occur during power-up/power-down. The size of the pull-up resis-tor is based upon the current-sinking capability of the OE driver.The recommended power-up sequence is the following:1.Apply power to either V CC .2.Apply power to the T/R input (Logic HIGH for A-to-Boperation; Logic LOW for B-to-A operation) and to the respective data inputs (A Port or B Port). This may occur at the same time as Step 1.3.Apply power to the other V CC .4.Drive the OE input LOW to enable the device.The recommended power-down sequence is the following:1.Drive OE input HIGH to disable the device.2.Remove power from either V CC .3.Remove power from the other V CC .Pin Names DescriptionOE Output Enable Input T/R Transmit/Receive Input A 0 - A 7Side A Input or 3-STATE Output B 0 - B 7Side B Input or 3-STATE Output V CCA Side A Power Supply V CCB Side B Power Supply GNDGroundInputs OutputsOE T/R L L Bus B Data to Bus A L H Bus A Data to Bus B HX3-STATEPin NumberPin Name Pin NumberPin Name 1V CCA 13GND 2T/R 14B 73A 015B 64A 116B 55A 217B 46A 318B 37A 419B 28A 520B 19A 621B 010A 722OE 11GND 23V CCB 12GND24V CCBFXLH42245Absolute Maximum Ratings (Note 1)Recommended Operating Conditions (Note 3)Note 1: The “Absolute Maximum Ratings ” are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the absolute maximum ratings.The “Recommended Operating Conditions ” table will define the conditions for actual device operation.Note 2: I O Absolute Maximum Rating must be observed.Note 3: All unused inputs must be held at V CCI or GND.DC Electrical CharacteristicsSupply Voltage V CCA −0.5V to +4.6V V CCB−0.5V to +4.6V DC Input Voltage (V I ) I/O Port A −0.5V to V CCA +0.5V I/O Port B−0.5V to V CCA +0.5VControl Inputs (T/R, OE)−0.5V to +4.6V Output Voltage (V O ) (Note 2)Outputs 3-STATE −0.5V to +4.6V Outputs Active (A n )−0.5V to V CCA + 0.5V Outputs Active (B n )−0.5V to V CCB + 0.5VDC Input Diode Current (I IK ) V I < 0V −50 mA DC Output Diode Current (I OK )V O < 0V −50 mA V O > V CC+50 mADC Output Source/Sink Current (I OH /I OL )−50 mA / +50 mADC V CC or Ground Current per Supply Pin (I CC )±100 mAStorage Temperature Range (T STG )−65°C to +150°CPower Supply Operating (V CCA or V CCB ) 1.1V to 3.6VInput Voltage Port A0.0V to V CCA Port B0.0V to V CCB Control Inputs (T/R, OE)0.0V to V CCAOutput Current in I OH /I OL (A Port)V CCA 3.0V to 3.6V ±24 mA 2.3V to 2.7V ±18 mA 1.65V to 1.95V ±6 mA 1.4V to 1.65V ±2 mA 1.1V to 1.4V±0.5 mAOutput Current in I OH /I OL (B Port)V CCB 3.0V to 3.6VResistor Outputs ±12 mA 2.3V to 2.7V Resistor Outputs ±8 mA 1.65V to 1.95V Resistor Outputs ±3 mA 1.4V to 1.65V Resistor Outputs ±1 mA 1.1V to 1.4VResistor Outputs±0.25 mA Free Air Operating Temperature (T A )−40°C to +85°CMinimum Input Edge Rate (∆V/∆t)V CCA/B = 1.1V to 3.6V10 ns/VSymbol ParameterConditionsV CCI V CCO Min TypMaxUnits(V)(V)V IH High Level Input VoltageData Inputs A n , B n2.7 -3.6 1.1 - 3.6 2.0V(Note 4)2.3 - 2.7 1.61.65 - 2.30.65 x V CCI1.4 - 1.650.65 x V CCI 1.1 - 1.40.9 x V CCIControl Pins/OE, T/R 2.7 - 3.6 1.1 - 3.6 2.0(Referenced to V CCA )2.3 - 2.7 1.61.65 - 2.30.65 x V CCA1.4 - 1.650.65 x V CCA 1.1 - 1.40.9 x V CCA 4F X L H 42245DC Electrical Characteristics (Continued)Symbol ParameterConditionsV CCI V CCO MinTypMax Units(V)(V)V IL Low Level Input VoltageData Inputs A n , B n2.7 -3.6 1.1 - 3.60.8V (Note 4)2.3 - 2.70.71.65 - 2.30.35 x V CCI 1.4 - 1.650.35 x V CCI 1.1 - 1.40.1 x V CCIControl Pins OE, T/R 2.7 - 3.6 1.1 - 3.60.8(Referenced to V CCA )2.3 - 2.70.71.65 - 2.30.35 x V CCA 1.4 - 1.650.35 x V CCA 1.1 - 1.40.1 x V CCAV OH High Level Output Voltage I OH = −100 µA 1.1 - 3.6 1.1 - 3.6V CC0 - 0.2V(Note 5)B PortI OH = −6 mA 2.7 2.7 2.2I OH = −8 mA 3.0 3.0 2.4I OH = −12 mA 3.0 3.0 2.2I OH = −4 mA 2.3 2.3 2.0I OH = −6 mA 2.3 2.3 1.8I OH = −8 mA 2.3 2.3 1.7I OH = −3 mA 1.65 1.65 1.25I OH = −1 mA 1.4 1.4 1.05I OH = −0.25 mA1.1 1.10.75 x V CC0V OH High Level Output Voltage I OH = −100 µA 1.1 - 3.6 1.1 - 3.6V CC0 - 0.2V (Note 5)A PortI OH = −12 mA 2.7 2.7 2.2I OH = −18 mA 3.0 3.0 2.4I OH = −24 mA 3.0 3.0 2.2I OH = −6 mA 2.3 2.3 2.0I OH = −12 mA 2.3 2.3 1.8I OH = −18 mA 2.3 2.3 1.7I OH = −6 mA 1.65 1.65 1.25I OH = −2 mA 1.4 1.4 1.05I OH = −0.5 mA1.1 1.10.75 x V CC0V OL Low Level Output Voltage I OL = 100µA 1.1 - 3.6 1.1- 3.60.2V (Note 5)B PortI OL = 6 mA 2.7 2.70.4I OL = 8 mA 3.0 3.00.55I OL = 12 mA 3.0 3.00.8I OL = 6 mA 2.3 2.30.4I OL = 8 mA 2.3 2.30.6I OL = 3 mA 1.65 1.650.3I OL = 1 mA 1.4 1.40.35I OL = 0.25 mA1.1 1.10.3 x V CC0V OL Low Level Output Voltage I OL = 100µA 1.1 - 3.6 1.1- 3.60.2V (Note 5)A PortI OL = 12 mA 2.7 2.70.4I OL = 18 mA 3.0 3.00.4I OL = 24 mA 3.0 3.00.55I OL = 12 mA 2.3 2.30.4I OL = 18 mA 2.3 2.30.6I OL = 6 mA 1.65 1.650.3I OL = 2 mA 1.4 1.40.35I OL = 0.5 mA1.1 1.10.3 x V CC0I IInput Leakage Current Control Pins V I = V CCA or GND1.1 - 3.63.6±1.0µAFXLH42245DC Electrical Characteristics (Continued)Note 4: V CCI = the V CC associated with the data input under test.Note 5: V CCO = the V CC associated with the output under test.Note 6: An external driver must source at least the specified current to switch LOW-to-HIGH.Note 7: An external driver must sink at least the specified current to switch HIGH-to-LOW.Note 8: Don ’t Care = Any valid logic level.Note 9: Reflects current per supply, V CCA or V CCB .Symbol ParameterConditionsV CCI V CCO Min Typ Max Units(V)(V)I I(HOLD)Bushold InputV IN = 0.8 3.0 3.075.0µAMinimum Drive CurrentV IN = 2.0 3.0 3.0−75.0V IN = 0.7 2.3 2.345.0V IN = 1.6 2.3 2.3−45.0V IN = 0.57 1.65 1.6525.0V IN = 1.07 1.65 1.65−25.0V IN = 0.49 1.4 1.411.0V IN = 0.91 1.4 1.4−11.0V IN = 0.11 1.1 1.1 4.0V IN = 0.991.1 1.1−4.0I I(OD)Bushold Input Over-drive (Note 6) 3.6 3.6450µA(Note 6)Current-to-Change State(Note 7) 3.6 3.6−450(Note 7)(Note 6) 2.7 2.7300(Note 7) 2.7 2.7−300(Note 6) 1.95 1.95200(Note 7) 1.95 1.95−200(Note 6) 1.6 1.6120(Note 7) 1.6 1.6−120(Note 6) 1.4 1.480.0(Note 7)1.4 1.4−80.0I OFF Power Off Leakage CurrentA n , V I or V O = 0V to 3.6V 0 3.6±10.0µAB n , V I or V O = 0V to 3.6V3.60±10.0I OZ 3-STATE Output Leakage A n , B n OE = V IH3.6 3.6±10.0µA (Note 8)V O , V CC or GND B n , OE = Don ’t Care 0 3.6+10.0V I = V IH or V ILA n , OE = Don ’t Care 3.60+10.0I CCA/B Quiescent Supply Current V I = V CCI or GND; I O = 0 1.1 - 3.6 1.1 - 3.620.0µA (Note 9)I CCZ Quiescent Supply Current V I = V CCI or GND; I O = 0 1.1 - 3.61.1 - 3.620.0µA (Note 9)I CCA Quiescent Supply Current V I = V CCA or GND; I O = 00 1.1 - 3.6−10.0µA V I = V CCA or GND; I O = 0 1.1 - 3.6010.0I CCB Quiescent Supply Current V I = V CCB or GND; I O = 0 1.1 - 3.60−10.0µA V I = V CCB or GND; I O = 00 1.1 - 3.610.0∆I CCA/BIncrease in I CC per Input;V IH = 3.03.63.6500µAOther Inputs at V CC or GND 6F X L H 42245AC Electrical Characteristics V CCA = 3.0V to 3.6VAC Electrical Characteristics V CCA = 2.3V to 2.7VAC Electrical Characteristics V CCA = 1.65V to 1.95VAC Electrical Characteristics V CCA = 1.4V to 1.6VSymbolParameterT A = −40°C to +85°CUnitsV CCB = 3.0V to 3.6V V CCB = 2.3V to 2.7V V CCB = 1.65V to 1.95V V CCB = 1.4V to 1.6V V CCB = 1.1V to 1.3V MinMax Min Max Min Max Min Max Min Max t PLH Propagation Delay A to B 0.5 3.90.5 4.50.9 5.9 1.07.4 1.622.0ns t PHL Propagation Delay B to A 0.2 3.50.2 3.80.3 4.00.5 4.30.813.0t PZH Output Enable OE to B 0.7 4.8 1.0 5.1 1.5 6.7 1.57.1 2.018.0ns t PZL Output Enable OE to A 0.5 4.00.5 4.00.5 4.00.5 4.00.5 4.0t PHZ Output Disable OE to B 0.4 4.30.4 4.40.9 5.2 1.7 6.8 2.019.0ns t PLZOutput Disable OE to A0.23.70.23.70.23.70.23.70.23.7SymbolParameterT A = −40°C to +85°CUnitsV CCB = 3.0V to 3.6V V CCB = 2.3V to 2.7V V CCB = 1.65V to 1.95V V CCB = 1.4V to 1.6V V CCB = 1.1V to 1.3V MinMax Min Max Min Max Min Max Min Max t PLH Propagation Delay A to B 0.5 4.30.6 4.80.9 6.0 1.07.6 1.622.0ns t PHL Propagation Delay B to A 0.3 3.90.4 4.20.5 4.50.5 4.8 1.07.0t PZH Output Enable OE to B 0.8 5.1 1.0 5.5 1.5 6.9 1.57.4 2.019.0ns t PZL Output Enable OE to A 0.6 4.50.6 4.50.6 4.50.6 4.50.6 4.5t PHZ Output Disable OE to B 0.4 4.60.4 4.80.9 5.3 1.77.1 2.019.0ns t PLZOutput Disable OE to A0.24.00.24.00.24.00.24.00.24.0SymbolParameterT A = −40°C to +85°CUnitsV CCB = 3.0V to 3.6V V CCB = 2.3V to 2.7V V CCB = 1.65V to 1.95V V CCB = 1.4V to 1.6V V CCB = 1.1V to 1.3V MinMax Min Max Min Max Min Max Min Max t PLH Propagation Delay A to B 0.5 4.60.7 5.1 1.1 6.2 1.17.8 1.722.0ns t PHL Propagation Delay B to A 0.5 5.40.5 5.60.8 5.7 1.0 6.0 1.28.0t PZH Output Enable OE to B 0.8 5.4 1.0 5.9 1.57.3 1.57.7 2.020.0ns t PZL Output Enable OE to A 1.0 6.7 1.0 6.7 1.0 6.7 1.0 6.7 1.0 6.7t PHZ Output Disable OE to B 0.4 4.70.4 4.9 1.0 5.4 1.77.2 2.019.0ns t PLZOutput Disable OE to A0.55.00.55.00.55.00.55.00.55.0SymbolParameterT A = −40°C to +85°CUnitsV CCB = 3.0V to 3.6V V CCB = 2.3V to 2.7V V CCB = 1.65V to 1.95V V CCB = 1.4V to 1.6V V CCB = 1.1V to 1.3V MinMax Min Max Min Max Min Max Min Max t PLH Propagation Delay A to B 0.7 4.80.8 5.3 1.2 6.4 1.37.9 2.022.0ns t PHL Propagation Delay B to A 0.6 6.80.8 6.90.97.1 1.07.3 1.39.5t PZH Output Enable OE to B 1.1 5.8 1.3 6.3 1.57.8 2.08.1 2.020.0ns t PZL Output Enable OE to A 1.07.5 1.07.5 1.07.5 1.07.5 1.07.5t PHZ Output Disable OE to B 0.6 4.80.6 5.1 1.1 5.8 2.07.7 2.020.0ns t PLZOutput Disable OE to A1.06.01.06.01.06.01.06.01.06.0FXLH42245AC Electrical Characteristics V CCA = 1.1V to 1.3VCapacitanceSymbolParameterT A = −40°C to +85°CUnitsV CCB = 3.0V to 3.6V V CCB = 2.3V to 2.7V V CCB = 1.65V to 1.95V V CCB = 1.4V to 1.6V V CCB = 1.1V to 1.3V MinMax Min Max Min Max Min Max Min Max t PLH Propagation Delay A to B 1.013.8 1.07.8 1.08.4 1.010.4 2.024.0ns t PHL Propagation Delay B to A 1.422.0 1.422.0 1.522.0 1.522.0 2.024.0t PZH Output Enable OE to B 1.512.6 1.59.6 1.510.6 2.011.6 2.024.0ns t PZL Output Enable OE to A 2.022.0 2.022.0 2.022.0 2.022.0 2.022.0t PHZ Output Disable OE to B 1.215.00.97.6 1.28.6 2.010.6 3.021.0ns t PLZOutput Disable OE to A2.015.02.012.02.012.02.012.02.012.0Symbol ParameterConditionsT A = +25°C Units Typical C IN Input Capacitance Control Pins (OE, T/R)V CCA = V CCB = 3.3V, V I = 0V or V CCA/B 4.0pF C I/O Input/Output Capacitance A n , B n Port V CCA = V CCB = 3.3V, V I = 0V or V CCA/B5.0pF C PDPower Dissipation CapacitanceV CCA = V CCB = 3.3V, V I = 0V or V CC , F = 10 MHz20.0pF 8F X L H 42245AC Loading and WaveformsFIGURE 1. AC Test CircuitAC Load TableNote: Input t R = t F = 2.0 ns, 10% to 90%FIGURE 2. Waveform for Inverting and Non-Inverting FunctionsNote: Input t R = t F = 2.0 ns, 10% to 90%FIGURE 3. 3-STATE Output High Enable and Disable Times for Low Voltage LogicNote: Input t R = t F = 2.0 ns, 10% to 90%FIGURE 4. 3-STATE Output Low Enable and Disable Times for Low Voltage LogicNote: For V mi ; V CCI = V CCA for control pins T/R and OE, or (V CCA /2).Test Switch t PLH , t PHL Opent PLZ , t PZL V CCO x 2 at V CCO = 3.3V ± 0.3V, 2.5V ± 0.2V, 1.8V ± 0.15V, 1.5V ± 0.1V, 1.2V ± 0.1Vt PHZ , t PZHGNDV CCO C L R L R TR11.2V ± 0.1V 15 pF 2k Ω2k Ω1.5V ± 0.1V 15 pF 2k Ω2k Ω1.8V ± 0.15V 30 pF 500Ω500Ω2.5V ± 0.2V 30 pF 500Ω500Ω3.3V ± 0.3V30 pF500Ω500ΩSymbol V CC3.3V ± 0.3V 2.5V ± 0.2V V mi V CCI /2V CCI /2V mo V CCO /2V CCO /2V X V OH − 0.3V V OH − 0.15V V YV OL + 0.3VV OL + 0.15VSymbol V CC1.8V ± 0.15V 1.5V ± 0.1V 1.2V ± 0.1V V mi V CCI /2V CCI /2V CCI /2V mo V CCO /2V CCO /2V CCO /2V X V OH − 0.15V V OH − 0.1V V OH − 0.1V V YV OL + 0.15VV OL + 0.1VV OL + 0.1VFXLH42245Tape and Reel SpecificationTape Format for MLPTAPE DIMENSIONS inches (millimeters)REEL DIMENSIONS inches (millimeters)PackageTape Number Cavity Cover Tape DesignatorSection Cavities Status Status Leader (Start End)125 (typ)Empty Sealed MPXCarrier 3000Filled Sealed Trailer (Hub End)75 (typ)EmptySealedTapeSize A B C D N W1W212 mm13.00.0590.5120.795 2.1650.4880.724(330.0)(1.50)(13.00)(20.20)(55.00)(12.4)(18.4)10F X L H 42245 L o w V o l t a g e D u a l S u p p l y 8-B i t S i g n a l T r a n s l a t o r w i t h C o n f i g u r a b l e V o l t a g e S u p p l i e s a n d B u s h o l d D a t a I n p u t s a n d 3-S T A T E O u t p u t s a n d 26Ω S e r i e s R e s i s t o r s i n t h e B P o r t O u t p u t sPhysical Dimensions inches (millimeters) unless otherwise noted24-Terminal Molded Leadless Package (MLP), JEDEC MO-220, 3.5mm x 4.5mmPackage Number MLP024BFairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications.LIFE SUPPORT POLICYFAIRCHILD ’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein:1.Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be rea-sonably expected to result in a significant injury to the user. 2. A critical component in any component of a life support device or system whose failure to perform can be rea-sonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.。

液晶屏型号屏定义大全(四)SAMSUNG LT133X1_102 911双6位单灯宽口 3.3V 9011B 36D11 04.02.27 SAMSUNG LT133X1_102 911双6位单灯宽口 3.3V 9011B LT150X1 2004.7.1SAMSUNG LT133X8 DF14信号线反调单灯窄口 3.3V ZAN3V2.0LVDS ITXG72 04.02.27SAMSUNG LT150X2_124 DF14 卓耀单灯窄口 3.3V ZAN3V4.0LVDS 141X7 04.03.02SAMSUNG LT150X3_126 2pcs DF14 卓耀单灯窄口 3.3V ZAN3V4.0LVDS 141X7 04.03.02SAMSUNG LT150X3_130 6cs DF14 卓耀单灯窄口 3.3V ZAN3V4.0LVDS 141X7 04.03.02SAMSUNG LT150XB 点不亮鑫合基单灯窄口SAMSUNG LTM150XL_P01 DF19跳线力嘉双灯5V ZAN25.0 ganeral 2004.4.23SAMSUNG LTN150P1_L02 911双6位鑫合基单灯窄口 3.3V 9011B LT150P1 04.03.03SAMSUNG LTN150P2_L01 91138D94 鑫合基单灯窄口 3.3V 9011B L150P2N 04.03.03SAMSUNG LTN150P2_L01 RF 38D94 力嘉单灯窄口5V 911B 38995 2004.4.6SAMSUNG LTN150X5_L01 DF14 卓耀单灯窄口 3.3V ZAN3V4.0LVDS 141X7 04.03.02SAMSUNG LTN150XB_L03 38D94 单6LVDS20pin DLN 3.3 gmZAN3Tv4.0 SANSUNG_LRN150XB_L03_3B 03.12.15 SANSUNG ;T140X1_051 LM151X1线四灯宽口 3.3v ZAN34.0TTL M150X1 2004.7.31SANSUNG 141P4/E2 38D94 徐小姐单灯窄口5V 9011B 150P2N 2004.6.27SANSUNG 141X6 DF14 中宇单灯宽口 3.3V 5020V1,3LVDS 141X7 04.03.15SANSUNG 141X7_124 DF14 三普单灯窄口 3.3V ZAN3V4.0 141X7 2004.5.21 OKSANSUNG 141X8 DF14 众人单灯窄口 3.3V ZAN3V1.4LVDS 141X7 2004.4.23 OKSANSUNG 141XJ_L01 JAE20pin 徐小姐单灯窄口 3.3v ZAN3V4.0lvds ITXG72 2004.6.27SANSUNG 150X3S4LV1 DF14 卓耀单灯窄口 3.3V ZAN3V4.0LVDS 141X7 04.03.06SANSUNG 150XH_L04 DF148bit 鑫合基四灯小口 3.3V ZAN3V4.0lvds ITXG72 8bit 2004.5.21 OKSANSUNG HT14X11_103 单8bit 单灯窄口 3.3V ZAN3XL HT14X11_103 2004.9.23SANSUNG LM150X1 TMDS DF19 刘全5VSANSUNG LM151X2 41A 芃峰双灯 3.3V ZAN3V4.0TTL LM151X2 2004.5.26 OKSANSUNG LNM150XS_T01 151X1 力嘉双灯 3.3V ZAN32.0TTL M150X1 2004.4.19 OKSANSUNG LT094V3_10T SHARP 4bit 单灯宽口5v ZAN34.0TTL pvi6448 2004.9.7 okSANSUNG LT104S1-102 41A 单灯宽口5V ZAN3V4.0TTL LP121S1 2004.10.18SANSUNG LT104S4_151 41B 单灯宽口5V ZAN34.0TTL 121S1 2004.7.26 SANSUNG lt1133x7_124 DF1914pin 鑫合基单灯窄口 3.3V ZAN3V4.0 lt1133x7_124 2004.5.6 OKSANSUNG LT121S1_153 41A 丰华单灯宽口5V ZAN34.0TTL 121S1 2004.6.8SANSUNG LT121S1_153 41A 金太星单灯宽口 3.3V 5020V1,3LVDS 141X7 04.03.16SANSUNG LT121S1153 41A 芃峰单灯宽口 3.3v ZAN34.0TTL 121S1 2004.6.19SANSUNG LT121SS_105 41A 晶捷单灯宽口 3.3v ZAN34.0TTL 121S1 2004.6.10SANSUNG LT121SS_123 2004.10.7SANSUNG LT121SU_121 DF14 单灯窄口 3.3v ZAN2V4.0lvds 800X600LVDS 2004.6.19SANSUNG LT121SU_121 DF14反插芃峰单灯窄口 3.3V ZAN34.0LVDS 800X600LVDS 2004.8.29 OK 此屏为笔记本屏SANSUNG LT121SU_121 DF1920pin SL 科星单灯宽口 3.3V ZAN3XL LT121SU_121 2004.10.7SANSUNG LT121SU_121 molxe20pin 徐小姐单灯窄口 3.3v ZAN3V4.0lvds HSD800X600 LVDS 2004.6.27SANSUNG LT133X1_101SANSUNG LT133X1_101 911双6位单灯宽口5V 9011B LT150X1M 2004.7.27SANSUNG LT133X1_104 38D94 单灯宽口5V ZAN3SL LT133X1 2004.10.21SANSUNG LT133X1_106 9011B双6bit 单灯宽口5V GM2211 LT133X1_106 2004.10.11SANSUNG LT133X1104 911双6位王玉高单灯宽口5V 9011B LT150X1 2004.8.22SANSUNG LT133X2_154 DF14 王玉高单灯窄口 3.3V ZAN34.0LVDS 141X7 2004.8.22SANSUNG LT133X2_154 DF14 新元单灯窄口 3.3V ZAN3V4.0LVDS ITXG72 2004.7.26SANSUNG LT133X4_122 MOLXE20 V.V.G.G.0-.0+.G.G.1-.1+.G.G.2-.2+.G.G.CLK-.CLK+.G 单灯宽口 3.3V ZAN3 4.0LVDS ITXG72 2004.9.2 OKSANSUNG LT133X8_122 DF14 V.V.NC.NC.G.G.0-0G+1-1+G2-2+GC-C+.G 佳显单灯窄口 3.3V ZAN3V4.0LVDS ITXG72 2004.8.4SANSUNG LT133X8_122 DF14 三盟单灯窄口 3.3V 5020 13INCH 2004.7.30SANSUNG LT133XB_122 133X1线芃峰单灯窄口 3.3V ZAN2V4.0lvds ITXG72 2004.5.25SANSUNG LT141E2 DF14 三盟单灯窄口 3.3v 5020v1.4lvds 13INCH 2004.6.24SANSUNG LT141X2_152 单8bit 单灯窄口 3.3V ZAN3XL 141X7 2004.9.26 SANSUNG LT141X6_122 DF14 王玉高单灯宽口 3.3V ZAN34.0LVDS 141X7 2004.8.22SANSUNG lt141x7 DF14 中宇单灯宽口 3.3V 5020V1.3单lvds 141X7 04.03.17SANSUNG LT141X8_L02 单8bit 惠日单灯窄口 3.3V ZAN3XL LT141X8_L02 2004.10.20SANSUNG LT141XC_L01 DF14 单灯窄口 3.3v ZAN2V4.0lvds ITXG72 2004.6.20SANSUNG LT141XF DF14 三盟单灯窄口 3.3v 5020v1.4lvds 13INCH 2004.6.24SANSUNG LT141XU_L01 JAE20PIN 单灯窄口 3.3v ZAN2V4.0lvds ITXG72 2004.6.20SANSUNG LT150P1_L01 911双6位单灯窄口5V 9011B LP150P1 2004.9.2 OKSANSUNG LT150X1_102 911双6位单灯宽口 3.3V 2004.9.5 SANSUNG LT150X1_131 DF14改TMDS 四灯宽口5V ZAN25.0TMDS JANLR 2004.8.29 OK 此屏厚宽SANSUNG LT150X1_302 12VSANSUNG LT150X1_302 911双6位鑫合基四灯宽口12V 9011B LT150X1 2004.6.20SANSUNG LT150X1_302 911双6位鑫合基四灯宽口12V 9011B LT150X1 2004.6.27SANSUNG LT150X2_124 DF14 单灯窄口 3.3V ZAN3V4.0LVDS 147X7 04.03.12SANSUNG LT150X3_126 2PCS 华精SANSUNG LT150X3_126 2pcs DF14 卓耀单灯窄口 3.3V ZAN3V4.0LVDS 141X7 04.03.06SANSUNG LT150X3_126 2PCS DF14 卓耀单灯窄口 3.3V ZAN3LVDS LP150X1_1 04.03.06SANSUNG LT150X3_130 单8bit 单灯窄口 3.3V GM2221 141X7 2004.9.23 SANSUNG LT150X3_130 6PCS DF14 卓耀单灯窄口 3.3V ZAN3V4.0LVDS 141X7 04.03.06SANSUNG LT152W1_L01 JAE20pin 徐小姐单灯窄口 3.3v ZAN3V4.0lvds 2004.6.27SANSUNG LTM141X4_L01 DF14 芃峰单灯宽口 3.3Vnbsp; ZAN2V4.0lvds 141X7 2004.5.24 OKSANSUNG LTM150XBS4L 38D94 单灯窄口 3.3V ZAN3XL LT141X2_153 2004.10.21SANSUNG LTM150XH_L01 DF148bit 技博四灯小口 3.3V ZAN3V4.0单lvds ITXG72 04.03.17 8bitokSANSUNG LTM150XH_L01 DF148bit 宇田四灯小口 3.3V ZAN3V4.0单lvds ITXG72 8bit 2004.4.21 OKSANSUNG LTM150XH_L06 单8bit 四灯小口 3.3V ZAN3XL LTM150XH_L06 2004.10.21SANSUNG LTM150XL_P01 跳DF19 双灯5V TMDS LTM150XL_P01 2004.10.24SANSUNG LTM150XP DF14 8bit 葛光华双灯 3.3v ZAN3V4. ITXG728bit 04.07.26SANSUNG LTM150XS_T01 LM151X1线微硕双灯5V ZAN34.0TTL LTM150XS_T01 2004.7.26SANSUNG LTM170E4_L01 170EH D8B LVDS 30Pin 四灯小口5V ZAN3SL L170EH 2004.9.21SANSUNG LTM170EH_L01 170EH D8B LVDS 30Pin 金泽兴宇四灯小口5V 9011B M170EH 2004.7.30SANSUNG LTM170EU_L01 170EH D8B LVDS 30Pin 微硕四灯小口5V 9011B M170E0 2004.7.26SANSUNG LTM170W01 df14 易唯四灯宽口 3.3 5020 LTM170W01 2004.7.24SANSUNG LTM170W1_L02 DF148pit 徐小姐四灯宽口 3.3v ZAN3V4.0lvds ltm170w1 2004.6.27SANSUNG LTN104S2_L01 DF19 14pin 芃峰单灯窄口 3.3V ZAN3V4.0LVDS LTN104S2_L01 2004.9.14 okSANSUNG LTN121X1_L01 DF19 华精单灯窄口 3.3V ZAN34.0LVDS ITXG72 2004.8.29 OKSANSUNG LTN121X1_L01 DF19 华精单灯窄口 3.3V ZAN34.0LVDS ITXG72 2004.8.29 OKSANSUNG LTN121XF_L01 DF19 2004.8.11SANSUNG LTN141P2_L01 38D94 单灯窄口 3.3V ZAN3SL LTN150P1_L01 2004.9.23SANSUNG LTN141P4_L01 DF14 冯小姐单灯窄口 3.3V 5020V1.3 13INTCH 2004.8.29SANSUNG LTN141X2_126 DF14 福星达单灯窄口 3.3 ZAN3V4.0lvds ITXG72 2004.7.20SANSUNG LTN141X7 单8bit 单灯窄口 3.3V ZAN3XL 141X7 2004.9.26 SANSUNG LTN141X7_124 DF14 海钲单灯窄口 3.3V ZAN3V4.0LVDS 141x7 2004.7.24SANSUNG LTN141X8_L00 DF14 易唯单灯窄口 3.3V ZAN3V4.0LVDS 141X7 2004.9.10 okSANSUNG LTN141X8_L02 DF14 4B066 单灯窄口 3.3v ZAN2V4.0lvds ITXG72 2004.6.19SANSUNG ltn141x8_l02 DF14 葛光华单灯窄口 3.3v ZAN3V4. 141X7 04.03.19SANSUNG LTN141XA_L01 ZAN3 38D94 芃峰单灯窄口 3.3v ZAN3V4.0lvds ITXG72 2004.6.27SANSUNG LTN141XA_L01 ZAN3 38D94 鑫合基单灯窄口 3.3V ZAN34.0LVDS LP150X1_1 2004.9.2 OKSANSUNG LTN141XE_L01 911DF19 单灯窄口 3.3V ZAN3XL LT 2004.9.23 SANSUNG LTN141XF_L02 DF14 微硕单灯窄口 3.3V ZAN3V4.0LVDS ITXG72 2004.9.17SANSUNG LTN141XU_L01 JEA ZAN2LVDS 万信单灯窄口 3.3V 50201.3LVDS 13INCH 2004.4.23 OKSANSUNG LTN141XU_L01 JEA ZAN2LVDS 鑫合基单灯窄口 3.3V ZAN3V4.0 LTN141XU_L01 2004.5.7 OKSANSUNG LTN150P1_L01 38D94 单灯窄口 3.3V ZAN3SL LTN150P1_L01 2004.9.23SANSUNG LTN150P4_L01 38D94 新锐博单灯窄口 3.3 9011B 150P2N 2004.7.24SANSUNG LTN150PE_L01 38D94 单灯窄口 3.3v 9011B LP150P2N 2004.7.18SANSUNG LTN150U2_L02 38D94 单灯窄口 3.3V ZAN3SL LTN150U2_L02 2004.9.29SANSUNG LTN150XB_L01 ZAN338D94 晶捷单灯窄口 3.3v ZAN2V4.0lvds ITXG72 2004.6.10SANSUNG LTN150XB_L03 ZAN338D94 单灯窄口 3.3v ZAN3V4.0lvds LP150X1_1 2004.6.30SANSUNG LTN150XB_l03 zan338d94 改1 到11均为空C+.C-.G.2+.2-G.1+.1-.G.0+.0-.NC.NC.NC.V.V.G. 单灯窄口 3.3V 2004.8.16 SANSUNG LTN150XD_L01 单8bit 单灯窄口 3.3V ZAN3XL LT141X2_153 2004.10.24SANSUNG LTN150XD_L02 DF14 单灯窄口 3.3V ZAN3V4.0LVDS ITXG72 2004.7.27SANSUNG LTN150XD_L02 DF14 8bit 单灯窄口 3.3V ZAN3 4.0LVDS ITXG72 8bit 2004.8.29SANSUNG LTN150XH_L01 DF14 8bit 四灯小口 3.3V ZAN3V4.0LVDS ITXG72 8bit 2004.7.29SANSUNG LTN154P1_L01 38D94 单灯窄口5v 9011B TX38D97(1900X1280) 2004.12.13SANSUNG LTN154U1_L01 38D94 徐小姐单灯窄口 3.3V 9011B LTN154U1_L01 2004.8.3SANSUNG LTN154X1_L01 ZAN3 38D94 单灯窄口 3.3V ZAN3V4.0LVDS LTN154X1_L01 2004.8.3SANSUNG LTN154X1_L01 zan3 38d94 晶捷单灯窄口 3.3v ZAN2V4.0lvds LTN154X1_L01 2004.6.24SANSUNG LTN154X1_L02 ZAN3 38D94 单灯窄口 3.3V ZAN3V4.0LVDS LTN154X1_L02 2004.8.3SAUHSUNG LT121S1-101 单8bit 新力通单灯窄口 3.3V ZAN3XL LT121SS800X600 2004.10.12SAUHSUNG LT150X1_302 LT150X1线四灯宽口5V ZAN3V4.0TTL m150x1 2004.10.12SAUNSUNG LT121S1_105A 41A 晶明单灯窄口 3.3V ZAN3V2.0TTL LP121S1 2004.8.4SAUNSUNG LT133X5_122 2004.8.3SAUNSUNG LT141X2_124 单8bit 新力通单灯窄口 3.3V ZAN3XL UB141X01 2004.10.12SAUNSUNG LTN150PG_L02 38D94 单灯窄口 3.3V 9011B LTN150P2N 2004.8.7SAUNSUNG LTN150PK_L01 38D94 单灯窄口 3.3V 9011B LTN150P2N 2004.8.7SAYO TM121SV_22L11A 41A 芃峰双灯 3.3V ZAN3V4.0TTL 121S1 2004.7.31SAYO TM150XG_02L11 ZAN3 38D94 鑫合基单灯窄口 3.3V ZAN34.0LVDS LP150X1_1 4.0LVDS LP150X1_1 2004.9.2 OKSAYO TM150XG_22L02A 15X16线芃峰双灯5V ZAN3V4.0TTL LQ14X042 2004.7.22SAYO TM150XG_52L11A 38D94 芃峰单灯窄口 3.3V 9011B TM150XG_52L11A 2004.8.22SAYO TM150XG_52L11A ZAN3 38D94 芃峰单灯窄口 3.3 ZAN3V4.0lvds LP150X1_1 2004.7.22SAYO TM150XG04_2 芃峰双灯2004.7.22SHARP 2004.9.21SHARP ;Q150F1LW14C 38D94 单灯窄口5V 9011B LTN150P2N 2004.8.16 SHARP 9D345 31A 单灯宽口 3.3V ZAN34.0TTL PV6448 2004.8.22 SHARP K3123TP DF14 S6B LVDS 20Pin SLN 3.3 gmZAN3L V4.0 ITXG72 SHARP L09D024 SHARP 4bit 单灯宽口5v ZAN34.0TTL pvi6448 2004.9.7 okSHARP LQ104S1LH11 molxe20pin 芃峰单灯宽口 3.3v ZAN2V4.0lvds lq121s1 2004.6.10SHARP LQ104S1LH11 molxe20pinNC.NC.NC.NC.V.V.G.0-.0+.G.1-.1+.G.2-.2+.G.C-.C+ 芃峰单灯窄口 3.3V ZAN3V4.0LVDS SHARP_121SH1LH11 2004.8.6SHARP LQ10D32A 31A 鑫合基单灯宽口5V ZAN3V4.0TTL PVI6448 2004.4.19 OKSHARP LQ10D341 31A 样品双灯SHARP LQ10DS01 41B 坤龙单灯宽口5V ZAN34.0TTL 121S1 2004.6.3 SHARP LQ11DS03 41B 坤龙单灯宽口5V ZAN3V4.0TTL 121S1 2004.7.20SHARP LQ11DS03 41B 芃峰单灯宽口 3.3V ZAN3V4.0TTL 121S1 2004.6.1SHARP LQ11S33 41A 单灯宽口 3.3V ZAN3V2.0TTL LN8060BC26_17 SHARP LQ11S452 41A 芃峰单灯宽口 3.3v ZAN34.0TTL LQ11S53 2004.6.19SHARP LQ11S46 41A 芃峰单灯宽口5V ZAN34.0TTL LQ121S1 2004.6.10 SHARP LQ11S53 41B 晶明单灯宽口 3.3V ZAN3V2.0TTL LQ11S53 2004.8.4SHARP LQ11S63 MOLXE14 V.V.G.G.0-.0+.1-.1+.2-.2+.C-.C+ 九深单灯窄口 3.3V ZAN3XL LQ11S63 2004.10.10SHARP LQ121S1DDG11 41A 蓝焰双灯 3.3 ZAN3V2.0TTL LP121S1 2004.8.2SHARP LQ121S1DDG11 41A 蓝焰双灯 3.3 ZAN3V2.0TTL LQ121S1 2004.5.11 OKSHARP LQ121S1DG11; 41A 力嘉双灯 3.3V ZAN34.0TTL 121S1 2004.7.3SHARP LQ121S1LG41 OK OK 双灯 3.3 2221 LTA104S1_L01_SVGA_LVDS 2006.2.12SHARP LQ121S1LH02 DF14 单灯宽口 3.3v 5020 121S1SHARP LQ121S1LH02 S6B LVDS20Pin SLW 3.3 gmZAN3 V2.0 NOSHARP LQ121S1LH13 DF14 20PIN 跳两信号两地排列单灯宽口 3.3V ZAN3V4.0LVDS ITXG72 2004.7.27SHARP LQ121S1LH33 DF14 跳两信号两地排列黄先生单灯小口 3.3V . Zan3_lq12s53_OK 2005.11.30SHARP LQ12DX02 LVDS双6位芃峰单灯宽口5V ZAN2V4.0lvds NL10276BC26_09 2004.5.22 推想没有试验SHARP LQ12DX03 911双6位福星达单灯窄口 3.3v 9011B LQ12DX03 2004.6.29SHARP LQ12S05_03C 41A 芃峰单灯宽口 3.3v ZAN34.0TTL LQ11S53 2004.6.19SHARP LQ12S11 41A35_0 单灯宽口 3.3V ZAN3V4.0TTL 121S1 2005.01.04 SHARP lq12s56 41A 福星达单灯宽口 3.3V ZAN34.0TTL lq12s56 2004.8.21SHARP LQ12X022 2004.4.6SHARP LQ12X022 ZAN2双6BIT 天之骄单灯宽口5V 5020双LVDS LQ14X02 2004.4.15 OKSHARP LQ12X43 911双6位单灯宽口5V 9011B LT150X1M 2004.7.27 SHARP LQ12X54 MOLXE 20pin 单灯宽口 3.3 ZAN3SL LQ12X54 2006.2.17 SHARP LQ133X02A 9011B双6bit 单灯窄口 3.3V ZAN3SLSHARP LQ133X1LH05 DF14 双灯 3.3V ZAN34.0LVDS LQ150X1LH82 2004.9.2 OKSHARP LQ133X1TH71 MOLXE 14PIN V.V.G.G.0-.0+.1-.1+.2-.2+.C-.C+.G.G G05电脑双灯 3.3V ZAN3V4.0 TMDS TM150XG_060 2004.9.17SHARP LQ133X1TH71 TMDS GG2+2-G1+1-G0+0-GC+C-GVV 芃峰双灯 3.3V ZAN2V5.0TMDS CLNERL 2004.6.3SHARP LQ133X1TH71 TMDS GG2+2-G1+1-G0+0-GC+C-GVV 芃峰双灯 3.3V ZAN3 4.0TMDS CLNERL 2004.9.2 OKSHARP LQ13X21 DF14 微硕单灯宽口 3.3V ZAN34.0LVDS LQ150X1LH82 2004.8.25SHARP LQ13X25 DF14 单灯窄口 3.3V ZAN3V4.0LVDSSHARP LQ141F1LH52 38D94 单灯窄口2004.9.21SHARP LQ14X03E SHARPDG51 徐小姐双灯 3.3v ZAN34.0TTL LQ14X042 2004.6.27SHARP LQ150F1LH22 38D94 D6B LVDS SLN 3.3 MST9011BV1.1 SXGA_38D95SHARP LQ150F1LH22 91138D94 卓耀单灯窄口 3.3V 9011B 38D95 04.03.03SHARP LQ150F1LH32EF 38D94 D6B LVDS SLN 3.3 MST9011BV1.1 SXGA_38D95SHARP LQ150U1LW22 38D94 单灯窄口 3.3V ZAN3SL ITUX97H 2004.10.11SHARP LQ150U1LW22 不能点鑫合基SHARP LQ150X1DG01 DG51FFC 柯荣双灯5V ZAN3V4.0TTLFFC SHARPDG51FFC 2004.11.03SHARP LQ150X1DG10 DG51FFC 柯荣双灯5V ZAN3V4.0TFFC SHARPDG51 2004.10.24SHARP LQ150X1DG11 SHARPDG51 双灯5V ZAN3V4.0双TTL LQ150X1DG11 04.03.05SHARP LQ150X1DG28 15X16线柯荣双灯5V ZAN3V4.0TTL LQ14X042 2004.11.03SHARP LQ150X1DH10 DG51FFC 柯荣双灯5V ZAN3V4.0TFFC SHARPDG51 2004.10.24SHARP LQ150X1LBE1 38D94 D6B LVDS 30Pin SLN 3.3 gmZAN3L V4.0 ITXG72SHARP LQ150X3DG51 DG51 塞维5V ZAN32.0TTLSHARP LQ15X01W SHARPDG51 伊麦双灯5V ZAN3V2.0TTL LQ14X02 2004.8.3SHARP LQ15X01W SHARPDG51 伊麦双灯5V ZAN3V4.0TTL LQ14X02 2004.7.30SHARP LQ15X05 DG51FFC 旭森双灯5V ZAN3V4.0TTLFFC SHARPDG51FFC 2004.11.03SHARP LQ15X11 15X16线柯荣双灯5V ZAN3V4.0TTL LQ14X042 2004.11.03SHARP LQ15X11 15X16线柯荣双灯5V ZAN3V4.0TTL LQ14X042 2004.11.03SHARP LQ15X14 DG51FFC 柯荣双灯5V ZAN3V4.0TTL SHARPDG51FFC 2004.11.03SHARP LQ15X14 TTL 60pin DLW 5 gmZAN3T V4.0SHARP LQ15X16 15X16线双灯 3.3V 5020v1.3TTL LQ14X02 2004.9.2 OKSHARP LQ15X16 15X16线柯荣双灯5V ZAN3V4.0TTL LQ14X042 2004.11.03SHARP LQ15X21 DF14 技博双灯 3.3v ZAN32.0LVDS LQ15X21 2004.8.13SHARP LQ170M1LA04 38D94 双灯小口 3.3 ZAN3SL 154P1-L04（1920X1200）2006.02.26SHARP LQ184V1DG21 31A 单灯宽口 3.3 ZAN3LVDS LQ104V3DG51_640X480 2006.02.23SHARP LQ1S353 41B 芃峰单灯宽口5V ZAN34.0TTL LQ121S1 2004.6.10 SHARP LQ64D343 31A 双灯5V ZAN3V4.0TTL TX33_18 2004.10.11 SHARP QD17ER01 50=35FFC 四灯宽口J133V.J212V ZAN3S QD17ER01 2005.01.14SHIMEI N141X201 DF14 福星达单灯窄口 3.3 ZAN3V4.0lvds ITXG72 2004.7.20shrap LQ150F1LW04 91138D94 单灯窄口 3.3V 9011B 38D95 04.03.11 SHRAP LQ150X1LH82 DF14 卓耀单灯窄口 3.3V ZAN3LVDS LQ150X1LH82 04.03.08SINYO TM150XG_26L04C TMDS 利嘉双灯5V 2004.4.2SINYO TM150XG_26L04C TMDS 三普双灯5V 5020 TM150XG_26L04C 2004.7.18SOYA TM150XG_26L10c DF14 8bit 四灯宽口 3.3V ZAN2V4.0lvds ITXG728bit 2004.7.27TODHBA LTM14C421F DF19 14PIN 袁立灿单灯窄口 3.3V ZAN3V2.0LVDS 141X7 04.03.13TODSHIBA LTM12C278P DF19 金鼎络单灯窄口 3.3V ZAN3V4.0LVDS 2004.4.1 没点亮TOPPOIY TD141TGCD1 38D94 OK 单灯小口 3.3 ZAN3SL BL150XH6 2006.2.12TORISAN LS170E01 50=35FFC 四灯宽口J133V.J212V ZAN3S LS170E01 2005.01.14TORISAN LTM10C021 31B 单灯宽口TORISAN LTM11C011 41B 单灯宽口5v ZAN3V4.0TTL 121S1 2004.12.10 TORISAN LTM12C263 151X1A 单灯宽口5v ZAN3V4.0TTL 121S1 2004.12.10TORISAN TM100SV_02L02 DF1914pin跳V.V.0-.0+.G.1-.1+.G.2-.2+.G.C-.C+.G 和兴单灯宽口 3.3V ZAN3LVDS HSD11SR800X600 2004.11.03TORISAN TM121SV_02L01 41A 单灯宽口 3.3V ZAN34.0TTL 121S1 2004.6.3TORISAN TM121SV_02L01D 41A 芃峰单灯宽口 3.3v ZAN34.0TTL 121S1 2004.6.19TORISAN TM121SV_02L07A DF14 跳两信号两地排列单灯宽口 3.3V ZAN2V4.0lvds 800X600LVDS 2004.6.6 屏有问题TORISAN TM121SV_02L07B DF14 芃峰单灯窄口 3.3 ZAN3V4.0lvds TM121SV_02L07B 2004.7.24TOSHBA LTM09C031A 31B 易唯单灯宽口5v ZAN34.0TTL pvi6448 2004.9.O9 okTOSHIBA 41A ZAN3V2.0 袁立灿单灯窄口 3.3V ZAN3V2.0LVDS 141X7 04.03.16 无信号时闪DCLK改为20TOSHIBA LM10C272S MOLXE 14PIN V.V.G.G.0-.0+.1-.1+.2-.2+.C-.C+.G.G 芃峰单灯东自5V ZAN3V4.0LVDS HSD11SR800X600 2004.9.14 okTOSHIBA LT10C286S MOLXE 14PIN V.V.G.G.0-.0+.1-.1+.2-.2+.C-.C+.G.G 芃峰单灯宽口 3.3V ZAN3V4.0LVDS HSD11SR800X600 2004.9.14 ok TOSHIBA LTM08C351 DF19 30pin 技博单边双灯 3.3V ZAN34.0TTL LP121S1 2004.8.25 TTL pintoshiba ltm09c012 10+15J(没有屏线）风杨单灯宽口没点亮2004.6.6 TOSHIBA LTM10C029 31A 三盟单灯宽口5v ZAN3V4.0TTL PVI6448 2004.11.03TOSHIBA LTM10C272 MOLXE14 V.V.G.G.0-.0+.1-.1+.2-.2+.C-.C+ 单灯窄口5V ZAN3V4.0LVDS 800X600LVDS 2004.8.3TOSHIBA LTM11C011STOSHIBA LTM11C016 41B 芃峰单灯宽口5v ZAN3V4.0TTL LTM11C016 2004.5.15 排阻220toshiba LTM12C025S 911双6位芃峰单灯宽口2004.7.11TOSHIBA LTM12C268E 41A 单灯宽口 3.3V ZAN3V4.0TTL LP121S1 2004.10.16toshiba LTM12C268F 41A 华晶单灯宽口3。

目录一、概述 1 Ⅰ. General Introduction 1 二、结构特性与工作原理 2 Ⅱ. Structural features and work theory 2 1、桥架 21、Bridge 22、小车 32、Trolley 33、大车 43、Crane 44、电气系统 44、Electrical system 4三、安装、调整9 Ⅲ. Installation, adjustment 9 1、桥架的拼装91、Bridge assembly and installation 92、小车安装92、Trolley installation 93、桥架其它附属部件的安装103、Bridge other accessory parts installation 104、检验104、Inspect 105、电气设备安装105、Electrical equipment installation 106、起重机的试运转116、Crane commissioning. 11四、维护的保养15 Ⅳ. Maintenance 15 1.机械设备的维护和保养151. Mechanical equipment maintenance 152.金属结构的维护和保养20 2.Metal structure maintenance 20Ⅰ. General IntroductionLH型电动葫芦桥式起重机（简称起重机）系列是以固定式的钢丝绳电动葫芦作为起重机（主钩和副钩）。

安装在双轨小车上，与双梁桥架配套使用的起重机。

LH type E.O.T. Crane with electric hoist (shortly termed as E.O.T.)Series use fixed wire rope electric hoist as lifting mechanism (Main hook and Auxiliary hook). Fixed on bi-rail trolley, fitted with double girder bridge .本产品适用于机械制造车间、仓库、料场、水电站检修、装配待场所，进行一般吊重装卸作业，本产品的工作环境温度为-25℃~+45℃,不适用于爆炸危险、火灾危险介质中和相对温度大于85%，充满腐蚀性气体的场所，也不使用于吊运熔化金属和有毒、易燃、易爆的物品。
