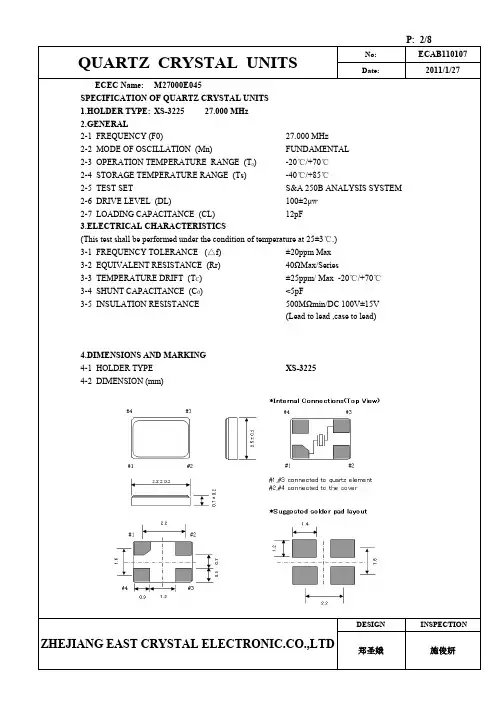

ECEC Name:M27000E045SPECIFICATION OF QUARTZ CRYSTAL UNITS1.HOLDER TYPE:XS-322527.000 MHz2.GENERAL2-1 FREQUENCY (F0) 27.000 MHz2-2 MODE OF OSCILLATION (Mn)FUNDAMENTAL)-20℃/+70℃2-3 OPERATION TEMPERATURE RANGE (T2-4 STORAGE TEMPERATURE RANGE (Ts)-40℃/+85℃2-5 TEST SET S&A 250B ANALYSIS SYSTEM2-6 DRIVE LEVEL (DL)100±2μw2-7 LOADING CAPACITANCE (CL)12pF3.ELECTRICAL CHARACTERISTICS(This test shall be performed under the condition of temperature at 25±3℃.)3-1 FREQUENCY TOLERANCE (△f)±20ppm Max3-2 EQUIVALENT RESISTANCE (Rr)40ΩMax/Series3-3 TEMPERATURE DRIFT (T C)±25ppm/ Max-20℃/+70℃3-4 SHUNT CAPACITANCE (C0)<5pF3-5 INSULATION RESISTANCE 500MΩmin/DC 100V±15V(Lead to lead ,case to lead)4.DIMENSIONS AND MARKING4-1 HOLDER TYPE XS-32254-2 DIMENSION (mm) Array DESIGN INSPECTIONZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTD4-4-2 Dimensions of the reel4-4-3 Packing and Label1 Reel=3000pcsBox type(Reel quantity)Box size(L×W×H) mmAtype200×200×140Manufactory name: ZHEJIANG EAST CRYSTAL ELEC.CO.,LTDZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTD5-5.REFLOW(WAVE)SOLDERINGFollowing profile of heat stress is applied to resonator,then being place in the naturalcondition for 1 hour,resonator shall be measured.260±5℃ 10~20sec150~190℃ 120sec5-6.SOLDERING DIPTerminals/lead-wires of specimen shall be dipped into solder melter tankat +260℃±5℃ for 3 sec.Dipping depth shall be 2mm from the bottom of specimens body.(Afterapplying ROSIN FLUX) soldering portion shall be covered in over 95% ofTerminals/lead-wires dipped.5-7.HUMIDITYElectrical characteristics shall be satisfied after letting it alone at 65±2℃in humidity of 90~95% for 500 hours.5-8.STORAGE IN LOW TEMPRATUREElectrical characteristics shall be satisfied after letting it alone at -40±2℃for 500 hours.5-9.STORAGE IN HIGH TEMPRATUREElectrical characteristics shall be satisfied after letting it alone at 85±2℃for 500 hours.DESIGN INSPECTION ZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTDNo:ECAB110107Date:2011/1/276.Structure IllustrationNo.123456DESIGN INSPECTION郑圣娥施俊妍Internal Electrode PKG(Base)ZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTDCERAMIC+Au PLATING Au PLATING QUARTZ CRYSTAL UNITSMaterialsItemsLID(Cap)External Electrode Fe ALLOYAg SiO2Ag+Epoxy Resin Element(Blank)Conductive Adhesive 154326。

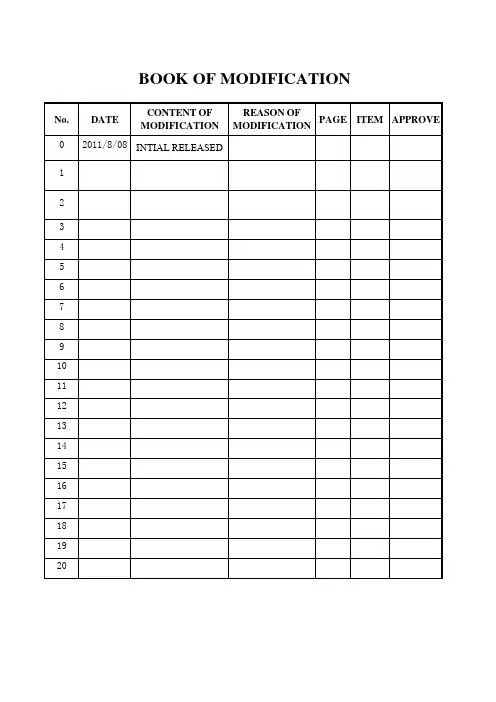

BOOK OF MODIFICATIONNo.DATECONTENT OFMODIFICATIONREASON OFMODIFICATIONPAGE ITEM APPROVE02011/8/08INTIAL RELEASED 1234567891011121314151617181920P: 1/8NO. ECAB110811 Acknowledgement Book( Modle:( ECEC P/N: ( CUST P/N:XS-3225 26.000 MHz ) M26000C034 ))ReceiverPlease return one after acknowledgement Zhejiang East Crystal Electronic Co.,Ltd.Quality DepartmentNo. 555,Sec 2,Binhong Road,Jinhua Zhejiang CHINASale QC Technic Design王茵施俊妍潘春琴童思柯SPECIFICATION OF QUARTZ CRYSTAL UNITS1.HOLDER TYPE: XS-3225 26.000 MHz2.GENERAL2-1 FREQUENCY (F0) 26.000 MHz2-2 MODE OF OSCILLATION (Mn) FUNDAMENTAL) -20℃/+70℃2-3 OPERATION TEMPERATURE RANGE (T2-4 STORAGE TEMPERATURE RANGE (Ts) -40℃/+85℃2-5 TEST SET S&A 250B ANALYSIS SYSTEM2-6 DRIVE LEVEL (DL) 100±2μw2-7 LOADING CAPACITANCE (CL) 10pF3.ELECTRICAL CHARACTERISTICS(This test shall be performed under the condition of temperature at 25±3℃.)3-1 FREQUENCY TOLERANCE (△f) ±10ppm Max3-2 EQUIVALENT RESISTANCE (Rr) 40ΩMax/Series3-3 TEMPERATURE DRIFT (T C) ±10ppm/ Max -20℃/+70℃3-4 SHUNT CAPACITANCE (C0) <7.0pF3-5 INSULATION RESISTANCE 500MΩmin/DC100V±15V(Lead to lead ,case to lead)4.DIMENSIONS AND MARKING4-1 HOLDER TYPE XS-32254-2 DIMENSION (mm)DESIGN INSPECTION ZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTD童思柯施俊妍QUARTZ CRYSTAL UNITS4-4 PACKING4-4-1 Dimensions of the tape4-4-2 Dimensions of the reel4-4-3 Packing and LabelP: 4/8No: ECAB110811Date: 2011/8/081 Reel=3000pcsBox type(Reel quantity) Box size(L×W×H) mmAtype(Reel x 5pcs max) Btype(Reel x 6~15pcs)Ctype(Reel x 16~30pcs)Dtype(Reel x 31~60pcs)200×200×140 200×200×255 395×200×255395×400×255Manufactory name: ZHEJIANG EAST CRYSTAL ELEC.CO.,LTDZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTDDESIGNINSPECTION5-5.REFLOW(WAVE)SOLDERINGFollowing profile of heat stress is applied to resonator,then being place in the naturalcondition for 1 hour,resonator shall be measured.260±5℃ 10~20sec150~190℃ 120sec5-6.SOLDERING DIPTerminals/lead-wires of specimen shall be dipped into solder melter tankat +260℃±5℃ for 3 sec.Dipping depth shall be 2mm from the bottom of specimens body.(Afterapplying ROSIN FLUX) soldering portion shall be covered in over 95% ofTerminals/lead-wires dipped.5-7.HUMIDITYElectrical characteristics shall be satisfied after letting it alone at 65±2℃in humidity of 90~95% for 500 hours.5-8.STORAGE IN LOW TEMPRATUREElectrical characteristics shall be satisfied after letting it alone at -40±2℃for 500 hours.5-9.STORAGE IN HIGH TEMPRATUREElectrical characteristics shall be satisfied after letting it alone at 85±2℃for 500 hours.DESIGN INSPECTION ZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTD童思柯施俊妍No.ItemsMaterials1 LID(Cap) Fe ALLOY2 PKG(Base)CERAMIC+Au PLATING 3 External Electrode Au PLATING 4 Conductive Adhesive Ag+Epoxy Resin 5 Internal Electrode Ag 6Element(Blank)SiO2No: ECAB110811 QUARTZ CRYSTAL UNITSDate:2011/8/086.Structure Illustration142563DESIGN INSPECTIONZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTD童思柯施俊妍。

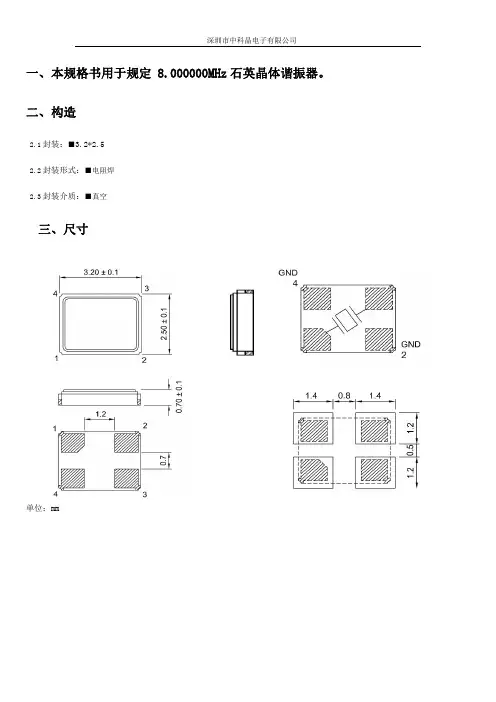

深圳市中科晶电子有限公司一、本规格书用于规定8.000000MHz石英晶体谐振器。
二、构造2.1封装：■3.2*2.52.2封装形式：■电阻焊2.3封装介质：■真空三、尺寸单位：mm四、晶体技术参数指标1.频率:8.000000MHz2.型号:32253.振荡模式:Fundamental(AT)4.频率频差:±20ppm at25℃±3℃5.温度频差:±30ppm温度频差测试的基准温度是:25±2℃6.工作温度范围:-20℃~+70℃7.储存温度范围:-30℃~+85℃8.负载(CL):20.0pF9.激励功率:100uW/Max10.静电容: 2.0pF MAX11.等效电阻:80ΩMax.12.绝缘阻抗:500MΩmin/DC100V13.年老化率:±3ppm/年14.包装方式:卷包3000PCS/Reel15.备注五、可靠性试验六、包装方式6.1带子尺寸（unit:mm ）MarkingMarkingA B C D E F G H J K t 2.73.48.03.51.754.02.04.01.551.40.256.2卷盘尺寸（unit:mm ）7.注意本产品不能折弯使用，在电路板安装时使用过大的机械压力可能造成产品损坏，同时本规格书只规定了部件本身的品质，应用于您的产品时请确认图纸该产品是否适用。
M N P Q R S U 178.060.211.58.02.511.013.0。
ItemModel Need to specifyMode 振動模式Fund.Fund.Fund.Fund.Series Resistance 諧振電阻100ohmMax.80ohmMax.60ohmMax.40ohmMax. SERIES RESISTANCE 諧振電阻Freq. Range 頻率範圍12～16MHz 16～20MHz 20～24MHz 24～50MHz Aging[first year] 第一年老化率±5ppm Max.25±3℃Insulation Resistance 絕緣阻抗500Mohm Min.DC100V±15V Load Capacitance 負載電容20pF Need to specify Shunt Capacitance 靜態電容7.0pF Max.Drive Level 激勵電平10μw Typical Storage Temp. Range 保存溫度範圍–40~+85℃Need to specify Series Resistance 諧振電阻Refer to the table as below at 25℃Freq. Tol. Over Temp. 溫度頻差±30ppm Need to specify Operating Temp. Range 工作溫度範圍–40~+85℃Need to specify 適合於低功耗的便攜設備For a clock source in digital equipments 適用於數碼設備的所 有時鐘源STANDARD SPECIFICATIONS 標準規格T3225Conditions Frequency Tolerance 調整頻差±10ppm at 25℃Need to specify Frequency Range 頻率範圍12.000MHz ABEL ELECTRONSURFACE MOUNTABLE CRYSTAL UNITS (SMD Package) 贴片石英晶體諧振器 海诺威電子有限公司RoHS Compliant Standard SMD-3225Features 特性Frequency Range:12-50MHz 頻率範圍：12-50MHzSuited for portable devices with low current consumption。
深圳市晶科鑫实业有限公司样品承认书客户代码：物料名称：贴片钟振规格型号：3225 OSC 24.576MHZ 1.8～3.3V ±30PPM CMOSP N/ SJK：3N24576G33YC承认签章供应商承认（）公司承认制定审核核准工程师审核批准林雁杨霞黄灏东盖章签署盖章签署日期日期批示：□接受□有条件接受备注：公司地址:深圳市龙岗区天安云谷产业园一期3栋C座12楼1204～1206室电话：传真：Approved by: 黄灏东Checked by: 杨霞Issued by: 玉静霞产品规格书SPECIFICATIONPN / SJK: 3N24576G33YC深圳市晶科鑫实业有限公司SHENZHEN CRYSTAL TECHNOLOGY INDUSTRIAL CO., LTD.公司地址:深圳市龙岗区天安云谷产业园一期3栋C座12楼1204～1206室电话：*************-837传真：*************修改记录版次修改日项目改定内容改定者确认者A1 2015-6-5 初版林雁杨霞1. ELECTRICAL SPECIFICATIONSStandard atmospheric conditionsUnless otherwise specified, the standard range of atmospheric conditions for making measurement and tests are as follow:Ambient temperature : 25±5℃Relative humidity : 40%~70%If there is any doubt about the results, measurement shall be made within the following limits: Ambient temperature : 25±3℃Relative humidity : 40%~70%Measure equipmentElectrical characteristics measured by MD 37WX-05M or equivalen t.Crystal cutting typeThe crystal is using AT CUT (thickness shear mode).Parameters SYMElectrical Spec. Notes MIN TYPE MAX UNITS1 Nominal Frequency 24.576000 MHZ2 FrequencyStabilityAT 25℃±10 PPM Over OperatingTemperature range±20 PPM3 Operating Temperature Topr -40 25 85 ℃4 Storage Temperature Tstg -55 ~ 125 ℃5 Supply Voltage VDD 1.8～3.3 ±10% V6 Input Current Icc 5 mA7 Enable Control Yes Pad18 Output Load : CMOS CL 15 pF9 Output Voltage High VoH 90%VddV10 Output Voltage Low VoL 10%VddV11 Rise Time Tr 5 ns 10%→90%VDDLevel12 Fall Time Tf 5 ns 90%→10%VDDLevel13 Symmetry (Duty ratio) TH/T 45 ~ 55 %14 Start-up Time Tosc 10 ms15 Enable Voltage High Vhi 70%VddV16 Disable Voltage Low Vlo 30%VddV17 Aging ±3 ppm/yr. 1st. Year at 25℃18 Output Disable Delay Time T off 150 us19 Output Enable Delay Time T on 150 us20 Phase Jitter （12KHZ~20MHZ）0.5 1.0 ps2. DIMENSIONS (Units :mm)MARKING3. TEST CIRCUITControl input (output enable/disable)Logic 1 or open on pad 1: Oscillator outputLogic 0 on pad 1 : Disable output to high impedance4. PART NUMBER GUIDESJK -3N— 24576Frequency24.576MHz— GFrequencytoleranceG:±30ppm—33Supplyvoltage— Y Fan out type X:TTL/CMOS Y:CMOS — C TemperaturerangeC: -40-85℃5. WAVEFORM CONDITIONSWaveform measurement system shouldhave a min. bandwidth of 5 times thefrequency being tested.6. OUTPUT ENABLE / DISABLE DELAYThe following figure shows the oscillator timing during normal operation . Note that when the device is in standby,the oscillator stops. When standby is released, the oscillator starts and stable oscillator output occurs after a short delay7. SUGGESTED REFLOW PROFILE8. STRUCTURE ILLUSTRATIONNO COMPONENTSMATERIALS FINISH/SPECIFICATIONS1 LID Kovar (Fe/Co/Ni)2 Base(Package)Ceramic (AI2O3) + Kovar (Fe/Co/Ni)+ Ag/CuColor black 3 PAD Au Tungsten metalize+ Ni plating + Au plating4 Crystal blank SiO25 Conductive adhesiveAg Silicon resin6 Electrode Noble Metal7 IC chip8 Bonding wire Au Pad 1 options : NC is 5wires , EN is 6 wires.9. PACKING10. RELIABILITY TEST SPECIFICATION1.Mechanical EnduranceNo.Test Item Test Methods REF. DOC 1 Drop Test75 cm height,3 times on concrete floor .JIS C67012 Mechanical Shock Device are shocked to half sine wave ( 1000G ) three mutuallyperpendicular axes each 3 times. 0.5m sec.duration timeMIL-STD-202F3 VibrationFrequency range 10 ~ 2000 HzAmplitude 1.52 mm/20GSweep time 20 minutesPerpendicular axes each test time 4 Hrs(Total test time 12 Hrs)MIL-STD-883E4 Gross Leak Standard Sample For Automatic Gross LeakDetector, Test Pressure: 2kg / cm2MIL-STD-883E5 Fine Leak Helium Bomging 4.5 kgf / cm 2 for 2 Hrs6 SolderabilityTemperature 245 ℃ ± 5℃Immersing depth 0.5 mm minimumImmersion time 5 ± 1 secondsFlux Rosin resin methyl alcoholsolvent ( 1 : 4 )MIL-STD-883E2.Environmental EnduranceNo. Test Item Test Methods REF. DOC1 Resistance To SolderingHeatPre-heat temperature 125 ℃Pre-heat time 60 ~ 120 sec.Test temperature 260 ± 5 ℃Test time 10 ± 1 sec.MIL-STD-202F2 High Temp. Storage + 125 ℃ ±3 ℃ for 1000 ± 12 HrsMIL-STD-883E 3 Low Temp. Storage - 40 ℃ ± 3 ℃ for 1000 ± 12 Hrs4 Thermal Shock Total 100 cycles of the following temperaturecycleMIL-STD-883E5 Pressure CookerStorage121 ± 3℃ , RH100% , 2 bar , 240 Hrs JIS C67016 High Temp＆Humidity 85℃ ± 3℃, RH 85% , 1000 Hrs JIS C5023。
