威能锅炉使用手册一、设备打开1、用手扣住前盖板凹槽将其下拉，然后就会看到控制面板，控制面板上有以下功能部件：（1）液晶显示屏，显示当前攻难供水的温度，供暖系统的注水压力或其他信息。
（2）指示灯，指示当前操作模式。
(3)“i”按钮用于调取信息。
（4）控制器（5）电源开关，用于启动或关闭壁挂炉。
（6）“+”按钮，用于滚动显示屏上的信息和切换到显示当前供暖供水温度。
（7）“—”按钮，用于后退显示屏的显示信息。
（8）“复位”按钮，用于复位特定故障。
（9）供暖温度旋钮，用于设置供暖供水温度。
（10）生活热水温度旋钮：用于设置热水出水温度。
2、指示灯信息（1）绿色指示灯熄灭：无生活热水取用；灯亮：生活热水取用中。
（2）黄色指示灯灯亮：燃烧器工作中。
（3）红色指示灯灯亮：壁挂炉出现故障，现实错误代码。
3、调试使用（1）完全打开燃气管路和壁挂炉上的燃气阀；（2）确保供暖系统的供水及回水保养阀室打开的；（3）壁挂炉运行前先检查显示屏上的系统注水压力。
要保证供暖系统的稳定运行，在系统冷却时时，显示屏上现实的注水压力必须在1.0至2.0bar的范围内。
如果注水压力小于0.8bai，迮调试前必须进行补水。
二、生活热水模式运行1、使用电源开关启动壁挂炉：“1”=开“0”=关。
当启动壁挂炉时，显示屏上显示供暖系统的当前注水压力2、将用于设置生活热水温度的旋钮设置到所需的温度—左旋停止位置约35℃—右旋停止位置（最高温度） 65℃当调整温度时，设置值显示在显示屏上，五秒钟后，显示返回标准模式（显示供暖系统的当前注水压力）。
三、设置供暖供水温度根据外界温度调节供暖按钮设置供暖热水温度，建议进行下列温度设置：—左位置（但不拧到底），适用于春天和秋天：外界温度为10—20℃。
—中间位置适用于较寒冷的天气：外界温度为0至10℃。
—右位置适应于非常寒冷的天气：外界温度为0至-15℃。
当调整温度时，设置值显示在显示屏上，五秒钟后，显示屏返回标准模式（显示供暖系统的当前注水压力）。
CN供用户/安装人员使用安装和使用说明书turboBLOCK pro壁挂式燃气采暖/热水锅炉JLG20 - VUW CN 182-C JLG26 - VUW CN 242-C JLG30 - VUW CN 282-CJLG38 - VUW CN 352-C供用户使用使用说明书turboBLOCK pro壁挂式燃气采暖/热水锅炉JLG20 - VUW CN 182-CJLG26 - VUW CN 242-CJLG30 - VUW CN 282-CJLG38 - VUW CN 352-C 目录设备特性 (1)设备简介 (1)1 文档说明 (2)1.1 其它适用资料 (2)1.2 保管 (2)1.3 符号说明 (2)2 安全 (2)2.1 紧急措施 (2)2.2 设备检查和保修服务 (3)3 安装和保养说明 (3)3.1 安装和维护说明 (3)3.2 符合规定的使用 (3)3.3 安装地点的要求 (3)3.4 保养 (3)3.5 循环使用和废弃处理........................................................34 控制面板 (4)4.1 控制面板说明 (4)4.2 运行准备 (4)4.3 投入运行 (4)4.4 显示屏 (4)4.5 设置模式 (5)4.6 加热曲线设置（需选配室外温度传感器） (5)4.7 故障代码 (7)4.8 关闭壁挂炉 (7)4.9 注水步骤 (7)设备特性设备特性感谢您选择使用威能集团的壁挂炉产品。
本手册向您提供的信息，将使您在使用壁挂炉时获得最佳效果。

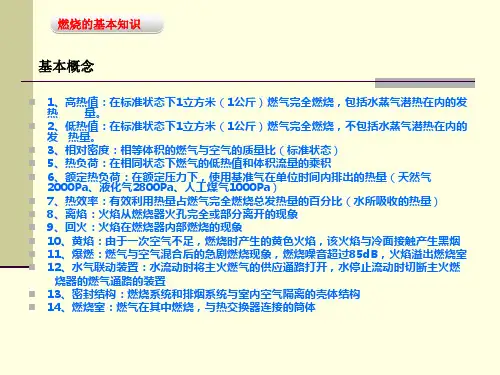

设备简介turboBLOCK pro 系列壁挂炉为全自动的壁挂式家用燃气采暖/生活热水两用锅炉，可安装在密闭的室内。
生活热水由壁挂炉内的副热交换器直接提供，生活热水与采暖自动切换，生活热水功能优先。
turboBLOCK pro 系列壁挂炉专为独立的封闭式采暖系统所设计，内置经过全面检测的循环泵，膨胀水箱和换向阀，以及旁通和补水环路等系统部件。

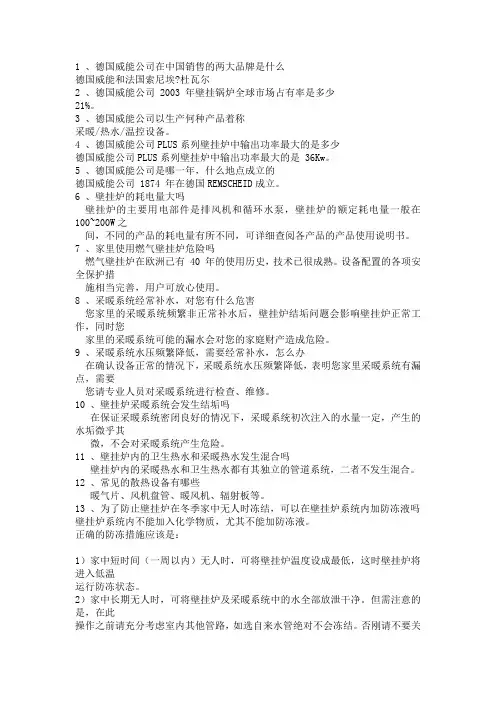

1 、德国威能公司在中国销售的两大品牌是什么德国威能和法国索尼埃?杜瓦尔2 、德国威能公司 2003 年壁挂锅炉全球市场占有率是多少21%。
3 、德国威能公司以生产何种产品着称采暖/热水/温控设备。
4 、德国威能公司PLUS系列壁挂炉中输出功率最大的是多少德国威能公司PLUS系列壁挂炉中输出功率最大的是 36Kw。
5 、德国威能公司是哪一年，什么地点成立的德国威能公司 1874 年在德国REMSCHEID成立。
6 、壁挂炉的耗电量大吗壁挂炉的主要用电部件是排风机和循环水泵，壁挂炉的额定耗电量一般在100~200W之间，不同的产品的耗电量有所不同，可详细查阅各产品的产品使用说明书。
7 、家里使用燃气壁挂炉危险吗燃气壁挂炉在欧洲已有 40 年的使用历史，技术已很成熟。
设备配置的各项安全保护措施相当完善，用户可放心使用。
8 、采暖系统经常补水，对您有什么危害您家里的采暖系统频繁非正常补水后，壁挂炉结垢问题会影响壁挂炉正常工作，同时您家里的采暖系统可能的漏水会对您的家庭财产造成危险。
9 、采暖系统水压频繁降低，需要经常补水，怎么办在确认设备正常的情况下，采暖系统水压频繁降低，表明您家里采暖系统有漏点，需要您请专业人员对采暖系统进行检查、维修。
10 、壁挂炉采暖系统会发生结垢吗在保证采暖系统密闭良好的情况下，采暖系统初次注入的水量一定，产生的水垢微乎其微，不会对采暖系统产生危险。
11 、壁挂炉内的卫生热水和采暖热水发生混合吗壁挂炉内的采暖热水和卫生热水都有其独立的管道系统，二者不发生混合。
12 、常见的散热设备有哪些暖气片、风机盘管、暖风机、辐射板等。
13 、为了防止壁挂炉在冬季家中无人时冻结，可以在壁挂炉系统内加防冻液吗壁挂炉系统内不能加入化学物质，尤其不能加防冻液。
正确的防冻措施应该是：1）家中短时间（一周以内）无人时，可将壁挂炉温度设成最低，这时壁挂炉将进入低温运行防冻状态。
2）家中长期无人时，可将壁挂炉及采暖系统中的水全部放泄干净。

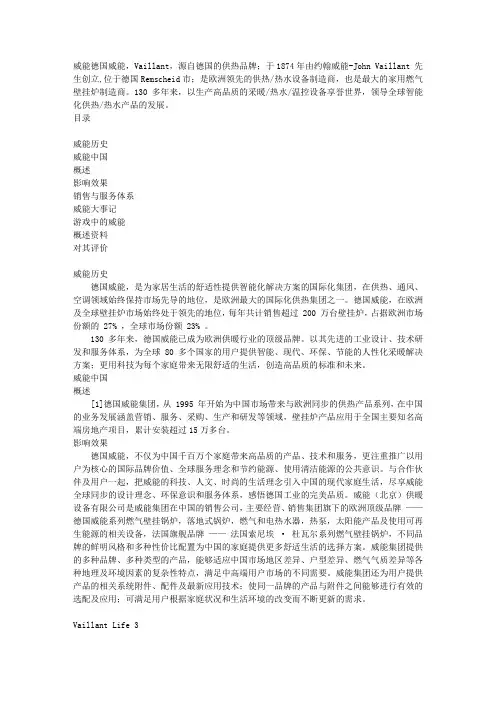

威能德国威能，Vaillant，源自德国的供热品牌；于1874年由约翰威能-John Vaillant 先生创立,位于德国Remscheid市；是欧洲领先的供热/热水设备制造商，也是最大的家用燃气壁挂炉制造商。
