CadenceAllegro的Gerber导出步骤钻孔图的导出步骤：首先要给每一种VIA定义一个字母。
Manufacture\NC\Drill Customization。
在Symbol Characters里给每一个VIA定义一个字母，注意不能重复，其他数值禁止修改。
（如果在做PAD的时候定义过字母，那就只需检查一下是否有重复的。
）然后，选Manufacture\NC\Drill Legend。
一定要在Output unit里选尺寸单位。
其他选项默认。
点OK后放在PCB板的旁边。
（检查这个表的字母和外框形状是否有重复的。
）金属化孔和非金属化孔文件的导出步骤：选Manufacture\NC\NC Drill。
首先在NCParameters里设置：Format里前面的选3后面的选5。
（即整数位3，小数位5。
和Artwork里的设置要一样。
）Coordinates里选Absoiute。
Output units 里选英寸或毫米。
然后勾选1和3项。
（即省首零，和Artwork 里的设置要一样。
）然后Close。
回到NC Drill画面。
勾选1、2、3项。
点Drill即可。
会在PCB文件的路径下产生3个文件，后缀名为drl的2个和1个叫nc_tools_auto.txt的文件。
要交给板厂的。
Gerber导出步骤1、首先在Artwork里把所有要出底片的层定义好。
建立每个层的文件夹。
比如：TOP、BOTTOM、L2、L3、SM-TOP、SM-BOT、SS-TOP、PT-TOP、Outline、Drawing 等等。
然后，打开每个文件夹所需要的那些层。
比如：Drawing文件夹里，要打开：Board Geometry里的Outline层。
Manufacturing里的Nclegend-*-*层、Ncdrill_Legend层、Ncdrill_Figure层。
其余的层全部关闭。
然后对着Drawing 文件夹点击鼠标右键，选Match Display。

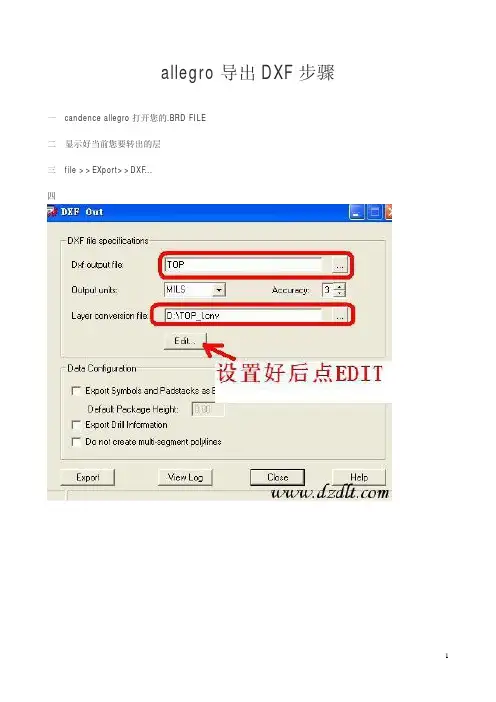

Allegro输出DXF文件操作指导Allegro支持输出DXF文件，用于检查PCB的结构，具体操作如下1.首先在PCB上打开需要的输出的层面，需要哪层开哪层，如下图所示2.点击file-export3.弹出一个对话框，输入文件名，格式选择Reversion14 ，单位选择mm，精度选择44.然后点击Edit5.会出现一个对话框，选择select all ，勾选Use layer names。
，最后点击Map6.最后点击ok7.回到页面，点击export8.可以看到DXF文件已经输出9.打开DXF文件的样式如下图This section is describe what the function allegro have ,helpfully could let user know more about allegroAllegro Design and Analysis includes design authoringPCB layout and Library and Design Data ManagementWith. It can ensure the end-to-end design of PCB with high quality and efficiencyRealize smooth data transfer between tools, shorten PCB design cycle, and shorten productMarket time1. Design authoringProvide a flexible logic constraint driven flow, management design rules, network hierarchy,Bus and differential pair.1.1.1 Main features and functionsThrough hierarchical and design "derivation" function, improve the original of complex designMap editing efficiency.Powerful CIS helps users quickly determine part selection and accelerate design flowAnd reduce project cost.1.2.1 Main featuresSchematic designers and PCB design engineers can work in parallel. Advanced design efficiency improves functions, such as copying the previous schematic design Select multiplexing with or by page. Seamless integration into pre simulation and signal analysis.1.2.2 Main FunctionsProvide schematic diagram and HDL/Verilog design input.Assign and manage high-speed design rules.Support netclasses, buses, extension networks and differential pairs. Powerful library creation and management functions.Allows synchronization of logical and physical designs.Realize multi-user parallel development and version control.Pre integration simulation and signal analysis.Support customizable user interface and enterprise customization development.1.3 o Allegro n Design Publisher1.3.1 Main Features and FunctionsAllows you to share designs with others using PDF files.The entire design is represented in a single, compact PDF format. Improve design readability.Provide content control - users can select the content to be published.1.4 Allegro A FPGA m System Planner1 1.4.1 Main features and functionsComplete and scalable FPGA/PCB collaborative design technology for ideal "Design and correct "pin assignment.Scalable FPGA/PCB protocol from OrCAD Capture to Allegro GXLSame as the design solution.Shorten the optimization pin allocation time and accelerate the PCB design cycle.2. B PCB layoutIt provides expandable and easy to use PCB design (including RFPCB) Then drive PCB design solution. It also includes innovative new automatic deliveryMutual technology can effectively improve the wiring of high-speed interfaces; Apply EDMD (IDX) mode, which makes ECAD/MCAD work smoothly; Execute modern industry standard IPC-2581,Ensure that the design data is simply and high-quality transferred to the downstream link.2.1.1 Main featuresSpeed up the design process from layout, wiring to manufacturing. Including powerful functions, such as design zoning, RF design functions and global design rules Stroke.It can improve productivity and help engineers to quickly move up to mass production* g- M4 G8 |6 }9 k7 G2.1.2 Main FunctionsProvide scalable full function PCB design solutions.Enable constraint driven design processes to reduce design iterations. Integrated DesignTrueDFM technology provides real-time DFM inspection. Provide a single, consistent context for management.Minimize design iterations and reduce overall Flex and rigid flexible designCost, and has advanced rigid and flexible design functions.Realize dynamic concurrent team design capability, shorten design cycle, and greatly reduceTime spent in routing, winding and optimization.Provide integrated RF/analog design and mixed signal design environment. Provides interactive layout and component placement.Provide design partitions for large distributed development teams. Realize real-time, interactive push editing of routing.It is allowed to use dynamic copper sheet technology to edit and update in real time.Manage netscheduling, timing, crosstalk, routing by designated layer and area Bundle.Provide proven PCB routing technology for automatic routing.Realize hierarchical route planning and accelerate the completion of design.Shorten interconnect planning and cabling time for high-speed interface intensive design.Provide a comprehensive, powerful and easy-to-use tool suite to help designersEfficient and successful manufacturing switch: DFM Checker is aimed at the company/manufacturerReview the specific rules of manufacturing partners; Used to reduce manufacturing and assembly documentsThe document editing time of the file can reach 70%; The panel editor will assemble the panel designThe intention is communicated to the manufacturing partners; Output design data in various manufacturing formats.3. y Library d and n Design a Data ManagementFor cost-effective projects that need to be delivered on time, it is easy to obtainCurrent component information and design data are critical. library and designData management is a collaborative control of the company's internal cooperation and design processAdvanced functions are provided. As the design cycle shortens and the complexity increases, youThere must be a design approach that increases predictability and accelerates design turnaround.3.1.1 Main featuresReduce time and optimize library development related resources. Improve the precision in the process of parts manufacturing. Q9 b3.1.2 Main functionsReduce time and optimize library development and validation through integrated creation and validation processes Certification related resources.A simple method to develop devices with large pin count can shorten the time from a few days to A few minutes.Powerful graphic editor supports custom shape and spreadsheet import forSchematic symbols are created to ensure the reliability and integrity of data.Supports the import of part information from general industry formats, allowing rapid creation and Update part information.Common library development environment supporting schematic tools from different suppliers, including Mentor Graphics Design Architect and Mentor Graphics Viewdraw。
Allegro输出文件教程目录Allegro输出文件教程 (1)目录 (1)第一章添加钻孔文件 (2)1.1 添加钻孔列表 (2)1.2 生成钻孔文件 (2)1.3 生成铣刀数据文件 (2)第二章生成Gerber文件 (3)2.1 各层文件介绍 (3)2.2 各层的添加 (3)2.3 生成Gerber文件 (4)第三章查看Gerber文件 (4)第四章导出DXF文件及DXF文件导出PDF (5)4.1 PCB导出DXF文件 (5)4.2 DXF导出PDF (5)4.3导出BOM表 (5)4.4导出坐标文件 (5)4.5其他 (5)第五章检查文件 (6)第一章添加钻孔文件1.1 添加钻孔列表添加钻孔表的操作步骤：Manufacture-->NC-->Drill Legend或者直接点击图标-->ok，然后将列表放在PCB中空白位置。
1.2 生成钻孔文件如果是普通的圆孔，则添加钻孔文件就好，添加钻孔文件操作步骤：Manufacture-->NC-->Dril Parameters或者直接点击图标-->注意选公/英制-->close-->Manufacture-->NC-->NC Dril-->Drill或者Manufacture-->NC-->NC Dril-->NC Parameters，设置同上-->Drill。
系统将自动生成一个.dri后缀文件，如果只有一种通孔，那么生成一个.dri后缀文件，如果有埋盲孔，则每一种埋盲孔都生成一个.dri后缀文件。
1.3 生成铣刀数据文件如果是非圆形孔（异形孔），那么需要添加铣刀数据文件，步骤如下：Manufacture-->NC-->NC Route一般默认参数即可，注意单位-->Route但是如果两端是半圆，中间是矩形则不算异形孔，算圆孔。
并且在CAM350里面看光绘文件的时候，Route这个层什么都没有。
Allegro中导出坐标文件的方法
Allegro 软件是Cadence 公司出品的面向中高端企业用户的PCB 设计软件，主要针对高速、高密度电路板设计，尤其在通讯等领域被广泛应用，目前最新版本号是16.0。
Allegro 软件导出坐标数据步骤：
方法一：
1）用Allegro 软件打开PCB 设计文件。
2）设定原点和切换公制单位。
选择菜单“Setup → Drawing Size…”，弹出如图3 所示对话框，用户单位选择millimeter，MOVE ORIGIN 栏中输入新原点位置相对于当前原点的坐标数据，然后按“OK”确定。
图3 Allegro 单位切换和原点设定
3）坐标文件导出。
选择菜单“File → Export → Placement…”，弹出如图4 所示对话框，
注意Placement Origin 选择Body Center，按“Export”按钮输出坐标数据。
图4 Allegro 坐标输出对话框
方法二：
1）选择Tools栏下的Reports，选Component Report。
双击鼠标2次，Display Report打勾。
2）按Report，导出Excel格式的坐标文件。
3）全选另存到新Excel文件里。
