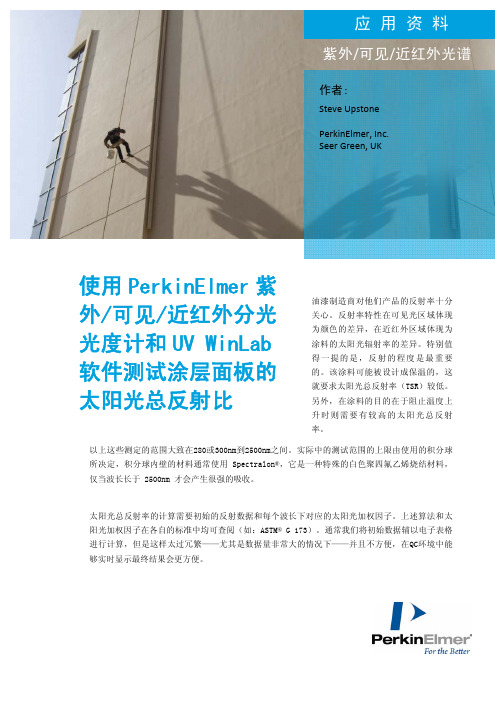

使用PerkinElmer 紫外/可见/近红外分光光度计和UV WinLab 软件测试涂层面板的太阳光总反射比油漆制造商对他们产品的反射率十分关心。
反射率特性在可见光区域体现为颜色的差异，在近红外区域体现为涂料的太阳光辐射率的差异。
特别值得一提的是，反射的程度是最重要的。
该涂料可能被设计成保温的，这就要求太阳光总反射率（TSR）较低。
另外，在涂料的目的在于阻止温度上升时则需要有较高的太阳光总反射率。
以上这些测定的范围大致在280或300nm到2500nm之间。
实际中的测试范围的上限由使用的积分球所决定，积分球内壁的材料通常使用 Spectralon®，它是一种特殊的白色聚四氟乙烯烧结材料，仅当波长长于 2500nm 才会产生很强的吸收。
太阳光总反射率的计算需要初始的反射数据和每个波长下对应的太阳光加权因子。
上述算法和太阳光加权因子在各自的标准中均可查阅（如：ASTM® G 173）。
通常我们将初始数据辅以电子表格进行计算，但是这样太过冗繁——尤其是数据量非常大的情况下——并且不方便，在QC环境中能够实时显示最终结果会更方便。
应 用 资 料作者:Steve UpstonePerkinElmer, Inc. Seer Green, UK因为UV WinLab™ v6 软件具有强大的内置计算器，能够让这些类型的计算自动执行，并且通过自定义的报告模板输出。
图1中列出了一些典型涂料样本的光谱。
图1 涂料面板反射光谱（使用 Lambda950 和 150mm 积分球进行测量）现行标准表1中列出了最常用的测定或计算涂料中太阳能总反射率的标准。
大多数的制造商已经接受了ASTM ® G173新标准，其他标准尽管逐渐正式召回，但仍在使用。
结果输出图2中显示了典型报告（通用的方法和模版可以根据要求向 PerkinElmer 索取）图2 依据ASTM ® G 173.标准的太阳能总反射率的紫外WinLab报告。
