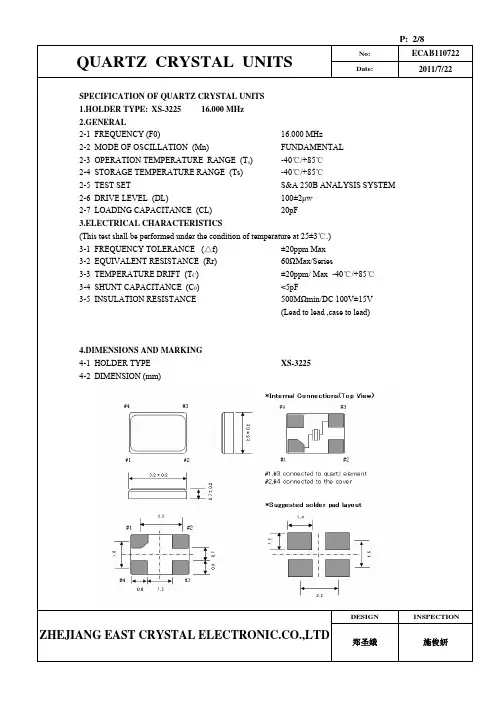

SPECIFICATION OF QUARTZ CRYSTAL UNITS1.HOLDER TYPE:XS-322516.000 MHz2.GENERAL2-1 FREQUENCY (F0) 16.000 MHz2-2 MODE OF OSCILLATION (Mn)FUNDAMENTAL)-40℃/+85℃2-3 OPERATION TEMPERATURE RANGE (T2-4 STORAGE TEMPERATURE RANGE (Ts)-40℃/+85℃2-5 TEST SET S&A 250B ANALYSIS SYSTEM2-6 DRIVE LEVEL (DL)100±2μw2-7 LOADING CAPACITANCE (CL)20pF3.ELECTRICAL CHARACTERISTICS(This test shall be performed under the condition of temperature at 25±3℃.)3-1 FREQUENCY TOLERANCE (△f)±20ppm Max3-2 EQUIVALENT RESISTANCE (Rr)60ΩMax/Series3-3 TEMPERATURE DRIFT (T C)±20ppm/ Max-40℃/+85℃3-4 SHUNT CAPACITANCE (C0)<5pF3-5 INSULATION RESISTANCE 500MΩmin/DC 100V±15V(Lead to lead ,case to lead)4.DIMENSIONS AND MARKING4-1 HOLDER TYPE XS-32254-2 DIMENSION (mm)DESIGN INSPECTION ZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTD4-4-2 Dimensions of the reel4-4-3 Packing and Label1 Reel=3000pcsBox type(Reel quantity)Box size(L×W×H) mmAtype200×200×140 Manufactory name: ZHEJIANG EAST CRYSTAL ELEC.CO.,LTD5-5.REFLOW(WAVE)SOLDERINGFollowing profile of heat stress is applied to resonator,then being place in the naturalcondition for 1 hour,resonator shall be measured.260±5℃ 10~20sec150~190℃ 120sec5-6.SOLDERING DIPTerminals/lead-wires of specimen shall be dipped into solder melter tankat +260℃±5℃ for 3 sec.Dipping depth shall be 2mm from the bottom of specimens body.(Afterapplying ROSIN FLUX) soldering portion shall be covered in over 95% ofTerminals/lead-wires dipped.5-7.HUMIDITYElectrical characteristics shall be satisfied after letting it alone at 65±2℃in humidity of 90~95% for 500 hours.5-8.STORAGE IN LOW TEMPRATUREElectrical characteristics shall be satisfied after letting it alone at -40±2℃for 500 hours.5-9.STORAGE IN HIGH TEMPRATUREElectrical characteristics shall be satisfied after letting it alone at 85±2℃for 500 hours.DESIGN INSPECTION ZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTDNo:ECAB110722Date:2011/7/226.Structure IllustrationNo.123456DESIGN INSPECTIONInternal Electrode PKG(Base)ZHEJIANG EAST CRYSTAL ELECTRONIC.CO.,LTDCERAMIC+Au PLATING Au PLATING QUARTZ CRYSTAL UNITSMaterialsItemsLID(Cap)External Electrode Fe ALLOYAg SiO2Ag+Epoxy Resin Element(Blank)Conductive Adhesive 154326。

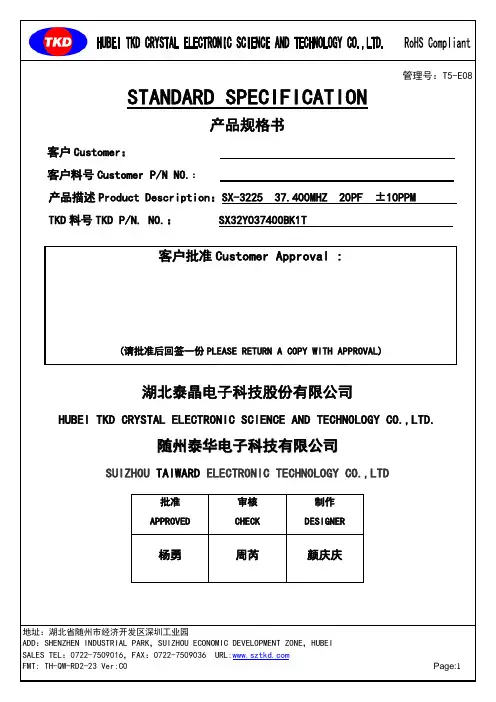

管理号：T5-E08 STANDARD SPECIFICATION产品规格书客户Customer：客户料号Customer P/N NO.：产品描述Product Description：SX-3225 37.400MHZ 20PF ±10PPMTKD料号TKD P/N. NO.： SX32Y037400BK1T客户批准Customer Approval :(请批准后回签一份PLEASE RETURN A COPY WITH APPROVAL)湖北泰晶电子科技股份有限公司HUBEI TKD CRYSTAL ELECTRONIC SCIENCE AND TECHNOLOGY CO.,LTD.随州泰华电子科技有限公司SUIZHOU TAIWARD ELECTRONIC TECHNOLOGY CO.,LTD批准APPROVED审核CHECK制作DESIGNER杨勇周芮颜庆庆地址：湖北省随州市经济开发区深圳工业园REVISION RECORDRev Date NO. Description of Revision History00 2018-11-05 New Publication地址：湖北省随州市经济开发区深圳工业园Spec Sheet ContentsNO. Content Page1 石英晶体参数规格QUARTZ CRYSTAL UNIT SPECIFICATION 4-52 产品图纸DIMENSIONS 63 印字内容MARKING 64 内部结构INSIDE STRUCTURE 75 等效电路图EQUIVALENT CIRCUIT 76 包装PACKING 87 回流焊温度曲线REFLOW PROFILES 98 可靠性试验RELIABILITY SPECIFICATIOND 10-119 工艺流程图FLOW CHART 1210 有害物质含量声明HARMFUL SUBSTANCE CONTENT STATEMENT 13 地址：湖北省随州市经济开发区深圳工业园1. 石英晶体参数规格QUARTZ CRYSTAL UNIT SPECIFICATION ※描述Description ：Quartz Crystal※产品型别Product Type ：SX-3225※水晶切割模式Crystal cutting type ：AT-CUT※测量设备Measure equipment ：S&A 250B※电气特性Electrical Characteristics项目Item 代码Symbol电气特性规格Electrical Specification 备注Notes 下限Min.中心Typ.上限Max.单位Units1 一般频率Nominal FrequencyF0 37.400000 MHz2 振荡模式Oscillation Mode- Fundamental -3 负载电容Load CapacitanceCL 20 pF4 频率公差Frequency Tolerance- -10 - 10 ppm At 25℃±3℃5 等效串联电阻Equivalent SeriesResistanceESR - - 40 Ω6 驱动功率Drive LevelDL - - 100 μW7 频率稳定度Frequency StabilityTC -30 - 30 ppmOver OperatingTemp.Range(Ref.to25℃)8 动作温度Operating Temperature- -40 - 85 ℃9 储存温度Storage Temperature- -40 - 85 ℃10 年老化率Aging- -3 - 3 ppm Per Year11 绝缘阻抗Insulation Resistance- 500 - - MΩAt DC 100V12 并联电容Shunt CapacitanceC0 - - 3 pF地址：湖北省随州市经济开发区深圳工业园备注Notes:1.超音波清洗Ultrasonic cleaning一般的清洁液或超声波清洗方法可以用来清洗我们的产品。
(1) TXC requires one copy returned with signature and title of authorized individual that signifies acceptanceof the attached specifications.(2) Orders received and accepted by TXC after return of signed copy of specification will be produced perthese specifications.(3) Any changes to these specifications must be agreed upon by both parties and new revision of theProduct Specification Sheet will be issued.(4) Any issuance of purchase order prior to consigning back the Approval page of "Specification Sheets"from customers will be regarded as the agreement on the contents of these specifications.Attachment: Product Specification Sheet12345CUSTOMER SIGNATURE & DateDATE:PM / SALES :CUSTOMER P/N :REVISION :A9TXC P/N:7M12000039NOMINAL FREQ.:12.000000MHz PRODUCT TYPE :SMD SEAM SEALING X'TAL 3.2×2.5RoHS CompliantTEL : 886-2-2894-1202 , 886-2-2895-2201 FAX : 886-2-2894-1206 , 886-2-2895-6207 SPECIFICATION FOR APPROVALCUSTOMER :TEL : 886-2-2894-1202 , 886-2-2895-2201 FAX : 886-2-2894-1206 , 886-2-2895-6207 25-May-09A82ECN-08P123001A93,4ECN-09P052503RevRevise pageRevise contentsDateRef.No.A1N/A ReviserInitial released7-Nov-07N/AYachuan MiaoYachuan Miao Package Change25-May-09Yachuan MiaoRr Change: 200 ohm to 100 ohm 30-Dec-08ELECTRICAL SPECIFICATIONSStandard atmospheric conditionsUnless otherwise specified, the standard range of atmospheric conditions for making measurement and tests are as follow:Ambient temperature :25±5 Relative humidity:40%~70%If there is any doubt about the results, measurement shall be made within the following limits:Ambient temperature :25±3 Relative humidity :40%~70%Measure equipmentElectrical characteristics measured by HP E5100A or equivalent.Crystal cutting typeThe crystal is using AT CUT (thickness shear mode). Unit Weight: 0.018±0.001 g/pcs1Nominal Frequency 2Oscillation Mode 3Load Capacitance 4Frequency Tolerance 5Frequency Stability 6Operating Temperature 7Aging 8Drive Level9Effective Resistance Rr 10Shunt Capacitance C011Insulation Resistance 12Storage Temperature Range--30~85at 25 ± 3±20ppm Over Operating Temp. Range (Reference 25 )ppm -ParametersSYM.Electrical Spec.MINTYPE MAXUNITS -±20--FundamentalMHz CL 18pF -Notes FL 12.000000-- -1st Year -ppm Ω-DL µW --10-Rr -100-±5--~C0--pF 5M Ω at DC 100V -50085---40。
CRYSTAL TECHNOLOGY INDUSTRIAL CO.,LTD晶振测试分析报告Customer Name Tapy Frequency 荣鑫胜科技SMD322525MHz-20PFSJK FAE:Haodong Huang&Juan ZhangDate:2018/8/15CRYSTAL TECHNOLOGY INDUSTRIAL CO.,LTD一．原因说明客户反馈晶振上机后使用不良,不良现象为晶振输出频率偏负，退回2pcs不良PCBA板要求分析。
二．实际测试1.PCB电路板视图：2.晶振单体重测：A.（不良品SJK 晶振）：B.（TXC&鸿星晶振）：测试结果显示：不良品晶振单体OK，各参数在规格范围内。
与TXC&鸿星晶振进行对比分析可知，SJK晶振单体频率偏负。
X1：3225-25MHz-20pf1#、2#为TXC 晶振；3#、4#为鸿星晶振；CRYSTAL TECHNOLOGY INDUSTRIAL CO.,LTD3.PCB板测试：1>.PCB板电路原晶振及原匹配，测试数据如下：1#FL=-19.4PPM2#FL=-20.0PPM2>.将贵司提供的TXC和鸿星晶振分别更换到PCB板上测试，测试数据如下：1#（TXC晶振）FL=-11.5PPM2#（TXC晶振）FL=-8.8PPM3#（鸿星晶振）FL=-5.5PPM4#（鸿星晶振）FL=-7.6PPM3>.另取2pcs3225-25MHz-20pf±10ppm晶振样品进行验证，测试数据如下：*样品晶振单体检测：CRYSTAL TECHNOLOGY INDUSTRIAL CO.,LTD1#FL=-8.3PPM 2#FL=-6.9PPM三．结论：由以上测试结果可知：电路板上2pcs晶振单体测试是OK的，各参数在规格范围内。
通过对比分析，贵司反馈的频率偏负现象根本原因为晶振规格参数范围±20ppm较宽，部分晶振单体频率偏负致使晶振上板后输出频率偏负，不满足贵司要求。
ItemModel Need to specifyMode 振動模式Fund.Fund.Fund.Fund.Series Resistance 諧振電阻100ohmMax.80ohmMax.60ohmMax.40ohmMax. SERIES RESISTANCE 諧振電阻Freq. Range 頻率範圍12～16MHz 16～20MHz 20～24MHz 24～50MHz Aging[first year] 第一年老化率±5ppm Max.25±3℃Insulation Resistance 絕緣阻抗500Mohm Min.DC100V±15V Load Capacitance 負載電容20pF Need to specify Shunt Capacitance 靜態電容7.0pF Max.Drive Level 激勵電平10μw Typical Storage Temp. Range 保存溫度範圍–40~+85℃Need to specify Series Resistance 諧振電阻Refer to the table as below at 25℃Freq. Tol. Over Temp. 溫度頻差±30ppm Need to specify Operating Temp. Range 工作溫度範圍–40~+85℃Need to specify 適合於低功耗的便攜設備For a clock source in digital equipments 適用於數碼設備的所 有時鐘源STANDARD SPECIFICATIONS 標準規格T3225Conditions Frequency Tolerance 調整頻差±10ppm at 25℃Need to specify Frequency Range 頻率範圍12.000MHz ABEL ELECTRONSURFACE MOUNTABLE CRYSTAL UNITS (SMD Package) 贴片石英晶體諧振器 海诺威電子有限公司RoHS Compliant Standard SMD-3225Features 特性Frequency Range:12-50MHz 頻率範圍：12-50MHzSuited for portable devices with low current consumption。

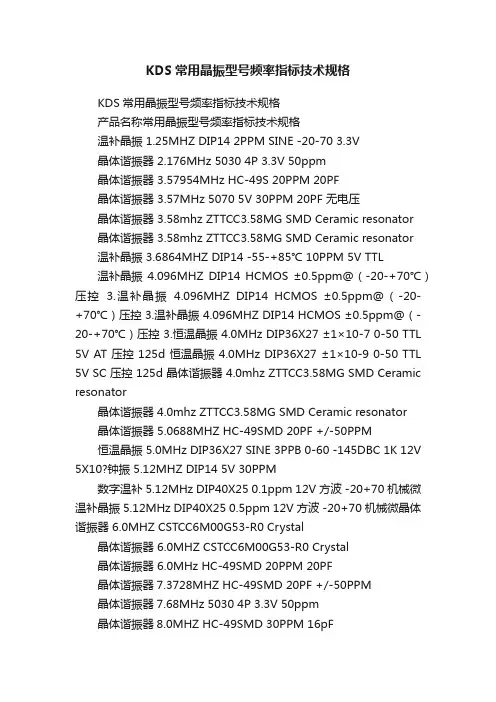

KDS常用晶振型号频率指标技术规格KDS常用晶振型号频率指标技术规格产品名称常用晶振型号频率指标技术规格温补晶振 1.25MHZ DIP14 2PPM SINE -20-70 3.3V晶体谐振器 2.176MHz 5030 4P 3.3V 50ppm晶体谐振器 3.57954MHz HC-49S 20PPM 20PF晶体谐振器 3.57MHz 5070 5V 30PPM 20PF 无电压晶体谐振器 3.58mhz ZTTCC3.58MG SMD Ceramic resonator晶体谐振器 3.58mhz ZTTCC3.58MG SMD Ceramic resonator温补晶振 3.6864MHZ DIP14 -55-+85℃ 10PPM 5V TTL温补晶振4.096MHZ DIP14 HCMOS ±0.5ppm@（-20-+70℃）压控 3.温补晶振 4.096MHZ DIP14 HCMOS ±0.5ppm@（-20-+70℃）压控 3.温补晶振4.096MHZ DIP14 HCMOS ±0.5ppm@（-20-+70℃）压控 3.恒温晶振4.0MHz DIP36X27 ±1×10-7 0-50 TTL 5V AT 压控 125d 恒温晶振4.0MHz DIP36X27 ±1×10-9 0-50 TTL 5V SC 压控 125d 晶体谐振器 4.0mhz ZTTCC3.58MG SMD Ceramic resonator晶体谐振器 4.0mhz ZTTCC3.58MG SMD Ceramic resonator晶体谐振器 5.0688MHZ HC-49SMD 20PF +/-50PPM恒温晶振 5.0MHz DIP36X27 SINE 3PPB 0-60 -145DBC 1K 12V 5X10?钟振 5.12MHZ DIP14 5V 30PPM数字温补 5.12MHz DIP40X25 0.1ppm 12V 方波 -20+70 机械微温补晶振 5.12MHz DIP40X25 0.5ppm 12V 方波 -20+70 机械微晶体谐振器 6.0MHZ CSTCC6M00G53-R0 Crystal晶体谐振器 6.0MHZ CSTCC6M00G53-R0 Crystal晶体谐振器 6.0MHz HC-49SMD 20PPM 20PF晶体谐振器7.3728MHZ HC-49SMD 20PF +/-50PPM晶体谐振器7.68MHz 5030 4P 3.3V 50ppm晶体谐振器8.0MHZ HC-49SMD 30PPM 16pF晶体谐振器8.0MHZ 5032 10PF 20PPM温补晶振8.0MHZ 5070 准确度在1PPM以下 -40～85度方波 3.晶体谐振器8.0MHZ HC-49S 18PF 30ppm 无电压晶体谐振器8.0MHz SMD8045 2脚 30PPM温补晶振8.388608MHZ 5070 3.3V 1PPM CMOS 调节8ppm -10-+75℃晶体谐振器9.8304MHz HC-49S 20pF 30PPM 温补晶振10.0MHZ 3225 3.3V 0.5PPM SMI温补晶振10.0MHZ 3225 3.3V 0.5PPM KDS温补晶振10.0MHZ 5032 3.3V 0.5PPM KDS温补晶振10.0MHZ 5032 3.3V 1PPM SMI温补晶振10.0MHZ 5032 DAS535SD 0.5ppm温补晶振10.0MHZ 5032 DS5032TC温补晶振10.0MHZ 5032 方波 2ppm 3.3v -40-85温补晶振10.0MHZ 5070 -40-85 1PPM 削峰正旋波不带压控温补晶振10.0MHZ 5070 TCXO 0.5ppm -40 to +85度，方波温补晶振10.0MHZ 5070 VCTCXO 0.28ppm -30 to +85度，方波温补晶振10.0MHZ 5070 4P 3.3V HCMOS 0.5ppm VCTCXO -35—65 温补晶振10.0MHZ 5070 TCVCXO 1PPM 3.3v -40-+85 HCMOS温补晶振10.0MHZ 5070 VCTCXO 0.5ppm -40+85 方波温补晶振10.0MHZ 5070 VCTCXO 泰艺 2.5ppm -40+85 clippedsine 控晶体谐振器10.0MHz CSTCC10M0G53-R0 Resonator Murata 数字温补10.0MHZ DIP14 ±0.05ppm－40℃85℃ 3.3V 20MA Hcmos DTXO数字温补10.0MHZ DIP14 0.1ppm 3.3V -40—85温补晶振10.0MHZ DIP14 0.3PPM SINE 5V恒温晶振10.0MHZ DIP14 1*10-7 12V -10-+60° 电平极：0dB 温补晶振10.0MHZ DIP14 1ppm 3.3v 正弦波机械调节调节范围几温补晶振10.0MHZ DIP14 1PPM -30-+70 0.5PPM 5V SINE VCTCXO温补晶振10.0MHZ DIP14 1PPM SINE 3.3V 机械微调温补晶振10.0MHZ DIP14 5V <0.28PPM ±0.14 -40~85C LVCMOS -1 1KHz温补晶振10.0MHZ DIP14 5V <0.28PPM ±0.14-40~85C LVCMOS -131KHz恒温晶振10.0MHZ DIP14 OCXO ±0.2ppm -40-+85 5V 方波恒温晶振10.0MHZ DIP14 OCXO ±0.2ppm -40-+85 5V 正玄波温补晶振10.0Mhz DIP14 sine 0~10dBm 1ppm 年老化率0.5ppm SC 温补晶振10.0MHZ DIP14 TCXO ±0.5ppm SINE -40-+85 5V恒温晶振10.0MHZ DIP20X20 ±0.05ppm－40℃85℃ 3.3V 20MA Hcmo 恒温晶振10.0Mhz DIP20X20 sine 0~10dBm 0.05ppm 年老化率 0.5恒温晶振10.0MHz DIP21X21 0.05PPM 0.03PPM -20-70 5V SINE 1K 恒温晶振10.0MHz DIP21X21 0.05PPM 0.03PPM -20-70 5V SINE 1K 恒温晶振10.0MHz DIP21X21 0.05PPM 0.03PPM -20-70 5V SINE 1K 恒温晶振10.0MHZ DIP25X25 0.1ppm 3.3V -40—85恒温晶振10.0MHz DIP25X25 3.3V -10-60±10ppb 准确20ppb SIN -140@1KHz恒温晶振10.0MHz DIP25X25 3.3V -10-60±10ppb 准确20ppb SIN -140@1KHz恒温晶振10.0MHZ DIP36X27 小于0.05PPM -55-85 10K -160DBC 温补晶振10.0MHZ SMD11X9 3.3V CMOS -10-+60℃ ±1PPM VCTCX 温补晶振10.0MHZ SMD11X9 电压3.3V 带压控方波1PPM -55-85C温补晶振10.0MHz SMD14X9 ±0.5ppm －20℃ +70℃ 3.3V sine输调整恒温晶振10.0MHz SMD25X22 SINE 0.02PPM -145 1K 5V -20-70 温补晶振10.24MHZ 3225 3V 2.5PPM -30~85 KDS温补晶振10.36MHZ 5070 3.3V 1PPM CMOS 调节8ppm -10-+75℃温补晶振10.386MHz DIP14 3ppm 3.3V -40-+85C HCOMS 频率调整晶体谐振器11.0592MHZ HC49/U 30PPM 20PF 晶体谐振器11.0592MHZ HC-49S 20PPM 20PF晶体谐振器11.0592MHZ HC49U 20PF 30PPM 无电压晶体谐振器11.2896MHz HC-49SMD 30ppm 20pf温补晶振12.0MHz 2520 20ppm 1.8V 3mA -40-+85℃钟振12.0MHZ 3225 30ppm 3.3v 4脚晶体谐振器12.0Mhz 5032 2p ±30PPM 18PF钟振12.0mhz 5032 3.3V 20ppm 四脚钟振12.0MHZ 5032 3.3V 30PPM TXC钟振12.0MHZ 5070 5V 30PPM TXC晶体谐振器12.0MHZ 6035 18PF 20PPM钟振12.0MHz SMD2520 3V 50ppm晶体谐振器12.288MHz 5032 2P 18pF 20ppm NDK恒温晶振12.288MHz DIP36X27 SINE 0.005PPM 0.01PPM -20-60 5V恒温晶振12.288MHz 短稳 +-5E-9 长期绝对精度1us -150dBc 1KH 温补晶振12.8MHz 3225 3.3V 0.5PPM KDS温补晶振12.8MHz 3225 3.3V 1PPM SMI温补晶振12.8MHZ 3225 1.5PPM SMI温补晶振12.8MHz 3225 1.5PPM 3.3V(3V) -40~85 clippedsine 温补晶振12.8MHz 5032 1.5ppm温补晶振12.8MHz 5032 1.5PPM 3.3V(3V) -40~85 clippedsine 温补晶振12.8MHZ 5070 -40-85 1PPM 削峰正旋波带压控库存TAITIEN温补晶振12.8MHz 5070 TCXO 0.5ppm -40 to +85度，方波温补晶振12.8MHz 5070 VCTCXO 0.5ppm -40+85 方波数字温补12.8MHz DIP14 ±0.05ppm－40℃85℃ 3.3V 20MA Hcmos DTXO恒温晶振12.8MHZ DIP14 0.025PPM 5V 0.1PPM 1K 135DB HCMOS温补晶振12.8MHz DIP14 3.3V 1PPM 4脚 -30-85 长方形正弦波恒温晶振12.8MHz DIP14 -40-70 0.1PPM SC切年老化0.1PPM 全尺恒温晶振12.8MHz DIP14 -40-85 0.1PPM SC切年老化0.1PPM 全尺温补晶振12.8Mhz DIP14 sine 0~10dBm 1ppm 年老化率 0.5ppm SC恒温晶振12.8MHz DIP20X20 ±0.05ppm－40℃85℃ 3.3V 20MA Hcm 控恒温晶振12.8Mhz DIP20X20 sine 0~10dBm 0.05ppm 年老化率 0.5恒温晶振12.8MHz DIP21X21 0.05PPM 0.03PPM -20-70 5V SINE 1K 恒温晶振12.8MHz DIP21X21 0.05PPM 0.03PPM -20-70 5V SINE 1K 恒温晶振12.8MHz DIP21X21 0.05PPM 0.03PPM -20-70 5V SINE 1K 恒温晶振12.8MHZ DIP60X60 ±2X10-8 ±20PPB -20+80 12V SINE S 温补晶振13.0MHZ 3225 3.3V 0.5PPM KDS 温补晶振13.0MHZ 3225 3.3V 1PPM KDS温补晶振13.0MHZ 3225 3V 2.5PPM CLIPPED温补晶振13.0MHZ 5032 -20-+70 3ppm 3.3v 5*3.2 TAITIEN温补晶振13.0MHZ 5032 -20-+70 3ppm 3.3v 5*7 TAITIEN晶体谐振器13.0MHZ 5070 3.3V/5V 30PPM/50PPM恒温晶振13.0MHz DIP36X27 SINE 0.01PPM -30-70 12V 150DBC 1K 晶体谐振器13.52127MHz 6035 10pF ±20ppm -40-85 ±30ppm晶体谐振器13.560MHz 3225 18pF ±20ppm -40-85 ±30ppm 晶体谐振器13.56MHz HC-49SMD 30ppm 20pf晶体谐振器13.56MHZ 5032 4P 30PPM 16PF NDK钟振13.5MHZ 5070 3.3V ±20PPM晶体谐振器14.31818MHz SMD6035 +/-50PPM KDS晶体谐振器14.318MHZ SMD6035 2P +/-50PPM晶体谐振器14.318MHz 5032 4p 不带电压 30ppm晶体谐振器14.4MHZ 5032 四脚的小于10PPM 10PF 对讲机温补晶振14.7456MHZ 5070 4PIN -40-85 1PPM 3.3V TC 温补晶振14.7456MHZ DIP14 3PPM -55℃-+85℃ 3.3V晶体谐振器14.7456MHZ HC-49S 30PPM 20PF晶体谐振器14.7456MHz HC-49SMD 30ppm 20pf晶体谐振器15.0MHz HC-49SMD 30ppm 20pf晶体谐振器16.0Mhz 3225 50ppm 12PF FA-238 EPSON晶体谐振器16.0MHZ 3225 12PF 9PF 20PF 20PPM 无电压 NDK EPSON 晶体谐振器16.0MHZ 3225 30ppm 12pf温补晶振16.0MHZ 5070 准确度在1PPM以下 -40～85度方波 3温补晶振16.0MHZ DIP38X38 DIP 5V TTL 0-70℃ 1ppm 不带调晶体谐振器16.0MHZ HC-49U ±100PPM -20-+70 公差±20PPM 18晶体谐振器16.0MHZ SMD2520 10ppm 8PF -20-75 NX2520SA NDK 温补晶振16.32MHZ 5032 DSA535SD 3.3V ±0.5ppm -40-80℃ CLIP 晶体谐振器16.3676MHZ 3225 10PF +-10ppm温补晶振16.3676MHZ 5032 DSB535SD 0.5ppm温补晶振16.368mhz 3225 ±0.5ppm SMD3225 KSS温补晶振16.368mhz 3225 DSB321SDA ±0.5ppm温补晶振16.368mhz 3225 DSB321SDA ±0.5ppm温补晶振16.369MHZ 3225 1.8V 0.5ppm -30-85 GPS温补晶振16.384MHz 3225 2.5ppm -40～80 3.3V 销峰正弦波温补晶振16.384MHz 5070 2.5ppm -40～80 3.3V 销峰正弦波温补晶振16.777216MHZ 5070 3.3V 1PPM CMOS 调节8ppm -10-+75温补晶振16.8MHz 5032 0.5ppm SMD SMI晶体谐振器16.9344MHz 5032 20PPM 18PF 4脚温补晶振17.28MHz DIP14 1.5ppm 3.3V HCMOS -40-+85C温补晶振18.285714MHz DIP14 ±1.0ppm温补晶振18.285714MHz DIP14 ±2.5ppm温补晶振18.432MHz 5070 2ppm －40-85 CLIPPED SINE 3.3V 温补晶振18.432MHz 5070 2ppm －40-85 HCMOS 3.3V晶体谐振器18.432MHZ SMD4025 ±20PPM无电压温补晶振18.651429MHz DIP14 ±1.0ppm温补晶振18.651429MHz DIP14 ±2.5ppm温补晶振19.2MHZ 3225 3.3V CLIPPED -30-+85 0.5PPM DSB321S 温补晶振19.2MHZ 5032 3.3V 2.5PPM -3075 clipped TAITIEN VC-温补晶振19.2MHZ 5032 DSA535SD 0.5ppm clipped sine温补晶振19.44MHZ 3225 3V 2.5PPM CLIPPED压控晶振19.44MHZ 贴片和直插VCXO 牵引范围+/-50或100PPM 3.恒温晶振19.68MHZ DIP14 0.01ppm 正弦波－20－70 数字温补19.68MHZ DIP14 0.05ppm DIP20*20*10 正弦波－20－70恒温晶振19.68MHZ DIP20X20 0.01ppm 正弦波－20－70 温补晶振20.0MHZ 3225 ±0.5ppm VC-TCXO -40-85 3.0V KDS SM 温补晶振20.0MHZ 5032 0.5PPM钟振20.0MHZ 5032 3.3V 30PPM TXC温补晶振20.0MHZ 5032 DSA535SGA 0.28ppm温补晶振20.0MHZ 5032 DSA535SGA 0.28ppm温补晶振20.0MHZ 5032 DSA535SGA 0.28ppm温补晶振20.0MHZ 5070 VCTCXO +-2ppm 3.3v HCMOS -40-+85C恒温晶振20.0MHZ D1P14 21*13*12 5V 方波±0.05ppm -20—70 温补晶振20.0MHZ DIP14 -55℃ 1.5ppm数字温补20.0MHZ DIP14 ±0.05ppm－40℃85℃ 3.3V 20MA HcmosDTXO钟振20.0MHZ DIP14 3.3V ±30ppm ±30ppm -20-+70℃钟振20.0MHZ DIP14 4插脚长方5V ±30ppm ±30ppm -20-+输出温补晶振20.0MHZ DIP14 CMOS 5V 1*10-7 年老化率1×10-温补晶振20.0MHZ DIP14 CMOS 5V 1*10-7 年老化率1×10-恒温晶振20.0MHZ DIP20X20 ±0.05ppm－40℃85℃ 3.3V 20MA Hcmo 恒温晶振20.0MHZ DIP20X20 -40-85 0.05PPM 相躁1K -155 恒温晶振20.0MHZ DIP20X20 -40-85 0.05PPM 相躁1K -155 温补晶振20.0MHZ DIP8 TCXO 不带压控1ppm -20-70 sine 3.3v 半温补晶振20.0MHZ SMD11X9 -55℃ 2PPM温补晶振20.48MHZ 3225 0.5PPM 3V 削顶正弦波温补晶振20.48MHz 3225 3.3V -25-55 0.5PPM 方波温补晶振22.4MHz 5070 TCXO 3.3v -40-+85 0.5PPM HCMOS 带压温补晶振22.4MHz 5070 TCXO 3.3v -40-+85 1PPM HCMOS 带压晶体振荡器22.576MHz 3225 3.3V 50PPM恒温晶振22.5792MHZ DIP25X25 SC切正弦压调-20-60 ±0.5PPM 晶体振荡器22.579MHz 3225 3.3V 50PPM晶体谐振器24.0Mhz 5032 2p ±30PPM 18PF晶体谐振器24.0MHz 5032 50ppm 16PF晶体谐振器24.0MHz 3225 30PPM HOSONIC 无电压晶体谐振器24.0MHz 5032 ±30ppm, 18p SMD 4-pad温补晶振24.0MHZ 5070 0.5ppm HCMOS 3.3V -40-+85钟振24.0MHZ 5070 30ppm 3.3v 4脚晶体谐振器24.0MHZ HC-49S 18PF 30ppm晶体谐振器24.0MHZ SMD6035 4P +/-30PPM晶体振荡器24.5535MHZ 3225 3.3V 20PPM晶体振荡器24.576MHz 3225 3.3V 50PPM温补晶振24.576MHZ 5070 0.5ppm sine 3.3V -40-+85温补晶振24.576MHZ DIP14 5ppm 正弦波 3.3V -20-+70温补晶振24.576MHZ DIP14 0.5ppm 正弦波 3.3V -40-+85恒温晶振24.576MHZ DIP25X25 SC切正弦压调-20-60 ±0.5PPM 温补晶振24.704MHz 5070 3.3V HCMOS SINE 2.5ppm 钟振24.704MHz 5070 +/-100PPM晶体谐振器25.0MHz HC-49SMD 18pF +-30ppm晶体谐振器25.0MHz HC-49SMD 30ppm 20pf晶体谐振器25.0MHZ SMD6035 +/-50PPM KDS晶体振荡器25.0MHz 3225 1.8V 30PPM温补晶振25.0MHZ 3225 3V 0.5PPM VCTCXO DSA321SDA KDS晶体谐振器25.0MHz 5032 ±30ppm, 20PF SMD 4-pad温补晶振25.0Mhz 5070 2.5PPM 3.3V HCMOS -40-85° 带压控温补晶振25.0MHz 5070 TCVCXO 1PPM 3.3v -40-+85 HCMOS 晶体谐振器25.0MHZ HC-49S 20PF 20PPM晶体谐振器25.0MHZ SMD6035 2P +/-50PPM 无电压温补晶振25.6MHZ 5070 0.5PPM 3.3V HCMOS温补晶振26.0MHz 3225 4-SMD ±2.5ppm 3V VCTCXO 晶体振荡器26.0MHZ 3225 2.8V 20PPM 京瓷晶体振荡器26.0MHz 3225 2.8V 50PPM NDK温补晶振26.0MHz 3225 DSA321SCA/L KDS温补晶振26.0MHz 3225 DSB321SCL温补晶振26.0MHZ 3225 DSB321SDA-3.0V TCXO晶体谐振器26.0MHZ 3225 NX3225SA 10PPM 12.5PF温补晶振26.0MHZ 5032 -20-+70 3ppm 3.3v 5*3.2 TAITIEN 温补晶振26.0MHZ 5032 -20-+70 3ppm 3.3v 5*3.2 TAITIEN 晶体谐振器26.0MHZ 5032 4P 25PPM 12PF 无电压即无源钟振26.0Mhz 5032 4p 3.3v ±2.5PPM温补晶振26.0MHZ 5070 -20-+70 3ppm 3.3v 5*7 TAITIEN温补晶振26.0MHZ DIP14 3.3V 0.5PPM sine 带压控数字温补26.0MHZ DIP14 ±0.05ppm－40℃85℃ 3.3V 20MA Hcmos DTXO恒温晶振26.0MHZ DIP20X20 ±0.05ppm－40℃85℃ 3.3V 20MA Hcm 控晶体谐振器26.0MHZ SMD2520 10ppm 8PF -20-75 NX2520SANDK 无钟振27.0mhz 5032 3.3V 20ppm 四脚钟振27.0MHZ 5032 4P 3.3V 25ppm -20 - +70C HCMOS晶体谐振器27.0MHZ 5070 ±50ppm; -20+70 15pF 3.3V钟振27.0MHZ DIP8 半尺寸工业级 -40-85 3.3V 30PPM温补晶振27.0MHz SMD2520 20ppm 1.8V 3mA 2.5*2.0mm -40-+85℃晶体谐振器27.0MHZ SMD6035 2P +/-50PPM 晶体谐振器27.12Mhz 5032 2p ±30PPM 18PF晶体谐振器27.12MHZ 3225 8PF 15PPM epson温补晶振29.4912MHZ 3225 3V 2.5PPM -30~85 KDS温补晶振29.4912MHZ 3225 3V 2.5PPM -30~85 KDS温补晶振29.4912MHZ 3225 3V 2.5PPM -30~85 KDS压控晶振30.0MHZ 11X11 3.3V -20-+70 20PPM VCXO恒温晶振30.0MHZ -20-+70 频率稳定度小于0.004ppm晶体谐振器30.0MHZ 3225 ±30PPM -20-70 12PF温补晶振30.0MHZ 3225 0.5PPM 方波 3.3V 工业级 -40-85 不带压晶体谐振器30.0MHZ 3225 4PAD 30PPM 12PF -0-+70 钟振30.0MHZ 5032 5V 30PPM CTZ温补晶振30.0MHz 5070 HCMOS 2PPM -30-80 3.3V温补晶振30.0MHZ DIP14 0.5PPM 方波 3.3V 工业级 -40-85 不带压温补晶振30.24MHZ 5070 3.3V -20 +70 1PPM温补晶振30.72MHZ 5070 1ppm 3.3V 方波 -20—+70°C晶体谐振器31.996314MHz 5032 4P 16pF +/10ppm温补晶振32.0MHZ 5032 TCXO 3.3V clippedsine 10PPM KTS533EG-温补晶振32.0MHZ 5070 TCXO 3.3V HCMOS 1PPM 温补晶振32.0MHz DIP14 HCMOS 1.5PPM -20-70 3.3V 1K 120DBC温补晶振32.0MHZ SMD11X9 -40-85 0.5PPM 3.3V SINE温补晶振32.0MHZ SMD25X25 -40-85 0.5PPM 3.3V SINE温补晶振32.512MHZ 5070 1PPM -40~85 方波TT 相位 115DBC 温补晶振32.51MHZ 5070 2ppm 3.3v HCMOS晶体谐振器32.768KHZ SMD4.9X1.8 2P 12.5PF +-10ppm晶体谐振器32.768KHZ SMD8x3.8 12.5PF +-20ppm晶体振荡器32.768KHZ 5032 4P 有源 10PPM晶体谐振器32.768Khz DIP2X6MM ±20PPM -10-+60 12.5PF 晶体谐振器32.768kHZ MS1V-T1K 2*6MM 12.5PF晶体谐振器32.768KHZ 3225 +/-20PPM 9PF KDS 无电压晶体谐振器32.768KHZ 3225 2P 20PPM 12.5PF晶体谐振器32.768KHz 3225 3.3V 50PPM晶体谐振器32.768KHZ 3225 3.3V ±25ppm晶体谐振器32.768KHZ 3225 4P 20PPM 3.3V晶体谐振器32.768KHz 5070 3.3V 50PPM晶体谐振器32.768KHZ CM200C/12.5PF/20PPM/ROHS CITIZEN数字温补32.768KHZ DIP14 0.1PPM 3.3V -20-70恒温晶振32.768KHZ DIP14 温度稳定1E-8 温度特性0.01PPM -20-晶体谐振器32.768KHZ DIP2X6 12.5PF 20PPM晶体谐振器32.768KHZ DIP2X6 20ppm 12.5pF晶体谐振器32.768KHZ DIP3X8 20ppm 12pF 镀镍晶体谐振器32.768KHZ DIP3X8 20ppm 12pF 镀锡晶体谐振器32.768KHZ DIP3X8 12.5PF 20PPM晶体谐振器32.768KHZ SMD3.2X1.5MM ±20PPM 12.5PF 70KΩ晶体谐振器32.768KHz SMD4.1X1.5 12.5pF + -20PPM晶体谐振器32.768KHZ SMD4.1X1.5 70PPM KDS晶体谐振器32.768KHZ SMD6.9x1.4mm ±20ppm 12.5pF 4-SM 温补晶振32.768MHZ 3225 0.5ppm 3.3v 常温DSA321SDA-32.768MH温补晶振32.768MHZ DIP14 ±0.5ppm 3.3v HCMOS或SINE -30-8控温补晶振32.768MHZ DIP14 ±0.5ppm 3.3v HCMOS或SINE -40-8控温补晶振32.768MHZ DIP14 1PPM 5V -40-+85温补晶振32.768MHZ DIP14 2PPM 5V -40-+85 机械微调温补晶振32.768MHZ DIP14 -40-+85 0.2PPM 5V Sine VCTCXO 钟振33.0Mhz 5032 4p 3.3v ±30PPM 18PF钟振33.0MHZ 5070 30ppm 3.3v 4脚温补晶振33.0MHZ 5070 ±1PPM 3.3V HCMOS-40-+85℃温补晶振34.6822MHZ DIP14 2PPM恒温晶振38.4MHz DIP36X27 ±0.001PPM -20-70 5V 1K 140 SINE 恒温晶振38.4MHz DIP36X27 ±0.001PPM -40-85 5V 1K 140 SINE 恒温晶振38.4MHz DIP36X27 ±0.01PPM -20-70 5V 1K 140 SINE 压控晶振39.4917MHZ DIP-14 电压5V ±100PPM VCXO 温补晶振39.95MHz SMD14.4x9.5 3ppm 5V -40-+85C HCOMS SMD1晶体谐振器40.0MHz 3225 20ppm 3.3V EPSON 钟振40.0MHZ 5070 30ppm 3.3v 4脚温补晶振40.0mhz 3225 0.5ppm 3.3v 常温DSA321SDA-40MHz温补晶振40.0MHz 3225 DSA321SDA KDS温补晶振40.0MHZ 5070 VCTCXO +-2ppm 3.3v HCMOS -40-+85C恒温晶振40.0MHz DIP36X27 SINE 5.5V 0.01PPM -40-80 -150DBC 温补晶振40.96MHZ 5070 -30℃~+85℃ ±1PPM 3.3V 压控范围±5PP 钟振44.645MHz DIP14 20PPM温补晶振45.0MHZ 5070 ±2PPM HCMOS +3.3VDC -30 to +85 温补晶振45.0MHZ 5070 -30-80 方波 3.3V 带压控±2.0ppm温补晶振45.0MHZ 5070 -40-85 方波 3.3V 带压控±2.0ppm温补晶振45.0MHZ 5070 -40-85 方波 3.3V 带压控±2.0ppm温补晶振45.0MHZ DIP14 ±2PPM HCMOS +3.3VDC -30 to +85温补晶振45.0MHZ DIP14 -30-80 方波 3.3V 带压控±2.0ppm温补晶振45.0MHZ DIP14 -40-85 方波 3.3V 带压控±2.0ppm温补晶振45.0MHZ DIP14 -40-85 方波 3.3V 带压控±2.0ppm钟振48.0mhz 5032 3.3V 20ppm 四脚温补晶振48.0MHZ DIP38X38 DIP 5V TTL 0-70℃ 1ppm 不带调晶体振荡器50.0MHZ 3225 3.3V +-50ppm -40-+85C钟振50.0MHZ 3225 3.3V ±50ppm台湾亚陶钟振50.0MHz 5032 3.3V 30ppm钟振50.0MHZ 5032 3.3V ±50ppm温补晶振50.0MHz 5070 0.5ppm HCMOS 3V 0-50度钟振50.0MHZ 5070 3.3V ±50ppm晶体振荡器50.0MHZ 5070 3V 20PPM SMD温补晶振50.0MHz DIP14 0.5ppm Sine 3V 0-50度恒温晶振50.0MHZ DIP14 3.3V 1KHZ 125 10KHZ 130 +-200PPB +-10温补晶振50.0MHZ DIP14 3.3V -20+70 1.0ppm 正弦波温补晶振50.0MHZ DIP14 3.3V -20+70 1.0ppm 正弦波恒温晶振50.0MHZ DIP25X25 5PPB 0.005ppm 5.0V 0-+75℃ HCMO 恒温晶振50.0MHz DIP36X27 TTL 0.05PPM -20-70 140DBC 1K 5V压温补晶振51.2MHZ 5070 -30℃~+85℃ ±1PPM 3.3V 压控范围±5PP 恒温晶振52.0Mhz DIP20X20 0.05PPM@-20~70 5V 方波晶体谐振器54.0MHZ SMD2520 10ppm 8PF -20-75 NX2520SA NDK钟振54MHZ 5070 3.3V 30ppm温补晶振55.296MHZ 5070 4PIN -40-85 2PPM 3.3V TCV 压控晶振61.44MHZ SMD14X9温补晶振62.0Mhz SMD11X9 0.5ppm -40-+85 5v clipped sine 温补晶振62.0Mhz SMD11X9 0.5ppm -40-+85 5v clipped sine 温补晶振62.0MHz SMD11X9 0.5PPM SINE -40-85 105DBC 1K 3.3V 温补晶振64.0MHz DIP14 HCMOS 1.5PPM -20-70 3.3V 1K 120DBC 恒温晶振65.536MHZ DIP36X27 -40-80 1E-10 0.2ppb 30ppb 5VHC 钟振66.666MHz 5070 3.3V ±25PPM温补晶振67.584MHz DIP14 HCMOS ±1.5 5V -20-70 机械微调温补晶振70.455MHz DIP14 1PPM -35-70 5V SINE 1KHZ 110DBC 温补晶振72.448MHZ DIP14 0.5ppm 正弦波－20－70恒温晶振76.8MHz 0.05PPM 5V电压工业级 OCXO恒温晶振78.0MHZ DIP36X27 SC 0.02PPM 0-40 5V SINE VCOCXO 恒温晶振78.0MHZ DIP36X27 稳定性+-0.2PPM 压控可调恒温晶振78.6432MHz DIP25X25 2*10-8 0.02ppm -20-70 0.1ppm/年1K/-135dBc恒温晶振78.6432MHz DIP25X25 2*10-8 0.02ppm -20-70 0.1ppm/年1K/-150dBc温补晶振80.0MHZ 5070 1PPM -40-+85 3.3V HCMOS温补晶振80.0MHZ 5070 1PPM -40-+85 3.3V HCMOS温补晶振80.0MHZ DIP14 1PPM 3.3V 0-65℃温补晶振80.0MHz SMD11X9 0.3PPM -40-85 SINE 3.3 -110DBC 温补晶振80.0MHz SMD11X9 3PPM -55-90 CLIPP SINE 3.3 -110D 钟振81.360MHz DIP14 ±30 ppm 0＋70 5V CMOS TTL ≤5nS 恒温晶振97.536MHZ DIP25X25 1×10-7 -55℃～90℃温补晶振100.0MHZ 5070 1PPM -30~80 相噪 1KHz -100 方波3.3V 晶体振荡器100.0MHZ 5070 3.3V -40-85 50PPM TXC温补晶振*****************************.3VSINE-20-60 温补晶振100.0MHZ DIP14 1PPM -10-60 HCMOS 3.3V 温补晶振100.0MHZ DIP14 1PPM -10-60 HCMOS 3.3V温补晶振100.0MHZ DIP20X20 5V SINE HCMOS -30-85 0.5PPM -130温补晶振******************************* 3.3V SINE -20-7恒温晶振100.0MHz DIP25X25 0.1ppm Sine 3.3V -30--+80C 1KHz/恒温晶振100.0MHZ DIP25X25 1×10-7 -55℃～90℃恒温晶振100.0MHz DIP25X25 SINE 0.5PPM -10-60 135DBC 1K 压控恒温晶振100.0MHz DIP36X27 SINE 0.01PPM 0.05PPM 1K-155DBC 9差分晶振100.0MHz DIP8 13X13 LVPECL 0.5PPM 3.3V 5PPM -4恒温晶振100.02MHz DIP14 + -0.1ppm 0-70 1kHZ -155dbc/HZ 恒温晶振102.4MHZ DIP25X25 0.1PPM 正弦波方波OCXO温补晶振102.4MHZ DIP25X25 0.3PPM 正弦波方波 TCXO压控晶振122.88MHZ SMD14X9压控晶振122.88mhz SMD14X9 VCXO LV-PECL VC3D4B210-122.8压控晶振122.88mhz SMD14X9 VCXO LV-PECL VC3D4B210-122.8温补晶振124.0MHZ DIP14 1PPM -10-60 HCMOS 3.3V 温补晶振125.0MHZ DIP14 1PPM -10-60 HCMOS 3.3V差分晶振125.0MHz DIP8 13X13 LVPECL 0.5PPM 3.3V 5PPM -4温补晶振127.5MHz DIP14 不压控温特性1ppm 年老化1ppm 3.3V 温补晶振140.0MHz DIP14 -20-70 1PPM 5V 5X10-6秒稳输出幅度大于欧姆差分晶振148.5MHZ 5070 2.5V/3.3V 输出LVDS PECL工业级温补晶振299.792458MHZ DIP14 1PPM -20-70 5V TTL HCMOS 温补晶振300.0MHZ DIP14 1PPM -20-70 5V TTL HCMOS。

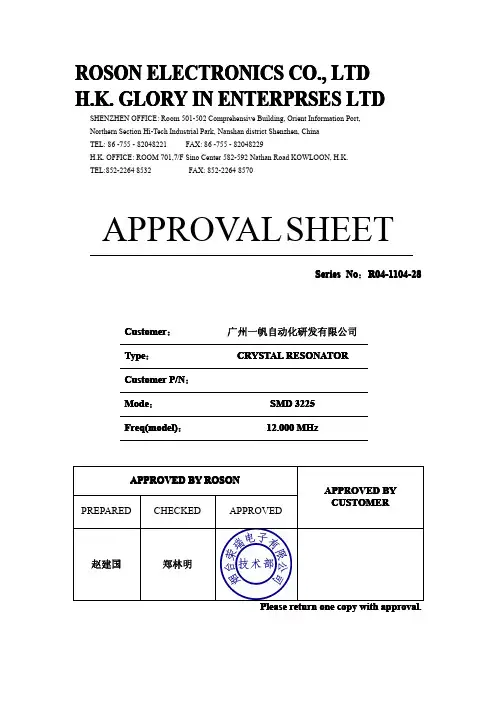

ROSON ELECTRONICS CO.,LTLTD DH.K.GLORY IN ENTERPRSES LTDSHENZHEN OFFICE:Room501-502Comprehensive Building,Orient Information Port,Northern Section Hi-Tech Industrial Park,Nanshan district Shenzhen,ChinaTEL:86-755-82048221FAX:86-755-82048229H.K.OFFICE:ROOM701,7/F Sino Center582-592Nathan Road KOWLOON,H.K.TEL:852-********FAX:852-******** APPROV ALSHEET4-1104-28Series No：R0R04-1104-28Customer：广州一帆自动化研发有限公司Type：CRYSTAL RESONATORCustomer P/N：Mode：SMD3225Freq(model)：12.000MHzAPPROVED BY ROSONAPPROVED BYCUSTOMER PREPARED CHECKED APPROVED赵建国郑林明Please return one copy with approval.1、GENERALOscillation Mode：AT,FundamentalNominal Frequency：12.000MHzLoad Capacitance：22PFStorage Temperature：from–40to+85℃Operable Temperature：from–20to+70℃2、ELECTRICAL PERFORMANCEFrequency Stability：±10ppm at25℃±3℃Temperature Characteristics：±20ppm from–20to+70℃Series Resistance：80Ohm max.Load Resistance：NAShunt Capacitance： 5.0pF max.Drive Level Nominal：50uWInsulation Resistance：500mΩat DC100V Aging：±3ppm/yearPackage Spec：T&R3、REMARKSMarking:Pb Free&RoHS Compliant:YesPHYSICAL&ENVIRONMENTAL PARAMETERS:No DESCDESCR R IPTION CONTENTS Requirements1Vibration 10~55Hz，0.75mm amplitude,in3directions duration of30minutes.No mechanicaldamage and themeasured values shallmeet electricalparameters.2Random Dropping The crystal will be test by natural dropping to30mm wooden broad3 times from high of30cm.3Solder Stability Dipped the terminals no closer than2mm into the solder bath at245±5℃for3±0.5sec.At least95%of theterminal surface shallbe coated by the solder4Resistance SolderHeatDipped the terminals up to2mminto the solder bath(260±5℃)for3sec,placed in a natural condition for2hours.Measured values shallmeet electricalparameters.5Thermal Shock Temperature cycling from-40℃(30mins)to+85℃(30mins)was performed3times,then placed in a natural condition for2hours.6Life Test(High Temperature)Placed in a chamber(85±2℃)for48hours,then placed in a naturalcondition for2hours.7Life Test(Low Temperature)Placed in a chamber(-40±2℃)for48hours,then placed in a naturalcondition for2hours.8Humidity Placed in a chamber(Humi:90～95%RH,Temp:40±2℃)for48 hours,then placed in a natural condition for2hours.DIMENSIONS SDIMENSIONTop view Side viewBottom view Recommended soldering patternMarking#2and#4are connected to metalcap on top.Unit：mmREFLOW PROFILEPACKING INFORMATIONTAPE DIMENSIONSREELPacking method may be changed.Please according to the delivered goods.。
