实验报告8

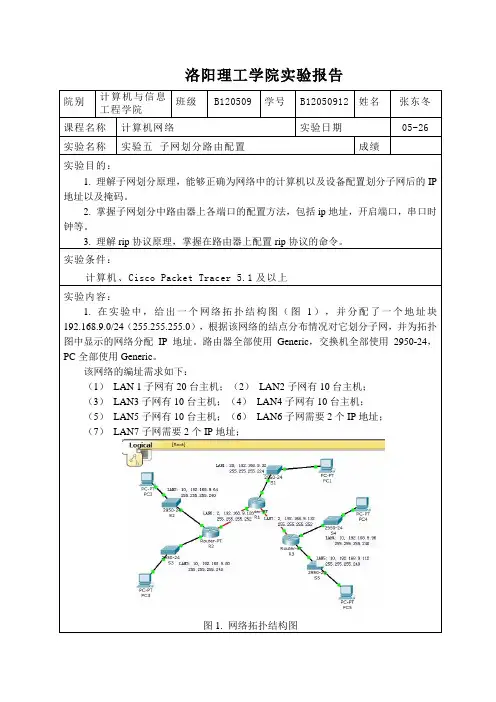

图1 (4)配置每台计算机的IP地址。
图2 配置PC0的IP地址
图3 配置PC1的IP地址
图4 配置PC2的IP地址
图5 配置PC3的IP地址
图6 配置PC4的IP地址
(5)配置路由器每个端口的IP地址。
(6)设置路由器中的路由表。
路由表设置要求网络中每个子网之间都可以连通,不考虑总结路由。
【BRANCH1的配置】
下面是配置BRANCH1的IP地址的过程,其它两个路由器的配置自行完成
(1)进入命令行
(2)进行以下操作(蓝色文字是需要输入的命令,红色文字是说明):
Continue with configuration dialog? [yes/no]: no
Press RETURN to get started!
进入控制台模式
Router>en
进入全局配置模式
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
修改路由器名称
Router(config)#hostname BRANCH1
配置Fa0/0的IP地址
BRANCH1(config)#int f0/0
BRANCH1(config-if)#ip addr 192.168.9.33 255.255.255.240
BRANCH1(config-if)#no shutdown
图7 按此方法配置其它两个路由器,此时可以测试各个子网和网关的连通情况。
(3)添加路由表。这里没有使用路由总结。
BRANCH1#conf t
Enter configuration commands, one per line. End with CNTL/Z.
BRANCH1(config)#ip route 192.168.9.32 255.255.255.240 f0/0
BRANCH1(config)#ip route 192.168.9.48 255.255.255.240 f0/1
BRANCH1(config)#ip route 192.168.9.0 255.255.255.224 192.168.9.130
BRANCH1(config)#ip route 192.168.9.64 255.255.255.240 192.168.9.130
BRANCH1(config)#ip route 192.168.9.80 255.255.255.240 192.168.9.130
返回控制台
BRANCH1(config)#^Z
%SYS-5-CONFIG_I: Configured from console by console
查看路由表
BRANCH1#show ip route(抓图如下图8)
图8
【HQ的配置】
(1)进入命令行。
(2)进行以下操作(红色文字是说明):
Continue with configuration dialog? [yes/no]: n
Press RETURN to get started!
Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname HQ
配置IP地址HQ(config)#int f0/1
HQ(config-if)#ip addr 192.168.9.1 255.255.255.224
HQ(config-if)#no shutdown
%LINK-5-CHANGED: Interface FastEthernet0/1, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/1, changed state to up HQ(config-if)#int s0/0
HQ(config-if)#ip addr 192.168.9.130 255.255.255.252
HQ(config-if)#no shutdown
%LINK-5-CHANGED: Interface Serial0/0, changed state to up
HQ(config-if)#clock rate 64000
%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0, changed state to up
HQ(config-if)#int s0/1
HQ(config-if)#ip addr 192.168.9.134 255.255.255.252
HQ(config-if)#no shutdown
配置DCE设备的时钟频率。HQ是HQ和BRANCH2之间的DCE设备。
%LINK-5-CHANGED: Interface Serial0/1, changed state to up
HQ(config-if)#clock rate 64000
HQ(config-if)#
%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1, changed state to up
HQ(config-if)#^Z
%SYS-5-CONFIG_I: Configured from console by console
查看IP地址配置情况
HQ#show ip int bri(抓图如下图9)
图9 添加路由表。这里使用了路由总结,路由表从5条减少到3条。
HQ#conf t
Enter configuration commands, one per line. End with CNTL/Z.
HQ(config)#ip route 192.168.9.0 255.255.255.224 f0/1
HQ(config)#ip route 192.168.9.32 255.255.255.224 192.168.9.129
HQ(config)#ip route 192.168.9.64 255.255.255.224 192.168.9.133
HQ(config)#^Z
%SYS-5-CONFIG_I: Configured from console by console
HQ#show ip route(抓图如下图10)
