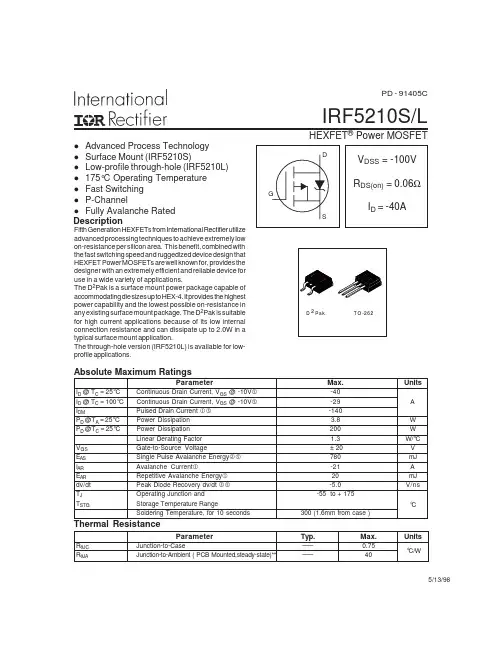

IRF5210S/L
HEXFET® Power MOSFETPD - 91405C
lAdvanced Process TechnologylSurface Mount (IRF5210S)lLow-profile through-hole (IRF5210L)l175°C Operating TemperaturelFast SwitchinglP-ChannellFully Avalanche Rated
5/13/98SD
GAbsolute Maximum RatingsFifth Generation HEXFETs from International Rectifier utilizeadvanced processing techniques to achieve extremely lowon-resistance per silicon area. This benefit, combined withthe fast switching speed and ruggedized device design thatHEXFET Power MOSFETs are well known for, provides thedesigner with an extremely efficient and reliable device foruse in a wide variety of applications.The D2Pak is a surface mount power package capable ofaccommodating die sizes up to HEX-4. It provides the highestpower capability and the lowest possible on-resistance inany existing surface mount package. The D2Pak is suitablefor high current applications because of its low internalconnection resistance and can dissipate up to 2.0W in atypical surface mount application.The through-hole version (IRF5210L) is available for low-profile applications.DescriptionVDSS = -100V
EVERLIGHT ELECTRONICS CO.,LTD.
DATA SHEET
PART NO. ：17-21SYGC/S530-E2/TR8DATE ：2005.08.17.DEPARTMENT：SZIEREVISION ：2RECEIVED■MASS PRODUCTION□ PRELIMINARY□ CUSTOMER DESIGNDEVICE NUMBER : SZ DSE-171-024 PAGE :9CUSTOMERDESIGNERCHECKERAPPROVERMeng Yali AuhBuck
2 New data sheet approve2005.08.17REVDESCRIPTIONRELEASE DATEOFFICE : NO 25,Lane 76,Chung Yang Rd,Sec.3 Tucheng, Taipei 236, Taiwan, R.O.C.TEL : 886-2-2267-2000,2266-9936 ( 22 Lines )FAX : 886-2-2267-6189
元器件交易网 EVERLIGHT ELECTRONICS CO.,LTD.
Everlight Electronics Co., Ltd. Rev. 2 Page: 1 of 9 Device No :SZ DSE-171-024 Prepared date:17-Aug-2005 Prepared by:Meng Yali Technical Data Sheet 0805 Package Chip LEDs 17-21SYGC/S530-XX/TR8 Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS complaint Version. Descriptions ․The 17-21 SMD Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Automotive: backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide
6-Channel Audio Processor ICPT2322
PT2322 v1.0Page 1 November 2002Tel : 886-2-66296288Fax: 886-2-29174598URL:
DESCRIPTIONPT2322 is a 6-Channel Audio Processor IC utilizing CMOS Technology specially designed for audioapplications. 6-channel individual input, 6-channel master volume control, 6-channel individual volumetrim control, 3-band tone control (treble, middle, and bass), mute function, 3D effect function, tonedefeat function are all built into a single chip having the highest performance and reliability with theleast components. Furthermore, the pin assignments and application circuit are optimized for easy PCBLayout and cost saving benefits. Housed in 28 pins, DIP or SO Package, PT2322 is the ultimate answerto your every audio system needs.FEATURES•Very Low Power Consumption (DC=9V)•I2C Bus Control•6-Channel Individual Input•6-Channel Master Volume Control: 0 to -79 dB (1 dB/step)•6-Channel Individual Output TRIM Volume Control: 0 to -15 dB (1dB/step)•3-Band Tone Control (Treble, Middle, Bass): + 14dB , 2dB/step•Mute Function•3D Effect Function •Tone Defeat Function•Low Noise•High Channel Separation•Low Harmonic Distortion•Least External Components•Easy to Use•Available in 28-pin, DIP or SO PackageAPPLICATIONS•Audio/Video System•Multi-Media Speakers•TV System•PC Audio•AC3 Amplifier System元器件交易网6-Channel Audio Processor ICPT2322
Philips SemiconductorsProduct data
MAX809/MAX8103-pin microprocessor resets
22003 Aug 08DESCRIPTIONThe MAX809/MAX810 are single function microprocessor resetsused to monitor supply voltages in microprocessor and other logicsystems. They provide a reset signal to the microprocessor duringpower-up, power-down, and brownout conditions. The reset signal isasserted when the supply voltage drops below the preset threshold,and the signal is released a set time after the supply voltage hasrisen above the preset threshold.The MAX809 has an active-LOW reset output while the MAX810has an active-HIGH reset output.The low supply current of typically 17 µA makes theMAX809/MAX810 ideal for use in portable, battery operatedequipment. They are available in the 3-pin SOT23 and SC70packages.FEATURES•Monitors 5.0 V, 3.3 V and 3 V supplies•140 ms min. reset delay time:–Active-LOW RESET output (MAX809)–Active-HIGH RESET output (MAX810)•Power supply transient immunity•Guaranteed reset valid for 1.1 V•Available in small SOT23 and SC70 3-pin packages•No external components needed•Specified over full temperature range –40 °C to +105 °C
