Chapter 3Designing with the MCB与MCB的设计本章提供了有关如何设计与系列Spartan®-6 FPGA的详细信息MCB。
它包含以下几个部分：•设计流程•支持的存储设备•仿真•资源利用•时钟•迁移和银行•PCB布局考量设计流程有对MCB的两个支持的设计流程：•非嵌入式设计流程•传统的FPGA设计流程用Xilinx®ISE®工具•MIG工具的核心是发电机™工具中的MCB设计中使用•嵌入式设计流程•处理器为基础与EDK工具流程FPGA系统设计•IP配置在Xilinx平台工作室（XPS）是EDK环境中的MCB设计中使用两个工具流程为开发一种可靠的接口的外部存储器装置的简单方法。
阿一步一步的图形用户界面驱动的流程允许MCB的设计进行配置和参数设置，以满足应用的具体需求。
MIG工具流实际上有两个“包装”水平：低级别封装（mcb_raw_wrapper.v）和顶层的包装（例如，memc3_wrapper.v）。
较低级别的封装集成了所有必要的硅块（MCB，I / O等）和软逻辑（软校准模块）所需的溶液。
它还提供了访问与底层硬件实现的用户界面端口和校准逻辑相关联的所有信号。
顶层的包装器处理信号的重新分配，打结较低级别的包装信号，根据需要，并传递下来的参数值，以根据用户的选择在MIG工具的下包装。
顶级的包装提出了只有那些实现MCB-based设计MIG工具流期间配置所需的信号的一个干净的界面。
例如，在低级别的包装总是显示所有6的用户界面上的原生32位端口，顶级包装重新分配信号，领带关闭不使用的端口，并连接巴士出示Port接口的用户期望，比如一个64位端口。
顶层的包装器是一个被随后集成到更大的FPGA设计。
较低级别的包装（mcb_raw_wrapper.v）是记录在本使用手册。
第2章中的参数和信号列表，例如，都是相对于该下位包装器描述。
基于在MIG工具的GUI流程做出的选择这个包装不改变，而最上层的包装器定制为用户选择的结果。

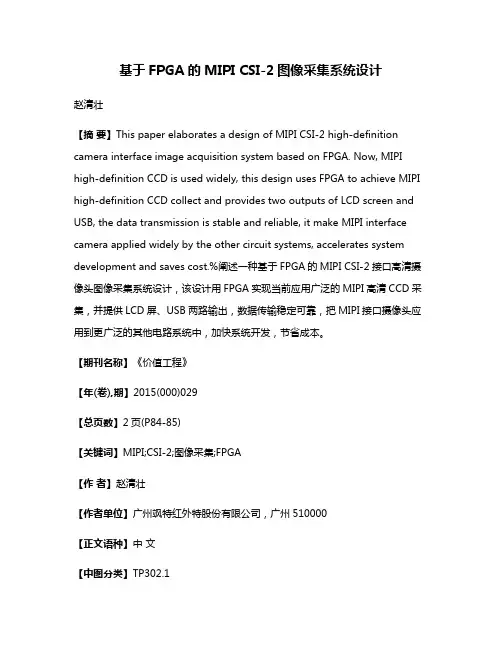

基于FPGA的MIPI CSI-2图像采集系统设计赵清壮【摘要】This paper elaborates a design of MIPI CSI-2 high-definition camera interface image acquisition system based on FPGA. Now, MIPI high-definition CCD is used widely, this design uses FPGA to achieve MIPI high-definition CCD collect and provides two outputs of LCD screen and USB, the data transmission is stable and reliable, it make MIPI interface camera applied widely by the other circuit systems, accelerates system development and saves cost.%阐述一种基于FPGA的MIPI CSI-2接口高清摄像头图像采集系统设计，该设计用FPGA实现当前应用广泛的MIPI高清CCD采集，并提供LCD屏、USB两路输出，数据传输稳定可靠，把MIPI接口摄像头应用到更广泛的其他电路系统中，加快系统开发，节省成本。
【期刊名称】《价值工程》【年(卷),期】2015(000)029【总页数】2页(P84-85)【关键词】MIPI;CSI-2;图像采集;FPGA【作者】赵清壮【作者单位】广州飒特红外特股份有限公司，广州510000【正文语种】中文【中图分类】TP302.10 引言CSI（Camera Serial Interface)是由MIPI（Mobile Industry Processor Interface）联盟下Camera工作组制定的接口标准，是MIPI联盟发起的为移动应用处理器制定的开放标准，MIPI联盟由ARM、诺基亚、意法半导体和德州仪器发起成立，作为移动行业领导者的合作组织，MIPI联盟旨在确定并推动移动应用处理器接口的开放性标准。
