OPENCV2.4.2移植到TINY6410

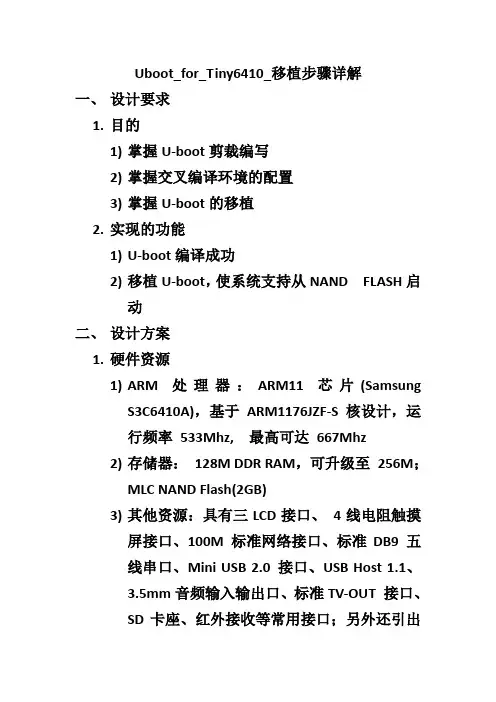

Uboot_for_Tiny6410_移植步骤详解一、设计要求1.目的1)掌握U-boot剪裁编写2)掌握交叉编译环境的配置3)掌握U-boot的移植2.实现的功能1)U-boot编译成功2)移植U-boot，使系统支持从NAND FLASH启动二、设计方案1.硬件资源1)ARM处理器：ARM11芯片(SamsungS3C6410A)，基于ARM1176JZF-S核设计，运行频率533Mhz, 最高可达667Mhz2)存储器：128M DDR RAM，可升级至256M；MLC NAND Flash(2GB)3)其他资源：具有三LCD接口、4线电阻触摸屏接口、100M 标准网络接口、标准DB9 五线串口、Mini USB 2.0 接口、USB Host 1.1、3.5mm音频输入输出口、标准TV-OUT 接口、SD卡座、红外接收等常用接口；另外还引出4路TTL串口，另1 路TV-OUT、SDIO2 接口(可接SD WiFi)接口等；在板的还有蜂鸣器、I2C-EEPROM、备份电池、AD可调电阻、8 个中断式按键等。

2.软件资源1)arm-linux-gcc-4.5.1（交叉编译）2)u-boot-2010.09.tar.gzarm-linux-gcc-4.5.1-v6-vfp-20101103.tgz三、移植过程1.环境搭建1)建立交叉编译环境2)去这2 个网站随便下载都可以下载得到最新或者你想要的u-boot。

（/batch.viewlink.php?itemid=1694ftp://ftp.denx.de/pub/u-boot/）下面是具体的对u-boot…的修改一：下载并解压u-boot-gxb.tar.gz。

#tar xzvf u-boot-gxb.tar.gz二：在顶层的目录下找到Makefile文件，并用gedit打开在Makefile中找到下面代码进行修改########################################################################## ARM1176 Systems#########################################################################smdk6400_noUSB_config \smdk6400_config : unconfig@mkdir -p $(obj)include $(obj)board/samsung/smdk6400@mkdir -p $(obj)nand_spl/board/samsung/smdk6400@echo "#define CONFIG_NAND_U_BOOT" > $(obj)include/config.h@echo "CONFIG_NAND_U_BOOT = y" >> $(obj)include/config.mk@if [ -z "$(findstring smdk6400_noUSB_config,$@)" ]; then \echo "RAM_TEXT = 0x57e00000" >> $(obj)board/samsung/smdk6400/config.tmp;\ else \echo "RAM_TEXT = 0xc7e00000" >> $(obj)board/samsung/smdk6400/config.tmp;\ fi@$(MKCONFIG) smdk6400 arm arm1176 smdk6400 samsung s3c64xx@echo "CONFIG_NAND_U_BOOT = y" >> $(obj)include/config.mk下面红色的为新增加的#=====================更改部分=======================================tiny6410_noUSB_config \tiny6410_config : unconfig@mkdir -p $(obj)include $(obj)board/samsung/tiny6410@mkdir -p $(obj)nand_spl/board/samsung/tiny6410@echo "#define CONFIG_NAND_U_BOOT" > $(obj)include/config.h@echo "CONFIG_NAND_U_BOOT = y" >> $(obj)include/config.mk@if [ -z "$(findstring tiny6410_noUSB_config,$@)" ]; then \echo "RAM_TEXT = 0x57e00000" >>$(obj)board/samsung/tiny6410/config.tmp;\else \echo "RAM_TEXT = 0xc7e00000" >> $(obj)board/samsung/tiny6410/config.tmp;\fi@$(MKCONFIG) tiny6410 arm arm1176 tiny6410 samsung s3c64xx@echo "CONFIG_NAND_U_BOOT = y" >> $(obj)include/config.mk#==================================================================三: arch/arm/cpu/arm1176/s3c64xx/cpu_init.S#gedit arch/arm/cpu/arm1176/s3c64xx/cpu_init.S#include <config.h>#include <asm/arch/s3c6400.h>.globl mem_ctrl_asm_initmem_ctrl_asm_init:/* DMC1 base address 0x7e001000 */ldr r0, =ELFIN_DMC1_BASEldr r1, =0x4str r1, [r0, #INDEX_DMC_MEMC_CMD]ldr r1, =DMC_DDR_REFRESH_PRDstr r1, [r0, #INDEX_DMC_REFRESH_PRD]ldr r1, =DMC_DDR_CAS_LATENCYstr r1, [r0, #INDEX_DMC_CAS_LATENCY]ldr r1, =DMC_DDR_t_DQSSstr r1, [r0, #INDEX_DMC_T_DQSS]ldr r1, =DMC_DDR_t_MRDstr r1, [r0, #INDEX_DMC_T_MRD]ldr r1, =DMC_DDR_t_RASstr r1, [r0, #INDEX_DMC_T_RAS]ldr r1, =DMC_DDR_t_RCstr r1, [r0, #INDEX_DMC_T_RC]ldr r1, =DMC_DDR_t_RCDldr r2, =DMC_DDR_schedule_RCDorr r1, r1, r2str r1, [r0, #INDEX_DMC_T_RCD]ldr r1, =DMC_DDR_t_RFCldr r2, =DMC_DDR_schedule_RFCorr r1, r1, r2str r1, [r0, #INDEX_DMC_T_RFC]ldr r1, =DMC_DDR_t_RPldr r2, =DMC_DDR_schedule_RPorr r1, r1, r2str r1, [r0, #INDEX_DMC_T_RP]ldr r1, =DMC_DDR_t_RRDstr r1, [r0, #INDEX_DMC_T_RRD]ldr r1, =DMC_DDR_t_WRstr r1, [r0, #INDEX_DMC_T_WR]ldr r1, =DMC_DDR_t_WTRstr r1, [r0, #INDEX_DMC_T_WTR]ldr r1, =DMC_DDR_t_XPstr r1, [r0, #INDEX_DMC_T_XP]ldr r1, =DMC_DDR_t_XSRstr r1, [r0, #INDEX_DMC_T_XSR]ldr r1, =DMC_DDR_t_ESRstr r1, [r0, #INDEX_DMC_T_ESR]ldr r1, =DMC1_MEM_CFGstr r1, [r0, #INDEX_DMC_MEMORY_CFG]ldr r1, =DMC1_MEM_CFG2str r1, [r0, #INDEX_DMC_MEMORY_CFG2]ldr r1, =DMC1_CHIP0_CFGstr r1, [r0, #INDEX_DMC_CHIP_0_CFG]ldr r1, =DMC_DDR_32_CFGstr r1, [r0, #INDEX_DMC_USER_CONFIG]/* DMC0 DDR Chip 0 configuration direct command reg */ ldr r1, =DMC_NOP0str r1, [r0, #INDEX_DMC_DIRECT_CMD]/* Precharge All */ldr r1, =DMC_PA0str r1, [r0, #INDEX_DMC_DIRECT_CMD]/* Auto Refresh 2 time */ldr r1, =DMC_AR0str r1, [r0, #INDEX_DMC_DIRECT_CMD]str r1, [r0, #INDEX_DMC_DIRECT_CMD]/* MRS */ldr r1, =DMC_mDDR_EMR0str r1, [r0, #INDEX_DMC_DIRECT_CMD]/* Mode Reg */ldr r1, =DMC_mDDR_MR0str r1, [r0, #INDEX_DMC_DIRECT_CMD]/* Enable DMC1 */mov r1, #0x0str r1, [r0, #INDEX_DMC_MEMC_CMD]check_dmc1_ready:ldr r1, [r0, #INDEX_DMC_MEMC_STATUS]mov r2, #0x3and r1, r1, r2cmp r1, #0x1bne check_dmc1_readynop添加下面红色的代码/*===========================更改部分=============================*/#if defined(CONFIG_TINY6410)#define SROM_BC1_REG_Tacs (0x0) // 0clk address set-up#define SROM_BC1_REG_Tcos (0x4) // 4clk chip selection set-up #define SROM_BC1_REG_Tacc (0xE) // 14clk access cycle#define SROM_BC1_REG_Tcoh (0x1) // 1clk chip selection hold#define SROM_BC1_REG_Tah (0x4) // 4clk address holding time#define SROM_BC1_REG_Tacp (0x6) // 6clk page mode access cycle #define SROM_BC1_REG_PMC (0x0) // normal(1data)page mode configuration#define SROM_BW_REG_DATA ((1<<7) | (1<<6) | (1<<4))#define SROM_BW_REG_BC1 (0xf << 4)#define SROM_BC1_REG_DATA ((SROM_BC1_REG_Tacs << 28) | \(SROM_BC1_REG_Tcos << 24) | \(SROM_BC1_REG_Tacc << 16) | (SROM_BC1_REG_Tcoh << 12) | \ (SROM_BC1_REG_Tah << 8) | (SROM_BC1_REG_Tacp << 4) | \(SROM_BC1_REG_PMC))ldr r0, =ELFIN_SROM_BASEldr r1, [r0, #SROM_BW_REG_DATA]mov r2, #(~SROM_BW_REG_BC1)and r1, r1, r2mov r2, #SROM_BW_REG_DATAorr r1, r1, r2str r1, [r0, #INDEX_SROM_BW_REG]ldr r1, =SROM_BC1_REG_DATAstr r1, [r0, #INDEX_SROM_BC1_REG]#endif/*========================================================*/ mov pc, lr.ltorg四：修改arch/arm/cpu/arm1176/s3c64xx/Makefile# gedit arch/arm/cpu/arm1176/s3c64xx/Makefileinclude $(TOPDIR)/config.mkLIB = $(obj)lib$(SOC).aSOBJS = reset.o#COBJS-$(CONFIG_S3C6400) += cpu_init.o speed.o添加下面红色代码#==================================更改部分================================ COBJS-$(CONFIG_S3C6410) += cpu_init.o speed.o#========================================================================= COBJS-y += timer.oOBJS := $(addprefix $(obj),$(SOBJS) $(COBJS-y))all: $(obj).depend $(START) $(LIB)$(LIB): $(OBJS)$(AR) $(ARFLAGS) $@ $(OBJS)五：修改arch\arm\include\asm\arch-s3c64xx\s3c64x0.h#ifndef __S3C64XX_H__#define __S3C64XX_H__添加红色代码/*==================================更改部分===============================*/ #if defined(CONFIG_SYNC_MODE) && defined(CONFIG_S3C6400) || defined(CONFIG_S3C6410) /*========================================================================*//*#error CONFIG_SYNC_MODE unavailable on S3C6400, please, fix your configuration!*/#endif#include <asm/types.h>六：修改arch/arm/include/asm/arch-s3c64xx/s3c6400.h#define ELFIN_SROM_BASE 0x70000000#define SROM_BW_REG __REG(ELFIN_SROM_BASE + 0x0)#define SROM_BC0_REG __REG(ELFIN_SROM_BASE + 0x4)#define SROM_BC1_REG __REG(ELFIN_SROM_BASE + 0x8)#define SROM_BC2_REG __REG(ELFIN_SROM_BASE + 0xC)#define SROM_BC3_REG __REG(ELFIN_SROM_BASE + 0x10)#define SROM_BC4_REG __REG(ELFIN_SROM_BASE + 0x14)#define SROM_BC5_REG __REG(ELFIN_SROM_BASE + 0x18)添加下面红色代码/*====================================更改部分=============================*/ #define INDEX_SROM_BW_REG 0x0#define INDEX_SROM_BC0_REG 0x4#define INDEX_SROM_BC1_REG 0x8#define INDEX_SROM_BC2_REG 0xC#define INDEX_SROM_BC3_REG 0x10#define INDEX_SROM_BC4_REG 0x14#define INDEX_SROM_BC5_REG 0x18/*========================================================================*//*七：在board/samsung建立tiny6410的文件夹，并且把smdk6400文件里面的所有文件复制过去，在修改board/samsung/tiny6410/lowlevel_init.S_TEXT_BASE:.word TEXT_BASE.globl lowlevel_initlowlevel_init:mov r12, lr/* LED on only #8 *//*=========================================更改部分========================*/ #if 0ldr r0, =ELFIN_GPIO_BASEldr r1, =0x55540000str r1, [r0, #GPNCON_OFFSET]ldr r1, =0x55555555str r1, [r0, #GPNPUD_OFFSET]ldr r1, =0xf000str r1, [r0, #GPNDAT_OFFSET]#endif/*=========================================================================*/ 将上面的红色的部分屏蔽掉wakeup_reset:/* Clear wakeup status register */ldr r0, =(ELFIN_CLOCK_POWER_BASE + WAKEUP_STAT_OFFSET)ldr r1, [r0]str r1, [r0]/* LED test *//*========================================更改部分===========================*/ #if 0ldr r0, =ELFIN_GPIO_BASEldr r1, =0x3000str r1, [r0, #GPNDAT_OFFSET]#endif/*===========================================================================*/ /* Load return address and jump to kernel */ldr r0, =(ELFIN_CLOCK_POWER_BASE + INF_REG0_OFFSET)/* r1 = physical address of s3c6400_cpu_resume function */ldr r1, [r0]/* Jump to kernel (sleep-s3c6400.S) */mov pc, r1nopnop将上面红色的部分屏蔽掉/** This was unconditional in original Samsung sources, but it doesn't* seem to make much sense on S3C6400.*//*======================================更改部分===========================*/ /*#ifndef CONFIG_S3C6400*/#if !defined(CONFIG_S3C6400) && !defined(CONFIG_S3C6410)/*=========================================================================*/ ldr r1, [r0, #OTHERS_OFFSET]bic r1, r1, #0xC0orr r1, r1, #0x40str r1, [r0, #OTHERS_OFFSET]八：修改board/Samsung/tiny6410/Makefile中include $(TOPDIR)/config.mkLIB = $(obj)lib$(BOARD).a#=============================更改部分=====================COBJS-y := tiny6410.oSOBJS := lowlevel_init.o#===========================================================SRCS := $(SOBJS:.o=.S) $(COBJS-y:.o=.c)OBJS := $(addprefix $(obj),$(COBJS-y))SOBJS := $(addprefix $(obj),$(SOBJS))九：修改board/samsung/tiny6410/tiny6410.c屏蔽掉下面头文件;/*===========================更改部分====================================*/ #if 0#include <netdev.h>#endif/*============================================================================* /#include <asm/arch/s3c6400.h>/* ===============================更改部分====================================*/ #if 0#define CS8900_Tacs 0x0 /* 0clk address set-up */#define CS8900_Tcos 0x4 /* 4clk chip selection set-up */#define CS8900_Tacc 0xE /* 14clk access cycle */#define CS8900_Tcoh 0x1 /* 1clk chip selection hold */#define CS8900_Tah 0x4 /* 4clk address holding time */#define CS8900_Tacp 0x6 /* 6clk page mode access cycle */#define CS8900_PMC 0x0 /* normal(1data)page mode configuration */#endif/*============================================================================* /static inline void delay(unsigned long loops){__asm__ volatile ("1:\n" "subs %0, %1, #1\n""bne 1b": "=r" (loops) : "0" (loops));}/** Miscellaneous platform dependent initialisations*//*=====================================更改部分==========================*/#if 0static void cs8900_pre_init(void){SROM_BW_REG &= ~(0xf << 4);SROM_BW_REG |= (1 << 7) | (1 << 6) | (1 << 4);SROM_BC1_REG = ((CS8900_Tacs << 28) + (CS8900_Tcos << 24) +(CS8900_Tacc << 16) + (CS8900_Tcoh << 12) +(CS8900_Tah << 8) + (CS8900_Tacp << 4) + CS8900_PMC);}#endif/*=======================================================================*/int board_init(void){DECLARE_GLOBAL_DATA_PTR;/*=========================================更改部分===================*/ #if 0cs8900_pre_init();#endif/* NOR-flash in SROM0 *//* Enable WAIT */SROM_BW_REG |= 4 | 8 | 1;gd->bd->bi_arch_number = MACH_TYPE;gd->bd->bi_boot_params = PHYS_SDRAM_1 + 0x100;return 0;}int dram_init(void){DECLARE_GLOBAL_DATA_PTR;gd->bd->bi_dram[0].start = PHYS_SDRAM_1;gd->bd->bi_dram[0].size = PHYS_SDRAM_1_SIZE;return 0;}#ifdef CONFIG_DISPLAY_BOARDINFOint checkboard(void){printf("Board: TINY6410\n");return 0;}#endif#ifdef CONFIG_ENABLE_MMU/*=====================================更改部分==========================*/ ulong virt_to_phy_tiny6410(ulong addr)/*=======================================================================*/ {if ((0xc0000000 <= addr) && (addr < 0xc8000000))return addr - 0xc0000000 + 0x50000000;elseprintf("do not support this address : %08lx\n", addr);return addr;}#endif/*=======================================更改部分=======================*/ #if 0ulong board_flash_get_legacy (ulong base, int banknum, flash_info_t *info){if (banknum == 0) { /* non-CFI boot flash */info->portwidth = FLASH_CFI_16BIT;info->chipwidth = FLASH_CFI_BY16;info->interface = FLASH_CFI_X16;return 1;} elsereturn 0;}#endif/*=======================================================================*//*=================================更改部分===============================*/#ifdef CONFIG_CMD_NETint board_eth_init(bd_t *bi){int rc = 0;#if defined(CONFIG_DRIVER_DM9000)rc = dm9000_initialize(bi);#endifreturn rc;}#endif十:修改drivers/net/dm9000x.cDM9000_ior(DM9000_MRCMDX); /* Dummy read *//* Get most updated data,only look at bits 0:1, See application notes DM9000 */rxbyte = DM9000_inb(DM9000_DATA) & 0x03;/*========================================更改部分==========================*/ #if 1u8 temp;temp=DM9000_ior(DM9000_MRRH);temp=DM9000_ior(DM9000_MRRL);#endif红色的为增加的/*============================================================================= *//* Status check: this byte must be 0 or 1 */if (rxbyte > DM9000_PKT_RDY) {DM9000_iow(DM9000_RCR, 0x00); /* Stop Device */DM9000_iow(DM9000_ISR, 0x80); /* Stop INT request */printf("DM9000 error: status check fail: 0x%x\n",rxbyte);return 0;}十一：修改drivers/usb/host/ohci-hcd.c#ifdef CONFIG_AT91RM9200#include <asm/arch/hardware.h> /* needed for AT91_USB_HOST_BASE */#endif//=====================更改部分================#if defined(CONFIG_ARM920T) || \defined(CONFIG_S3C24X0) || \defined(CONFIG_S3C6400) || \defined(CONFIG_S3C6410) || \defined(CONFIG_440EP) || \defined(CONFIG_PCI_OHCI)|| \defined(CONFIG_MPC5200) || \defined(CONFIG_SYS_OHCI_USE_NPS)//=============================================# define OHCI_USE_NPS /* force NoPowerSwitching mode */#endif#undef OHCI_VERBOSE_DEBUG /* not always helpful */十二：include/configs/tiny6410.h/** High Level Configuration Options* (easy to change)*///======================更改部分==================================//#define CONFIG_S3C6400 1 /* in a SAMSUNG S3C6400 SoC */#define CONFIG_S3C6410 1 /* in a SAMSUNG S3C6400 SoC */ //===============================================================#define CONFIG_S3C64XX 1 /* in a SAMSUNG S3C64XX Family */#define CONFIG_SMDK6400 1 /* on a SAMSUNG SMDK6400 Board *///=========================更改部分====================================#define CONFIG_TINY6410 1//===================================================================#define CONFIG_SKIP_RELOCATE_UBOOT#define CONFIG_PERIPORT_REMAP#define CONFIG_PERIPORT_BASE 0x70000000#define CONFIG_PERIPORT_SIZE 0x13#define CONFIG_SYS_SDRAM_BASE 0x50000000/* input clock of PLL: SMDK6400 has 12MHz input clock */#define CONFIG_SYS_CLK_FREQ 12000000#if !defined(CONFIG_NAND_SPL) && (TEXT_BASE >= 0xc0000000)#define CONFIG_ENABLE_MMU#endif#define CONFIG_SETUP_MEMORY_TAGS#define CONFIG_CMDLINE_TAG#define CONFIG_INITRD_TAG/** Architecture magic and machine type*///===================更改部分=====================/*#define MACH_TYPE 1270 */#define MACH_TYPE 2520//==============================================#define CONFIG_DISPLAY_CPUINFO#define CONFIG_DISPLAY_BOARDINFO/** Size of malloc() pool*/#define CONFIG_SYS_MALLOC_LEN (CONFIG_ENV_SIZE + 1024 * 1024) #define CONFIG_SYS_GBL_DATA_SIZE 128 /* size in bytes for initial data *//** Hardware drivers*///==========================更改部分============================ 将sc8900的网卡干掉#if 0#define CONFIG_NET_MULTI#define CONFIG_CS8900 /* we have a CS8900 on-board */#define CONFIG_CS8900_BASE 0x18800300#define CONFIG_CS8900_BUS16 /* follow the Linux driver */#endif换成下面的#define CONFIG_NET_MULTI 1#define CONFIG_DRIVER_DM9000 1#define CONFIG_DM9000_NO_SROM 1#define CONFIG_DM9000_USE_16BIT 1#define CONFIG_DM9000_BASE 0x18000300#define DM9000_IO CONFIG_DM9000_BASE#define DM9000_DATA (CONFIG_DM9000_BASE+4)#define CONFIG_ETHADDR 08:08:10:12:10:27#define CONFIG_NETMASK 255.255.255.0#define CONFIG_IPADDR 192.168.1.253#define CONFIG_SERVERIP 192.168.1.159#define CONFIG_GATEWAYIP 192.168.1.1//=============================================================/** select serial console configuration*/#define CONFIG_SERIAL1 1 /* we use SERIAL 1 on SMDK6400 */#define CONFIG_SYS_HUSH_PARSER /* use "hush" command parser */ #ifdef CONFIG_SYS_HUSH_PARSER#define CONFIG_SYS_PROMPT_HUSH_PS2 "> "#endif#define CONFIG_CMDLINE_EDITING/* allow to overwrite serial and ethaddr */#define CONFIG_ENV_OVERWRITE#define CONFIG_BAUDRATE 115200/************************************************************ Command definition***********************************************************/#include <config_cmd_default.h>#define CONFIG_CMD_CACHE#define CONFIG_CMD_REGINFO#define CONFIG_CMD_LOADS#define CONFIG_CMD_LOADB#define CONFIG_CMD_SAVEENV#define CONFIG_CMD_NAND#if defined(CONFIG_BOOT_ONENAND)#define CONFIG_CMD_ONENAND#endif#define CONFIG_CMD_PING#define CONFIG_CMD_ELF#define CONFIG_CMD_FAT#define CONFIG_CMD_EXT2//===========================================更改部分==================添加红色部分#undef CONFIG_CMD_IMLS//======================================================================#define CONFIG_BOOTDELAY 3#define CONFIG_ZERO_BOOTDELAY_CHECK#if (CONFIG_COMMANDS & CONFIG_CMD_KGDB)#define CONFIG_KGDB_BAUDRATE 115200 /* speed to run kgdb serial port */#define CONFIG_KGDB_SER_INDEX 1 /* which serial port to use */#endif/** Miscellaneous configurable options*/#define CONFIG_SYS_LONGHELP /* undef to save memory */下面修改为自己喜欢的提示字符//==============================更改部分====================================== //#define CONFIG_SYS_PROMPT "SMDK6400 # " /* Monitor Command Prompt */ #define CONFIG_SYS_PROMPT "TINY6410 # " /* Monitor Command Prompt *///===========================================================================#define CONFIG_SYS_CBSIZE 256 /* Console I/O Buffer Size */#define CONFIG_SYS_PBSIZE 384 /* Print Buffer Size */#define CONFIG_SYS_MAXARGS 16 /* max number of command args */#define CONFIG_SYS_BARGSIZE CONFIG_SYS_CBSIZE /* Boot Argument Buffer Size */#define CONFIG_SYS_MEMTEST_START C ONFIG_SYS_SDRAM_BASE /* memtest works on*/#define CONFIG_SYS_MEMTEST_END (CONFIG_SYS_SDRAM_BASE + 0x7e00000) /* 126MB in DRAM */#define CONFIG_SYS_LOAD_ADDR CONFIG_SYS_SDRAM_BASE /* default load address */#define CONFIG_SYS_HZ 1000/* valid baudrates */#define CONFIG_SYS_BAUDRATE_TABLE { 9600, 19200, 38400, 57600, 115200 }/*-----------------------------------------------------------------------* Stack sizes** The stack sizes are set up in start.S using the settings below*/#define CONFIG_STACKSIZE 0x40000 /* regular stack 256KB *//**********************************Support Clock Settings**********************************Setting SYNC ASYNC----------------------------------667_133_66 X O533_133_66 O O400_133_66 X O400_100_50 O O**********************************/提高主频//===========================================更改部分===================== #define CONFIG_CLK_667_133_66//#define CONFIG_CLK_533_133_66//========================================================================= /*#define CONFIG_CLK_400_100_50#define CONFIG_CLK_400_133_66#define CONFIG_SYNC_MODE*//* SMDK6400 has 2 banks of DRAM, but we use only one in U-Boot */#define CONFIG_NR_DRAM_BANKS 1#define PHYS_SDRAM_1 CONFIG_SYS_SDRAM_BASE /* SDRAM Bank #1 */#define PHYS_SDRAM_1_SIZE 0x08000000 /* 128 MB in Bank #1 */#define CONFIG_SYS_FLASH_BASE 0x10000000#define CONFIG_SYS_MONITOR_BASE 0x00000000/*-----------------------------------------------------------------------* FLASH and environment organization*/#define CONFIG_SYS_MAX_FLASH_BANKS 1 /* max number of memory banks *//* AM29LV160B has 35 sectors, AM29LV800B - 19 */#define CONFIG_SYS_MAX_FLASH_SECT 40#define CONFIG_AMD_LV800//===================================更改部分=========================//#define CONFIG_SYS_FLASH_CFI 1 /* Use CFI parameters (needed?) */将上面的换成下面红色的部分#define CONFIG_SYS_NO_FLASH 1 /* Use CFI parameters (needed?) *///=================================================================//=========================更改部分===================================删掉下面黄色的#if 0/* Use drivers/cfi_flash.c, even though the flash is not CFI-compliant */#define CONFIG_FLASH_CFI_DRIVER 1#define CONFIG_SYS_FLASH_CFI_WIDTH FLASH_CFI_16BIT#define CONFIG_FLASH_CFI_LEGACY#define CONFIG_SYS_FLASH_LEGACY_512Kx16/* timeout values are in ticks */#define CONFIG_SYS_FLASH_ERASE_TOUT (5 * CONFIG_SYS_HZ) /* Timeout for Flash Erase */ #define CONFIG_SYS_FLASH_WRITE_TOUT (5 * CONFIG_SYS_HZ) /* Timeout for Flash Write */ #endif//============================================================================= ==========#define CONFIG_ENV_SIZE 0x4000 /* Total Size of Environment Sector *//** SMDK6400 board specific data*///=========================================更改部分============================ //#define CONFIG_IDENT_STRING " for SMDK6400"将上面的改为下面的#define CONFIG_IDENT_STRING " for TINY6410"//============================================================================= ====/* base address for uboot */#define CONFIG_SYS_PHY_UBOOT_BASE (CONFIG_SYS_SDRAM_BASE + 0x07e00000)/* total memory available to uboot */#define CONFIG_SYS_UBOOT_SIZE (1024 * 1024)十三：修改include/common.hulong get_OPB_freq (void);ulong get_PCI_freq (void);#endif/*======================================更改部分============================*/ #if defined(CONFIG_S3C24X0) || \defined(CONFIG_LH7A40X) || \defined(CONFIG_S3C6400) || \defined(CONFIG_S3C6410) || \ 添加红色的defined(CONFIG_EP93XX)/*============================================================================= */ulong get_FCLK (void);ulong get_HCLK (void);ulong get_PCLK (void);ulong get_UCLK (void);#endif十四：修改顶层的MAKEALL########################################################################### ARM11 Systems#########################################################################LIST_ARM11=" \cp1136 \omap2420h4 \apollon \imx31_litekit \imx31_phycore \imx31_phycore_eet \mx31ads \mx31pdk \mx31pdk_nand \qong \smdk6400 \tnetv107x_evm \添加下面红色的部分/*=======================================更改部分============================*/ tiny6410 \/*===========================================================================*/ "#########################################################################十五：修改顶层的MAINTAINERS修改下面的为自己的Alex Z黳ke <azu@sysgo.de>lart SA1100dnp1110 SA1110/*==================================更改部分=============================*/ Wnn168<wnn168@>TINT6410 ARM1176JZF-S (S3C6410)/*========================================================================*/-------------------------------------------------------------------------Unknown / orphaned boards:十六：修改nand_spl/board/samsung/ tiny6410/config.mk下面的这个没有改动# FriendlyARM TINY6410 development board,based on# Samsung S3C64xx Reference Platform (smdk6400) board# TEXT_BASE for SPL:## On S3C64xx platforms the SPL is located in SRAM at 0.## TEXT_BASE = 0include $(TOPDIR)/board/$(BOARDDIR)/config.mk# PAD_TO used to generate a 4kByte binary needed for the combined image# -> PAD_TO = TEXT_BASE + 4096PAD_TO := $(shell expr $(TEXT_BASE) + 4096)ifeq ($(debug),1)PLATFORM_CPPFLAGS += -DDEBUGEndif十七：在nand_sql/board/Samsung/tiny6410 这个tiny6410是仿照上述smdk6410做的内容一样复制然后修改下面的就OKNand_sql/board/Samsung/tiny6410/Makefile# from board directory#=========================更改部分=================================== $(obj)lowlevel_init.S:@rm -f $@# @ln -s $(TOPDIR)/board/samsung/smdk6400/lowlevel_init.S $@@ln -s $(TOPDIR)/board/samsung/tiny6410/lowlevel_init.S $@#=================================================================# from nand_spl directory。

Tiny6410 的内核移植（拿来主义）一、开发环境宿主机: vista+VMware+ fedoral13(win7下虚拟机)编译器: 友善自带arm-linux-gcc-4.5.1-v6-vfp-20101103.tgz开发板: tiny6410，核心板号1106 NAND 2G RAM 256M注意：移植内核时，确保引导文件为u-boot类型，否则到后面下载到开发板使会出现乱码以及不必要的错误二、移植nand_flash1 下载linux-2.6.38的源码ftp:///pub/linux/kernel/v2.6/linux-2.6.38.tar.bz22 解压#tar xvfj /mnt/ubuntu/linux-2.6.38.tar.bz2 -C .3 修改根下的Makefile#vi Makefile191行改为ARCH ?= armCROSS_COMPILE ?= arm-linux- (找到其交叉编译环境)4 生成默认配置文件#cp arch/arm/configs/s3c6400_defconfig .config（如果省略的话，后面会找不到System Type）5 修改配置项（基本配置）#make menuconfigGeneral setup->(/usr/4.5.1/bin/arm-linux-) Cross-compiler tool prefix 我将编译器解压到了/opt/Friendly/toolschain/4.5.1/bin目录（如果第三步中以修改“plier ? = arm-linux- ”此项，这步可以不作）System Type->[*] MINI6410 选上，其他的可以去掉，不确定的可以参考友善之臂的（这样编译出来的内核是可以被uboot引导的，然后是增加nand flash支持）vi arch/arm/mach-s3c64xx/mach-mini6410.c第117行struct mtd_partition mini6410_nand_part[] = {{.name = "Bootloader",.offset = 0,.size = (4 * 128 *SZ_1K),.mask_flags = MTD_CAP_NANDFLASH,},{.name = "Kernel",.offset = (4 * 128 *SZ_1K),.size = (5*SZ_1M) ,.mask_flags = MTD_CAP_NANDFLASH,},{.name = "File System",.offset = MTDPART_OFS_APPEND,.size = MTDPART_SIZ_FULL,}}; //update at 2011-8-26 经过测试发现，这里改完后根本不起作用，甚至将整个注释也无妨，估计分区已经固死在后面的s3c_nand_mlc.fo 中6 拷贝NAND FLASH驱动（将6410内核中的如下文件拷到相应的目录下）需拷贝文件：drivers/mtd/nand/s3c_nand.carch/arm/plat-samsung/include/plat/regs-nand.h 覆盖掉drivers/mtd/nand/s3c_nand_mlc.fo《s3c_nand_mlc.fo友善没有开源的一个驱动之一，所以不用研究了，拷过来就是了。

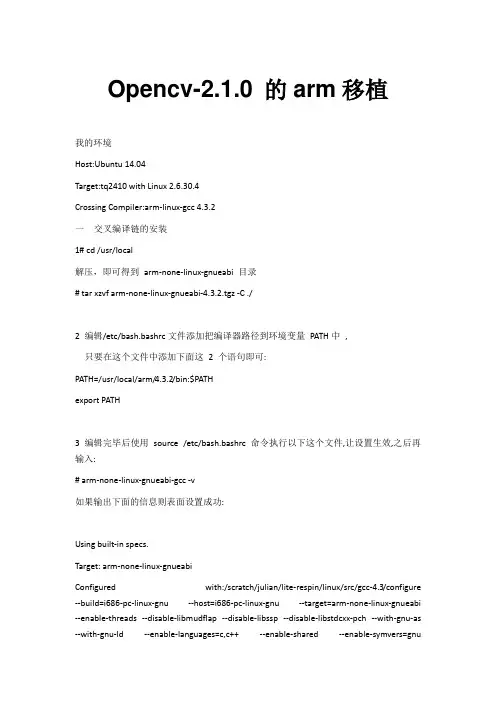

Opencv-2.1.0 的arm移植我的环境Host:Ubuntu 14.04Target:tq2410 with Linux 2.6.30.4Crossing Compiler:arm-linux-gcc 4.3.2一交叉编译链的安装1# cd /usr/local解压，即可得到arm-none-linux-gnueabi 目录# tar xzvf arm-none-linux-gnueabi-4.3.2.tgz -C ./2 编辑/etc/bash.bashrc文件添加把编译器路径到环境变量PA TH中,只要在这个文件中添加下面这2 个语句即可:PATH=/usr/local/arm/4.3.2/bin:$PA THexport PA TH3 编辑完毕后使用source /etc/bash.bashrc 命令执行以下这个文件,让设置生效,之后再输入:# arm-none-linux-gnueabi-gcc -v如果输出下面的信息则表面设置成功:Using built-in specs.Target: arm-none-linux-gnueabiConfigured with:/scratch/julian/lite-respin/linux/src/gcc-4.3/configure --build=i686-pc-linux-gnu --host=i686-pc-linux-gnu --target=arm-none-linux-gnueabi --enable-threads --disable-libmudflap --disable-libssp --disable-libstdcxx-pch --with-gnu-as --with-gnu-ld --enable-languages=c,c++ --enable-shared --enable-symvers=gnu--enable-__cxa_atexit --with-pkgversion='Sourcery G++ Lite 2008q3-72' --with-bugurl=https:///GNUToolchain/--disable-nls--prefix=/opt/codesourcery--with-sysroot=/opt/codesourcery/arm-none-linux-gnu eabi/libc--with-build-sysroot=/scratch/julian/lite-respin/linux/install/arm-none-linux-gnueabi/libc--with-gmp=/scratch/julian/lite-respin/linux/obj/host-libs-2008q3-72-arm-none-linux-gnueabi-i686-p c-linux-gnu/usr--with-mpfr=/scratch/julian/lite-respin/linux/obj/host-libs-2008q3-72-arm-non e-linux-gnueabi-i686-pc-linux-gnu/usr--disable-libgomp--enable-poison-system-directories--with-build-time-tools=/scratch/julian/lit e-respin/linux/install/arm-none-linux-gnueabi/ bin --with-build-time-tools=/scratch/julian/lite-respin/linux/install/arm-none-linux-gnueabi/bin Thread model: posixgcc version 4.3.2 (Sourcery G++ Lite 2008q3-72)但是，此时会报错：bash:/usr/local/arm/4.3.2/bin/arm-none-linux-gnueabi-gcc:没有那个文件或目录这是因为是为62位机与32位不兼容，在64位ubuntu系统上运行32位程序需要安装32位lib网上很多地方说用#sudo apt-get install ia32-libs可解决，但是我执行之后却显示：# sudo apt-get install ia32-libs正在读取软件包列表... 完成正在分析软件包的依赖关系树正在读取状态信息... 完成正在读取软件包列表... 完成正在分析软件包的依赖关系树正在读取状态信息... 完成现在没有可用的软件包ia32-libs，但是它被其它的软件包引用了。

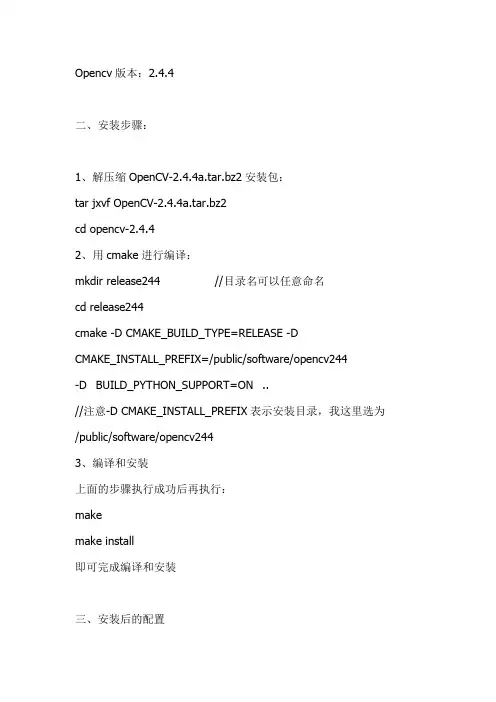

Opencv版本：2.4.4二、安装步骤：1、解压缩OpenCV-2.4.4a.tar.bz2安装包：tar jxvf OpenCV-2.4.4a.tar.bz2cd opencv-2.4.42、用cmake进行编译：mkdir release244 //目录名可以任意命名cd release244cmake -D CMAKE_BUILD_TYPE=RELEASE -DCMAKE_INSTALL_PREFIX=/public/software/opencv244-D BUILD_PYTHON_SUPPORT=ON ..//注意-D CMAKE_INSTALL_PREFIX表示安装目录，我这里选为/public/software/opencv2443、编译和安装上面的步骤执行成功后再执行：makemake install即可完成编译和安装三、安装后的配置1、准备环境变量文件：vi /etc/profile.d/opencv-env.shexport LD_LIBRARY_PATH=/public/software/opencv244/lib:$LD_LIB RARY_PATHexport INCLUDE=/public/software/opencv244/include/opencv:/publi c/software/opencv244/include/opencv2:$INCLUDEexport PKG_CONFIG_PATH=/public/software/opencv244/lib/pkgconf ig//这个文件是根据之前的安装目录写的，PKG_CONFIG_PATH这个必须写，其他两个貌似也可以不写2、载入环境变量：. /etc/profile.d/opencv-env.sh四、算例演示1、准备算例：cat myopencv.cpp#include "highgui.h"int main( int argc, char** argv )IplImage* img = cvLoadImage( argv[1] ); cvNamedWindow( "Example1", CV_WINDOW_AUTOSIZE ); cvShowImage( "Example1", img );cvWaitKey(0);cvReleaseImage( &img );cvDestroyWindow( "Example1" );}2、编译g++ `pkg-config opencv --libs --cflags opencv` myopencv.cpp -o myopencv编译成功后会生成可执行文件myopencv3、运行向此目录下上传一张图片，比如我这里是Lena.jpg执行：./myopencv Lena.jpg便可弹出图片。

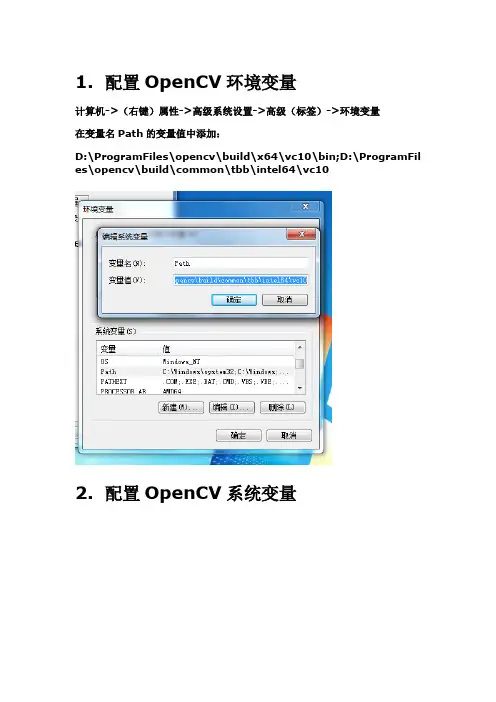

1.配置OpenCV环境变量计算机->（右键）属性->高级系统设置->高级（标签）->环境变量在变量名Path的变量值中添加：D:\ProgramFiles\opencv\build\x64\vc10\bin;D:\ProgramFil es\opencv\build\common\tbb\intel64\vc102.配置OpenCV系统变量在用户变量中新建OPENCV,添加变量值D:\Program Files\opencv\build3.配置工程的opencv依赖1）项目（菜单项）->…属性->VC++目录：需要配置“包含目录”和“库目录”两项。

2）、配置“包含目录”项3）配置“库目录”项：4）、配置连接器：项目（菜单项）->…属性->连接器->输入->附加依赖项针对debug配置添加以下库：opencv_calib3d240d.libopencv_contrib240d.libopencv_core240d.libopencv_features2d240d.libopencv_flann240d.libopencv_gpu240d.libopencv_highgui240d.libopencv_imgproc240d.libopencv_legacy240d.libopencv_ml240d.libopencv_objdetect240d.libopencv_ts240d.libopencv_video240d.lib如果是release配置（以后再说，只需要添加上面的debug配置就行了现在），则添加：opencv_calib3d240.libopencv_contrib240.libopencv_core240.libopencv_features2d240.libopencv_flann240.libopencv_gpu240.libopencv_highgui240.libopencv_imgproc240.libopencv_legacy240.libopencv_ml240.libopencv_objdetect240.libopencv_ts240.libopencv_video240.lib1）、文件->新建->项目->Visual C++->Win32 控制台应用程序（输入名称test）2）、确定->下一步->附加选项选“空项目”->完成3）、解决方案资源管理器->源文件（右键）->添加->新建项4）、Visual C++->C++文件：输入名称test点添加5）、粘贴下面的代码，保存1 #include <opencv2\opencv.hpp>2 #include <iostream>3 #include <string>4using namespace cv;5using namespace std;6int main()7 {8 Mat img = imread("pp.jpg");9if(img.empty())10 {11 cout<<"error";12return -1;13 }14 imshow("xx的靓照",img);15 waitKey();1617return0;18 }6）、把自己的靓照改名为pp.jpg，然后放到工程项目的test文件夹里面（是里面那个test 文件夹）7）、按照第3步骤的方法配置工程的opencv依赖。

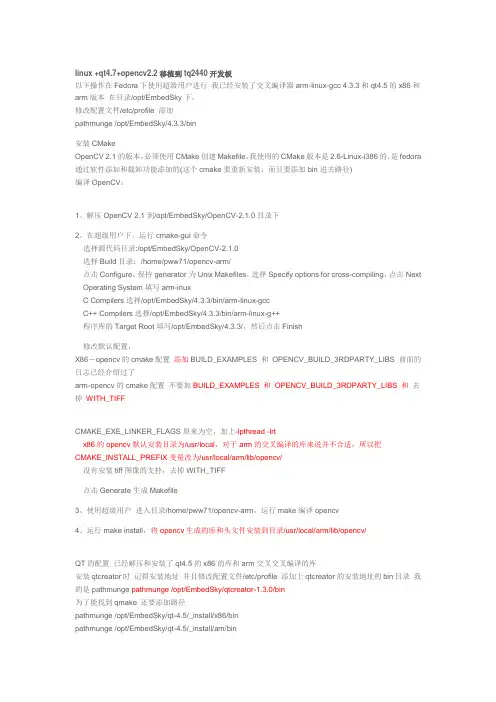

linux +qt4.7+opencv2.2移植到tq2440开发板以下操作在Fedora下使用超级用户进行我已经安装了交叉编译器arm-linux-gcc 4.3.3和qt4.5的x86和arm版本在目录/opt/EmbedSky下。

修改配置文件/etc/profile 添加pathmunge /opt/EmbedSky/4.3.3/bin安装CMakeOpenCV 2.1的版本，必须使用CMake创建Makefile。

我使用的CMake版本是2.6-Linux-i386的，是fedora 通过软件添加和载卸功能添加的(这个cmake要重新安装，而且要添加bin进去路径)编译OpenCV：1、解压OpenCV 2.1到/opt/EmbedSky/OpenCV-2.1.0目录下2、在超级用户下，运行cmake-gui命令选择源代码目录:/opt/EmbedSky/OpenCV-2.1.0选择Build目录：/home/pww71/opencv-arm/点击Configure，保持generator为Unix Makefiles，选择Specify options for cross-compiling，点击Next Operating System填写arm-inuxC Compilers选择/opt/EmbedSky/4.3.3/bin/arm-linux-gccC++ Compilers选择/opt/EmbedSky/4.3.3/bin/arm-linux-g++程序库的Target Root填写/opt/EmbedSky/4.3.3/，然后点击Finish修改默认配置，X86－opencv的cmake配置添加BUILD_EXAMPLES 和OPENCV_BUILD_3RDPARTY_LIBS 前面的日志已经介绍过了arm-opencv的cmake配置不要加BUILD_EXAMPLES 和OPENCV_BUILD_3RDPARTY_LIBS 和去掉WITH_TIFFCMAKE_EXE_LINKER_FLAGS原来为空，加上-lpthread -lrtx86的opencv默认安装目录为/usr/local，对于arm的交叉编译的库来说并不合适，所以把CMAKE_INSTALL_PREFIX变量改为/usr/local/arm/lib/opencv/没有安装tiff图像的支持，去掉WITH_TIFF点击Generate生成Makefile3、使用超级用户进入目录/home/pww71/opencv-arm，运行make编译opencv4、运行make install，将opencv生成的库和头文件安装到目录/usr/local/arm/lib/opencv/QT的配置已经解压和安装了qt4.5的x86的库和arm交叉交叉编译的库安装qtcreator时记得安装地址并且修改配置文件/etc/profile 添加上qtcreator的安装地址的bin目录我的是pathmunge pathmunge /opt/EmbedSky/qtcreator-1.3.0/bin为了能找到qmake 还要添加路径pathmunge /opt/EmbedSky/qt-4.5/_install/x86/binpathmunge /opt/EmbedSky/qt-4.5/_install/am/bin到配置文件/etc/profile中使用超级用户输入命令source /etc/profile 后再执行qtcreator命令打开Qtcreator界面进入Tools-Options左侧选择QT4-Qt Versions 右侧选项里：如果通过软件添加和载卸工具添加了qt4的话Auto-detected会自动的选择Qt in PATH /usr/local/bin/qmake-qt4 用这个qmake工具生成的可执行文件不用添加-qws命令行参数自己安装的qt4.5 我是如下配置Qt in PATH /opt/EmbedSky/qt-4.5/_install/arm/bin/qmake添加Manual x86-qt-4.5.0 /opt/EmbedSky/qt-4.5/_install/x86/bin/qmake生成的可执行文件需要添加-qws命令行参数分别点击rebuild 最后点击okBuild Settings 中根据需要Add刚才配置的选择BUild configuration for ... 也选择相应的选项在QT工程文件.Pro中添加以下内容INCLUDEPATH += /usr/local/include/opencvLIBS += /usr/local/lib/libcv.so \/usr/local/lib/libcvaux.so \/usr/local/lib/libcxcore.so \/usr/local/lib/libhighgui.so \/usr/local/lib/libml.sopc仿真必须将以上库还要添加到项目文件夹里如果是arm开发板的程序则添加以下内容INCLUDEPATH += /usr/local/arm/lib/opencv/include/opencvLIBS += /usr/local/arm/lib/opencv/lib/libcv.so \/usr/local/arm/lib/opencv/lib/libcvaux.so \/usr/local/arm/lib/opencv/lib/libcxcore.so \/usr/local/arm/lib/opencv/lib/libhighgui.so \/usr/local/arm/lib/opencv/lib/libml.so编译生成可执行文件移植到开发板提示缺少什么库就按提示添加相应的图像库到lib中以及qt4.5的库和字体都添加到相应的目录中中间有一个这个提示QWSDisplay::Data::init: Invalid argumentClient can't attach to main ram memory.Aborted这个是表示缺少命令行参数-qws是Qt4的问题运行命令添加该参数ok一切正常注意的是qtcreator。

工具是RVDS2.2 开发板是Tiny6410，本人亲测可用的。

启动文件，和主函数可以自己写，关键是mlcd.c文件！启动文件中的s3c6410.inc image_cfg.inc 和MemParam_mDDR.inc 比较大放在了最后面。

请自建一人main.c 文件，并在Extern LCD_Init();Extern LCD_DrewPixel(int x,int y,int color);void main(){ LCD_Init(); LCD_DrawPixel(100,100, 0x00);}就可以打一个点了。

源程序来自网络！/**************************************************************************************启动文件strartup.s 跳到void mian函数****************************** ***********/INCLUDE s3c6410.incINCLUDE image_cfg.incINCLUDE MemParam_mDDR.incIMPORT main ; C entrypoint for Steppingstone loader.; AREA |.astart|,ALIGN=2,CODE;AreaName SETS "|.astart|";------------------------------------------------------------------------------;; Memory Start Entry;; 内存里直接启动时入口;;------------------------------------------------------------------------------PRESERVE8AREA |C$$code|, CODE, READONL Yglobal MemStartMemStart;------------------------------------; Disable WatchDog Timer;------------------------------------ldr r0, =WTCONldr r1, =0x0str r1, [r0];------------------------------------; Enable VIC Port @Andrew Huang;------------------------------------mrc p15,0,r0,c1,c0,0orr r0,r0,#(1<<24)mcr p15,0,r0,c1,c0,0b mainDCB "ABCDabcd"; END/****************************************************************************** ******mlcd.c 文件********调用LCD_Init();就可完成初始化，调用LCD_DrawPixel就可以在自定义的x，y 打一个color 颜色的点************///mlcd.c文件#include "s3c6410_addr.h"#include "utils.h"#include "mlcd.h"#define LCD_YSIZE (272)#define LCD_XSIZE (480)#ifdef LCDvolatile unsigned int LCD_BUFFER[272][480];unsigned int addr = (unsigned int)LCD_BUFFER;void LCD_DrawPixel(unsigned int x, unsigned int y, unsigned int color){if((x<480) && (y<272))LCD_BUFFER[y][x] = color;}void LCD_Init(void){//（1）将J管脚的第二功能设为LCD VD、HSYNC 、VSYNC 、VDEN 、VCLK，将I管脚的第二功能设为LCD VD//init gpio func for LCD +rGPECON = 0x00011111; //GPE0: for LCD Backlight ON-OFF. GPE1~4 is GPIO.rGPEDAT = 0x00000001; //Backlight ON (some LCD(3.5) need it ,but NEC 4.3 not) rGPEPUD = 0x00000000;//gpio->GPECONSLP = 0x00000000;//gpio->GPEPUDSLP = 0x00000000;rGPFCON = 0x96AAAAAA; //PWM1: for Backlight Dimming. GPF13 is USB_PWR. GPF0~12 is CAM I/F.// PWM0 Control Buzzer,but now we config it as OUTPUT!!!rGPFDAT = 0x00002000; //USB_PWR ON . Buzzer OFF .rGPFPUD = 0x00000000;//gpio->GPFCONSLP = 0x00000000;//gpio->GPFPUDSLP = 0x00000000;rGPICON = 0xAAAAAAAA;rGPIPUD = 0x00000000;//gpio->GPICONSLP = 0x00000000;//gpio->GPIPUDSLP = 0x00000000;rGPJCON = 0x00AAAAAA;rGPJPUD = 0x00000000;//gpio->GPJCONSLP = 0x00000000;//gpio->GPJPUDSLP = 0x00000000;//init gpio func for LCD -//LCDrSPCON = rSPCON & ~(0x3) | 1;rMIFPCON &= ~(1<<3);rVIDCON0 = (0<<29)|(0<<26)|(0<<17)|(0<<16)|(9<<6)|(0<<5)|(1<<4)|(0<<2);//(0<<29)|(0<<26)|(0<<17)|(1<<16)|(5<<6)|(0<<5)|(1<<4)|(0<<2);rVIDCON1 = 1<<7;//1=RGB 类型LCD 设备在VCLK 上升沿得到视频数据//+设置屏的时序rVIDTCON0 = (0x03<<16)|(0x02<<8)|(0x02<<0);rVIDTCON1 = (0x2d<<16)|(0x04<<8)|(0x06<<0);rVIDTCON2 = (271<<11)|(479<<0);//-rWINCON0 = 11<<2;//窗口格式控制11 24显示8 16位//+VIDOSDxA ,VIDOSDxB:窗口位置控制rVIDOSD0A = (0<<11)|(0);rVIDOSD0B = (479<<11)|(271<<0);rVIDOSD0C = (((480*272)&0xFFFFFF)<<0);//-rVIDW00ADD0B0 = ((addr>>24)<<24)|(addr&0xffffff);rVIDW00ADD1B0 = (addr&0xffffff + 480*272);rVIDW00ADD2 = (0<<13)|(480);rDITHMODE=(1<<5)|(1<<3)|(1<<1);//+开显示rVIDCON0 |= 3;rWINCON0 |= 1;//-}//*****************************************//s3c6410.inc文件//******************************************;; Copyright (c) Microsoft Corporation. All rights reserved.;;; Use of this source code is subject to the terms of the Microsoft end-user; license agreement (EULA) under which you licensed this SOFTWARE PRODUCT. ; If you did not accept the terms of the EULA, you are not authorized to use; this source code. For a copy of the EULA, please see the LICENSE.RTF on your ; install media.;;-------------------------------------------------------------------------------;; Header: s3c6410.inc;; This header only those registers required by the startup; code. All addresses are based off the physical addresses (PA) defined; in s3c6410_base_reg.h (s3c6410_base_reg.inc).;;-------------------------------------------------------------------------------;-------------------------------------------------; CPU Revision Definition ( S3C6410 Has EVT0, EVT1;-------------------------------------------------EVT0 EQU (36410100)EVT1 EQU (36410101);-------------------------------------------------; System Clock Definition;-------------------------------------------------CLK_66_5MHZ EQU 66500000CLK_133MHZ EQU 133000000CLK_150MHZ EQU 150000000CLK_200MHZ EQU 200000000CLK_266MHZ EQU 266000000CLK_300MHZ EQU 300000000CLK_400MHZ EQU 400000000CLK_450MHZ EQU 450000000CLK_532MHZ EQU 532000000CLK_600MHZ EQU 600000000CLK_666MHZ EQU 666000000 ; SyncCLK_667MHZ EQU 667000000 ; ASyncCLK_798MHZ EQU 798000000 ; SyncCLK_800MHZ EQU 800000000 ; ASyncCLK_900MHZ EQU 900000000CLK_1332MHZ EQU 1332000000ECLK_96MHZ EQU 96000000ECLK_84MHZ EQU 84666667 ; for IIS 44.1 KHzECLK_92MHZ EQU 92160000 ; for IIS 48 KHzGBLA CPU_REVISIONGBLA TARGET_ARM_CLKGBLA S3C6410_ECLKGBLL CHANGE_PLL_CLKDIV_ON_EBOOTGBLL CHANGE_PLL_CLKDIV_ON_KERNELGBLL CLEAR_DRAM_ON_EBOOTGBLL CLEAR_DRAM_ON_KERNELCHANGE_PLL_CLKDIV_ON_EBOOT SETL {TRUE}CHANGE_PLL_CLKDIV_ON_KERNEL SETL {TRUE}CLEAR_DRAM_ON_EBOOT SETL {FALSE}CLEAR_DRAM_ON_KERNEL SETL {FALSE};------------------------------------------------------------------------------; Define: SYNCMODE;; SYNCMODE used to set cpu operation mode to syncronous mode or asyncronous mode ;------------------------------------------------------------------------------GBLL SYNCMODESYNCMODE SETL {TRUE};-------------------------------------------------; Change CPU Revision (S3C6410 HAS EVT0, EVT1);-------------------------------------------------CPU_REVISION SETA EVT1;-------------------------------------------------;-------------------------------------------------; Change TARGET_ARM_CLK definition for StartUp code;-------------------------------------------------;TARGET_ARM_CLK SETA CLK_66_5MHZ ; Sync 66.5:66.5:66.5 ;TARGET_ARM_CLK SETA CLK_133MHZ ; Sync 133:133:66.5;TARGET_ARM_CLK SETA CLK_266MHZ ; Sync 266:133:66.5;TARGET_ARM_CLK SETA CLK_400MHZ ; Sync 400:100:50;TARGET_ARM_CLK SETA CLK_450MHZ ; Sync 450:150:65 TARGET_ARM_CLK SETA CLK_532MHZ ; Sync 532:133:66.5;TARGET_ARM_CLK SETA CLK_600MHZ ; Sync 600:150:75;TARGET_ARM_CLK SETA CLK_666MHZ ; Sync 666:133.4:66.5 ;TARGET_ARM_CLK SETA CLK_798MHZ ; Sync 798:133:66.5;TARGET_ARM_CLK SETA CLK_800MHZ ; Sync 800:133.33:66.66 ;TARGET_ARM_CLK SETA CLK_900MHZ ; Sync 900:150:75FIN EQU 12000000;-------------------------------------------------; Include the base register definitions; Fout = MDIV*Fin/(PDIV*2^SDIV); Fvco = MDIV*Fin/PDIVINCLUDE s3c6410_base_regs.inc;-------------------------------------------------; Change S3C6410_ECLK definition for EPLL Fout;-------------------------------------------------;S3C6410_ECLK SETA ECLK_96MHZS3C6410_ECLK SETA ECLK_84MHZ;S3C6410_ECLK SETA ECLK_92MHZ;-------------------------------------------------;-------------------------------------------------; Set Clock Source : MPLL, APLL;-------------------------------------------------; MPLL Setting; 400:100:25 (Asyncronous Mode)[ (TARGET_ARM_CLK = CLK_400MHZ);Fvco=800MHz, Fout=200MHzMPLL_MV AL EQU (400)MPLL_PV AL EQU (6)MPLL_SVAL EQU (2)|; Other Clock use 266Mhz for mDDR in Asynchronous mode;Fvco=1064MHz, Fout=266MHzMPLL_PV AL EQU (3)MPLL_SVAL EQU (2)]MPLL_CLK EQU (((FIN>>MPLL_SVAL)/MPLL_PVAL)*MPLL_MV AL) ; MPLL Clock; APLL Setting[ (TARGET_ARM_CLK = CLK_400MHZ);Fvco=800MHz, Fout=400MHzAPLL_MV AL EQU (400)APLL_PV AL EQU (6)APLL_SV AL EQU (1)][ (TARGET_ARM_CLK = CLK_532MHZ):LOR:(TARGET_ARM_CLK = CLK_266MHZ):LOR:(TARGET_ARM_CLK = CLK_133MHZ):LOR:(TARGET_ARM_CLK = CLK_66_5MHZ);Fvco=1064MHz, Fout=532MHzAPLL_MV AL EQU (266)APLL_PV AL EQU (3)APLL_SV AL EQU (1)][ (TARGET_ARM_CLK = CLK_600MHZ):LAND:(SYNCMODE);Fvco=1200MHz, Fout=600MHzAPLL_MV AL EQU (300)APLL_PV AL EQU (3)APLL_SV AL EQU (1)][ (TARGET_ARM_CLK = CLK_666MHZ)[ (SYNCMODE):LAND:(CPU_REVISION = EVT1);Fvco=1332MHz, Fout=1332MHzAPLL_MV AL EQU (333)APLL_PV AL EQU (3)APLL_SV AL EQU (0)|;Fvco=1332MHz, Fout=666MHzAPLL_MV AL EQU (333)APLL_PV AL EQU (3)APLL_SV AL EQU (1)]][ (TARGET_ARM_CLK = CLK_798MHZ):LAND:(SYNCMODE);Fvco=1596MHz, Fout=798MHzAPLL_PV AL EQU (3)APLL_SV AL EQU (1)][ (TARGET_ARM_CLK = CLK_800MHZ);Fvco=1600MHz, Fout=800MHzAPLL_MV AL EQU (400)APLL_PV AL EQU (3)APLL_SV AL EQU (1)][ ((TARGET_ARM_CLK = CLK_900MHZ):LAND:(SYNCMODE)):LOR:(TARGET_ARM_CLK = CLK_450MHZ);Fvco=900MHz, Fout=900MHzAPLL_MV AL EQU (225)APLL_PV AL EQU (3)APLL_SV AL EQU (0)]APLL_CLK EQU (((FIN>>APLL_SVAL)/APLL_PV AL)*APLL_MV AL) ; APLL Clock;-------------------------------------------------; Set Clock Dividers;-------------------------------------------------MPLL_DIV EQU (2-1) ; DOUT_MPLL = MPLL_Fout/2[ (TARGET_ARM_CLK = CLK_450MHZ):LOR:(TARGET_ARM_CLK = CLK_666MHZ):LOR:(TARGET_ARM_CLK = CLK_266MHZ)APLL_DIV EQU (2-1) ; ARM_CLK = APLL_CLK/2|[ (TARGET_ARM_CLK = CLK_133MHZ)APLL_DIV EQU (4-1) ; ARM_CLK = APLL_CLK/4|[ (TARGET_ARM_CLK = CLK_66_5MHZ)APLL_DIV EQU (8-1) ; ARM_CLK = APLL_CLK/8|APLL_DIV EQU (1-1) ; ARM_CLK = APLL_CLK]]]HCLK_DIV EQU (2-1) ; AHB_CLK = HCLKx2/2[ (TARGET_ARM_CLK = CLK_66_5MHZ)PCLK_DIV EQU (2-1) ; PCLK = HCLKx2/2|PCLK_DIV EQU (4-1) ; PCLK = HCLKx2/4][ (SYNCMODE) ; Use APLL as Memory Clock Source[ (TARGET_ARM_CLK = CLK_532MHZ):LOR:(TARGET_ARM_CLK = CLK_600MHZ):LOR:(TARGET_ARM_CLK = CLK_266MHZ):LOR:(TARGET_ARM_CLK = CLK_133MHZ); ARM:AHB:APB = 4:2:1, HCLKx2 = APLL_CLK/2HCLKx2_DIV EQU (2-1) ; HCLKx2 = APLL_CLK/2][ (TARGET_ARM_CLK = CLK_666MHZ):LAND:(CPU_REVISION = EVT1) ; This setting requires enabling MISC_CON[19]HCLKx2_DIV EQU (5-1) ; HCLKx2 = APLL_CLK/5 = 266.4MHz(Hard wired-PreDivider on EVT1)][ (TARGET_ARM_CLK = CLK_798MHZ):LOR:(TARGET_ARM_CLK = CLK_900MHZ):LOR:(TARGET_ARM_CLK = CLK_450MHZ):LOR:(TARGET_ARM_CLK = CLK_800MHZ); ARM:AHB:APB = 12:2:1, HCLKx2 = APLL_CLK/3HCLKx2_DIV EQU (3-1) ; HCLKx2 = APLL_CLK/3][ (TARGET_ARM_CLK = CLK_66_5MHZ)HCLKx2_DIV EQU (4-1) ; HCLKx2 = APLL_CLK/4]| ; Use MPLL as Memory Clock Source[ (TARGET_ARM_CLK = CLK_400MHZ):LOR:(TARGET_ARM_CLK = CLK_532MHZ):LOR:(TARGET_ARM_CLK = CLK_666MHZ); ARM:AHB:APB = 4:(2:1), HCLKx2 = MPLLHCLKx2_DIV EQU (1-1) ; HCLKx2 = MPLL_CLK]] ; (SYNCMODE)ARM_CLK EQU (APLL_CLK/(APLL_DIV+1))[ (SYNCMODE)HCLK EQU (APLL_CLK/(HCLKx2_DIV+1)/(HCLK_DIV+1))|HCLK EQU (MPLL_CLK/(HCLKx2_DIV+1)/(HCLK_DIV+1))]; EPLL Fout 96 MHz[ S3C6410_ECLK = ECLK_96MHZ;Fout=96MHzEPLL_MV AL EQU (32)EPLL_PVAL EQU (1)EPLL_SVAL EQU (2)EPLL_KVAL EQU (0)] ; 96 MHz; EPLL Fout 84.666667 MHz[ S3C6410_ECLK = ECLK_84MHZ;Fout=84.67MHzEPLL_MV AL EQU (254) EPLL_PVAL EQU (9)EPLL_SVAL EQU (2)EPLL_KVAL EQU (0)] ; 84.666667 MHz; EPLL Fout 92,160,000 Hz[ S3C6410_ECLK = ECLK_92MHZ;Fout=92.16MHzEPLL_MV AL EQU (192) EPLL_PVAL EQU (25)EPLL_SVAL EQU (0)EPLL_KVAL EQU (0)] ; 92.16 MHz;---------------------------; CPSR Mode Bit Definition;---------------------------Mode_USR EQU (0x10)Mode_FIQ EQU (0x11)Mode_IRQ EQU (0x12)Mode_SVC EQU (0x13)Mode_ABT EQU (0x17)Mode_UND EQU (0x1B) Mode_SYS EQU (0x1F)Mode_MASK EQU (0x1F) NOINT EQU (0xC0)I_Bit EQU (0x80)F_Bit EQU (0x40);---------------------------; CP15 Mode Bit Definition;---------------------------R1_iA EQU (1<<31)R1_nF EQU (1<<30)R1_VE EQU (1<<24)R1_I EQU (1<<12)R1_BP EQU (1<<11) ; Z bitR1_C EQU (1<<2)R1_A EQU (1<<1)R1_M EQU (1<<0);---------------------------; Miscellaneous defines;---------------------------WORD_SIZE EQU (4)DW8 EQU (0x0)DW16 EQU (0x1)DW32 EQU (0x2)WAIT EQU (0x1<<2)UBLB EQU (0x1<<3);---------------------------;; SFR Address;;---------------------------;---------------------------; SysCon;---------------------------APLL_LOCK EQU (0x7e00f000) MPLL_LOCK EQU (0x7e00f004) APLL_CON EQU (0x7e00f00c) MPLL_CON EQU (0x7e00f010) EPLL_CON0 EQU (0x7e00f014) EPLL_CON1 EQU (0x7e00f018) CLK_SRC EQU (0x7e00f01c) CLK_DIV0 EQU (0x7e00f020)CLK_OUT EQU (0x7e00f02c)MEM_SYS_CFG EQU (0x7e00f120)OTHERS EQU (0x7e00f900)RST_STAT EQU (0x7E00F904)INFORM0 EQU (0x7E00FA00)INFORM1 EQU (0x7E00FA04)INFORM2 EQU (0x7E00FA08)INFORM3 EQU (0x7E00FA0C)vPWR_CFG EQU (0xB2A0F804)vSLEEP_CFG EQU (0xB2A0F818)vOSC_STABLE EQU (0xB2A0F824)vPWR_STABLE EQU (0xB2A0F828)vRST_STAT EQU (0xB2A0F904)vINFORM0 EQU (0xB2A0FA00)vINFORM1 EQU (0xB2A0FA04)vINFORM2 EQU (0xB2A0FA08)vINFORM3 EQU (0xB2A0FA0C);---------------------------; GPIO;---------------------------GPACON EQU (S3C6410_BASE_REG_PA_GPIO + 0x000);GPHCON0 EQU (S3C6410_BASE_REG_PA_IOPORT + 0x0E0);GPHCON1 EQU (S3C6410_BASE_REG_PA_IOPORT + 0x0E4);GPHDAT EQU (S3C6410_BASE_REG_PA_IOPORT + 0x0E8) ;GPHPUD EQU (S3C6410_BASE_REG_PA_IOPORT + 0x0EC);GPH_OneND EQU 0x2GPNCON EQU (S3C6410_BASE_REG_PA_GPIO + 0x830) GPNDAT EQU (S3C6410_BASE_REG_PA_GPIO + 0x834) GPNPUD EQU (S3C6410_BASE_REG_PA_GPIO + 0x838)MEM1DRVCON EQU (S3C6410_BASE_REG_PA_GPIO + 0x1D4);// 0x7F000000 -> 0x92B00000;vGPHCON0 EQU (0xB2B08000 + 0x0E0);vGPHCON1 EQU (0xB2B08000 + 0x0E4);vGPHDAT EQU (0xB2B08000 + 0x0E8);vGPHPUD EQU (0xB2B08000 + 0x0EC)vGPNCON EQU (0xB2B08000 + 0x830)vGPNDAT EQU (0xB2B08000 + 0x834)vGPNPUD EQU (0xB2B08000 + 0x838);vGPNCON EQU (0xB2B08830)vEINT0CON0 EQU (0xB2B08900);---------------------------; VIC;---------------------------VIC0INTENCLEAR EQU (S3C6410_BASE_REG_PA_VIC0 + 0x14) VIC1INTENCLEAR EQU (S3C6410_BASE_REG_PA_VIC1 + 0x14)vVIC0INTENABLE EQU (0xB0600010) ; VIC0vVIC0INTENCLEAR EQU (0xB0600014) ; VIC0vVIC1INTENABLE EQU (0xB0700010) ; VIC1vVIC1INTENCLEAR EQU (0xB0700014) ; VIC1NFDATA EQU 0x70200010 ; NAND Flash data register;-----------------------------------; Watch Dog Timer;-----------------------------------WTCON EQU (0x7e004000);=================; SMC;=================SMBIDCYR0 EQU 0x70000000SMBWSTRDR0 EQU 0x70000004SMBWSTWRR0 EQU 0x70000008SMBWSTOENR0 EQU 0x7000000cSMBWSTWENR0 EQU 0x70000010SMBCR0 EQU 0x70000014SMBSR0 EQU 0x70000018SMBWSTBRDR0 EQU 0x7000001cSMBIDCYR1 EQU 0x70000020SMBWSTRDR1 EQU 0x70000024SMBWSTWRR1 EQU 0x70000028SMBWSTOENR1 EQU 0x7000002cSMBWSTWENR1 EQU 0x70000030SMBCR1 EQU 0x70000034SMBSR1 EQU 0x70000038SMBWSTBRDR1 EQU 0x7000003cSMBIDCYR2 EQU 0x70000040 SMBWSTRDR2 EQU 0x70000044 SMBWSTWRR2 EQU 0x70000048 SMBWSTOENR2 EQU 0x7000004c SMBWSTWENR2 EQU 0x70000050 SMBCR2 EQU 0x70000054 SMBSR2 EQU 0x70000058 SMBWSTBRDR2 EQU 0x7000005cSMBIDCYR3 EQU 0x70000060 SMBWSTRDR3 EQU 0x70000064 SMBWSTWRR3 EQU 0x70000068 SMBWSTOENR3 EQU 0x7000006c SMBWSTWENR3 EQU 0x70000070 SMBCR3 EQU 0x70000074 SMBSR3 EQU 0x70000078 SMBWSTBRDR3 EQU 0x7000007cSMBIDCYR4 EQU 0x70000080 SMBWSTRDR4 EQU 0x70000084 SMBWSTWRR4 EQU 0x70000088 SMBWSTOENR4 EQU 0x7000008c SMBWSTWENR4 EQU 0x70000090 SMBCR4 EQU 0x70000094 SMBSR4 EQU 0x70000098 SMBWSTBRDR4 EQU 0x7000009cSMBIDCYR5 EQU 0x700000a0 SMBWSTRDR5 EQU 0x700000a4 SMBWSTWRR5 EQU 0x700000a8 SMBWSTOENR5 EQU 0x700000ac SMBWSTWENR5 EQU 0x700000b0 SMBCR5 EQU 0x700000b4 SMBSR5 EQU 0x700000b8 SMBWSTBRDR5 EQU 0x700000bcSMBIDCYR6 EQU 0x700000c0 SMBWSTRDR6 EQU 0x700000c4 SMBWSTWRR6 EQU 0x700000c8 SMBWSTOENR6 EQU 0x700000cc SMBWSTWENR6 EQU 0x700000d0 SMBCR6 EQU 0x700000d4SMBSR6 EQU 0x700000d8 SMBWSTBRDR6 EQU 0x700000dcSMBIDCYR7 EQU 0x700000e0 SMBWSTRDR7 EQU 0x700000e4 SMBWSTWRR7 EQU 0x700000e8 SMBWSTOENR7 EQU 0x700000ec SMBWSTWENR7 EQU 0x700000f0 SMBCR7 EQU 0x700000f4 SMBSR7 EQU 0x700000f8 SMBWSTBRDR7 EQU 0x700000fc;=================; DMC;=================DMC0_BASE EQU 0x7e000000DMC1_BASE EQU 0x7e001000INDEX_MEMSTAT EQU 0x0INDEX_MEMCCMD EQU 0x4INDEX_DIRECTCMD EQU 0x8 INDEX_MEMCFG EQU 0xcINDEX_REFRESH EQU 0x10INDEX_CASLAT EQU 0x14INDEX_T_DQSS EQU 0x18INDEX_T_MRD EQU 0x1cINDEX_T_RAS EQU 0x20INDEX_T_RC EQU 0x24INDEX_T_RCD EQU 0x28INDEX_T_RFC EQU 0x2cINDEX_T_RP EQU 0x30INDEX_T_RRD EQU 0x34INDEX_T_WR EQU 0x38INDEX_T_WTR EQU 0x3cINDEX_T_XP EQU 0x40INDEX_T_XSR EQU 0x44INDEX_T_ESR EQU 0x48INDEX_MEMCFG2 EQU 0x4cINDEX_ID_0_CFG EQU 0x100INDEX_ID_1_CFG EQU 0x104INDEX_ID_2_CFG EQU 0x108INDEX_ID_3_CFG EQU 0x10cINDEX_ID_4_CFG EQU 0x110INDEX_ID_5_CFG EQU 0x114INDEX_ID_6_CFG EQU 0x118INDEX_ID_7_CFG EQU 0x11cINDEX_ID_8_CFG EQU 0x120INDEX_ID_9_CFG EQU 0x124INDEX_ID_10_CFG EQU 0x128INDEX_ID_11_CFG EQU 0x12cINDEX_ID_12_CFG EQU 0x130INDEX_ID_13_CFG EQU 0x134INDEX_ID_14_CFG EQU 0x138INDEX_ID_15_CFG EQU 0x13cINDEX_CHIP0_CFG EQU 0x200INDEX_CHIP1_CFG EQU 0x204INDEX_USER_STAT EQU 0x300INDEX_USER_CFG EQU 0x304;-------------------------------------------------------------------------------; Memory Chip direct command;-------------------------------------------------------------------------------DMC_NOP0 EQU 0x0c0000DMC_NOP1 EQU 0x1c0000DMC_PA0 EQU 0x000000 ; Precharge allDMC_PA1 EQU 0x100000DMC_AR0 EQU 0x040000 ; AutorefreshDMC_AR1 EQU 0x140000DMC_SDR_MR0 EQU 0x080032 ; MRS, CAS 3, Burst Length 4DMC_SDR_MR1 EQU 0x180032DMC_DDR_MR0 EQU 0x080162DMC_DDR_MR1 EQU 0x180162DMC_mDDR_MR0 EQU 0x080032 ; CAS 3, Burst Length 4DMC_mDDR_MR1 EQU 0x180032DMC_mSDR_EMR0 EQU 0x0a0000 ; EMRS, DS:Full, PASR:Full Array DMC_mSDR_EMR1 EQU 0x1a0000DMC_DDR_EMR0 EQU 0x090000DMC_DDR_EMR1 EQU 0x190000DMC_mDDR_EMR0 EQU 0x0a0000 ; DS:Full, PASR:Full ArrayDMC_mDDR_EMR1 EQU 0x1a0000END/*************************************************//image_cfg.inc 文件/*************************************************;//------------------------------------------------------------------------------;// NAMING CONVENTION;//;// The IMAGE_ naming convention ...;//;// IMAGE_<NAME>_<SECTION>_<MEMORY_DEVICE>_[OFFSET|SIZE|START|END] ;//;// <NAME> - WINCE, BOOT, SHARE;// <SECTION> - section name: user defined;// <MEMORY_DEVICE> - the memory device the block resides on;// OFFSET - number of bytes from memory device start address;// SIZE - maximum size of the block;// START - start address of block (device address + offset);// END - end address of block (start address + size - 1);//;//------------------------------------------------------------------------------;// DRAM Base AddressDRAM_BASE_PA_START EQU (0x50000000)DRAM_BASE_CA_START EQU (0x80000000)DRAM_BASE_UA_START EQU (0xA0000000)DRAM_SIZE EQU (0x08000000);//------------------------------------------------------------------------------;// Steploader AreaIMAGE_STEPLOADER_PA_START EQU (0x00000000)IMAGE_STEPLOADER_SIZE EQU (0x00001000);//------------------------------------------------------------------------------;// Eboot AreaIMAGE_EBOOT_OFFSET EQU (0x00030000)IMAGE_EBOOT_PA_START EQU (DRAM_BASE_PA_START+IMAGE_EBOOT_OFFSET)IMAGE_EBOOT_CA_START EQU(DRAM_BASE_CA_START+IMAGE_EBOOT_OFFSET)IMAGE_EBOOT_UA_START EQU (DRAM_BASE_UA_START+IMAGE_EBOOT_OFFSET)IMAGE_EBOOT_SIZE EQU (0x00080000)EBOOT_BINFS_BUFFER_OFFSET EQU (0x000C0000)EBOOT_BINFS_BUFFER_PA_START EQU (DRAM_BASE_PA_START+EBOOT_BINFS_BUFFER_OFFSET)EBOOT_BINFS_BUFFER_CA_START EQU (DRAM_BASE_CA_START+EBOOT_BINFS_BUFFER_OFFSET)EBOOT_BINFS_BUFFER_UA_START EQU (DRAM_BASE_UA_START+EBOOT_BINFS_BUFFER_OFFSET)EBOOT_BINFS_BUFFER_SIZE EQU (0x00030000)EBOOT_USB_BUFFER_OFFSET EQU (0x04000000)EBOOT_USB_BUFFER_PA_START EQU (DRAM_BASE_PA_START+EBOOT_USB_BUFFER_OFFSET)EBOOT_USB_BUFFER_CA_START EQU (DRAM_BASE_CA_START+EBOOT_USB_BUFFER_OFFSET)EBOOT_USB_BUFFER_UA_START EQU (DRAM_BASE_UA_START+EBOOT_USB_BUFFER_OFFSET);//------------------------------------------------------------------------------;// NK AreaIMAGE_NK_OFFSET EQU (0x00100000)IMAGE_NK_PA_START EQU (DRAM_BASE_PA_START+IMAGE_NK_OFFSET)IMAGE_NK_CA_START EQU (DRAM_BASE_CA_START+IMAGE_NK_OFFSET)IMAGE_NK_UA_START EQU (DRAM_BASE_UA_START+IMAGE_NK_OFFSET);gao0129;IMAGE_NK_SIZE EQU (0x03F00000) ; Set Max size, This will be tailored automatically.IMAGE_NK_SIZE EQU (0x02800000);//------------------------------------------------------------------------------;// BSP ARGs AreaIMAGE_SHARE_ARGS_OFFSET EQU (0x00020800)IMAGE_SHARE_ARGS_PA_START EQU (DRAM_BASE_PA_START+IMAGE_SHARE_ARGS_OFFSET)IMAGE_SHARE_ARGS_CA_START EQU(DRAM_BASE_CA_START+IMAGE_SHARE_ARGS_OFFSET)IMAGE_SHARE_ARGS_UA_START EQU (DRAM_BASE_UA_START+IMAGE_SHARE_ARGS_OFFSET)IMAGE_SHARE_ARGS_SIZE EQU (0x00000800);//------------------------------------------------------------------------------;// Sleep Data AreaIMAGE_SLEEP_DA TA_OFFSET EQU (0x00028000)IMAGE_SLEEP_DA TA_PA_START EQU (DRAM_BASE_PA_START+IMAGE_SLEEP_DA TA_OFFSET)IMAGE_SLEEP_DA TA_CA_START EQU (DRAM_BASE_CA_START+IMAGE_SLEEP_DATA_OFFSET)IMAGE_SLEEP_DA TA_UA_START EQU (DRAM_BASE_UA_START+IMAGE_SLEEP_DATA_OFFSET)IMAGE_SLEEP_DA TA_SIZE EQU (0x00002000);//------------------------------------------------------------------------------;------------------------------------------------------------------------------; OEM Stack Layout; EBOOT, STEPLOADER also use this value;------------------------------------------------------------------------------TOP_OF_STACKS_PHYSICAL EQU (DRAM_BASE_PA_START+IMAGE_NK_OFFSET) ; Stack Top is in front of NK Image TOP_OF_STACKS_VIRTUAL EQU (DRAM_BASE_CA_START+IMAGE_NK_OFFSET); Stack Size of Each ModeFIQStackSize EQU 256IRQStackSize EQU 256AbortStackSize EQU 256UndefStackSize EQU 256SVCStackSize EQU 1024;UserStackSize EQU 2048; Stack Location of Each Mode (in Physical Address)FIQStack_PA EQU (TOP_OF_STACKS_PHYSICAL - 0x0)IRQStack_PA EQU (FIQStack_PA - FIQStackSize)AbortStack_PA EQU (IRQStack_PA - IRQStackSize)UndefStack_PA EQU (AbortStack_PA - AbortStackSize)SVCStack_PA EQU (UndefStack_PA - UndefStackSize)UserStack_PA EQU (SVCStack_PA - SVCStackSize); Stack Location of Each Mode (in Virtual Address)FIQStack_V A EQU (TOP_OF_STACKS_VIRTUAL - 0x0)IRQStack_VA EQU (FIQStack_V A - FIQStackSize)AbortStack_V A EQU (IRQStack_V A - IRQStackSize)UndefStack_VA EQU (AbortStack_V A - AbortStackSize)SVCStack_V A EQU (UndefStack_V A - UndefStackSize)UserStack_V A EQU (SVCStack_V A - SVCStackSize);------------------------------------------------------------------------------; Sleep Data Layout;------------------------------------------------------------------------------SleepState_Data_Start EQU (0)SleepState_WakeAddr EQU (SleepState_Data_Start)SleepState_SYSCTL EQU (SleepState_WakeAddr + WORD_SIZE ) SleepState_MMUTTB0 EQU (SleepState_SYSCTL + WORD_SIZE ) SleepState_MMUTTB1 EQU (SleepState_MMUTTB0 + WORD_SIZE ) SleepState_MMUTTBCTL EQU (SleepState_MMUTTB1 + WORD_SIZE ) SleepState_MMUDOMAIN EQU (SleepState_MMUTTBCTL + WORD_SIZE ) SleepState_SVC_SP EQU (SleepState_MMUDOMAIN + WORD_SIZE ) SleepState_SVC_SPSR EQU (SleepState_SVC_SP + WORD_SIZE ) SleepState_FIQ_SPSR EQU (SleepState_SVC_SPSR + WORD_SIZE ) SleepState_FIQ_R8 EQU (SleepState_FIQ_SPSR + WORD_SIZE ) SleepState_FIQ_R9 EQU (SleepState_FIQ_R8 + WORD_SIZE ) SleepState_FIQ_R10 EQU (SleepState_FIQ_R9 + WORD_SIZE ) SleepState_FIQ_R11 EQU (SleepState_FIQ_R10 + WORD_SIZE ) SleepState_FIQ_R12 EQU (SleepState_FIQ_R11 + WORD_SIZE ) SleepState_FIQ_SP EQU (SleepState_FIQ_R12 + WORD_SIZE ) SleepState_FIQ_LR EQU (SleepState_FIQ_SP + WORD_SIZE ) SleepState_ABT_SPSR EQU (SleepState_FIQ_LR + WORD_SIZE ) SleepState_ABT_SP EQU (SleepState_ABT_SPSR + WORD_SIZE ) SleepState_ABT_LR EQU (SleepState_ABT_SP + WORD_SIZE ) SleepState_IRQ_SPSR EQU (SleepState_ABT_LR + WORD_SIZE ) SleepState_IRQ_SP EQU (SleepState_IRQ_SPSR + WORD_SIZE ) SleepState_IRQ_LR EQU (SleepState_IRQ_SP + WORD_SIZE ) SleepState_UND_SPSR EQU (SleepState_IRQ_LR + WORD_SIZE ) SleepState_UND_SP EQU (SleepState_UND_SPSR + WORD_SIZE ) SleepState_UND_LR EQU (SleepState_UND_SP + WORD_SIZE ) SleepState_SYS_SP EQU (SleepState_UND_LR + WORD_SIZE ) SleepState_SYS_LR EQU (SleepState_SYS_SP + WORD_SIZE ) SleepState_VFP_FPSCR EQU (SleepState_SYS_LR + WORD_SIZE) SleepState_VFP_FPEXC EQU (SleepState_VFP_FPSCR + WORD_SIZE) SleepState_VFP_FPINST EQU (SleepState_VFP_FPEXC + WORD_SIZE)SleepState_VFP_FPINST2 EQU (SleepState_VFP_FPINST + WORD_SIZE) SleepState_VFP_S0 EQU (SleepState_VFP_FPINST2 + WORD_SIZE) SleepState_VFP_S1 EQU (SleepState_VFP_S0 + WORD_SIZE) SleepState_VFP_S2 EQU (SleepState_VFP_S1 + WORD_SIZE) SleepState_VFP_S3 EQU (SleepState_VFP_S2 + WORD_SIZE) SleepState_VFP_S4 EQU (SleepState_VFP_S3 + WORD_SIZE) SleepState_VFP_S5 EQU (SleepState_VFP_S4 + WORD_SIZE) SleepState_VFP_S6 EQU (SleepState_VFP_S5 + WORD_SIZE) SleepState_VFP_S7 EQU (SleepState_VFP_S6 + WORD_SIZE) SleepState_VFP_S8 EQU (SleepState_VFP_S7 + WORD_SIZE) SleepState_VFP_S9 EQU (SleepState_VFP_S8 + WORD_SIZE) SleepState_VFP_S10 EQU (SleepState_VFP_S9 + WORD_SIZE) SleepState_VFP_S11 EQU (SleepState_VFP_S10 + WORD_SIZE) SleepState_VFP_S12 EQU (SleepState_VFP_S11 + WORD_SIZE) SleepState_VFP_S13 EQU (SleepState_VFP_S12 + WORD_SIZE) SleepState_VFP_S14 EQU (SleepState_VFP_S13 + WORD_SIZE) SleepState_VFP_S15 EQU (SleepState_VFP_S14 + WORD_SIZE) SleepState_VFP_S16 EQU (SleepState_VFP_S15 + WORD_SIZE) SleepState_VFP_S17 EQU (SleepState_VFP_S16 + WORD_SIZE) SleepState_VFP_S18 EQU (SleepState_VFP_S17 + WORD_SIZE) SleepState_VFP_S19 EQU (SleepState_VFP_S18 + WORD_SIZE) SleepState_VFP_S20 EQU (SleepState_VFP_S19 + WORD_SIZE) SleepState_VFP_S21 EQU (SleepState_VFP_S20 + WORD_SIZE) SleepState_VFP_S22 EQU (SleepState_VFP_S21 + WORD_SIZE) SleepState_VFP_S23 EQU (SleepState_VFP_S22 + WORD_SIZE) SleepState_VFP_S24 EQU (SleepState_VFP_S23 + WORD_SIZE) SleepState_VFP_S25 EQU (SleepState_VFP_S24 + WORD_SIZE) SleepState_VFP_S26 EQU (SleepState_VFP_S25 + WORD_SIZE) SleepState_VFP_S27 EQU (SleepState_VFP_S26 + WORD_SIZE) SleepState_VFP_S28 EQU (SleepState_VFP_S27 + WORD_SIZE) SleepState_VFP_S29 EQU (SleepState_VFP_S28 + WORD_SIZE) SleepState_VFP_S30 EQU (SleepState_VFP_S29 + WORD_SIZE) SleepState_VFP_S31 EQU (SleepState_VFP_S30 + WORD_SIZE) SleepState_Data_End EQU (SleepState_VFP_S31 + WORD_SIZE ) SLEEPDATA_SIZE EQU ((SleepState_Data_End - SleepState_Data_Start) / 4);//------------------------------------------------------------------------------END。

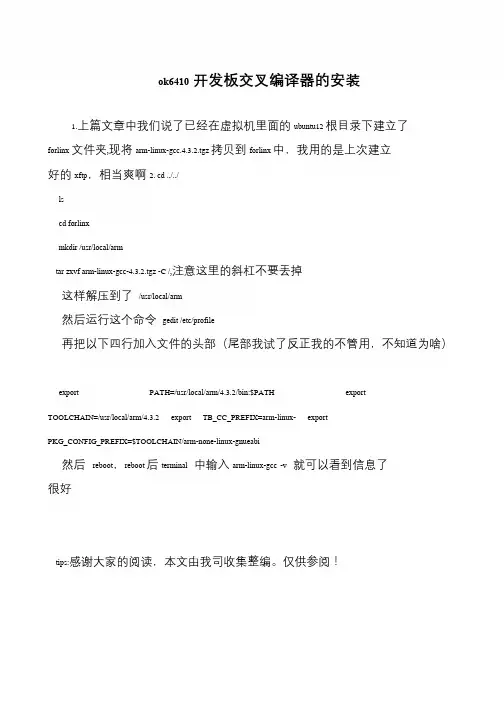

ok6410开发板交叉编译器的安装
1.上篇文章中我们说了已经在虚拟机里面的ubuntu12 根目录下建立了
forlinx 文件夹,现将arm-linux-gcc.4.3.2.tgz 拷贝到forlinx 中，我用的是上次建立
好的xftp，相当爽啊2. cd ../../
ls
cd forlinx
mkdir /usr/local/arm
tar zxvf arm-linux-gcc-4.3.2.tgz -C /,注意这里的斜杠不要丢掉
这样解压到了/usr/local/arm
然后运行这个命令gedit /etc/profile
再把以下四行加入文件的头部（尾部我试了反正我的不管用，不知道为啥）
export PATH=/usr/local/arm/4.3.2/bin:$PATH export TOOLCHAIN=/usr/local/arm/4.3.2 export TB_CC_PREFIX=arm-linux- export PKG_CONFIG_PREFIX=$TOOLCHAIN/arm-none-linux-gnueabi
然后reboot，reboot 后terminal 中输入arm-linux-gcc -v 就可以看到信息了很好
tips:感谢大家的阅读，本文由我司收集整编。

仅供参阅！。

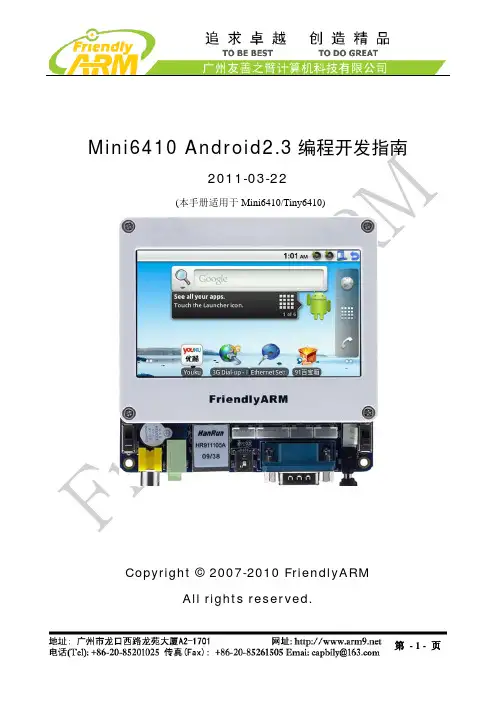

Mini6410 Android2.3编程开发指南2011-03-22(本手册适用于Mini6410/Tiny6410)Copyright © 2007-2010 FriendlyARMAll rights reserved.简介本手册由广州友善之臂计算机科技有限公司(简称“友善之臂”)创建和维护，并作为标准用户手册的一个补充，仅供嵌入式爱好者学习参考使用，友善之臂目前并不对本手册的内容提供任何解释和解答服务，用户可以在论坛中反馈你所遇到的问题和疑问，我们将在以后的更新中修正或者采纳您的建议，本手册主要以首页日期为版本标志。

本手册由友善之臂软件开发工程师编写制作，以Mini6410和Tiny6410作为开发平台，讲解如何建立Android开发环境，包括Android SDK和Eclipse集成开发环境的下载及安装，以及如何使用Mini6410和Tiny6410开发板作为真机调试程序，非常适合Android初学者学习和参考。

Mini6410是一款十分精致的低价高品质一体化ARM11开发板，由广州友善之臂设计、生产和发行销售。

它采用三星S3C6410作为主处理器，在设计上承袭了Mini2440“精于心，简于形”的风格，而且布局更加合理，接口更加丰富，十分适用于开发MID、汽车电子、工业控制、导航系统、媒体播放等终端设备；也可适用于高校教学、嵌入式培训、个人研究学习和DIY等。

Tiny6410是由友善之臂出品的一款以ARM11芯片(三星S3C6410)作为主处理器的嵌入式核心板，它采用高密度6层板设计，尺寸为64 x 50mm，它集成了128M DDR RAM，256M/1GB SLC Nand Flash存储器，采用5V供电，在板实现CPU必需的各种核心电压转换，还带有专业复位芯片，通过2.0mm间距的排针，引出各种常见的接口资源，以供不打算自行设计CPU 板的开发者进行快捷的二次开发使用。

OpenCV的Ubuntu安装和Smart210_ARM开发板移植软硬件环境：宿主机：Ubuntu 10.04 32bit开发板：友善之臂Smart210OpenCV：2.4.10其他：cmake version 2.8.0arm-linux-g++ 4.5.1 / arm-linux-gcc 4.5.1查看Ubuntu版本号的指令为：sudo lsb_release –a，效果如下图1：图1：查看ubuntu的版本号1.Opencv2.4.10在Ubuntu上安装●首先安装必要的软件库安装GCC：sudo apt-get install build-essential安装Cmake：sudo apt-get install cmake安装Git（可选）：sudo apt-get install git安装GTK开发版：sudo apt-get install libgtk2.0-dev安装pkg-config：sudo apt-get install pkg-config安装Python：sudo apt-get install python3.2-dev安装Numpy：sudo apt-get install python-numpy安装媒体包：sudo apt-get install ffmpeg安装可选媒体包：sudo apt-get install libavcodec-dev libavformat-dev libswscale-dev libjpeg-dev libpng-dev libtiff-dev libjasper-dev●在OpenCV官网下载源码包：/●在/home/brodon/Documents文件夹下解压缩后，命令行输入cmake-gui，配置opencv的x86版本。

具体的操作见图2，注意在安装中，放弃了ffmpeg，OpenGL 库的支持。

cmake完成后进入opencv-x86文件夹，输入make 和make install安装。

嵌入式opencv-2.0.0，Qt-4.6.3移植一、移植环境操作系统：ubuntu 14.04交叉编译器：arm-linux-gcc-4.4.3二、移植过程在opencv移植之前我们需要解决opencv的一些模块的依赖关系，目前我们需要的模块的依赖关系由以下几个包提供：jpegsrc.v6b.tar.gz （jpeg函数库）libpng-1.2.18.tar.gz （png函数库库）zlib-1.2.3.tar.gz （z函数库）x264-snapshot-20100410-2245.tar.bz2 （x264函数库）yasm-0.7.2.tar.gz （汇编编译器，编译x264时需要用到）xvidcore-1.3.2.tar.gz （xvid函数库）ffmpeg-0.5.3.tar.bz2 （ffmpeg源码包）O penCV-2.0.0.tar.bz2 （OpenCV源码包）这些包的安装是有顺序的，请按照以下顺序安装。

1、安装交叉编译工具#tar zxvf arm-linux-gcc-4.4.3.tar.gz -C/root/添加环境变量#vim /root/.bashrc在路径中添加/opt/toolschnia/4.4.3/bin与已有的路径用冒号隔开刷新环境变量：#source /root/.bashrc2、交叉编译libz#tar zxvf zlib-1.2.3.tar.gz#cd zlib-1.2.3#CC=arm-linux-gcc ./configure --prefix=/root/arm/4.4.3/arm-none-linux-gnueabi –shared#make#make install3、交叉编译libjpeg#tar –zvxf jpegsrc.v6b.tar.gz#cdjpeg-6b#./configure--prefix=/root/arm/4.3.2/arm-none-linux-gnueabi --enable-shared --enable-static修改生成的Makefile文件CC=gcc改为CC=arm-linux-gcAR=ar rc改为AR=arm-linux-ar rcAR2=ranlib改为AR2=arm-linux-ranlib#make需在/opt/toolschnia/4.4.3/arm-none-linux-guneabi目录下创建/man/man1目录，才能执行安装命令。

移植ffmpeg到6410开发板ffmpeg是一个开源免费跨平台的视频和音频流方案，它提供了录制、转换以及流化音视频的完整解决方案。

我用的是飞凌6410开发板，交叉工具版本为4.3.2，安装在/usr/local/arm/4.3.2/下，根据交叉工具链安装位置不同，目录需要做相应改变（具体下面有提示）。

一、下载yasm：到 /Download.html下载yasm（x264需要用到的汇编编译器,最好下载1.0.0以上版本，否则编译x264的时候可能会出现下面的错误提示：./configureFound yasm 0.7.2.2153Minimum version is yasm-1.0.0If you really want to compile without asm, configure with --disable-asm.）for x86:./configure --enable-shared --prefix=/usr/localmakemake installfor arm:./configure --enable-shared --prefix=/usr/local/ --host=arm-linuxmakemake install安装完后确记要导入yasm环境变量：export PATH="$PATH:/usr/local/yasm/bin"，如果没有这一步下面安装x264时会提示x264 Found no assembler！下载安装x264到ftp:///pub/videolan/x264/snapshots/ 下载x264库for x86:./configure --enable-shared --prefix=/usr/localmakemake installfor arm:./configure --enable-shared修改config.mak文件，将其中的CC=gcc,AS=yasm修改成CC=arm-linux-gcc，AS=arm-linux-as。

交叉编译zlib交叉编译png交叉编译libjpeg以上三个在minigui移植中已经试过了，具体参考该文件。

在opencv目录下运行：./configure --host=arm-linux --without-gtk --without-carbon --without-v4l --without-v4l2 --without-quicktime --without-1394libs --without-ffmpeg --without-python --without-swig --enable-static --enable-shared--disable-apps CXX=arm-linux-g++ --prefix=/home/wudean/opencv-1.0.0/_install注：∙--host=arm-linux :指出交叉编译arm平台∙--without-gtk:忽略gtk＋2.0 windows∙--without-carbon: 不使用Mac OS上的X库∙--without-quicktime∙--without-1394libs∙--without-ffmpeg∙--without-python∙--without-swig∙--without-v4l --without-v4l2：不需要v4l和v4l2∙--enable-static :生成静态库∙--enable-shared:生成动态库，这一项必须要有，不要以后可能会出现加载动态库失败∙CXX=arm-linux-g++ ：指定编译工具（我用的是4.3.3）∙--prefix=/home/wudean/opencv-1.0.0/_install：这个是安装目录，最好是这样做，以免污染系统OpenCV会用到一些dev的包，如png.h,jpeglib.h，所以需要预先交叉编译好zlib/png/jpeg 库，把他们生成的*.h放到相应的交叉编译器的include里，*.so.*放到lib,还要拷贝到目标板的根目录的lib中。

树莓派安装 OpenCVTips:目前网上有很多为树莓派换源的教程，经过实际测试，非官方源都有各种问题，直接结果就就是下载部分安装包时会出现依赖性问题，建议大家不要盲目换源，本教程选择的都是不需要换源的路径，在其他项目的开发过程中也可以先将官方源可以下载的部分先下载好再进行换源尝试下载，都下载不了的可以在网络上找一些百度云等链接。

在树莓派中安装OpenCV环境要求：32G 内存卡，通网环境（WIFI 或网线均可）1、在SD 卡中写入树莓派官方系统（推荐使用2019-6-20 后版本）2、将SD 卡插入树莓派主板背面卡槽内，打开电源，启动树莓派3、开机设置时在首选项菜单的Configuration 选项中打开Camera、SSH 以及其他你需要的功能使能（Enable）并跟随系统提示重启树莓派4、设置好树莓派后测试一下摄像头（注意摄像头一定要关机断电后再连接上）在命令行输入以下命令，这个命令的意思是用nano 编辑器打开modules 这个文件：sudo nano /etc/modules使用鼠标滚轮将光标移到文件末尾，在末尾加人以下内容：bcm2835-v4l2（注意4 与2 之间是小写的L 不是1 也不是大写的i）加入上述内容后先按键盘上的ctrl+o，再按回车保存，按ctrl+x 退出nano 编辑器回到命令行界面。

输入命令：vcgencmd get_camera若返回如下内容，则说明相机连接成功1可以输入命令：raspistill -o image.jpg调用摄像头拍一张命名为image.jpg 的照片，存储在/pi/home 路径，也就是资源管理器打开显示的那个路径。

如果能看到目录里面有照片，则进一步说明摄像头配置正确。

5、在树莓派安装运行在Python2 上的OpenCV打开树莓派的命令行（terrminal）界面，两个命令即可完成安装。

（建议第一个命令不要使用远程ssh 连接）sudo apt-get install libopencv-devsudo apt-get install python-opencv完成后可以通过如下方式检查是否安装成功在命令行中输入python2按回键车，在内容输入位置输入：import cv2如果出现下图的结果，说明Python2 环境下的OpenCV 安装成功，输入exit（）退出。

移植ffmpeg到6410开发板ffmpeg是一个开源免费跨平台的视频和音频流方案，它提供了录制、转换以及流化音视频的完整解决方案。

我用的是飞凌6410开发板，交叉工具版本为4.3.2，安装在/usr/local/arm/4.3.2/下，根据交叉工具链安装位置不同，目录需要做相应改变（具体下面有提示）。

一、下载yasm：到/Download.html下载yasm（x264需要用到的汇编编译器,最好下载1.0.0以上版本，否则编译x264的时候可能会出现下面的错误提示：./configure Found yasm 0.7.2.2153Minimum version is yasm-1.0.0If you really want to compile without asm, configure with --disable-asm.）for x86:./configure --enable-shared--prefix=/usr/localmakemake installfor arm:./configure --enable-shared --prefix=/usr/local/ --host=arm-linux makemake install 安装完后确记要导入yasm环境变量：export PATH="$PATH:/usr/local/yasm/bin"，如果没有这一步下面安装x264时会提示x264 Found no assembler！下载安装x264到ftp:///pub/videolan/x264/snapshots/ 下载x264库for x86:./configure --enable-shared --prefix=/usr/localmakemake installfor arm:./configure --enable-shared修改config.mak文件，将其中的CC=gcc,AS=yasm修改成CC=arm-linux-gcc，AS=arm-linux-as。

飞凌OK6410安卓2.3.4的编译环境搭建与烧写飞凌 OK6410 安卓 2.3.4 的编译环境搭建与烧写1、⼯具下载及其环境搭建 本⽂环境：VMWare 15 PRO，Ubuntu16.04.6_amd64(64位的版本)，安卓 2.3.4 下⾯进⼊主题，先搭建编译环境吧，虚拟机不知道怎么创建的，请看上⾯给出的链接，这⾥⾯我介绍了⼗分全⾯，包括git，make，gcc，g++等等的配置 飞凌 OK6410 安卓代码下载地址：：提取码：w2ue 由于飞凌提供的代码是按照 32 位环境编译的，⾥⾯提供的⼯具也⾃然都是 32 位的了（包括⾥⾯提供的 jdk ），所以⾃⼰去下对应版本的 jdk 吧。

当然我这⾥也会提供。

飞凌提供的32位版本jdk 版本对应⼀致的 jdk 的下载地址：：提取码：wdei 由于Ubuntu16.04 ⾃带的 make版本过⾼，需要降低 make 版本 make 3.8.1 源码的下载地址：：提取码：2spp2、安装教程 make 降低版本安装教程地址：2.1、gcc，g++ 降低版本 之所以要降低版本，因为 Ubuntu16.04 ⾃带的各种⼯具版本版本都太⾼了，编译低版本安卓时会报很多错误，因此需要将⼀些⼯具降低版本使⽤ gcc，g++ 降低版本教程地址：！ 安装依赖环境：1sudo apt-get install bison2sudo apt-get install zlib1g-dev3sudo apt-get install lib32z1-dev4sudo apt-get install flex5sudo apt-get install libncurses5-dev6sudo apt-get install libncurses5-dev:i3867sudo apt-get install libx11-dev8sudo apt-get install gperf9sudo apt-get install libswitch-perl10sudo apt-get install libsdl1.2debian:i3862.2、jdk 64位安装 因为我这⾥使⽤的是 64 位的 Ubuntu16.04 下载地址在上⾯已经提供，编译相关的⼯具链我个⼈习惯放置 /opt ⽬录下1mv jdk-6u23-linux-x64.bin /opt 更改属性1chmod u+x jdk-6u23-linux-x64.bin 运⾏⾃动解压1 ./jdk-6u23-linux-x64.bin 配置 jdk 使其对所有⽤户⽣效，注意：如果配置这⼀步，则需要修改飞凌安卓代码⾥头的编译脚本1sudo vim /etc/profile23 export JAVA_HOME=/opt/jdk1.6.0_234 export JRE_HOME=${JAVA_HOME}/jre5 export CLASSPATH=.:$JAVA_HOME/lib:$JAVA_HOME/jre/lib6 export PATH=$JAVA_HOME/bin:$JAVA_HOME/jre/bin:$PATH:$HOME/bin 针对飞凌，不⽤在 /etc/profile 中配置，直接将 ./jdk-6u23-linux-x64.bin 解压出来的⽂件放置安卓源码中 android2.3.4-32bit/ ⽬录下，替换飞凌提供的 32位 jdk 如果要在 /etc/profile 中对 jdk 进⾏全局⽣效，那就将 build-android 脚本中的第6⾏ export PATH=$PATH:$PWD/jdk1.6.0_23/bin 注释掉3、编译 解压安卓代码1tar -zxvf android2.3.4_32bit-2012-10-11.tar.gz 提供的源码适⽤于 32 位系统下编译，⾸先确定你的linux 是否是 32 位或 64 位的系统，⽤命令 uname -a 可以查看，如果是 64 位操作系统请坐以下修改 如果你使⽤的是 32 位系统，请忽略这⼀步1 ./external/clearsilver/cgi/Android.mk23 ./external/clearsilver/java-jni/Android.mk45 ./external/clearsilver/util/Android.mk67 ./external/clearsilver/cs/Android.mk 四个⽂件中的1 LOCAL_CFLAGS += -m6423 LOCAL_LDFLAGS += -m6445//注释掉，或者将“64”换成“32”67 LOCAL_CFLAGS += -m3289 LOCAL_LDFLAGS += -m32 然后，将 ./build/core/main.mk 中的 ifneq (64,$(findstring 64,$(build_arch))) 改为： ifneq (i686,$(findstring i686,$(build_arch)))在 dalvik/vm/native/dalvik_system_Zygote.cpp ⽂件中添加头⽂件#include <sys/resource.h> 开始编译：1 /forlinx/android2.3.4_32bit# ./build-android2 including device/htc/passion/vendorsetup.sh3 including device/samsung/crespo/vendorsetup.sh4 ============================================5 PLATFORM_VERSION_CODENAME=REL6 PLATFORM_VERSION=2.3.47 TARGET_PRODUCT=OK64108 TARGET_BUILD_VARIANT=eng9 TARGET_SIMULATOR=false10 TARGET_BUILD_TYPE=release11 TARGET_BUILD_APPS=12 TARGET_ARCH=arm13 HOST_ARCH=x8614 HOST_OS=linux15 HOST_BUILD_TYPE=release16 BUILD_ID=GRJ06D17 ============================================18 Checking build tools versions...1920 ... ...2122 Generated: (out/target/product/OK6410/android-info.txt)23 Target system fs image: out/target/product/OK6410/obj/PACKAGING/systemimage_intermediates/system.img24 Install system fs image: out/target/product/OK6410/system.img25 Target ram disk: out/target/product/OK6410/ramdisk.img26 Target userdata fs image: out/target/product/OK6410/userdata.img27 Installed file list: out/target/product/OK6410/installed-files.txt制作⽂件系统 制作⽂件系统 : 根⽬录下提供了制作⽂件系统的脚本, make-rootfs-nand2g, 执⾏这个脚本即可制作根⽂件系统; -- 命令 : 进⼊ Android 源码根⽬录, 执⾏ ./make-rootfs-nand2g 命令, 之后在根⽬录⽣成 rootfs.yaffs2 就是制作的根⽂件系统; -- 注意 : ⼀定要区分这两个脚本, make-rootfs-nand256m ⽤于制作 128M 内存 256 M NandFlash 的开发板的⽂件系统, make-rootfs-nand2g ⽤于制作 256M 内存 2G NandFlash 开发板的⽂件系统;1 /forlinx/android2.3.4_32bit# ls2 bionic cts external libcore make-rootfs-nand2g ndk Readme vendor3 bootable dalvik frameworks Makefile make-rootfs-nand2g~ out sdk4 build development hardware make-rootfs-nand256m mkyaffs2image-nand256m packages setenv5 build-android device jdk1.6.0_23 make-rootfs-nand256m~ mkyaffs2image-nand2g prebuilt system6 root@octopus:/forlinx/android2.3.4_32bit# ./make-rootfs-nand256m7 Generating rootfs for Android......done8 Create device file......done9 Install prebuilt packages......done10 Install firmware for 3G ......done11 Install ppp for 3G...done12 Install usb_modeswitch.d for 3G...done13 Install Dialup for 3G...done14 Install ForlinxLED permissions fileInstall Apps filemkyaffs2image: image building tool for YAFFS2 built Nov 24201115 Processing directory rootfs_dir into image file rootfs.yaffs21617 ... ...1819 bject 1457, rootfs_dir/system/bin/sdcard is a file, 5 data chunks written20 Object 1458, rootfs_dir/system/bin/dumpstate is a file, 17 data chunks written21 Object 1459, rootfs_dir/system/bin/bootanimation is a file, 12 data chunks written22 Object 1460, rootfs_dir/system/bin/Looper_test is a file, 35 data chunks written23 Object 1461, rootfs_dir/system/bin/ioctl is a symlink to "toolbox"24 Object 1462, rootfs_dir/system/bin/dvz is a file, 3 data chunks written25 Object 1463, rootfs_dir/forlinx.rc is a file, 1 data chunks written26 Operation complete.272414 objects in63 directories2835361 NAND pages29 ...done30 ...done31 /forlinx/android2.3.4_32bit# ls32 bionic cts external libcore make-rootfs-nand2g ndk Readme setenv33 bootable dalvik frameworks Makefile make-rootfs-nand2g~ out rootfs_dir system34 build development hardware make-rootfs-nand256m mkyaffs2image-nand256m packages rootfs.yaffs2 vendor35 build-android device jdk1.6.0_23 make-rootfs-nand256m~ mkyaffs2image-nand2g prebuilt sdk4、配置 U-boot、kernel 的编译环境 将飞凌6410-android2.3-20140613\编译器⽬录下的 arm-linux-gcc-4.3.2.tgz、arm-none-linux-gnueabi-arm-2008q3-72-for-linux.tar.bz2 两个编译链拷贝到虚拟机中并解压 我个⼈习惯放置 /opt ⽬录下，1sudo mv arm-linux-gcc-4.3.2.tgz /opt2sudo mv arm-none-linux-gnueabi-arm-2008q3-72-for-linux.tar.bz2 /opt 解压：1 sudo tar -zxvf arm-linux-gcc-4.3.2.tgz -C /opt2 sudo tar -jxvf arm-none-linux-gnueabi-arm-2008q3-72-for-linux.tar.bz2 -C /opt 全局变量⽣效：1 vim /etc/profile23 export PATH=$PATH:/opt/usr/local/arm/arm-none-linux-gnueabi/bin4 export PATH=$PATH:/opt/usr/local/arm/4.3.2/bin 机器重启或者 . /etc/profile 或者 source /etc/profile ⽴即⽣效编译 U-boot 将飞凌提供的 U-boot 代码 uboot1.1.6-2012-10-11.tar.gz，Kernel 代码 android2.3_kernel_v3.00-2014-06-12.tar.gz 复制到你的⼯作空间去 解压 U-boot 代码1tar -zxvf uboot1.1.6-2012-10-11.tar.gz 进⼊ U-boot 顶层⽬录，修改 Makefile 找到 CROSS_COMPILE ，将其对应的交叉编译⼯具链路径指定上⾯那个 CROSS_COMPILE = /opt/usr/local/arm/4.3.2/bin/arm-linux- 编译配置适⽤于 128M 内存开发板的 config make forlinx_nand_ram128_config make clean make　 编译配置适⽤于 256M 内存开发板的 config make forlinx_nand_ram256_config make clean make 编译成功后，将在 uboot1.1.6 ⽬录下⽣成名为 u-boot.bin 的⼆进制⽂件。

OpenCV移植到ARM全过程Host:VMware + Ubuntu 10.04Target:Real6410 with Linux 2.6.28.6Crossing Compiler:arm-none-linux-gnueabi-4.3.2 with EABI一交叉编译链的安装1 解压，即可得到arm-none-linux-gnueabi 目录# tar –xjvf arm-none-linux-gnueabi-4.3.2.tar.bz22 为了使用方便,还可以编辑/etc/bash.bashrc 文件添加把编译器路径到环境变量PATH 中,只要在这个文件中添加下面这2 个语句即可:PATH=/root/ arm-none-linux-gnueabi-4.1.0/bin:$PATHexport PATH3 编辑完毕后使用source /etc/bash.bashrc 命令执行以下这个文件,让设置生效,之后再输入:# arm-none-linux-gnueabi-gcc -v如果输出下面的信息则表面设置成功:Using built-in specs.Target: arm-none-linux-gnueabiConfigured with: /scratch/julian/lite-respin/linux/src/gcc-4.3/configure --build=i686-pc-linux-gnu --host=i686-pc-linux-gnu --target=arm-none-linux-gnueabi --enable-threads --disable-libmudflap --disable-libssp --disable-libstdcxx-pch --with-gnu-as --with-gnu-ld --enable-languages=c,c++ --enable-shared --enable-symvers=gnu --enable-__cxa_atexit --with-pkgversion='Sourcery G++ Lite 2008q3-72' --with-bugurl=https:///GNUToolchain/ --disable-nls--prefix=/opt/codesourcery--with-sysroot=/opt/codesourcery/arm-none-linux-gnueabi/libc --with-build-sysroot=/scratch/julian/lite-respin/linux/install/arm-none-linux-gnueabi/libc --with-gmp=/scratch/julian/lite-respin/linux/obj/host-libs-2008q3-72-arm-none-linux-gnueabi-i686-pc-linux-gnu/usr --with-mpfr=/scratch/julian/lite-respin/linux/obj/host-libs-2008q3-72-arm-none-linux-gnueabi-i686-pc-linux-gnu/usr --disable-libgomp --enable-poison-system-directories --with-build-time-tools=/scratch/julian/lite-respin/linux/install/arm-none-linux-gnueabi/ bin --with-build-time-tools=/scratch/julian/lite-respin/linux/install/arm-none-linux-gnueabi/binThread model: posixgcc version 4.3.2 (Sourcery G++ Lite 2008q3-72)至此交叉编译链安装完成。

Linux Ubuntu 安装Opencv作者：Tiger（xia）1.我们需要安装一个cmake（我这里用的是2.8.12.2版本）2.首先下载一个cmake3.Tar zxvf cmake的压缩报4.进入解压的文件夹输入./bootstrap5.make6.make install7.还需要一些库libgtk2.0-dev build-essential pkg-config （用apt-get install +对应的库）8.在下载Opencv（我是2.4.9版本）（默认安装在/usr/local/bin 和/usr/local/include）$ cd OpenCV-2.4.9$ cmake CMakeLists.txt$ make && make install9.export LD_LIBRARY_PATH=/usr/local/lib10.测试就加个Opencv的头文件就知道了11.pkg-config --modversion opencv12.编译gxx `pkg-config opencv --libs --cflags opencv` opencv_test.c -o test注意：一定先安装gtk库再安装opencvOpencv 移植编译说明：我们移植opencv 到itop arm板，交叉编译器是arm-none-linux-gnueabi-gcc，和arm-none-linux-gnueabi-g++前面已经介绍了opencv和cmake 的安装，这里用的是图形界面安装cmake-gui来进行opencv的交叉编译。

1.安装cmake-qt-gui （cmake的界面终端）sudo apt-get install cmake-qt-gui2.解压opencv2.4.9 tar -xzvf opencv2.4.9.tar.gz3.对opencv的交叉编译的相关配置在点击Configure那个按钮后要选择交叉编译如图：编译时要去掉几个cmake的复选框的BUILD_opencv_ocl 、WITH_OPENCL、WITH_TIFF 选项（不去掉编译时要出错哦）。

Opencv的TQ6410开发板移植一、项目需求交叉编译opencv2.3.1，并移植到OK6410中，现对移植过程及可能遇到的问题进行总结。

Note：在opencv2.0以上的版本编译都要借助于cmake工具生成Makefile，2.0以下版本一般都是使用./configure生成Makefile。

二、开发环境1、开发环境1）、上位机：ubuntu12.042）、交叉编译器：arm-linux-gcc 4.4.3（飞凌科技提供）3）、cmake-2.8.7-Linux-i386.sh2、安装交叉编译工具链1）、本人安装目录为：/home/netcard/Download/2）、添加环境变量：在PATH环境变量中添加交叉编译工具链的bin路径：/home/netcard/Download/opt/EmbedSky/bin(大家根据自己的安装路径而定)3、安装cmake1）、在Linux下也有cmake的GUI版本，我使用的版本如上文提到的，大家可以在网上搜索下，有很多的下载链接。

2）、安装步骤：在linux系统中修改cmake-2.8.7-Linux-i386.sh的执行权限 [root@localhost opt]# chmod +x cmake-2.8.7-Linux-i386.sh （修改为可执行权限）执行cmake-2.8.7-Linux-i386.sh：[root@localhost opt]# ./cmake-2.8.7-Linux-i386.sh回车后在就会在当前目录下解压出cmake-2.8.7-Linux-i386文件夹，进入文件夹：[root@localhost opt]# cd cmake-2.8.7-Linux-i386可以发现目录下bin、include等目录，进入bin目录：[root@localhost cmake-2.8.7-Linux-i386]# cd bin可以发现bin目录下有cmake-gui、cmake、ccmake等可执行文件至此cmake编译工具安装成功。
