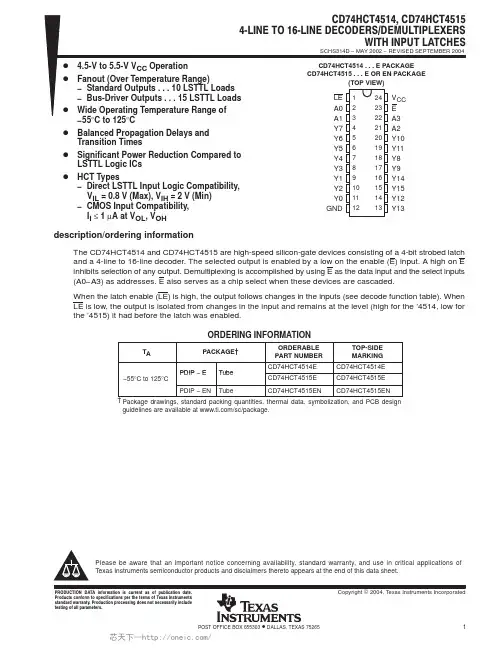

CD74HCT4514, CD74HCT4515
4ĆLINE TO 16ĆLINE DECODERS/DEMULTIPLEXERS
WITH INPUT LATCHES
SCHS314D − MAY 2002 − REVISED SEPTEMBER 2004
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265D4.5-V to 5.5-V VCC Operation
DFanout (Over Temperature Range)
− Standard Outputs...10 LSTTL Loads
− Bus-Driver Outputs...15 LSTTL Loads
DWide Operating Temperature Range of
−55°C to 125°C
DBalanced Propagation Delays and
Transition Times
DSignificant Power Reduction Compared to
LSTTL Logic ICs
DHCT Types
− Direct LSTTL Input Logic Compatibility,
VIL = 0.8 V (Max), VIH = 2 V (Min)
− CMOS Input Compatibility,
II ≤ 1 µA at VOL, VOH
description/ordering information
The CD74HCT4514 and CD74HCT4515 are high-speed silicon-gate devices consisting of a 4-bit strobed latch
and a 4-line to 16-line decoder. The selected output is enabled by a low on the enable (E) input. A high on E
SN54HCT574, SN74HCT574
OCTAL EDGEĆTRIGGERED DĆTYPE FLIPĆFLOPS
WITH 3ĆSTATE OUTPUTS
SCLS177E − MARCH 1984 − REVISED AUGUST 2003
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265DOperating Voltage Range of 4.5 V to 5.5 V
DHigh-Current 3-State Noninverting Outputs
Drive Bus Lines Directly or Up To 15 LSTTL
Loads
DLow Power Consumption, 80-µA Max ICCDTypical tpd = 22 ns
D±6-mA Output Drive at 5 V
DLow Input Current of 1 µA Max
DInputs Are TTL-Voltage Compatible
DBus-Structured Pinout
description/ordering information
These octal edge-triggered D-type flip-flops
feature 3-state outputs designed specifically for
bus driving. The ’HCT574 devices are particularly
suitable for implementing buffer registers, I/O
ports, bidirectional bus drivers, and working
registers.
The eight flip-flops enter data on the low-to-high
transition of the clock (CLK) input.
Data sheet acquired from Harris SemiconductorSCHS291

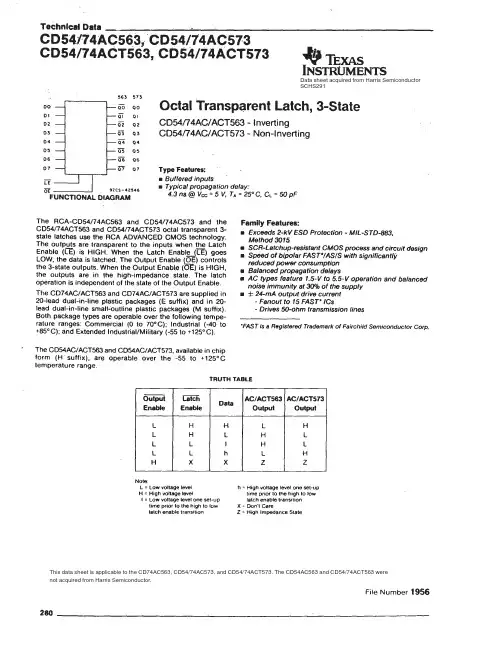

This data sheet is applicable to the CD74AC563, CD54/74AC573, and CD54/74ACT573. The CD54AC563 and CD54/74ACT563 werenot acquired from Harris Semiconductor.元器件交易网元器件交易网元器件交易网元器件交易网元器件交易网元器件交易网元器件交易网
