形状位置公差及英文翻译
零件在加工过程中，由于机床－夹具－刀具系统存在几何误差，以及加工中出现受力变形、热变形、振动和磨损等影响，使被加工零件的几何要素不可避免地产生误差。

这些误差包括尺寸偏差、形状误差(包括宏观几何误差、波度和表面粗糙度)及位置误差。

形状公差
形状公差是指单一实际要素的形状所允许的变动全量。

形状公差用形状公差带表达。

形状公差带包括公差带形状、方向、位置和大小等四要
素。

形状公差项目有：直线度、平面度、圆度、圆柱度、线轮廓度、面轮廓度等6项。

位置公差
位置公差是指关联实际要素的位置对基准所允许的变动全量。

∙定向公差
定向公差是指关联实际要素对基准在方向上允许的变动全量。

这类公差包括平行度、
垂直度、倾斜度3项。

∙定位公差
定位公差是关联实际要素对基准在位置上允许的变动全量。

这类公差包括同轴度、对
称度、位置度3项。

∙跳动公差
跳动公差是以特定的检测方式为依据而给定的公差项目。

跳动公差可分为圆跳动与全
跳动。

零件的形位公差共14项，其中形状公差6个，位置公差8个，列于下表。

英汉对译。

形位公差符号常用语 (中英文双语)发布时间：2007-4-26 浏览次数：5374次形位公差符号常用语 (中英文双语)公差/值(tolerance/value)基本尺寸(basic size)偏差(deviation)上/下偏差(upper/lower deviation)配合/间隙配合/过盈配合/过渡配合(fit/clearance fit/interference fit/ transition fits) 单/双边公差(unilateral/bilateral tolerance)标准/精度公差(standard/ precision tolerance)基准/特征/点/线/平面/轴线(datum/feature/point/line/ plane/axis)最大/小材料状态(M/LMC=maximum/least material condition)理论正确尺寸(theoretical size )基本尺寸(basic dimension)直径/半径(diameter/radius)直线度(straightness)平面度(flatness)圆度(circularity)圆柱度(cylindricity)线轮廓度(profile of a line)面轮廓度(profile of a surface)定向公差(orientation tolerance)平行度(parallelism)垂直度(perpendicularity)倾斜度(角度) (angularity)位置度(position)对称度(symmetry)同轴度(同心度) (concentricity)圆跳动(circular runout)全跳动(total runout)坐标尺寸(coordinate dimensioning)拔模斜度(draft angle)分型线(parting line)外圆角/内圆角拔模斜度(rounds/fillets draft)肋材和尖角(rib and corner)顶/测/端视图(top/side/ end view)标题] 12. 形位公差符号常用语 (中英文双语)公差/值(tolerance/value)基本尺寸(basic size)偏差(deviation)上/下偏差(upper/lower deviation)配合/间隙配合/过盈配合/过渡配合(fit/clearance fit/interference fit/ transition fits) 单/双边公差(unilateral/bilateral tolerance)标准/精度公差(standard/ precision tolerance)基准/特征/点/线/平面/轴线(datum/feature/point/line/ plane/axis) 最大/小材料状态(M/LMC=maximum/least material condition) 理论正确尺寸(theoretical size )基本尺寸(basic dimension)直径/半径(diameter/radius)直线度(straightness)平面度(flatness)圆度(circularity)圆柱度(cylindricity)线轮廓度(profile of a line)面轮廓度(profile of a surface)定向公差(orientation tolerance)平行度(parallelism)垂直度(perpendicularity)字串6倾斜度(角度) (angularity)位置度(position)对称度(symmetry)同轴度(同心度) (concentricity)圆跳动(circular runout)全跳动(total runout)坐标尺寸(coordinate dimensioning)几何尺寸(geometric dimensioning)拔模斜度(draft angle)分型线(parting line)外圆角/内圆角拔模斜度(rounds/fillets draft)肋材和尖角(rib and corner)顶/测/端视图(top/side/ end view)。

形位公差符号常用语 (中英文双语)公差/值(tolerance/value)基本尺寸(basic size)偏差(deviation)上/下偏差(upper/lower deviation)配合/间隙配合/过盈配合/过渡配合(fit/clearance fit/interference fit/ transition fits)单/双边公差(unilateral/bilateral tolerance)标准/精度公差(standard/ precision tolerance)基准/特征/点/线/平面/轴线(datum/feature/point/line/ plane/axis)最大/小材料状态(M/LMC=maximum/least material condition)理论正确尺寸(theoretical size )基本尺寸(basic dimension)直径/半径(diameter/radius)直线度(straightness)平面度(flatness)圆度(circularity)圆柱度(cylindricity)线轮廓度(profile of a line)面轮廓度(profile of a surface)定向公差(orientation tolerance)平行度(parallelism)垂直度(perpendicularity)倾斜度(角度) (angularity)位置度(position)对称度(symmetry)同轴度(同心度) (concentricity)圆跳动(circular runout)全跳动(total runout)坐标尺寸(coordinate dimensioning)拔模斜度(draft angle)分型线(parting line)外圆角/内圆角拔模斜度(rounds/fillets draft) 肋材和尖角(rib and corner)顶/测/端视图(top/side/ end view)。

公差/值(tolerance/value)基本尺寸(basic size)偏差(deviation)上/下偏差(upper/lower deviation)配合/间隙配合/过盈配合/过渡配合(fit/clearance fit/interference fit/ transition fits) 单/双边公差(unilateral/bilateral tolerance)标准/精度公差(standard/ precision tolerance)基准/特征/点/线/平面/轴线(datum/feature/point/line/ plane/axis)最大/小材料状态(M/LMC=maximum/least material condition)理论正确尺寸(theoretical size )基本尺寸(basic dimension)直径/半径(diameter/radius)直线度(straightness)平面度(flatness)圆度(circularity)圆柱度(cylindricity)线轮廓度(profile of a line)面轮廓度(profile of a surface)定向公差(orientation tolerance)平行度(parallelism)垂直度(perpendicularity)倾斜度(角度) (angularity)位置度(position)对称度(symmetry)同轴度(同心度) (concentricity)圆跳动(circular runout)全跳动(total runout)坐标尺寸(coordinate dimensioning)拔模斜度(draft angle)分型线(parting line) 外圆角/内圆角拔模斜度(rounds/fillets draft)肋材和尖角(rib and corner)顶/测/端视图(top/side/ end view)公差/值(tolerance/value)基本尺寸(basic size)偏差(deviation)上/下偏差(upper/lower deviation)配合/间隙配合/过盈配合/过渡配合(fit/clearance fit/interference fit/ transition fits) 单/双边公差(unilateral/bilateral tolerance)标准/精度公差(standard/ precision tolerance)基准/特征/点/线/平面/轴线(datum/feature/point/line/ plane/axis)最大/小材料状态(M/LMC=maximum/least material condition)理论正确尺寸(theoretical size )基本尺寸(basic dimension)直径/半径(diameter/radius)直线度(straightness)平面度(flatness)圆度(circularity)圆柱度(cylindricity)线轮廓度(profile of a line)面轮廓度(profile of a surface)定向公差(orientation tolerance)平行度(parallelism)垂直度(perpendicularity)倾斜度(角度) (angularity)位置度(position)对称度(symmetry)同轴度(同心度) (concentricity)圆跳动(circular runout)全跳动(total runout)坐标尺寸(coordinate dimensioning)几何尺寸(geometric dimensioning) 拔模斜度(draft angle)分型线(parting line) 外圆角/内圆角拔模斜度(rounds/fillets draft) 肋材和尖角(rib and corner)顶/测/端视图(top/side/ end view)。

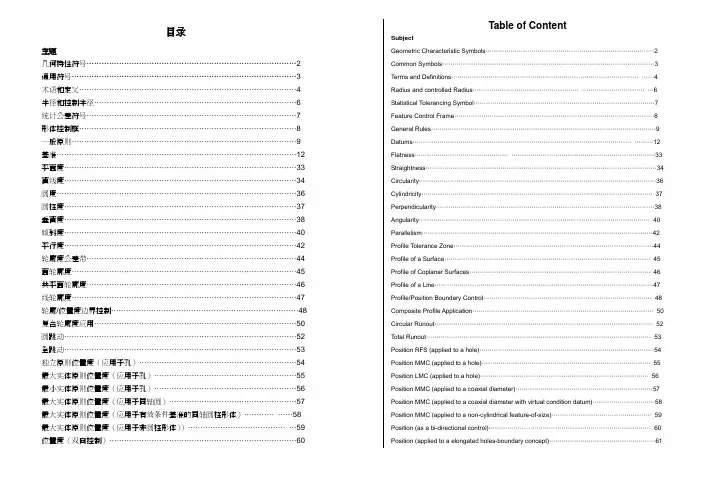

目录主题几何特性符号 (2)通用符号 (3)术语和定义 (4)半径和控制半径 (6)统计公差符号 (7)形体控制框 (8)一般原则 (9)基准 (12)平面度 (33)直线度 (34)圆度 (36)圆柱度 (37)垂直度 (38)倾斜度 (40)平行度 (42)轮廓度公差带 (44)面轮廓度 (45)共平面轮廓度 (46)线轮廓度 (47)轮廓/位置度边界控制 (48)复合轮廓度应用 (50)圆跳动 (52)全跳动 (53)独立原则位置度（应用于孔） (54)最大实体原则位置度（应用于孔） (55)最小实体原则位置度（应用于孔） (56)最大实体原则位置度（应用于同轴圆） (57)最大实体原则位置度（应用于有效条件基准的同轴圆柱形体） (58)最大实体原则位置度（应用于非圆柱形体）） (59)位置度（双向控制） (60)Table of ContentSubjectGeometric Characteristic Symbols (2)Common Symbols (3)Terms and Definitions (4)Radius and controlled Radius (6)Statistical Tolerancing Symbol (7)Feature Control Frame (8)General Rules (9)Datums (12)Flatness (33)Straightness (34)Circularity (36)Cylindricity (37)Perpendicularity (38)Angularity (40)Parallelism (42)Profile Tolerance Zone (44)Profile of a Surface (45)Profile of Coplanar Surfaces (46)Profile of a Line (47)Profile/Position Boundary Control (48)Composite Profile Application (50)Circular Runout (52)Total Runout (53)Position RFS (applied to a hole) (54)Position MMC (applied to a hole) (55)Position LMC (applied to a hole) (56)Position MMC (applied to a coaxial diameter) (57)Position MMC (applied to a coaxial diameter with virtual condition datum) (58)Position MMC (applied to a non-cylindrical feature-of-size) (59)Position (as a bi-directional control) (60)Position (applied to a elongated holes-boundary concept) (61)位置度（应用于长形孔-边界形） (61)位置度（用于控制对称度） (62)延伸公差带 (63)固定联结件位置度计算公式 (64)浮动联结件位置度计算公式 (65)复合位置公差 (66)多组合位置公差 (68)位置度为零的最大实体原则 (70)同轴度 (71)对称度 (72)转换图 (73)表面特性定义 (74)表面特性符号 (75)表面特性 (75)公英制转换 (77)1 Position (used to control symmetry) (62)Projected Tolerance Zone (63)The Fixed Fastener Formula (64)The Floating Fastener Formula (65)Composite Position Tolerancing (66)Position (multiple single segment control) (68)Zero Tolerance at MMC (70)Concentricity (71)Symmetry (72)Conversion Chart (73)Surface Texture Definitions (74)Surface Texture Symbols (75)Surface Texture (75)Conversion of Metric to Inch (77)1几何特性符号2Geometric Characteristic Symbols2用符号下图所示是在工程图中几何公差或其他尺寸要求使用最广泛的符号。
