飞思卡尔单片机S12使用方法及程序单片机简介：9S12XS128MAA单片机是16位的单片机80个引脚，CPU是CPU12X，内部RAM 8KB,EEPROM:2KB,FLASH:128KB,外部晶振16M，通过内部PLL可得40M总线时钟。

9S12XS128MAA单片机拥有：CAN:1个，SCI:2个，SPI:1个，TIM：8个，PIT：4个，A/D：8个，PWM:8个下面介绍下我们项目用到的几个模块给出初始化代码1、时钟模块初始化单片机利用外部16M晶振，通过锁相环电路产生40M的总线时钟（9S12XS128系列标准为40M），初始化代码如下：view plaincopy to clipboardprint?/******************系统时钟初始化****************/void Init_System_Clock(){asm { // 这里采用汇编代码来产生40M的总线LDAB #3STAB REFDVLDAB #4STAB SYNRBRCLR CRGFLG,#$08,*//本句话含义为等待频率稳定然后执行下一条汇编语句，选择此频率作为总线频率BSET CLKSEL,#$80}}/******************系统时钟初始化****************/void Init_System_Clock(){asm { // 这里采用汇编代码来产生40M的总线LDAB #3STAB REFDVLDAB #4STAB SYNRBRCLR CRGFLG,#$08,*//本句话含义为等待频率稳定然后执行下一条汇编语句，选择此频率作为总线频率BSET CLKSEL,#$80}上面的代码是汇编写的，这个因为汇编代码量比较少，所以用它写了，具体含义注释已经给出，主函数中调用此函数即可完成时钟初始化，总线时钟为40M.2、SCI模块初始化单片机电路做好了当然少不了和PC之间的通信，通信通过单片机串口SCI链接到PC 端的COM口上去。

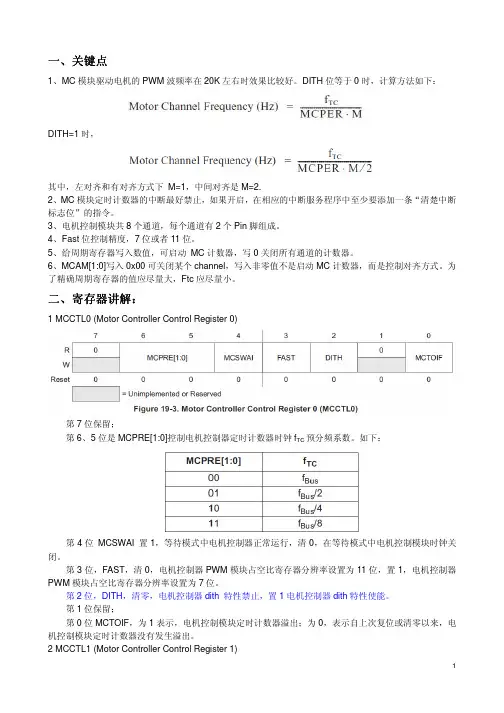

M=2.一、关键点1、MC 模块驱动电机的PWM 波频率在20K 左右时效果比较好。

DITH 位等于0时，计算方法如下：DITH=1时，其中，左对齐和有对齐方式下 M=1，中间对齐是2、MC 模块定时计数器的中断最好禁止，如果开启，在相应的中断服务程序中至少要添加一条“清楚中断标志位”的指令。

3、电机控制模块共8个通道，每个通道有2个Pin 脚组成。

4、Fast 位控制精度，7位或者11位。

5、给周期寄存器写入数值，可启动 MC 计数器，写0关闭所有通道的计数器。

6、MCAM[1:0]写入0x00可关闭某个channel ，写入非零值不是启动MC 计数器，而是控制对齐方式。

为了精确周期寄存器的值应尽量大，Ftc 应尽量小。

二、寄存器寄存器讲解讲解讲解：：1 MCCTL0 (Motor Controller Control Register 0)第7位保留；第6、5位是MCPRE[1:0]控制电机控制器定时计数器时钟f TC 预分频系数。

如下：第4位 MCSWAI 置1，等待模式中电机控制器正常运行，清0，在等待模式中电机控制模块时钟关闭。

第3位，FAST ，清0，电机控制器PWM 模块占空比寄存器分辨率设置为11位，置1，电机控制器PWM 模块占空比寄存器分辨率设置为7位。

第2位，DITH ，清零，电机控制器dith 特性禁止，置1电机控制器dith 特性使能。

第1位保留；第0位MCTOIF ，为1表示，电机控制模块定时计数器溢出；为0，表示自上次复位或清零以来，电机控制模块定时计数器没有发生溢出。

2 MCCTL1 (Motor Controller Control Register 1)第7位，RECIRC控制PWM波极性。

0表示—，1表示+ ；第6到第1位系统保留；第0位，MCTOIE，为0表示Motor Controller Timer Counter Overflow Interrupt禁止，为1标志使能。

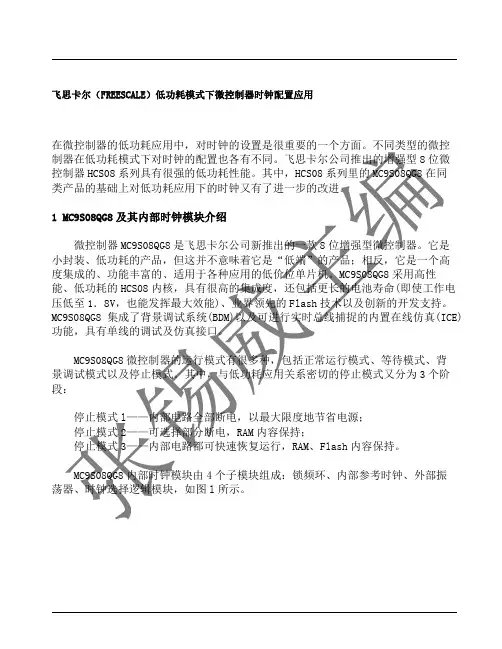

飞思卡尔（FREESCALE）低功耗模式下微控制器时钟配置应用在微控制器的低功耗应用中，对时钟的设置是很重要的一个方面。

不同类型的微控制器在低功耗模式下对时钟的配置也各有不同。

飞思卡尔公司推出的增强型8位微控制器HCS08系列具有很强的低功耗性能。

其中，HCS08系列里的MC9S08QG8在同类产品的基础上对低功耗应用下的时钟又有了进一步的改进。

1 MC9S08QG8及其内部时钟模块介绍微控制器MC9S08QG8是飞思卡尔公司新推出的一款8位增强型微控制器。

它是小封装、低功耗的产品，但这并不意味着它是“低端”的产品；相反，它是一个高度集成的、功能丰富的、适用于各种应用的低价位单片机。

MC9S08QG8采用高性能、低功耗的HCS08内核，具有很高的集成度，还包括更长的电池寿命(即使工作电压低至1．8V，也能发挥最大效能)、业界领先的Flash技术以及创新的开发支持。

MC9S08QG8集成了背景调试系统(BDM)以及可进行实时总线捕捉的内置在线仿真(ICE)功能，具有单线的调试及仿真接口。

MC9S08QG8微控制器的运行模式有很多种，包括正常运行模式、等待模式、背景调试模式以及停止模式。

其中，与低功耗应用关系密切的停止模式又分为3个阶段：停止模式l——内部电路全部断电，以最大限度地节省电源；停止模式2——可选择部分断电，RAM内容保持；停止模式3——内部电路都可快速恢复运行，RAM、Flash内容保持。

MC9S08QG8内部时钟模块由4个子模块组成：锁频环、内部参考时钟、外部振荡器、时钟选择逻辑模块，如图l所示。

锁频环的输出频率为参考时钟频率的512倍，包括3个主要部分：参考频率选择、数字控制振荡器和用于比较这两个部分输出的滤波器。

锁频环是通过比较数字控制振荡器时钟与参考时钟的频率来工作的。

锁频环对一个参考时钟周期内的数字控制振荡器时钟脉冲边沿数进行计数，因此，对于512倍的倍频器，锁频环应该在参考时钟的每两个上升沿之间得到512个数字控制振荡器输出的上升沿。

飞思卡尔半导体文件编号：AN3291 应用笔记第1版，03/2007Specifications and information herein are subject to change without notice. ©Freescale Semiconductor，Inc., 2007. All rights reserved.General Business Information如何在M68HC08、HCS08和HCS12微控制器上应用IIC模块作者：　Stanislav Arendarik应用工程师捷克共和国，罗斯诺夫1 简介此应用笔记是如何在飞思卡尔的微控制器上应用IIC模块的一个示例。

IIC模块可以分别在主模式或从模式下使用。

在这种情况下，由于IIC 总线主要用于在微控制器（MCU）和IIC外设之间的通信，因此在主模式时与串行EEPROM进行通信。

IIC总线可以在两个微控制器（MCU）之间直接进行通信，然而SPI总线却更适用于这种应用。

此应用笔记总结了通用IIC总线状态和定义，并提供了如何与串行EEPROM进行通信的示例（24C16和24C512）。

您可以轻松地用另外一个IIC器件取代EEPROM，但是必须改变将其标识为从器件的IIC地址字节。

目录1 简介…………… . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 12 IIC 总线摘要………….. . . . …. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.1 IIC总线术语.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.2 位传输. ………….. . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 22.3 起始条件和停止条件(START and STOP Conditions)...... . 32.4 总线通信. . ……………………….. . . . . . . . . . . . . . . . . . . . 32.5 控制字节………………………. . . . . . . . . . . . . . . . . . . . .. . . 32.6 地址字节……….... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42.7 应答………… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 42.8 读/写格式………………………………......…..…... . . . . . . .. 53 用于微控制器的IIC软件程序. ………. . . . . . . . . . . . . . . . . . . . . . . 53.1 IIC的初始化. … . . . …….. . . . . . . . . .. .. . . . .. .. .. . . . . . . . 63.2 写入功能. . . . . . . . . . . . . . . . . . . . . .. . . . . . .. . . . . . . . . . . 73.3 读取功能 .. . . . . . . . . . . . . . . . . . . . .. . .. . . . . .. . . . . . . . . 93.4 中断应用举例. . . . . . ……………. . . . . . . . . . . .. . . . . . . . . 133.4.1 MCU作为主机.. . . . . . . . . . . .. .. . . . . . . . . . . . . . . 133.4.2 MCU作为从机. . . . . . .. . . . . . . .. . . . . . .. . . . . . . 164 结论. . . ……... . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .. . . . . . . .. . . 17IIC总线摘要2 IIC 总线摘要IIC总线是基于主机和从机间线与（开漏）连接的双向、两线式总线。

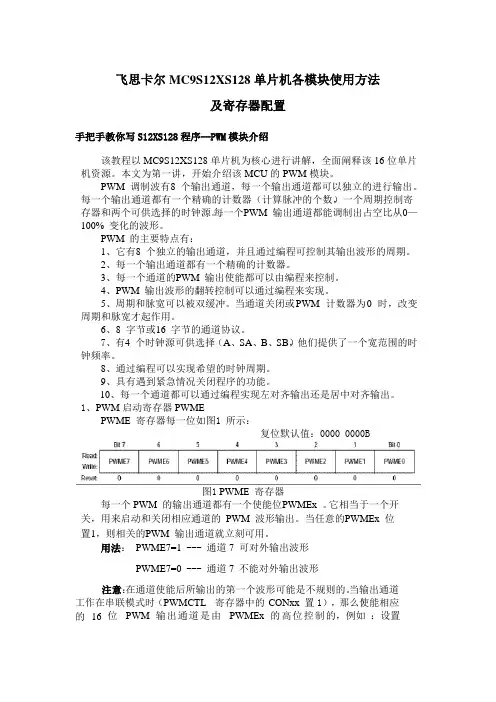

飞思卡尔MC9S12XS128单片机各模块使用方法及寄存器配置手把手教你写S12XS128程序--PWM模块介绍该教程以MC9S12XS128单片机为核心进行讲解，全面阐释该16位单片机资源。

本文为第一讲，开始介绍该MCU的PWM模块。

PWM 调制波有8个输出通道，每一个输出通道都可以独立的进行输出。

每一个输出通道都有一个精确的计数器（计算脉冲的个数），一个周期控制寄存器和两个可供选择的时钟源。

每一个P WM 输出通道都能调制出占空比从0—100% 变化的波形。

PWM 的主要特点有：1、它有8个独立的输出通道，并且通过编程可控制其输出波形的周期。

2、每一个输出通道都有一个精确的计数器。

3、每一个通道的P WM 输出使能都可以由编程来控制。

4、PWM 输出波形的翻转控制可以通过编程来实现。

5、周期和脉宽可以被双缓冲。

当通道关闭或PWM 计数器为0时，改变周期和脉宽才起作用。

6、8 字节或16 字节的通道协议。

7、有4个时钟源可供选择（A、SA、B、SB），他们提供了一个宽范围的时钟频率。

8、通过编程可以实现希望的时钟周期。

9、具有遇到紧急情况关闭程序的功能。

10、每一个通道都可以通过编程实现左对齐输出还是居中对齐输出。

1、PWM启动寄存器PWMEPWME 寄存器每一位如图1所示：复位默认值：0000 0000B图1 PWME 寄存器每一个PWM 的输出通道都有一个使能位P WMEx 。

它相当于一个开关，用来启动和关闭相应通道的PWM 波形输出。

当任意的P WMEx 位置1，则相关的P WM 输出通道就立刻可用。

用法：PWME7=1 --- 通道7 可对外输出波形PWME7=0 --- 通道7 不能对外输出波形注意：在通道使能后所输出的第一个波形可能是不规则的。

当输出通道工作在串联模式时（PWMCTL 寄存器中的CONxx置1），那么）使能相应的16位PWM 输出通道是由PWMEx 的高位控制的，例如：设置PWMCTL_CON01 = 1,通道0、1级联，形成一个16位PWM 通道，由通道 1 的使能位控制PWM 的输出。

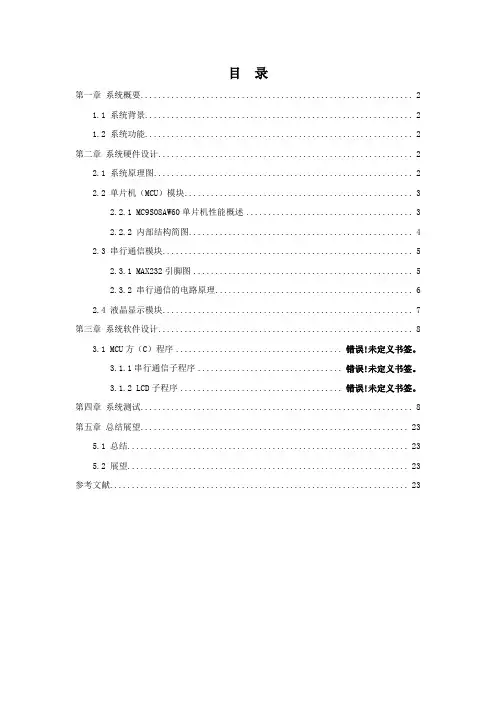

目录第一章系统概要 (2)1.1 系统背景 (2)1.2 系统功能 (2)第二章系统硬件设计 (2)2.1 系统原理图 (2)2.2 单片机（MCU）模块 (3)2.2.1 MC9S08AW60单片机性能概述 (3)2.2.2 内部结构简图 (4)2.3 串行通信模块 (5)2.3.1 MAX232引脚图 (5)2.3.2 串行通信的电路原理 (6)2.4 液晶显示模块 (7)第三章系统软件设计 (8)3.1 MCU方（C）程序...................................... 错误!未定义书签。

3.1.1串行通信子程序................................. 错误!未定义书签。

3.1.2 LCD子程序..................................... 错误!未定义书签。

第四章系统测试.. (8)第五章总结展望 (23)5.1 总结 (23)5.2 展望 (23)参考文献 (23)第一章系统概要1.1 系统背景数字时钟，当我们听到这几个字时，第一反应就是我们所说的数字，不错数字钟就是以数字显示取代模拟表盘的钟表，在显示上它用数字反应出此时的时间，相比模拟钟能给人一种一目了然的感觉，不仅如此它还能同时显示时、分、秒。

而且能对时、分、秒准确校时，这是普通钟所不及的。

由于单片机集成度高、功能强、可靠性高、体积小、功耗地、使用方便、价格低廉等一系列优点，目前已经渗入到人们工作和生活的方方面面，几乎“无处不在，无所不为”。

单片机的应用领域已从面向工业控制、通讯、交通、智能仪表等迅速发展到家用消费产品、办公自动化、汽车电子、PC机外围以及网络通讯等广大领域。

1.2 系统功能在实验箱上有一个启动键，当按下启动键给以一个低电平，电子时钟从当前设定值开始走时。

按秒刷新，要求在LCD屏上显示。

若按启动键给以高电平，则时间暂停，再按，时间继续按秒刷新。

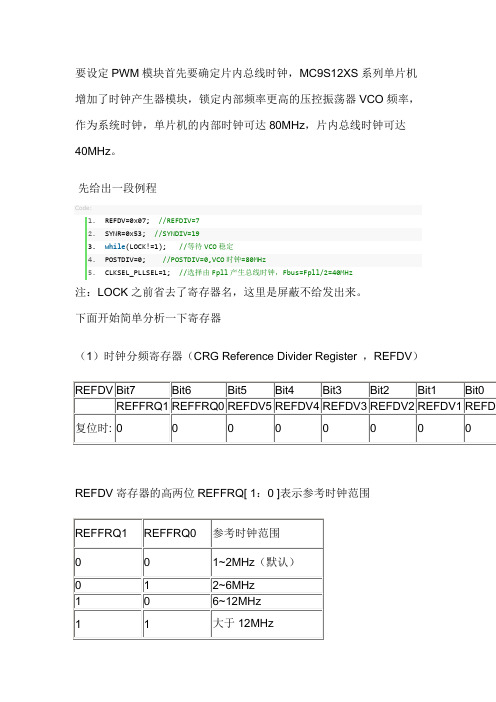

要设定PWM模块首先要确定片内总线时钟，MC9S12XS系列单片机增加了时钟产生器模块，锁定内部频率更高的压控振荡器VCO频率，作为系统时钟，单片机的内部时钟可达80MHz，片内总线时钟可达40MHz。

先给出一段例程Code:1.REFDV=0x07; //REFDIV=72.SYNR=0x53; //SYNDIV=193.while(LOCK!=1); //等待VCO稳定4.POSTDIV=0; //POSTDIV=0,VCO时钟=80MHz5.CLKSEL_PLLSEL=1; //选择由Fpll产生总线时钟，Fbus=Fpll/2=40MHz注：LOCK之前省去了寄存器名，这里是屏蔽不给发出来。

下面开始简单分析一下寄存器（1）时钟分频寄存器（CRG Reference Divider Register ，REFDV）REFDV寄存器的高两位REFFRQ[ 1：0 ]表示参考时钟范围REFDV的低六位为分频因子REFDV的值，有效值的范围为0~63.（2）时钟合成寄存器（CRG Synthesizer Register , SYNR）SYNR高两位控制压控振动器VCO的增益SYNR寄存器的低六位可写入0~63.可将锁相环时钟倍频1~64倍。

锁相环产生的时钟频率可由下面的公式得到PLLCLK=2 * OSCCLK * ( SYNR+1 ) / ( REFDV+1 )（3）锁相环寄存器（PLL Control Register , PLLCTL）CME：时钟监控允许位。

PLLON：锁相环电路允许位。

FM [ 1 : 0 ]：选择附加调频滤波器以降低VCO噪声，默认值表示不使用该滤波器，可写入01,10或11，表示参考频率相对于VCO偏高1%,2%,4%时自动调整。

FSTWKP：时钟快速唤醒CPU功能位。

PRE：CPU伪停止状态时，实时中断（RT1）允许位。

PCE：CPU虚拟停止时，看门狗（COP）允许位。

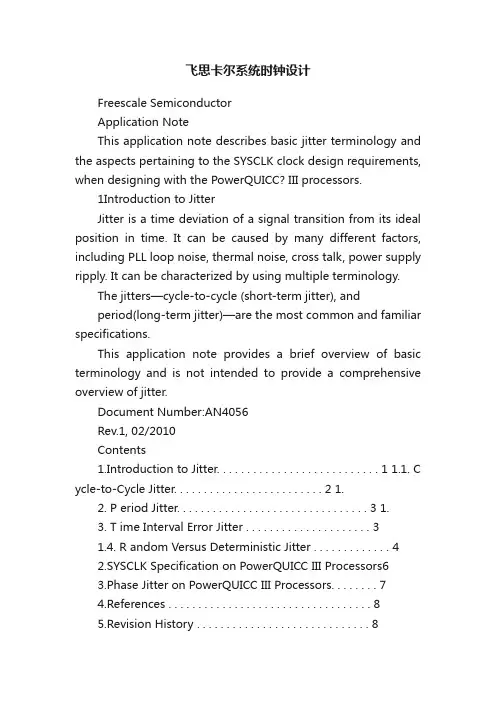

飞思卡尔系统时钟设计Freescale SemiconductorApplication NoteThis application note describes basic jitter terminology and the aspects pertaining to the SYSCLK clock design requirements, when designing with the PowerQUICC? III processors.1Introduction to JitterJitter is a time deviation of a signal transition from its ideal position in time. It can be caused by many different factors, including PLL loop noise, thermal noise, cross talk, power supply ripply. It can be characterized by using multiple terminology.The jitters—cycle-to-cycle (short-term jitter), andperiod(long-term jitter)—are the most common and familiar specifications.This application note provides a brief overview of basic terminology and is not intended to provide a comprehensive overview of jitter.Document Number:AN4056Rev.1, 02/2010Contents1.Introduction to Jitter. . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1.1. C ycle-to-Cycle Jitter. . . . . . . . . . . . . . . . . . . . . . . . . 2 1.2. P eriod Jitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.3. T ime Interval Error Jitter . . . . . . . . . . . . . . . . . . . . . 31.4. R andom Versus Deterministic Jitter . . . . . . . . . . . . . 42.SYSCLK Specification on PowerQUICC III Processors63.Phase Jitter on PowerQUICC III Processors. . . . . . . . 74.References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85.Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Understanding SYSCLK JitterIntroduction to Jitter1.1Cycle-to-Cycle JitterCycle-to-cycle jitter is defined as the maximum difference between any two adjacent clock periods. It is is always specified as an absolute magnitude and not by positive or negative value. Figure 1 shows the cycle-to-cycle jitter.Figure 1. Cycle-to-Cycle JitterCycle-to-cycle jitter is important for specifying the performance of PLL however, it does not establish a relationship between non-adjacent clocks. Specifically, it does not address frequency drift over time.For example, the clock shown in Figure 2 meets 100ps of cycle-to-cycle jitter specifications. However, over the time, frequency of the clock has drifted significantly.Figure 2. Cycle-to-Cycle Jitter with Frequency DriftT 1T 2T 3| T 2 – T 1 | = 100 ps, | T 3 – T 2 | = 100 ps, ... , | T n – T (n-1) | = 100 psP2P3P1| T 2 – T 1 | = 100 ps, | T 3 – T 2 |= 100ps, | T n – T (n-1) | = 100 ps...T 110.0 nsT 29.9 nsT 39.8 nsT 49.7 nsT 90T 911.1ns 1.0nsP1P3P4P90P91Introduction to Jitter1.2Period JitterPeriod jitter is defined as the maximum deviation of any clock period from its mean clock period . It compares the length of each period to the average period of an ideal clock at a long-term average frequency of the signal.Period jitter is typically specified over a set number of clock cycles. Jedec Specification, JESD65B, suggests, measuring jitter over 10,000cycles when the clock is in a range of 10 to 100MHz. However, if clock cycles are not specified, it is recommended to measure period jitter over 100,000cycles to better represent jitter over an “infinite” time span.For example, the clock shown in Figure 3 can be specified as a comparison of n periods to the ideal period. In practice, it is difficult to quantify an ideal period, thus average period is used. Therefore, compare n periods to the reference “average period.”Figure 3. Period JitterThis describes jitter over time, and ensures that the clock does not drift.1.3Time Interval Error JitterTime Interval Error (TIE) is the difference between observed clock edge time and expected clock edge time for each clock edge present. It is measured by subtracting the actual clock edge from the ideal clock edge. It is important to note that TIE refers to clock edges, while period jitter refers to clock period.P1P3PnT 1T 2T 3T n-1T nPn-1Ideal ClockClockIntroduction to JitterFigure 4 shows an example of actual clock compared to an ideal clock and is derived per cycle jitter of an actual clock.Figure 4. TIE as Related to Cycle-to-Cycle and Period JitterIn Figure 4, the period of an ideal clock is assumed as 10ns and jitter is always +/–1ns deviated from an ideal clock. From first to second cycle, short-term (cycle-to-cycle) jitter is –1ns. This equates to a period jitter of T m –1ns (where T m is the ideal or mean clock period).From 2nd to 3rd cycle, short-term jitter is 1ns (this is a measurement of change in two adjacent clock cycles of non-ideal clock). Rounding to the nearest ns, the equation for period jitter over the course of two cycles becomes T m –[(T 1+T 2)/2]=T m –1. TIE compares the actual signal to ideal clock, and thus is equal to –1 for the 2nd cycle.TIE is related to both cycle-to-cycle and period jitter. In fact, cycle-to-cycle jitter and period jitter can be calculated from TIE.1.4Random Versus Deterministic JitterJitter (total jitter) is typically composed of a random jitter (RJ) component and a deterministic jitter (DJ) component. Deterministic jitter is caused by impedance mismatch, power supply ripple, crosstalk, ground bounce, intersymbol interferenc, ringing, and reference clock feed through. It is an artifact ofboard design and is typically controllable. DJ can be reduced by proper board design or IC selection.The remaining components of jitter are random. Random jitter is caused by factors like thermaloscillations, thermal noise that result in levels of jitter and cannot be predicted on a cycle-by-cycle basis. It is not bounded. The longer you observe, wider the period variation appears; therefore, RJ is bestdescribed as a Gaussian distribution. The tails of a Guassian distribution extends indefinitely on either side10 ns9 ns 10 ns 11 ns 10 ns10 nsCycle 1Cycle 2Cycle 3Cycle 4Ideal ClockClockCycle-to-CyclePeriod TIE–1001–1–120–1–221–01Cycle 5Introduction to Jitterof the mean. This implies that it is impossible to specify a peak-to-peak jitter range that bounds RJ 100% of the time. Instead, bound a range that contains the jitter for x percent ofthe time. Typically, long-haul optical systems specify jitter in terms of RMS over N cycles, or peak-to-peak cycle-to-cycle jitter over N cycles (N can be 200,000–300,000 cycles). SONET is specified at 14×RMS, which equates to 10–12 bit error rate (BER). Figure 5 shows the Gaussian distribution.Figure 5. Gaussian DistributionFor example, one standard deviation is a point from the mean that contains 68.26% of all measurements (standard deviation is same as RMS ).Table 1 shows time to outlier clock for various standard deviation, considering a 100-MHz clock.Table 1. Standard Deviation and BER for 100-MHz ClockStandard Deviation (+/–)% of Total Population Time to Outlier for 100-MHz ClockBit Error Rate168.270000000000000%32ns0.16295.450000000000000%220ns 2.28×10–2399.730000000000000% 3.7μs 1.35 ×10–3499.993666000000000%157μs 0.32×10–4599.999942670000000%17ms 2.87×0–7699.999999802700000% 5.1sec 0.98×10–9799.999999999744000%65min 1.28 × 10–12899.999999999987600%~22hours0.62 ×10–15P = 68 %P = 95 %x σ+1σ+2σSYSCLK Specification on PowerQUICC III ProcessorsTotal jitter (TJ) is the sum effect of RJ and DJ over a number of cycles.Since RJ is a Gaussian distribution, and there are no bounds, the calculation is not simply an addition of RJ and DJ. Total jitter can be specified as follows:TJ = (σ x RJ) + DJEqn.1Figure 6 shows probability outside of peak-to-peak approximation.Figure 6. Probability Outside of Peak-to-Peak Approximation In order to bound TIE over a number of cycles, statistically meaningful number of clock cycles arerequired (for example, 1012 or an approximation of it). Assuming that all RJ on a board is Gaussian, and there is a finite probability that any independent sample would be outside an approximated peak-to-peak value, a peak-to-peak total jitter can be extrapolated. Probability decreases as the number of standard deviations used to aproximate the peak-to-peak value increases, and in the end, a total jitter calculation becomes a statistical calculation.For this example of a BER equal to 1012 cycles, TJ =(14.262×RJ) + DJ. It is interesting to note that RJ plays a much more significant role in the total jitter than DJ; in this case 14.262 times more.2SYSCLK Specification on PowerQUICC III ProcessorsFor example, on MPC8548 microcontroller, SYSCLK jitter is specified as 150ps of total jitter. This is a TIE jitter specification, from which cycle-to-cycle and period jitter requirements can be calculated. It is recommended to measure TIE over at least 100,000 cycles and the thumb rule is to measure over 1012 cycles. However, as per Table 1, this measurement can take some time.On some oscilloscopes, it may be easier to measure TJ. TIE over n cycles is the equivalent measurement to TJ, as σ is proportinal to the number of cycles.579111315Peak-to-Peak Approximation ( )σ1.E+00P r o b a b i l i t y1.E-021.E-041.E-061.E-081.E-101.E-121.E-14Phase Jitter on PowerQUICC III ProcessorsTable 2 provides the system clock (SYSCLK) AC timing specifications.Since the SYSCLK input is not used for long-haul transmission of large data packets to a device running on a separate clock domain, a measurement like BER is not really applicable. SYSCLK impacts internal timing budgets, and the ability of internal PLL to track the clock. The PC B designer’s main concern is to ensure that jitter on SYSCLK is such that it is outside the bandwidth in which the PowerQUICC III PLL can amplify it.In Table 2, note 5 specifies the internal PLL’s closed loop jitter. This specification further narrows down the jitter requirement for SYSCLK and specifies 500kHz to 10MHz as the range at which the gain curve of the internal PLL is positive and has a peak (this means jitter can be amplified). At lower frequencies, PLL tracks precisely and at higher frequencies PLL response is damped and jitter is attenuated. Therefore, spreadspectrum clock inputs (~30kHz) work as SYSCLK inputs.3Phase Jitter on PowerQUICC III ProcessorsPeriod jitter and phase jitter are often confused. Phase jitter, as specified on PowerQUICC III products, is a deviation in edge location with respect to mean edge location.Table 3 lists the AC requirements for the PCI Express SerDes clocks.Table 2. SYSCLK Timing Specifications(At recommended operating conditions with OVDD = 3.3 V ± 165 mV .)Parameter/Condition Symbol Min Typical Max.Unit Notes SYSCLK frequency f SYSCLK 16—133MHz 1, 6SYSCLK cycle time t SYSCLK 7.5—60ns 6SYSCLK rise and fall time t KH , TKL 0.6 1.0 1.2ns 2SYSCLK duty cycle t KHK /t SYSCLK40—60%3SYSCLK jitter———+150ps4. 5Notes:1. Caution: The CCB clock to SYSCLK ratio and e500 core to CCB clock ratio settings must be chosen such that the resulting SYSCLK frequency, e500 (core) frequency, and CCB clock frequency do not exceed their respective maximum or minimum operating frequencies.2. Rise and fall times for SYSCLK are measured at 0.6 and 2.7 V .3. Timing is guaranteed by design and characterization.4. This represents the total input jitter—short-term and long-term—and is guaranteed by design.5. The SYSCLK driver’s c losed loop jitter bandwidth should be <500 KHz at –20 dB. The bandwidth must be set low to allow cascade-connected PLL-based devices to track SYSCLK drivers with the specified jitter.6. This parameter has been adjusted slower according to the workaround for device erratum GEN 13.Table Symbol Parameter DescriptonMin Typ Max Unit Notes t REF REFCLK cycle time—10—ns 1t REFCJ REFCLK cycle-to-cycle jitter. Difference in the period of any two adjacent REFCLK cycles.——100ps —t REFPJPhase jitter, Deviation in edge location with respect to mean edge location.–50—50ps—ReferencesSo, phase jitter as specified is a TIE or TJ measurement over 100,000 cycles.4References/doc/a020240f763231126edb11f0.ht ml /tm/Library/WhitePapers/PDF/WP_TechBrief_Dif_Ref_Jit.pdf /doc/a020240f763231126edb11f0.ht ml /arpdf/AppNotes/3hfan402.pdf5Revision HistoryTable4 provides a revision history for this application note.Table4. Document Revision HistoryRev.Date Substantive Change(s)Number102/19/2010Updated Figure3 in Section1.2, “Period Jitter.”Removed Equation from the Section1.2, “Period Jitter.”Revised Figure4in Section1.3, “Time Interval Error Jitter.”Added Equation1 in Section1.4, “Random Versus Deterministic Jitter” and updated contentaccordingly.Added Figure6 Probability Outside of Peak-to-Peak Approximation Section1.4, “Random VersusDeterministic Jitter.”Updated Section2, “SYSCLK Specification on PowerQUICC III Processors.”Updated Section3, “Phase Jitter on PowerQUICC III Processors,” regarding phase jitter as TIEspecification.001/20/2010Initial Release.Revision History THIS PAGE INTENTIONALLY LEFT BLANKDocument Number:AN4056 Rev.102/2010Information in this document is provided solely to enable system and software implementers to use Freescale Semiconductor products. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits or integrated circuits based on the information in this document.Freescale Semiconductor reserves the right to make changes without further notice to any products herein. Freescale Semiconductor makes no warranty, representation or guaranteeregarding the suitability of its products for any particular purpose, nor does Freescale Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. “T ypical” parameters which may be provided in Freescale Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “T ypicals” must be validated for each customer application by customer’s techni cal experts. Freescale Semiconductor does not convey any license under its patent rights nor the rights of others. Freescale Semiconductor products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the Freescale Semiconductor product could create a situation where personal injury or death may occur. Should Buyer purchase or use Freescale Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold Freescale Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that Freescale Semiconductor was negligent regarding the design or manufacture of the part.How to Reach Us:Home Page:/doc/a020240f763231126edb11f0.htmlWeb Support:/doc/a020240f763231126edb11f0.ht ml /supportUSA/Europe or Locations Not Listed: Freescale Semiconductor, Inc.T echnical Information Center, EL516 2100 East Elliot Road T empe, Arizona 852841-800-521-6274 or+1-480-768-2130/doc/a020240f763231126edb11f0.ht ml /supportEurope, Middle East, and Africa: Freescale Halbleiter Deutschland GmbH T echnical Information Center Schatzbogen 781829 Muenchen, Germany+44 1296 380 456 (English)+46 8 52200080 (English)+49 89 92103 559 (German)+33 1 69 35 48 48 (French)/doc/a020240f763231126edb11f0.ht ml /supportJapan:Freescale Semiconductor Japan Ltd. HeadquartersARCO Tower 15F1-8-1, Shimo-Meguro, Meguro-kuT okyo 153-0064Japan0120 191014 or+81 3 5437 9125support.japan@/doc/a020240f763231 126edb11f0.htmlAsia/Pacific:Freescale Semiconductor China Ltd. Exchange Building 23F No. 118 Jianguo RoadChaoyang DistrictBeijing 100022China+86 10 5879 8000/doc/a020240f763231126edb11f0.ht ml@/doc/a020240f763231126edb11f0.html For Literature Requests Only: Freescale Semiconductor Literature Distribution Center 1-800 441-2447 or+1-303-675-2140Fax: +1-303-675-2150 LDCForFreescaleSemiconductor @/doc/a020240f763231126edb11f0.html Freescale, the Freescale logo, CodeWarrior, ColdFire, PowerQUICC, StarCore, and Symphony are trademarks of Freescale Semiconductor, Inc. Reg. U.S. Pat. & Tm. Off. CoreNet, QorIQ, QUICC Engine, and VortiQa are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. The Power Architecture and /doc/a020240f763231126edb11f0.html word marks and the Power and /doc/a020240f763231126edb11f0.html logos and related marks are trademarks and service marks licensed by /doc/a020240f763231126edb11f0.html .2010 Freescale Semiconductor, Inc.。
