Injection Mold Technical Terms(一）模具专业基本用词Professional Terms1．塑料—plastic, resin2．样件—sample3．钢料 - steel4．注塑机 - injection machine，press5．产品 - part, product，moulding6．模具—mold, mould，toolA 简易模(样板模）—prototype moldB 量产用模具 - production mold 7．三维造型（数模)—3D model, 3D data8．二维产品图 - 2D part drawing9．设计—design10．制造—manufacture，build up，construction11．检验—check, inspection12．测量—measure, inspection13．修改—change，modify, correction14．工程更改—engineer change15．质量 - quality16．数量—quantity17．基准—datum，reference牛角入水—rads gate（二）如何解析2D 产品图？How to read 2D part drawing?一．产品几何Geometry1．点—point2．线（边) —line，edge3．面faceA 侧面—sideB 表面 - surfaceC 外观面—appearance surface 4．壁厚—wall thickness, stock thickness5．加强筋（骨位) —rib6．孔—hole7．细长的槽—slot8．柱位—boss9．角 - cornerA 圆角—filletB 倒角 - chamferC 尖角—sharp corner 10．斜度—angle，taper11。

凹槽—recess , groove二．分模信息Splitting1．分型线—parting line (P/L)，splitting line2．主分模方向—main direction, line of draw3．浇口设定—gating产品标识Part Identification1．产品名称—part name （P/N)2．产品编号+版本号—part number + revision (Rev。

OTS=off tooling samples 即全工装状态下非节拍生产条件下制造出来的样件.用于验证产品的设计能力.(用于验证设计出来的产品是否符合客户要求，同时也是对生产工装的验证) 同时OTS也可以叫模具样品，LH 要求汇总书(一个工程的所有资料)TPB 产品技术描述(图纸、技术供货条件等等)DKM 数据控制模型(汽车形状1:1的基准样车)P P认可＝方案认可(决定投入批量生产)B B认可＝采购认可(对生产手段的投资认可)D D认可＝零件生产和供给认可(为零批量)BMG 产品工程性能认可EM 进行首批样件检验的首批样件，首批样件检验也称首批样件认可。

EMPB EMPB＝首批样件检验报告(供货商对其样件检验的文件)2TP 两日生产(供货厂的批量预生产，用来验证批量能力)PVS 生产试制批量0S 零批量(在批量生产条件下的总演习)SF 批量认可(对批量生产的产品认可)EPF (批量供货)方案认可KAF 集团路试验收(质量方面的批量认可)SOP 生产启动(批量生产启动)ME 市场导入(提供给销售商)CAD 计算机辅助设计COP 沿用件(与先前车型通用的零件)CKD 全部拆散SKD 局部拆散HT 自制件KT 外购件(外部供货厂生产的零件)KD 售后效劳OTS 用批量生产的模具生产的零件TE 技术开发部PE (合资厂中的)产品工程部TL 技术供货条件TS 产品零件表ZP 检查点ZSB 总成AEKO (产品)改动的控制组织常用英文缩写对照表汽车行业英文缩写(2021-05-06 14:34:33)OSM- Outside of MaterialOTC Over The Counter 非处方药，可在柜台上卖的药PA Program Approvalpallet n. 托盘Passenger Vehicle 乘用车PAT- Program Attributes Team 产品属性小组PDL Product Design LetterPH Proportions&HardpointsPIPC- Percentage of Indexes with Process Capability 能力指数百分比PIST- Percentage of Inspection points Satisfying Tolerance 检测点满意工差百分比PMT- Program Moudle Team 产品模块小组PO Purchase OrderPPAP- Production Part Approval Process 生产件批准程序PPSR Production Preparation Status ReportPQA Process Quality AssurancePR Program ReadinessPre-Launch 试生产price-driven costing 价格引导本钱Production Preparation-Final Nissan - PT2/Renault - PPProduction Preparation-Initial Nissan - PT1/Renault - PPP3Production Trial Run 试生产Prototype 样件QFD Quality Funtion Deploy质量功能展开QFTT Quality Functional Task TeamQR- Quality Reject 质量拒收QS Quality StandardRAN Release Authorisation Numberreverse 倒车档RFQ Request For Quotation询价RKD Reverse Knock DownRLQ Receiving Lot QuantityROC Rate of ClimbROI return on investment 报酬率ROP Re-Order PointRTO Required To OperateSAIS Supplier Assessment & Improvement SystemSC Strategic Confirmation/significant Charac’teristicsSDS- System/ Design Specifications 系统/设计说明second gear 二档SFMEA System FMEAShipping Date 出货日、Invoice Date 发票日或On Board Date 装船日Side Windshield 侧窗玻璃SJ Strategic IntentSNP Standard Number of Parts1PP- First Phase of Production Prove-Out 第一次试生产3C Customer(顾客导向)、Competition(竞争导向)、Competence〔专长导向〕4S Sale, Sparepart零配件, Service, Survey信息反响5S 整理，整顿，清理，清洁，素养8D- 8 DisciplineABS Anti-lock Braking SystemAIAG 美国汽车联合会ANPQP Alliance New Product Quality ProcedureApportionment 分配APQP Advanced Product Quality PlanBacklite Windshield 后窗玻璃Benchmark Data 样件资料bloodshot adj.充血的, 有血丝的BMW Bavarian Motor WorksSOW- state of work 工作申明SPC Statistical Process ControlSQA Supplier Quality AssuranceSREA- Supplier Request for Engineering Approval 供给商工程设计更改申请ST Surface TranferSTRS Supplier Test Report SystemSubcontractor 分承包商Sunroof Windshield 天窗玻璃SUV Sports Utility VehicleTAG Test Aptitude GraphiqueTCO Total Cost of Ownership 总持有本钱TCRA Total Cost Reduction ActivityTGR Things Gone RightTGW Things Gone WorstTM Techinical ManualTPM Total Preventive MaintenanceTTO-Tool Try Out 工装验证UOM Unit Of MeasureVES Vehicle uation SystemVO- Vehicle Operation 主机厂VPP- Vehicle Program Plan 整车工程方案VQA Vehicle Quality AssuranceVTTO- Vendor Tool Try-Out 供给商工装验证WERS- World Wide Engineering Release System WVTA Whole Vehicle Type Approval凹坑 concave车床 lathe抽查试验spot check test出厂试验delivery test次品defective product调幅amplitude modulation (AM)调频 Frequency Modulation断差 offset对讲机 interphone法平面normal plane翻车rollover返工 re-doing防滑地板 no-skid floor仿真emulation副作用side effect改装厂 refitting factory隔热板heat shield后围侧板 rear wall side cover划痕 scratchC.P.M Certified Purchasing manger 认证采购经理人制度CB- Confirmation Build 确认样车制造CC- Change CutOff 设计变更冻结CCSC- critical/significant characteristicCCR Concern & Countermeasure RequestCCT Cross Company TeamCharacteristics Matrix 特性矩阵图COD Cash on Delivery 货到付现预付货款(T/T in advance) CP1- Confirmation Prototype 1st 第一次确认样车CP2- Confirmation Prototype 2nd 第二次确认样车Cpk 过程能力指数Cpk=Zmin/3CPO Complementary Parts OrderCraftsmanship 精致工艺Cross-functional teams 跨功能小组CUV Car-Based Ultility VehicleD1：信息收集；8DD2：建立8D小组；D3：制定临时的围堵行动措施，防止不良品流出；D4：定义和证实根本原因，防止再发；D5：根据根本原因制定永久措施；D6：执行和确认永久措施；D7：预防再发，实施永久措施；D8：认可团队和个人的奉献。

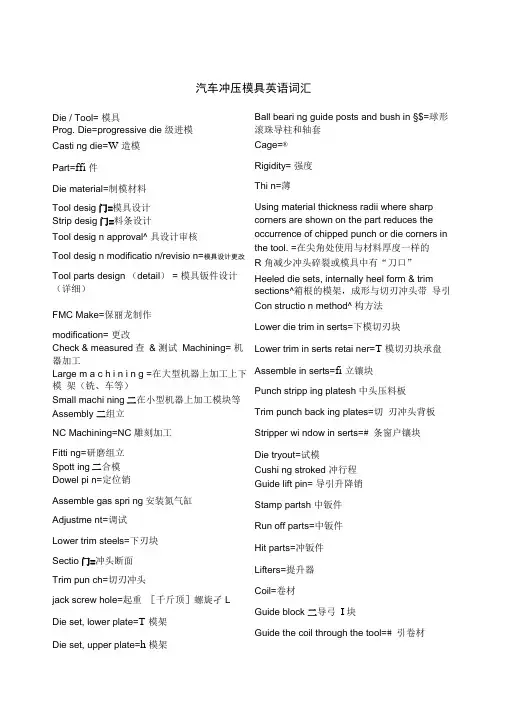

汽车冲压模具英语词汇Die / Tool= 模具Prog. Die=progressive die 级进模Casti ng die=W 造模Part=ffi 件Die material=制模材料Tool desig门=模具设计Strip desig门=料条设计Tool desig n approval^ 具设计审核Tool desig n modificatio n/revisio n=模具设计更改Tool parts design （detail） = 模具钣件设计（详细）FMC Make=保丽龙制作modification= 更改Check & measured查& 测试Machining= 机器加工Large m a c h i n i n g =在大型机器上加工上下模架（铣、车等）Small machi ning二在小型机器上加工模块等Assembly 二组立NC Machining=NC 雕刻加工Fitti ng=研磨组立Spott ing二合模Dowel pi n=定位销Assemble gas spri ng安装氮气缸Adjustme nt=调试Lower trim steels=下刃块Sectio门=冲头断面Trim pun ch=切刃冲头jack screw hole=起重［千斤顶］螺旋孑L Die set, lower plate=T 模架Die set, upper plate=h 模架Ball beari ng guide posts and bush in §$=球形滚珠导柱和轴套Cage=®Rigidity= 强度Thi n=薄Using material thickness radii where sharp corners are shown on the part reduces the occurrence of chipped punch or die corners in the tool. =在尖角处使用与材料厚度一样的R 角减少冲头碎裂或模具中有“刀口”Heeled die sets, internally heel form & trim sections^箱根的模架，成形与切刃冲头带导引Con structio n method^ 构方法Lower die trim in serts=下模切刃块Lower trim in serts retai ner=T 模切刃块承盘Assemble in serts=fi 立镶块Punch stripp ing platesh 中头压料板Trim punch back ing plates=切刃冲头背板Stripper wi ndow in serts=# 条窗户镶块Die tryout=试模Cushi ng stroked 冲行程Guide lift pin= 导引升降销Stamp partsh 中钣件Run off parts=中钣件Hit parts=冲钣件Lifters=提升器Coil=卷材Guide block 二导弓I块Guide the coil through the tool=# 引卷材layout in spectio n=全尺寸检验Die in specti on & approval=模具检查和审核delivery=发货Rejected* 收Scrapped=报废Rework=返工stop block=停止块Hydro form液压成形Shear=K 切Sen sor=ft 感器Stretch web=S 伸网Layout the parts=S 计钣件Preced ing into the desig n继续设计Guide the coil through the tool=# 弓I卷材Check ing aid /check ing gage=检具Jig=夹具Fixture=夹具Ball beari ng guide posts and bush in gs= 球形滚珠轴套Guide post=导柱Bushings二导套Using material thickness radii where sharp corners are shown on the part reduces the occurre nee of chipped punch or die corners in the tool.=在尖角处使用与材料厚度一样的R 角减少冲头碎裂或模具中有“刀口”Heeled die sets, intern ally heel form & trim sectio ns=带箱根的模架，成形与切刃冲头带导引Gra nite Tabled 岗岩平台Plotter=.描绘器,图形显示器,绘图器,坐标自记器，标图员Belt San der=# 磨机Metal Cutti ng Ba nd Saw^ 式带锯床Bla nchard Grin der=大型平面磨床Stretch carriers=S 伸运送装置Punch stripp ing platesh 中头压料板Trim punch back ing plates=切刃冲头背板Stripper wi ndow in serts=M 条窗户镶块Heel plates=W 托Prepare for delivery^® 备发货Key=键For locati ng reta iner blocks^ 盘键For holdi ng butt ons or pilots=冲母座或导销键For fixed heel or positive stop=B 根键Con structio n method=S 构方法Manual Surface Grin der=手动平面磨床Spott ing red=合模用丹红Layout ink=试模用蓝墨水Masking tape=M色不透明胶带(遮蔽胶带) Pliers=尖嘴钳，老虎钳Crese nt wren ch=可调扳手Pump pipe=泵管CMM=三次元测量仪Symmetric=对称的The axis of symmetry^ 称轴Tech nical^ 术上的Diago nal=对角线One two three block” 二三模块Adjustable parallels^ 调平行块Stop block=阻止块Backi ng Plate=背板Shoulder Bolt=肩头螺丝(Stripper bolt)Keeper Block=行程块Corner Guide Block=# 块Dowel pi n=定位销Joe Blocks=ft 密量块Whirly Gig=筒夹式冲子成形器Chamfer Tools= 到角刀具组Angle Plate=L形直角座Gage Pins=^寸塞规Si ne Plate (mag netic)=E 弦磁台Flute End Mill=硬质合金钢铣刀Mill Cutter=波纹粗铣刀(标准型) C' bore/ counter bore六角沉头铣刀Radius Dresser=^ 轮修整器Boring Head & Boring Bar=搪孔器、搪刀杆Pin二销Reamer=绞刀Approval 确认Impact wren ch二气动扳手Air pi n=空气销bumper[‘ bQmpE(rn.缓冲器Ven dor [ ‘ ven dE(r)d C:(r)] n.卖主stripper layout=排样图drawing of panel #987415&16=钣件设计图(公差)Arbor =柄轴；心轴Drill chuck=钻夹头Butt on=冲母座Nitroge n Cyli nder=氮气缸Pilot=导销Retai ner二承盘Butt on=冲母座Hose Straps嗽管夹(塑料)Set Screw=S 塞Jig & fixture =夹具Checking fixture二检具Guide Block 二导块Plu nger二柱塞Pierce=?中孑LWear Strip=W 磨板Mating area=ffl立的接触面Accommodate 二适应Wiping hard (very shiny)=过分摩擦闭合[接触](闪光)In crease the die cleara nee betwee n the form steels=®加成形块间隙Cleara nce= 间隙Oil paper 二油纸0-11” Micrometer=0-11 ”千分尺Trim line=切边+/-0.5mm uni ess otherwise specified除非另有规定，否则公差为+/-0.5mmPart tolera nce=R件公差Ball no se=球刀Bore二镗Line tap=攻丝校直Borer二镗刀，镗床Chamfer二倒角Radius=半径Coola nt=切削液Pun ch=^冲头Distribution Blocks=接头座Screw二螺丝Shop# 间Flat Feet Keepers顶料销Ejector Pin=顶出销Spring二弹簧Straight Port Adapter=直管接头Y-205 Hose=< 管(塑料)Short Neck Adapter=S 接头45 Swivel= 45 接头(adjustable) 45。

制造业常用英语词汇总经理办公室General manager’s office 模具部Tooling department项目部Project department品质部Quality department计划部Plan department制造部Manufacture departmentKeypad产品部Keypad departmentIMD 产品部IMD department五金部Metal stamping department设计科Design section冲压车间Stamping workshop电镀车间Plating workshop物控科Production material control section 计划科Plan section仓务科Warehouse section商务科Business section品质规划科quality plan sectionIQC科IQC sectionIPQC科IPQC sectionOQC科OQC section检测中心measurement center项目规划科Project plan section项目XX科Project section XX试模科Mold test section成本科Cost section设备科Facility section采购科Purchase section综合办General affairs office编程科Programming section模具工程科Tooling engineering section模具装配车间Mold assembly workshop文控中心Document control center (DCC) 注塑车间Injection workshop喷涂车间Spray painting workshop装配车间Assembly workshop总经理General manager (GM)经理managerXX部门经理Manager of XX department原料库Raw material warehouse半成品库Semi-finished product warehouse 成品库Finished product warehouse科长section chief主任chief部门主管department head主管, 线长supervisor组长Foreman, forelady 秘书secretary文员clerk操作员operator助理assistant职员staff二、产品超声波焊接ultrasonic welding 塑胶件Plastic parts塑材Raw parts喷涂件Painted parts装配件Assembly parts零件Component原料Raw material油漆Paint稀释剂Thinner油墨Ink物料编号part number三、模具注塑模具injection mold冲压模具Stamping tool模架mold base定模座板Fixed clamp plateA板A plateB板B plate支承板support plate方铁spacer plate回位销Return pin导柱Guide pin动模座板Moving clamp plate 顶针ejector pin单腔模具single cavity mold 多腔模具multi-cavity mold浇口gate合模力clamping force锁模力locking force开裂crack循环时间cycle time老化aging(1)螺杆screw镶件Insert主流道sprue分流道runner浇口gate直浇口direct gate点浇口pin-point gate测浇口edge gate潜伏浇口submarine gate浇口套sprue bush流道板runner plate排气槽vent分型线（面）parting line定模Fixed mold动模movable mold型腔cavity凹模cavity plate，凸模core plate斜销angle pin滑块slide拉料杆sprue puller定位环locating ring脱模斜度draft滑动型芯slide core螺纹型芯threaded core热流道模具hot-runner mold熔合纹weld line三板式模具three plate mold脱模ejection脱模剂release agent注射能力shot capacity注射速率injection rate注射压力injection pressure保压时间holding time闭模时间closing time电加工设备Electron Discharge Machining数控加工中心CNC machine center万能铁床Universal milling machine平面磨床Surface grinding machine万能摇臂钻床Universal radial movable driller立式钻床Vertical driller倒角chamfer键Key键槽keyway间距pitch快速成型模Rapid prototype tool （RPT）四、品管SPC statistic process control品质保证Quality Assurance(QA)品质控制Quality control(QC)来料检验IQC Incoming quality control巡检IPQC In-process qualitycontrol校对calibration环境试验Environmental test光泽gloss拉伸强度tensile strength盐雾实验salt spray test翘曲warp比重specific gravity疲劳fatigue撕裂强度tear strength缩痕sink mark耐久性durability抽样sampling样品数量sample sizeAQL Acceptable Quality level批量lot size抽样计划sampling plan抗张强度Tensile Strength抗折强度Flexural Strength硬度Rigidity色差Color Difference涂镀层厚度Coating Thickness导电性能Electric Conductivity粘度viscosity附着力adhesion耐磨Abrasion resistance尺寸Dimension(喷涂)外观问题Cosmetic issue不合格品Non-conformingproduct限度样板Limit sample五、生产注塑机injection machine冲床Punch machine嵌件注塑Insert molding双色注塑Double injectionmolding薄壁注塑Thin wall molding膜内注塑IMD molding( In-mold decoration）移印Tampo printing丝印Silk screen printing热熔Heat staking(2)超声熔接Ultrasonic welding(USW）尼龙nylon黄铜brass青铜bronze紫(纯)铜copper料斗hopper麻点pit配料compounding涂层coating飞边flash缺料Short mold烧焦Burn mark缩水Sink mark气泡Bubbles破裂Crack熔合线Welding line流痕Flow mark银条Silver streak黑条Black streak表面光泽不良Lusterless表面剥离Pelling翘曲变形Deformation脏圬Stain mark油污Oil mark蓝黑点Blue-black mark顶白Pin mark拉伤Scratch限度样品Limit sample最佳样品Golden sample预热preheating再生料recycle material机械手Robot机器人Servo robot试生产Trial run; Pilot run (PR) 量产mass production切料头Degate产能Capacity能力Capability参数Parameter二次加工Secondary process六．物控保质期shelf lifeABC分类法ABC Classification 装配Assembly平均库存Average Inventory批号Batch Number批量生产Mass Production 提货单Bill of Lading物料清单Bill of Material采购员Buyer检查点Check Point有效日期Date Available修改日期Date Changed结束日期Date Closed截止日期Date Due生产日期Date in Produced库存调整日期Date Inventory Adjust作废日期 D ate Obsolete收到日期Date Received交付日期Date Released需求日期Date Required需求管理Demand Management需求Demand工程变更生效日期Engineering Change Effect Date呆滞材料分析Excess Material Analysis完全跟踪Full Pegging在制品库存In Process Inventory投入/产出控制Input/ Output Control检验标识Inspection ID库存周转率Inventory Carry Rate准时制生产Just-in-time (JIT)看板Kanban人工工时Labor Hour最后运输日期Last Shipment Date提前期Lead Time负荷Loading仓位代码Location Code仓位状况Location Status批量标识Lot ID批量编号Lot Number批量Lot Size机器能力Machine Capacity机器加载Machine Loading制造周期时间Manufacturing Cycle Time制造资源计划Manufacturing Resource Planning (MRP II)物料成本Material Cost物料发送和接收Material Issuesand Receipts物料需求计划Material RequirementsPlanning (MRP)(3)现有库存量On-hand Balance订单输入Order Entry零件批次Part Lot零件编号Part Number (P/N)零件Part领料单Picking List领料/提货Picking产品控制Product Control产品线Production Line采购订单跟踪Purchase Order Tracking需求量Quantity Demand毛需求量Quantity Gross安全库存量Safety Stock在制品Work in Process零库存Zero Inventories(4)七．QS-9000中的术语APQP Advanced Product Quality Planningand Control Plan，产品质量先期策划和控制计划PPAP Production Part Approval Process,生产件批准程序FMEA Potential Failure Mode and Effects Analysis,潜在失效模式及后果分析MSA Measure System Analysis,测量系统分析SPC Statistical Process Control,统计过程控制审核Audit能力Capability能力指数Capability Indices控制计划Control Plans纠正措施Corrective Action文件Documentation作业指导书Standard operation procedure(SOP); Work instruction不合格品Nonconformance不合格Nonconformity每百万零件不合格数Defective Parts Per Million, DPPM预防措施Preventive Action程序Procedures过程流程图Process Flow Diagram, ProcessFlow Chart质量手册Quality Manual 质量计划Quality Plan质量策划Quality Planning质量记录Quality Records原始数据Raw Data反应计划Reaction Plan返修Repair返工Rework现场Site分承包方Subcontractors产品product质量quality质量要求quality requirement顾客满意customer satisfaction质量管理体系quality management system质量方针quality policy质量目标quality objective质量管理quality management质量控制quality control质量保证quality assurance组织organization顾客customer供方supplier过程process服务service设计与开发design and development：特性characteristic可追溯性trace ability合格conformity缺陷defect纠正correction让步concession放行release报废scrap规范specification检验inspection试验test验证verification评审review测量measurement普通原因Common Cause均值Mean极差Range稳定性Stability计量型数据Variables Data变差Variation重复性Repeatability再现性Reproducibility稳定性Stability(5)线性Linearity分辨率Resolution过程更改Process change质量功能展开QFD外观项目Appearance Item初始过程能力Preliminary Process Capability材料清单Bill of Material设计确认Design Validation设计验证Design Verification(6)八．常用缩略词语OEM Original Equipment ManufacturerANOVA 方差分析法Analysis of VarianceDFMEA 设计失效模式及后果分析Design Failure Mode and Effects AnalysisDOE 试验设计Design of ExperimentGR&R 量具的重复性和再现性(7)Gage Repeatability and ReproducibilityPFMEA 过程失效模式及后果分析Process Failure Mode and Effect AnalysisQSR 质量体系要求Quality System RequirementQFD 质量功能展开Quality Function DeploymentBOM 物料清单Bill of MaterialCpk 稳定过程的能力指数Capability for stable processLCL 下控制限Lower Control LimitUCL 上控制限Upper Control LimitLSL 工程规范下限Lower Specification LimitX(—)--R图均值一极差图Average-RangeChart防错（POKA-YOKE）Mistake ProofingETA 预计到达Estimate to be arrivePO 定单Purchase orderM/C 机器machineRFQ 报价需求Request for quotationMFI 熔融流动指数Melt flow indexFAI 全尺寸检测报告First article inspectionCOC 材质证明Certificate of complianceALT 加速老化试验Accelerated life testCRR 承认书Component review reportOT 加班Over timeCAP 矫正计划Corrective action planR&D 研发Research and DevelopmentASAP 尽快As soon as possibleECN工程更改通知Engineeringchange noticeDCN 设计更改通知Designchange noticeOTD 准时交货On time delivery (8)九．通用词语确保ensure构想construct会签con-sign功能Function机构organization外观appearance适用apply to作业流程Operation flow附件attachment商务人员business personnel汇总summarize指定相关人员designatedpersonnel新产品开发说明会new productdevelopment explanationmeeting拟定Prepare委托entrust认证qualify电子档Soft copy3D文件3D database移转Transfer执行ConductXXX申请单XXX Applicationform客户要求Customerrequirement启动Kick off评估Evaluation作业员Operator批准, 承认Approval合同评审Contract review可靠性Reliability相关的Relevant程序Procedure制程Process流程图Flow chart产品Product生产Production资材Logistics责任Responsibility跟进Follow-up交付Delivery汇总Summarize外协加工subcontract指定相关人员designated personnel 编号number附件attachment产品名称Description周期循环时间Cycle time模具号Mold No,数量quantity ( Qt’y )备注remarkSAP号SAP No.客户Customer表单Form初步的Preliminary版本Version根本原因Root cause （喷漆）夹具Fixture（设备）小夹具Jig设备Equipment设施Facility送，提交（样品）Submit责任部门,责任人Responsible by （大的）目标Objective(小的，具体的)目标Target格式Format上岗证Qualification card需求Requirement现场On site查检表Checklist试产pilot增值税VAT---value-added tax汽车行业英文缩写（中文含义）对应表APQP 产品先期质量策划Quattro-全时四轮驱动系统Tiptronic-轻触子-自动变速器Multitronic-多极子-无级自动变速器ABC-车身主动控制系统DSC-车身稳定控制系统VSC-车身稳定控制系统TRC-牵引力控制系统TCS-牵引力控制系统ABS-防抱死制动系统ASR-加速防滑系统BAS-制动辅助系统DCS-车身动态控制系统EBA-紧急制动辅助系统EBD-电子制动力分配系统EDS-电子差速锁ESP-电子稳定程序系统HBA-液压刹车辅助系统HDC-坡道控制系统HAC-坡道起车控制系统DAC-下坡行车辅助控制系统A-TRC--车身主动循迹控制系统SRS-双安全气囊SAHR-主动性头枕GPS-车载卫星定位导航系统i-Drive--智能集成化操作系统Dynamic.Drive-主动式稳定杆R-直列多缸排列发动机V-V型汽缸排列发动机B-水平对置式排列多缸发动机WA-汪克尔转子发动机W-W型汽缸排列发动机Fi-前置发动机（纵向）Fq-前置发动机（横向）Mi-中置发动机（纵向）Mq-中置发动机（横向）Hi-后置发动机（纵向）Hq-后置发动机（横向）OHV-顶置气门，侧置凸轮轴OHC-顶置气门，上置凸轮轴DOHC-顶置气门，双上置凸轮轴CVTC-连续可变气门正时机构VVT-i--气门正时机构VVTL-i--气门正时机构V-化油器ES-单点喷射汽油发动机EM-多点喷射汽油发动机SDi-自然吸气式超柴油发动机TDi-Turbo直喷式柴油发动机ED-缸内直喷式汽油发动机PD-泵喷嘴D-柴油发动机（共轨）DD-缸内直喷式柴油发动机TA-Turbo（涡轮增压）NOS-氧化氮气增压系统MA-机械增压FF-前轮驱动FR-后轮驱动Ap-恒时全轮驱动Az-接通式全轮驱动ASM 动态稳定系统AYC主动偏行系统ST-无级自动变速器AS-转向臂QL-横向摆臂DQL-双横向摆臂LL-纵向摆臂SL-斜置摆臂ML-多导向轴SA-整体式车桥DD-德迪戎式独立悬架后桥VL-复合稳定杆式悬架后桥FB-弹性支柱DB-减震器支柱BF-钢板弹簧悬挂SF-螺旋弹簧悬挂DS-扭力杆GF-橡胶弹簧悬挂LF-空气弹簧悬挂HP-液气悬架阻尼HF-液压悬架QS-横向稳定杆S-盘式制动Si-内通风盘式制动T-鼓式制动SFI-连续多点燃油喷射发动机FSI-直喷式汽油发动机PCM - 动力控制模块~ EGR -废气循环再利用BCM - 车身控制模块~ ICM - 点火控制模块~ MAP - 空气流量计ST-无级自动变速器FF-“前置引擎前轮驱动”FR-“前置引擎后轮驱动”RR-“后置引擎后轮驱动”。

简写取单词头个字母top plate上托板（顶板）top block上垫脚punch set上模座punch pad上垫板punch holder上夹板stripper pad脱料背板up stripper上脱料板male die公模(凸模)feature die公母模female die母模(凹模)upper plate上模板lower plate下模板die pad下垫板die holder下夹板die set下模座bottom block下垫脚bottom plate下托板(底板) stripping plate内外打(脱料板) outer stripper外脱料板inner stripper内脱料板lower stripper下脱料板inner guiding post内导柱inner hexagon screw内六角螺钉dowel pin固定销coil spring弹簧lifter pin顶料销eq-height sleeves=spool等高套筒pin销lifter guide pin浮升导料销guide pin导正销wire spring圆线弹簧outer guiding post外导柱stop screw止付螺丝located pin定位销outer bush外导套punch冲头insert入块(嵌入件)deburring punch压毛边冲子groove punch压线冲子baffle plate挡块located block定位块supporting block for location定位支承块guide plate定位板sliding block滑块sliding dowel block滑块固定块active plate活动板lower sliding plate下滑块板upper holder block上压块bushing bolck衬套cover plate盖板guide pad导料块顶针板：ejector retainner plate托板：support plate螺丝：screw管钉：dowel pin开模槽：ply bar scot 撑头: support pillar 唧嘴：sprue bushing挡板：stop plate定位圈：locating ring锁扣：latch扣鸡：parting lock set推杆：push bar栓打螺丝：S.H.S.B顶板：eracuretun活动臂：lever arm分流锥：spure sperader水口司:bush垃圾钉：stop pin隔片：buffle弹弓柱：spring rod弹弓:die spring中托司：ejector guide bush中托边：ejector guide pin镶针：pin销子：dowel pin波子弹弓：ball catch喉塞: pipe plug锁模块：lock plate斜顶：angle from pin斜顶杆：angle ejector rod尼龙拉勾：parting locks活动臂：lever arm复位键、提前回杆：early return bar气阀：valves斜导边：angle pin顶针：ejector pin司筒：ejector sleeve司筒针：ejector pin推板：stripper plate缩呵：movable core,return core core puller 扣机（尼龙拉勾）：nylon latch lock斜顶：lifter模胚（架）：mold base上内模：cavity insert下内模：core insert行位（滑块）：slide镶件：insert压座/斜鸡：wedge公差：tolorance铜公(电极）：copper electroMold Design 模具设计Drawings 图纸Order Mold Base 订购模具基座Core Milling 铣模具芯Cavity Milling 铣模具腔Core Drilling 钻模芯Cavity Drilling 钻模腔Inserts Milling 铣滑块Fitting Inserts 把滑块定位好Injection System 注射系统Mold Assembling 模具组装Tec. Polish 抛光1st Trial Injection 初次试模Several Corrections 几个改正FFinal Trial Injectioninish Polish & Texture 最终试模抛光和表面纹理处理Part Name: 部件名称定模底板Top Clamping plate 锁紧块Jaw定模板Cavity plate(A-plate) 导滑块Gib动模板Core plate(B-plate) 滑块定位夹Slide retainer支撑板Support plate 弹簧波子Ball pluger模脚Spacer Block 油缸Hydraulic cylinder顶杆固定板Ejector retainer plate 齿轮Gear顶杆垫板Ejector plate 齿条Rack动模底板Bottom plate 轴承Bearing定位圈Locating Ring 方顶Blade Ejector浇口套Sprue Bushing 扁顶Blade Ejector导柱Guide Pin 发热线Heater导套Guide Bushing 发热管Probe顶杆Ejector Pin 接线盒Connector顶管Ejector Sleeve 斜顶Lifter拉料杆Sprue puller pin 行程开关Limit switch复位杆Return pin 模架Mold base限位钉Stop-pin 热流道板Manifold定模镶块Cavity insert Block 直身锁Straight interlock动模镶块Core insert Block 斜度锁Tappered interlock推板导柱Ejector Guide pin 限位螺钉Stripper Bolt推板导套Ejector Guide bushing 安全锁Safety Strap内交角螺钉Socket head screw 盖板Cover Plate定位销Dowel pin 连接器Adaptor弹簧Spring 隔热板Insulating Sheet推板Striper 镶针Core pin水管螺塞Plug 顶棍连接器K.O.Adaptor橡胶圈“o”Ring 滑块镶件Slide insert隔水片Baffle 热嘴Hot sprue bushing支撑住Support pillar 喷嘴座Nozzle Seat 小内模件Sub-insert 旋转螺杆Screw core 滑块Slide 支架板Mounting plate斜导柱Angle pin 冷却管Cascade Tube 耐磨片Wear plate 面板Clamping plate。

模具零件英文缩写在制造业中，模具（Mould）是一种非常重要的工具，用于制作各种产品的零部件。

模具零件的英文缩写主要是为了方便交流和标记，提高工作效率和准确性。

本文将介绍一些常见的模具零件英文缩写及其对应的意思。

1. 模具零部件（Mould Parts）•EOC: Ejector Pin Point•FSC: Fix Screw•CBS: Core Block Screw•HDP: Hydraulic Cylinder Piston•GET: Guide Electric Terminal•RCT: Rule Cut Tool•WLS: Water Line Sleeve•LSD: Latch Slide2. 模具结构（Mould Structure）•SP: Sprue•CRS: Cold Runner System•HRS: Hot Runner System•PKO: Parting Knock Out•GSP: Guide Sprue Plate•DHK: Double Hook Type•SCC: Split Cavity Core•FSB: Floating Self-balancing3. 模具材料（Mould Materials）•P20: PreHardened Plastic Mould Steel•H13: Hot Work Tool Steel•S45C: Carbon Steel•NAK80: PreHardened Plastic Mould Steel• 1.2344: Hot Work Tool Steel•SKD61: Hot Work Tool Steel• 1.2738: Plastic Mould Steel•718: PreHardened Plastic Mould Steel4. 模具加工（Mould Processing）•EDM: Electric Discharge Machining•CNC: Computer Numerical Control•WEDM: Wire Electric Discharge Machining•VRM: Vertical Rotation Milling•LS: Laser Sintering•HT: Heat Treatment•LKM: Léottermeltolasteig Típod•CAM: Computer-Aided Manufacturing5. 模具测量（Mould Measurement）•CMM: Coordinate Measuring Machine•CT: Computed Tomography•OPT: Optical Probing Technique•HTCT: High-resolution Tomography-Computed Tomography•RPT: Rapid Prototype Technologies•VMM: Video Measuring Machine•DIC: Digital Image Correlation•SME: Surface Microscope Equipment6. 模具设计（Mould Design）•CAD: Computer-Aided Design•FEA: Finite Element Analysis•DFM: Design For Manufacturability•DFMA: Design For Manufacture and Assembly•FTR: First-Time-Right•SG: Solid Geometry•CTA: Core Temperature Analysis•FASM: First Article Sample Mold总结：以上是一些常见的模具零件英文缩写及其对应的意思。

模具零件英文名称及英文简称【太全了】内容来源网络，由“深圳机械展（11万㎡，1100多家展商，超10万观众）”收集整理！更多cnc加工中心、车铣磨钻床、线切割、数控刀具工具、工业机器人、非标自动化、数字化无人工厂、精密测量、数控系统、3D打印、激光切割、钣金冲压折弯、精密零件加工等展示，就在深圳机械展一、模胚部分：序号中文名称英文名称英文名称简写1 模胚 Mould Base MB2 工字板 Top Clamp Plate TO_CL_PL3 A板 A Plate A_PL4 B板 B Plate B_PL5 托板 Support Plate SU_PL6 方铁 Spacer Block SP_BL7 底板 Bottom clamp plate BO_CL_PL8 水口推板或推板 Stripper Plate ST_PL9 有托导套 Shollder Guide Bush SH_GU_BU10 直导套 Straight Guide Bush ST_GU_BU中托导柱Ejector leader pin中托导套Ejector Lead Bushing11 导柱 Guide Pin GU_PIN12 面针板 Ejector Retainer Plate EJ_RE_PL13 底针板 Ejector plate EJ_PL15 拉杆 Support Pin SU_PIN16 拉杆介子 Support Pin Collar SU_PIN_CO二、内模部分17 前模 Cavity CA18 前模镶件 Cavity Insert CA_IN19 前模镶针 Cavity Insert Pin CA_IN_PIN20 后模 Core CO21 后模镶件 Core Insert CO_IN22 后模镶针 Core Insert Pin CO_IN_PIN三、浇注系统23 定位圈 Locating Ring LO_RI24 唧嘴 Sprue Bushing SP_BU25 水口扣针 Runner Lock Pin RU_LO_PIN26 冷胶套 Sprue Lock Bushing SP_LO_BU27 水口镶套 Gate Bushing GA_BU28 流道衬板 Runner Plate RU_PL四、行位部分29 行位 Slide SL30 行位镶件 Slide Insert SL_IN31 行位座 Slide Seat SL_SE32 行位镶针 Slide Insert Pin SL_IN_PIN34 行为压条 Slide Guide Rall SL_GU_RA35 行为导向块 Slide Certer Rall SL_CE_RA36 锲块 Spacer wedge SP_WE37 耐磨块 Wear Plate WE_PL38 斜导柱 Angular Pin AN_PIN39 方斜导柱 Angular Rectangle Pin AN_RE_PIN40 油缸 Oil Cylinder OIL_CY41 油缸固定板 Oil Cylinder Fix Plate OIL_CY_FI_PL42 油缸行位开关 Slide Retainer and limit switch SL_RE_SW43 油缸座 Oil Cylinder Seat OIL_CY_SE44 油缸连接块 Oil connect block OIL_CO_BL五、顶出部分45 顶针 Ejector pin EJ_PIN46 有托顶针 Stepped ejector pin ST_EJ_PIN47 扁顶针 Rectangular ejector pin RE_EJ_PIN48 司筒 Ejector sleeve pin EL_SL_PIN49 有托司筒 Shouler Ejector sleeve pin SH_EJ_SL_PIN50 气顶 AIR Valve AIR_VA51 斜顶 Loose core LO_CO52 斜顶座 Loose core of seat LO_CO_SE53 推块 Stripper Block ST_BL54 直顶 Straight ejector ST_EJ55 限位块 Positioning Block PO_BL六、运水部分56 运水镶件 Insert for cooling IN_FOR_CO57 运水接口 Connecotr plug CO_PL58 喉塞（堵头） Taper screw plug TA_SC_PL59 柱塞（截流塞） Cooling circuit plug CO_CI_PL60 胶圈 O Ring O_RING61 隔水片 Spacer Rib SP_RIB62 铜塞螺旋隔水片 Spiral Brass plug Baffle SP_BR_PL_BA63 喷水管 Cascade water CA_WA64 铍铜 Copper Beryllium Base alloys CO_BE_BA_AL七、热流道部分 [hr]65 热嘴 Heated Nozzle HE_NO66 热流道板 Hot Runner Manifed plate HOT_RU_MA_PL67 接线盒 Infrared control unit IN_CO_UN68 垫块 Support Block SU_BL69 压力感应器 Drang inductor DR_IN八、先复位与拉钩机构70 控制杆 Control pole CO_PO71 转动杆 Rotated pole RO_PO72 固定块 Fix Block FIX_BL73 限位柱 Positioning pole PO_PO74 拉扣 Lock link LO_LI75 滑动块 Slide Block SL_BL76 固定盒 Fix box FIX_BOX77 电子感应复位器 Electronical inductor EL_IN78 尼龙扣 Parting lock PA_LO九、辅助定位部分79 锥形定位柱 Tapered interlock TA_IN80 边锁 Side lock SI_LO81 辅助定位块 Taper Block set TA_BL_SET十、常用零件82 螺丝 Screw Screw83 无头螺丝 Screw spacer SC_SP84 平头螺丝 Screw flat SC_FL85 波珠螺丝 Ball screw BA_SC86 定位螺丝 Positioning screw plug PO_SC_PL87 塞打螺丝 Stopper Bolt ST_BO88 细水口模拉杆 Puller Bolt PU_BO89 弹簧 Spring SP90 齿轮 Gear Gear91 齿条 Rack RACK92 轴承 Bearing BE93 气缸 Air cylinder AIR_CY94 丝杆 Screw pin SC_PIN95 销钉 Dowel pin DO_PIN96 弹簧垫圈 Spring washers SP_WA97 键 Bond Bond十一、其它98 计数器 Counter CO99 吊模方铁 Hoisting Strip HO_ST 100 模脚 Disrance space DL_SP101 马达 Electromotor MO102 液压泵 Hydraulic pressure Pump HY_PR_PU 103 垃圾钉 Stopper pin ST_PIN104 链轮 Chain Wheel CH_WH 105 链条 Chain Bar CH_BA106 “T”型镶块 T-insert T_IN内容来源网络，由“深圳机械展（11万㎡，1100多家展商，超10万观众）”收集整理！更多cnc加工中心、车铣磨钻床、线切割、数控刀具工具、工业机器人、非标自动化、数字化无人工厂、精密测量、数控系统、3D打印、激光切割、钣金冲压折弯、精密零件加工等展示，就在深圳机械展https:///view/25a0501f5f0e7cd1842536bc.htmlhttps:///view/1b8a3a37b90d6c85ec3ac6a7.htmlhttps:///view/89ab2b2fa22d7375a417866fb84ae45c3b35c2f5.ht mlhttps:///view/71aa0cdaf78a6529657d5327.html。

Mold & die components 模具单元Mold changing systems 换模系统Mold core 模芯Mold heaters/chillers 模具加热器/冷却器 Mold polishing/texturing 模具打磨/磨纹 Mold repair 模具维修Molds 模具Pressing dies 压模Quick die change systems 速换模系统Quick mold change systems 快速换模系统三、模具塑料模具mould of plastics注塑模具injection mould冲压模具die模架mould base定模座板Top clamping plateTop plateFixed clamp plate水口推板stripper plateA板A plateB板B plate支承板 support plate方铁 spacer plate底针板 ejector plate面针板 ejector retainer plate回针 Return pin导柱 Guide pin有托导套 Shoulder Guide bush直导套 Straight Guide bush动模座板Bottom clamp plateMoving clamp plate基准线datum line基准面datum plan型芯固定板core-retainer plate凸模固定板punch-retainer plate顶针ejector pin单腔模具single cavity mould多腔模具multi-cavity mould多浇口multi-gating浇口gate缺料starving排气breathing光泽gloss合模力mould clamping force锁模力mould locking force挤出extrusion开裂crack循环时间cycle time老化aging螺杆screw麻点pit嵌件insert活动镶件movable insert起垩chalking浇注系统feed system主流道 sprue分流道runner浇口gate直浇口direct gate , sprue gate轮辐浇口spoke gate , spider gate点浇口pin-point gate测浇口edge gate潜伏浇口submarine gate , tunnel gate 料穴cold-slug well浇口套sprue bush流道板runner plate排飞槽vent分型线（面）parting line定模stationary mould，Fixed mould动模movable mould, movable half上模upper mould， upper half下模lower mould， lower half型腔cavity凹模cavity plate，cavity block拼块split定位销dowel定位销孔dowel hole型芯core斜销angle pin, finger cam滑块slide滑块导板slide guide strip楔紧块heel block, wedge lock拉料杆sprue puller定位环locating ring冷却通cooling channel脱模斜度draft滑动型芯slide core螺纹型芯threaded core热流道模具hot-runner mould绝热流道模insulated runner mould熔合纹weld line （flow line）三板式模具three plate mould脱模ejection换模腔模具 interchangeable cavity mould脱模剂release agent注射能力shot capacity注射速率injection rate注射压力injection pressure差色剂colorant保压时间holdup time闭模时间closing time定型装置sizing system阴模female mould，cavity block阳模male mould电加工设备Electron Discharge Machining数控加工中心CNC machine center万能铁床Universal milling machine卧式刨床Horizontal planer车床Engine lathe平面磨床Surface grinding machine去磁机Demagnetization machine万能摇臂钻床Universal radial movable driller 立式钻床Vertical driller超声波清洗机Ultrasonic clearing machine compre sion molding压缩成型flash mold溢流式模具plsitive mold挤压式模具split mold分割式模具cavity型控母模core模心公模taper锥拔leather cloak仿皮革shiver饰纹flow mark流痕welding mark溶合痕post screw insert螺纹套筒埋值self tapping screw自攻螺丝striper plate脱料板piston活塞cylinder汽缸套chip细碎物handle mold手持式模具（移转成型用模具）encapsulation molding低压封装成型（射出成型用模具）two plate两极式（模具）well type蓄料井insulated runner绝缘浇道方式hot runner热浇道runner plat浇道模块valve gate阀门浇口band heater环带状的电热器spindle阀针spear head刨尖头slag well冷料井cold slag冷料渣air vent排气道welding line熔合痕eject pin顶出针knock pin顶出销return pin回位销反顶针sleave套筒stripper plate脱料板insert core放置入子runner stripper plate浇道脱料板guide pin导销eject rod (bar)（成型机）顶业捧subzero深冷处理three plate三极式模具runner system浇道系统stress crack应力电裂orientation定向sprue gate射料浇口，直浇口nozzle射嘴sprue lock pin料头钩销(拉料杆) slag well冷料井side gate侧浇口edge gate侧缘浇口tab gate搭接浇口film gate薄膜浇口flash gate闸门浇口slit gate缝隙浇口fan gate扇形浇口dish gate因盘形浇口diaphragm gate隔膜浇口ring gate环形浇口subarine gate潜入式浇口tunnel gate隧道式浇口pin gate针点浇口Runner less无浇道(sprue less)无射料管方式long nozzle延长喷嘴方式sprue浇口;溶渣根据中文词汇查所关心的技术问题，解决实际工作中的难题例如，在汉语词汇中看到——高速冲孔废料上跳（かす上り、scrap jump ）词汇，到网上一搜，中图分类号TG382.6，文章编码：1671-3508-2008-10-07-517，“高速冲压中防止冲孔废料上跳的方法”一文会告诉你引起高速冲孔废料上跳的原因，不外乎有油膜粘连、真空吸附、刃口磨损、磁性未退四个主要方面，解决这些问题有三个方向的思路可以考虑，具体手段有“毛糙面”法、“斜刀口”法、“硅胶顶出”法、“凹模刃口倒退拔”法，等等。

进入位gate location 水口大小水口形式gate type 转水口大水口edge gate 唧嘴口径细水口pin-point gate 热流道hot runner ，hot manifold 热流道板热嘴冷流道hot sprue cold runner 冷流道唧嘴直流direct sprue gate 发热管圆形流道round (full/half) runner 探针流道电脑分析mold flow analysis插头流道平衡runner balance 插座热嘴hot sprue 密封/封料喉塞line plug快速接头喉管tube 塑胶管三板模3-plate mold 行位二板模2-plate mpld 镶件边钉/导边leader pin/duide pin 压座/斜鸡边司/导套bushing/guide bushing 耐磨板/油板中托司shoulder guide bushing 压条中托边Lguide pin 撑头顶针板ejector retainner plate 唧嘴托板support plate 挡板螺丝screw 定位圈管钉dowel pin 锁扣开模槽ply bar slot 扣鸡内模管位core/cavity inter-lock 推杆顶针ejector pin 栓打螺丝司筒ejector sleeve 顶板司筒针ejector pin 活动臂推板stripper plate 分流锥缩呵movable core 水口司扣机（尼龙拉勾）nylon latch lock垃圾钉斜顶lifter 隔片（一）入水：gate（二）流道：runner（三）运水：water line （四）模具零件：mold component模胚mold base弹弓柱上内模cavity insert弹弓下内模core insert中托司镶针pin中托边销子dowel pin料位出上/下模波子弹弓ball catch模胚原身出料位喉塞pipe plug不准用镶件锁模块lock plate用铍铜做镶件斜顶angle from pin 初步（正式）模图设计斜顶杆angle ejector rod反呵尼龙拉勾parting locks弹弓压缩量活动臂lever arm稳定性好复位键、提前回杆early return bar强度不够气阀valves均匀冷却斜导边angle pin扣模术语terms热膨胀承压平面平衡parting surface support balance公差模排气parting line venting铜公（电极)回针碰料位return pin and cavity interference顶针碰运水模总高超出啤机规格mold base shut height组装线assembly line制造工程师布置图layout制造生技流水流物料板conveyer外观检查拉钉机rivet table内部检查拉钉枪rivet gun大头螺丝起子screw driver导电条电动起子electric screw driver前板气动起子pneumatic scrw driver后板工作桌worktable基座开箱检查OOBA面板组装在一起fit together电源按键中等难度词汇锁紧（螺丝）fasten重置键夹具（治具）fixture高源高压测试栈板pallet电源电压接拉键条码barcode冲件条码扫描器barcode scanner塑胶件融合fuse together制造作业程序热熔机fuse machine物料检查表修理repair工作间品管QC台车课长supervisor铆合不良支线sub-line镶块叉车left fork送料不到位冲压厂stamping factory漏冲烤漆厂painting factory生产力成型厂molding factory备件整平机uncoiler and straightener叉车冲床punching machine拖板车机械手robot合模油压机hydraulic machine锁模器车床lathe压板刨床planer螺栓铣床miller厚薄规磨床grinder治具床driller蜂鸣器线切割linear cutting不良标签电火花electrical sparkle标示单电焊机welder起子插座铆合机staker=reviting machine踩踏板入库be put in storage阻挡器擦油to apply oil流水板挫毛刺to file burr油压板车终检final inspection工业酒精接料to connect material 沾湿台翻料to reverse material 起子头沾湿台wet station 吸尘器天那水Tiana灰箕抹布cleaning cloth 升降机上料to 1oad material 流水线卸料to unload material加磁器退料to return material/stock to 灯架报废scraped气管来料不良deficient purchase不良品制程manufacture procedure 废料制程不良deficient manufacturing procedure 看板氫化oxidation送料机压痕dents滑料架抽芽不良defective upsiding down 换模打包机packaging tool 装模漏件missing part 拆模错件wrong part修模过多的缺陷excessive defects 蝴蝶竺极严重缺陷critical defect 胶筐主要缺陷major defect 隔板次要缺陷minor defect落料外观不良cosmetic defect 压线螺丝滑头slipped screwhead /slipperyscrew head 字模滑手slipped screwhead /shippery screw thread转速斑点speckle制造管理变形deformation异常处理毛边burr (金属) flash (塑件)钢板铆合不良poor staking卷料油污grease/oil stains制程杂质inclusion作业流程脏污painting peel off切换杂色mixed color工程瓶颈制程不良poor processing铆合不良事件不良poor incoming part加润滑油打包带折皱fold of pakaging belt工程模补漆painting make-up定位块羿色discoloration复位水渍water spots铁削金属裸露exposed metal/bare metal抽孔烤漆不到位lack of painting磨损企划expansion proiects倒角开机to start a press易损件类模器analog-mode device标准件举模器die lifter输送带氩焊argon welding输送架油缸cylinder上死点吸料to grip(material)下死点高难度词汇环首螺栓eye bolt埋入砂心眼孔eyelet填砂落球冲击试验falling ball impact test薄膜形浇口成套制品模具family mold液面花纹扇尾形模具fantail die精密下料加工疲劳试验fatigue test指形梢测隙规feeler gauge角形模板肥粒铁ferrite圆形模板钢铁水静压力ferrostatic pressure炼后熔渣纤维强化热固性fiber reinforcement第一段退火纤维强化复合材料fiber reinforcement鱼尾形模具充填剂filler rod裂纹填充料班filler speck配合公差填角焊接fillet weld固定侧模板凸缘接头flange joint火焰硬化凸缘起皱flange wrinkle分型板带凸缘销flanged pin对模成形法料套式模具loading shoe mold配合成形法定位中心冲头locating center punch对模定位导梢locating pilot pin米汉纳铁定位环locating ring米汉纳铸铁压块lock block 三聚氰胺酚醛树脂MF固定接合lock seaming交换记忆闭回路控制器loop controller市售钢材环结强度loop tenacity网筛目活动衬套loose bush MIG 熔接活零件模具loose detail mold金工铝活动式模具loose mold金属喷镀法木模活块loose piece真空涂膜脱蜡铸造lost wax louvering冶金学低密度聚乙烯LDPElow density polyethlene微寸动装置低锰铸钢low manganese casting steel微动装置低压铸造low pressure casting微处理器低温退火low temperature annealing千分之一时磁性座magnetic base偏模可锻化退火malleablizing组合式模具歧管档块manifold block塑料模座分歧管模具manifold die模用板马式体高强度热处理钢maraging steel铸模紧固夹麻回火处理martempering铸模地坑马顿斯耐热试验martens heat distortion temperature test钼系高迭钢硬化铁炭martensite钼钢马特里斯合金martrix alloy活动扳钳标准电极master graphite莫氏锥度量规靠模样板master plate锁模力复式浇口模具multi-gate mold脱模剂NC钻床NC drilling machine换模保持装量NC磨床NC grinding machine可动侧模板NC车床NC lathe 密廉式破裂强度试验机NC程序制作系统NC programming system靠模铣床缩颈/缩颈加工necking多模穴模具净重net weight合模定位器镍铬钢nickel chromium steel穴型导板氮化处理nitriding内径仪软氮化nitrocarburizing针尖组织硝酸纤维素nitrocellulose剥离诺贝环试验nol ring test镶入式冲头光标卡尺nonius珠击熔接法常态分配normal distribution叠曾模冲缺口压力机notching press酚醛树脂点焊熔核nugget磷酸盐皮膜处理喷嘴nozz1e孔隙率零头odd item通气性模具双折冷弯模具offswt bending die正向熔接油淬火oil quenching全压式模具整体铸件one piece casting浇注法排料逃孔opening粉末成形光学平晶optical flat粉末锻造橘皮状表面缺陷orange peel预挤冲头取向薄膜oriented film析出硬化真圆度out of roughness预硬钢过老化overageing预混料溢流overflow预聚物堆焊overlaying冲锻防超载装置overload protection device加压硬化抗臭氧试验ozone resistance test压焊平行垫块parallel block制程退火柏拉图pareto diagram采办吹气成形环料parison轮廓模分批装船partial shipment投影磨床分模线parting line轮廓光学投影仪雏形试验模具prototype mold实时交货分角器protractor丙烷气切割脉冲pulse二次精冲加工纯锞熔接条pure nickle electrode嵌件梢料片押片装置pusher feeder托料板衬套梢pusher pin回位梢淬火老化quench aseing反转下料淬火quench hardening流变学淬火裂痕quenching crack肋部加工淬火应力quenching stress浮动脱模器快速换模系统quick die change sustem环规旋臂钻床radial drilling machine铆钉接合压花起伏成形raising (embossing)摇动锻造起模杆rapping rod洛氏硬度实验凹入模/倒角式模具re-entrant mold洛克威尔硬度铰孔加工/铰孔修润reaming罗林克斯射出压缩成形法往复螺杆reciprocating screw滚筒弯曲加工再调质reconditioning滚压加工再结晶recrystallization轧锻红热脆性red shortness辊轧成形加强焊接reinforcement of weld托辊回弹性resilience滚轮式电极树脂射出法resin injection辊式矫直机树脂流纹resin streak背面熔接树脂脱落resin wear 罗西皮克斯流动试验半树脂型砂轮resinoid grinding wheel卷边成形机抗蚀护膜resist离心成形流道顶出器runner ejector set粗切具流道拉梢runner lock pin粗砂防蚀rust prevention粗锻盐浴淬火salt bath quenching风评指样订货sample order无流道冷料模具松垂sagging喷砂处理皂化saponification塌箱锯削sawing砂模铸造清除钢锭缺陷scaling砂纸gate sizeswitching runner/gate sprue diameterhot manifoldcold runnercartridge heater thermocouplesconnector plugconnector socketsealjiffy quick connector plug/ sockerplastic tubeslideinsertwedgewedge wear plateplatesupport pillarsprue bushingstop platelocating ringlatchparting lock setpush barS.H.S.B/Bolt making screw eracuretunlever armspure spreaderbushstop pinbuffledie springejector guide bushejector guide pinpart from cavity (core) side cavity direct cut on A-plate,core direct cut on B-plate Do not use(core/cavity)insertuse beryllium copper insert preliminary(final)mold designreverse corespring compressed length good stability, stable insufficient rigidityeven coolingstickingthermo expansion tolerancecopper electrodewater line interferes withejector pinMEMTcosmetic inspectinner parts inspectthumb screwEMI gasketfront platerear platechassisbezel panelpower buttonHi-pot test of SPS voltage swith of SPS sheet metal partsplastic partsSOPmaterial check listwork celltrolleydefective to staking embedded lump feeding is not in place stamping-missing production capacity spare parts=buffer forklifttrailer=long vehicle compound diedie lockerpressure plate=plate pinch boltthickness gaugegauge / jigbuzzledefective product label identifying sheet list screndriver holderpedal缩痕sink markstopper熔接线weld lineflow board气穴air traphydraulic handjack模流mold flowiudustrial alcohol锁模力clampi ng forcealcohol container head of screvdriver vaccum cleaner garbage container jackproduction line magnetizerlamp holderair pipeup-to-grade products wasteboardfeeder防磨anti-gallin gsliding rack底层电镀Under platin gdie change基层金属化Base Metall izatio nto fix a dieto take apart a dieto repair a diebasket园凿GOUGEplastic basket接线片termin al bladeisolating plate baffle plate；barricadeto put material in place,to cutmaterial,to inputto impose linescharacter dierotating speed； revolutionmanufacture management纹理textur eabnormal handling裸铜bare coppersteel plate哑光mattero11 material叶片光洁度blade finishmanufacture procedureoperation procedureto switch over to/switch…to/throw…over/switchingoverengineering/projectdifficultyto stake, staking, revitingadd lubricating oil润滑油lubricant stage dielocation lump,locatingpiece, block stopresetfilingsto draw holesabrasionreverse angle = chamfereasily damaged partsstandard partsconvever belttransmission racktop stopbottom stopfilling corefilling-infilm gatefilm playfine blankingfinger pinfinish machined platefinish machined round platefinishing slagfirst stage annealingfishtail diefissurefit tolerancefixed bolster plateflame hardeningmatch platematched die method matched die method matched mould thermal formingmeehanite metal meehanite cast iron melamine resinmemory swapmerchant ironmeshgas weldingmetal sawmetallikonmetallizingmetallurgymicro inching device microinching eauipment microprocessormilmissmatchmodular moldmold basemold platenmold clampmolding pitmolybdenum high speed steelmolybdenum steelmonkey wrenchmorse taper saugemould clamping force mould release agent moving bolstermoving bolster plate mullen bursting strength testermulti model mi1lermulti-cavity moldparting lock setpass guidepassimeterpearlitepeelingpeened head punch peening of welding pelletizing diephenolic resin phosphatingporosityporous moldpositioned welding positive moldpouring processpowder formingponder metal forgingpre extrusion punch precipitation hardening prehardened steelpremixpreploymerpress forgingpress quenchingpressure weldingprocess annealing procurementprofile dieprofile grinding machine/ progressive grinderprofile projectorprompt deliverypropane gas cutting restrikingretainer pinretainer platereturn pinreversed blanking rheologyrib workingriding stripperring gaugeriveted jointrocking die forging rockweel hardness test rockwell hardnessrolinx processroll bendingroll finishingroll forgingroll forming machineroll releaseroller electroderollex levellerroot runingrossi-peakes flow test rotary benderrotational moldingrough machiningrough sandroughing forgerumorrunless injection moldsand blastsand crushing sand mold casting sand paper。

模具零件英文名称及缩写序号中文名称英文名称缩写1斜导柱Angular Pins AP2斜销Angular Cams ANC3锁紧块Locking Blocks LB4斜导柱压板Stopper Plates for Angular Pin APP5滑块Slider S6滑块镶件Slider Insert SLI7滑块座Slider Base SLB8滑块挡块Slider Core Stop Blocks SLNB9滑块导轨Guide Rails GR10浇口套Sprue Busings SB11定位环Locating Rings LR12拉料销Runner Lock pins RL13点式浇口套Point Gate Bushing PGB14顶针Ejector Pins EP15阶梯推杆Stepped EP SEP16扁顶针Rectangular Ejector Pins ER17推管/司筒Ejector Sleeves EL/ES 18司筒针/中心销Center Pin CP19镶块/压块Stopper for Cavity Insert ICS20楔块Spacer Wedge SPW 21精密定位销Taper PIN Sets TP22侧定位块Slide Straight Block Sets SSB23耐磨块/滑块调整块Slide Adjustment Plates SAP24精密定位销垫圈Spacers for Taper Pin Sets TPS25精面斜面定位块Taper Blocks Sets TBS26导柱Guide Pins GP27导套Guide Bushings GB28推板导柱Ejector Guide Pins EGP29推板导套Ejector Guide Bushings EGB30支撑柱/撑头Support Pillars SPL31垃圾钉/止动垫（用平头螺丝）Stop Rings STR32垃圾钉（敲进模板型）Stop Pins STP33垫模块Distance Spacers DS34顶模块/顶出限位块Ejector Rods ERD35锁模板Mould opening protection Plates OPP36阻尼销/拉模扣Parting Locks PL37定距拉板Tension Links TL38芯杆固定板/司筒针固定板Holding Plates for Pin CPHP/APP 39前模模仁Cavity CAV40后模模仁Core COR41前模镶件Cavity Insert CAI42后模镶件Core Insert COI43斜顶Angular Lifter LF44前模镶针Cavity Pin CAP45后模镶针Core Pin COP46流道板Runner Plate RUP47隔热板Insulation Sheet ISH48销钉Dowel Pin DP 49冷却水镶件Inesert For Cooling IFC 50弹簧Spring SP 51螺钉Screw SC 52无头螺钉Screw Plug SCP 53平头螺钉Socker Head Cap Screw SHCP 54球头顶丝Ball Plunger BAP 55O形密封圈O ring OR 56堵头Taper Screw Plug TSP 57拉杆定位介子Support Pin Spacer SUPS 58齿轮Gear GE 59轴承Bearing BE 60油缸Oil Cylinder OCY 61气缸Air Cylinder ACY 62间隔圈Spacer Ring SPR。

模具类零件名称中英⽂及标识⼀览表类别中⽂名称英⽂名称 (DESCR)标识(SORT)类别中⽂名称英⽂名称 (DESCR)标识(SORT)模胚MOLDBASE M000上模运⽔零件CAV WATER PART AW**上码模板FIX CLAMP PLATE MA09下模运⽔零件COR WATER PART BW**顶针底板(加)EJ BOTTOM PLATE ADD MA-8喉塞PIPLE PLUG WG**顶针底板EJ BOTTOM PLATE MA08堵头COPPER PLUG WT**顶针⾯板(加)EJ UP PLATE ADD MA-7快速接头CONNECTORS WL**顶针⾯板EJ UP PLATE MA07喉通EXTENSION PLUGS WP**热流道模板HOT RUNNER PLATEMA06管接头NIPPLE WC**⽀承板SPACE PLATE MA05隔⽚BAFFLES WS**⾯板TOP CLAMP PLATE MA04螺旋柱HELIX PILLAR WH**⽔⼝推板PUSH PLATE MA03胶圈"O" RING WO**A板托板(加)SUP PLATE A ADD MA-2中间喉塞SEAL PLUGWB**A 板托板SUP PLATE A MA02集⽔器CATCHMENT UTENSIL WJ**A 板 A PLATE MA01三通接头 3 CHANNELS NIPPLE WD**推板PUSH PLATE MB01直通接头DIRECT NIPPLE WE**推板(加)PUSH PLATE ADD MB-1弯管接头FLEX TUBE WF**B 板 B PLATE MB02铜管COPPER TUBE WI**B 板托板SUP PLATE B MB03软管SOFT TUBEWK**B 板托板(加)SUP PLATE B ADD MB-3C 板SPACE PLATE MB04回针RETURN PIN GR**顶针⾯板EJ UP PLATE MB05弹簧柱SPRING　PILLAR GB**顶针⾯板(加)EJ UP PLATE ADD MB-5直⾝边钉GUIDE PINGP**顶针底板EJ BOTTOM PLATE MB06有托边钉SHOULD GUIDE PIN GS**顶针底板(加)EJ BOTTOM PLATE ADD MB-6中托边MIDDLE GUIDE GN**底板BOTTOM PLATE MB07定位司CENTER BUSH GC**底板(加)BOTTOM PLATE ADD MB-7中托司MIDDLE GUIDE BUSH GM**下码模板MOVE CLAMP PLATEMB09直司STRAIGHT BUSH GH**托司GUIDE BUSHGT**定位圈LOCATING RING LC**直⾝边锁STRAIGHT INTERLOCKS GK**整体唧嘴WHOLE SPRUE LW**⽅形互锁TEC TAP INTERLOCKS GA**延伸唧嘴EXTENDED SPRUE LE**圆形互锁ROU TAP INTERLOCKSGD**唧嘴SPRUE LS**唧嘴套SPRUE BUSH LB**垃圾钉STOP PIN XS**⽔⼝司RUNNER BUSH LR**管钉DOWEL PIN XP**热唧嘴HOT SPRUE LH**斜边ANGLE PIN XA**热嘴套HOT SPRUE BUSH LV**齿轮GEAR WHEEL XG**导热套DISTRIBUTOR TUBE LA**轴承BEARINGXB**发热管TUBE HEATER LN**马达HYDRAULIC MOTOR XM**热电偶PROBE HEATERLJ**键KEY XY**探针PROBE LM**垫圈WASHERXW**分流探针DISTRIBUTOR PROBE LD**开⼝介⼦RINGENT WASHER XX**定位件END CAP LF**⽀承柱SUPPORT PILLAR XU**发热圈NOZZLE HEATER LO**锁模块LOCK BLOCK XK**喷嘴NOZZLE CORE LG**⽓阀开关VALVE SWITH XV**间隔套NOZZLE SPACER LI**电源插坐POWER CONNECTOR XT**探针套PROBE BUSH LT**温控插坐THERMO CONNECTOR XC**调节环ADJUSTMENT RING LP**接线盒MOUNTING BOX XO**定位环REGISTER RING LQ**油缸HTDRAULIC CYLINDER XH**六⾓螺丝SIX HORN SCREWLL**K.O镶件K.O INSERTXI**模板类 (M )流道系统类（L ）模具类零件名称中英⽂及标识⼀览表命名：模号 +“_"+ 标识命名：模号 +“_"+标识命名：模号 +“_"+标识命名：模号+“_"+标识命名：模号+“_"+标识冷却（ W ）回针　边钉　边司（G ）功能件（X ）限位司STOP SLEEVE LU**⽇期镶件DATE INSERT XD**中⼼柱CEN SUP PADS LX**材料镶件MATERIAL INSERT XE**挡料环DROOL RING LY**感应开关LIMIT SWITCH XL**热流道板HOT MANIFOLD LK**计数器COUNTER VIEW XF**隔热板INSULATOR SHEETS LZ**⾏位定位器SLIDE　RETAINER XR**单个针阀热嘴SINGLE VALVE GATE LH-V 接线开关MOUNTING SWITCH XN**分流锥SPRUE SPREADER L1**⽓缸AIR CYLINDER XZ**针阀系统VALVE GATE SYS L2**传感器SENSORXQ**隔离环INSULATING RING L3**喷嘴头NOZZLE TIP L4**上内模CAVITY AI**密封帽SEALING CAP L5**下内模COREBI**限位螺丝STOP SCREWUR**上内模镶件CAVITY INSERT AD**下内模镶件CORE INSERT BD**杯头螺丝SHCS VS**⾏位滑块SLIDE SI**平头螺丝FHCS VF**⾏位块SLIDE BLOCK SD**⽆头螺丝SHSSVN**⾏位镶件SLIDE INSERT SS**波⼦螺丝BALL VB**斜顶杆LIFTER FP**六⾓螺丝Six Horn Screw VX**斜顶镶件LIFTER INSERT FD**⾏程螺丝SHSB VT**直顶STRAIGHT EJ EB**圆头螺丝IHCSVR**直顶块STRAIGHT EJ BLOCK EC**活动镶件FLOAT INSERTII**直⾝顶针EJECTOR PIN EP**直⾝顶针EJECTOR PIN E***⼀般铜公COPPERCU***有托顶针SHOULDER EJ PIN EH**枕位铜公PILLOW COPPERCU***-P扁顶针FLAT EJ PIN EF**直⾝司筒EJ SLEEVEES**左压条STRIP L SL**有托司筒SHOULDER EJ SLEEVE EE**右压条STRIP R SR**司筒针EJ SLEEVE PIN ED**斜鸡WEDGE SB**镶针CORE PIN PI**勾腿CAMSA**弹针SPRING PIN EI**⾏位油板SLIDE WEAR PLATE SP**勾针HITCH PINEJ**斜鸡油板WEDGE WEAR PLATE SW**⽓顶AIR POPPET VALVEEA**⾏位导轨块SLIDE GUIDE BLOCK SG**⾏位挡板SLIDE STOP PLATEST**标准预复位机构EARLY RETURN RW**复位杆RETRUN POLE RP**斜顶导滑板LIFTER GUIDE PLATE FL**摆臂FLIRT ARM RM**斜顶滑块LIFTER SLIDE BLOCK FH**固定块FIX BLOCK RF**斜顶导轨块LIFTER GUIDE BLOCK FG**挡块LOCATE BLOCKRL**斜顶油板LIFTER WEAR PLATEFW**标准扣机LATCH LOCK KW**杯司BUSH UB**尼龙扣钉NYLON LATCH LOCK KN**⽔⼝镶件GATE INSERT UG**扣鸡滑块LOCK BARKH**轴SHAFTUS**扣鸡锁块LOCK CONTROL BLOCK KB**定位块LOCATE BLOCK UL**扣鸡定位块LOCK HOUSINGKC**板PLATEUP**垫板SUPPORT PLATE UE**蓝弹⼸FLAT SPRING NF**顶杆EJECTOR POLE UD**黄弹⼸FLAT SPRING NB**导滑块GUIDE BLOCK UC**圆形弹⼸CIRCLE SPRING NL**楔紧块WEDGE BLOCKUX**弹性胶ELASTOMER NP**碟形弹⼸DISK SPRINGND**弹⼸（N ）顶针/镶针（E /P ）扣鸡（K ）预复位机构（R ）命名：模号+“_"+标识命名：模号+“_"+标识命名：模号+“_"+标识命名：模号+“_"+标识命名：模号+“_"+标识命名：模号+“_"+铜公所打⼯件号+"-"+铜公标识号螺丝类（V )命名：模号+“_"+标识命名：模号+“_"+标识命名：模号+“_"+标识命名：模号+“_"+标识铜公⾏位（S ）斜顶（F）其它加⼯件（U ）成型件。

模具工序英文缩写汇总模具（Mold）是制造产品的重要工具，在制造行业中占据重要地位。

模具的制作过程涉及多个工序，每个工序都有专门的英文缩写，本文将对常见的模具工序英文缩写进行汇总和解释，方便读者理解模具制造过程。

1. CADCAD指的是计算机辅助设计（Computer-Aided Design），它是模具设计的重要工具之一。

通过CAD软件，设计师可以使用计算机生成和修改模具的布局、尺寸和形状，提高设计效率和准确性。

2. CAMCAM是计算机辅助制造（Computer-Aided Manufacturing）的缩写，它是模具制造中的关键环节。

CAM软件可以将CAD设计文件转化为可执行的加工程序，自动编程控制数控机床进行模具的加工制造。

CAM技术的应用可以大大提高模具制造的自动化程度和生产效率。

3. CNCCNC是数控机床（Computer Numerical Control）的缩写，它是模具制造中常用的加工设备之一。

通过预先编写好的加工程序，CNC机床可以自动控制刀具的移动、工件的定位和加工参数的调节，完成复杂的模具加工任务。

4. EDMEDM是电火花加工（Electrical Discharge Machining）的缩写，它是一种常用的模具加工方法。

EDM利用电火花的放电效应，通过在工件表面产生高温高压的电弧来磨削和腐蚀工件，从而实现高精度的模具加工。

5. WEDMWEDM全称为线切割电火花加工（Wire Electrical Discharge Machining），它是EDM的一种变体。

WEDM通过钢丝作为导电电极，通过电火花的腐蚀作用，将工件进行切割、割伤和孔洞等加工操作，适用于加工精密的模具零件。

6. CNC-WEDMCNC-WEDM指的是数控线切割电火花加工（Computer Numerical Control Wire Electrical Discharge Machining）。

CKD、SKD、ZP……这些缩写都认识吗？1各种类型的零件aCKD件CKD这个词出境率很⾼吧！英⽂全称是：Completely Knocked Down德⽂全称是：in Einzelteile zerlegt中⽂解释是：完全散件采购/完全拆散的进⼝件和总成。

是不是觉得中英德⽂有些差异？这⾥⾯其实有些故事的。

CKD英⽂意思是“完全拆散”。

换句话说，CKD汽车就是进⼝或引进汽车时，汽车以完全拆散的状态进⼊，之后再把汽车的全部零、部件组装成整车。

⼀个⽐较现实的意义就在于，因为采购的是散件⽽⾮总成，会节省较多成本。

bSKD件讲完CKD，我们再来看看SKD。

英⽂全称是：Semi Knocked Down oder Special Knocked Down中⽂解释是：进⼝半拆散总成/组件进⼝。

在早期桑塔纳轿车，国产化的零件只有轮胎、收放机等，绝⼤部分总成、零部件以SKD⽅式进⼝的。

关于KD件，其实还有DKD(Direct Knocked Down) 直接组装或者成品组装，只不过实际很少采⽤⽽已。

cDB件DB的德⽂全称是Direktbezug，意为直接采购。

直接从总部公司原供应商，⽽不是通过总部CKD部门渠道采购的，⽤于正常批量⽣产的进⼝零部件，包括特殊件和从进⼝件转为直接采购件两部分。

直接采购件的价格较CKD进⼝件⼊库价更为低廉，以直接采购件取代CKD件；新产品开发等技术原因导致⽆法国产化，以直接采购件取代CKD件。

但物流费⽤⽅⾯的经济性必须考虑在内。

这⾥说明⼀下，有些供应商内部也会将⼀些零件定为DB件，其含义是主机⼚直接指定采购的某零件（定点也是主机⼚定的，只是代管）。

只是定义，没啥问题。

dBMG件BMG的德⽂全称：Baumustergenehmigungspflichtige Teile即需进⾏⼯程样件认可的零件，⼀般指涉及安全性、平台等的需要德国总部进⾏⼯程样件认可的重要零件。

据悉，部分BMG件某特性也有放开让国内主机⼚认可的情况。

（整理）模具零件的中英文标准命名模具零件的中英文标准命名前言类别标准名称解析与说明标准图号模胚组件模胚MOLD BASE又称模架上码模板TOP CLAMP PLATE码在注塑机定板上，又称上模固定板热流道框板SPACER PLATE安装热流道板的架板或回板水口板RUNNER STRIPPER PLATE 三板模中用于脱水口，又称水口推板“A”板“A”PLATE又称上模板推板STRIPPER PLATE顶出产品用的板“B”板“B”PLATE又称下模板“B1”板“B1”PLATE又称下模垫板，B托板“B2”板“B2”PLATE后模要先抽芯时，有时需增加此板托板SUPPORT PLATE起托垫作用凳仔方SPACER BLOCK一般装在下码模板与“B”板之间，又称方铁顶针板EJECTOR PLATE又称顶针固定板，面针板顶针托板EJECTOR RETAINER PLATE 又称顶出板，底针板下码模板BOTTOM CLAMP PLATE码在注塑机动板上，又称下模固定板回针RETURN PIN用于使顶针板组件复位边钉GUIDE PIN模具上用来导向用。

又称导柱、导边边司GUIDE BUSH模具上用来导向用,与导边配合。

又称导套、导司哥林柱EJECTOR GUIDE PIN模具上用来对顶出系统导向用。

中托司EJECTOR GUIDE BUSH 安装在顶针组板上，用来对顶出系统导向用，与哥林柱配合类别标准名称解析与说明标准图号成型件上模肉CA VITY INSERT指镶在上模框中的最大成型件下模肉CORE INSERT指镶在下模框中的最大成型件上模镶件CA VITY SMALL INSERT指镶在上模框中的小件下模镶件CORE SMALL INSERT指镶在下模框中的小件上模镶针CA VITY INSERT PIN指镶在上模框中的圆形小件，要求尽量采用标准顶针改制下模镶针CORE INSERT PIN指镶在下模框中的圆形小件，要求尽量采用标准顶针改制上模肉压块CA VITY CLAMP用于压紧上模肉的块下模肉压块CORE CLAMP用于压紧下模肉的块行位SLIDE BLOCK同出模方向不平行，靠斜边带出或弹弓弹出或油唧抽出的成型件行位镶件SLIDE INSERT镶在行位上的件行位镶针SLIDE INSERT PIN镶在行位上的圆形小件，要求尽量采用标准顶针改制可换镶件EXCHANGEABLE INSERT精度较高，具有互换性的镶件日期镶针DA TE INDICATOR包括年、月、日、班产及空白镶针环保镶针RECYCLE MARKED PIN是一种标准件，上刻有环保标记哥针CORE PIN用于成形胶柱位，胶孔的标准件疏气针GAS EXPELLER用一种组织疏松的钢材制作，气体能从中逃逸类别标准名称解析与说明标准图号浇注系统法兰LOCA TING RING唧咀SPRUE BUSHING法兰唧咀SPRUE BUSHING LOCATING 法兰和唧嘴为一体A_41、A_42加长唧咀EXTEND SPRUE BUSHING 又称延长唧咀唧咀身SPRUE BODY法兰与唧咀头之间的部分唧咀套SPRUE BUSH法兰与唧咀之间的套，又称喉通唧咀头SPRUE GATE唧咀的最前端，接触模腔部分浇口套GA TE BUSH浇口镶件，用于针点入水。

模具英文缩写对照表模具 Mould tooling模芯 Parting Core局部视图 Partial View冷料# Cold Slag线切割 Wire E.D.M轮廊 Contour螺纹孔 Tapping Hole连接件 Fittings斜针 Angle Pin接合 Engage替换镶件 Interchangeable Mold Inserts 指定吨位的注塑机 Specific Press 水嘴接头 Water Fittings螺纹 Eyebolt Thread回针 Stop Pin二级顶出针 Sub-Leaderd Pin镶件 Mold Insert加硬 Harden唧嘴 Sprue设计筒图 Design Preliminary名称块表 Title Block版本标识 Revision Level材料清单 Stock List制模 Build Mold手动滑块 Hand Slide漏水测试 Leak Test流道排气 Runner Vents抛光 Draw Polish侧抽芯 Side Action加强筋 Reinforcing三角撑 Gusset柱子 Bossed出模斜度 Draft外廊 Contour落单会议 Kick-Off Meeting装卸孔 Handling Hole运输安全带 Moldstrap码模槽 Clamp Slot撑头 Support Pillar螺牙1/2-13 Eye Bolt 1/2-13Tap导柱位 Leader Pin Location耐落胶 Teflon Paste偏移量 Offset水塞 Water Line Plug撬模脚 Ppy Slot重新加工 Reworked配件 Components补偿 Compensation平面度 Parallel倒角 Chamfer模胚 Mold Base热嘴 Hotnozzle火花机 Edm熔接线 Weildline压机 Press晒纹 Texturing梯形 Trapezoid凸缘(法兰) Flange方铁 Spacer Block顶针板 Ejector Plate顶针底板 Ejector Retainer Plate垫板 Retainer Plate后模镶针 Core Pin拉圾钉 Stop Pin有托顶针 Shoulder Ejector Pin顶针板导套 Guided Ejection Bushing针板导柱 Guided Ejection Leader Pin唧嘴 Sprue Bushing三板模延伸式唧嘴 Extension Nozzle Bushing水口板导套 Runner Stripper Plate Bushing 定位圈（法兰） Locating Ring管钉（定位销） Dowel Pin管状管钉 Tubular Dowel吊环 Safety Hoist Ring日期印 Dating Insert环保印 Recycling Insert气顶 Air Poppet Valve截水口镶件 Runner Shut-Off Insert早回 Early Ejector Return加速项 Accelerated Ejector客户 Client产品名 Part Name产品编号 Part No缩水 Shrinkage版本 Rev模胚 Mold Base下模镶件 Core Block上模镶件 Cavity Block小镶件 Sub-Insert下模小镶件 Core Sub-Insert上模小镶件 Cavity Sub-Insert行位 Slide行位镶件 Slide Insert压条 Gib压紧块（铲机） Jaw硬片（摩擦片） Wear Plate水口铁 Runner Bar上模水口铁 Upper Runner Bar下模水口铁 Lower Runner Bar弹簧 Spring水口勾针 Sprue Puller Pin顶针 Ejector Pin撑头 Support Pillar直身锁 Side Lock斜度锁 Interlock锁模板 Safety Bar‘O’形圈（密封圈） O'Ring喉塞 Plug隔水片 Baffle波子螺丝（行位定位螺丝） Ball-Catch 斜顶 Lifter控制开关 Switch回针 Return Pin斜导柱 Angle Pin推板 Stripper PlateA’板 A'PlateB’板 B'Plate方铁（垫铁） Spacer Block顶针板 Ejector Plate顶针底板 Ejector Retainer Plate垫板 Retainer Plate垃圾钉 Stop Pin有托顶针 Shoulder Ejector Pin顶针板导套 Guided Ejection Bushing针板导柱 Guided Ejection Leader Pin唧嘴 Sprue Bushing三板模延伸式唧嘴 Extension Nozzle Bushing水口板导套 Runner Stripper Plate Bushing 定位圈（法兰） Locating Ring管钉（定位销） Dowel Pin管状管钉 Tubular Dowel吊环 Safety Hoist Ring日期印 Dating Insert环保印 Recycling Insert气顶 Air Poppet Valve截水口镶件 Runner Shut-Off Insert早回 Early Ejector Return加速顶 Accelerated Ejector扁顶 Blade出模斜波 Draft手动滑块模具 Hand Slide-In Type Mold回针板 Backup合模 Shutoff空隙槽 Clearance Slot导柱及导套 Leader Pin Bushing水口拉钩 Spuer Puller模框镶件 Pocket Insert成型热固性塑胶模具 Thermoset Mold三板模 3-Plat Mold分型面 Parting Line司筒 Ejector Sleeve垫圈 Washer熔接线（夹水纹） Weldline吸针 Sucker Pin回针板 Retainer Plate顶出板 Knock -Out Plate电动安全开关 Electrical-Safety Switch 脱开 Cut Of Position预先决定 Preload缓冲器 Bumper衬垫 Cushion公差 Tolerance突然性动作 Slam销针 Dowel钩槽 Gib精磨 Finished通框 Through Window粘后模 Sticking Core粘水口 Sticking Sprue夹水纹 Weld Line变形 Warpage走水不平均 Filling Uneven走不齐 Short Shot挂成品 Part Hanging漏水 Water Leakage刮花（擦伤） Galling漏电 Ele Leakage困气 Air Trapping温度 Temperature注塑模 Injection Mold 入水 Gate试板 Sampling压力 Pressure倒圆 Fillet顶棍 Ejector顶白 Stress Mark粘前模 Sticking Cav名称块表 Title Block版本标识 Revision Level材料清单 Stock List斜导柱（斜边） Angle PinA板 A'plateB板 B'plate倒扣 Under-Cut披峰 Flash缩水 Sink Mark氮化 Nitride不规则四边形Trapezoid缩水 Shrinkage连续的 Consecutive雕刻 Engrave出模角 Draft分模面 Parting Surface 擦位 Shut-Off(S/0)导套 Bushing回针 Return Pin加硬 Harden唧嘴 Sprue设计筒图 Design Preliminary丝印 Silkprint不干胶 Adhesive Sticker导向针 Guide Din公差 Tolerance线切割 Wire-Cut电火花 Edm抛光 Polishing蚀纹 Texture探热针 Thermocouple三打螺丝毫（限螺丝） Stripper Bolt盖板 Cover Plate齿轮 Gear油唧 Hydraulic Cylinder司筒 Ejector Sleeve导柱 Leader Pin冷料# Cold Slag线切割 Wire E.D.M.轮廓 Contour螺纹孔 Tapping Hole连接件 Fittings斜针 Angle Pin接合 Engage替换镶件 Interchangeable Mold Inserts 指定吨位的注塑机 Specific Press水嘴接头 Water Fittings螺纹 Eyebolt Thread回针 Stop Pin二级顶出针 Sub-Leader Pin镶件 Mold Insert锁定位 Lock楔子(铲鸡) Wedge高产量模量 High Volume Running Mold剖面图 Cross Section 模具结构 Mold Construction 模芯 Parting Core局部视图 Partial View热流道 Manifold热嘴 Hot Nozzle型腔数 Cav No 模号 Mold No胶料 Material尺寸 Dimension重要尺寸 Critical Dimension 雕刻 Engrave托司 EJ.GUIDE PIN。
