DG型高压锅炉给水泵型式与基本参数

DG280-65X3型锅炉给水泵概述：DG280-65型锅炉给水泵适用可供输送清水或类似于清水的液体，适用于中、低压锅炉或次高压锅炉给水，也适用于工厂或城市高压给排水。

介质温度t–20℃～150℃，允许进口压力0.6MPa。

DG型锅炉给水泵利用离心的原理，采用了国家推荐使用的高效节能产品的水力模型，在行业内居于技术领先地位。

该类产品格中也适中，是一种性价比很高的产品。

DG280-65X3型锅炉给水泵参数范围：流量Q：280m3/s；扬程H：195m；DG280-65X3型锅炉给水泵型号说明：例：DG280－65×3；DG－单吸、多级锅炉给水泵；280－流量(m3/h)；65－泵单级扬程（m）；3－泵级数。

DG280-65X3型锅炉给水泵产品特点：1、水力设计：采用先进的设计理论进行低比转数水力模型优化设计，叶轮流道采用特殊的工艺手段，使其流道表面光洁，减少损失，提高效率。

2、结构：在结构上采用卧式、多级分段形式，因而运转安全、平稳、噪音低、寿命长、安装维修方便。

3、泵效率高，性能范围厂，更好地满足使用要求。

DG280-65X3型锅炉给水泵材质选择表:材料类别I II III使用温度-20°C～+80°C-20°C～+150°C-20°C～+150°C 吸入段HT200ZG230-450ZG1Cr13中段HT200ZG230-450ZG1Cr13吐出段HT200ZG230-450ZG1Cr13叶轮HT200或Cu ZG230-450或Cu ZG1Cr13或Cu导叶HT200ZG230-450ZG1Cr13轴45或40Cr35CrMo3Cr13填料轴套HT200453Cr13机械密封轴套25HT250453Cr13泵体密封环HT25040Cr3Cr13叶轮密封环HT25040Cr3Cr13平衡板ZQAl9-4453Cr13平衡盘45HT25040Cr3Cr13*除以上三类材质外,用户采用其它耐酸、耐碱材质，需与厂方洽商。

DG型工业蒸汽锅炉给水泵（本文由长沙三昌水泵厂网络部整理，转载著名出处）概述DG型工业蒸汽锅炉给水泵系单吸、多级节段式离心泵。

本系列泵是专为更新改造的新系列工业蒸汽锅炉配套的高效节能产品，不仅适用于中、低压锅炉给水，也适用于工厂、城市高扬程输水。

泵进口压力不得超过0.59Mpa(6kgf/cm2)，输送介质的温度：-20~105℃流量：Q=3~50m3/h扬程：H=81～450m例：DG5-27×3DG——蒸汽单吸多级锅炉给水泵5——泵设计点流量27——泵单级扬程3——泵级数DG型吸入口和吐出口均垂直向上，泵转子支承为滚动轴承，油脂润滑，轴向推力平衡采用平衡盘机构。

轴承可采用填料密封或机械密封。

泵过流部件材质为铸铁，用户有特殊材料要求可与厂方协商。

从传动方向看，泵为顺时针方向旋转。

本系列泵成套供应电机、止回阀、闸阀、公用底座。

DG型工业蒸汽锅炉给水泵流量杨程转速轴功率配带电动机效率η必须汽蚀余量(NPSH)r泵叶轮直径泵重m3/h L/s m r/minKW电机功率KW电机型号% m mm kgDG5-27×33580.831.392.2284817529803.13.454.087.5 Y132S2-22232402.8 40 32DG5-27×43580.831.392.2211210810029804.144.65.447.5 Y132S2-22232402.8 40 32DG5-27×53580.831.392.2214013512529805.175.756.811 Y160M1-22232402.8 40 32DG5-27×63580.831.392.2216816215029806.216.98.1611 Y160M1-22232402.8 40 32DG5-27×73580.831.392.2219618917529807.258.059.511 Y160M1-22232402.8 40 32DG5-27×83580.831.392.2222421620029808.299.210.8815 Y160M2-22232402.8 40 32DG5-27×93580.831.392.2225224322529809.3210.3512.2515 Y160M2-22232402.8 40 32DG5-27×103580.831.392.22280270250298010.3611.513.615 Y160M2-22232402.8 40 32DG5-27×113580.831.392.22308297275298011.3912.6514.9618.5 Yl60L-22232402.8 40 32DG5-27×123580.831.392.22336324300298012.4313.816.3218.5 Y160L-22232402.8 40 32DG8-35×358101.392.222.78109998529804.795.996.4411 Y160M1-23136362.8 40 40DG8-35×458101.392.222.7814613211429806.427.898.6311 Y160M2-23136363.63.74.640 40DG8-35×558101.392.222.78182165142298089.9810.7511 Y160M2-23136363.63.74.640 40DG8-35×6581.392.2221819829809.5811.9715 Y160M1-231363.63.740 4010 2.78 171 12.95 36 4.6DG8-35×758101.392.222.78255231199298011.2113.9715.0715 Y160M2-23136363.63.74.640 40DG8-35×858101.392.222.78291264227298012.7915.9617.1918.5 Y160M2-23136363.63.74.640 40DG8-35×958101.392.222.7832829725629801617.9619.3822 Y160L-23136363.63.74.640 40DG8-35×1058101.392.222.7836433028429801619.9521.522 Y180M-23136363.63.74.640 40DG13-35×31013172.703.614.721111058729807.28.38.9511 Y180M-24245452.22.42.550 50DG13-35×41013172.703.614.7214814011629809.321111.9315 Y200L1-24245452.22.42.550 50DG13-35×51013172.703.614.72185175145298011.6613.7614.9118.5 Y160M1-24245452.22.42.550 50DG13-35×61013172.703.614.7222221017429801416.5217.8922 Y160M1-24245452.22.42.550 50DG13-35×710 2.70 259 2980 16.32 30 Y160L-2 42 2.2 50 5013 17 3.614.7224520319.2720.8845452.42.5DG13-35×81013172.703.614.72296280230298018.6622.223.6530 Y180M-24245452.22.42.550 50DG13-35×91013172.703.614.72333315261298020.9924.7726.8430 Y200L1-24245452.22.42.550 50DG13-35×101013172.703.614.72370350290298023.2227.5329.8337 Y200L1-24245452.22.42.550 50DG20-35×316.320234.535.566.3911010510029808.889.8710.6215 Y160M2-25588892.83.03.365 65DG20-35×416.320234.535.566.39147140134298011.8713.1614.2318.5 Y160L-25588892.83.03.365 65DG20-35×516.320234.535.566.39183175167298014.7816.4517.7322 Y180M-25588892.83.03.365 65DG20-35×616.320234.535.566.39220210200298017.7619.7421.2430 Y200L1-25588892.83.03.365 65DG20-35×716.320234.535.566.39256245234298020.6723.0324.8530 Y200L1-25588892.83.03.365 65DG20-35×816.320234.535.566.39293280267298023.6626.3228.3537 Y200L2-25588892.83.03.365 65DG20-35×916.320234.535.566.39330315300298026.6529.6131.5837 Y200L2-25588892.83.03.365 65DG20-35×1016.320234.535.566.39366350334298029.5532.8935.4645 Y225M-25588892.83.03.365 65DG25-35×32025305.566.948.3311410593298010.911.7113.0915 Y160M2-25588892.73.03.365 65DG25-35×42025305.566.948.33152140124298014.5415.6217.4622 Y180M-25588892.73.03.365 65DG25-35×52025305.566.948.33190175155298018.1719.5221.8230 Y200L1-25588892.73.03.365 65DG25-35×62025305.566.948.33228210185298021.823.4226.0430 Y200L1-25588892.73.03.365 65DG25-35×72025305.566.948.33266245217298025.4428.7430.5537 Y200L2-25588892.73.03.365 65DG25-35×820255.566.94304280298029.0731.2337 Y200L2-257612.73.065 6530 8.33 248 34.92 58 3.3DG25-35×92025305.566.948.33342315279298032.7135.1439.2845 Y225M-25761582.73.03.365 65DG25-35×102025305.566.948.33380350310298036.3439.0443.6455 Y250M-25761582.73.03.365 65DG42-45×32542506.9411.6713.89158135120298020.2825.7427.2430 Y200L1-25360602.02.42.880 80DG42-45×42542506.9411.6713.89210180160298026.9634.3236.3145 Y225M-25360602.02.42.880 80DG42-45×52542506.9411.6713.89262225200298033.6342.945.3955 Y250M-25360602.02.42.880 80DG42-45×62542506.9411.6713.89315270240298040.4451.4954.4775 Y280S-25360602.02.42.880 80DG42-45×72542506.9411.6713.89368315280298047.246062.5475 Y280S-25360602.02.42.880 80DG42-45×82542506.9411.6713.89420360320298053.9168.6572.690 Y280M-25360602.02.42.880 80DG42-45×925 6.94 473 2980 60.72 90 Y280M-2 53 2.0 80 8042 50 11.6713.8940536077.2380.4160602.42.8DG42-45×102542506.9411.6713.89525450400298067.485.8189.35110 Y315S-25360602.02.42.880 8040DG40×3610121.672.783.33123120115.529805.827.117.7111 Y160M1-234.546492.63.33.940 4040DG40×4610121.672.783.3316416015429807.769.4810.2815 Y160M2-234.546492.63.33.940 4040DG40×5610121.672.783.33205200192.529809.711.8512.8515 Y160M2-2 34.5 2.6 40 4040DG40×6610121.672.783.33246240231298011.6414.2215.4218.5 Y160L-2 46 3.3 40 4040DG40×7610121.672.783.33287280269.5298013.5816.5917.9922 Y180M-2 49 3.9 40 4040DG40×8610121.672.783.33328320308298015.5218.9620.5622 Y180M-2 34.5 2.6 40 4040DG40×9610121.672.783.33369360346.5298017.4621.3323.1330 Y200L1-2 46 3.3 40 4040DG40×10610121.672.783.33410400385298019.423.725.730 Y200L1-2 49 3.9 40 40。

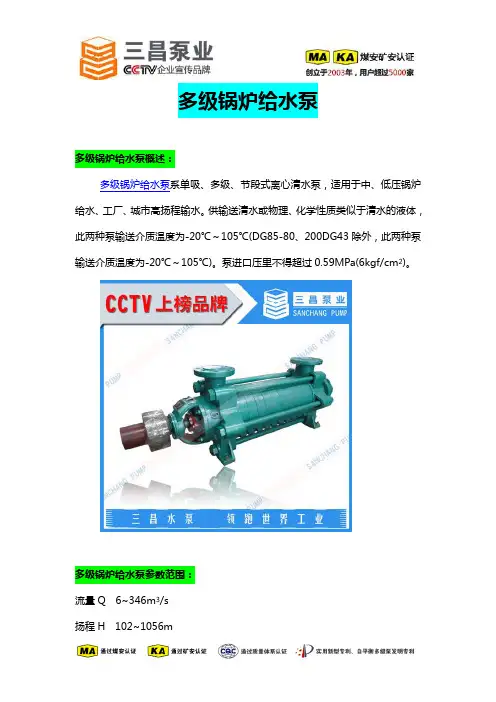

多级锅炉给水泵多级锅炉给水泵概述：多级锅炉给水泵系单吸、多级、节段式离心清水泵，适用于中、低压锅炉给水、工厂、城市高扬程输水。

供输送清水或物理、化学性质类似于清水的液体，此两种泵输送介质温度为-20℃～105℃(DG85-80、200DG43除外，此两种泵输送介质温度为-20℃～105℃)。

泵进口压里不得超过0.59MPa(6kgf/cm2)。

多级锅炉给水泵参数范围：流量Q 6~346m3/s扬程H 102~1056m多级锅炉给水泵型号说明：DG25－50×3DG－单吸、多级锅炉给水泵25－流量(m3/h)50－泵单级扬程（m）3－泵级数40DGⅠ40×340－泵进口口径（mm）DG－单吸、多级锅炉给水泵40－泵单级扬程（m）3－泵级数多级锅炉给水泵结构型式：多级锅炉给水泵的吸入口、吐出口均垂直向上，转子轴向力由平衡盘来平衡。

轴封可为填料密封，也可为机械密封。

转子的支承仅DG85-80、DG85-67、DG155-67采用滑动轴承，稀油润滑，其它泵均采用滚动轴承。

多级锅炉给水泵旋转方向：从电机端看，泵为顺时针方向旋转。

多级锅炉给水泵主要零件材质：多级锅炉给水泵的过流部件除DG85-80、200DG43材质为铸钢外，其余泵材质均为铸铁。

多级锅炉给水泵成套范围：成套供应泵、电机、止回阀、闸阀、公用底座或本身底座。

参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg40DGⅠ40×3 610121.72.83.3123120115.529805.827.117.711 Y160M1-234.546492.63.32.9170404012540DGⅠ40×4 610121.72.83.316416015429807.769.4810.2815 Y160M2-234.546492.63.32.9170404014540DGⅠ40×5 610121.72.83.3205200192.529809.711.8512.8518.5Y160L-234.546492.63.32.9170404016540DGⅠ40×6 610121.72.83.3246240231298011.6414.6215.4218.5Y160L-234.546492.63.32.9170404018540DGⅠ40×7 610121.72.83.3287280269.5298013.5816.5917.9922 Y180M-234.546492.63.32.9170404020540DGⅠ40×8 610121.72.83.3328320308298015.5218.9620.5622 Y180M-234.546492.63.32.9170404022540DGⅠ40×9 610121.72.83.3369360346.5298017.4621.3323.1330 Y200L1-234.546492.63.32.9170404024540DGⅠ40×10 610121.72.83.3410400385298019.423.725.730 Y200L1-234.546492.63.32.91704040265DG25-50×3 1525284.16.97.8154.5150144298014.318.920.330 Y200L1-24454542.42.72.81968080270DG25-50×4 1525284.16.97.8206200192298019.125.227.137 Y200L2-24454542.42.72.81968080295DG25-50×5 1525284.16.97.8257.5250240298023.931.533.937 Y200L2-24454542.42.72.81968080315DG25-50×6 1525284.16.97.8309300288298028.637.840.745 Y225M-24454542.42.72.8196808034DG25-50×7 1525284.16.97.8360.5350336298033.444.147.555 Y250M-24454542.42.72.819680803691参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kgDG25-50×8 1525284.16.97.8412400384298038.250.454.275 Y280S-24454542.42.72.81968080385DG25-50×9 1525284.16.97.8463.545043229804356.76175 Y280S-24454542.42.72.81968080405DG25-50×10 1525284.16.97.8515500480298047.76367.875 Y280S-24454542.42.72.8196808043DG25-50×11 1525284.16.97.8566550528298052.569.374.690 Y280M-24454542.42.72.8196808045DG25-50×12 1525284.16.97.8618600576298057.375.681.4110 Y315S-24454542.42.72.81968080475DG80-30×3 2643487.211.913.31029083.42980121515.818.5Y160-260706933.94.3162808015DG80-30×4 2643487.211.913.3136120111.2298016202122 Y180M-260706933.94.31628080165DG80-30×5 2643487.211.913.31701501392980202526.330 Y200L1-260706933.94.3162808018DG80-30×6 2643487.211.913.3204180166.82980243031.537 Y200L2-260706933.94.31628080195DG80-30×7 2643487.211.913.3238210194.62980283536.845 Y225M-260706933.94.3162808021DG80-30×8 2643487.211.913.3272240222.4298032404255 Y250M-260706933.94.31628080225DG80-30×9 2643487.211.913.3306270250.22980364547.355 Y250M-260706933.94.3162808024DG80-30×10 2643487.211.913.33403002782980405052.575 Y280S-260706933.94.3162808025592参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/ s L/s m r/minkw kw % m mm mm kgDG46-50×3 2846507.812.813.9172.5150144298024.829.93137 Y200L2-2536363.22.52.832088080270DG46-50×4 2846507.812.813.9230200192298033.139.841.355 Y250M-2536363.22.52.832088080295DG46-50×5 2846507.812.813.9287.2250240298041.449.851.675 Y280S-2536363.22.52.832088080315DG46-50×6 2846507.812.813.9345300288298049.656.761.975 Y280S-2536363.22.52.832088080340DG46-50×7 2846507.812.813.9402.5350336298057.969.772.290 Y280M-2536363.22.52.832088080360DG46-50×8 2846507.812.813.9460400384298066.279.682.690 Y280M-2536363.22.52.832088080385DG46-50×9 2846507.812.813.9517.5450430298074.489.692.911Y315S-2536363.22.52.832088080405DG46-50×10 2846507.812.813.9575500480298082.799.5103.5132Y315M1-2536363.22.52.832088080430DG46-50×11 2846507.812.813.9632.5550528298091109113.5132Y315M1-2536363.22.52.832088080450DG46-50×12 2846507.812.813.9680600576298099.3119.4123.916Y315L1-2536363.22.52.83208808047580DG20×2 32.450.465.291418.143.24034.214806.287.849.1311 Y160M-460.77066.52.22.52.8255806534080DG20×3 32.450.465.291418.164.86051.314809.4211.813.715 Y160L-460.77066.52.22.52.8255806540280DG20×4 32.450.465.291418.186.48068.4148012.615.718.322 Y180L-460.77066.52.22.52.8255806546493参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg80DG20×5 32.450.465.291418.110810085.5148015.719.622.830 Y160M-460.77066.52.22.52.8255806552680DG20×6 32.450.465.291418.1129.6120102.6148018.823.527.430 Y160L-460.77066.52.22.52.8255806558880DG20×7 32.450.465.291418.1151140120148021.927.53237 Y160M-460.77066.52.22.52.8255806565080DG20×8 32.450.465.291418.1173160137148025.131.436.645 Y160L-460.77066.52.22.52.8255806571280DG20×9 32.450.465.291418.1194180154148028.235.341.445 Y160M-460.77066.52.22.52.8255806577480DG20×10 32.450.465.291418.1216200171148031.439.245.655 Y160L-460.77066.52.22.52.82558065836DG85-67×3 558510015.323.627.8222201183298061.571.576.690 Y280M-25465653.344.4235150150846DG85-67×4 558510015.323.627.8296268244298082.195.4102.211Y315S-25465653.344.4235150150964DG85-67×5 558510015.323.627.83703353052980102.5119.3127.716Y315L1-25465653.344.42351501501126DG85-67×6 558510015.323.627.84444023652980123.1143.1152.816Y315M2-25465653.344.42351501501434DG85-67×7 558510015.323.627.85184694272980143.6166.9178.8185Y315SB-25465653.344.42351501501556DG85-67×8 558510015.323.627.85925364882980164.1190.8204.322Y315M1B-25465653.344.42351501501624DG85-67×9 558510015.323.627.86666035492980184.6214.6229.925Y315M2-25465653.344.423515015018494参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kgDG85-80×5 54851081523.6304404003502980122142156185 Y315M-25365664.54.45.32501001001420DG85-80×6 54851081523.6305284804202980147171187200 Y315M-25365664.54.45.32501001001490DG85-80×7 54851081523.6306165604902980171199218250 Y355-25365664.54.45.32501001001570DG85-80×8 54851081523.6307046405602980195228250280 Y355-25365664.54.45.32501001001640DG85-80×9 54851081523.6307927206302980220256281315 Y355-25365664.54.45.32501001001710DG85-80×10 54851081523.6308808007002980244285312355 Y355-25365664.54.45.32501001001790DG85-80×11 54851081523.6309688807702980269313343400 Y355-25365664.54.45.32501001001860DG85-80×12 54851081523.6309688807702980293342374450 Y400-25365664.54.45.32501001001930100DG20×2 721001262027.83543.44034148013.115.116.722 Y180L-46572702.83.54.426710080350100DG20×3 721001262027.83565.16051148019.622.72530 Y200L-46572702.83.54.426710080413100DG20×4 721001262027.83586.88068148026.230.333.337 Y225S-46572702.83.54.426710080476100DG20×5 721001262027.83510910085148032.937.941.745 Y225M-46572702.83.54.426710080539100DG20×6 721001262027.835130120102148039.345.45055 Y250M-46572702.83.54.42671008060295参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg100DG20×7 721001262027.835152140119148045.95358.475 Y280S-46572702.83.54.426710080665100DG20×8 721001262027.835174160136148052.560.566.775 Y280S-46572702.83.54.426710080728100DG20×9 721001262027.835195180153148058.868.17590 Y280M-46572702.83.54.426710080791100DG20×10 721001262027.835217200170148065.575.583.390 Y280M-46572702.83.54.426710080854DG155-67×3 9515518526.34351.3228201177298093.6114.7122.1132Y315M1-26374732.64.55.7235150150952DG155-67×4 9515518526.34351.33042682362980124.8152.9162.8185Y315M-26374732.64.55.72351501501024DG155-67×5 9515518526.34351.33803352952980156191.1203.622Y315M-26374732.64.55.72351501501145DG155-67×6 9515518526.34351.34564023542980187.2229.3244.328Y355M2-26374732.64.55.72351501501435DG155-67×7 9515518526.34351.35324694132980218.4267.6285315Y355M3-26374732.64.55.72351501501558DG155-67×8 9515518526.34351.36085364722980249.6305.8325.7355Y355L1-26374732.64.55.7235150150170DG155-67×9 9515518526.34351.36846035312980280.8344366.445Y400-26374732.64.55.7235150150186150DG30×3 119155190334352.798.192.18414804350.55875 Y280S-47477752.83.54.7305150150570150DG30×4 119155190334352.7130.8122.8112148057.467.377.390 Y280M-47477752.83.54.730515015064096参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg150DG30×5 119155190334352.7163.5152.5140148071.683.696.611Y315S-47477752.83.54.7305150150700150DG30×6 119155190334352.7196.2184.2168148085.9101116132Y315M-47477752.83.54.7305150150780150DG30×7 119155190334352.7228.9214.92521480100.3118135.216Y315M-47477752.83.54.7305150150850150DG30×8 119155190334352.7261.6245.62241480114.6134.7154.620Y355M-47477752.83.54.7305150150920150DG30×9 119155190334352.7294.3276.32521480128.9151.5173.920Y355M-47477752.83.54.7305150150990150DG30×10 119155190334352.73273072801480143.2168.3193.222Y355M-47477752.83.54.7305150150106DG280-43×3 19028834652.88096.1135.9122.4111148096.9120132.916Y315L1-47380783.04.76.0360 200 865DG280-43×4 19028834652.88096.1181.2163.21481480129.2160177.220Y315L1-47380783.04.76.0360 200 977DG280-43×5 19028834652.88096.1226.52041851480161.5200221.525Y355-47380783.04.76.0360 2001097DG280-43×6 19028834652.88096.1271.8244.822214801938240265.8315Y3556-47380783.04.76.0360 2001218DG280-43×7 19028834652.88096.1317.1285.62591480226.1280310.1355Y400-47380783.04.76.0360 2001339DG280-43×8 19028834652.88096.1362.4326.42961480258.4320354.445Y400-47380783.04.76.0360 2001459DG280-43×9 19028834652.88096.1407.7367.23331480290.7360398.745Y400-47380783.04.76.0360 20015897参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg200DG43×3 19028834652.88096.1135.9122.4111148096.9120132.916Y315L1-47380783.04.76.0360200200140200DG43×4 19028834652.88096.1181.2163.21481480129.2160177.220Y315L2-47380783.04.76.0360200200151200DG43×5 19028834652.88096.1226.52041851480161.5200221.525Y355-47380783.04.76.0360200200162200DG43×6 19028834652.88096.1271.8244.82221480193.8240265.8315Y355-47380783.04.76.0360200200173200DG43×7 19028834652.88096.1317.1285.62591480226.1280310.1355Y400-47380783.04.76.0360200200184200DG43×8 19028834652.88096.1362.4326.42961480258.4320354.445Y400-47380783.04.76.0360200200195200DG43×9 19028834652.88096.1407.7367.23331480290.7360398.745Y400-47380783.04.76.0360200200210。

/DG25-50x8型锅炉给水泵技术说明、厂家、价格一、DG25-50x8型锅炉给水泵概述：该系列泵系节段式多级离心泵，采用了国家推荐使用的高效节能水力模型，具有高效节能、性能范围广、运行平稳、低噪音、长寿命、安装维修方便等优点；通过改变泵的材质（或过流部件的材质）、密封形式和增加冷却系统，可输送热水、油类、腐蚀性和含磨料的介质等。

DG型泵供输送不含固体颗粒、温度不高于105℃的清水或物理化学性质类似于清水的液体，用于锅炉给水或输送热水或类似热水的介质。

泵的进口允许压力均不超过0.6MPa。

二、DG25-50x8型锅炉给水泵参数范围：流量：15-30m³/h扬程：144-618m三、DG25-50x8型锅炉给水泵型号说明25 -- 泵设计点流量为25m³/h50 -- 泵单级设计点扬程为50m8 -- 泵的级数为8级/四、DG25-50x8型锅炉给水泵结构说明：卧式多级离心泵主要由固定部分、转子部分、轴承和轴封四大部分组成；1、固定部分：主要由吸入段、中段、吐出段和导叶等组成，用穿杠将各段拉紧，构成工作室。

吸入口为水平方向，出口垂直向上；根据需要也可生产出入口垂直向上方向。

2、转子部分：主要由轴、叶轮、平衡盘、和轴套等组成。

轴将动力传递给叶轮使其工作；平衡盘用来平衡轴向力；轴上装有可更换的轴套以保护轴。

3、轴承部分：主要由轴承体、轴承和轴承压盖等组成，采用滚动轴承、干油润滑。

4、轴封：一般采用机械密封，主要由进水段和尾盖上的密封函体、填料、挡水圈等组成。

密封腔内通入有一定压力的水，起水封、水冷和水润滑作用。

泵内水封水一般来自泵内的压力水或外部供水。

5、传动：泵通过联轴器由原动力直接驱动。

从原动机端看泵，泵为顺时针方向旋转。

/五、DG25-50x8型锅炉给水泵选型说明：1、泵的性能参见泵的性能表，表中所列参数为一个大气压下常温清水的试验性能。

输送油类等粘度大的介质时，需进行性能换算。

卧式多级锅炉给水泵型号及参数
型号：DG系列
参数：
1.流量范围：15m³/h-720m³/h
2.扬程范围：50m-1500m
3.工作温度：≤150℃
4.额定压力：2.5MPa
5.输送介质：清水或有一定固体杂质的清水
6.泵体材质：铸铁、球墨铸铁、不锈钢等
7.叶轮材质：铜、不锈钢等
8.轴封：填料密封或机械密封
9.驱动方式：电机驱动
该型号的卧式多级锅炉给水泵具有以下特点：
1.结构紧凑，占地面积小，适用于安装空间有限的场所。

2.采用多级叶轮组合设计，能够提供较高的扬程和压力。

3.叶轮和泵壳采用高质量材料制成，具有较强的耐腐蚀性能和耐磨性能。

4.有多种型号和规格可供选择，以适应不同工况的需要。

5.采用先进的液压设计，能够提供高效的水力性能，减少能耗。

6.可根据用户需求提供定制化的设计和制造。

总结起来，卧式多级锅炉给水泵是一种通过提供压力和流量来满足锅炉系统对水量和压力需求的水泵。

该型号的给水泵具有结构紧凑、高效节能、耐腐蚀等特点，适用于各种工业场所的供水需求。

DG46-80*4型次高压锅炉给水泵
DG46-80*4型次高压锅炉给水泵DG型次高压工业蒸汽锅炉给水泵系单吸、多级节段式离心泵；本系列锅炉给水泵是专为更新改造的新系列工业蒸汽锅炉配套的高效节能产品，不仅适用于中、低压锅炉给水，也适用于工厂、城市高扬程输水。

流量Q 1.5～550m3/h扬程H 300～1600m 输送介质温度：－20℃~200℃DG型次高压锅炉给水泵型号说明：DG46-80x4JDG－单吸多级锅炉给水泵46－流量(m3/h)80－泵单级扬程（m）4－泵级数J-机械密封（不标注为填料密封）
DG46-80X4 流量46m3/h 扬程320mDG46-80X5 流量46m3/h 扬程400mDG46-80×6 流量46m3/h 扬程480mDG46-80×7 流量46m3/h 扬程560mDG46-80×8 流量46m3/h 扬程640mDG46-80×9 流量46m3/h 扬程720mDG46-80×10 流量46m3/h 扬程800mDG46-80×11 流量46m3/h 扬程880mDG46-80×12 流量46m3/h 扬程960m。

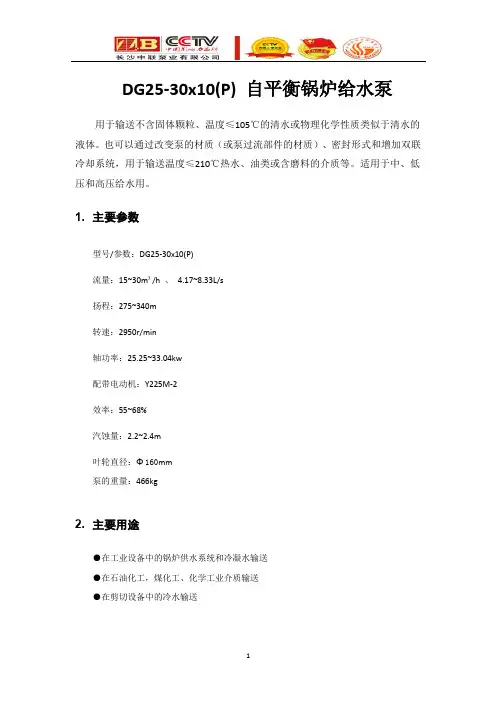

DG25-30x10(P) 自平衡锅炉给水泵用于输送不含固体颗粒、温度≤105℃的清水或物理化学性质类似于清水的液体。

也可以通过改变泵的材质（或泵过流部件的材质）、密封形式和增加双联冷却系统，用于输送温度≤210℃热水、油类或含磨料的介质等。

适用于中、低压和高压给水用。

1. 主要参数型号/参数：DG25-30x10(P)流量：15~30m³/h 、4.17~8.33L/s扬程：275~340m转速：2950r/min轴功率：25.25~33.04kw配带电动机：Y225M-2效率：55~68%汽蚀量：2.2~2.4m叶轮直径：Φ160mm泵的重量：466kg2. 主要用途●在工业设备中的锅炉供水系统和冷凝水输送●在石油化工，煤化工、化学工业介质输送●在剪切设备中的冷水输送●在除氧化设备中的压力水输送●在工业过程中的高压水生产●化工工艺流程●油田注水，矿山排水●卤液采输●压缩机、脱壳机等设备的水输送3. 工作原理泵轴在电动机的带动下旋转，对液体作功，使其能量增加，液体由吸入池经由泵的进水段、正叶轮、正导叶、中段、口、过渡管、次级进水段、反叶轮、反导叶、出水段的垂直源源不断的送出。

4.泵的结构泵为单吸或双吸进口的卧式节段式多级自平衡离心泵，泵的上或水平、排出口垂直向上布置。

●主要由进水段、中段、出水段、次级进水段、正导叶、反叶轮、轴、节流和减压装置、挡套、轴承体、过渡管等零强度的穿杠螺栓和进出水段联接，泵的进水段、中段、出水采用二硫化钼润滑脂金属面硬密封，转于由装在轴上的正置、反叶轮、轴套、轴承挡套等零件组成，轴承采用“固构，驱动端采用圆柱滚于轴承;末端采用角接触球轴承段、中段、出水段、次级进水段、正导叶、反导叶、过渡管●转子部分与固定部分之间装有密封环、导叶套等进行密封套的磨损程度己影响泵的工作性能时应厦时予以更换。

●轴的密封形式有机械密封和填料密封两种。

泵采用填料密置安放要正确，填料的松紧程度必须适当，以液体能滴种密封元件装在密封腔内，腔内要通入一定压力的水，起水作用。

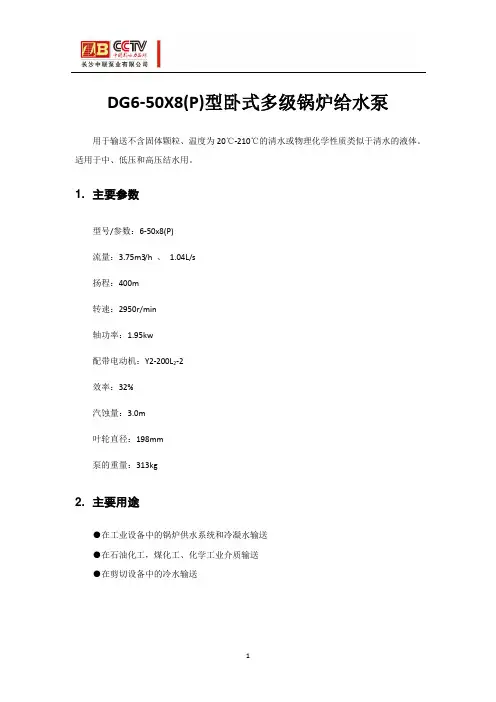

DG6-50X8(P)型卧式多级锅炉给水泵用于输送不含固体颗粒、温度为20℃-210℃的清水或物理化学性质类似于清水的液体。

适用于中、低压和高压结水用。

1. 主要参数型号/参数：6-50x8(P)流量：3.75m3/h 、1.04L/s扬程：400m转速：2950r/min轴功率：1.95kw配带电动机：Y2-200L2-2效率：32%汽蚀量：3.0m叶轮直径：198mm泵的重量：313kg2. 主要用途●在工业设备中的锅炉供水系统和冷凝水输送●在石油化工，煤化工、化学工业介质输送●在剪切设备中的冷水输送●在除氧化设备中的压力水输送●在工业过程中的高压水生产●化工工艺流程●油田注水，矿山排水●卤液采输●压缩机、脱壳机等设备的水输送3. 工作原理泵轴在电动机的带动下旋转，对液体作功，使其能量增加，液体由吸入池经由泵的进水段、正叶轮、正导叶、中段、口、过渡管、次级进水段、反叶轮、反导叶、出水段的垂直源源不断的送出。

4.泵的结构泵为单吸或双吸进口的卧式节段式多级自平衡离心泵，泵的上或水平、排出口垂直向上布置。

●主要由进水段、中段、出水段、次级进水段、正导叶、反叶轮、轴、节流和减压装置、挡套、轴承体、过渡管等零强度的穿杠螺栓和进出水段联接，泵的进水段、中段、出水采用二硫化钼润滑脂金属面硬密封，转于由装在轴上的正置、反叶轮、轴套、轴承挡套等零件组成，轴承采用“固构，驱动端采用圆柱滚于轴承;末端采用角接触球轴承段、中段、出水段、次级进水段、正导叶、反导叶、过渡管●转子部分与固定部分之间装有密封环、导叶套等进行密封套的磨损程度己影响泵的工作性能时应厦时予以更换。

●轴的密封形式有机械密封和填料密封两种。

泵采用填料密置安放要正确，填料的松紧程度必须适当，以液体能滴种密封元件装在密封腔内，腔内要通入一定压力的水，起水作用。

在轴封处装有可更换的轴套，以保护泵轴泵可以在路的情况下更换轴承、密封。

●该系列泵通过弹性柱销联轴器或膜片联轴器由原动机直接向看，泵为顺时针方向旋转。

DG6-50X3(P)型卧式多级锅炉给水泵用于输送不含固体颗粒、温度为20℃-210℃的清水或物理化学性质类似于清水的液体。

适用于中、低压和高压结水用。

1. 主要参数型号/参数：6-50x3(P)流量：3.75m3/h 、1.04L/s扬程：150m转速：2950r/min轴功率：1.95kw配带电动机：Y2-160M1-2效率：32%汽蚀量：3.0m叶轮直径：198mm泵的重量：178kg2. 主要用途●在工业设备中的锅炉供水系统和冷凝水输送●在石油化工，煤化工、化学工业介质输送●在剪切设备中的冷水输送●在除氧化设备中的压力水输送●在工业过程中的高压水生产●化工工艺流程●油田注水，矿山排水●卤液采输●压缩机、脱壳机等设备的水输送3. 工作原理泵轴在电动机的带动下旋转，对液体作功，使其能量增加，液体由吸入池经由泵的进水段、正叶轮、正导叶、中段、口、过渡管、次级进水段、反叶轮、反导叶、出水段的垂直源源不断的送出。

4.泵的结构泵为单吸或双吸进口的卧式节段式多级自平衡离心泵，泵的上或水平、排出口垂直向上布置。

●主要由进水段、中段、出水段、次级进水段、正导叶、反叶轮、轴、节流和减压装置、挡套、轴承体、过渡管等零强度的穿杠螺栓和进出水段联接，泵的进水段、中段、出水采用二硫化钼润滑脂金属面硬密封，转于由装在轴上的正置、反叶轮、轴套、轴承挡套等零件组成，轴承采用“固构，驱动端采用圆柱滚于轴承;末端采用角接触球轴承段、中段、出水段、次级进水段、正导叶、反导叶、过渡管●转子部分与固定部分之间装有密封环、导叶套等进行密封套的磨损程度己影响泵的工作性能时应厦时予以更换。

●轴的密封形式有机械密封和填料密封两种。

泵采用填料密置安放要正确，填料的松紧程度必须适当，以液体能滴种密封元件装在密封腔内，腔内要通入一定压力的水，起水作用。

在轴封处装有可更换的轴套，以保护泵轴泵可以在路的情况下更换轴承、密封。

●该系列泵通过弹性柱销联轴器或膜片联轴器由原动机直接向看，泵为顺时针方向旋转。

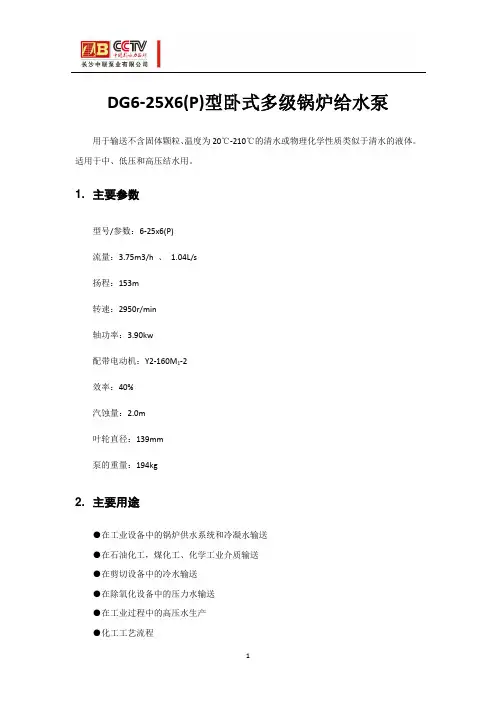

DG6-25X6(P)型卧式多级锅炉给水泵用于输送不含固体颗粒、温度为20℃-210℃的清水或物理化学性质类似于清水的液体。

适用于中、低压和高压结水用。

1. 主要参数型号/参数：6-25x6(P)流量：3.75m3/h 、1.04L/s扬程：153m转速：2950r/min轴功率：3.90kw配带电动机：Y2-160M1-2效率：40%汽蚀量：2.0m叶轮直径：139mm泵的重量：194kg2. 主要用途●在工业设备中的锅炉供水系统和冷凝水输送●在石油化工，煤化工、化学工业介质输送●在剪切设备中的冷水输送●在除氧化设备中的压力水输送●在工业过程中的高压水生产●化工工艺流程●油田注水，矿山排水●卤液采输●压缩机、脱壳机等设备的水输送3. 工作原理泵轴在电动机的带动下旋转，对液体作功，使其能量增加，液体由吸入池经由泵的进水段、正叶轮、正导叶、中段、口、过渡管、次级进水段、反叶轮、反导叶、出水段的垂直源源不断的送出。

4.泵的结构泵为单吸或双吸进口的卧式节段式多级自平衡离心泵，泵的上或水平、排出口垂直向上布置。

●主要由进水段、中段、出水段、次级进水段、正导叶、反叶轮、轴、节流和减压装置、挡套、轴承体、过渡管等零强度的穿杠螺栓和进出水段联接，泵的进水段、中段、出水采用二硫化钼润滑脂金属面硬密封，转于由装在轴上的正置、反叶轮、轴套、轴承挡套等零件组成，轴承采用“固构，驱动端采用圆柱滚于轴承;末端采用角接触球轴承段、中段、出水段、次级进水段、正导叶、反导叶、过渡管●转子部分与固定部分之间装有密封环、导叶套等进行密封套的磨损程度己影响泵的工作性能时应厦时予以更换。

●轴的密封形式有机械密封和填料密封两种。

泵采用填料密置安放要正确，填料的松紧程度必须适当，以液体能滴种密封元件装在密封腔内，腔内要通入一定压力的水，起水作用。

在轴封处装有可更换的轴套，以保护泵轴泵可以在路的情况下更换轴承、密封。

●该系列泵通过弹性柱销联轴器或膜片联轴器由原动机直接向看，泵为顺时针方向旋转。

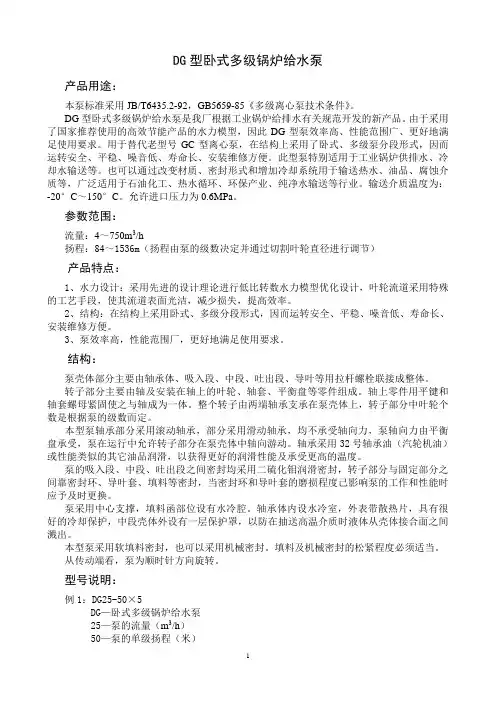

DG型卧式多级锅炉给水泵产品用途：本泵标准采用JB/T6435.2-92，GB5659-85《多级离心泵技术条件》。

DG型卧式多级锅炉给水泵是我厂根据工业锅炉给排水有关规范开发的新产品。

由于采用了国家推荐使用的高效节能产品的水力模型，因此DG型泵效率高、性能范围广、更好地满足使用要求。

用于替代老型号GC型离心泵，在结构上采用了卧式、多级泵分段形式，因而运转安全、平稳、噪音低、寿命长、安装维修方便。

此型泵特别适用于工业锅炉供排水、冷却水输送等。

也可以通过改变材质、密封形式和增加冷却系统用于输送热水、油品、腐蚀介质等，广泛适用于石油化工、热水循环、环保产业、纯净水输送等行业。

输送介质温度为：-20°C～150°C。

允许进口压力为0.6MPa。

参数范围：流量：4～750m3/h扬程：84～1536m（扬程由泵的级数决定并通过切割叶轮直径进行调节）产品特点：1、水力设计：采用先进的设计理论进行低比转数水力模型优化设计，叶轮流道采用特殊的工艺手段，使其流道表面光洁，减少损失，提高效率。

2、结构：在结构上采用卧式、多级分段形式，因而运转安全、平稳、噪音低、寿命长、安装维修方便。

3、泵效率高，性能范围厂，更好地满足使用要求。

结构：泵壳体部分主要由轴承体、吸入段、中段、吐出段、导叶等用拉杆螺栓联接成整体。

转子部分主要由轴及安装在轴上的叶轮、轴套、平衡盘等零件组成。

轴上零件用平键和轴套螺母紧固使之与轴成为一体。

整个转子由两端轴承支承在泵壳体上，转子部分中叶轮个数是根据泵的级数而定。

本型泵轴承部分采用滚动轴承，部分采用滑动轴承，均不承受轴向力，泵轴向力由平衡盘承受，泵在运行中允许转子部分在泵壳体中轴向游动。

轴承采用32号轴承油（汽轮机油）或性能类似的其它油品润滑，以获得更好的润滑性能及承受更高的温度。

泵的吸入段、中段、吐出段之间密封均采用二硫化钼润滑密封，转子部分与固定部分之间靠密封环、导叶套、填料等密封，当密封环和导叶套的磨损程度己影响泵的工作和性能时应予及时更换。

DG45-80X8型锅炉给水多级泵DG45-80X8型锅炉给水多级泵概述：DG型泵系单吸、多级、节段式离心清水泵，适用于中、低压锅炉给水、工厂、城市高扬程输水。

供输送清水或物理、化学性质类似于清水的液体，此两种泵输送介质温度为-20℃～105℃(DG85-80、200DG43除外，此两种泵输送介质温度为-20℃～105℃)。

泵进口压里不得超过0.59MPa(6kgf/cm2)。

DG45-80X8型锅炉给水多级泵参数范围：流量Q 6~346m3/s扬程H 102~1056mDG45-80X8型锅炉给水多级泵型号说明：DG25－50×3DG－单吸、多级锅炉给水泵25－流量(m3/h)50－泵单级扬程（m）3－泵级数40DGⅠ40×340－泵进口口径（mm）DG－单吸、多级锅炉给水泵40－泵单级扬程（m）3－泵级数DG45-80X8型锅炉给水多级泵结构型式：泵的吸入口、吐出口均垂直向上，转子轴向力由平衡盘来平衡。

轴封可为填料密封，也可为机械密封。

转子的支承仅DG85-80、DG85-67、DG155-67采用滑动轴承，稀油润滑，其它泵均采用滚动轴承。

DG45-80X8型锅炉给水多级泵旋转方向：从电机端看，泵为顺时针方向旋转。

DG45-80X8型锅炉给水多级泵主要零件材质：泵的过流部件除DG85-80、200DG43材质为铸钢外，其余泵材质均为铸铁。

DG45-80X8型锅炉给水多级泵成套范围：成套供应泵、电机、止回阀、闸阀、公用底座或本身底座。

参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/s L/s m r/min kw kw % m mm mm kg40DGⅠ40×3 610121.72.83.3123120115.529805.827.117.711 Y160M1-234.546492.63.32.9170404012540DGⅠ40×4 610121.72.83.316416015429807.769.4810.2815 Y160M2-234.546492.63.32.9170404014540DGⅠ40×5 610121.72.83.3205200192.529809.711.8512.8518.5 Y160L-234.546492.63.32.9170404016540DGⅠ40×6 610121.72.83.3246240231298011.6414.6215.4218.5 Y160L-234.546492.63.32.9170404018540DGⅠ40×7 610121.72.83.3287280269.5298013.5816.5917.9922 Y180M-234.546492.63.32.9170404020540DGⅠ40×8 610121.72.83.3328320308298015.5218.9620.5622 Y180M-234.546492.63.32.9170404022540DGⅠ40×9 610121.72.83.3369360346.5298017.4621.3323.1330 Y200L1-234.546492.63.32.9170404024540DGⅠ40×10 610121.72.83.3410400385298019.423.725.730 Y200L1-234.546492.63.32.91704040265DG25-50×3 1525284.16.97.8154.5150144298014.318.920.330 Y200L1-24454542.42.72.81968080270DG25-50×4 1525284.16.97.8206200192298019.125.227.137 Y200L2-24454542.42.72.81968080295DG25-50×5 1525284.16.97.8257.5250240298023.931.533.937 Y200L2-24454542.42.72.81968080315DG25-50×6 1525284.16.97.8309300288298028.637.840.745 Y225M-24454542.42.72.81968080340DG25-50×7 1525284.16.97.8360.5350336298033.444.147.555 Y250M-24454542.42.72.81968080360参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/s L/s m r/min kw kw % m mm mm kgDG25-50×8 1525284.16.97.8412400384298038.250.454.275 Y280S-24454542.42.72.81968080385DG25-50×9 1525284.16.97.8463.545043229804356.76175 Y280S-24454542.42.72.81968080405DG25-50×10 1525284.16.97.8515500480298047.76367.875 Y280S-24454542.42.72.81968080430DG25-50×11 1525284.16.97.8566550528298052.569.374.690 Y280M-24454542.42.72.81968080450DG25-50×12 1525284.16.97.8618600576298057.375.681.4110 Y315S-24454542.42.72.81968080475DG80-30×3 2643487.211.913.31029083.42980121515.818.5 Y160-260706933.94.31628080150DG80-30×4 2643487.211.913.3136120111.2298016202122 Y180M-260706933.94.31628080165DG80-30×5 2643487.211.913.31701501392980202526.330 Y200L1-260706933.94.31628080180DG80-30×6 2643487.211.913.3204180166.82980243031.537 Y200L2-260706933.94.31628080195DG80-30×7 2643487.211.913.3238210194.62980283536.845 Y225M-260706933.94.31628080210DG80-30×8 2643487.211.913.3272240222.4298032404255 Y250M-260706933.94.31628080225DG80-30×9 2643487.211.913.3306270250.22980364547.355 Y250M-260706933.94.31628080240DG80-30×10 2643487.211.913.33403002782980405052.575 Y280S-260706933.94.31628080255参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/s L/s m r/min kw kw % m mm mm kgDG46-50×3 2846507.812.813.9172.5150144298024.829.93137 Y200L2-2536363.22.52.832088080270DG46-50×4 2846507.812.813.9230200192298033.139.841.355 Y250M-2536363.22.52.832088080295DG46-50×5 2846507.812.813.9287.2250240298041.449.851.675 Y280S-2536363.22.52.832088080315DG46-50×6 2846507.812.813.9345300288298049.656.761.975 Y280S-2536363.22.52.832088080340DG46-50×7 2846507.812.813.9402.5350336298057.969.772.290 Y280M-2536363.22.52.832088080360DG46-50×8 2846507.812.813.9460400384298066.279.682.690 Y280M-2536363.22.52.832088080385DG46-50×9 2846507.812.813.9517.5450430298074.489.692.9110 Y315S-2536363.22.52.832088080405DG46-50×10 2846507.812.813.9575500480298082.799.5103.5132 Y315M1-2536363.22.52.832088080430DG46-50×11 2846507.812.813.9632.5550528298091109113.5132 Y315M1-2536363.22.52.832088080450DG46-50×12 2846507.812.813.9680600576298099.3119.4123.9160 Y315L1-2536363.22.52.83208808047580DG20×2 32.450.465.291418.143.24034.214806.287.849.1311 Y160M-460.77066.52.22.52.8255806534080DG20×3 32.450.465.291418.164.86051.314809.4211.813.715 Y160L-460.77066.52.22.52.8255806540280DG20×4 32.450.465.291418.186.48068.4148012.615.718.322 Y180L-460.77066.52.22.52.82558065464参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/s L/s m r/min kw kw % m mm mm kg80DG20×5 32.450.465.291418.110810085.5148015.719.622.830 Y160M-460.77066.52.22.52.8255806552680DG20×6 32.450.465.291418.1129.6120102.6148018.823.527.430 Y160L-460.77066.52.22.52.8255806558880DG20×7 32.450.465.291418.1151140120148021.927.53237 Y160M-460.77066.52.22.52.8255806565080DG20×8 32.450.465.291418.1173160137148025.131.436.645 Y160L-460.77066.52.22.52.8255806571280DG20×9 32.450.465.291418.1194180154148028.235.341.445 Y160M-460.77066.52.22.52.8255806577480DG20×10 32.450.465.291418.1216200171148031.439.245.655 Y160L-460.77066.52.22.52.82558065836DG85-67×3 558510015.323.627.8222201183298061.571.576.690 Y280M-25465653.344.4235150150846DG85-67×4 558510015.323.627.8296268244298082.195.4102.2110 Y315S-25465653.344.4235150150964DG85-67×5 558510015.323.627.83703353052980102.5119.3127.7160 Y315L1-25465653.344.42351501501126DG85-67×6 558510015.323.627.84444023652980123.1143.1152.8160 Y315M2-25465653.344.42351501501434DG85-67×7 558510015.323.627.85184694272980143.6166.9178.8185 Y315SB-25465653.344.42351501501556DG85-67×8 558510015.323.627.85925364882980164.1190.8204.3220 Y315M1B-25465653.344.42351501501624DG85-67×9 558510015.323.627.86666035492980184.6214.6229.9250 Y315M2-25465653.344.42351501501840参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/s L/s m r/min kw kw % m mm mm kgDG85-80×5 54851081523.6304404003502980122142156185 Y315M-25365664.54.45.32501001001420DG85-80×6 54851081523.6305284804202980147171187200 Y315M-25365664.54.45.32501001001490DG85-80×7 54851081523.6306165604902980171199218250 Y355-25365664.54.45.32501001001570DG85-80×8 54851081523.6307046405602980195228250280 Y355-25365664.54.45.32501001001640DG85-80×9 54851081523.6307927206302980220256281315 Y355-25365664.54.45.32501001001710DG85-80×10 54851081523.6308808007002980244285312355 Y355-25365664.54.45.32501001001790DG85-80×11 54851081523.6309688807702980269313343400 Y355-25365664.54.45.32501001001860DG85-80×12 54851081523.6309688807702980293342374450 Y400-25365664.54.45.32501001001930100DG20×2 721001262027.83543.44034148013.115.116.722 Y180L-46572702.83.54.426710080350100DG20×3 721001262027.83565.16051148019.622.72530 Y200L-46572702.83.54.426710080413100DG20×4 721001262027.83586.88068148026.230.333.337 Y225S-46572702.83.54.426710080476100DG20×5 721001262027.83510910085148032.937.941.745 Y225M-46572702.83.54.426710080539100DG20×6 721001262027.835130120102148039.345.45055 Y250M-46572702.83.54.426710080602参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/s L/s m r/min kw kw % m mm mm kg100DG20×7 721001262027.835152140119148045.95358.475 Y280S-46572702.83.54.426710080665100DG20×8 721001262027.835174160136148052.560.566.775 Y280S-46572702.83.54.426710080728100DG20×9 721001262027.835195180153148058.868.17590 Y280M-46572702.83.54.426710080791100DG20×10 721001262027.835217200170148065.575.583.390 Y280M-46572702.83.54.426710080854DG155-67×3 9515518526.34351.3228201177298093.6114.7122.1132 Y315M1-26374732.64.55.7235150150952DG155-67×4 9515518526.34351.33042682362980124.8152.9162.8185 Y315M-26374732.64.55.72351501501024DG155-67×5 9515518526.34351.33803352952980156191.1203.6220 Y315M-26374732.64.55.72351501501145DG155-67×6 9515518526.34351.34564023542980187.2229.3244.3280 Y355M2-26374732.64.55.72351501501435DG155-67×7 9515518526.34351.35324694132980218.4267.6285315 Y355M3-26374732.64.55.72351501501558DG155-67×8 9515518526.34351.36085364722980249.6305.8325.7355 Y355L1-26374732.64.55.72351501501700DG155-67×9 9515518526.34351.36846035312980280.8344366.4450 Y400-26374732.64.55.72351501501860150DG30×3 119155190334352.798.192.18414804350.55875 Y280S-47477752.83.54.7305150150570150DG30×4 119155190334352.7130.8122.8112148057.467.377.390 Y280M-47477752.83.54.7305150150640参数流量扬程转速轴功配带电动机效必须叶轮进泵重型号Q H n 率Pa功率型号率η汽蚀余量名义直径出口径m3/s L/s m r/min kw kw % m mm mm kg150DG30×5 119155190334352.7163.5152.5140148071.683.696.6110 Y315S-47477752.83.54.7305150150700150DG30×6 119155190334352.7196.2184.2168148085.9101116132 Y315M-47477752.83.54.7305150150780150DG30×7 119155190334352.7228.9214.92521480100.3118135.2160 Y315M-47477752.83.54.7305150150850150DG30×8 119155190334352.7261.6245.62241480114.6134.7154.6200 Y355M-47477752.83.54.7305150150920150DG30×9 119155190334352.7294.3276.32521480128.9151.5173.9200 Y355M-47477752.83.54.7305150150990150DG30×10 119155190334352.73273072801480143.2168.3193.2220 Y355M-47477752.83.54.73051501501060DG280-43×3 19028834652.88096.1135.9122.4111148096.9120132.9160 Y315L1-47380783.04.76.0360 200 865DG280-43×4 19028834652.88096.1181.2163.21481480129.2160177.2200 Y315L1-47380783.04.76.0360 200 977DG280-43×5 19028834652.88096.1226.52041851480161.5200221.5250 Y355-47380783.04.76.0360 200 1097DG280-43×6 19028834652.88096.1271.8244.822214801938240265.8315 Y3556-47380783.04.76.0360 200 1218DG280-43×7 19028834652.88096.1317.1285.62591480226.1280310.1355 Y400-47380783.04.76.0360 200 1339DG280-43×8 19028834652.88096.1362.4326.42961480258.4320354.4450 Y400-47380783.04.76.0360 200 1459DG280-43×9 19028834652.88096.1407.7367.23331480290.7360398.7450 Y400-47380783.04.76.0360 200 1580参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/s L/s m r/min kw kw % m mm mm kg200DG43×3 19028834652.88096.1135.9122.4111148096.9120132.9160 Y315L1-47380783.04.76.03602002001400200DG43×4 19028834652.88096.1181.2163.21481480129.2160177.2200 Y315L2-47380783.04.76.03602002001510200DG43×5 19028834652.88096.1226.52041851480161.5200221.5250 Y355-47380783.04.76.03602002001620200DG43×6 19028834652.88096.1271.8244.82221480193.8240265.8315 Y355-47380783.04.76.03602002001730200DG43×7 19028834652.88096.1317.1285.62591480226.1280310.1355 Y400-47380783.04.76.03602002001840200DG43×8 19028834652.88096.1362.4326.42961480258.4320354.4450 Y400-47380783.04.76.03602002001950200DG43×9 19028834652.88096.1407.7367.23331480290.7360398.7450 Y400-47380783.04.76.03602002002100。

DGG 型高压锅炉给水泵法兰尺寸和外形安装尺寸表由提供长沙奔腾泵业有限公司高压锅炉给水泵系单吸、多级、节段式高压泵。

适用于矿山、工厂及城市给水、排水用，供输送不含固体颗粒及磨料，不含悬浮物的清水或物理化学性质类似于清水的其它液体。

被输送液体温度为0℃～380℃。

允许进口压力为0.6MPa。

输送液体的物理化学性质有特殊要求时，亦可以根据用户特殊要求改变泵的材质，使泵与所输送液体物理化学性质相适用，改变材质后泵的性能参数和安装尺寸与未经改变前的基本相同。

DG泵外形尺寸图及外形尺寸表
DG型泵法兰尺寸表
DG型泵外形安装图（公用底座）DG80-30型泵外形安装尺寸表
100DG16型泵外形安装尺寸表
DG25-50型泵外形安装尺寸表
DG46-50型泵外形安装尺寸表
DG85-67型泵外形安装尺寸表
DG155-67型泵外形安装尺寸表
DG型泵外形安装图（本身底座）
8
安装图）
200DG43型泵外形安装尺寸表
8
安装图）
DG85-67型泵外形安装尺寸表
8
安装图）
DG155-67型泵外形安装尺寸表
安装图）
DG280-43/84型泵外形安装尺寸表
8
安装图）
DG280-65/84型泵外形安装尺寸表
8
安装图）
DG450-60/84型泵外形安装尺寸表
8安装图）。

DG6-25X12型多级锅炉给水泵DG6-25X12型多级锅炉给水泵概述：DG型锅炉给水泵系单吸、多级、节段式离心清水泵，适用于中、低压锅炉给水、工厂、城市高扬程输水。

供输送清水或物理、化学性质类似于清水的液体，此两种泵输送介质温度为-20℃～105℃(DG85-80、200DG43除外，此两种泵输送介质温度为-20℃～105℃)。

泵进口压里不得超过0.59MPa(6kgf/cm2)。

DG6-25X12型多级锅炉给水泵参数范围：流量Q 6~346m3/s扬程H 102~1056mDG6-25X12型多级锅炉给水泵型号说明：DG6－25×12DG－单吸、多级锅炉给水泵6－流量(m3/h)25－泵单级扬程（m）6－泵级数40DGⅠ40×340－泵进口口径（mm）DG－单吸、多级锅炉给水泵40－泵单级扬程（m）3－泵级数DG6-25X12型多级锅炉给水泵结构型式：DG型锅炉给水泵的吸入口、吐出口均垂直向上，转子轴向力由平衡盘来平衡。

轴封可为填料密封，也可为机械密封。

转子的支承仅DG85-80、DG85-67、DG155-67采用滑动轴承，稀油润滑，其它泵均采用滚动轴承。

DG6-25X12型多级锅炉给水泵结构图DG6-25X12型多级锅炉给水泵旋转方向：从电机端看，泵为顺时针方向旋转。

DG6-25X12型多级锅炉给水泵主要零件材质：泵的过流部件除DG85-80、200DG43材质为铸钢外，其余泵材质均为铸铁。

DG6-25X12型多级锅炉给水泵成套范围：成套供应泵、电机、止回阀、闸阀、公用底座或本身底座。

参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg40DGⅠ40×3 610121.72.83.3123120115.529805.827.117.711 Y160M1-234.546492.63.32.9170404012540DGⅠ40×4 610121.72.83.316416015429807.769.4810.2815 Y160M2-234.546492.63.32.9170404014540DGⅠ40×5 610121.72.83.3205200192.529809.711.8512.8518.5Y160L-234.546492.63.32.9170404016540DGⅠ40×6 610121.72.83.3246240231298011.6414.6215.4218.5Y160L-234.546492.63.32.9170404018540DGⅠ40×7 610121.72.83.3287280269.5298013.5816.5917.9922 Y180M-234.546492.63.32.9170404020540DGⅠ40×8 610121.72.83.3328320308298015.5218.9620.5622 Y180M-234.546492.63.32.9170404022540DGⅠ40×9 610121.72.83.3369360346.5298017.4621.3323.1330 Y200L1-234.546492.63.32.9170404024540DGⅠ40×10 610121.72.83.3410400385298019.423.725.730 Y200L1-234.546492.63.32.91704040265DG25-50×3 1525284.16.97.8154.5150144298014.318.920.330 Y200L1-24454542.42.72.81968080270DG25-50×4 1525284.16.97.8206200192298019.125.227.137 Y200L2-24454542.42.72.81968080295DG25-50×5 1525284.16.97.8257.5250240298023.931.533.937 Y200L2-24454542.42.72.81968080315DG25-50×6 1525284.16.97.8309300288298028.637.840.745 Y225M-24454542.42.72.8196808034DG25-50×7 1525284.16.97.8360.5350336298033.444.147.555 Y250M-24454542.42.72.819680803691参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kgDG25-50×8 1525284.16.97.8412400384298038.250.454.275 Y280S-24454542.42.72.81968080385DG25-50×9 1525284.16.97.8463.545043229804356.76175 Y280S-24454542.42.72.81968080405DG25-50×10 1525284.16.97.8515500480298047.76367.875 Y280S-24454542.42.72.8196808043DG25-50×11 1525284.16.97.8566550528298052.569.374.690 Y280M-24454542.42.72.8196808045DG25-50×12 1525284.16.97.8618600576298057.375.681.4110 Y315S-24454542.42.72.81968080475DG80-30×3 2643487.211.913.31029083.42980121515.818.5Y160-260706933.94.3162808015DG80-30×4 2643487.211.913.3136120111.2298016202122 Y180M-260706933.94.31628080165DG80-30×5 2643487.211.913.31701501392980202526.330 Y200L1-260706933.94.3162808018DG80-30×6 2643487.211.913.3204180166.82980243031.537 Y200L2-260706933.94.31628080195DG80-30×7 2643487.211.913.3238210194.62980283536.845 Y225M-260706933.94.3162808021DG80-30×8 2643487.211.913.3272240222.4298032404255 Y250M-260706933.94.31628080225DG80-30×9 2643487.211.913.3306270250.22980364547.355 Y250M-260706933.94.3162808024DG80-30×10 2643487.211.913.33403002782980405052.575 Y280S-260706933.94.3162808025592参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kgDG46-50×3 2846507.812.813.9172.5150144298024.829.93137 Y200L2-2536363.22.52.832088080270DG46-50×4 2846507.812.813.9230200192298033.139.841.355 Y250M-2536363.22.52.832088080295DG46-50×5 2846507.812.813.9287.2250240298041.449.851.675 Y280S-2536363.22.52.832088080315DG46-50×6 2846507.812.813.9345300288298049.656.761.975 Y280S-2536363.22.52.832088080340DG46-50×7 2846507.812.813.9402.5350336298057.969.772.290 Y280M-2536363.22.52.832088080360DG46-50×8 2846507.812.813.9460400384298066.279.682.690 Y280M-2536363.22.52.832088080385DG46-50×9 2846507.812.813.9517.5450430298074.489.692.911Y315S-2536363.22.52.832088080405DG46-50×10 2846507.812.813.9575500480298082.799.5103.5132Y315M1-2536363.22.52.832088080430DG46-50×11 2846507.812.813.9632.5550528298091109113.5132Y315M1-2536363.22.52.832088080450DG46-50×12 2846507.812.813.9680600576298099.3119.4123.916Y315L1-2536363.22.52.83208808047580DG20×2 32.450.465.291418.143.24034.214806.287.849.1311 Y160M-460.77066.52.22.52.8255806534080DG20×3 32.450.465.291418.164.86051.314809.4211.813.715 Y160L-460.77066.52.22.52.8255806540280DG20×4 32.450.465.291418.186.48068.4148012.615.718.322 Y180L-460.77066.52.22.52.8255806546493参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg80DG20×5 32.450.465.291418.110810085.5148015.719.622.830 Y160M-460.77066.52.22.52.8255806552680DG20×6 32.450.465.291418.1129.6120102.6148018.823.527.430 Y160L-460.77066.52.22.52.8255806558880DG20×7 32.450.465.291418.1151140120148021.927.53237 Y160M-460.77066.52.22.52.8255806565080DG20×8 32.450.465.291418.1173160137148025.131.436.645 Y160L-460.77066.52.22.52.8255806571280DG20×9 32.450.465.291418.1194180154148028.235.341.445 Y160M-460.77066.52.22.52.8255806577480DG20×10 32.450.465.291418.1216200171148031.439.245.655 Y160L-460.77066.52.22.52.82558065836DG85-67×3 558510015.323.627.8222201183298061.571.576.690 Y280M-25465653.344.4235150150846DG85-67×4 558510015.323.627.8296268244298082.195.4102.211Y315S-25465653.344.4235150150964DG85-67×5 558510015.323.627.83703353052980102.5119.3127.716Y315L1-25465653.344.42351501501126DG85-67×6 558510015.323.627.84444023652980123.1143.1152.816Y315M2-25465653.344.42351501501434DG85-67×7 558510015.323.627.85184694272980143.6166.9178.8185Y315SB-25465653.344.42351501501556DG85-67×8 558510015.323.627.85925364882980164.1190.8204.322Y315M1B-25465653.344.42351501501624DG85-67×9 558510015.323.627.86666035492980184.6214.6229.925Y315M2-25465653.344.423515015018494参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kgDG85-80×5 54851081523.6304404003502980122142156185 Y315M-25365664.54.45.32501001001420DG85-80×6 54851081523.6305284804202980147171187200 Y315M-25365664.54.45.32501001001490DG85-80×7 54851081523.6306165604902980171199218250 Y355-25365664.54.45.32501001001570DG85-80×8 54851081523.6307046405602980195228250280 Y355-25365664.54.45.32501001001640DG85-80×9 54851081523.6307927206302980220256281315 Y355-25365664.54.45.32501001001710DG85-80×10 54851081523.6308808007002980244285312355 Y355-25365664.54.45.32501001001790DG85-80×11 54851081523.6309688807702980269313343400 Y355-25365664.54.45.32501001001860DG85-80×12 54851081523.6309688807702980293342374450 Y400-25365664.54.45.32501001001930100DG20×2 721001262027.83543.44034148013.115.116.722 Y180L-46572702.83.54.426710080350100DG20×3 721001262027.83565.16051148019.622.72530 Y200L-46572702.83.54.426710080413100DG20×4 721001262027.83586.88068148026.230.333.337 Y225S-46572702.83.54.426710080476100DG20×5 721001262027.83510910085148032.937.941.745 Y225M-46572702.83.54.426710080539100DG20×6 721001262027.835130120102148039.345.45055 Y250M-46572702.83.54.42671008060295参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg100DG20×7 721001262027.835152140119148045.95358.475 Y280S-46572702.83.54.426710080665100DG20×8 721001262027.835174160136148052.560.566.775 Y280S-46572702.83.54.426710080728100DG20×9 721001262027.835195180153148058.868.17590 Y280M-46572702.83.54.426710080791100DG20×10 721001262027.835217200170148065.575.583.390 Y280M-46572702.83.54.426710080854DG155-67×3 9515518526.34351.3228201177298093.6114.7122.1132Y315M1-26374732.64.55.7235150150952DG155-67×4 9515518526.34351.33042682362980124.8152.9162.8185Y315M-26374732.64.55.72351501501024DG155-67×5 9515518526.34351.33803352952980156191.1203.622Y315M-26374732.64.55.72351501501145DG155-67×6 9515518526.34351.34564023542980187.2229.3244.328Y355M2-26374732.64.55.72351501501435DG155-67×7 9515518526.34351.35324694132980218.4267.6285315Y355M3-26374732.64.55.72351501501558DG155-67×8 9515518526.34351.36085364722980249.6305.8325.7355Y355L1-26374732.64.55.7235150150170DG155-67×9 9515518526.34351.36846035312980280.8344366.445Y400-26374732.64.55.7235150150186150DG30×3 119155190334352.798.192.18414804350.55875 Y280S-47477752.83.54.7305150150570150DG30×4 119155190334352.7130.8122.8112148057.467.377.390 Y280M-47477752.83.54.730515015064096参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg150DG30×5 119155190334352.7163.5152.5140148071.683.696.611Y315S-47477752.83.54.7305150150700150DG30×6 119155190334352.7196.2184.2168148085.9101116132Y315M-47477752.83.54.7305150150780150DG30×7 119155190334352.7228.9214.92521480100.3118135.216Y315M-47477752.83.54.7305150150850150DG30×8 119155190334352.7261.6245.62241480114.6134.7154.620Y355M-47477752.83.54.7305150150920150DG30×9 119155190334352.7294.3276.32521480128.9151.5173.920Y355M-47477752.83.54.7305150150990150DG30×10 119155190334352.73273072801480143.2168.3193.222Y355M-47477752.83.54.7305150150106DG280-43×3 19028834652.88096.1135.9122.4111148096.9120132.916Y315L1-47380783.04.76.0360 200 865DG280-43×4 19028834652.88096.1181.2163.21481480129.2160177.220Y315L1-47380783.04.76.0360 200 977DG280-43×5 19028834652.88096.1226.52041851480161.5200221.525Y355-47380783.04.76.0360 2001097DG280-43×6 19028834652.88096.1271.8244.822214801938240265.8315Y3556-47380783.04.76.0360 2001218DG280-43×7 19028834652.88096.1317.1285.62591480226.1280310.1355Y400-47380783.04.76.0360 2001339DG280-43×8 19028834652.88096.1362.4326.42961480258.4320354.445Y400-47380783.04.76.0360 2001459DG280-43×9 19028834652.88096.1407.7367.23331480290.7360398.745Y400-47380783.04.76.0360 20015897参数型号流量Q扬程H转速n轴功率Pa配带电动机效率η必须汽蚀余量叶轮名义直径进出口径泵重功率型号m3/sL/s m r/minkw kw % m mm mm kg200DG43×3 19028834652.88096.1135.9122.4111148096.9120132.916Y315L1-47380783.04.76.0360200200140200DG43×4 19028834652.88096.1181.2163.21481480129.2160177.220Y315L2-47380783.04.76.0360200200151200DG43×5 19028834652.88096.1226.52041851480161.5200221.525Y355-47380783.04.76.0360200200162200DG43×6 19028834652.88096.1271.8244.82221480193.8240265.8315Y355-47380783.04.76.0360200200173200DG43×7 19028834652.88096.1317.1285.62591480226.1280310.1355Y400-47380783.04.76.0360200200184200DG43×8 19028834652.88096.1362.4326.42961480258.4320354.445Y400-47380783.04.76.0360200200195200DG43×9 19028834652.88096.1407.7367.23331480290.7360398.745Y400-47380783.04.76.0360200200210。

DG8-35×(3-10)型工业蒸汽锅炉给水泵 DG8-35×(3-10)型工业蒸汽锅炉给水泵概述： DG8-35×(3-10)型工业蒸汽锅炉给水泵采用了国家推荐使用的高效节能产品的水力模型。

具有效率高、性能范围广、运转安全和平稳、噪音低、寿命长、安装维修方便等优点。

DG8-35×(3-10)型工业蒸汽锅炉给水泵，适用于中、低压锅炉给水、工厂、城市高扬程输水。

供输送清水或物理、化学性质类似于清水的液体，此两种泵输送介质温度为-20℃～105℃(DG85-80、200DG43除外，此两种泵输送介质温度为-20℃～105℃)。

泵进口压里不得超过0.59MPa(6kgf/cm2)。

DG8-35×(3-10)型工业蒸汽锅炉给水泵结构型式： DG8-35×(3-10)型工业蒸汽锅炉给水泵进、出水口均为垂直向上，通过拉紧螺栓将泵的进水段、中段、出水段、轴承体等泵壳体部分联结成一体。

根据泵的扬程选择泵的级数。

该系列多级泵转子部分主要由轴及安装在轴上的叶轮、轴套、平衡盘等零件组成，其中叶轮的数量根据泵的级数而定。

轴上零件用平键和轴螺母紧固使之与轴联为一体。

整个转子由两端滚动轴承或滑动轴承支承。

轴承按型号不同而定，均不承受轴向力，其轴向力由平衡盘平衡。

泵在运行中允许转子在泵壳中轴向游动，不能采用向心球轴承。

滚动轴承用油脂润滑，滑动轴承用稀油润滑，并用油环进行自润滑，循环水冷却。

泵的进水段、中段、出水段之间的密封面均采用二硫化钼润滑脂密封，转子部分与固定部分之间装有密封环、导叶套等进行密封，当密封环和导叶套的磨损程度已影响泵的工作性能时应予更换。

轴的密封形式有机械密封和填料密封两种。

泵采用填料密封时，填料环的位置安放要正确，填料的松紧程度必须适当，以液体能一滴一滴渗出为宜。

DG8-35×(3-10)型工业蒸汽锅炉给水泵参数范围： 流量Q 3.75~720m3/h 扬程H 50~1500m DG8-35×(3-10)型工业蒸汽锅炉给水泵型号说明： DG25-50×3 DG多级锅炉给水泵 25-流量(m3/h) 50-泵单级扬程(m) 3-泵级数 40DGⅠ40×3 40-泵进口口径(mm) DG-多级锅炉给水泵 40-泵单级扬程(m) 3-泵级数 DG8-35×(3-10)型工业蒸汽锅炉给水泵旋转方向： 从电机端看，泵为顺时针方向旋转。
