DS7240V2 控制主机特性:八个主板自带防区八个可编程计划表RF 兼容性最多支持 32 个用户，提供可选的无线遥控器操作四种可编程权限级别两个通信路径容量为 254 个事件的日志可通过 RPS 远程编程可选门禁模块 (DACM)网络通信选项 (LAN/WAN)基本功能DS7240V2 控制主机具有八个防区（可扩展到 40 个）、四路输出（可扩展到 20 路）和四个分区。

适用于商业防盗和住宅防火/防盗。

报警验证选项中心站工作人员可通过与现场之间的双向语音会话对报警进行验证，以及/或者通过连接到可选 rvm4cx 远程语音模块的现场摄像机直观地进行验证。

八个主板自带防区DS7240V2 控制主机有八个自带防区。

可以是有线连接扩展防区和无线防区。

可对任何防区进行编程，有 15 个防区功能备选。

DS7240V2 控制主机还允许使用两个电阻对每个传感器回路进行配置。

控制主机将监控每个传感器回路的两个防区，从而提供 16 个主板自带防区。

有线连接扩展防区也具有双防区功能。

对防区的进入和离开延迟时间进行编程时，对于离键盘距离较远的防区，延时可设得稍长一些。

权限级别和 PIN系统支持 32 种个人识别号 (PIN)。

PIN 默认为四位数，但可以选择其它位数：三到七位。

可指定无限数量的主 PIN。

可使用主 PIN 对现有PIN 进行重新编程。

最多可将 PIN 编为四个不同的权限级别，从而限制PIN 对系统进行旁路、测试和撤防。

可本地或远程编程可以通过键盘对系统进行完全编程（需要 DS7447E 或DS7447V2 键盘）。

键盘还有安装程序功能，可快速进入编程菜单。

远程编程软件 (RPS) 是一种基于Windows® 的帐户管理和主机编程及诊断实用程序。

它专门用于在远程（或在本地使用DX4010i Aux Data 针）对 DS7240V2 控制主机进行设置和编程。

LED 和 LCD 键盘支持键盘DS7445i LED 键盘DS7445V2 LED 键盘DS7446KP LCD 键盘DS7447E LCD 键盘DS7447V2 LCD 键盘可在同一 DS7240V2 控制主机系统上混用 LED 和 LCD 键盘。

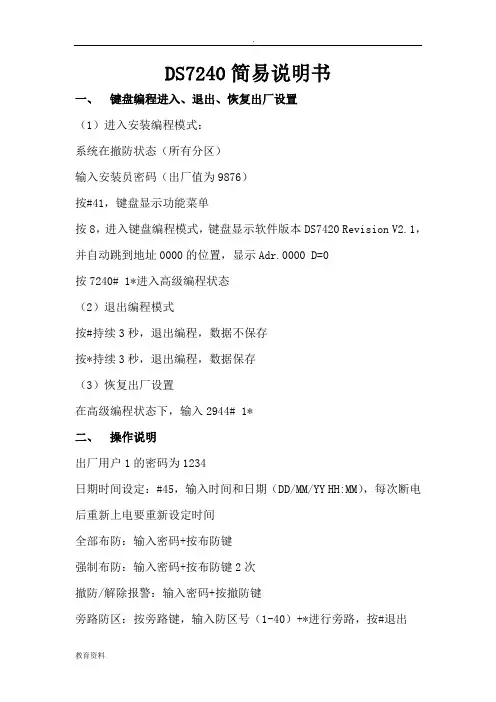

DS7240简易说明书一、键盘编程进入、退出、恢复出厂设置（1）进入安装编程模式：系统在撤防状态（所有分区）输入安装员密码（出厂值为9876）按#41，键盘显示功能菜单按8，进入键盘编程模式，键盘显示软件版本DS7420 Revision V2.1，并自动跳到地址0000的位置，显示Adr.0000 D=0按7240# 1*进入高级编程状态（2）退出编程模式按#持续3秒，退出编程，数据不保存按*持续3秒，退出编程，数据保存（3）恢复出厂设置在高级编程状态下，输入2944# 1*二、操作说明出厂用户1的密码为1234日期时间设定：#45，输入时间和日期（DD/MM/YY HH:MM），每次断电后重新上电要重新设定时间全部布防：输入密码+按布防键强制布防：输入密码+按布防键2次撤防/解除报警：输入密码+按撤防键旁路防区：按旁路键，输入防区号（1-40）+*进行旁路，按#退出查看报警记录：#40进入查看，按#退出查看系统故障：#42进入查看，按#退出查看防区故障：#48进入查看，按#退出系统测试：按41进行测试，按#退出重置系统：#47或长按复位键三、键盘编程进入高级编程状态后操作，每一个编程地址由4位数字组成（0-9999），每个编程地址都有一个编程值（0-15）。

第二中心：0066-0097,0098-0129（2）设置接收机报告格式（需与接警中心确认具体报告格式，以下以Contact ID格式为例）设置接收机1报告格式：0064# 2*设置接收机2报告格式：0130# 2*[说明] 格式代码定义：1：保留；2：Contact ID；3：SIA 300；4：Basec Pager；7：个人拨号格式；11：SIA 300（带文本）（6）设定警号输出时间地址：1040，编程值：0-15分钟。

（缺省值为6分钟）如果要设置报警输出口1的输出时间小于1分钟，进行下一步操作：编程代码：1047#5*（极性设为“常开，单击低电平（全部延时）”），1048#2*（单击时间基数设为“1秒”）；1049#1*，1050#5*（以15秒为例：两个地址位分别设为1和5）（7）设定电话线故障报警地址：0220，编程值：0-15。

u 1/3-inch color CCD with progressive scan u Quad streamingu Flexible recording options u Intelligence at the edge uONVIF conformantFlexiDome IP cameras are progressive scan CCD color cameras in a compact, high-impact rated, vandal-resistant housing.They can Quad-stream video simultaneously — two H.264 streams, an I-frame recording stream and an M-JPEG stream. Features such as multicasting, internet streaming and iSCSI recording are fully supported.FlexiDome IP cameras have built-in video motion detection and additional processing power for video content analysis systems.FlexiDome IP cameras include picture performance enhancements such as NightSense for low-light scenes and Autoblack for low contrast scenes.Supported by the award-winning Dinion digital imaging technology, they provide a proven, dependable solution for many security and surveillance requirements.FunctionsProgressive scanTo capture sharp images, even in busy scenes with high motion content, the Dinion camera uses progressive scan technology.A quality imageWith a 1/3-inch color CCD and Bosch’s advanced digital signal processing, the FlexiDome IP provides professional image quality. Automatically activate the NightSense feature to extend sensitivity under low-light conditions by a factor of three in monochrome operation. Autoblack improves the overall contrast of an image in low contrast scenes, such as foggy weather conditions.Efficient bandwidth and storage managementThe cameras use H.264 (Main Profile) compression,bandwidth throttling, and multicasting capabilities to manage bandwidth and storage requirementsefficiently, while delivering high image quality and resolution.Bosch's innovative Quad-streaming feature enables the FlexiDome IP to deliver three H.264 streams (two 4CIF streams and an I‑frame only stream) together with an M‑JPEG stream. These four streams facilitatebandwidth-efficient viewing and recording options as well as integration with third-party video management systems.FlexiDome IP cameras offer unparalleled recording options. Attached to the network, they can use iSCSI targets directly without any additional recordingsoftware. The recording capabilities of the system can be further enhanced by using the Bosch Video Recording Manager.The camera also supports local recording on a microSD card. This can be used for local alarm recording or for Automatic Network Replenishment (ANR) to improve the overall reliability of video recording.Standard intelligenceWith built-in video content analysis, the camera reinforces the Intelligence-at-the-Edge concept where edge devices become increasingly intelligent. The MOTION+ video motion analysis system, which is built into all camera versions, is the perfect solution for applications where basic video content analysis features are required. This motion analysis algorithm is based on pixel change and includes object size filtering capabilities and sophisticated tamper-detection capabilities.Hardware enhancedThe hardware-enhanced version of the camera gives you the opportunity to upgrade the video content analysis features of the camera with the more advanced Intelligent Video Analysis (IVA) option. This option bases the IVA algorithm on digital imaging technology that uses multi-level image analysis of pixels, texture, and object direction, and is activated by installing a license.ONVIF conformanceThe camera conforms to the ONVIF (Open Network Video Interface Forum) specification which guarantees interoperability between network video products regardless of manufacturer. ONVIF conformant devices are able to exchange live video, audio, metadata and control information. They are automatically discovered and connected to network applications such as video management systems.Tough designThe cast-aluminum housing, polycarbonate dome, and hardened inner liner can withstand the equivalent of 55 kg (120 lbs) of force. The enclosure contains the full-featured camera and integral varifocal lens. Ideal for outdoor use, the cameras are protected against water and dust to IP 66 (NEMA‑4X) standards. The camera enclosure provides the extra protection necessary for applications such as schools, banks, prisons, parking garages, retail and industrial buildings.Installation is quick and easy, as the camera comes completely assembled and ready to use. Using the proprietary pan/tilt/rotation mechanism, installers can select the exact field of view. Mounting options are numerous, including surface, wall, corner and suspended ceiling. The compact, sleek design and virtually flush-mount appearance complements any decor.Unsurpassed flexibilityThere are many ways to access the camera’s video: on a PC using a web browser, with the Bosch Video Management System, or with the Bosch Video Client. The camera is also ideal for use with aDivar 700 Series digital video recorder. By routing a video stream to a Bosch video decoder, you can also present the video with ultimate clarity on an analog monitor.Cost effective, simple installationThree power options, PoE (Power-over-Ethernet),24 VAC and 12 VDC are available. Using PoE makes installation easier and more cost-effective, as cameras do not require a local power source. To increase system reliability, the camera can be simultaneously connected to both PoE and 12 VDC/24 VAC supplies. Additionally, uninterruptible power supplies (UPS) can be used which allow continuous operation even during a power failure.For trouble free network cabling, the cameras support Auto-MDIX.FlexiDome IP cameras can be configured using the control buttons on the camera as an alternative to configuration over IP. Network parameters and basic camera set-up, such as lens set-up and back focus, are quickly and easily performed using the on-screen displays (OSD) and analog video service output. Easy UpgradeRemotely upgrade the camera whenever new firmware becomes available. This ensures up-to-date products, thus protecting investment with little effort.Access SecurityVarious security levels are available for accessing the network, the camera, and the data channels. As well as password protection with three levels, 802.1x authentication using a RADIUS is supported. To secure Web browser access use HTTPS with a SSL certificate stored in the camera. For total data protection, the video and audio communication channels can be independently AES encrypted with 128‑bit keys by installing the optional Encryption Site License. Typical applications•Museums and art galleries•Shopping centers•Offices•Schools, colleges and universities•Petrol / gas stationElectro Magnetic CompatibilityInstallation/configuration notesFlush MountingSurface Mounting205 (8.07)mm (in)VDA-PMT-DOME –Pendant Pipe Mount656 (25.82)mm (in)Ø158 (6.23)y 1NDC-455 Series FlexiDome IP Camera 1Lens adjustment cap (focus aid)1Safety instructions 1Quick Install Guide1Mini DVD-ROM with manuals, software, and tools 1Mounting hardware kit + screwdriver bit 1RJ45 network connector 1Template for flush mountNoticeMicroSD card is not included in a standard delivery.Technical specifications ElectricalSensitivity (3200 K, scene reflectivity 89%)NDC-455V03 (F1.2)NDC-455V09 (F1.4)Input/outputSoftware ControlNetwork and StorageOpticalMechanicalEnvironmentalOrdering informationNDC-455V03-11P FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 2.8to 10 mm Varifocal lens, PAL, 50 Hz, PoE, Flush mount,microSD slotOrder number NDC-455V03-11PNDC-455V03-21P FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 2.8to 10 mm Varifocal lens, NTSC, 60 Hz, PoE, Flush mount, microSD slotOrder number NDC-455V03-21PNDC-455V03-12IP FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 2.8to 10 mm Varifocal lens, PAL, 50 Hz, PoE, Flush mount,microSD slot, IVA enabledOrder number NDC-455V03-12IPNDC-455V03-22IP FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 2.8to 10 mm Varifocal lens, NTSC, 60 Hz, PoE, Flush mount, microSD slot, IVA enabledOrder number NDC-455V03-22IPNDC-455V09-11P FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 9to 22 mm Varifocal lens, PAL, 50 Hz, PoE, Flush mount,microSD slotOrder number NDC-455V09-11PNDC-455V09-21P FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 9to 22 mm Varifocal lens, NTSC, 60 Hz, PoE, Flush mount, microSD slotOrder number NDC-455V09-21PNDC-455V09-12IP FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 9to 22 mm Varifocal lens, PAL, 50 Hz, PoE, Flush mount,microSD slot, IVA enabledOrder number NDC-455V09-12IPNDC-455V09-22IP FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 9to 22 mm Varifocal lens, NTSC, 60 Hz, PoE, Flush mount, microSD slot, IVA enabledOrder number NDC-455V09-22IPNDC-455V03-11PS FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 2.8to 10 mm Varifocal lens, PAL, 50 Hz, PoE, Surface mount, microSD slotOrder number NDC-455V03-11PSNDC-455V03-21PS FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 2.8 to 10 mm Varifocal lens, NTSC, 60 Hz, PoE, Surface mount, microSD slotOrder number NDC-455V03-21PSNDC-455V03-12IPS FlexiDome Color IP Camera Vandal resistant, 1/3-inch Progressive Scan, H.264, 2.8 to 10 mm Varifocal lens, PAL, 50 Hz, PoE, Surface mount, microSD slot, IVA enabledOrder number NDC-455V03-12IPSNDC-455V03-22IPS FlexiDome Color IP Camera Vandal resistant, 1/3-inch Progressive Scan, H.264, 2.8 to 10 mm Varifocal lens, NTSC, 60 Hz, PoE, Surface mount, microSD slot, IVA enabledOrder number NDC-455V03-22IPSNDC-455V09-11PS FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 9 to 22 mm Varifocal lens, PAL, 50 Hz, PoE, Surface mount, microSD slotOrder number NDC-455V09-11PSNDC-455V09-21PS FlexiDome Color IP CameraVandal resistant, 1/3-inch Progressive Scan, H.264, 9 to 22 mm Varifocal lens, NTSC, 60 Hz, PoE, Surface mount, microSD slotOrder number NDC-455V09-21PSNDC-455V09-12IPS FlexiDome Color IP Camera Vandal resistant, 1/3-inch Progressive Scan, H.264, 9 to 22 mm Varifocal lens, PAL, 50 Hz, PoE, Surface mount, microSD slot, IVA enabledOrder number NDC-455V09-12IPSNDC-455V09-22IPS FlexiDome Color IP Camera Vandal resistant, 1/3-inch Progressive Scan, H.264, 9 to 22 mm Varifocal lens, NTSC, 60 Hz, PoE, Surface mount, microSD slot, IVA enabledOrder number NDC-455V09-22IPSAccessoriesVDA‑455SMBHigh impact surface mount box for dome cameras Order number VDA-455SMBVDA-WMT-DOME Wall Pendant Mount BracketWall pendant mount bracket for FlexiDome cameras Order number VDA-WMT-DOMEVDA-CMT-DOME Corner Mount BracketCorner mount bracket for FlexiDome camerasOrder number VDA-CMT-DOMEVDA-PMT-DOME Pendant Pipe Mount Bracket Pendant pipe mount bracket for FlexiDome cameras Order number VDA-PMT-DOMES1460 Service/Monitor Cable2.5 mm jack to BNC video connector cable. 1 mOrder number S1460UPA-2410-60 Power SupplyPower supply. 120 VAC, 60 Hz; 24 VAC, 10 VA Out Order number UPA-2410-60UPA-2430-60 Power SupplyPower supply for camera. 120 VAC, 60 Hz; 24 VAC,30 VA OutOrder number UPA-2430-60UPA-2450-60 Power Supply, 120 V, 60 HzIndoor power supply for camera. 120 VAC, 60 Hz In;24 VAC, 50 VA OutOrder number UPA-2450-60UPA-2420-50 Power SupplyPower supply for cameras. 220 VAC, 50 Hz In; 24 VAC, 20 VA OutOrder number UPA-2420-50UPA-2450-50 Power Supply, 220 V, 50 HzIndoor power supply for camera. 220 VAC, 50 Hz In;24 VAC, 50 VA OutOrder number UPA-2450-50VDA-455TBL Tinted bubbleTinted bubble for FlexiDome seriesOrder number VDA-455TBLVDA-455CBL Clear bubbleClear Bubble for FlexiDome seriesOrder number VDA-455CBLSoftware OptionsIVA license cameraIVA 4.xx/5.xx VCA software license (e‑license) for IP camera/domeOrder number MVC-FIVA4-CAMRepresented by:Americas:Europe, Middle East, Africa:Asia-Pacific:China:America Latina:Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180***********************.com Bosch Security Systems B.V.P.O. Box 800025617 BA Eindhoven, The NetherlandsPhone: + 31 40 2577 284Fax: +31 40 2577 330******************************Robert Bosch (SEA) Pte Ltd, SecuritySystems11 Bishan Street 21Singapore 573943Phone: +65 6571 2808Fax: +65 6571 2699*****************************Bosch (Shanghai) Security Systems Ltd.203 Building, No. 333 Fuquan RoadNorth IBPChangning District, Shanghai200335 ChinaPhone +86 21 22181111Fax: +86 21 22182398Robert Bosch Ltda Security Systems DivisionVia Anhanguera, Km 98CEP 13065-900Campinas, Sao Paulo, BrazilPhone: +55 19 2103 2860Fax: +55 19 2103 2862*****************************© Bosch Security Systems 2015 | Data subject to change without notice 2035111691 | en, V2, 10. Nov 2015。

DS7240简易说明书一、键盘编程进入、退出、恢复出厂设置（1）进入安装编程模式：系统在撤防状态（所有分区）输入安装员密码（出厂值为9876）按#41，键盘显示功能菜单按8，进入键盘编程模式，键盘显示软件版本DS7420 Revision V2.1，并自动跳到地址0000的位置，显示Adr.0000 D=0按7240# 1*进入高级编程状态（2）退出编程模式按#持续3秒，退出编程，数据不保存按*持续3秒，退出编程，数据保存（3）恢复出厂设置在高级编程状态下，输入2944# 1*二、操作说明出厂用户1的密码为1234日期时间设定：#45，输入时间和日期（DD/MM/YY HH:MM），每次断电后重新上电要重新设定时间全部布防：输入密码+按布防键强制布防：输入密码+按布防键2次撤防/解除报警：输入密码+按撤防键旁路防区：按旁路键，输入防区号（1-40）+*进行旁路，按#退出查看报警记录：#40进入查看，按#退出查看系统故障：#42进入查看，按#退出查看防区故障：#48进入查看，按#退出系统测试：按41进行测试，按#退出重置系统：#47或长按复位键三、键盘编程进入高级编程状态后操作，每一个编程地址由4位数字组成（0-9999），每个编程地址都有一个编程值（0-15）。

（1）设置中心电话号码第一中心：0000-0031,0032-0063（以87504321八位号码为例）第二中心：0066-0097,0098-0129（2）设置接收机报告格式（需与接警中心确认具体报告格式，以下以Contact ID格式为例）设置接收机1报告格式：0064# 2*设置接收机2报告格式：0130# 2*[说明] 格式代码定义：1：保留；2：Contact ID；3：SIA 300；4：Basec Pager；7：个人拨号格式；11：SIA 300（带文本）（3）设定用户编号（需与接警中心确认具体用户编号，以下以1204为例）（4）设定防区功能（以下只列出1-8防区，其他请参与附带安装手册）（5）设定进入退出延时时间（6）设定警号输出时间地址：1040，编程值：0-15分钟。

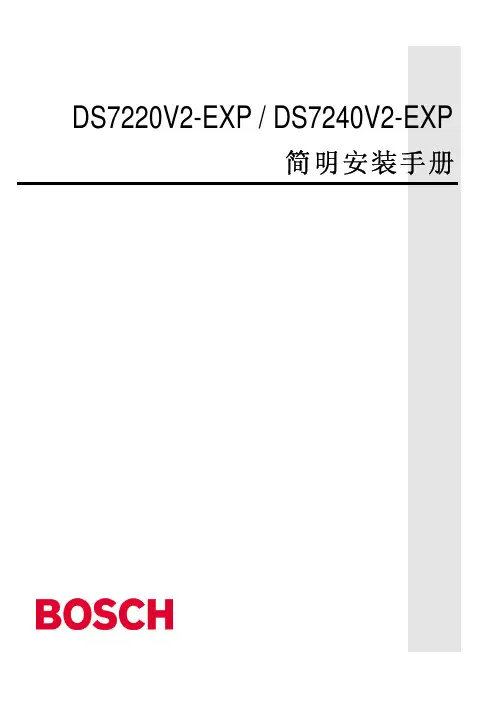

DS7220V2-EXP / DS7240V2-EXP简明安装手册２DS7220V2-EXP/ DS7240V2- EXP 简明安装手册编程控制主机为了编程控制主机，安装键盘地址必须设为 0（Mode 开关为开） ，编程开关必须关闭。

同时，也可以用 系统键盘进行编程，出厂安装员密码为 9876。

进入安装编程模式进入安装编程模式： 1、 系统在撤防状态（所有分区） ； 2、 关闭编程开关； 3、 输入［安装员密码］ （出厂值为 9876） ； 4、 按［＃］+［4］+［1］ ； --------键盘将会依次切换显示安装员功能菜单 5、 按［8］选择进入键盘编程模式。

--------键盘将会显示控制主机的软件版本，并自动跳到编程地址 0000 的位置 DS7240 Revision 或 v2. ＃＃ DS7220 Revisionv2. ＃＃Adr.0000D=0编程控制主机的编程参数是由一个或多个地址编程来完成，每个地址的取值范围为 0 到 15。

查看地址每一个编程参数是由一个或多个地址组成，每一个地址都有一编程值。

地址 编程值（0~15）Adr.0000D=0进入地址按［＃］进入下一个地址； 按［＊］返回上一个地址； 按［地址码］+［＃］ ，从一个地址跳到其它地址。

例如：现在处于地址 0000 的位置，想编程 0064 的地址，则按［6］+［4］+［＃］即可。

编程地址编程地址步骤如下： 1、 进入到你想编程的地址位置（请参考以上进入地址） ； 2、 输入新的编程值（0~15） ，按［＊］确认； 当输入新的编程值时，它将会在键盘的第二行显示出来 3、 重复步骤 1 和 2，可更改其它地址的编程内容。

愽世安保 | F01U003764BDS7220V2- EXP /DS7240V2-EXP 简明安装手册３编程选项在对地址进行编程时，每一个地址一般都有 4 个选项，你可以选择 1，2，3 或 4 个选项，但只能有一个 编程值，此编程值为所有选项的总和。

Dx7400常用调试说明DX7400报警主机的编程并不是很复杂。

在编程之前，敬请用户必须先详细地阅读安装使用说明书，（再次敬请用户认真阅读使用说明书！可达到事半功倍的效果！）并清楚的知道你所需要的功能，根据所需列出编程表，这样方便于编程。

编程前请认真阅读说明书，正确的接好连线。

（正确接好连线是编好程序的前提）。

如果是第一次使用DX7400主机，在编程完成前，建议安装技术人员不要将探测器接入主机，只需要将线尾电阻和扩展模块接在主机上就可以，将主机调试好后，在将探测器接入防区，这样如果系统有故障，有利于工程技术人员判断是主机系统故障还是探测器故障。

一、正常布防：密码（1234）+“布防”键。

二、撤防和消警：密码（1234）+“撤防”键。

三、强制布防：密码（1234）+“布防”键+“旁路”键四、防区旁路：密码（1234）+“旁路”键+XXX（防区号，且一定是三位数，如008）五、进入编程和退出编程：进入编程是9876#0（密码+#0），退出编程是按“*”四秒钟，听到“嘀”一声表示已退出编程。

六、如何填写数据：DX7400主机的编程地址一定是四位数，地址的数据一定是两位数。

进入编程后，键盘的灯都会闪动，LCD显示：Prog Mode 4.05 Adr=DX7400Adr=后面的就是要写上去的四位数的地址。

输入地址后，接着输入21# 则会交替显示该地址上的两位数据；或者按“#”则可以出现数据1；再按“#”则可出现数据2。

（出厂值，可以通过编程改变的），然后自动跳到下一个地址。

如果需要对某些地址编程，则需连续按两次“*”则可以回到Prog Mode 4.05 Adr= 。

七、确定防区的功能：（地址是 0001—0030），所谓防区功能就是该防区是延时防区、即时防区、24小时防区等等。

其中01代表延时防区；03代表即时防区；07代表24小时防区。

（此项一般不用编写，用出厂值即可）八、确定一个防区的功能：（地址是 0031—0278），0031代表第一防区，0032代表第二防区，如此类推………如果想把第八防区设定为即时防区，即可以把地址0038中的数据改为03 ，再按“#”确认就可以了。
