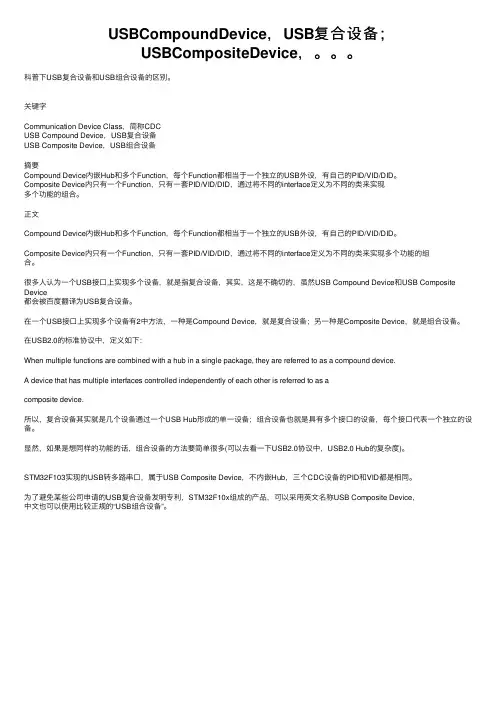

USB复合设备

USBCompoundDevice，USB复合设备；USBCompositeDevice，。

科普下USB复合设备和USB组合设备的区别。

关键字Communication Device Class，简称CDCUSB Compound Device，USB复合设备USB Composite Device，USB组合设备摘要Compound Device内嵌Hub和多个Function，每个Function都相当于⼀个独⽴的USB外设，有⾃⼰的PID/VID/DID。

Composite Device内只有⼀个Function，只有⼀套PID/VID/DID，通过将不同的interface定义为不同的类来实现多个功能的组合。

正⽂Compound Device内嵌Hub和多个Function，每个Function都相当于⼀个独⽴的USB外设，有⾃⼰的PID/VID/DID。

Composite Device内只有⼀个Function，只有⼀套PID/VID/DID，通过将不同的interface定义为不同的类来实现多个功能的组合。

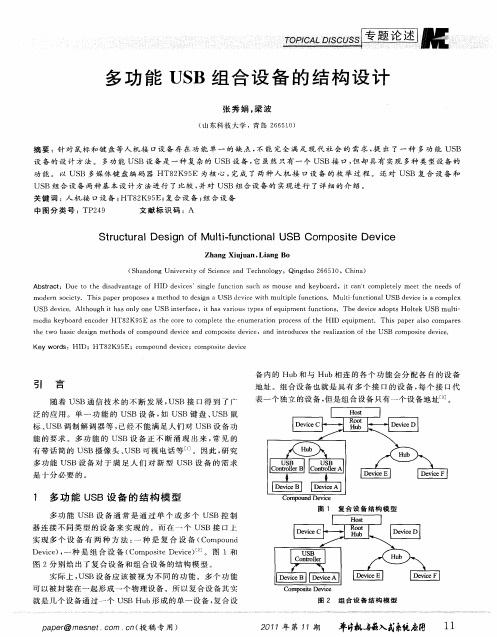

很多⼈认为⼀个USB接⼝上实现多个设备，就是指复合设备，其实，这是不确切的，虽然USB Compound Device和USB Composite Device都会被百度翻译为USB复合设备。

在⼀个USB接⼝上实现多个设备有2中⽅法，⼀种是Compound Device，就是复合设备；另⼀种是Composite Device，就是组合设备。

在USB2.0的标准协议中，定义如下：When multiple functions are combined with a hub in a single package, they are referred to as a compound device.A device that has multiple interfaces controlled independently of each other is referred to as acomposite device.所以，复合设备其实就是⼏个设备通过⼀个USB Hub形成的单⼀设备；组合设备也就是具有多个接⼝的设备，每个接⼝代表⼀个独⽴的设备。

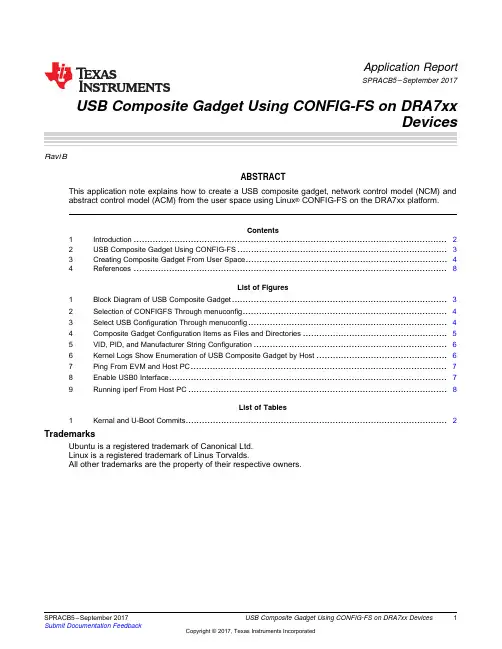

1SPRACB5–September 2017Submit Documentation FeedbackCopyright ©2017,Texas Instruments IncorporatedUSB Composite Gadget Using CONFIG-FS on DRA7xx DevicesApplication ReportSPRACB5–September 2017USB Composite Gadget Using CONFIG-FS on DRA7xxDevicesRavi BABSTRACTThis application note explains how to create a USB composite gadget,network control model (NCM)and abstract control model (ACM)from the user space using Linux ®CONFIG-FS on the DRA7xx platform.Contents1Introduction ...................................................................................................................22USB Composite Gadget Using CONFIG-FS .............................................................................33Creating Composite Gadget From User Space .. (44)References ...................................................................................................................8List of Figures1Block Diagram of USB Composite Gadget ...............................................................................32Selection of CONFIGFS Through menuconfig ...........................................................................43Select USB Configuration Through menuconfig .........................................................................44Composite Gadget Configuration Items as Files and Directories .....................................................55VID,PID,and Manufacturer String Configuration .......................................................................66Kernel Logs Show Enumeration of USB Composite Gadget by Host ................................................67Ping From EVM and Host PC ..............................................................................................78Enable USB0Interface (79)Running iperf From Host PC (8)List of Tables1Kernal and U-Boot Commits (2)TrademarksUbuntu is a registered trademark of Canonical Ltd.Linux is a registered trademark of Linus Torvalds.All other trademarks are the property of their respective owners.Introduction 2SPRACB5–September 2017Submit Documentation FeedbackCopyright ©2017,Texas Instruments IncorporatedUSB Composite Gadget Using CONFIG-FS on DRA7xx Devices1IntroductionThe scope of this document is to provide guidelines to configure the USB composite gadget using CONFIG-FS.1.1Software RequirementsThis application note is based on the Processor SDK Linux Automotive (PSDKLA)3.02,and uses the U-Boot version 2016.05as a reference.This application note requires that users:•Install Processor SDK Linux Automotive 3.02•Can build U-Boot and kernelTable 1lists the kernel and U-Boot commits corresponding to the 3.02SDK.Table 1.Kernal and U-Boot CommitsRepository Commit ID HeadlineKernel 89944627d53a Late attach:Fix for accessing second level page tableU-Boot850ffc07orbadefconfigs:dra7xx_hs_evm:Move OPTEE load address to avoid overlapsFor more information,see the release download links and software developer's guide .1.2Hardware RequirementsThe Dra75x/J6EVM Rev-H evaluation board is used for reference.1.3Build Instructions1.Download the PSDKLA-3.02release2.Follow the instructions in the Processor SDK Linux Automotive Software Developer's Guide to build the U-Boot,kernel,DTB,and modules.... USB Composite Gadget Using CONFIG-FS3SPRACB5–September 2017Submit Documentation FeedbackCopyright ©2017,Texas Instruments IncorporatedUSB Composite Gadget Using CONFIG-FS on DRA7xx Devices2USB Composite Gadget Using CONFIG-FSA USB composite gadget is a USB device framework which combines more than one USB-class device function.Figure 1shows the USB composite gadget,which consists of a single control pipe (endpoint-0)and a set of configurations.Each configuration contains a set of interfaces for a USB-specific class (such as serial or mass storage,or CDC and Ethernet).Each interface contains a set of endpoints (IN-receive or OUT-transmit)on which data transfers to and from,between the device function and USB host.For example,the composite gadget includes a mass storage device (for any storage media),CDC and RNDIS network interfaces,and so on.Figure 1.Block Diagram of USB Composite GadgetThe USB composite gadget framework in Linux kernel lets users combine one or more gadget functions,and exposes as a single,composite,gadget function to the USB host.The Linux kernel supports creation of the USB composite gadget in the user space through CONFIG_FS support,where the standard kernel gadget functions are exposed through CONFIGFS as config items and groups,and both are represented as directories.Both items and groups can have attributes which are represented as directories or files.The user can create and remove directories,which can be read-only or read-write depending on what they represent.For more information,visit gadget configfs and configfs .Creating Composite Gadget From User Space 4SPRACB5–September 2017Submit Documentation FeedbackCopyright ©2017,Texas Instruments IncorporatedUSB Composite Gadget Using CONFIG-FS on DRA7xx Devices3Creating Composite Gadget From User Space 3.1Building the KernelThe Linux kernel supports CONFIGFS,which lets the user create the composite gadget from the user space.1.From menuconfig of the Linux kernel,select CONFIG_CONFIGFS_FS.CONFIG_CONFIGFS_FS is selected through Menuconfig →FileSystem →Psuedo File System →{M}Userspace-driven configuration filesystem (see Figure 2).Figure 2.Selection of CONFIGFS Through menuconfig2.Select the required gadget module,in this example the NCM and serial ACM gadget modules are selected,as shown through menuconfig (see Figure 3).Figure 3.Select USB Configuration Through menuconfig3.Build the kernel,DTB,and all gadget modules.You can also use the default PSDKLA-3.02prebuilt binaries.For more information,see the PSDKLA user’s guide for building the kernel,DTB,and gadget modules . Creating Composite Gadget From User Space5SPRACB5–September 2017Submit Documentation FeedbackCopyright ©2017,Texas Instruments IncorporatedUSB Composite Gadget Using CONFIG-FS on DRA7xx Devices3.2USB Composite Gadget Through CONFIGFSThe following example shows how to create the USB composite gadget from the user space,which includes two USB device functions:•USB NCM gadget •USB ACM gadget3.2.1Creating NCM and ACM Composite GadgetsTo set up NCM and ACM composite gadgets:1.Connect the USB0(super-speed)port of the EVM to the Ubuntu ®PC through the USB device cable.2.Build the kernel,as explained in Section3.1.3.Copy the kernel,DTB,and install modules to the SD card.You can also use PSDKLA-3.02prebuilt binaries.Next,boot the kernel to root prompt,and follow these steps:1.Insert gadget modules.#modprobe libcomposite2.Mount the configfs file system,if not mounted already.#mount -t configfs none /sys/kernel/config3.Switch to device mode.By default,in the PSDKLA-3.02release the USB0port is configured in DRD mode,therefore configure the USB0port in device mode.#mount -t debugfs debugfs /mnt#echo "device">/mnt/b/mode4.Create the composite gadget.#cd /sys/kernel/config/#cd usb_gadget/#mkdir j6g #cd j6gFigure 4shows the files and directories that are automatically created.Figure posite Gadget Configuration Items as Files and Directories5.Update the VID and PID and strings (see Figure 5).#echo "0xA55A">idVendor #echo "0x0111">idProduct #mkdir strings/0x409#cd strings/#cd 0x409/Creating Composite Gadget From User Space 6SPRACB5–September 2017Submit Documentation FeedbackCopyright ©2017,Texas Instruments IncorporatedUSB Composite Gadget Using CONFIG-FS on DRA7xx DevicesFigure 5.VID,PID,and Manufacturer String Configuration#echo "0123456789">serialnumber #echo "Xyz Inc.">manufacturer #echo "NCM+ACM gadget">product #cd ../..6.Create the USB device functions (NCM and ACM).cd functions/mkdir acm.gs0mkdir b0cd ..7.Create the configuration and update the strings.cd configs/mkdir c.1cd c.1mkdir strings/0x409cd strings/0x409/echo "ACM+NCM">configuration cd ../../../..8.Create symbolic links.ln -s functions/acm.gs0configs/c.1ln -s functions/b0configs/c.19.Attach the USB0port to UDC.#echo "b">UDCIssue the previously mentioned command,and the DRA7xx EVM (USB composite gadget NCM and ACM)is connected to the Ubuntu host.The host enumerates the USB composite gadget (ACM and NCM),and the USB0interface and serial device /dev/ttyGS0are created,as shown in Figure 6.The /dev/ttyACM0interface is created on the Ubuntu host.Figure 6.Kernel Logs Show Enumeration of USB Composite Gadget by Host Creating Composite Gadget From User Space7SPRACB5–September 2017Submit Documentation FeedbackCopyright ©2017,Texas Instruments IncorporatedUSB Composite Gadget Using CONFIG-FS on DRA7xx Devices3.2.2Verifying NCM Composite GadgetVerify the NCM gadget interface through ping between the EVM and the Ubuntu host.1.From the EVM,bring up the USB0interface.#ifconfig usb0192.168.100.10up2.From the Ubuntu host,bring up the USB0interface.#ifconfig usb0192.168.100.5up3.Ping from both the EVM and the Ubuntu host.Figure 7shows the ping from the EVM.Figure 7.Ping From EVM and Host PC3.2.3Running iperf (IPV6)on NCM InterfaceReboot the EVM and follow the steps in Section 3.2.1to create the USB composite gadget.Do the following to run iperf:1.From the EVM,bring up the interface (see Figure 8).#ifconfig usb0upFigure 8.Enable USB0Interface2.From the EVM,run the iperf udp server.#iperf -s -u -V -bReferences 8SPRACB5–September 2017Submit Documentation FeedbackCopyright ©2017,Texas Instruments IncorporatedUSB Composite Gadget Using CONFIG-FS on DRA7xx Devices3.From the Ubuntu host,run the iperf udp client.1.Disconnect all interfaces in the Ubuntu host PC before running the iperf client.2.Copy the inet6address from the EVM (red box in Figure 8)and issue the iperf client from the host PC.Figure 9.Running iperf From Host PCThe iperf result shows there is 272Mbps with 0.48%data loss.3.2.4Verifying the ACM Serial Gadget InterfaceAfter the steps for creating the USB composite gadget are complete,the NCM and ACM interface is created,as shown in Section 3.2.1.1.From the EVM,do the terminal settings.#stty -F /dev/ttyGS0-icanon2.Run the linux-serial-test application from the EVM.#./linux-serial-test -w 10-a 100-s -e -p /dev/ttyGS0-b 96003.Run the linux-serial-test application from the Ubuntu host.#chmod +x /dev/ttyACM0#sudo ./linux-serial-test -w 10-a 100-s -e -p /dev/ttyGS0-b 9600NOTE:Git clone the linux-serial-test application and compile it for the DRA7xx platform and theUbuntu host.4References•Texas Instruments,DRA7xx Technical Reference Manual •Texas Instruments,PSDKLA 3.02release•Texas Instruments,Processor SDK LINUX Automotive Software Developer’s Guide •GitHub,Git Source Reference for Linux Serial Test Application •Linux,configfs -Userspace-driven kernel object configuration •Linux,Linux USB gadget configured through configfsIMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCESTexas Instruments Incorporated(‘TI”)technical,application or other design advice,services or information,including,but not limited to, reference designs and materials relating to evaluation modules,(collectively,“TI Resources”)are intended to assist designers who are developing applications that incorporate TI products;by downloading,accessing or using any particular TI Resource in any way,you (individually or,if you are acting on behalf of a company,your company)agree to use it solely for this purpose and subject to the terms of this Notice.TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI products,and no additional obligations or liabilities arise from TI providing such TI Resources.TI reserves the right to make corrections, enhancements,improvements and other changes to its TI Resources.You understand and agree that you remain responsible for using your independent analysis,evaluation and judgment in designing your applications and that you have full and exclusive responsibility to assure the safety of your applications and compliance of your applications (and of all TI products used in or for your applications)with all applicable regulations,laws and other applicable requirements.You represent that,with respect to your applications,you have all the necessary expertise to create and implement safeguards that(1) anticipate dangerous consequences of failures,(2)monitor failures and their consequences,and(3)lessen the likelihood of failures that might cause harm and take appropriate actions.You agree that prior to using or distributing any applications that include TI products,you will thoroughly test such applications and the functionality of such TI products as used in such applications.TI has not conducted any testing other than that specifically described in the published documentation for a particular TI Resource.You are authorized to use,copy and modify any individual TI Resource only in connection with the development of applications that include the TI product(s)identified in such TI Resource.NO OTHER LICENSE,EXPRESS OR IMPLIED,BY ESTOPPEL OR OTHERWISE TO ANY OTHER TI INTELLECTUAL PROPERTY RIGHT,AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN,including but not limited to any patent right,copyright,mask work right,or other intellectual property right relating to any combination,machine,or process in which TI products or services are rmation regarding or referencing third-party products or services does not constitute a license to use such products or services,or a warranty or endorsement e of TI Resources may require a license from a third party under the patents or other intellectual property of the third party,or a license from TI under the patents or other intellectual property of TI.TI RESOURCES ARE PROVIDED“AS IS”AND WITH ALL FAULTS.TI DISCLAIMS ALL OTHER WARRANTIES OR REPRESENTATIONS,EXPRESS OR IMPLIED,REGARDING TI RESOURCES OR USE THEREOF,INCLUDING BUT NOT LIMITED TO ACCURACY OR COMPLETENESS,TITLE,ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY,FITNESS FOR A PARTICULAR PURPOSE,AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY YOU AGAINST ANY CLAIM,INCLUDING BUT NOT LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF PRODUCTS EVEN IF DESCRIBED IN TI RESOURCES OR OTHERWISE.IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL,DIRECT,SPECIAL, COLLATERAL,INDIRECT,PUNITIVE,INCIDENTAL,CONSEQUENTIAL OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF TI RESOURCES OR USE THEREOF,AND REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.You agree to fully indemnify TI and its representatives against any damages,costs,losses,and/or liabilities arising out of your non-compliance with the terms and provisions of this Notice.This Notice applies to TI Resources.Additional terms apply to the use and purchase of certain types of materials,TI products and services. These include;without limitation,TI’s standard terms for semiconductor products /sc/docs/stdterms.htm),evaluation modules,and samples(/sc/docs/sampterms.htm).Mailing Address:Texas Instruments,Post Office Box655303,Dallas,Texas75265Copyright©2017,Texas Instruments Incorporated。

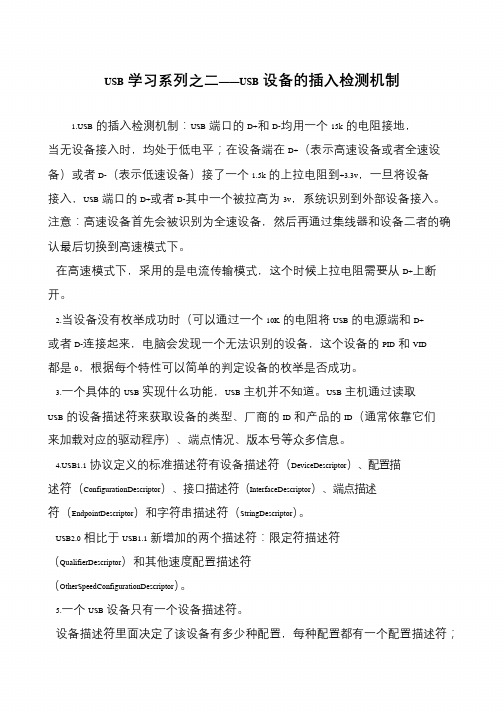

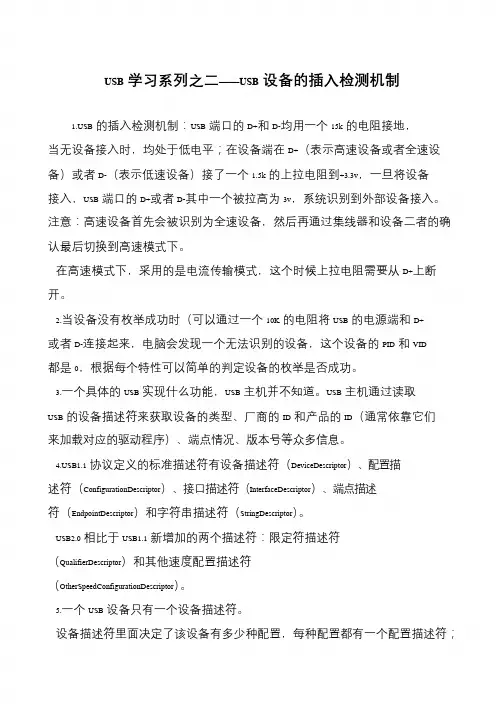

USB学习系列之二——USB设备的插入检测机制B的插入检测机制：USB端口的D+和D-均用一个15k的电阻接地，当无设备接入时，均处于低电平；在设备端在D+（表示高速设备或者全速设备）或者D-（表示低速设备）接了一个1.5k的上拉电阻到+3.3v，一旦将设备接入，USB端口的D+或者D-其中一个被拉高为3v，系统识别到外部设备接入。

注意：高速设备首先会被识别为全速设备，然后再通过集线器和设备二者的确认最后切换到高速模式下。

在高速模式下，采用的是电流传输模式，这个时候上拉电阻需要从D+上断开。

2.当设备没有枚举成功时（可以通过一个10K的电阻将USB的电源端和D+ 或者D-连接起来，电脑会发现一个无法识别的设备，这个设备的PID和VID都是0，根据每个特性可以简单的判定设备的枚举是否成功。

3.一个具体的USB实现什么功能，USB主机并不知道。

USB主机通过读取USB的设备描述符来获取设备的类型、厂商的ID和产品的ID（通常依靠它们来加载对应的驱动程序）、端点情况、版本号等众多信息。

B1.1协议定义的标准描述符有设备描述符（DeviceDescriptor）、配置描述符（ConfigurationDescriptor）、接口描述符（InterfaceDescriptor）、端点描述符（EndpointDescriptor）和字符串描述符（StringDescriptor）。

USB2.0相比于USB1.1新增加的两个描述符：限定符描述符（QualifierDescriptor）和其他速度配置描述符（OtherSpeedConfigurationDescriptor）。

5.一个USB设备只有一个设备描述符。

设备描述符里面决定了该设备有多少种配置，每种配置都有一个配置描述符；。
