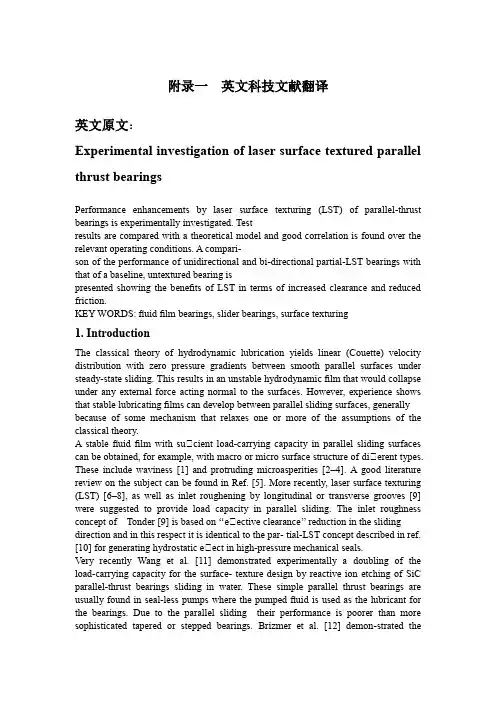

Experimental investigation of laser surface textured parallel thrust bearings
Performance enhancements by laser surface texturing (LST) of parallel-thrust bearings is experimentally investigated. Test
results are compared with a theoretical model and good correlation is found over the relevant operating conditions. A compari-
son of the performance of unidirectional and bi-directional partial-LST bearings with that of a baseline, untextured bearing is
presented showing the bene?ts of LST in terms of increased clearance and reduced friction.
KEY WORDS: ?uid ?lm bearings, slider bearings, surface texturing
1. Introduction
The classical theory of hydrodynamic lubrication yields linear (Couette) velocity distribution with zero pressure gradients between smooth parallel surfaces under steady-state sliding. This results in an unstable hydrodynamic ?lm that would collapse under any external force acting normal to the surfaces. However, experience shows that stable lubricating ?lms can develop between parallel sliding surfaces, generally because of some mechanism that relaxes one or more of the assumptions of the classical theory.
A stable ?uid ?lm with su?cient load-carrying capacity in parallel sliding surfaces can be obtained, for example, with macro or micro surface structure of di?erent types. These include waviness [1] and protruding microasperities [2–4]. A good literature review on the subject can be found in Ref. [5]. More recently, laser surface texturing (LST) [6–8], as well as inlet roughening by longitudinal or transverse grooves [9] were suggested to provide load capacity in parallel sliding. The inlet roughness concept of Tonder [9] is based on ??e?ective clearance‘‘ reduction in the sliding direction and in this respect it is identical to the par- tial-LST concept described in ref.
[10] for generating hydrostatic e?ect in high-pressure mechanical seals.
Very recently Wang et al. [11] demonstrated experimentally a doubling of the load-carrying capacity for the surface- texture design by reactive ion etching of SiC
parallel-thrust bearings sliding in water. These simple parallel thrust bearings are usually found in seal-less pumps where the pumped ?uid is used as the lu bricant for the bearings. Due to the parallel sliding their performance is poorer than more sophisticated tapered or stepped bearings. Brizmer et al. [12] demon-strated the potential of laser surface texturing in the form of regular micro-dimples for providing load-carrying capacity with parallel-thrust bearings. A model of a textured parallel
slider was developed and the e?ect of surface texturing on load-carrying capacity
was analyzed. The optimum parameters of the dimples were found in order to obtain
maximum load-carrying capacity. A micro-dimple ??collective e?ect‘‘ was identi-
?ed that is capable of generating substantial load-carrying capacity, approaching that of optimumconventional thrust bearings. The purpose of the present paper is to investigate experimentally the validity of the model described in Ref. [12] by testing practical thrust bearings and comparing the performance of LST bearings with that of the theoretical predictions and with the performance of standard non-textured bearings
2. Background
A cross section of the basic model that was analyzed in Ref. [12] is shown in figure
1. A slider having a width B is partially textured over a portion Bp =αB of its width.
The textured surface consists of multiple dimples with a diameter，depth and area density Sp. As a result of the hydrodynamic pressure generated by the dimples
the sliding surfaces will be separated by a clearance depending on the sliding
velocity U, the ?uid viscosity l and the external load It was found in Ref. [12] that
an optimum ratio exists for the parameter that provides maximum
dimensionless load-carrying capacity where L is
the bearing length, and this optimum value is hp=1.25. It was further found in Ref. [12] that an optimum value exists for the textured portion a depending onthe bearing aspect ratio L/B. This behavior is shown in ?gure 2 for a bearing with L/B = 0.75 at various values of the area density Sp. As can be seen in the range of Sp values from 0.18 to 0.72 the optimum a value varies from 0.7 to 0.55, respectively. It can also be seen from ?gure 2 that for a < 0.85 no optimum value exists for Sp and the maximum load W increases with increasing Sp. Hence, the largest area density that can be practically obtained with the laser texturing is desired. It is also interesting to note from ?gure 2 the advantage of partial-LST (a < 1) over the full LST (a = 1) for bearing applications. At Sp= 0.5, for example, the load W at a = 0.6 is about three times higher than its value at a = 1. A full account of this behavior is given in Ref. [12].
3. Experimental
The tested bearings consist of sintered SiC disks 10 mm thick, having 85 mm outer diameter and 40 mm inner diameter. Each bearing (see ?gure 3) comprises a ?at rotor (a) and a six-pad stator (b). The bearings were pro vided with an original surface ?nish by lapping to a roughness average Ra= 0.03 lm. Each pad has an aspect ratio of 0.75 when its width is measured along the mean diameter of the stator. The photographs of two partial-LST stators are shown in ?gure 4 where the textured areas appear as brighter matt surfaces. The ?rst stator indicated (a) is a unidirectional bearing with the partial-LST adjacent to the leading edge of each pad, similar to the model shown in ?gure 1. The second stator (b) is a bi-directional version of a partial-LST bearing having two equal textured portions, a/2, on each of the pad ends. The laser texturing
parameters were the following; dimple depth, dimple
diameter and dimple area density Sp= 0.60.03. These dimple dimensions were obtained with 4 pulses of 30 ns duration and 4 mJ each using a 5 kHz pulsating Nd:YAG laser. The textured portion of the unidirectional bearing was a= 0.73 and that of the bi-directional bearing was a= 0.63. As can be seen from ?gure 2 both these a values should produce load-carrying capacity vary close to the maximum theoretical value.The test rig is shown schematically in ?gure 5. An electrical motor turns a spindle to which an upper holder of the rotor is attached. A second lower holder of the stator is ?xed to a housing, which rests on a journal bearing and an axial loading mechanism that can freely move in the axial direction
. An arm that presses against a load cell and thereby permits friction torque measurements prevents the free rotation of this housing. Axial loading is provided by means of dead weights on a lever and is measured with a second load cell. A proximity probe that is attached to the lower holder of the stator allows on-line measurements of the clearance change between rotor and stator as the hydrodynamic
e?ects cause axial movement of the housing to which the stator holder is ?xed. Tap
water is supplied by gravity from a large tank to the center of the bearing and the leakage from the bearing is collected and re-circulated. A thermocouple adjacent to the outer diameter of the bearing allows monitoring of the water temperature as the water exit the bearing. A PC is used to collect and process data on-line. Hence,the
instantaneous clearance, friction coe?cient, bearing speed and exit water temperature
can be monitored constantly.
The test protocol includes identifying a reference ―zero‖ point for the clearance measurements by ?rst loading and then unloading a stationary bearing over the full load range. Then the lowest axial load is applied, the water supply valve is opened and the motor turned on. Axial loading is increased by steps of 40 N and each load step is maintained for 5 min following the stabilization of the friction coe?cient at
a steady-state value. The bearing speed and water temperature are monitored throughout the test for any irregularities. The test ends when a maximum axial load of 460 N is reached or if the friction coe?cient exceeds a value of 0.35. At the end of
the last load step the motor and water supply are turned o? and the reference for the clearance measurements is rechecked. Tests are performed at two speeds of 1500
and 3000 rpm corresponding to average sliding velocities of 4.9 and 9.8 m/s, respectively and each test is repeated at least three times.
4. Results and discussion
As a ?rst step the validity of the theoretical model in Ref. [12] was examined by comparing the theoretical and experimental results of bearing clearance versus bearing load for a unidirectional partial-LST bearing. The results are shown in ?gu re 6 for the two speeds of 1500 and 3000 rpm where the solid and dashed lines correspond to the model and experiment, respectively. As can be seen, the agreement between the model and the experiment is good, with di?erences of less than 10%, as
long as the load is above 150 N. At lower loads the measured experimental clearances are much larger than the model predictions, particularly at the higher speed of 3000 rpm where at 120 N the measured clearance is 20 lm, which is about 60% higher than the predicted value. It turns out that the combination of such large clearances and relatively low viscosity of the water may result in turbulent ?uid ?lm. Hence, the assumption of laminar ?ow on which the solution of the Reynolds equation in Ref.
[12] is based may be violated making the model invalid especially at the higher speed and lowest load. In order to be consistent with the model of Ref. [12] it was decided to limit further comparisons to loads above 150 N.
It should be noted here that the ?rst attempts to test the baseline untextured bearing with the original surface ?nish of Ra= 0.03 lm on both the stator and rotor failed due to extremely high friction even at the lower loads. On the other hand the partial-LST bearing ran smoothly throughout the load range. It was found that the post-LST lapping to completely remove about 2 lm height bulges, which are formed during texturing around the rims of the dimples, resulted in a slightly rougher surface with Ra= 0.04 lm. Hence, the baseline untextured stator was also lapped to the same rough- ness of the partial-LST stator and all subsequent tests were performed with the same Ra value of 0.04 lm for all the tested stators. The rotor surface roughness remained, the original one namely, 0.03 lm. Figure 7 presents the experimental results
for the clearance as a function of the load for a partial-LST unidirectional bearing (see stator in ?gure 4(a)) and a baseline untextured bearing. The comparison is made at the two speeds of 1500 and 3000 rpm. The area density of the dimples in the partial-LST bearing is Sp= 0.6 and the textured portion is a ? 0:734. The load range extends from 160 to 460 N. The upper load was determined by the test-rig limitation that did not permit higher loading. It is clear from ?gure 7 that the par tial-LST bearing operates at substantially larger clearances than the untextured bearing. At the maximum load of 460 N and speed of 1500 rpm the partial-LST bearing has a clearance of 6 lm while the untextured bearing clearance is only 1.7 lm. At 3000 rpm the clearances are 6.6 and 2.2 lm for the LST and untextured bearings, respectively. As can be seen from ?gure 7 this ratio of about 3 in favor of the partial-LST bearing is maintained over the entire load range.
Figure 8 presents the results for the bi-d irectionalbearing (see stator in ?gure 4(b)). In this case the LST parameters are Sp ? 0:614 and a ? 0:633. The clearances of the bi-directional partial-LST bearing are lower compared to these of the unidirectional bearing at the same load. At 460 N load the clearance for the 1500 rpm is 4.1 lm and for the 3000 rpm it is 6 lm. These values represent a reduction of clearance between 33 and 10% compared to the unidirectional case. However, as can be seen from ?gure 8 the performance of the partial-LST bi-directional bearing is still substantially better than that of the untextured bearing.
The friction coe?cient of partial-LST unidirectional and bi-directional bearings was compared with that of the untextured bearing in ?gures 9 and 10 for the two spee ds of 1500 and 3000 rpm, respectively. As can be seen the friction coe?cient of the two partial-LST bearings is very similar with slightly lower values in the case of the more e?cient unidirectional bearing. The friction coe?cient of the untextured bearing is much larger compared to that of the LST bearings. At 1500 rpm (?gure 9) and the highest load of 460 N the friction coe?cient of the untextured bearing is about 0.025 compared to about 0.01 for the LST bearings.
At the lowest load of 160 N the values are about 0.06 for the untextured bearing and around 0.02 for the LST bearings. Hence, the friction values of the untextured bearing are between 2.5 and 3 times higher than the corresponding values for the partial-LST bearings over the entire load range. Similar results were obtained at the velocity of
3000 rpm (?gure 10) but the level of the friction coe?cients is somewhat higher
due to the higher speed. The much higher friction of the untextured bearing is due to the much smaller clearances of this b earing (see ?gures 7 and 8) that result in higher viscous shear.
Bearings fail for a number of reasons，but the most common are misapplication，contamination，improper lubricant，shipping or handling damage，and misalignment. The problem is often not difficult to diagnose because a failed bearing usually leaves telltale signs about what went wrong．
However，while a postmortem yields good information，it is better to avoid the process altogether by specifying the bearing correctly in The first place．To do this，it is useful to review the manufacturers sizing guidelines and operating characteristics for the selected bearing.
Equally critical is a study of requirements for noise, torque, and runout, as well as possible exposure to contaminants, hostile liquids, and temperature extremes. This can provide further clues as to whether a bearing is right for a job.
1 Why bearings fail
About 40% of ball bearing failures are caused by contamination from dust, dirt, shavings, and corrosion. Contamination also causes torque and noise problems, and is
often the result of improper handling or the application environment．Fortunately, a bearing failure caused by environment or handling contamination is preventable，and a simple visual examination can easily identify the cause．
Conducting a postmortem il1ustrates what to look for on a failed or failing bearing．Then，understanding the mechanism behind the failure, such as brinelling or fatigue, helps eliminate the source of the problem.
Brinelling is one type of bearing failure easily avoided by proper handing and assembly. It is characterized by indentations in the bearing raceway caused by shock loading－such as when a bearing is dropped-or incorrect assembly. Brinelling usually occurs when loads exceed the material yield point(350,000 psi in SAE 52100 chrome steel)．It may also be caused by improper assembly, Which places a load across the races．Raceway dents also produce noise，vibration，and increased torque.
A similar defect is a pattern of elliptical dents caused by balls vibrating between raceways while the bearing is not turning．This problem is called false brinelling. It occurs on equipment in transit or that vibrates when not in operation. In addition, debris created by false brinelling acts like an abrasive, further contaminating the bearing. Unlike brinelling, false binelling is often indicated by a reddish color from fretting corrosion in the lubricant.
False brinelling is prevented by eliminating vibration sources and keeping the bearing well lubricated. Isolation pads on the equipment or a separate foundation may be required to reduce environmental vibration. Also a light preload on the bearing helps keep the balls and raceway in tight contact. Preloading also helps prevent false brinelling during transit.
Seizures can be caused by a lack of internal clearance, improper lubrication, or excessive loading. Before seizing, excessive, friction and heat softens the bearing steel. Overheated bearings often change color，usually to blue-black or straw colored．Friction also causes stress in the retainer，which can break and hasten bearing failure．
Premature material fatigue is caused by a high load or excessive preload．When these conditions are unavoidable，bearing life should be carefully calculated so that a maintenance scheme can be worked out．
Another solution for fighting premature fatigue is changing material．When standard bearing materials，such as 440C or SAE 52100，do not guarantee sufficient life，specialty materials can be recommended. In addition，when the problem is traced
back to excessive loading，a higher capacity bearing or different configuration may be used．
Creep is less common than premature fatigue．In bearings．it is caused by excessive clearance between bore and shaft that allows the bore to rotate on the shaft．Creep can be expensive because it causes damage to other components in addition to the bearing．
0ther more likely creep indicators are scratches，scuff marks，or discoloration to shaft and bore．To prevent creep damage，the bearing housing and shaft fittings should be visually checked．
Misalignment is related to creep in that it is mounting related．If races are misaligned or cocked．The balls track in a noncircumferencial path．The problem is incorrect mounting or tolerancing，or insufficient squareness of the bearing mounting site．Misalignment of more than 1/4·can cause an early failure．
Contaminated lubricant is often more difficult to detect than misalignment or creep．Contamination shows as premature wear．Solid contaminants become an abrasive in the lubricant．In addition。insufficient lubrication between ball and retainer wears and weakens the retainer．In this situation，lubrication is critical if the retainer is a fully machined type．Ribbon or crown retainers，in contrast，allow lubricants to more easily reach all surfaces．
Rust is a form of moisture contamination and often indicates the wrong material for the application．If the material checks out for the job，the easiest way to prevent rust is to keep bearings in their packaging，until just before installation．
2 Avoiding failures
The best way to handle bearing failures is to avoid them．This can be done in the selection process by recognizing critical performance characteristics．These include noise，starting and running torque，stiffness，nonrepetitive runout，and radial and axial play．In some applications, these items are so critical that specifying an ABEC level alone is not sufficient．
Torque requirements are determined by the lubricant，retainer，raceway quality(roundness cross curvature and surface finish)，and whether seals or shields are used．Lubricant viscosity must be selected carefully because inappropriate lubricant，especially in miniature bearings，causes excessive torque．Also，different lubricants have varying noise characteristics that should be matched to the application. For example，greases produce more noise than oil．
Nonrepetitive runout(NRR)occurs during rotation as a random eccentricity between the inner and outer races，much like a cam action．NRR can be caused by retainer tolerance or eccentricities of the raceways and balls．Unlike repetitive runout, no compensation can be made for NRR.
NRR is reflected in the cost of the bearing．It is common in the industry to provide different bearing types and grades for specific applications．For example，a bearing with an NRR of less than 0.3um is used when minimal runout is needed，such as in disk—drive spindle motors．Similarly，machine—tool spindles tolerate only minimal deflections to maintain precision cuts．Consequently, bearings are manufactured with low NRR just for machine-tool applications．
Contamination is unavoidable in many industrial products，and shields and seals are commonly used to protect bearings from dust and dirt．However，a perfect bearing seal is not possible because of the movement between inner and outer races．Consequently，lubrication migration and contamination are always problems．Once a bearing is contaminated, its lubricant deteriorates and operation becomes noisier．If it overheats，the bearing can seize．At the very least，contamination causes wear as it works between balls and the raceway，becoming imbedded in the races and acting as an abrasive between metal surfaces．Fending off dirt with seals and shields illustrates some methods for controlling contamination．
Noise is as an indicator of bearing quality．Various noise grades have been developed to classify bearing performance capabilities．
Noise analysis is done with an Anderonmeter, which is used for quality control in bearing production and also when failed bearings are returned for analysis. A transducer is attached to the outer ring and the inner race is turned at 1,800rpm on an air spindle. Noise is measured in andirons, which represent ball displacement in μm/rad.
With experience, inspectors can identify the smallest flaw from their sound. Dust, for example, makes an irregular crackling. Ball scratches make a consistent popping and are the most difficult to identify. Inner-race damage is normally a constant high-pitched noise, while a damaged outer race makes an intermittent sound as it rotates.
Bearing defects are further identified by their frequencies. Generally, defects are separated into low, medium, and high wavelengths. Defects are also referenced to the number of irregularities per revolution.
Low-band noise is the effect of long-wavelength irregularities that occur about 1.6 to 10 times per revolution. These are caused by a variety of inconsistencies, such as pockets in the race. Detectable pockets are manufacturing flaws and result when the race is mounted too tightly in multiplejaw chucks.
Medium-hand noise is characterized by irregularities that occur 10 to 60 times per revolution. It is caused by vibration in the grinding operation that produces balls and raceways. High-hand irregularities occur at 60 to 300 times per revolution and indicate closely spaced chatter marks or widely spaced, rough irregularities.
Classifying bearings by their noise characteristics allows users to specify a noise grade in addition to the ABEC standards used by most manufacturers. ABEC defines physical tolerances such as bore, outer diameter, and runout. As the ABEC class number increase (from 3 to 9), tolerances are tightened. ABEC class, however, does not specify other bearing characteristics such as raceway quality, finish, or noise. Hence, a noise classification helps improve on the industry standard.
5. Conclusion
The idea of partial-LST to enhance performance of the parallel thrust bearing was evaluated experimentally. Good correlation was found with a theoretical model as long as the basic assumption of laminar ?ow in the ?uid ?lm is valid. At low loads with relatively large clearances, where turbulence may occur, the experimental clearance is larger than the prediction of the model.The performance of both unidirectional and bidirectional partial-LST bearings in terms of clearance
and friction coe?cient was compared with that of a baseline untextured bearing over a load range in which the theoretical model is valid. A dramatic increase, of
about three times, in the clearance of the partial-LST bearings compared to that of the untextured bearing was obtained over the entire load range. Consequently the friction coe?cient of the partial-LST bearings is much lower, representing more than 50% reduction in friction compared to the untextured bearing.
The larger clearance and lower friction make the partial-LST simple parallel thrust bearing concept much more reliable and e?cient especially in seal-less pumps and similar applications where the process ?uid, which is often a poor lubricant, is the only available lubricant for the bearings.
Acknowledgments
The authors would like to thank Mr. J. Boylan of Morgan AM&T for providing the bearing specimens and Mr. N. Barazani of Surface Technologies Ltd. For providing the laser surface texturing.
