BGP 联邦和路由反射器作业
Topo
如图所示，R1和R2、R4和R5是ebgp邻居，R2和R3是ibgp邻居，R3和R4是ebgp 邻居，除了R1/2/4/5之间，都是用loopback0建立邻居。
注意：R1指向R2以及R5指向R4的AS号为234！
请问，R1-R2，R4-R5的bgp邻居能否起来？请解释原因，通过抓包和截图
如何解决？，实现如下拓扑
R3
Bgp 64523
Confederationid 234
Confederation peer-as 64544
R4
Bgp 64544
Confederation id 234
Confederation peer-as 64523
请总结confedrationid的作用，配置前和配置后的区别
配置前：抓包说明
配置后：抓包说明
Confederation peer-as的作用，为什么需要这条命令，请通过抓包和截图展示总结联邦的优缺点
路由反射器（RR）
角色：
RRrouter-reflector
RR-Cclient
RRcluster=RR+RR-C

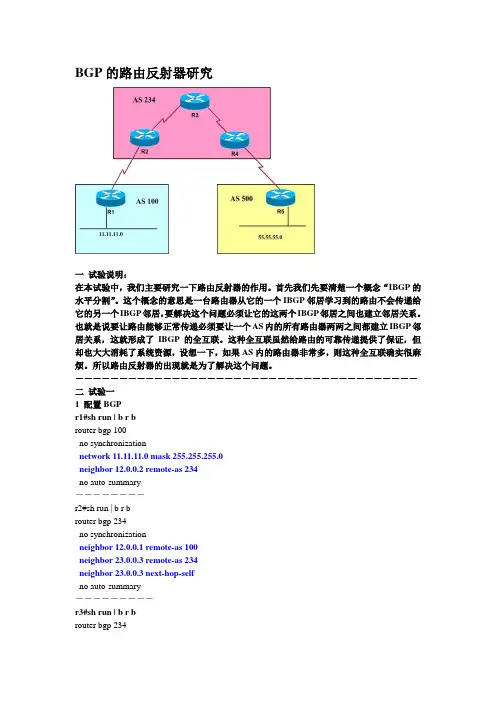

Topo如下
配置R3是RR，R2是RR-c，请贴出命令
如果R3和R2调换位置，R3为RR-C，R2为RR，那么出现什么问题，请解释为什么？贴出相关路由的disbgprouting
RR在IBGP环境下取代了IBGP的水平分割，那么又是如何放环的，请贴出disbgprouting 10.1.1.1表象来说明
