掺杂维度和浓度调控的d掺杂的La:SrTiO3超晶格结构金属-绝缘体转变*李云1)† 鲁文建2)1) (韩山师范学院物理与电子工程学院, 潮州 521041)2) (中国科学院合肥物质科学研究院固体物理研究所, 合肥 230031)(2021 年4 月30日收到; 2021 年7 月3日收到修改稿)利用密度泛函理论计算, 本文系统研究了d掺杂的La:SrTiO3超晶格结构的电子性质随掺杂维度和掺杂浓度改变而变化的规律性. 该结构通过在SrTiO3等间距的单元层中掺入一定浓度的La来实现. 在25% La掺杂浓度下, 随着相邻掺杂层间距从1个单层增加到5个单层, 掺杂维度从三维过渡到二维, 超晶格从金属性变到绝缘体性, 并在带隙中产生局域态, 且该局域态呈现出电荷序、自旋序和轨道序. 这种金属-绝缘体转变是由于二维电子体系呈现出更强的关联性造成的. 而随着二维掺杂浓度提高到50%, 关联性降低, 体系变成金属性.关键词：二维掺杂, 强关联, 金属-绝缘体转变PACS：71.30.+h, 73.20.–r, 71.27.+a DOI: 10.7498/aps.70.202108301 引 言由于具有较强的电子关联性, 过渡金属氧化物经常展现出一些非凡的特性, 其晶格、电子和磁性构型与一些引人注目的物理性质存在着紧密的相关性[1]. 这些特性通常是电子电荷、自旋和轨道自由度与晶格微妙作用的结果[2,3]. 调控这些参数有可能产生丰富的电学性质, 有助于发展出有新特性的功能材料和器件[4,5]. 比如, 掺杂能调控材料内部的多个自由度, 如电荷、自旋、轨道占据等, 通过掺杂改变d轨道的填充度能诱导过渡金属氧化物实现金属-绝缘体转变、反铁磁-铁磁转变、普通导体-超导体转变等[1−3,5]. 这种调控手段和对应的性能已经在传感器、自旋电子器件、存储器等领域得到应用.电子体系的维度也是影响材料内部电子学特性的一个重要调控参数. 随着电子体系的维度降低, 如从三维变到二维, 电子间的关联作用变强并可能起主导作用[6]. 这可能导致电子体系呈现出整体有序性并使得体系进入非同于三维体系的新的相. 随着材料生长技术的进步, 制备二维电子体系已经比较容易实现, 如在异质界面体系或者二维掺杂体系. 最近几年在钙钛矿过渡金属氧化物界面体系的研究表明过渡金属氧化物异质结二维电子体系具备一些独特的性质[7−21], 如金属-绝缘体转变、磁性-非磁性转变、超导等. 为了研究过渡金属氧化物电学性质随着掺杂维度和掺杂浓度改变而变化的规律, 本文利用密度泛函理论计算研究了d掺杂(在一个单元层中掺杂La而其近邻层不掺杂)的La:SrTiO3超晶格结构的电子性质, 通过改变掺杂层的间距可实现从三维掺杂过渡到二维掺杂, 并通过改变掺杂浓度来改变二维电子的密度.* 教育部留学回国人员科研启动基金(批准号: [2015]-1098)资助的课题.† 通信作者. E-mail: liyunphy@© 2021 中国物理学会 Chinese Physical Society 计算结果表明, 调节这些参数可改变电子关联强度进而实现体系的金属-绝缘体转变.2 计算方法计算由VASP 程序包执行[22], 其中采用PBE 型广义梯度近似泛函(PBE-GGA)[23]和投影缀加平面波方法[24,25], 平面波截断动能为500 eV. Ti 3d 轨道局域性较强, 轨道中电子的在位库伦相互作用较强, 计算中采用Dudarev 的LSDA+U 方法近似描述[26]. 计算中Ti 3d 轨道电子的在位库伦相互作用能分别取U =0, 2.0, 3.0, 3.5, 3.7, 4.4, 5.0 eV 等数值, 将不同数值得到的基态电子态与实验测得的电子性质对比进而确定出合适的U 值. 图1展示了两种超晶格原胞结构, 即[Sr 0.75La 0.25TiO 3]1|[SrTiO 3]n (n = 1, 5)(简写为[SLTO]1|[STO]n ), 其中掺杂层中25%的Sr 原子被La 原子替代, 沿着[001]方向周期性重复, 面内周期为4 × 4. 相应地,采用4 × 4 × 4和4 × 4 × 2的Monkhost 型k 点网格在布里渊区中取样. 有限温度展宽采用Gaussian 方法, 其中s = 0.1 eV. 计算中所有原子都充分弛豫, 直到受力小于0.01 eV/Å.(a)(b)(c)图 1 (a) 超晶格结构面内4 × 4周期俯视图; (b) [SLTO]1|[STO]1侧视图; (c) [SLTO]1|[STO]5侧视图. 绿色球代表Sr 原子, 蓝色代表La 原子, 红色代表O 原子, Ti 原子在八面体中心Fig. 1. (a) Top view of the superlattices with in-plane 4 × 4unit cells; (b) side view of [SLTO]1|[STO]1; (c) side view of [SLTO]1|[STO]5. Green balls represent Sr atom, blue balls La atom, red balls O atom, Ti atoms are at the centre ofthe octahedrons.3 结果和讨论SrTiO 3导带底部态主要由Ti 3dt 2g (d xy , d yz ,d xz ) 轨道构成, 掺杂La 的价电子轨道5d6s 能级高于SrTiO 3中的Ti 3dt 2g 轨道能级, La 掺杂产生的电子全部进入Ti 3dt 2g 轨道能级. 计算中Ti 3d 轨道在位库伦相互作用能U 为可调参数, 本文通过比较计算结果与实验结果来确定U 的最佳数值.图2展示了两种典型的U 计算的结果. 如图2(a)和图2(b)所示, 在U = 2 eV 情况下, 费米能级穿过导带下部, 两种结构都为金属态. 在U = 3.7 eV 情况下, 如图2(c)和图2(d)所示, [SLTO]1|[STO]1仍然为金属态, 而[SLTO]1|[STO]5为绝缘态, 费米能级穿过带隙, 且在带隙里出现局域态. 计算表明当U < 3.5 eV 时两种体系都是金属态, 而当U ≥ 3.5 eV 时[SLTO]1|[STO]5才会展现为绝缘态基态. 实验中观察到[SLTO]1|[STO]1呈现金属性,而[SLTO]1|[STO]5的电阻温度曲线为绝缘态且光电导检测表明带隙内存在局域态. 又考虑了50%La 掺杂结果和带隙宽度等因素后, 确定在上述超晶格体系中U = 3.7 eV 的计算结果与实验结果吻合最好.为了澄清[SLTO]1|[STO]5带隙内局域态的性质, 图3(a)和图3(b)详细地展示了其能带结构和局域态对应的空间电荷分布. 带隙内的局域态出现在掺杂的SrO 层两侧的TiO 2层内, 掺杂电子局域在Ti 原子的3dt 2g 轨道内, 则这部分有局域电子占据的Ti 原子呈现+3价, 其他Ti 原子呈现+4价. 计算表明Ti 3+—O 键长大于Ti 4+—O 键长, 由于外延生长限制xy 面内的晶格常数, 这导致掺杂层的TiO 6八面体受到了xy 面内的压缩应力, 使得原来简并的d xy , d yz , d xz 三个轨道劈裂, 最终d xy 轨道略高于d xz 和d yz 轨道, 因而电子优先占据d xz 和d yz 轨道. 如图3(b)所示, 在掺杂SrO 层一侧掺杂电子分布在Ti d xz 轨道, 而在另一侧则分布在d yz 轨道. 通过对多种自旋构型的计算比较, 结果表明图3(b)所示的反铁磁自旋序具备更低的能量. 图3(c)展示了局域态所在的Ti 3+与近邻的6个O 原子的键长, 沿着y , z 方向键长明显大于x 方向, 这与电子占据Ti d xz 和d yz 轨道相吻合. 计算结果还表明Ti 3+与近邻的O 原子的键长也明显大于Ti 4+与近邻的O 原子的键长.从体掺杂的角度看, [SLTO]1|[STO]5结构中La 离子平均体密度为4.17%, 而[SLTO]1|[STO]1结构中La 离子平均体密度为12.5%, 似乎La 离子的体密度与上述金属绝缘体转变有关. 而Tokura等[27]和Okuda 等[28]的实验结果表明在STO 内La 离子体掺杂密度在1.5%—92%区间内体系都呈现金属态. 由此可知, 在STO 中均匀掺杂4.17%的La 会导致金属态. 而d 掺杂的[SLTO]1|[STO]5超晶格结构中La 离子平均体密度同为4.17%, 却呈现绝缘体性, 这意味着掺杂维度变化是导致上述金属绝缘体转变的决定因素. 图4展示了三维掺杂和二维掺杂情况下杂质离子层在空间中产生的电势分布示意图. 在[SLTO]1|[STO]1掺杂情况下,如图4(a), 相邻的杂质离子层较近, 其吸引势相互D O S(a1)-4-20Energy/eV24 /e V(a2)3210-1/e V(c2)3210-1D O S(c1)-4-20Energy/eV24 /e V(d2)3210-1/e V(b2)3210-1D O S(b1)-4-20Energy/eV24D O S(d1)-4-20Energy/eV24图 2 分自旋总态密度图和能带图 (a1), (a2) U = 2 eV, [SLTO]1|[STO]1; (b1), (b2) U = 2 eV, [SLTO]1|[STO]5; (c1), (c2) U =3.7 eV, [SLTO]1|[STO]1; (d1), (d2) U = 3.7 eV, [SLTO]1|[STO]5, 红色箭头所指为带隙内局域态. 图中红线为费米能级, 价带顶部设为能量零点. 态密度图中水平线上部为上自旋态密度, 下部为下自旋态密度Fig. 2. Spin-polarized total densities of states and band structures: (a1), (a2) U = 2 eV, [SLTO]1|[STO]1; (b1), (b2) U = 2 eV,[SLTO]1|[STO]5; (c1), (c2) U = 3.7 eV, [SLTO]1|[STO]1; (d1), (d2) U = 3.7 eV, [SLTO]1|[STO]5, the in-gap localized states are pointed out by the red arrow. The red lines are Fermi level, the top of valence band is set to be zero.dddd(b)(c)Ti 3+Ti 3+2.012.082.022.07Ti 4+Ti 3+2.062.07Ti 4+-11/e Vdfd 23图 3 (a) [SLTO]1|[STO]5能带结构图, 其中带隙内局域态为Ti d xz 和d yz 轨道态. 水平红色虚线为费米能级; (b) [SLTO]1|[STO]5带隙内局域态电荷空间分布, 局域态为Ti d xz 和d yz 轨道态, 上下箭头代表自旋方向; (c)掺杂层局部结构和Ti 3+O 6八面体键长, 沿着y 和z 方向Ti 3+—O 键较长Fig. 3. (a) Band structure of [SLTO]1|[STO]5, in which the in-gap states mainly consist of Ti d xz and d yz orbitals; (b) charge distri-bution of the in-gap states, the charge is mainly localized at Ti d xz and d yz orbitals. The arrows represent spin directions; (c) local structure of the doped layer and bond lengths of Ti 3+—O bonds of the Ti 3+O 6 octehedron.重叠较大, 最终在空间产生较为平缓的势. 而在[SLTO]1|[STO]5掺杂情况下, 如图4(b)所示, 相邻的杂质离子层较远, 其吸引势重叠小, 最终在掺杂层形成势阱, 该势阱束缚了电子在垂直掺杂面方向的运动, 结果电子只能在掺杂层内运动. 通常,电子系统的能量取决于电子在邻近格点间跳跃的动能和电子间排斥势能的总和, 关联性强弱大致取决于电子间排斥势能与电子动能的比值, 比值越大则关联性越强. 相比三维掺杂, 二维掺杂情况下电子在杂质离子层的势阱中运动, 在垂直方向运动受限制, 允许电子跳跃的近邻格点变少, 总动能变小,电子运动关联性变强. 二维体系情况下, 若体系呈现金属态, 即电子可在近邻格点巡游, 则动能较低,但存在两个电子同时占据同一个Ti 原子3d 轨道的几率, 由于Ti 3d 轨道上存在较大的在位库伦排斥能, 这会导致较大的电子间排斥势能, 体系的总能量可能因此更高. 若体系呈现绝缘态, 带隙内局域态电子不能在近邻格点巡游, 则动能较大, 但避免了两个电子同时占据同一个Ti 原子3d 轨道引起的较大的在位库伦排斥能, 这降低了电子间排斥势能, 体系的总能量可能因此更低. 这意味着在同样的在位库伦排斥能情况下, 相比三维电子体系,二维电子体系具有更小的动能, 即更强的关联性,更容易变为绝缘态. 上述计算中得到的SrTiO 3中层状25% La 掺杂导致的金属-绝缘体转变正是电子维度降低导致关联性增强的一个实例.此外, 二维电子的密度也影响着体系关联性.从平均场的角度看, 二维电子体系的电子间排斥势能正比于n 1/2(n 为二维电子密度), 动能正比与n ,则电子间排斥势能与动能比值约为n –1/2[29]. 这意味随着二维掺杂浓度的提高, 关联性会变弱, 体系有可能从绝缘态变为金属态. 实验研究[16]和本文的计算都验证了这一点, 图5所示的态密度和能带结构表明当二维La 掺杂的掺杂浓度为50%时上述超晶格结构呈现金属态.D O S(a)-4-20Energy/eV24 /e V(b)3210-1图 5 50% La 掺杂的[SLTO]1|[STO]5总态密度图(a)和能带结构图(b), 红线为费米能级Fig. 5. Total density of states (a) and band structure (b) of [SLTO]1|[STO]5 with 50% La doping in the doping layer.4 结 论本文利用第一性原理计算研究了d 掺杂的La:SrTiO 3中掺杂维度和浓度变化引起的金属绝缘体转变. 在La 掺杂浓度为25%情况下, 随着掺杂层间隔增加, 即掺杂维度从三维过渡到二维, 体系从金属态过渡到绝缘体态. 二维掺杂在SrTiO 3带隙内产生了局域态, 并且局域态呈现出一定的电荷序、反铁磁自旋序和轨道序. 分析表明, 局域态的电子是由二维体系情况下关联性增强引起的. 此外, 二维掺杂的电子密度也影响着体系的状态, 在二维La 掺杂的结构中掺杂浓度为50%时, 体系又呈现金属态. 本文的研究结果加深了对于过渡金属氧化物中电子关联性与其维度和浓度关系的认识,有助于利用维度和浓度调控过渡金属氧化物电子器件的性能.S r 0.75L a 0.25OT i O 2S rO(a)S r 0.75L a 0.25OT i O 2S rO(b)图 4 掺杂离子层的电势V 和掺杂电荷r 分布示意图 (a) [SLTO]1|[STO]1, 虚线代表单个掺杂层阳离子产生的吸引势, 实线代表相邻掺杂层阳离子吸引势叠加后总的吸引; (b) [SLTO]1|[STO]5Fig. 4. Diagrams of electric potential V and charge distribution: (a) [SLTO]1|[STO]1, dashed lines present the potential produced by a single impurity layer, the solid lines present the total potential of all impurity layers; (b) [SLTO]1|[STO]5.参考文献I mada M, Fujimori A, Tokura Y 1998 Rev. Mod. Phys. 701039[1]D agottoE 2005 Science 309 257[2]T okura Y, Nagaosa N 2000 Science 288 462[3]A hn C H, Triscone J M, Mannhart J 2003 Nature 424 1015[4]M annhart J, Schlom D G 2010 Science 327 1607[5]C amjayi A, Haule K, Dobrosavljević V, Kotliar G 2008 Nat.Phys. 4 932[6]B oris A V, Matiks Y, Benckiser E, et al. 2011 Science 332 937[7]O htomo A, Muller D A, Grazul J L, et al. 2002 Nature 419 378[8]O htomo A, Hwang H Y 2004 Nature 427 423[9]R eyren N, Thiel S, Caviglia A D, et al. 2007 Science 317 1196[10]C aviglia A D, Gariglio S, Reyren N, et al. 2008 Nature 456624[11]L i L, Richter C, Mannhart J, Ashoori R C 2011 Nat. Phys. 7 762[12]B rinkman A, Huijben M, Van Zalk M, et al. 2007 Nat. Mater.6 493[13]A riando, Wang X, Baskaran G, et al. 2011 Nat. Commun. 2188[14]W ang Z, Okude M, Saito M, et al. 2010 Nat. Commum. 1 106 [15]C hoi W S, Lee S, Cooper V R, et al. 2012 Nano Lett. 12 4590[16]K ornblum L 2019 Adv. Mater. Interfaces 6 1900480[17]N iu W, Wang X F, Xu Y B, Zhang R 2021 ACS Appl.Electron. Mater. 3 128[18]M ardegan J R L, Christensen D V, Chen Y Z, et al. 2019 Phys. Rev. B 99 134423[19]S ong Q, Yu T L, Lou X, et al. 2019 Nat. Commum. 10 758[20]C hen J K, Mao W, Gao L, et al. 2019 Adv. Mater. 321905060[21]K resse G, Furthmüller J 1996 Phys. Rev. B 54 11169[22]P erdew J P, Burke K, Ernzerhof M 1996 Phys. Rev. Lett. 77 3865[23]B löchl P E 1994 Phys. Rev. B 50 17953[24]K resse G, Joubert D 1999 Phys. Rev. B 59 1758[25]D udarev S L, Botton G A, Savrasov S Y, et al. 1998 Phys.Rev. B 57 1505[26]T okura Y, Taguchi Y, Okada Y, Fujishima Y, Iye Y 1993 Phys. Rev. Lett. 70 2126[27]O kuda T, Nakanishi K, Miyasaka S, Tokura Y 2001 Phys.Rev. B 63 113104[28]B ruus H, Flensberg K 2004 Many-body Quantum Theory inCondensed Matter Physics - An Introduction (New York: Oxford University Press) p41[29]Tuning metal-insulator transition in d-doped La:SrTiO3 superlattice by varying doping dimensionality andconcentration*Li Yun 1)† Lu Wen -Jian 2)1) (School of Physics and Electronic Engineering, Hanshan Normal University, Chaozhou 521041, China)2) (Institute of Solid State Physics, HFIPS, Chinese Academy of Sciences, Hefei 230031, China)( Received 30 April 2021; revised manuscript received 3 July 2021 )AbstractElectronic properties in d-doped La:SrTiO3 superlattices varying with the doping dimensionality and concentration are systematically studied through using first-principles calculation. The superlattices consist of periodically repeated La-doped single SrTiO3 layers in SrTiO3 film, and the doping dimensionality can be tuned by varying the space of the neighboring doped layers. At 25% doping concentration, the spacing between SrTiO3 layers increases from 1 unit-cell layer to 5 unit-cell layers, i.e. the doping dimensionality changes three dimensions to two dimensions, the superlattice charater changes from metallic character into insulating character, and the charge sequence, spin sequence and orbital sequence are present in a localized state. This metal-insulator transition is ascribed to the stronger correlation effect in the two-dimensional electron system. With the two-dimensional doping concentration increasing to 50%, the correlation effect becomes weak and the system becomes metallic.Keywords: two dimensional doping, strong correlation effect, metal-insulator transitionPACS: 71.30.+h, 73.20.–r, 71.27.+a DOI: 10.7498/aps.70.20210830* Project supported by the Scientific Research Staring Foundation for the Returned Overseas Chinese Scholars, Ministry of Education of China (Grant No. [2015]-1098).† Corresponding author. E-mail: liyunphy@。

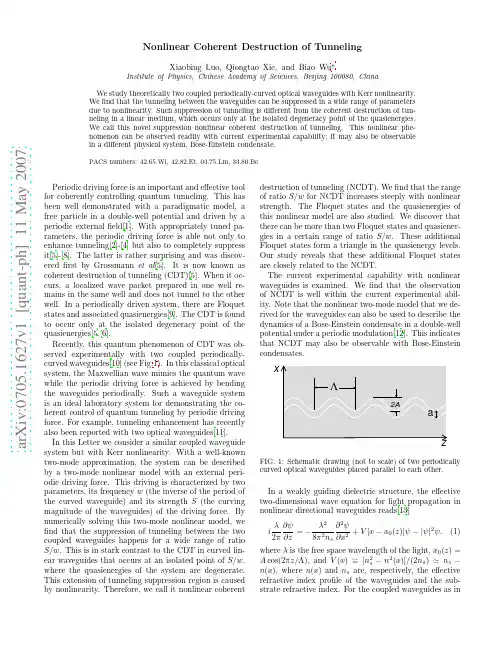

a r X i v :0705.1627v 1 [q u a n t -p h ] 11 M a y 2007Nonlinear Coherent Destruction of TunnelingXiaobing Luo,Qiongtao Xie,and Biao Wu ∗Institute of Physics,Chinese Academy of Sciences,Beijing 100080,ChinaWe study theoretically two coupled periodically-curved optical waveguides with Kerr nonlinearity.We find that the tunneling between the waveguides can be suppressed in a wide range of parameters due to nonlinearity.Such suppression of tunneling is different from the coherent destruction of tun-neling in a linear medium,which occurs only at the isolated degeneracy point of the quasienergies.We call this novel suppression nonlinear coherent destruction of tunneling.This nonlinear phe-nomenon can be observed readily with current experimental capability;it may also be observable in a different physical system,Bose-Einstein condensate.PACS numbers:42.65.Wi,42.82.Et,03.75.Lm,33.80.BePeriodic driving force is an important and effective tool for coherently controlling quantum tunneling.This has been well demonstrated with a paradigmatic model,a free particle in a double-well potential and driven by a periodic external field[1].With appropriately tuned pa-rameters,the periodic driving force is able not only to enhance tunneling[2]-[4]but also to completely suppress it[5]-[8].The latter is rather surprising and was discov-ered first by Grossmann et al [5].It is now known as coherent destruction of tunneling (CDT)[5].When it oc-curs,a localized wave packet prepared in one well re-mains in the same well and does not tunnel to the other well.In a periodically driven system,there are Floquet states and associated quasienergies[9].The CDT is found to occur only at the isolated degeneracy point of the quasienergies[5,6].Recently,this quantum phenomenon of CDT was ob-served experimentally with two coupled periodically-curved waveguides[10](see Fig.1).In this classical optical system,the Maxwellian wave mimics the quantum wave while the periodic driving force is achieved by bending the waveguides periodically.Such a waveguide system is an ideal laboratory system for demonstrating the co-herent control of quantum tunneling by periodic driving force.For example,tunneling enhancement has recently also been reported with two optical waveguides[11].In this Letter we consider a similar coupled waveguide system but with Kerr nonlinearity.With a well-known two-mode approximation,the system can be described by a two-mode nonlinear model with an external peri-odic driving force.This driving is characterized by two parameters,its frequency w (the inverse of the period of the curved waveguide)and its strength S (the curving magnitude of the waveguides)of the driving force.By numerically solving this two-mode nonlinear model,we find that the suppression of tunneling between the two coupled waveguides happens for a wide range of ratio S/w .This is in stark contrast to the CDT in curved lin-ear waveguides that occurs at an isolated point of S/w ,where the quasienergies of the system are degenerate.This extension of tunneling suppression region is caused by nonlinearity.Therefore,we call it nonlinear coherentdestruction of tunneling (NCDT).We find that the range of ratio S/w for NCDT increases steeply with nonlinear strength.The Floquet states and the quasienergies of this nonlinear model are also studied.We discover that there can be more than two Floquet states and quasiener-gies in a certain range of ratio S/w .These additional Floquet states form a triangle in the quasienergy levels.Our study reveals that these additional Floquet states are closely related to the NCDT.The current experimental capability with nonlinear waveguides is examined.We find that the observation of NCDT is well within the current experimental abil-ity.Note that the nonlinear two-mode model that we de-rived for the waveguides can also be used to describe the dynamics of a Bose-Einstein condensate in a double-well potential under a periodic modulation[12].This indicates that NCDT may also be observable with Bose-Einstein condensates.FIG.1:Schematic drawing (not to scale)of two periodically curved optical waveguides placed parallel to each other.In a weakly guiding dielectric structure,the effective two-dimensional wave equation for light propagation in nonlinear directional waveguides reads[13]i λ∂z=−λ2∂x 2+V [x −x 0(z )]ψ−|ψ|2ψ.(1)where λis the free space wavelength of the light,x 0(z )=A cos(2πz/Λ),and V (x )≡[n 2s −n 2(x )]/(2n s )≃n s −n (x ),where n (x )and n s are,respectively,the effective refractive index profile of the waveguides and the sub-strate refractive index.For the coupled waveguides as in2Fig.1,n (x )thus V (x )have a double-well structure.The scalar electric field is related to ψthrough E (x,z,t )=(1/2)(|n 2|n s ǫ0c 0/2)−1/2[ψ(x,z )exp(−iωt +ikn s z )+c.c.],where n 2is the nonlinear refractive index of the medium,k =2π/λ,ω=kc 0,and c 0and ǫ0are the speed of light and the dielectric constant in vacuum,respectively.The field normalization is taken such that |ψ|2/|n 2|gives the light intensity I (in W/m 2).By means of a Kramers-Henneberger transformation[14]x ′=x −x 0(z ),z ′=z ,and φ(x ′,z ′)=ψ(x ′,z ′)exp[−i (2n s π/λ)˙x 0(z ′)x ′−i (n s π/λ) z′0dξ˙x 20(ξ)](the dot indicates the derivativewith respect to z ′),Eq.(1)is then transformed to i λ∂z ′=−λ2∂x ′2+V (x ′)φ−|φ|2φ+x ′F (z ′)φ≡H 0φ−|φ|2φ+x ′F (z ′)φ.(2)where F (z ′)=n s ¨x 0(z ′)=(4π2An s /Λ2)cos(2πz ′/Λ)is the force induced by waveguide bending.It is clear that if we view z (or z ′)as time t ,the above equations can be regarded as describing the system of a nonlinear quan-tum wave in a double-well potential and under a periodic modulation.We assume that the light in each waveguide of the cou-pler is single moded and neglect excitation of radiation modes.With a standard two-mode approximation[15,16,17],we write φ(x ′,z ′)=e −2iπD exp[−(x ′±a/2)2/2b 2],wherea is the distance between the two waveguides,b is the half-width of each waveguide,and D is related to the input power of the system P (0)as D =n 2P (0)/(√2c 2−S 2c 1+S2πn 2P (0)/(λb )is an effective nonlinearcoefficient.When S =0,Eqs.(4),(5)will be reduced to the well-known Jensen equation[17].Note that P (0)has the unit of W/m is because the waveguide is two dimensional in our theoretical model.In experiments,P (0)has the unit of W and the waveguides are three dimensional.As a result,to relate our nonlinear pa-rameter to the real experimental parameters,we chooseFIG.2:The intensity of light in the initially populated waveg-uide for the case of χ=0(dashed lines)and χ/v =0.4(solid lines)with (a)S/w =1.8,(b)S/w =2.2,(c)S/w =2.4.Dis-tance z ′is in units of 1/v .w/v =10.χ=2πn 2P (0)/(λσeff),where σeffis the effective cross-section of the waveguide,according to Ref.[18].To investigate tunneling effect,we solve the two non-linear equations (4)and (5)numerically with the light initially localized in one of the two waveguides.With the numerical solution,we compute the intensity of the lightstaying in the initial well with P ′(z ′)=|c ∗1(0)c 1(z ′)+c ∗2(0)c 2(z ′)|2.Three sets of our results are shown in Fig.2(a,b,c).In the first set for S/w =1.8,we see that P ′(z ′)oscillates between zero and one for both linear case χ=0and nonlinear case χ/v =0.4,demonstrating no suppression of tunneling.In the second set for S/w =2.2,we see a different scenario,the oscillation of P ′(z ′)is lim-ited between ∼0.8and one for the nonlinear case,showing suppression of tunneling,while there is no suppression for the linear case.In the third set for S/w =2.4,sup-pression of tunneling is seen for both linear and nonlinear cases.Such suppression of tunneling for the linear case is known as coherent destruction of tunneling[5].These nu-merical results demonstrate that nonlinearity can extend the parameter range of the suppression of tunneling.We call this new phenomenon nonlinear coherent destruction of tunneling (NCDT).The extension of tunneling suppression regime of ra-tio S/w by nonlinearity is more clearly demonstrated in Fig.3(a).In this figure,we have used localization,which is defined as the minimum value of P ′(z ′),to measure the suppress of tunneling.When there is large suppres-sion of tunneling,localization is close to one;when there is no suppression,localization is zero.As clearly seen in Fig.3(a),the peak of localization (solid line)for χ/v =0.4is much wider than the peak for χ/v =0.0(dashed line).In Fig.3(b),we see the width of localization ∆Γincreases almost linearly with nonlinearity χ(solid line).Note that,analytically,CDT occurs only at isolated points.That it3FIG.3:(a)Localization as a function of S/w .The solid line isfor the nonlinear case χ/v =0.4and the dashed line is for the linear case χ=0.w/v =10.(b)The width ∆Γof the peak in (a)as a function of nonlinearity strength χ/v (solid line).Thedashed line is for the width of the quasienergy triangle in Fig.4.has a narrow range in Fig.3(a)is because the evolution time is finite in numerical simulation.As is well known,the CDT is connected to the degen-eracy point of quasienergies in the system[5].Although our system is nonlinear,one can similarly define its Flo-quet state and quasienergy.That is,Eqs.(4,5)have so-lutions in the form of {c 1,c 2}=e −iεz ′{˜c 1(z ′),˜c 2(z ′)},where both ˜c 1and ˜c 2are periodic with period of Λ.These Floquet states and corresponding quasienergies εcan be found numerically.We first expand the periodic functions ˜c 1,2in terms of Fourier series with a cutoff.After plug-ging them into Eqs.(4,5),we obtain a set of nonlinear equations for the Fourier coefficients.By solving these equations numerically,we obtain the Floquet states and corresponding quasienergies ε.The results are plotted in Fig.4,where we witness a striking difference between the linear and nonlinear cases.As seen in Fig.4(a),for the linear case,there are two Floquet states for a given value of S/w and there is only one isolated degeneracy point.For the nonlinear case,we notice that there are four Flo-quet states and three quasienergies in a certain range of S/w with two of the Floquet states degenerate.The three quasienergies form a triangle in the quasienergy levels as seen in Fig.4(b,c).Our numerical computation shows that the width of the quasienergy triangle increases with nonlinearity χas shown in Fig.3(dashed line).As this increasing trend is similar to the localization width ∆Γ,this offers us the first glimpse of link between NCDT and the quasienergies.Since the right corner of the triangle can be open,we define the width of the quasienergy tri-angle as the horizontal distance between the left corner and the upper corner.A firm link between the NCDT and the triangle struc-ture in the quasienergies can be established by looking into the Floquet states.We focus on the Floquet statesFIG.4:Quasienergies at (a)χ=0;(b)χ/v =0.4;(c)χ/v =0.8.Solid lines are for numerical results obtained with Eqs.(4,5)and circles for the approximation results for high frequencies with Eqs.(7,8).w/v =3.that correspond to the lowest quasienergies in Fig.4.To measure how the Floquet state is localized in one of thetwo waveguides,we define |c 1|2 =( Λ0dz ′|c 1|2)/Λfor a given Floquet state {c 1,c 2}.We have plotted this value for the lowest Floquet states in Fig.5.In this figure,we see clearly that only the Floquet states on the quasienergy triangle are localized.This thus demon-strates a clear link between the quasi-energy triangle and the NCDT.That there are two lines in Fig.5reflects the fact that there is a two-fold degeneracy for the lowest quasienergies on the triangle.FIG.5:Intensity in the first well for every Floquet state in the lowest quasienergy level at χ/v =0.4,w/v =3.The triangular structure in the quasienergy is very similar to the energy loop discovered within the con-text of nonlinear Landau-Zener tunneling[21].In fact,they are mathematically related.For high frequencies,w ≫max {v,χ},which is usually the case for current ex-periments with optical waveguides,we take advantage of the transformationc 1=c ′1exp[iS sin(wz ′)/2w ],c 2=c ′2exp[−iS sin(wz ′)/2w ].(6)4After averaging out the high frequency terms[12],wefind a non-driving nonlinear model,i˙c′1=v2J0(S/w)c′1−χ|c′2|2c′2,(8)where J0is the zeroth-order Bessel function.It is clear from the transformation in Eq.(6)that the eigenstates of the above time-independent nonlinear equations cor-respond to the Floquet states of Eqs.(4,5).We have com-puted the eigenstates of Eqs.(7,8)and the corresponding eigenenergies,which are plotted as circles in Fig.4.The consistency with the previous results is obvious.As is known in Ref.[21],the above nonlinear model admits ad-ditional eigenstates whenχ>J0(S/w)v.Therefore,this can be regarded as the condition for the extra Floquet states to appear for the driving nonlinear model Eqs.(4,5) at high frequencies.So far,we have focused on self-focusing materials.Our approach and results will be very similar if one consid-ers instead self-defocusing materials,for which the sign before the nonlinear term in Eq.(1)should be plus.Non-linear coherent destruction of tunneling still occurs and the triangular structure also appears in the quasienergy levels but its direction is reversed as compared to the self-focusing case.At present the nonlinear waveguides are readily avail-able in labs[18,19,20].We take the experimental parameters in Ref.[19]to estimate our theoretical val-ues in Eqs.(4,5).The wavelength of the laser light is λ=1.55µm,the effective cross-sectional area of the waveguide isσeff=12µm2,the nonlinear index n2= 1.2×10−13cm2/W,and the shortest length for the light transfer from one waveguide to the other waveguide in the weak nonlinearity limit is L c≈2cm.With the power input in the waveguides P(0)∼100W,we haveχπλσeff≈2.(9) This shows that strong nonlinear waveguides are avail-able at optical labs and nonlinear coherent destruction of tunneling can be visualized in an optical experiment similar to the one in Ref.[10].We also want to mention briefly that NCDT may be applied to improve optical switching devices[19,20].The details will be discussed elsewhere.In conclusion,we have studied the light propagation in a nonlinear periodically-curved waveguide directional coupler.We have found a new type of suppression of tunneling in this system,which is induced by nonlinear-ity and has no linear counterpart.We call it nonlinear coherent destruction of tunneling(NCDT)in analogy to a similar but different phenomenon in linear driving sys-tems,coherent destruction of tunneling.The NCDT oc-curs for an extended range of ratio S/w,where S is the strength of the driving and w is its frequency.We have also found that the NCDT is closely related to a trian-gular structure appeared in the quasienergy levels of the nonlinear system.We have also pointed out that obser-vation of the novel nonlinear phenomenon is well within the capacity of current experiments.This work is supported by NSF of China(10504040), the973project of China(2005CB724500,2006CB921400), and the“BaiRen”program of Chinese Academy of Sci-ences.∗Electronic address:bwu@[1]M.Grifoni,and P.H¨a nggi,Phys.Rep.304,229(1998).[2]W.A.Lin and L.E.Ballentine,Phys.Rev.Lett.65,2927(1990).[3]A.Peres,Phys.Rev.Lett.67,158(1991).[4]I.Vorobeichik and N.Moiseyev,Phys.Rev.A,59,2511(1999).[5]F.Grossmann,T.Dittrich,P.Jung,and P.Hanggi,Phys.Rev.Lett.67,516(1991);Z.Phys.B84,315(1991). [6]F.Grossmann and P.Hanggi,Europhys.Lett.18,571(1992).[7]R.Bavli and H.Metiu,Phys.Rev.Lett.69,1986(1992).[8]M.Steinberg and U.Peskin,J.Appl.Phys.85,270(1999).[9]J.H.Shirley,Phys.Rev.138,B979(1965).[10]G.Della Valle,M.Ornigotti, E.Cianci,V.Fogli-etti,porta,and S.Longhi.e-print arXiv:quant-ph/0701121.[11]I.Vorobeichik,E.Narevicius,G.Rosenblum,M.Oren-stein,and N.Moiseyev,Phys.Rev.Lett.90,176806 (2003).[12]Guan-Fang Wang,Li-Bin Fu and Jie Liu,Phys.Rev.A73,013619(2006).[13]R.W.Micallef,Y.S.Kivshar,J.D.Love,D.Burak,andR.Binder,Opt.Quantum Electron.30,751(1998).[14]W.C.Henneberger,Phys.Rev.Lett.21,838(1968).[15]S.Longhi,Phys.Rev.A71,065801(2005).[16]R.Khomeriki,J.Leon,and S.Ruffo,Phys.Rev.Lett.97,143902(2006).[17]S.M.Jensen,IEEE J.Quantum Electron.QE-18,1580(1982).[18]H.S.Eisenberg,Y.Silberberg,R.Morandotti, A.R.Boyd,and J.S.Aitchison,Phys.Rev.Lett.81,3383 (1998).[19]K.Al-hemyari,A.Villeneuve,J.U.Kang,J.S.Aitchison,C.N.Ironside,G.I.Stegeman,Appl.Phys.Lett.63,3562(1993).[20]S.R.Friberg,Y.Silberberg,M.K.Oliver,M.J.Andrejco,M.A.Saifi,P.W.Smith,Appl.Phys.Lett.51,135(1987).[21]B.Wu and Q.Niu,Phys.Rev.A61,023402(2000).。
