CT1500 - CT1510CENTER TAP DIODESPRV : 50 - 1000 Volts Io : 30 AmperesFEATURES :* High case dielectric strength * High surge current capability * High reliability * High efficiency* Low reverse current* Low forward voltage drop * Pb / RoHS FreeMECHANICAL DATA :* Case : Molded plastic with heatsink integrally mounted in the bridge encapsulation * Epoxy : UL94V-O rate flame retardant * Terminals : plated .25" (6.35 mm). Faston * Polarity : Polarity symbols marked on case* Mounting position : Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency. * Weight : 16 gramsMAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICSRating at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.RATINGSYMBOL CT1500CT1501CT1502CT1504CT1506CT1508CT1510UNIT Maximum Recurrent Peak Reverse Voltage V RRM 501002004006008001000V Maximum RMS Voltage V RMS 3570140280420560700V Maximum DC Blocking VoltageV DC 501002004006008001000V Maximum Average Forward Current Tc = 55 °C I O 30A Peak Forward Surge Current Single half sine wave Superimposed on rated load (JEDEC Method)I FSM 400A Current Squared Time at t < 8.3 ms.I 2t 660A 2S Maximum Forward Voltage per Diode at I F =15 Amps.V F 1.1V Maximum DC Reverse Current Ta = 25 °C I R 10µA at Rated DC Blocking Voltage Ta = 100 °C I R(H)200µA Typical Thermal Resistance (Note 1)R θJC 1.4°C/W Operating Junction Temperature Range T J - 40 to + 150°C Storage Temperature RangeT STG- 40 to + 150°CNotes :1 ) Thermal resistance from Junction to Case with units mounted on a 9"x3.5"x4.6" (22.9x8.9x11.7 cm) Al-Finned Heatsink.Page 1 of 2Rev. 02 : March 24, 2005CT15Page 2 of 2Rev. 02 : March 24, 2005。

1)Valid if mounted on vertical cooling fin 150 cm 2 – Gültig bei Montage auf senkrecht stehendem Kühlblech 150 cm 2110.09.2002Silicon-Power-Z-Diodes Silizium-Leistungs-Z-Dioden (non-planar technology)(flächendiffundierte Dioden)Maximum power dissipation 12.5 W Maximale VerlustleistungNominal Z-voltage – Nominale Z-Spannung3.9…200 VMetal case – Metallgehäuse DO-4Weight approx. – Gewicht ca. 5.5 gStandard polarity:Cathode to stud / GewindeIndex R:Anode to stud / Gewinde (e.g. ZX ...R)Standard packaging: bulkStandard Lieferform: lose im KartonStandard Zener voltage tolerance is graded to the international E 24 (~5%) standard.Other voltage tolerances and higher Zener voltages on request.Die Toleranz der Zener-Spannung ist in der Standard-Ausführung gestuft nach der internationalen Reihe E 24 (~5%). Andere Toleranzen oder höhere Arbeitsspannungen auf Anfrage.Maximum ratingsGrenzwertePower dissipation without cooling fin T A = 25 /C P tot 1.6 W Verlustleistung ohne KühlblechPower dissipation with cooling fin 150 cm 2T A = 25 /C P tot 12.5 W Verlustleistung mit Kühlblech 150 cm 2Non repetitive peak power dissipation, t < 10 ms T A = 25 /CP ZSM100 W Einmalige Impuls-Verlustleistung, t < 10 ms Admissible torque for mounting on cooling fin 1 NmZulässiges AnzugsdrehmomentOperating junction temperature – Sperrschichttemperatur T j – 55…+150/C Storage temperature – Lagerungstemperatur T S – 55…+175/CThermal resistance junction to ambient airR thA < 80 K/W Wärmewiderstand Sperrschicht – umgebende Luft Thermal resistance junction to studR thC< 5 K/W 1)Wärmewiderstand Sperrschicht – SchraubeZener voltages see table on next page – Zener-Spannungen siehe Tabelle auf der nächsten Seite1)Tested with pulses – Gemessen mit Impulsen 2)Without cooling fin – Ohne Kühlblech 3)Valid if mounted on vertical cooling fin 150 cm 2 – Gülitg bei Montage auf senkrecht stehendem Kühlblech 150 cm 22Maximum ratingsGrenzwerteType TypZener voltage 1)Zener-Spanng.1)I Z = I ZtestV Zmin [V] V Zmax Test current Meßstrom I Ztest [mA]Dyn. resistance Diff. Widerst.I ztest / 1 kHz r zj [S ]Temp. Coeffiz.of Z-voltage …der Z-spanng."VZ [10-4//C]Reverse volt.Sperrspanng.I R = 100 nA V R [V]Max. Z-current Max. Z-Strom T A = 50/C I Z 2) [mA] I Z 3)ZX 3.9 3.7 4.1100 3.8 (<7)–7…+2–3402700ZX 4.3 4.0 4.6100 3.8 (<7)–7…+3–3052400ZX 4.7 4.4 5.0100 3 (<6)–7…+4–2802250ZX 5.1 4.8 5.4100 2 (<5)–6…+5–2602000ZX 5.6 5.2 6.0100 1 (<3)–3…+5> 1.52301800ZX 6.2 5.8 6.6100 1 (<2)–1…+6> 1.52101700ZX 6.8 6.47.2100 1 (<2)0…+7> 21951550ZX 7.57.07.9100 1 (<2)0…+7> 21751400ZX 8.27.78.7100 1 (<2)+3…+8> 3.51601250ZX 9.18.59.650 2 (<4)+3…+8> 3.51451150ZX 109.410.650 2 (<4)+5…+9> 51301050ZX 1110.411.650 3 (<6)+5…+10> 5120970ZX 1211.412.750 4 (<7)+5…+10> 7110880ZX 1312.414.150 5 (<9)+5…+10> 7100790ZX 1513.815.650 5 (<10)+5…+10> 1090720ZX 1615.317.125 6 (<12)+6…+11> 1082650ZX 1816.819.125 6 (<15)+6…+11> 1074580ZX 2018.821.225 6 (<15)+6…+11> 1066530ZX 2220.823.325 6 (<15)+6…+11> 1260480ZX 2422.825.6257 (<15)+6…+11> 1255430ZX 2725.128.9257 (<15)+6…+11> 1449380ZX 302832258 (<15)+6…+11> 1444350ZX 333135258 (<15)+6…+11> 1740320ZX 3634381016 (<30)+6…+11> 1737290ZX 3937411020 (<40)+6…+11> 2034270ZX 4340461024 (<40)+7…+12> 2031245ZX 4744501024 (<40)+7…+12> 2428225ZX 5148541025 (<60)+7…+12> 2426200ZX 5652601025 (<60)+7…+12> 2823185ZX 6258661025 (<80)+8…+13> 2821170ZX 6864721025 (<80)+8…+13> 3420155ZX 7570791030 (<100)+8…+13> 3418140ZX 8277881030 (<100)+8…+13> 4116125ZX 918596540 (<150)+9…+13> 4115115ZX 10094106560 (<150)+9…+13> 5013105ZX 110104116580 (<200)+9…+13> 501297ZX 120114127580 (<200)+9…+13> 601189ZX 130124141590 (<250)+9…+13> 601080ZX 1501381565100 (<250)+9…+13> 75972ZX 1601531715110 (<300)+9…+13> 75866ZX 1801681915120 (<350)+9…+13> 90759ZX 2001882125150 (<350)+9…+13> 90753。

260°C 217°C 200°C 150°C
Ramp-Up 3°C/Sec Max. Critical Temperature Zone Ramp-Down 6°C/Sec.
Crystek Part Number Guide
Example: C2592-44.736MHZ Example: CE2592-44.736MHZ Temperature
C25xx Model

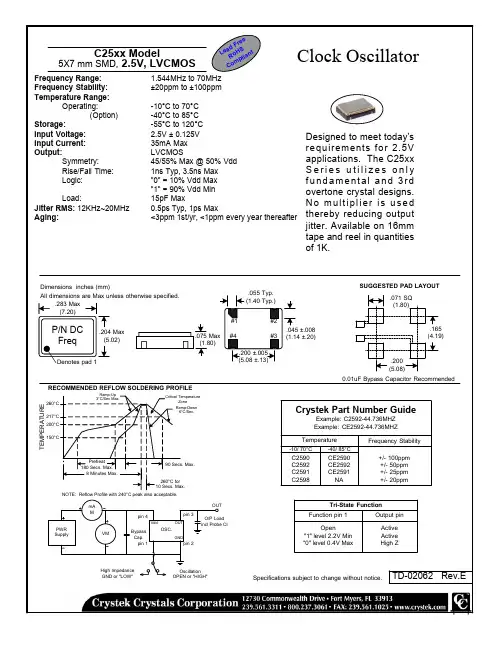

Clock Oscillator
1.544MHz to 70MHz ±20ppm to ±100ppm -10°C to 70°C -40°C to 85°C -55°C to 120°C 2.5V ± 0.125V 35mA Max LVCMOS 45/55% Max @ 50% Vdd 1ns Typ, 3.5ns Max "0" = 10% Vdd Max "1" = 90% Vdd Min 15pF Max 0.5ps Typ, 1ps Max <3ppm 1st/yr, <1ppm every year thereafter
P/N DC Freq
Denotes pad 1
.204 Max (5.02)
.075 Max (1.80)
#4
.200 (5.08) 0.01uF Bypass Capacitor Recommended
RECOMMENDED REFLOW SOLDERING PROFILE TEMPERATURE
Designed to meet today's requirements for 2.5V applications. The C25xx Series utilizes only fundamental and 3rd overtone crystal designs. No multiplier is used thereby reducing output jitter. Available on 16mm tape and reel in quantities of 1K.

元器件交易网
VRSM V 700 900 1300 1500 1700 VRRM VDRM V 600 800 1200 1400 1600 (dv/dt)cr IRMS (maximum values for continuous operation) (Tcase = 85 °C) V/µs 24 A1); 30 A2) 24 A1); 45 A2) 500 500 500 500 500 – SKKQ 31/08 SKKQ 31/12 SKKQ 31/14 SKKQ 31/16 SKKQ 45/06 SKKQ 45/08 SKKQ 45/12 SKKQ 45/14 SKKQ 45/16
SEMIPACK® 0 Twin Thyristor Modules
for a.c. controllers
SKKQ 31 SKKQ 45
Symbol Conditions IRMS ITRMS ITSM i t tgd tgr (di/dt)cr tq IH IL VT VT(TO) rT IDD; IRD VGT IGT VGD IGD Rthjc Rthch Tvj Tstg Visol M1 a w Case
Features • Heat transfer through aluminium oxide ceramic isolated metal baseplate • Hard soldered joints for high reliability • UL recognized, file no E 63 532 Typical Applications • AC motor starters • Temperature control (e. g. for ovens, chemical processes) • Professional light dimming (studios, theaters)
