Circular Math Review

  • 格式：docx
  • 大小：58.73 KB
  • 文档页数：8

1) A particularly scary roller coaster contains a loop-the-loop in which the car and rider are completely upside down. If the radius of the loop is with what minimum speed must the car traverse the loop so that the rider does not fall out while upside down at the top? Assume the rider is not strapped to the car. A) 11.4 m/s B) 12.5 m/s C) 10.1 m/s D) 14.9 m/s

2) A 1000-kg car is moving at 30 m/s around a horizontal unbanked curve whose diameter is 0.20 km. What is the magnitude of the friction force required to keep the car from sliding? A) 9000 N B) 9800 N C) 300 N D) 900 N E) 3000 N

3) The curved section of a horizontal highway is a circular unbanked arc of radius 740 m. If the coefficient of static friction between this roadway and typical tires is 0.40, what would be the maximum safe driving speed for this horizontal curved section of highway? A) 54 m/s B) 52 m/s C) 50 m/s D) 48 m/s E) 46 m/s

6) A jet plane flying 600 m/s experiences an acceleration of 4.0 g when pulling out of a circular dive. What is the radius of curvature of the circular part of the path in which the plane is flying? A) 640 m B) 1200 m C) 7100 m D) 9200 m

8) A Ferris wheel has radius 5.0 m and makes one revolution every 8.0 s with uniform rotation. A person who normally weighs 670 N is sitting on one of the benches attached at the rim of the wheel. What is the apparent weight (the normal force exerted on her by the bench) of the person as she passes through the highest point of her motion?

17) A 20-g bead is attached to a light 120-cm-long string as shown in the figure. This bead moves in a horizontal circle with a constant speed of 1.5 m/s. What is the tension in the string if the angle α is measured to be 25°?

A) 0.089 N B) 0.041 N C) 0.20 N D) 0.22 N E) 0.46 N 18) A 20-g bead is attached to a light 120 cm-long string as shown in the figure. If the angle α is measured to be 18°, what is the speed of the mass?

A) 0.55 m/s B) 2.0 m/s C) 3.8 m/s D) 1.3 m/s E) 1.1 m/s 32) As a 70-kg person stands at the seashore gazing at the tides (which are caused by the Moon), how large is the gravitational force on that person due to the Moon? The mass of the Moon is 7.35 × 1022 kg, the distance to the Moon is 3.82 × 108 m, and G = 6.67 × 10-11 N ∙ m2/kg2. A) 0.24 N B) 0.024 N C) 0.0024 N D) 0.00024 N 1) Answer: A 2) Answer: A 3) Answer: A 6) Answer: D 8) Answer: 460 N 17) Answer: D 18) Answer: E 32) Answer: C 33) A very dense 1500-kg point mass (A) and a dense 1200-kg point mass (B) are held in place 1.00 m apart on a frictionless table. A third point mass is placed between the other two at a point that is 20.0 cm from B along the line connecting A and B. When the third mass is suddenly released, find the magnitude and direction (toward A or toward B) of its initial acceleration. (G = 6.67 × 10-11 N ∙ m2/kg2)

44) Planet Z-34 has a mass equal to one-third that of Earth and a radius equal to one-third that of Earth. With g representing, as usual, the acceleration due to gravity at the surface of Earth, the acceleration due to gravity at the surface of Z-34 is A) g/3. B) 3g. C) 6g. D) g/9. E) 9g.

53) An object weighs 432 N on the surface of the earth. The earth has radius R. If the object is raised to a height of 3R above the earth's surface, what is its weight? A) 108 N B) 48.0 N C) 27.0 N D) 305 N E) 144 N

69) A satellite having orbital speed V orbits a planet of mass M. If the planet had half as much mass, the orbital speed of the satellite at the same distance from the center would be A) V. B) 2V. C) V. D) V/. E) V/2.

4) A satellite is in orbit around a planet. The orbital radius is 34.0 km and the gravitational acceleration at that height is 2.3 m/s2. What is the satellite's orbital speed? A) 280 m/s B) 8.8 m/s C) 28 m/s D) 88 m/s

5) A 23 kg mass is connected to a nail on a frictionless table by a (massless) string of length 1.3 m. If the tension in the string is 51 N while the mass moves in a uniform circle on the table, how long does it take for the mass to make one complete revolution? A) 4.8 s B) 3.8 s C) 4.5 s D) 5.2 s

6) A new roller coaster contains a loop-the-loop in which the car and rider are completely upside down. If the radius of the loop is 13.2 m, with what minimum speed must the car traverse the loop so that the rider does not fall out while upside down at the top? Assume the rider is not strapped to the car. A) 11.4 m/s B) 12.5 m/s C) 10.1 m/s D) 14.9 m/s

合集下载

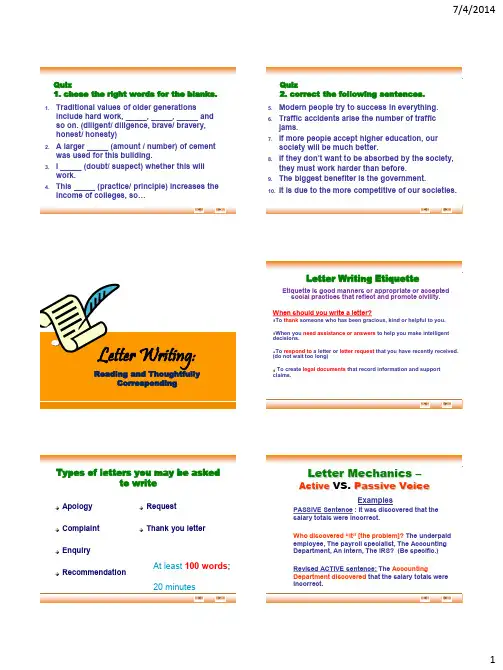

2. Letter writing (1)
