1N4748CG中文资料

  • 格式：pdf
  • 大小：34.92 KB
  • 文档页数：2

1N4728CG ~ 1N4764CG ZENER DIODES

V

Z : 3.3 to 100V

PD : 1.0 Watt

FEATURES :

• Silicon planar power zener diodes.

• For use in stabilizing and clipping circuits with high

power rating.

• Standard zener voltage tolerance is ± 2%

• Other tolerances are available upon request.

• Pb / RoHS Free

MECHANICAL DATA :

Case: DO-41 Glass Case

Weight: approx. 0.35g

Maximum Ratings and Thermal Characteristics

Rating at 25 °C ambient temperature unless otherwise specified.

SymbolValueUnit

Zener Current see Table "Characteristics"

Maximum Forward Voltage at IF = 200 mA.VF1.2V

Power DissipationPD1.0(1)W

Thermal Resistance Junction to Ambient AirRθJA100(1)K / W

Junction temperatureTJ175°C

Storage temperature rangeTS-55 to + 175°C

Note:

(1) Valid provided that leads at a distance of 3/8” from case are kept at ambient temperature.

Page 1 of 2Rev. 03 : March 25, 2005ParameterDO-41 Glass

(DO-204AL)

0.102(2.6 )max.

0.161 (4.1)max.

0.034 (0.86)max.

Dimensions in inches and ( millimeters )1.00 (25.4)min.

1.00 (25.4)min.Cathode Mark元器件交易网www.cecb2b.comELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified

Nominal ZenerMaximum ReverseMaximumMaximum

Voltage(3)Leakage CurrentRegulator CurrentSurge Current

VZ @ IZTIZTZZT @ IZTZZK @ IZKIZKIR @ VRIZM(2)IRM

(V)(mA)

(

Ω)(Ω)(mA)(µA)(V)(mA)(mA)

1N4728CG3.376.0104001.0 1001.02761380

1N4729CG3.669.0104001.01001.02521260

1N4730CG3.964.09.04001.0501.02341190

1N4731CG4.358.09.04001.0101.02171070

1N4732CG4.753.08.05001.0101.0193970

1N4733CG5.149.07.05501.0101.0178890

1N4734CG5.645.05.06001.0102.0162810

1N4735CG6.241.02.07001.0103.0146730

1N4736CG6.837.03.57001.0104.0133660

1N4737CG7.534.04.07000.5105.0121605

1N4738CG8.231.04.57000.5106.0110550

1N4739CG9.128.05.07000.5107.0100500

1N4740CG1025.07.07000.25107.691454

1N4741CG1123.08.07000.255.08.483414

1N4742CG1221.09.07000.255.09.176380

1N4743CG1319.0107000.255.09.969344

1N4744CG1517.0147000.255.011.461305

1N4745CG1615.5167000.255.012.257285

1N4746CG1814.0207500.255.013.750250

1N4747CG2012.5227500.255.015.245225

1N4748CG2211.5237500.255.016.741205

1N4749CG2410.5257500.255.018.238190

1N4750CG279.5357500.255.020.634170

1N4751CG308.54010000.255.022.830150

1N4752CG337.54510000.255.025.127135

1N4753CG367.05010000.255.027.425125

1N4754CG396.56010000.255.029.723115

1N4755CG436.07015000.255.032.722110

1N4756CG475.58015000.255.035.81995

1N4757CG515.09515000.255.038.81890

1N4758CG564.511020000.255.042.61680

1N4759CG624.012520000.255.047.11470

1N4760CG683.715020000.255.051.71365

1N4761CG753.317520000.255.056.01260

1N4762CG823.020030000.255.062.21155

1N4763CG912.825030000.255.069.21050

1N4764CG1002.535030000.255.076.09.045

Notes:

(1) The Zener impedance is derived from the 1kHZ AC voltage which results when an AC current having an RMS value equal to 10% of the Zener current (IZT or IZK) is superimposed on IZT or IZK. Zener impedance is measured at two points to insure a sharp knee on the breakdown curve and to eliminate unstable units(2) Valid provided that electrodes at a distance of 10mm from case are kept at ambient temperature(3) Measured under thermal equilibrium and DC test conditions.(4) Suffix "C" for ± 2% tolerance. Add suffix “A” for ± 5% tolerance. Other Zener voltages and tolerances are available upon request.

Page 2 of 2Rev. 03 : March 25, 2005Type No.Maximum Zener Impedance(1)元器件交易网www.cecb2b.com

合集下载

1N5148中文资料

1N5148中文资料

P.O. BOX 609 • ROCKPORT, MAINE 04856 • 207-236-6076 • FAX 207-236-9558 GENERAL PURPOSE ABRUPT VARACTOR DIODES 1N5139 - 1N5148 1N5139A - 1N5148A PART CAPACITANCE @ 4 Vdc CAPACITANCE RATIO MIN QUALITY FACTOR NUMBER pF C•4V / C•60V Q @ 4 Vdc MIN NOM MAX MIN f = 50 MHz 1N5139 6.12 6.8 7.48 2.7 350 ♦ 1N5139A 6.46 6.8 7.14 2.7 350 1N5140 9.0 10.0 11.0 2.8 300 ♦ 1N5140A 9.5 10.0 10.5 2.8 300 1N5141 10.8 12.0 13.2 2.8 300 ♦ 1N5141A 11.4 12.0 12.6 2.8 300 1N5142 13.5 15.0 16.5 2.8 250 ♦ 1N5142A 14.3 15.0 15.7 2.8 250 1N5143 16.2 18.0 19.8 2.8 250 ♦ 1N5143A 17.1 18.0 18.9 2.8 250 1N5144 19.8 22.0 24.2 3.2 200 ♦ 1N5144A 20.9 22.0 23.1 3.2 200 1N5145 24.3 27.0 29.7 3.2 200 ♦ 1N5145A 25.7 27.0 28.3 3.2 200 1N5146 29.7 33.0 36.3 3.2 200 ♦ 1N5146A 31.4 33.0 34.6 3.2 200 1N5147 36.1 39.0 42.9 3.2 200 ♦ 1N5147A 37.1 39.0 40.9 3.2 200 1N5148 42.3 47.0 51.7 3.2 200 ♦ 1N5148A 44.7 47.0 49.3 3.2 200 Package Style DO-7 DC Power Dissipation (Pd) 400 mW Forward Current (If) 250 mA Min Reverse Breakdown Voltage (Bvr) @ Ir = 10 µAdc 65 Vdc Max Reverse Current (IR) @ Vr = 55 Vdc 20 nAdc Max Reverse Current (IR2) @ Vr = 55 Vdc; Ta = 150°C 20 µAdc Temp Coefficient of Capacitance @ Vr=4 Vdc; Ta -40 to +85°C .03%/°C Operating Temperature Range (Topr) -65 to + 175°C Storage Temperature Range (Tstg) -65 to + 200°C Voltage Tolerance: Standard Device ±10% Suffix A ± 5% ♦ DENOTES MILITARY APPROVAL FOR JAN - JANTX - JANTXV 元器件交易网

1N5338B中文资料

1N5338B中文资料

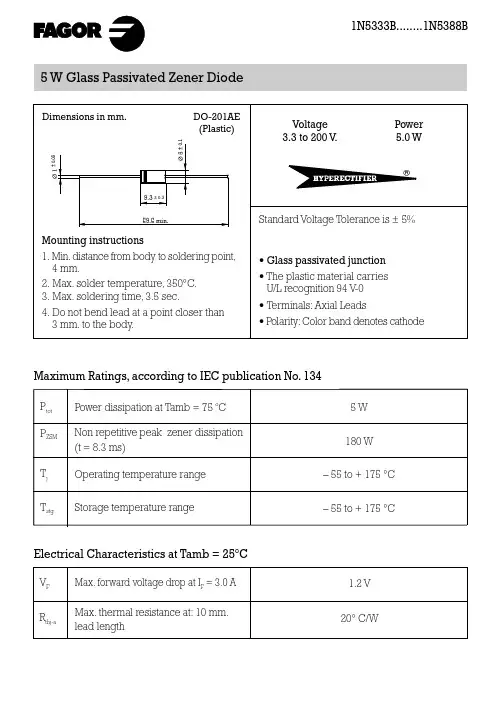

1N5333B........1N5388B
