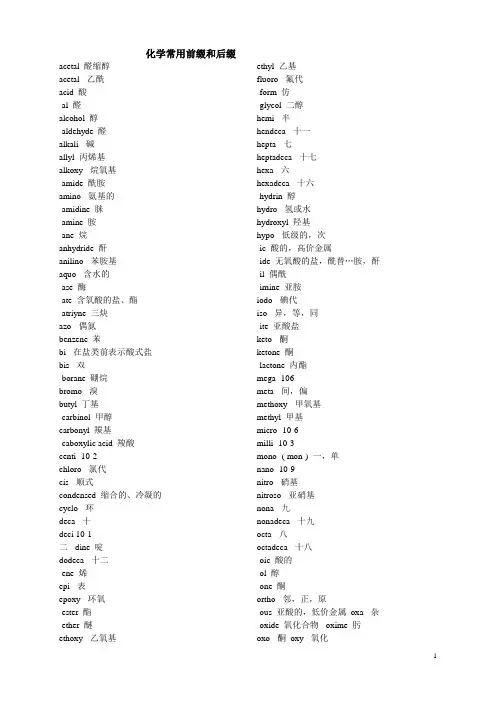

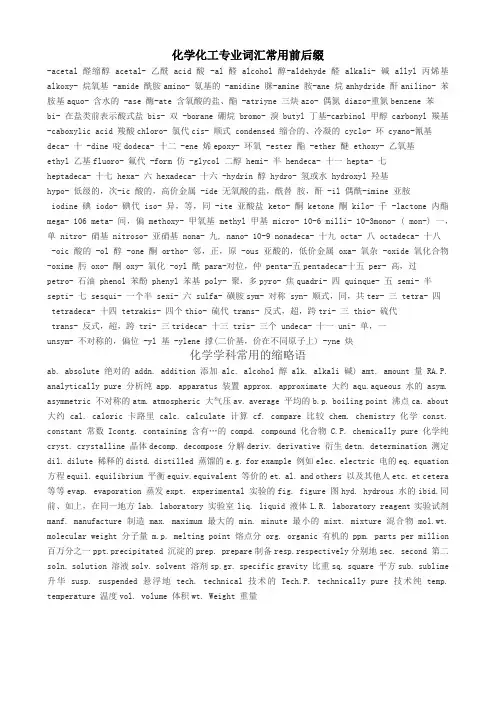

有机化学专业英语词汇常用前后缀
acetal ??? 醛缩醇-ene 烯
acetal- ??? 乙酰epi- 表
acid ?? ?? 酸epoxy- 环氧
-al ?? ?? 醛-ester 酯alcohol 醇-ether 醚
-aldehyde 醛ethoxy- 乙氧基alkali- 碱ethyl 乙基
allyl 烯丙基 [propenyl( 丙烯基 )]
alkoxy- 烷氧基fluoro- 氟代
-amide 酰胺form 仿
amino- 氨基的
-amidine 脒-glycol 二醇
-amine 胺
-ane 烷hemi- 半anhydride 酐hendeca- 十一anilino- 苯胺基hepta- 七
aquo- 含水的heptadeca- 十七-ase 酶hexa- 六
-ate 含氧酸的盐、酯hexadeca- 十六-atriyne 三炔-hydrin 醇
azo- 偶氮hydro- 氢或水
hydroxyl 羟基
benzene 苯
bi-在盐类前表示酸式盐bis-双
-borane硼烷
bromo- 溴
butyl丁基
-carbinol甲醇carbonyl羰基
-carboxylic acid羧酸
-2
chloro-氯代hypo- 低级的,次
hyper-高级的,高
-ic酸的,高价金属
-ide无氧酸的盐,酰替胺,酐-il偶酰
-imine亚胺
iodine碘
iodo-碘代
iso-异,等,同
-ite亚酸盐
cis- 顺式keto- 酮condensed 缩合的、冷凝的ketone 酮
cyclo- 环
-lactone 内酯deca- 十
deci 10 -1 mega- 106
-dine 啶meta- 间,偏dodeca- 十二methoxy- 甲氧基
methyl 甲基
micro- 10 -6
-3
milli- 10
mono- ( mon-)一,单
-9
nano- 10
nitro-硝基
nitroso-亚硝基nona- 九
octa-八
octadeca-十八
-oic酸的
-ol醇
-one 酮
ortho-邻,正,原
-ous亚酸的,低价金属oxa-氧杂
-oxide氧化合物
-oxime肟
oxo-酮
oxy-氧化
-oyl酰
para-对位,仲
penta-五
pentadeca-十五
per-高,过
petro-石油
phenol苯酚
phenyl苯基
-12
pico- 10
poly-聚,多
quadri-四
quinque-五
semi-半
septi-七
sesqui一个半
sulfa-磺胺
sym- 对称
syn-顺式,同,共ter-三
tetra-四
tetradeca-十四
tetrakis-四个
thio-硫代
trans-反式,超,跨
thio-硫代
tri-三
trideca-十三
tris-三个
undeca- 十一
uni-单,一
unsym- 不对称的,偏位
-yl基
-ylene撑(二价基,价在不同原子上) -yne 炔
organic compounds 有机化合物compounds of carbon 碳化合物hydrocarbons and their derivatives
碳氢化合物及其衍生物
organic chemistry 有机化学structure of molecule 分子结构chemical? bond 化学键
covalent bond 共价键
hybrid orbital 杂化轨道
bond length 键长
bond angle 键角
bond energy 键能
polarity 极性
dissociation energy 离解能constitution 构造
contiguration 构型
conformation 构象
stereochemistry立体化学tetrahedral正四面体
cis- 顺
trans- 反
isomerism 同分异构现象
isomer 异构体
stereoisomer立体异构
constitutional isomer 构造异构Common ring 普通环
structural formula 结构式Medium rimg 中环
octet 八隅体Large ring 大环
perspective 透视式Bridged-ring system 桥环体系eclipsed conformation 重叠式构象Spiro compound 螺环化合物staggered conformation 交叉式构象Helical molecule 螺旋型分子newman projection 纽曼投影式Octahedral compound 八面体化合物functional group 官能团Conjugation 共轭
chain compoud 链状化合物Conjugated-system 共轭体系carbocyclic compound 碳环化合物Acyl cation 酰[ 基] 正离子heterocyclic compound 杂环化合物Benzylic cation 苄[ 基] 正离子dipole-dipole interactions 偶极 - Arenirm ion 芳[ 基] 正离子
偶极相互作用Ketyl radical 羰自由基
van der Waals forces 范德华力Radical ion 自由基离子
hydrogen bonding 氢键Radical cation 自由基正离子dipole moment 偶极矩Radical anion 自由基负离子electronegativity 电负性Isomerism 异构[ 现象 ]
physical property 物理性质Aci form 酸式
melting point 熔点Fluxional structure 循变结构boiling point 沸点Stereochemistry 立体化学reaction mechanism 反应机理Optical activity 光学活性homolysis 均裂Dextro isomer 右旋异构体
free redical 自由基Laevo isomer 左旋异构体heterolysis 异裂Tetrahedral configuration 四面体ionic type 离子型构型
electrophilic reagent 亲电试剂Stereoisomerism 立体异构 [ 现象 ] electrophilic reaction 亲电反应Asymmetric atom 不对称原子nucleophilic reagent 亲核试剂Asymmetric carbon 不对称碳nucleophilic reaction 亲核反应Pseudoasymmetric carbon 假不对称英文名汉文名碳
Angular methyl group 角甲基Phantom atom 虚拟原子
Alkylidene group 亚烷基Homotopic 等位[ 的]
Allyl group 烯丙基Heterotopic 异位[的]
Allylic烯丙型[的] Enantiotopic 对映异位 [ 的] Phenyl group 苯基Diastereotopic 非对映异位 [ 的] Aryl group 芳基Configuration 构型
Benzyl group 苄基Absolute configuration 绝对构型Benzylic 苄型 [ 的] Chirality 手性
Activating group 活化基团Chiral 手性 [ 的]
Chromophore 生色团Chiral center 手性中心Auxochrome 助色团Chiral molecule 手性分子Magnetically anisotropic group 磁Achiral 非手性 [ 的]
各向异性基团Fischer projection 费歇尔投影式Smally ring 小环Neoman projection 纽曼投影式
D-L system of nomenclature D-L 命名体系
R-S syytem of nomenclature R-S 命名体系
Cahn-Ingold-Prelon sequence 顺序规则
Symmetry factor 对称因素
Plane of symmetry 对称面
Mirror symmetry 镜面对称Enantiomer 对映[ 异构] 体Diastereomer 非对映[异构] 体Epimer 差向异构体
Anomer 端基 [ 差向 ] 异构体
Erythro configuration 赤型构型Erythro isomer 赤型异构体
Threo configuration 苏型构型Threo isomer 苏型异构体
Trigonal carbon 三角型碳
Cis-trans isomerism 顺反异构
E isomer E 异构体
Z isomer Z 异构体
Endo isomer 内型异构体
Exo isomer 外型异构体
Prochirality 前手性
Pro-R group 前 R基团
Pro-S proup 前 S基团
Re face Re 面
Si face Si 面
Racemic mixture 外消旋混合物Racemic compound 外消旋化合物Racemic solid solution 外消旋固体溶液
Meso compound 内消旋化合物
Quasi recemate准外消旋体Conformation构象
Conformational构象分析
Torsion angle扭转角
Rotamer 旋转异构体
Anti conformation反式构象Bisecting conformation等分构象Anti periplanar conformation 反叠构象
Synperiplanar conformation 顺叠构象Synclinal conformation 反错构象Synclinal conformation 顺错构象Eclipsed conformation 重叠构象Gauche conformation, skew
con-formation 邻位交叉构象Staggered conformation 对位交叉构象
Steric effect 空间效应
Steric hindrance 位阻
Atropismer 阻转异构体
Puckered ring 折叠环Conformational inversion 构象反转Chair conformation 椅型构象
Boat conformation 船型构象
Twist conformation 扭型构象
Skew boat conformation 扭船型构象Half-chair conformation 半椅型构象
Pseudorotation 假旋转
Envelope conformation 信封[ 型] 构象
Axial bond 直 [ 立 ] 键
Equatorial bond 平[伏]键
Cisoid conformation 顺向构象Transoid conformation 反向构象Retention of configuration 构型保持
Regioselectivity 区域选择性Regiospecificity 区域专一性Stereocelectivity 立体选择性Stereospecificty 立体专一性Conformer 构象异构体Conformational effect 构象效应Cram’s rube 克拉姆规则
Prelog ’rule 普雷洛格规则Stereochemical orientation 立体[ 化学] 取向
Conformational transmission构象传递
Homolog 同系物
Ipso position本位
Ortho position邻位
Meta position间位
Para position对位
Amphi position 远位
Peri position 近位
Trigonal hybridization 三角杂化Molecular orbiral method 分子轨道法
Valence bond method 价键法Delocalezed bond 离域键
Cross conjugation 交叉共轭Vinylog 插烯物
Mesomeric effect 中介效应Resonance 共振
Resonance effect 共振效应Hyperconjugation 超共轭
Isovalent hyperconjugation 等价超共轭
No-bond resonance 无键共振Aromaticity 芳香性
Aromatic sexter 芳香六隅
Huckel ’ rule 休克尔规则Paramagnetic ring current 顺磁环电流
Diamagnetic ring cruuent 抗磁环电流
Homoaromaticity 同芳香性Antiaromaticity 反芳香性Alternant hydrocarbon 交替烃
Non-alternant hydrocarbon 非交替烷
Pericyclic reaction 周环反应Electrocyclic rearrangement 电环[化]重排
Conrotatory 顺旋
Disroatatory 对旋
Cycloaddition 环加成
Symmetry forbidden-reaction 对称禁阻反应
Synfacial reaction 同面反应Antarafacial reaction 异面反应Mobius system 默比乌斯体系
Leois structure 路易斯结构Coordinate-covalent bond 配位共价键
Banana bond 香蕉键Pauling electronegativity
scale 鲍林电负性标度
Polarizability 可极化性
Inductive effect 诱导效应
Field effect 场效应
Electrical effect 电场效应tautomerism 互变异构Tautomerization 互变异构化
Keto-enol tautomerism 酮 - 烯醇互变异构
Phenol-keto tautomerism 酚- 酮互变异构
Imine-enamine atutomerism 亚胺-烯胺互变异构
Ring-chain tautomerism 环- 链互变异构
Valence tautomerism 价互变异构Ambident 两可 [ 的 ]
Solvent effect 溶剂效应
Acid-base catalyxed reaction 酸性溶剂
Basic solvent 碱性溶剂
Dielectric constant 介电常数Solvated electron 溶剂化电子
Acid-base catalyzed reaction 酸碱催化反应
Conjugate base 共轭酸
Conjugate base 共轭碱
Therm odynamic acidity热力学酸度Kinetic acidity 动力学酸度 Electron donof-acceptor
complex,EDAcomplex 电子给 [ 体] 受体络合物
Host 主体
Guest 客体
Primary isotope effect 一级同位素效应
Secondary isotope effect 二级同位数效应
Inverse isotope effect 逆同位素效应
Kinetic control动力学控制Thermodynamic control 热力学控制Substrate 底物
Intermediate 中间体Nucleophile-assisted
Reactive intermediate 活泼中间体unimolecu-lar electrophilic Microscopic reversibility 微观可substitution 亲核体协助单分子亲逆性电取代
Hammond postulate 哈蒙德假说Unimolecular elimination 单分子消Linear free energy 线性自由能除
Non-bonded interaction 非键相互作Bimolecular elimination 双分子消用除
Torsional effect 扭转效应Unimolecular elimination through Pitzer strain 皮策张力the conjugate base 单分子共轭碱消Restricted rotation 阻碍旋转除
Eclipsing effect 重叠效应Bimolecular elimination through Eclipsing strain 重叠张力the conjugate base 双分子共轭碱消Small-angle strain 小角张力除
Large angle strain 大角张力Bimolecular elimination with Transannular interaction 跨环相互for-mation of a carbonyl group 双作用分子羰基形成消除
Transannular strain 跨环张力Unimolecular acid-catalyzed
I strain 内张力acyl-oxygen cleavage 单分子酸催化F strain 前张力酰氧断裂
B strain 后张力Bimolecular base-catalyzed Anomeric effect 端基异构效应acyl-oxygen cleavage 双分子碱催化Walden inversion 瓦尔登反转酰氧断裂
Racemization 外消旋化Unimolecular acid-catalyzed Isoinversion 等反转alkyl-oxygen cleavage 单分子酸催Isoracemization 等消旋化烷氧断裂
Homochiral 纯手性 [ 的] Bimllecular base-catalyzed al- Mechanism 机理kyl-oxygen cleavage 双分子碱催化Unimolecular nucleophilic 单分子烷氧断裂
亲核取代π-allyl complex mechanism π烯丙Bimolecular nucleophilic 型络合机理
sub-stitution 双分子亲核取代Borderline mechanism 边理机理Bimolecular nucleophilic Homolysis 均裂
substi-tution(with allylic Heterolysis 异裂
rearrange-ment) 双分子亲核取代Heterolytic michanism 异裂机理(含烯丙型重排)Counrer[gegen]ion 反荷离子Internal nucleophilic Ion pair 离子对
substiru-tion 分子内亲核取代Carbocation 碳正离子
Aromatic nucleophilic Nonclassical carbocation 非经典碳substitu-tion 芳香亲核取代正离子
Unimolecular electrophilic Carbanion 碳负离子
sub-stitution 单分子亲电取代Masked carbanion 掩蔽碳负离子Bimolecular electrophilic Carbenoid 卡宾体
substi-tution 双分子亲电取代Carbene 卡宾
Nitrene 氮宾Neighboring group participation Carbine 碳炔邻基基参与
Electrophilic addition 亲电加成Neighboring proup
Electrophile 亲电体assistance,anchimeric assistance Diaxial addition 双直键加成邻助作用
Markovnikov ’s rube 马尔科夫尼科Neighboring group effect 邻基效应规则Apofacial reaction 反面反应
Anti-Markovnikov addition 反马氏Briddgehead displacement 桥头取代加成Aryl action 芳正离子
Michael addition迈克尔加成Benzyne 苯炔
Substitution 取代Zaitsev rule 札依采夫规则Electrophilic substitution 亲电取Anti-Zaitsev orientation 反札依采代夫定向
Addition-elimination mechanism加Hofmann’s rule 霍夫曼规则
成消除机理
Electrophilic aromatic
substitu-tion 亲电芳香取代Electron transfer 电子转移Electron-donating group 给电子基团
Electron-Withdrawing group 吸电子基团
Deactivating group 钝化基团Orinentation 取向
Ortho-para directing group 邻对位定位基
Meta directing group 间位定位基Ortho effect 邻位效应
Partial rate factor 分速度系数Nucleophilic reaction 亲核反应Internal return 内返Nucleophilicity 亲核体Nucleophilicity 亲核性
α-effect α- 效应
Backside attack背面进攻
Inversion反转
Umbrella effect伞效应
Push-pull effect推拉效应
Leaving group离去基团Electrofuge离电体
Nucleofuge离核体
Phase-transfer catalysis相转移催化Bredt rule布雷特规则
Initiation引发
Anionic cleavage负离子裂解Partial bond fixation键[的]部分固定化
02. 3 有机化学反应
Alkylation烷基化
C- alkylation C-烷基化
O- alkylation O-烷基化
N-alkylation N-烷基化
Silylation硅烷[ 基] 化
Exhaustive methylation彻底甲基化Seco alkylation断裂烷基化Demethylation脱甲基化
Ethylation乙基化
Arylation芳基化
Acylation酰化
Formylation甲酰化Carbalkoxylation烷氧羰基化Carboamidation氨羰基化Carboxylation羧基化
Amination氨基化
Bisamination双氨基化
Cine substitution移位取代Transamination 氨基交换Hydroxylation 羟基化
acyloxyation 酰氧基化Decarboxylative nitration脱羧卤化
Allylic halogenation烯丙型卤化
Dehalogenation脱卤
Nitration硝化
Decarboxylative nitration脱羧硝化
Nitrosation亚硝化
Sulfonation磺化Chlorosulfonation氯磺酰化Desulfonation脱磺酸基Sulfenylation亚磺酰化Sulfonylation磺酰化Chlorosulfenation氯亚磺酰化Chlorocarbonylation氯羰基化Diazotization重氮化
Diazo transfer重氮基转移Coupling reaction偶联反应Diazonium coupling重氮偶联Cross-coupling reaction交叉偶联反应
1,4-addition 1,4-加成Conjugate addition共轭加成Dimerization二聚
Trimefization三聚
Additive dimerization加成二聚sulfurization硫化
Selenylation硒化
Hydroboration硼氢化Oxyamination羟氨基化
Insertion插入
carbonylation羧基化Hydroformylation加氢甲酰基化Hydroacylation加氢酰化
Oxo process羰基合成Decarbonylation脱羰Hydrocarboxylation氢羧基化Homologization 同系化Cyanoethylation 氰乙基化Decyanoethylation 脱氰乙基
Ring clsure 环合
Diene synthesis 双烯合成Dienophile 亲双烯体
Endo addition 内型加成
Exo addition 外型加成
Diels-Alder reaction 第尔斯 - 尔德反应Retro Diels-Alder reaction逆第尔斯- 阿尔德反应
Ene synthesis 单烯合成
Anionic cycloaddition 负离子环加成
Dipolar addition 偶极加成
- elimination - 消除
- elimination - 消除
- elimination - 消除
-elimination - 消除Dehydrohalogenation 脱卤化氢Deamination 脱氨基
Pyrolytic elimination 热解消除Elimination-addition消除-加成Decarboxylation 脱羧Decarboxamidation 脱酰胺Decyanation 脱氰基
Alkylolysis,alkyl cleavage 烷基裂解
Acylolysis,acyl cleavage 酰基裂解Flash pyrolysis 闪热裂Fragmentation 碎裂
Chiletropic reaction 螯键反应Chelation 螯环化
Esterification 酯化Transesterification酯交换Saponification皂化
Alcoholysis醇解
Ethanolysis乙醇解Cyanomethylation氰甲基化Aminomethylation氨甲基化Hydroxymethylation羟甲基化Hydroxyalkylation羟烷基化Cholromethylation氯甲基化Haloalkylation卤烷基化Transacetalation缩醛交换Enolization烯醇化
Haloform reaction卤仿反应Condensation缩合
Aldol condensation羟醛缩合
Cross aldol condensation 交叉羟醛缩合
Retrograde aldol condensation 逆羟醛缩合
Acyloin condensation 偶姻缩合Cyclization 环化
Annulation,annelation增环反应Spiroannulation螺增环Autoxidation自氧化
Allylic hydroperoxylation 烯丙型氢过氧化
Epoxidation 环氧化
Oxonolysis 臭氧解Electrochemical oxidation 电化学氧化
Oxidative decarboxylation 氧化脱羧
Aromatization 芳构化
Catalytic hydrogenation 催化氢化Heterogeneous hydrogenation 多相氢化
Homogeneous hydrogenation 均相氢化
Catalytic dehydrogenation 催化脱氢
Transfer hydrogenation 转移氢化Hydrogenolysis 氢解
Dissolving metal reduction 溶解金属还原
Single electron transfer 单电子转移
Bimolecular reduction 双分子还原Electrochemical reduction 电化学还原
Reductive alkylation 还原烷基化Reductive acylation 还原酰化Reductive dimerization 还原二聚Deoxygenation 脱氧Desulfurization 脱硫Deselenization 脱硒
Mitallation金属化
Lithiation锂化
Hydrometallation氢金属化Mercuration汞化
Oxymercuration羟汞化Aminomercuration氨汞化Abstraction 夺取[反应]
Internal abstraction内夺取[反应] Rearrangement 重排
Prototropic rearrangement 质了转移重排
Double bond migration 双键移位Allylic migration 烯丙型重排Allylic migration 烯丙型迁移Ring contraction 环缩小 [ 反应] Ring expansion,ring enlargement
扩环[反应]
-ketol rearrangement - 酮醇重排Pinacol rearrangement 频哪醇重排Retropinacol rearrangement逆频哪醇重排
Semipinacol rearrangement半频哪醇重排
Benzilic rearrangement二苯乙醇酸重排
Acyl rearrangement 酰基重排Migratory aptitude 迁移倾向Transannular insertion 跨环插入Transannular rearrangement 跨环重排
Migration 迁移
Prototropy 质子转移
Cationotropic rearrangement 正离子转移重排
Anionotropy 负离子转移Anionotropic rearrangement 负离子转移重排
Sigmatropic rearrangement - 迁移重排
Homosigmatropic rearrangement 同迁移重排
Electrophilic rearrangement亲电重排
Photosensitization光敏化Forbidden transition禁阻跃迁photooxidation 光氧化Photoisomerization 光异构化Photochemical rearrangement 光化学重排
2.4 有机化合物类名
Aliphatic compound 脂肪族化合物Hpdrocarbon 碳氢化合物
Alkane 烷Oxime 肟
Wax 蜡Aldimine 醛肟
Paraffin wax 石蜡Oxime 亚硝基化合物
Alkene 烯aldoxime 硝酮
Alkyen 炔Hydrazone 腙
Acetylide 炔化物Azine 嗪
Active hydrogen compounds 活泼氢Semicarbazone 缩氯基脲
化合物Cyanohydrin 羟腈
Carbon acid 碳氢酸Pinacol 频哪醇
Super acid 超酸Enol 烯醇
Diene 双烯Enol ether 烯醇醚
Triene 三烯Enol ester 烯醇酯
Allene 丙二烯Enamine 烯胺
Ccumulene 累积多烯Ynamine 炔胺
Enyne 烯炔Mannich base 曼尼希碱
Diyne 二炔Carboxylic acid 羧酸
Alkyl halide 卤代烷Ester 酯
Alcohol 醇orthoester 原酸酯
Homoallylic alcohol高烯丙醇Acyl halide 酰卤
Ether 醚Acyl fluoride 酰氟
Epoxide 环氧化物Acyl chloride 酰氯
Cellosolve 溶纤剂Acyl rtomide 酰溴
Crown ether 冠醚Acyl iodide 酰碘
Netro compound 硝基化合物Carbobenzoxy chloride 苄氧甲酰氯Amine 胺Acyl tosylate 酰基对甲苯磺酸酐Quaternaryammonium com-pound 季铵Ketene 乙烯酮
化合物Peracid 过酸
Amine oxide 氧化胺Perester 过酸酯
Diazoalkane 重氮烷Acyl peroxide 酰基过氧化物Mercaptan 硫醇Nitrile 腈
Sulfonic acid 磺酸Nitrile oxide 氧化腈
Sulfoxide 亚砜Isonitrile 异腈
Sulfone 砜Amide 酰胺
Aldehyde 醛Imide 二酰亚胺
Detone 酮N-bromo compound N-溴化物Aldehyde hydrate 醛水合物Hydrazide 酰肼
Ketone hydrate 酮水合物Acyl azide 酰叠氮
Hemiacetal 半缩醛Amidine 脒
Acetal 缩醛Keto ester 酮酸酯
Ketal 缩酮Acyl cyanide 酰腈
Dithiane 二噻烷Carbon suboxide 二氧化三碳Aminal 缩醛胺Glycidic acid 环氧丙酸
imine 亚胺Carbammic acid 氨基甲酸Aldimine 醛亚胺Carbamate 氨基甲酸酯
Urea 脲
Cyanamide 氨腈
Carbodiimide碳二亚胺Allophanate 脲基甲酸酯Thioester 硫代酸酯
Thiol acid 硫羰酸
Lactone 内酯
Lactol 内半缩醛
Macrolide 大环内酯
Amino acid 氨基酸
Zwitterions 两性离子
Inner salt 内盐
Betaine 甜菜碱
Lactam 内酰胺
Hydantion 乙内酰脲
Peptide 肽
Glycol 二醇
Aldol 羟醛
Acyloin 偶姻
Carbohydrate碳水化合物Aldose 醛糖
Ketose 酮糖
Furanose 呋喃糖
Pyranose 吡喃糖
Glycoside糖苷
Glucoside葡[萄]糖苷
Aglycon苷元
Saccharide糖类Oligosaccharide寡糖Polysaccharide多糖
Alditol糖醇
Osazone 脎
Alicyclic compound脂环化合物Cycloalkene环烷
Spirane环烯
Cage compound 螺烷Propellane笼型化合物Rotazane 螺桨烷
Catenane 轮烷
Rused ring索烃
表2-1 中英文对照
CC
表8-1 中英文对照 常用玻璃仪器英文表示 adapter 接液管广口瓶air condenser 空气冷凝管beaker 烧杯boiling flask 烧瓶 boiling flask-3-neck 三口烧瓶burette clamp 滴定管夹 burette stand 滴定架台Busher funnel 布氏漏斗Claisen distilling head 减压蒸馏头 condenser-Allihn type 球型冷凝管 condenser-west tube 直型冷凝管
crucible tongs 坩埚钳 crucible with cover 带盖的坩埚distilling head 蒸馏头 distilling tube 蒸馏管 Erlenmeyer flask 锥型瓶evaporating dish (porcelain) 瓷蒸发皿filter flask(suction flask) 抽滤瓶florence flask 平底烧瓶fractionating column 分馏柱 Geiser burette (stopcock) 酸氏滴定管graduated cylinder 量筒 Hirsch funnel 赫氏漏斗 long-stem funnel 长颈漏斗medicine dropper 滴管 Mohr burette for use with pinchcock 碱氏滴定管 Mohr measuring pipette 量液管mortar 研钵 pestle 研杵 pinch clamp 弹簧节流夹 plastic squeeze bottle 塑料洗瓶reducing bush 大变小转换接头rubber pipette bulb 吸耳球 screw clamp 螺旋夹 separatory funnel 分液漏斗stemless funnel 无颈漏斗 test tube holder 试管夹 test tube 试管 Thiele melting point tube 提勒熔点管transfer pipette 移液管 tripod 三角架 volumetric flask 容量瓶 watch glass 表皿 wide-mouth bottle 广口瓶 【分享】有机物英语单词后缀表 有机物英语单词后缀表 -acetal 缩醇 acid 酸 -al 醛 alcohol 醇 -aldehyde 醛 -aldechydic acid 醛酸
下列缩略语用于构造级联数据名,例如,“ChNum”由两个缩略语“Ch”和“Num”级联构成,“Ch”表示“通道”,“Num”意思为“编号”。因而,这两个缩略语级联构成的数据名“ChNum”表示“通道编号”含义。 A 电流Current Acs 访问Access ACSI 抽象通信服务接口Abstract Communication Service Interface Acu 噪声Acoustic Age 时效、老化、冷却Ageing Alm 告警Alarm Amp 相别无关电流Current non phase related An 模拟Analogue Ang 角度Angle Auth 授权、权限Authorisation Auto 自动的Automatic Aux 辅助设备Auxiliary Av 平均Average B 套管Bushing Bat 电池Battery Beh 特性、行为Behaviour Bin 二进制Binary Blk 闭锁,被闭锁Block, Blocked Bnd 频带Band Bo 底部Bottom Cap 能力Capability Capac 电容Capacitance Car 载波Carrier CB 断路器Circuit Breaker CDC 公用数据类Common Data Class CE 冷却设备Cooling Equipment Cf 峰值系数Crest factor Cfg 配置、结构Configuration CG 铁芯接地Core Ground Ch 通道Channel Cha 充电器Charger Chg 变化Change Chk 校验、检验Check Chr 特点Characteristic Cir 环流Circulating Clc 计算Caculate Clk 时钟、顺时针方向Clock、clockwise Cls 关闭、合闸Close Cnt 计数Counter Col 线圈Coil Cor 校正Correction
电气工程常用专业英语词汇表 电气工程常用专业英语词汇表 电路基础 ideal voltage (current) source 理想电压(流)源volt-ampere characteristic 伏安特性potential difference 电位差 reference potential 参考电位resistance 电阻capacitance 电容 inductance 电感 reactance 电抗 inductive(capacitive) reactance 感(容)抗impedance 阻抗 equivalent circuit 等效电路 Ohm’s law 欧姆定律Kirchhoff’s law 基尔霍夫定律Kirchhoff’s voltage law(KVL)基尔霍夫电压定律Kirchhoff’s current law(KCL)基尔霍夫电流定律Thevenin’s theorem 戴维宁定理Norton’s theorem 诺顿定理 branch 支路 node 结点 loop 回路 mesh 网孔 open circuit 开路(断路) short circuit 短路 branch current analysis 支路电流法mesh current analysis 网孔电流法 ode voltage analysis 结点电位法n superposition theorem 叠加原理passive(active) two-terminal network 无(有)源二端网络root mean square (RMS) 均方根值 effective value 有效值instantaneous value 瞬时值 ampere 安培 volt 伏特 Hertz 赫兹 reactive power` 无功功率 active power 有功功率 transfer function 传递函数 apparent power 视在功率 power-factor compensation 功率因数补偿series (parallel) resonance 串(并)联谐振 amplitude(phase)-frequency response characteristic 幅(相)频特性 figure of merit 品质因素 pass-band 通频带bandwidth (BW) 带宽 first(second)-order filter 一(二)阶滤波器low(high)-pass filter 低(高)通滤波器band-pass(stop) filter 带通(阻)滤波器transfer function 转移函数 Bode diagram 波特图 Fourier series 傅立叶级数 three-phase circuit 三相电路 cutoff frequency 截止频率 FFT (Fast Fourier Transform) 快速傅立叶变换 state variable 状态变量 电机 generation 发电 transmission 输电 distribution 配电 coil 线圈 core 铁心 winding 绕组 electrical machine 电机 generator 发电机 motor 电动机 stator (rotor) 定子(转子) armature 电枢 brush 电刷 commutator 换向器 salient-pole 凸极 slip ring 滑环 induction motor 感应电动机 magnetic flux 磁通 asynchronous machine 异步电机 synchronous generator 同步发电机 eddy current 涡流 EMF(electromotive force)电动势 counter EMF 反电势 torque 转矩 excitation 励磁 prime mover 原动机 rectifier 整流器 leakage flux 漏磁通 demagnetization 退磁,去磁 short-circuit ratio 短路比 converter (inverter) 换流器(逆变器) synchronous condenser 同步调相机 magnetization curve 磁化曲线 separately exciting 他励 compounded excited 复励 self-exciting 自励 series(shunt)-wound 串(并)励
机械类常用英语词汇大全 一字螺丝批 slot type screwdriver 一点透视 one-point perspective 二画 二合一黏合剂 epoxy resin adhesive 二合胶;混合胶 epoxy glue 二维的;平面的 two-dimensional 二进制 binary 二极管;整流子 diode 二号螺丝攻 second tap 二路开关 two-way switch 十进制的;公制的 metric 人工制品 artefact 人造板 man-made board 人体工程学 ergonomics; human engineering 人体尺寸 human dimension 人体测量学 anthropometry; anthropometrics 刀片 blade 刀身 blade 刀具 tool 刀具溜座 carriage 刀柱 tool post 刀架 tool rest 刀架底座 tool rest bracket 刀座帷;床鞍 apron 刀座鞍;溜板座 saddle 力 force 力三角形 triangle of force 力平行四边形 parallelogram of force 力多边形;多边形力学 polygon of force 力的分解 force resolution 力架;亮漆 lacquer 力矩 moment 力偶 couple 力矩定律 law of moment 力-距离图表 force-distance graph 力图 force diagram 力线 line of force 力点 effort 十字榫 cross halving joint 十字螺丝 Philip s head screw 十字螺丝批 Philip s type screwdriver 丁字尺;T 尺 tee square 三画 三爪夹头 three-jaw chuck 三角尺 set square 三角形结构系杆 triangulation tie 三角锉 triangular file 三维的;立体的 three-dimensional 三氯甲烷;哥罗芳 chloroform 三聚氰胺;蜜胺 melamine 三点透视 three-point perspective 上油漆 painting 上釉 enamelling 凡立水 varnish 叉形顶尖 fork centre 口罩 mask 士力;虫漆 shellac 士巴拿;扳手 spanner 大芯夹板;宽条芯夹板 blockboard; solid corestock-laminated board 大量制造 mass production
有机化学专业英语词汇常用前后缀 acetal 醛缩醇 acetal- 乙酰 acid 酸 -al 醛 alcohol 醇 -aldehyde 醛 alkali- 碱 allyl 烯丙基 [propenyl(丙烯基)] alkoxy- 烷氧基 -amide 酰胺 amino- 氨基的 -amidine 脒 -amine 胺 -ane 烷 anhydride 酐 anilino- 苯胺基 aquo- 含水的 -ase 酶 -ate 含氧酸的盐、酯 -atriyne 三炔 azo- 偶氮 benzene 苯 bi- 在盐类前表示酸式盐 bis- 双 -borane 硼烷 bromo- 溴 butyl 丁基 -carbinol 甲醇 carbonyl 羰基 -carboxylic acid 羧酸 centi- 10-2 chloro- 氯代 cis- 顺式 condensed 缩合的、冷凝的 cyclo- 环 deca- 十 deci 10-1 -dine 啶 dodeca- 十二
-ene 烯 epi- 表 epoxy- 环氧 -ester 酯 -ether 醚 ethoxy- 乙氧基 ethyl 乙基 fluoro- 氟代 form 仿 -glycol 二醇 hemi- 半 hendeca- 十一 hepta- 七 heptadeca- 十七 hexa- 六 hexadeca- 十六 -hydrin 醇 hydro- 氢或水 hydroxyl 羟基 hypo- 低级的,次 hyper- 高级的,高 -ic 酸的,高价金属 -ide 无氧酸的盐,酰替胺,酐-il 偶酰 -imine 亚胺 iodine 碘 iodo- 碘代 iso- 异,等,同 -ite 亚酸盐 keto- 酮 ketone 酮 -lactone 内酯 mega- 106 meta- 间,偏 methoxy- 甲氧基 methyl 甲基
网易电力专业英语词汇(较全) 1)元件设备 三绕组变压器:three-column transformer ThrClnTrans 双绕组变压器:double-column transformer DblClmnTrans 电容器:Capacitor 并联电容器:shunt capacitor 电抗器:Reactor 母线:Busbar 输电线:TransmissionLine 发电厂:power plant 断路器:Breaker 刀闸(隔离开关):Isolator 分接头:tap 电动机:motor 2)状态参数 有功:active power 无功:reactive power 电流:current 容量:capacity 电压:voltage 档位:tap position 有功损耗:reactive loss 无功损耗:active loss 空载损耗:no-load loss 铁损:iron loss 铜损:copper loss 空载电流:no-load current 阻抗:impedance 正序阻抗:positive sequence impedance 负序阻抗:negative sequence impedance 零序阻抗:zero sequence impedance 无功负载:reactive load 或者QLoad 有功负载: active load PLoad 遥测:YC(telemetering) 遥信:YX 励磁电流(转子电流):magnetizing current 定子:stator 功角:power-angle
上限:upper limit 下限:lower limit 并列的:apposable 高压: high voltage 低压:low voltage 中压:middle voltage 电力系统 power system 发电机 generator 励磁 excitation 励磁器 excitor 电压 voltage 电流 current 母线 bus 变压器 transformer 升压变压器 step-up transformer 高压侧 high side 输电系统 power transmission system 输电线 transmission line 固定串联电容补偿fixed series capacitor compensation 稳定 stability 电压稳定 voltage stability 功角稳定 angle stability 暂态稳定 transient stability 电厂 power plant 能量输送 power transfer 交流 AC 装机容量 installed capacity 电网 power system 落点 drop point 开关站 switch station 双回同杆并架 double-circuit lines on the same tower 变电站 transformer substation 补偿度 degree of compensation 高抗 high voltage shunt reactor 无功补偿 reactive power compensation 故障 fault 调节 regulation 裕度 magin 三相故障 three phase fault 故障切除时间 fault clearing time 极限切除时间 critical clearing time 切机 generator triping
机械专业英语词汇(大全) 金属切削metal cutting 机床machine tool 金属工艺学technology of metals 刀具cutter 摩擦friction 联结link 传动drive/transmission 轴shaft 弹性elasticity 频率特性frequency characteristic 误差error 响应response 定位allocation 机床夹具jig 动力学dynamic 运动学kinematic 静力学static 分析力学analyse mechanics 拉伸pulling 压缩hitting 剪切shear 扭转twist 弯曲应力bending stress 强度intensity 三相交流电three-phase AC 磁路magnetic circles 变压器transformer 异步电动机asynchronous motor 几何形状geometrical 精度precision 正弦形的sinusoid 交流电路AC circuit 机械加工余量machining allowance 变形力deforming force 变形deformation 应力stress 硬度rigidity 热处理heat treatment 退火anneal 正火normalizing 脱碳decarburization 渗碳carburization 电路circuit 半导体元件semiconductor element 反馈feedback 发生器generator 直流电源DC electrical source 门电路gate circuit 逻辑代数logic algebra 外圆磨削external grinding 内圆磨削internal grinding 平面磨削plane grinding 变速箱gearbox 离合器clutch 绞孔fraising 绞刀reamer 螺纹加工thread processing 螺钉screw 铣削mill 铣刀milling cutter 功率power 工件workpiece 齿轮加工gear mechining 齿轮gear 主运动main movement 主运动方向direction of main movement 进给方向direction of feed 进给运动feed movement 合成进给运动resultant movement of feed 合成切削运动resultant movement of cutting 合成切削运动方向direction of resultant movement of cutting 切削深度cutting depth 前刀面rake face 刀尖nose of tool 前角rake angle 后角clearance angle 龙门刨削planing 主轴spindle 主轴箱headstock 卡盘chuck 加工中心machining center
1.有机化合物的官能团和重要的基团 官能团 functional group 双键 double bond 三键 triple bond 烃基 hydroxy group 琉基 mercapto 硫轻基 sulfhydryl group 羰基 carbonyl group 氨基 amino group 亚氨基 imino group 硝基 nitro group 亚硝基 nitroso group 氰基 cyano group 羧基 carboxyl group 磺基 sulpho group 烷基 alkyl group 苯基 phenyl group 卡基 benzyl group 芳基 aryl group 烯基 allyl group 烷氧基 alkoxyl group 酰基 acyl group 活性亚甲基 active methylene group 2.有机化合物的类型 烃 hydrocarbon 石蜡 paraffin 脂肪烃 aliphatic hydrocarbon 烷烃 alkane 烯烃 alkene 炔烃 alkyne 共扼二烯烃 conjugated diene 脂环烃 alicyclic hydrocarbon 螺环化合物 spiro compound 桥环化合物 bridged ring compound 芳烃 aromatic hydrocarbon 非苯芳烃 nonbenzenoid aromatic hydrocarbon 稠环芳烃 condensed aromatics 卤代烃 halohydrocarbon 醇 alcohol 酚 phenol 醚 ether
1)元件设备 三绕组变压器:three-column transformer ThrClnTrans 双绕组变压器:double-column transformer DblClmnTrans 电容器:Capacitor 并联电容器:shunt capacitor 电抗器:Reactor 母线:Busbar 输电线:TransmissionLine 发电厂:power plant 断路器:Breaker 刀闸(隔离开关):Isolator 分接头:tap 电动机:motor 2)状态参数 有功:active power 无功:reactive power 电流:current 容量:capacity 电压:voltage 档位:tap position 有功损耗:reactive loss 无功损耗:active loss 空载损耗:no-load loss 铁损:iron loss 铜损:copper loss 空载电流:no-load curren 阻抗:impedance 正序阻抗:positive sequence impedance 负序阻抗:negative sequence impedance 零序阻抗:zero sequence impedance 无功负载:reactive load 或者QLoad 有功负载: active load PLoad 遥测:YC(telemetering) 遥信:YX 励磁电流(转子电流):magnetizing current 定子:stator 功角:power-angle 上限:upper limit 下限:lower limit
机械专业英语高频词汇 metal cutting 金属切削 machine tool 机床 technology of metals金属工艺学 cutter 刀具 friction 摩擦 link 联结 drive/transmission 传动 shaft 轴 elasticity 弹性 frequency characteristic 频率特性 error 误差 response响应 allocation 定位 jig 机床夹具 term 语术 d ynamic 动力学 k inematic运动学 s tatic 静力学 a nalyse mechanics 分析力学 p ulling 拉伸 s hear 剪切 t wist 扭转 b ending stress 弯曲应力 i ntensity 强度 t hree-phase AC 三相交流电 m agnetic circles 磁路 t ransformer变压器 a synchronous motor 异步电动机 g eometrical 几何形状 p recision 精度 s inusoid 正弦形的 h itting压缩 A C circuit 交流电路 m achining allowance 机械加工余量 d eforming forc e 变形力 d eformation 变形 s tress 应力 r igidity 硬度 r igidity 刚度 h eat treatment 热处理 d ecarburization 脱碳 c ircuit 电路
f raising铰孔 semiconductor element 半导体元件 f eedback 反馈 g enerator 发生器 D C electrical source直流电源 g ate circuit 门电路 l ogic algebra//////algorithm逻辑代数 e xternal grinding 外圆磨削 internal grinding内圆磨削 p lane grinding 平面磨削 c arburization 渗碳 gearbox 变速箱 c lutch 离合器 r eamer铰刀 t hread processing 螺纹加工 s crew 螺钉 m ill 铣削 m illing cutter 铣刀 p ower 功率 w orkpiece 工件 g ear machining 齿轮加工 g ear 齿轮 m ain movement 主运动 d irection of main movem 主运动方向ent d irection of feed进给方向 f eed movement 进给运动 r esultant movement of fe 合成进给运动ed r esultant movement of cut 合成切削运动ting d irection of resultant cutting 合成切削运动方向motion c utting depth 切削深度 r ake face 前刀面 n ose of tool刀尖 r ake angle 前角 c learance angle 后角 p laning 龙门刨削 s pindle 主轴 h eadstock主轴箱 c huck 卡盘 m achining center 加工中心 l athe tool 车刀 l athe 车床 b ore 钻削镗削 t urning车削 g rinder 磨床
第一章 Organic [?:'ɡ?nik] 有机(体)的 Compound ['k?mpaund] 复合物, 化合物, 混合物Urea ['ju?ri?] 尿素; 脲 Solvent ['s?lv?nt] 溶剂 Polymer ['p?lim?] 聚合物(体) Molecule ['m?likju:l] 分子 Composition ['k?mp?'zi??n] 组成 Bond [b?nd] 键 Spatial ['spei??l] 空间的 Tetrahedron ['tetr?'hedr?n] 四面体 Covalent [k?u'veil?nt] 共价的 Valence ['veil?ns ] 原子价 Octet [?k'tet] 八位位组 Long-pair [l??] [p??] 孤对 Ammonia ['?m?unj?] 氨 Approach [?'pr?ut?] 接近 Orbital ['?:bitl] 轨道的 Overlap Nuclei [?uv?'l?p] ['nju:kliai]重叠核Symmetrical [si'metrik?l] 对称的 Polarity [p?u'l?riti] 极性 Electronegativity [i'lektr?u'neɡ?tiv] 电负性
Formula ['f?:mjul?] 分子式, 方程式 Interact ['?nt?r'?kt]互相作用 Skeletal ['skelitl]骨架的, 骸骨的 Substance ['s?bst?ns]物质 Dissolve [di'z?lv] 溶解 Yield [ji:ld] 产率 hydronium [hai'dr?uni?m] 水合氢离子, Ion ['ai?n] 离子 Conjugate ['k?nd?uɡit] 共轭 Curve [k?:v] 曲线 Acidity [?'siditi] 酸度 第二章 rather['rɑ:e?] 在一定程度上 Saturate ['s?t??reit] 使饱和, 使中和 Aliphatic [?li'f?tik] 脂肪族的 configuration [k?n'fiɡju'rei??n] (分子中原子的)构型,排列;【物】位形; 组态 ground state [ɡraund] [steit] 基态 combine [k?m'bain]合并,结合, 结合,联合
Alkaloid ['?lk?l?id] 生物碱 Alkalinity [,?lk?'lin?ti] 碱性Anion ['?nai?n]阴离子 Cation ['k?tai?n]阳离子 Bromine ['br?umi:n]溴 Chlorine['kl?:ri:n] 氯 Fluorine ['flu(:)?ri:n]氟 Iodine ['ai?udi:n] 碘 Beryllium 铍 Bond dissociation energy键解离能 Branched chain[brɑ:nt?, br?nt?]支链Conjugate acid(base)['k?nd?uɡeit]共轭酸(碱)Localization [,l?uk?lai'zei??n] 定域Coordinate bond [k?u'?:dineit] 配位键Covalent bond 共价键 Delocalization 离域 Neon ['ni:?n, -?n] 氖 Nitrogen ['naitr?d??n] 氮 Oxygen ['?ksid??n] 氧 Dye [dai] 染料Nucleophilic regeant [,nju:kli?u'filik] 亲核试剂Electrophilic regeant [i,lektr?u'filik] 亲电试剂Electronegativity [i'lektr?u,neɡ?'tiv?ti]电负性Electron atmosphere 电子云 Electrovalent bond 电价键 Halogen ['h?l?d?in] 卤素 Phosphorus ['f?sf?r?s] 磷 Silicium [si'lisi?m] 硅 Hydrogen ['haidr?d??n] 氢 Hybridized orbital ['haibrid] 杂化轨道 Ion ['ai?n] 离子Stereochemistry [,steri?u'kemistri] 立体化学 Stereo-isomerism [ai's?m?riz?m] 立体异构现象Isomer ['ais?um?] 同分异构体Sulfur ['s?lf?] 硫
基本专业英语一、常用运行 ON开(状态,常指信号) OFF关(状态,常指信号) OPEN开(状态,常指阀门) CLOSE关(状态,常指阀门) START启动 STOP停止 ALARM报警 OPERATE运行;操作 TRIP跳闸 TEST试验 INDICATION;DISPLAY指示;显示 INLET入口 OUTLET出口 INPUT输入 OUTPUT输出 AUTOMATION/MANUAL(HAND)自动/手动 AUXILIARY辅助 LOCAL就地 REMOTE摇控 PRESSURE压力 TEMPERATURE温度 FLOW流量 SPEED速度 RPM转/分 SYSTEM系统 BYPASS旁路 PIPE;TUBE管道,管子 PURGE吹扫 V AL VE阀门 UNIT单元、机组 PRINT打印 CURVE,LINE曲线,线 BALANCE平衡 INSTRUMENT AND CONTROL仪表与控制 MODE方式,模式 SET POINT设定点 TRANSMITTIER;TRANSDUCER变送器;传感器 CODE代码;编码 DA TA数据;文件;资料 STATIC静态
DYNAMIC动态 COLD START—UP冷态启动 W ARM START—UP温态启动 HOT START—UP热态启动 RESET复位 SELECT选择 UNA V AIL不允许(不能投用的) FAST快 SLOW慢 NORMAL正常 INCREAS增加 DECREAS减少 二、锅炉部分 BOILER锅炉 SUPERHEATER过热器 REHEATER再热器 WA TERW ALL水冷壁 DOWM COMER下降管 HEADER联箱、母管 STEAM DRUM汽包 DURM PRESSURE汽包压力 A TTEMPERA TOR减温器 SPRAY喷水 ECONOMIZER省煤器 ISOLATION隔离;绝缘 CHIMNEY;STACK烟囱 FLUE GAS烟气 WA TER水 STEAM蒸汽 SAFETY V AL VE安全阀 DRAIN AND VENT疏水和排气 Boiler Maximum Continuous Rating锅炉最大连续出力 PRESSURE DIFFERENCE压差 BOILER TRIP RESET锅炉跳闸复位 OPERATE MODE SELECT运行方式选择 MANUAL MODE手动方式 MAIN STEAM TEMP/PRESSURE/FLOW主汽温度/压力/流量FEED W ATER FLOW给水流量 REHEATER再热器 manhole人孔,检修孔 Taps接头 pipe taps管接头 test wells测点插孔
(除尘器)振打装置Rap device (电子)板、卡card (输电)干线、通风道Trunk Bms 看门狗, bms 监视器Bms watchdog Q 线Q-line U 形螺栓U-bolt X 射线X-ray Y-△接法Wye-delta Y 形接法Wye 安规Emergency decree 安培Ampere 安培右手定则Thumb rule 安全Safety 安全措施Safety measure 安全带、保险带Lifebelt 安全的、可靠的、稳定的Safe 安全电压Safe potential 安全阀、减压阀Relieve valve 安全阀、突开阀Pop valve 安全规程Safety rules 安全帽Safety cap 安全线Escape valve 安全线Safety valve 安装Install 安装,组装assemble 安装、调整、建立Set up 安装、固定Mount 安装、装配、调整Rig 氨水箱Ammonia tank 按钮button 按钮Push button 巴,条杆Bar 白色White 百分比Percentage 百分数Percent PCT 百万分率Part per million PPM 摆动Tilting 扳手Spanner 班,组,队,大队brigade 班、组Gang 搬运机、载波、带电粒子carrier 办公室Office 办公室、会议室Chamber 磅Pound LB 磅/平方英寸(表压力)Psig 磅 /平方英寸 (绝对压力 ) Psia 饱和Saturate 饱和条件、饱和状态Saturate condition 饱和蒸汽Saturated steam SAT STM 保持Hold 保护Protection PROT 保险盒Fuse holder 保险丝、熔断器Fuse 报警Alarm 报警Warning 爆炸Explosion 备件Reserve parts 备件、备品Spare parts 备件、替换零件Replacement parts 备用、待机Standby 备用的Reserved 备用的、空余的Spare 背后,反向的Back 背压Back pressure 泵Pump Proportional/ integral / 比例/积分/微分 derivative PID 比率Ratio 比重Specific weight 闭环Closed-loop 闭式冷却水Closed cooling water 闭锁、密封舱、固定Lock 闭锁信号Blocking signal 壁面温度Wall temp 壁式再热器Radiator wall rh 避雷器Arrester 避雷器Lightning arrestor 避免 ,回避Avoid 编辑Edit 变电站、子站Substation 变送器Transmitter XMITEER 变速箱Gear shift housing 变压器Transformer XFORMER 标称出力、额定出力Nominal rating 标称的、额定的Nominal 标高Elevation ELEV 标号、标签Label 标记、注册Sign 标志Token 标准Standard 表格Tab 表格、纸张Sheet 表面的Surface 并联电抗器Shunt reactor 波纹管、膜盒Sylphon 剥线钳Wire stripper
陶瓷ceramics 合成纤维synthetic fibre 电化学腐蚀electrochemical corrosion 车架automotive chassis 悬架suspension 转向器redirector 变速器speed changer 板料冲压sheet metal parts 孔加工spot facing machining 车间workshop 工程技术人员engineer 气动夹紧pneuma lock 数学模型mathematical model 画法几何descriptive geometry 机械制图Mechanical drawing 投影projection 视图view 剖视图profile chart 标准件standard component 零件图part drawing 装配图assembly drawing 尺寸标注size marking 技术要求technical requirements 刚度rigidity 内力internal force 位移displacement 截面section 疲劳极限fatigue limit 断裂fracture 塑性变形plastic distortion 脆性材料brittleness material 刚度准则rigidity criterion 垫圈washer 垫片spacer 直齿圆柱齿轮straight toothed spur gear 斜齿圆柱齿轮helical-spur gear 直齿锥齿轮straight bevel gear 运动简图kinematic sketch 齿轮齿条pinion and rack 蜗杆蜗轮worm and worm gear 虚约束passive constraint 曲柄crank 摇杆racker 凸轮cams
有机化学专业英语词汇(精) acetal 醛缩醇 acetal- 乙酰 acid 酸 -al 醛 alcohol 醇 -aldehyde 醛 alkali- 碱 allyl 烯丙基 [propenyl(丙烯基)] alkoxy- 烷氧基 -amide 酰胺 amino- 氨基的 -amidine 脒 -amine 胺 -ane 烷 anhydride 酐 anilino- 苯胺基 aquo- 含水的 -ase 酶 -ate 含氧酸的盐、酯 -atriyne 三炔 azo- 偶氮 benzene 苯 bi- 在盐类前表示酸式盐 bis- 双 -borane 硼烷 bromo- 溴 butyl 丁基 -carbinol 甲醇 carbonyl 羰基 -carboxylic acid 羧酸 centi- 10-2 chloro- 氯代 cis- 顺式 condensed 缩合的、冷凝的 cyclo- 环 deca- 十 deci 10-1 -dine 啶 dodeca- 十二-ene 烯 epi- 表 epoxy- 环氧 -ester 酯 -ether 醚 ethoxy- 乙氧基 ethyl 乙基 fluoro- 氟代 form 仿 -glycol 二醇 hemi- 半 hendeca- 十一 hepta- 七 heptadeca- 十七 hexa- 六 hexadeca- 十六 -hydrin 醇 hydro- 氢或水 hydroxyl 羟基 hypo- 低级的,次 hyper- 高级的,高 -ic 酸的,高价金属 -ide 无氧酸的盐,酰替胺,酐-il 偶酰 -imine 亚胺 iodine 碘 iodo- 碘代 iso- 异,等,同 -ite 亚酸盐 keto- 酮 ketone 酮 -lactone 内酯 mega- 106 meta- 间,偏 methoxy- 甲氧基 methyl 甲基
电流current 电压voltage 功率power 频率frequency 电阻resistance 电容capacitance 电抗reactance 电阻率resistivity 阻抗impedance 相,相位phase 有功功率active power 无功功率reactive power 视在功率apparent power 装设功率installed power 安培ampere (A) 伏volt (V) 欧姆ohm 赫兹hertz (HZ) 瓦watt (W) 供电局power supply authority 电力公司power supply company 发电厂power plant 变电所substation 配电站distribution substation 配变电站transformer station 终端变电站terminal substation 车间变电站substation in workshop :室内变电站indoor substation 自动变电站automatic substation 成套变电站unit substation 高压室H.T room 低压室L.T room 变压器室transformer room 变压器平台transformer platform 柴油发电机室diesel generator room 控制室control room 蓄电池室battery room 维修间maintenance room 值班室duty room 休息室rest room 电容器室condenser room 充电室battery -- charging room 室外储油罐outdoor oil tank 地下油罐underground oil tank
