5050三色RGBLED规格书承認書Samples approval sheet客戶名稱（Customer name）：元件名稱（Production name）：發光二極體型號（Model）：RGB5050編號（Part number）：日期（Date）：2013-11-22編制Prepared by審核Checked by核准Approved by市場部Market Dept.客戶確認CUSTOMER CONFIRMATION確認Confirmed by審核Checked by核准Approved by一、外形圖Outline dimensions：單位Unit公差Tolerance晶片材料Die material膠體顏色Lens color發光顏色Emission colormm ±0.2mm ---- --※備註：承認書之編號和型號可用于查詢，客戶如有需要，請提供相應的編號和型號。
Remark：P/N & Model in samples approval sheet can be used to inquire，please provide corresponding P/N& model if customer need .二、光電參數Photoelectricity Parameter（環境溫度Ambient temperature：25℃濕度humidity：RH60%）項目Item符號Symbol測試條件Testcondition最小值Min典型值Type最大值Max單位Unit正向電壓Forward voltage VF IF=20mA R 1．9 -- 2．1V IF=20mA G 3．0 -- 3.3IF=20mA B 3．0 -- 3.3反向電流Reverse current IR VR=5V -- -- 10 μA發光強度Luminous intensity IV IF=20mA R 700 -- 900MCD IF=20mA G 1500 -- 1700IF=20mA B 500 -- 700主波長Dominant wavelengthλd IF=20mA R 620 -- 625nm IF=20mA G 520 523 525IF=20mA B 460 462 465光譜半寬度Spectrum line half widthΔλIF=20mA -- 60 -- nm 視角Viewing Angle2θ1/2 IF=20mA -- 120 -- deg備註：亮度測試公差±15%、波長測試公差±1nm、正向電壓測試公差±0.05V Remark：The tolerance of intensity:±15%, The tolerance of wave length:±1nm,The tolerance of forwards voltage: ±0.05V. Only reference for above data when testing.三、極限參數Absolute Maximum Rating（環境溫度Ambient temperature：25℃濕度humidity：RH60%）項目Item符號Symbol數值Value單位Unit備註Remark正向電流Forward Current IF 20 mA ---正向峰值電流Peck forward currentIFM 75 mA F=1KHZ,占空比(duty cycle)1/10反向耐壓Reverse Voltage VR 15 V --- 耗散功率Power DissipationPm 80 mW ---工作環境溫度OperationtemperatureTamb -25至+80 ℃--- 貯藏溫度Storage temperatureTstg +40至+60 ℃---焊接溫度Solderin g temperature Tsol 240 ℃焊接,≤3SSoldering,≤3S型號Model：RGB5050頁碼Page： 3/4四、典型光電特性曲線圖T ypical photoelectricity characteristic curve chart型號Model：RGB5050頁碼Page： 4/4R 五、可靠性實驗項目Reliability Test Project判斷標準Judging criterion:項目 Item符號 Symbol實驗條件 Experiment condition判斷標準CriteriaMin.Max.Forward V oltage V F I F =20mA ---- Initial Datex1.1Reverse Current I R V R =5V ---- 30μA Luminous IntensityIVI F =20mAInitial Datex0.8----描述 Description 項目 Item測試標準 T est criterion 測試條件 T est condition 測試時間 T est time 數量 Qty 失效數量 Fail qty 壽命測試 Life test常溫壽命測試Life test(room temperature) JIS7021:B4 T a=25℃±5℃，IF=30mA1000Hrs22環境測試 Ambience test高溫存儲High temperature store JIS7021:B10 MIL-STD-202:210A MIL-STD-750:2031 T a=85℃±5℃ 1000Hrs 22 0低溫存儲Low temperature storeJIS7021:B12 T a= -35℃±5℃ 1000Hrs 22 0 高溫高濕測試High temperature/ humidity testJIS7021:B11 MIL-STD-202:103D T a=85℃±5℃ RH=85% 1000Hrs22冷熱衝擊測試Cold / Heat strike test JIS7021::B4 MIL-STD-202:107D MIL-STD-750:102630min-10℃±5℃←→100℃±5℃ 5min 5min50Cycles 22 0冷熱迴圈測試Cold and heat cycle testJIS7021:A3 MIL-STD-202:107D MIL-STD-705:105E 5min 5min 5min -35℃～25℃～85℃～-35℃ 30min 5min 30min 5min 50Cycles 22 0。

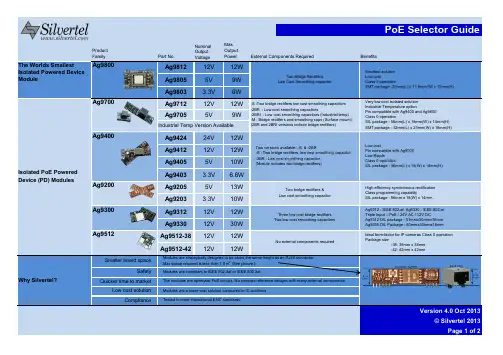

Product FamilyPart No.Max Output PowerBenefitsAg981212V 12W Ag98055V 9W Ag98033.3V 6W Ag971212V 12W Ag97055V9WIndustrial Temp Version AvailableAg942424V 12W Ag941212V 12W Ag94055V 10W Ag94033.3V 6.6W Ag92055V 13W Ag92033.3V 10W Ag931212V 12W Ag933012V 30W Ag9512-3812V 12WAg9512-4212V12WVersion 4.0 Oct 2013© Silvertel 2013Page 1 of 2Nominal Output VoltageAg9700-S :Two bridge rectifiers low cost smoothing capacitors -2BR : Low cost smoothing capacitors-2BRI : Low cost smoothing capacitors (Industrial temp)-M : Bridge rectifiers and smoothing caps (Surface mount)(2BR and 2BRI versions include bridge rectifiers)Very low cost isolated solution Industrial Temperature optionPin compatible with Ag9400 and Ag9600Class 0 operationSIL package - 56mm(L) x 18mm(W) x 14mm(H)SMT package - 32mm(L) x 23mm(W) x 18mm(H)Modules are compliant to IEEE 802.3af or IEEE 802.3atTested to meet international EMC standardsAg9512Ideal form-factor for IP cameras Class 0 operation Package size-38: 38mm x 38mm -42: 42mm x 42mmModules are a lower cost solution compared to IC solutions Smaller board spaceAg9800Two Bridge RectifiersLow Cost Smoothing capacitorThree low cost bridge rectifiers Two low cost smoothing capacitorsTwo bridge rectifiers &Low cost smoothing capacitorTwo versions available: -S, & -2BR-S : Two bridge rectifiers, low cost smoothing capacitor -2BR : Low cost smoothing capacitor (Module includes two bridge rectifiers)Ag9400Ag9300Ag9200Smallest solution Low costClass 0 operationSMT package -28mm(L) x 17.8mm(W) x 12mm(H)High efficiency synchronous rectification Class programming capabilitySIL package - 56mm x 18(W) x 14mm Ag9312 - IEEE 802.af. Ag9330 - IEEE 802.at Triple Input – PoE / 24V AC / 12V DCAg9312 DIL package - 51mmx30mmx16mm Ag9330 DIL Package - 60mmx30mmx16mm Low costPin compatible with Ag9000Low RippleClass 0 operationSIL package - 56mm(L) x 18(W) x 14mm(H)Quicker time to marketLow cost solutionComplianceModules are strategically designed to be about the same height as an RJ45 connector. Max space required is less than 1.0 in 2 (See picture )The modules are optimized PoE circuits. No complex reference designs with many external components SafetyExternal Components RequiredNo external components required The Worlds Smallest Isolated Powered Device ModuleWhy Silvertel?Isolated PoE Powered Device (PD) ModulesProduct FamilyPart No.BenefitsAg5300Version 4.0 Oct 2013© Silvertel 2013Page 2 of 2P S E M o d u l e sP D M O D U L E S P D M O D U L E SIsolated PoE+30W ModulesSilvertel also manufacturers modules for Wireless Charging, SLA Battery Charge Controllers, Analogue Telecom. A 12W PoE Splitter, the PA1212, is also available. All of Silvertel's modules are designed and manufactured in the UK ensuring the highest quality at competitive pricing.Ag5100Nominal Output VoltageMax Output PowerAg530012V30WTwo low cost bridge rectifiers One low cost smoothing capacitorsAg9330Ag6100-HP Ag550012V 48V/56V30WAg5500Compliant to IEEE 802.3af and 802.3at standards Class programming capabilitySupports hardware and software modes SIL package - 8mm(D)x56mm(L)x14mm(H)Ag6600Compliant to IEEE 802.3af and 802.3at standards 57V input required if 60W output power is needed SIL package - 8mm(D)x53mm(L)x14mm(H)Ag640048V/57V Ag6100Class programming capabilityPackaging: Half brick-59mm(L) x 61mm(W) x 20mm(H)30W/Channel 39W60WAg6100-HPAg5600Ag9300Compliant to IEEE 802.3af & 802.3at standards Class programming capabilityIndustrial temperature option availableSIL package - 8mm(D)x53mm(L)x14mm(H)88W48V/57V Ag5600With Ag5600: Only 100W PoE solution availableCompliant to IEEE 802.3af, 802.3at & PoH standards HDBaseT Compatible. Built-in safety features .Packaging: DIL: 51mm(L)x35mm(W)x7mm(H)Ag510012V or 24V 30W24VOnly 88W solution available. Use with Ag6600 PSE patible with IEEE 802.af, 802.at & PoH standards HDBaseT CompatiblePackaging: Half brick-59mm(L) x 61mm(W) x 20mm(H)Compliant to IEEE 802.at Class 4 operation (IEEE 802.3af defaults to class 0)DIL package - 70mm(L) x 14mm(H) x 30mm(W)100WAg6600External Components RequiredThe Worlds Smallest Isolated 30W PoweredDevice ModuleIsolated PoE 100W Modules Isolated PoE 60W Modules Single Channel 30W PSE ModuleAg6400-SThree low cost bridge rectifiers Two low cost smoothing capacitorsSingle Channel 60W PSE Module4 Channel PSE Module100W PSE Module58VNo external components requiredIEEE 802.af and IEEE 802.at compliant Triple Input – PoE / 24V AC / 12V DC DIL Package - 60mmx30mmx16mmNo external components requiredTwo low cost bridge rectifiers Three low cost smoothing capacitorsTwo low cost bridge rectifiers Three low cost smoothing capacitors Two low cost bridge rectifiers Three low cost smoothing capacitorsNo external components requiredNo external components requiredCompliant to IEEE 802.at Class 4 operation (IEEE 802.3af defaults to class 0)SIL package - 57mm(L) x 14mm(H) x 18mm(W)Continuous 24W operation at 70°C. -20°CCompliant to IEEE 802.at Class 4 operation (IEEE 802.3af defaults to class 0)DIL package - 51mm(L) x 16mm(H) x 30mm(W)Continuous 30W operation at 50°C. -40°C lower operating temp.Ag6100-S Ag5200Ag520012V 30WTwo low cost bridge rectifiers One low cost smoothing capacitors12V or 24V 60W。
