Preliminary Review102109p4Conexant2-334/25/03Preliminary Information/Conexant Proprietary and Confidential

CX2415X Interactive TV Development Platform Application NoteCX2415X Applications Information2.6 CX2415X Crystal InterfaceThe CX2415X can be utilized with a variety of crystals and crystal oscillators. Fundamental or third overtone crystals can be attached directly to the CX2415X. Alternatively a fundamental 10.111MHz or 12.238MHz crystal can be attached to the CX24109 and a clock from the CX24109 can drive the CX2415X crystal input pin.

The specific crystal frequencies to be used with the CX2415X will not be specified until revision B silicon has been received and evaluated. Several frequency choices will be evaluated including: 10.111MHz, 12.238MHz, 16.317Mhz, 40.444MHz, and 48.952MHz.

Systems not utilizing the internal channel 3/4 modulator should use a 10.111MHz crystal, either attached directly to the CX2415X, or attached to the CX24109 device in systems so equipped. Systems utilizing the internal channel 3/4 modulator will end up using one of the five crystal frequencies listed above, the specific frequency to be determined by Conexant Systems, Inc., following revision B CX2415X silicon validation.

A 10.111MHz fundamental mode crystal attached to the CX24109, with the CX24109 supplying the clock signal to operate the CX2415X provides the lowest overall system cost. But for systems utilizing the internal RF modulator, Signal/Noise performance requirements may dictate that the crystal be attached directly to the CX2415X device, resulting in a need for two crystals in systems using the CX24109. This requirement will be clarified following revision B CX2415X silicon validation.

2.6.1 Crystal CircuitsFundamental crystals generally provide better performance than 3rd overtone crystals, and they eliminate the problems associated with the tank circuit which is required when using 3rd overtone crystals. If a third overtone crystal is placed in a circuit like Figure2-21, the circuit will have a undesirable tendency to oscillate at the crystal’s fundamental mode, since the circuit naturally has higher gain at the fundamental. Therefore, a tank circuit like that used in Figure2-22 is used to suppress oscillation at the fundamental frequency. The tank circuit used to suppress the fundamental generally loads the oscillator slightly, and impairs the gain, startup and final envelope amplitude. The crystals used in the CX2415X should be specified based on a 10pF standard load capacitance, and should have at least 50ppm tolerance in NTSC applications, and 25ppm or better tolerance for PAL/SECAM applications. Figure2-21 and Figure2-22 illustrate the crystal circuits for fundamental and third overtone respectively.

When driving the crystal oscillator with external clock circuit, it is necessary to use some external components to make sure the DC operating point in the oscillator is preserved. Figure2-23 illustrates the circuit for using the CX2415X with external drive signal such as an external crystal oscillator.Prel

i

minary Review

2-34Conexant102109p4Preliminary Information/Conexant Proprietary and Confidential4/25/03

CX2415X Applications InformationCX2415X Interactive TV Development Platform Application NoteFigure2-21.Fundamental Mode Crystal Circuit

Figure2-22.3rd Overtone Crystal Circuit102109_017FundamentalMode Crystal

40 pF

40 pFCX2415X

XTI

XTO51 K

102109_018Third OvertoneCrystal

Calculate to Resonateat Fundamental

12 pF47 pF2.7 µH

18 pFCX2415XXTI

XTO51 KPrelimina

r

y

Review

102109p4Conexant2-354/25/03Preliminary Information/Conexant Proprietary and Confidential

CX2415X Interactive TV Development Platform Application NoteCX2415X Applications InformationFigure2-23.Crystal Oscillator Circuit

2.6.2Fundamental Mode Suppression Tank CircuitThe tank circuit used to suppress operation at the fundamental should of course be series resonant at the fundamental with realistic component values. For example, if you choose the inductor to be L=2.7uH, then a realistic capacitance value of about 47pF can be obtained using the series resonant formula to suppress fundamental operation for a 40.444Mhz crystal.

2.6.3Quartz Crystal Model Parameters and how to Measure ThemThe quartz crystal should be modeled with a standard R-L-C, parallel C branch as shown in Figure2-24. The crystal parameters are described in Table2-4.

Table 2-4. Quartz Crystal Model ParametersParameterDescriptionLmMotional InductanceCm (Sometimes called C1 in the industry)Motional CapacitanceRsSeries Resistance (ESR)CoParallel Capacitance of the Crystal

合集下载

QN8027_hw AppNote_V_0_24_090831

QN8027_hw AppNote_V_0_24_090831

Contents1Feature Overview (4)1.1Main Feature for QN8027 (4)2Hardware Design (5)REVISION HISTORYwarranties, either express or implied, with regard to this manual and any information contained herein, including but not limited to the implied warranties of merchantability and fitness for a particular purpose. Quintic shall not be liable for errors or for incidental or consequential damages in connection with the furnishing, use, or performance of this document or of any information contained herein. Should Quintic and the user have a separate written agreement with warranty terms covering the material in this document that conflict with these terms, the warranty terms in the separate agreement shall control.1 Feature OverviewThe QN8027 is a high performance, low power, single-chip stereo FM transmitter, designed for MP3 players, GPS. The QN8027 also supports RDS/RBDS data transmit.1.1 Main Feature for QN80272 Hardware DesignThe schematic of the reference design please see the next chapter.2.1 Power SupplyQN8027 integrated LDO inside, and the VCC accept the power supply voltage range from 2.7V~5.0V.2.2Figure 1. I2C Write and Read Operation Timing2.3 Clock InterfacePin 1’XTAL2’ and pin 2 ‘XTAL1’ is used for crystal input. QN8027 accept 12MHz and 24MHz crystal. And the crystal need 20pF load cap. The chip default setting is 24MHz crystal. If the crystal changed, it need do some registers change and do recalibration to make chip suit for crystal setting.Figure 2. Crystal Input InterfaceQN8027 accept external clock input. It accept square clock with the voltage range 0~UVIO and sin wave single-end and sin wave differential clock input. For sin wave single-end clock input, the voltage of the clock should be large than 350mVpeak. With differential sin wave clock input, the clock inputFigure 4. Sin Wave Clock Input Interface2.4 Audio Input InterfaceQN8027 have integrated VGA inside of chip and can change the input impedance to 5k ohm, 10k ohm, 20k ohm and 40k ohm by register control.With default register setting, audio input only accepts maximum 1000mVp-p voltage. And audio input needs a capacitor to separate DC voltage. The suggested capacitor value is 4.7uF.2.5 Differential Audio Input Reference CircuitIn order to further improve common mode noise restrain and build up a low pass filter at the front end of audio input, we supply a reference design for differential audio input circuit.2.6 FM Transmitter Antenna InterfaceQN8027 use auto turn for every channel with the integrated adjustable capacitor and can make the PA output voltage get maximum at every channel.The PA structure of QN8027 needs an inductor at the outside of the chip, which used to make a resonant2.7 Difference between Qn8000 and QN8027QN8000 only accept 7.6MHz crystal; QN8027 accept 12MHz/24MHz crystal.QN8000 use 2 wire and 3wire control interface; QN8027 use only I2C control interface. QN8000 and QN8027 have different device ID.2.8Figure 9. External PA Reference Circuit for 75cm antenna2.9 Schematic of QN8027 Reference Design2.10 PCB Layout for QN8027 The example layout as show in the following:Under the chip and the RF signal trace, there need an integrative GND copper. This copper will help to2.11 AN Example of PCB LayoutQuintic Corporation (USA) 3211 Scott Blvd., Suite 203 Santa Clara, CA 95054Tel: +1.408.970.8808Fax: +1.408.970.8829Email: support@ Web: Quintic Microelectronics (China) Building 8 B-301A Tsinghai Science Park 1st East Zhongguancun Rd, Haidian Beijing, China 100084Tel: +86 (10) 8215-1997Fax: +86 (10) 8215-1570Web: Quintic Microelectronics and Quintic are trademarks of Quintic Corporation. All Rights Reserved.。

Sigmatel STMP3710方案MP3电路原理图

Sigmatel STMP3710方案MP3电路原理图


PREV
B
NEXT
VOL+
VOL-
LCD_CS LCD_RS LCD_RESET LCD_WR LCD_BUSY LCD_RD PWM0 PWM1 PWM2 PWM3 PWM4
28 41 42 43 27 44 91 87 83 84 82
LCD_CS LCD_RS LCD_RESET LCD_WR LCD_RD VDDIO_P
"Menu" & USB Recovery Mode
SW2 R3 1K PSWITCH SW PUSHBUTTON R4 100K 10%
VDDXTAL
GND 73 68 67 VDDXTAL REFP VAG
C
VDDXTAL
"Power/Play/ Pause Button"
C29 0.1uF
C30 0.1uF GND
Y2 32.768kHz 30ppm C36 XpF C37 XpF
RTC_XTALI RTC_XTALO
I2C_SDA I2C_SCL ROTARYB ROTARYA
80 81 25 24
R18 R19
0/NC 0/NC
I2C_SDA I2C_SCL
D18 LED
D17 LED
D10 LED
D12 LED
The 24 MHz crystal should be located close to the STMP37XX. Consult crystal manufacturer datasheet for recommended load capacitor values (typically 10-18pF). Cload = [ (C26*C27) / (C26+C27) ] + Cstray where Cstray = stray PCB capacitance, typically 4 - 6 pF Note: For Microsoft DRM applications use a 30 ppm crystal. NOTE: The crystal load capacitors C26 and C27, should be resized appropriately when STFM1000 is connected to the crystal circuit. Note that STFM1000 TB2 has 1-2 pF of internal capacitance.

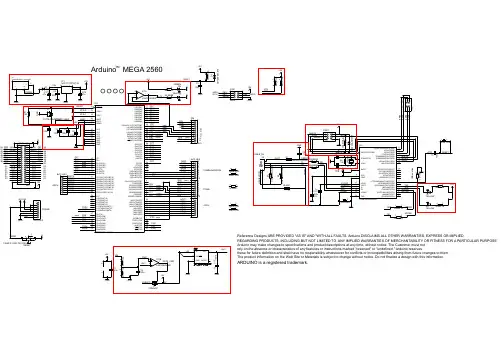

Arduino MEGA2560原理图
