ECONOLINE - DC/DC-Converter

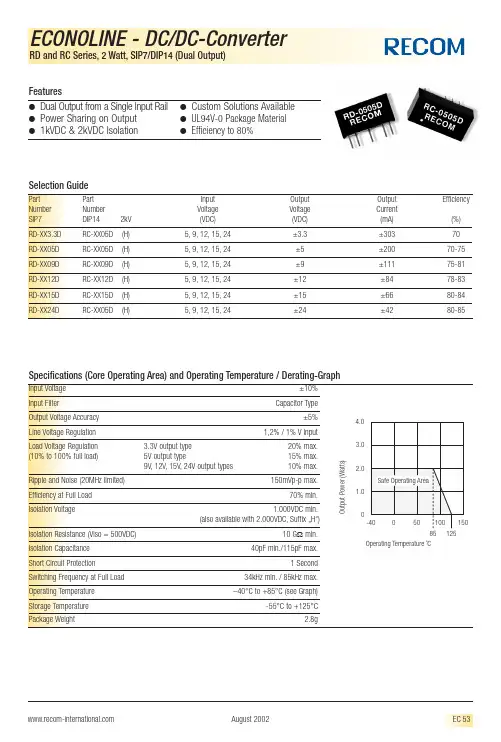

RD and RC Series, 2 Watt, SIP7/DIP14 (Dual Output) Features
● ● ●
Dual Output from a Single Input Rail Power Sharing on Output 1kVDC & 2kVDC Isolation
● ● ●
Custom Solutions Available
UL94V-0 Package Material Efficiee
Part Number SIP7 RD-XX3.3D RD-XX05D RD-XX09D RD-XX12D RD-XX15D RD-XX24D Part Number DIP14 RC-XX05D RC-XX05D RC-XX09D RC-XX12D RC-XX15D RC-XX05D 2kV (H) (H) (H) (H) (H) (H) Input Voltage (VDC) 5, 9, 12, 15, 24 5, 9, 12, 15, 24 5, 9, 12, 15, 24 5, 9, 12, 15, 24 5, 9, 12, 15, 24 5, 9, 12, 15, 24 Output Voltage (VDC) ±3.3 ±5 ±9 ±12 ±15 ±24 Output Current (mA) ±303 ±200 ±111 ±84 ±66 ±42 Efficiency (%) 70 70-75 75-81 78-83 80-84 80-85
