80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002Featuresn Operation Voltage DC 12V~80V. n 0.1V current sense voltage reference. n Directly drive 1~18 Series 1W/3W LED. n Excellent line and load regulation.n Internal Optimize Power HV-MOSFET. n Built in Thermal Shutdown Function. n Built in Current Limiting Function. nBuilt in Soft-Start Circuit.n Available in TO263-5L package. n Up to 98% efficiency.Applicationsn LED Lighting & LED LAMP n General purpose LED lightingGeneral DescriptionThe XL8002 is a monolithic high voltage switching regulator with PFM that is specifically designed to operate from a 12V~80V DC power supply.The XL8002 is a high efficiency LED driver switching regulator. The LED string is driven at DC constant current rather than constant voltage, thus providing constant light output and enhanced reliability.Figure1. Package Type of XL800280V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002 Pin ConfigurationsFigure2. Pin Configuration of XL8002 (Top View)Table 1 Pin DescriptionPin Number Pin Name Description1 START Internal soft start Pin.2 VREG Internal V oltage Regulation Pin. (The VREG is about 8V)3 VIN Input high voltage Pin. (Operation voltage 12V~80V)4 CSN Current Sense Negative Pin.5 CSP Current Sense Positive Pin. (The current sense voltage is 0.1V)80V 1A High Efficiency Buck PFM LED Constant Current Driver XL800280V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002Figure5. Efficiency VS Output N*1W LEDFigure6. Output ILED Load Regulation VS Output N*1W LED80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002Ordering InformationPart Number Marking ID Lead Free Lead Free Packing Type XL8002E1 XL8002E1 Tube PackageTemperature RangeXL8002TRE1XL8002E1Tape & ReelXLSEMI Pb-free products, as designated with “E1” suffix in the par number, are RoHS compliant.Absolute Maximum Ratings （Note1）ParameterSymbol Value Unit Input Voltage Vin -0.3 to 90 V Power DissipationP D Internally limitedmW Thermal Resistance (TO263-5L)(Junction to Ambient, No Heatsink, Free Air) R JA 30 ºC/W Operating Junction Temperature T J -40 to 125 ºC Storage TemperatureT STG -65 to 150 ºC Lead Temperature (Soldering, 10 sec) T LEAD 260 ºC ESD (HBM)>3000VNote1: Stresses greater than those listed under Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operation is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002 XL8002 Electrical CharacteristicsT a = 25℃;unless otherwise specified. Reference test circuit figure4Symbol Parameter Test Condition Min. Typ. Max. UnitVCSPCSPV oltageVIN=72V; Iled=300mA;Series 1~18 1W LED96 100 104 mVEfficiency ŋVIN=72V; Iled=300mA;Pout=16W- 98 - %Electrical Characteristics (DC Parameters)Parameters Symbol Test Condition Min. Typ. Max. Unit Input operation voltage VIN 12 80 VSwitching Frequency Fosc Figure4 (12*1W)VIN=72V102 127 152 KHzMax. Duty Cycle D MAX85 %VDMOS Drain-Source Breakdown V oltage V BRDSV GS=0V,I DS=250uA90 VVDMOSDrain-Source on resistorR DSON I DS=1A, V GS=8V 100 120 mOhm Thermal Shutdown OTP Tj 160 0C Thermal Shutdown Window 20 0C80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002 Figure7. XL8002 System Application at VIN=60V~80V Schematic Figure8. XL8002 System Application at VIN=60V~80V Efficiency Curve80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002 Figure9. XL8002 System Application at VIN=36V~60V Schematic80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002Figure10. XL8002 System Application at VIN=36V~60V Efficiency CurveTable2: Figure9 Input VIN=36V/48V system parameters table:VIN=36VVIN=48V LED String 1W*N FOSC Pout Efficiency FOSC Pout Efficiency 1 28.83K 1.09W 82.0% 29.18K 1.10W 82.0% 2 45.06K 2.05W 90.2% 46.81K 2.06W 87.4% 3 56.98K 2.99W 92.3% 61.45K 2.98W 90.1% 4 64.58K 3.88W 93.6% 72.05K 3.88W 92.9% 5 68.53K 4.77W 94.8% 80.32K 4.76W 94.5% 6 68.66K 5.68W 96.3% 85.95K 5.65W 94.9% 7 65.21K 6.57W 96.6% 88.95K 6.52W 95.7% 8 58.26K 7.36W 96.0% 89.37K 7.38W 96.2% 9 48.75K 8.33W 97.7% 87.31K 8.24W 96.5% 10 34.20K9.29W98.3% 82.56K 9.14W 97.2% 11 74.92K 10.06W 97.6% 1262.77K10.92W96.1%80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002 Figure11. XL8002 System Application at VIN=12V~36V SchematicFigure12. XL8002 System Application at VIN=12V~36V Efficiency Curve Table3: Figure11 Input VIN=12V/24V system parameters table:VIN=12V VIN=24VFOSC Pout Efficiency FOSC Pout Efficiency80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002 Figure13. XL8002 System Application at VIN=60V~80V Schematic Figure14. XL8002 System Application at VIN=60V~80V Efficiency Curve80V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002Table4: Figure13 Input VIN=60V/72V system parameters table:VIN=60VVIN=72V LED String 3W*N FOSC Pout Efficiency FOSC Pout Efficiency 1 29.69K 3.09W 76.8% 30.19K 3.31W 77.9% 2 49.15K 6.04W 85.8% 49.44K 6.28W 85.4% 3 67.05K 8.92W 86.8% 66.47K 9.19W 89.1% 4 79.4K 11.68W 91.7% 80.02K 11.76W 90.6% 5 90.69K 14.40W 93.3% 92.67K 14.47W 92.1% 6 99.29K 16.99W 94.0% 103.38K 17.11W 93.1% 7 105.99K 19.68W 94.7% 112.28K 19.72W 94.0% 8 110.14K 22.24W 95.2% 119.03K 22.30W 94.3% 9 112.33K 24.62W 94.1% 124.22K 24.90W 94.9% 10 112.21K 27.43W 96.2% 127.71K 27.42W 95.1% 11 110.21K 29.95W 96.4% 129.3K 30.02W 95.8% 12 106.33K 32.32W 96.9% 129.88K 32.44W 95.9% 13 100.82K 34.72W 97.0% 125.21K 35.28W 96.2% 14 92.68K37.37W97.4% 122.24K 37.92W 96.9% 15 119.06K 40.50W 96.9% 16 112.73K 42.86W 97.3% 17 103.35K 45.47W 97.6% 1893.18K47.89W97.6%Schottky Diode Selection TableVR 1A 3A 20V 1N5817 SS32 SK32 1N5820 MBR320 SR302 30V 1N5818 SS33 SK33 1N5821 MBR330 SR303 40V 1N5819 SS34 SK34 1N5822 MBR340 SR304 50V SS35 SK35 MBR350 SR305 60V SS36 SK36 MBR360 SR306 70V SS37 SK37 SR307 80V SS38 SK38 SR308 90V SS39 SK39 SR309 100VSS310S310SR31080V 1A High Efficiency Buck PFM LED Constant Current Driver XL8002Package InformationTO263-5L。

Genesis GM5621 and GM5626 are all-in-one dual input LCD monitor controllers supporting resolutions up to SXGA/WXGA, available in a very low pin count package. GM5621/5626 leverage Genesis patented advanced image-processing technology, as well as a proven integrated ADC/PLL and an Ultra-Reliable DVI compliant digital receiver to deliver a highquality solution for mainstream analog and dual input monitors. GM5621/5626 offer new Instant Auto technology, which provides fast and accurate image alignment for both static and moving images of the analog input signal. GM5621 includes an on-chip, industry standard, dual channel LVDS transmitter and a TCON, and GM5626 includes a dual channel RSDS transmitter for direct interfacing of commercially available LVDS/RSDS LCD panel modules.

Document Number: 94356For technical questions, contact: ind-modules@Three Phase Bridge(Power Modules), 60/70 A60-70MT..KPbF SeriesVishay High Power ProductsFEATURES•Package fully compatible with the industry standard INT-A-PAK power modules series •H igh thermal conductivity package, electrically insulated case•Excellent power volume ratio, outline for easy connections to power transistor and IGBT modules •4000 V RMS isolating voltage •UL E78996 approved•Totally lead (Pb)-free•Designed and qualified for industrial levelDESCRIPTIONA range of extremely compact, encapsulated three phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general purpose and heavy duty applications.ELECTRICAL SPECIFICATIONS PRODUCT SUMMARYI O60/70 AMTKMAJOR RATINGS AND CHARACTERISTICSSYMBOL CHARACTERISTICS60MT.K 70MT.K UNITS I O 60 (75)70 (90)A T C 85 (61)85 (57)°C I FSM 50 Hz 420480A 60 Hz 440500I 2t 50 Hz 8701150kA 2s 60 Hz7901050I 2√t 870011 500kA 2√s V RRM Range 800 to 1600V T Stg Range - 40 to 150°CT JVOLTAGE RATINGSTYPE NUMBERVOLTAGE CODEV RRM , MAXIMUM REPETITIVE PEAK REVERSE VOLTAGEVV RSM , MAXIMUM NON-REPETITIVEPEAK REVERSE VOLTAGEVI RRM MAXIMUM AT T J MAXIMUMmA60-70MT..K808009001010010001100120120013001401400150016016001700元器件交易网 For technical questions, contact: ind-modules@Document Number: 9435660-70MT..KPbF SeriesVishay High Power ProductsThree Phase Bridge (Power Modules), 60/70 AFORWARD CONDUCTIONPARAMETERSYMBOLTEST CONDITIONS60MT.K 70MT.K UNITS Maximum DC outputcurrent at case temperature I O120° rect. conduction angle 60 (75)70 (90)A 85 (61)85 (57)°CMaximum peak, one-cycle forward, non-repetitive surge currentI FSMt = 10 msNo voltage reapplied Initial T J = T J maximum420480At = 8.3 ms 440500t = 10 ms 100 % V RRM reapplied 350400t = 8.3 ms 370420Maximum I 2t for fusing I 2t t = 10 ms No voltage reapplied 8701150kA 2st = 8.3 ms 7901050t = 10 ms 100 % V RRM reapplied610800t = 8.3 ms560730Maximum I 2√t for fusingI 2√t t = 0.1 to 10 ms, no voltage reapplied870011 300A 2√s Low level value of threshold voltage V F(TO)1(16.7 % x π x I F(AV) < I < π × I F(AV)), T J maximum 0.850.86VHigh level value of threshold voltage V F(TO)2(I > π x I F(AV)), T J maximum1.07 1.08Low level value of forward slope resistance r f1(16.7 % x π x I F(AV) < I < π × I F(AV)), T J maximum 8.047.35m ΩHigh level value of forward slope resistancer f2(I > π x I F(AV)), T J maximum7.08 6.53Maximum forward voltage drop V FM I pk = 100 A, T J = 25 °C, t p = 400 µs single junction 1.751.55VRMS isolation voltageV ISOLT J = 25 °C, all terminal shorted f = 50 Hz, t = 1 s4000THERMAL AND MECHANICAL SPECIFICATIONSPARAMETERSYMBOL TEST CONDITIONS60MT.K70MT.KUNITS Maximum junction operating and storage temperature rangeT J , T Stg- 40 to 150°CMaximum thermal resistance,junction to caseR thJCDC operation per module0.370.29K/WDC operation per junction2.22 1.75120° rect. conduction angle per module 0.400.34120° rect. conduction angle per junction2.422.01Maximum thermal resistance,case to heatsink per module R thCSMounting surface smooth, flat and greased 0.03Mounting torque ± 10 %to heatsink A mounting compound is recommended and the torque should be rechecked after a period of 3 hours to allow for the spread of the compound. Lubricated threads.4 to 6Nm to terminal3 to 4Approximate weight176g元器件交易网Document Number: 94356For technical questions, contact: ind-modules@60-70MT..KPbF SeriesThree Phase Bridge (Power Modules), 60/70 AVishay High Power ProductsFig. 1 - Current Ratings CharacteristicsFig. 2 - Forward Voltage Drop CharacteristicsFig. 4 - Maximum Non-Repetitve Surge CurrentFig. 5 - Maximum Non-Repetitive Surge Current元器件交易网 For technical questions, contact: ind-modules@Document Number: 9435660-70MT..KPbF SeriesVishay High Power ProductsThree Phase Bridge (Power Modules), 60/70 AFig. 6 - Current Ratings CharacteristicsFig. 8 - Total Power Loss CharacteristicsFig. 9 - Maximum Non-Repetitive Surge CurrentFig. 10 - Maximum Non-Repetitive Surge Current元器件交易网元器件交易网Three Phase BridgeVishay High Power Products(Power Modules), 60/70 AthJCORDERING INFORMATION TABLE•To order the optional hardware go to /doc?95172CIRCUIT CONFIGURATIONLINKS TO RELATED DOCUMENTSDimensions /doc?95004Document Number: 94356For technical questions, contact: ind-modules@ Disclaimer Legal Disclaimer NoticeVishayAll product specifications and data are subject to change without notice.Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product.Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products.No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay.The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.Product names and markings noted herein may be trademarks of their respective owners.元器件交易网Document Number: 。

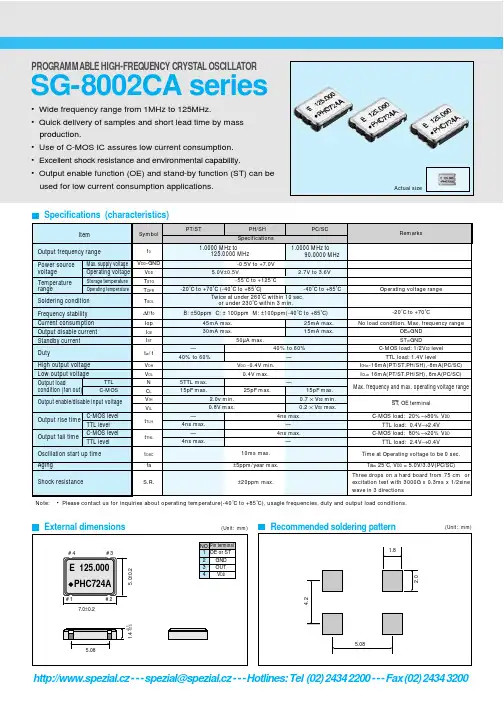

Recommended soldering pattern(Unit: mm)NO.1 OE or ST 2 GND 3 OUT 4 V DD5.081.82.04.27.0±0.25.085.0±0.2# 4 # 3# 1 # 2E 125.000PHC724A1.4 -0.15+0.1External dimensionsSpecifications (characteristics)(Unit: mm)Pin terminal PROGRAMMABLE HIGH-FREQUENCY CRYSTAL OSCILLATORSG-8002CA seriesItemOutput frequency range Power source voltage Temperature rangeSoldering condition Frequency stability Current consumption Output disable current Standby current DutyHigh output voltage Low output voltage Output loadcondition (fan out)Output enable/disable input voltageOutput rise timeOutput fall timeOscillation start up time AgingShock resistanceSymbol f 0V DD -GND V DD T STG T OPRT SOL ∆f/f 0Iop I OE I ST t w /t V OH V OL N C L V IH V IL t TLH t THL t OSC fa S.R.TTL C-MOSC-MOS level TTL level C-MOS levelTTL levelPT/ST PH/SH PC/SCSpecifications-0.5V to +7.0V5.0V±0.5V 2.7V to 3.6V-55˚C to +125˚C-20˚C to +70˚C (-40˚C to +85˚C) -40˚C to +85˚CTwice at under 260˚C within 10 sec.or under 230˚C within 3 min.B: ±50ppm C: ±100ppm M: ±100ppm(-40˚C to +85˚C)45mA max. 25mA max.30mA max. 15mA max.— 40% to 60%40% to 60% —V DD -0.4V min.0.4V max.5TTL max. —15pF max. 25pF max. 15pF max.2.0v min. 0.7 × V DD min.0.8V max. 0.2 × V DD max.— 4ns max.4ns max. —— 4ns max.4ns max. —10ms max.±5ppm/year max.±20ppm max.RemarksOperating voltage range-20˚C to +70˚CNo load condition, Max. frequency rangeOE=GND ST=GNDC-MOS load: 1/2V DD level TTL load: 1.4V levelI OH =-16mA(PT/ST,PH/SH),-8mA(PC/SC)I OL = 16mA(PT/ST,PH/SH), 8mA(PC/SC)Max. frequency and max. operating voltage rangeST _, OE terminalC-MOS load: 20%→80%V DDTTL load: 0.4V →2.4V C-MOS load: 80%→20%V DDTTL load: 2.4V →0.4VTime at Operating voltage to be 0 sec.Ta= 25˚C, V DD = 5.0V/3.3V(PC/SC)Three drops on a hard board from 75 cm or excitation test with 3000G x 0.3ms x 1/2sine wave in 3 directionsNote: • Please contact us for inquiries about operating temperature(-40˚C to +85˚C), usagle frequencies, duty and output load conditions.Max. supply voltage Operating voltage Storage temperature Operating temperature50µA max.• Wide frequency range from 1MHz to 125MHz.• Quick delivery of samples and short lead time by mass production.• Use of C-MOS IC assures low current consumption.• Excellent shock resistance and environmental capability.• Output enable function (OE) and stand-by function (ST) can be used for low current consumption applications.1.0000 MHz to125.0000 MHz 1.0000 MHz to90.0000 MHzActual size。
