7-18Position Interlock SwitchesSafety Limit SwitchesImpDescriptionThe Imp offers safety switch performance of bigger units in the most compact case available. Designed with two mounting hole options and a choice of actuator positions, the Imp will fit in the most confined spaces.Guardmaster limit switches can be used in other applications other than guard doors, for example on moving machine beds, crane arms, etc.Operation of these limit switches is achieved by the sliding action of the guard or other moving object deflecting the plunger or lever. It is important that upon actuation, the guard or other moving objects should not pass completely over the switch and allow the plunger or lever to return to its original position.Features•Positive operation, forced disconnection of contacts •Contacts, 1 N.C. & 1 N.O.Imp 1Imp 2SpecificationsStandardsEN954-1, ISO13849-1, IEC/EN60204-1, NFPA79, EN1088, ISO14119, IEC/EN60947-5-1, ANSI B11.19, AS4024.1CategoryCat. 1 Device per EN954-1Dual channel interlocks suitable for Cat. 3 or 4 systemsApprovalsCE marked for all applicable directives and CSA NRTL/C Safety Contacts 1 N.C. positive break Utilization Category AC 15AC (Ue)500V 250V 100V (le)1A 2A 5A DC250V 0.5A, 24V 2A Max. Switched Current/Voltage/Load500V/500VA Thermal Current (lth)10AMinimum Current 5V 5mA DCSafety Contact Gap >2 x 2mm (0.079in)Rtd. Insulation Voltage (Ui) 500V Rtd. Impulse Withstand Voltage(Uimp) 2500V Auxiliary Contacts 1 N.O.Pollution Degree3Actuator Travel for Positive Opening2.5mm (0.098in)Break Contact Min. Force 10N (2.25lb)Maximum Actuator Travel 5mm (0.197in)Maximum Actuation Speed 160mm (6.29in) per sec Max. Actuation Frequency 2 Cycle per secCase Material UL approved glass filled polyester Actuator Material Acetal Protection IP30Conduit Entry3x break-outsOperating T emperature -25°C to +80°C (-13°F to +176°F)Mounting2 x M3 front or 2 x M4 top Mechanical Life 10,000,000 operations Electrical Life 1,000,000 operations ColourRedPosition Interlock Switches7-19Safety Limit SwitchesImpProduct SelectionDimensions—mm (inches)Connections。

Sanyo Electric Co.,Ltd. Module Systems Division NO.1Equivalent Block DiagramTest Circuit73126458129(*1)Metal Plate Cement Resistor 0.22ohm+-10%(5W)No.2SUB.GNDCase OutlineUnit:mm* No production described or contained herein are intended for use in surgical implants, life-supportsystems, aerospace equipment, nuclear power control systems, vehicles, disaster/crime-preventionequipment and the like, the failure, of which may directly or indirectly cause injury, death or property loss* Anyone purchasing any products described or contained herein for an above-mentioned use shall:1. Accept full responsibility and indemnify and defend SANYO ELECTRIC CO.,LTD., its affiliates, subsidiaries anddistributors and all their officers and employees, jointly and severally, against any and all claims and litigation and alldamage, cost and expenses associated with such use:2. Not impose any responsibility for any fault or negligence which may be cited in any such claim or litigation onSANYO ELECTRIC CO.,LTD., its affiliates, subsidiaries and distributors or any of their officers and employees jointly orseverally.* Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteedfor volume production. SANYO believes its use or any infringements of intellectual property rights or otherrights of third parties.This catalog provides information as of April,2000. Specifications and information herein are subject to change without notice.No.3。

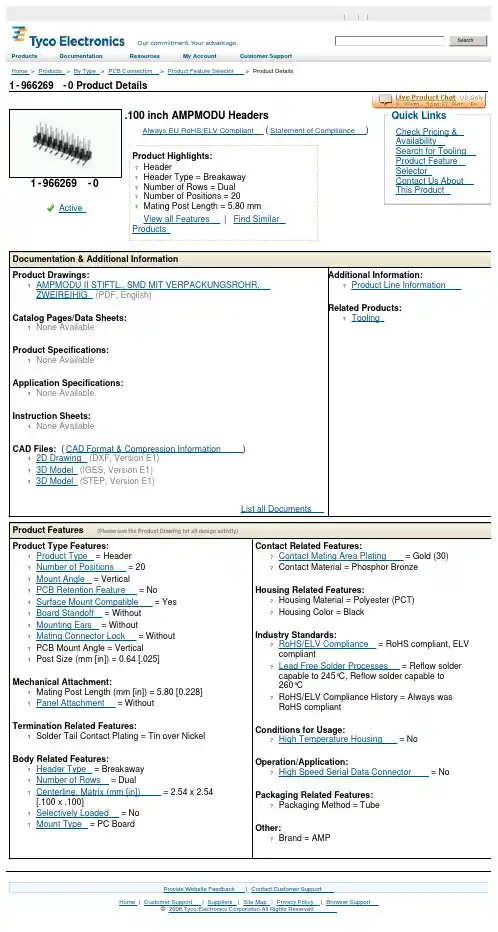

1-966269-0 Product DetailsHome | Customer Support | Suppliers | Site Map | Privacy Policy | Browser Support© 2008 Tyco Electronics Corporation All Rights Reserved SearchProducts Documentation Resources My Account Customer Support Home > Products > By Type > PCB Connectors > Product Feature Selector > Product Details1-966269-0Active .100 inch AMPMODU HeadersAlways EU RoHS/ELV Compliant (Statement of Compliance)Product Highlights:?Header?Header Type = Breakaway?Number of Rows = Dual?Number of Positions = 20?Mating Post Length = 5.80 mmView all Features | Find SimilarProductsCheck Pricing &AvailabilitySearch for ToolingProduct FeatureSelectorContact Us AboutThis ProductQuick LinksDocumentation & Additional InformationProduct Drawings:?AMPMODU II STIFTL., SMD MIT VERPACKUNGSROHR,ZWEIREIHIG(PDF, English)Catalog Pages/Data Sheets:?None AvailableProduct Specifications:?None AvailableApplication Specifications:?None AvailableInstruction Sheets:?None AvailableCAD Files: (CAD Format & Compression Information)?2D Drawing (DXF, Version E1)?3D Model (IGES, Version E1)?3D Model (STEP, Version E1)List all Documents Additional Information:?Product Line InformationRelated Products:?ToolingProduct Features (Please use the Product Drawing for all design activity)Product Type Features:?Product Type = Header?Number of Positions = 20?Mount Angle = Vertical?PCB Retention Feature = No?Surface Mount Compatible = Yes?Board Standoff = Without?Mounting Ears = Without?Mating Connector Lock = Without?PCB Mount Angle = Vertical?Post Size (mm [in]) = 0.64 [.025]Mechanical Attachment:?Mating Post Length (mm [in]) = 5.80 [0.228]?Panel Attachment = WithoutTermination Related Features:?Solder Tail Contact Plating = Tin over NickelBody Related Features:?Header Type = Breakaway?Number of Rows = Dual?Centerline, Matrix (mm [in]) = 2.54 x 2.54[.100 x .100]?Selectively Loaded = No?Mount Type = PC Board Contact Related Features:?Contact Mating Area Plating = Gold (30)?Contact Material = Phosphor BronzeHousing Related Features:?Housing Material = Polyester (PCT)?Housing Color = BlackIndustry Standards:?RoHS/ELV Compliance = RoHS compliant, ELVcompliant?Lead Free Solder Processes = Reflow soldercapable to 245°C, Reflow solder capable to260°C?RoHS/ELV Compliance History = Always wasRoHS compliantConditions for Usage:?High Temperature Housing = NoOperation/Application:?High Speed Serial Data Connector = No Packaging Related Features:?Packaging Method = TubeOther:?Brand = AMPProvide Website Feedback | Contact Customer Support。

PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.de
Page 2 / 3 Mar 5, 2008
元器件交易网

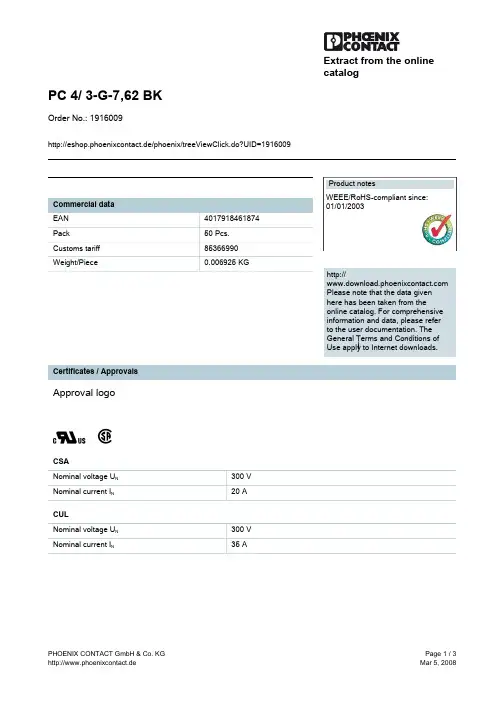

PC 4/ 3-G-7,62 BK Order No.: 1916009
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1916009
Address
PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 00 Fax +49 5235 3 41200 http://www.phoenixcontact.de
© 2008 Phoenix Contact Technical modifications reserved;
Product notes Commercial data EAN Pack Customs tariff Weight/Piece 4017918461874 50 Pcs. 85366990 0.006925 KG http:// Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Certificates / Approvals WEEE/RoHS-compliant since: 01/01/2003
