© Semiconductor Components Industries, LLC, 2005

October, 2005 − Rev. 01Publication Order Number:

NTD5407N/DNTD5407N

Power MOSFET

40 V, 38 A, Single N−Channel, DPAK

Features

•Low R

DS(on)

•High Current Capability

•Low Gate Charge

•These are Pb−Free Devices

Applications

•Electronic Brake Systems

•Electronic Power Steering

•Bridge Circuits

MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)

ParameterSymbolValueUnits

Drain−to−Source VoltageV

DSS40V

Gate−to−Source VoltageV

GS±20

V

Continuous Drain

Current − Rq

JC (Note 1)Steady

StateT

C = 25

°CID38A

T

C = 100°C27

Power Dissipation −

RqJC

(Note 1)Steady

StateT

C = 25°CP

D75W

Pulsed Drain Currentt

p = 10 msI

DM75A

Operating Junction and Storage TemperatureT

J,

T

STG−55 to

175°C

Source Current (Body Diode)I

S36A

Single Pulse Drain−to Source Avalanche

Energy − (V

DD = 50 V, V

GS = 10 V, I

PK = 17 A,

L = 1 mH, R

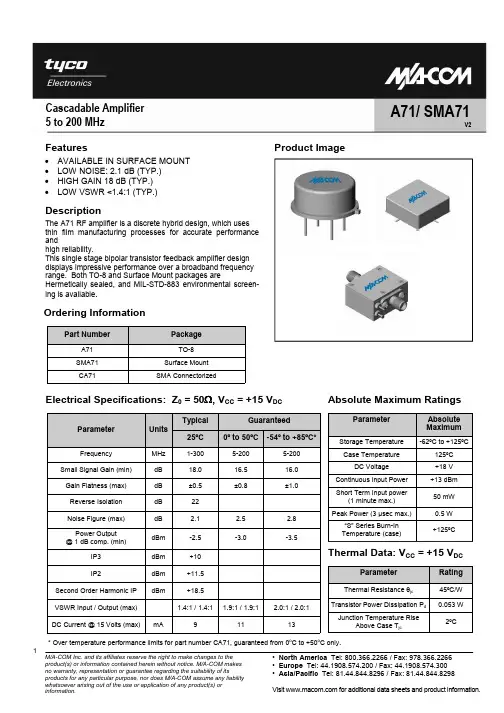

Cascadable Amplifier 5 to 200 MHz A71/ SMA71

M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice. M/A-COM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does M/A-COM assume any liability whatsoever arising out of the use or application of any product(s) or information. • North America Tel: 800.366.2266 / Fax: 978.366.2266 • Europe Tel: 44.1908.574.200 / Fax: 44.1908.574.300 • Asia/Pacific Tel: 81.44.844.8296 / Fax: 81.44.844.8298 Visit for additional data sheets and product information. V2

1 Electrical Specifications: Z0 = 50Ω, VCC = +15 VDC Parameter Units Typical Guaranteed 25ºC 0º to 50ºC -54º to +85ºC* Frequency MHz 1-300 5-200 5-200 Small Signal Gain (min) dB 18.0 16.5 16.0

UC1842A-EP, UC1843A-EP, UC1844A-EP, UC1845A-EP

CURRENT-MODE PWM CONTROLLER

SGLS134B – SEPTEMBER 2002 – REVISED APRIL 2003

1POST OFFICE BOX 655303 •

DALLAS, TEXAS 75265DControlled Baseline

– One Assembly/Test Site, One Fabrication

Site

DExtended Temperature Performance of

–55°C to 125°C

DEnhanced Diminishing Manufacturing

Sources (DMS) Support

DEnhanced Product Change Notification

DQualification Pedigree†

DOptimized for Off-line and DC to DC

Converters

DLow Start Up Current (<0.5 mA)

DTrimmed Oscillator Discharge Current

†Component qualification in accordance with JEDEC and industry

standards to ensure reliable operation over an extended

temperature range. This includes, but is not limited to, Highly

Accelerated Stress Test (HAST) or biased 85/85, temperature

cycle, autoclave or unbiased HAST, electromigration, bond

intermetallic life, and mold compound life. Such qualification

© 2001 IXYS All rights reserved

1 - 2IXYS reserves the right to change limits, test conditions and dimensions.I

TRMS=2x180A

I

TAVM=2x105A

V

RRM=800-1800 VThyristor Modules

ECO-PAC 2VCC 2x105

Features

•Isolation voltage 3600 V~

•Planar glass passivated chips

•Low forward voltage drop

•Leads suitable for PC board soldering

Applications

•DC motor control

•Light and temperature control

•Softstart AC motor controller

•Solid state switches

Advantages

•Easy to mount with two screws

•Space and weight savings

•Improved temperature and power

cycling

•High power density

•Small and light weightPreliminary Data

13

5

Data according to IEC 60747 refer to a single thyristor unless otherwise statedVRSMVRRMVDSMVDRMTyp

VV

900 800VCC 2x105 - 08io7

13001200VCC 2x105 - 12io7

15001400VCC 2x105 - 14io7

17001600VCC 2x105 - 16io7

19001800VCC 2x105 - 18io7

SymbolConditionsMaximum Ratings
