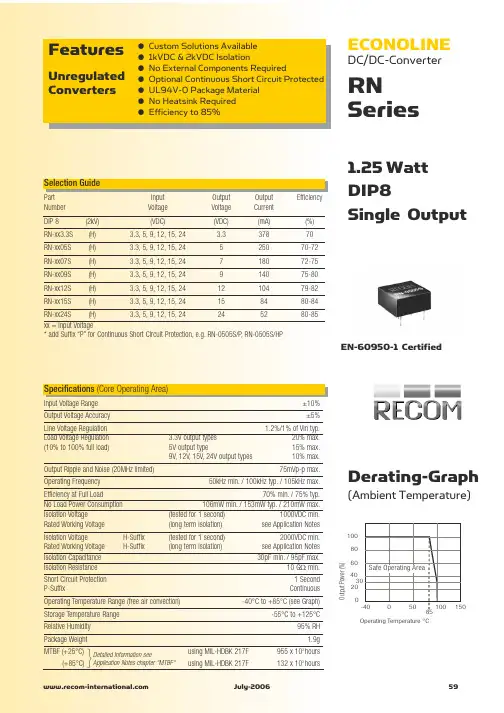

59July-2006Selection GuidePartInputOutputOutputEfficiencyNumberVoltageVoltageCurrentDIP 8(2kV)(VDC)(VDC)(mA)(%)RN-xx3.3S(H)3.3, 5, 9, 12, 15, 243.337870RN-xx05S(H)3.3, 5, 9, 12, 15, 24525070-72RN-xx07S(H)3.3, 5, 9, 12, 15, 24718072-75RN-xx09S(H)3.3, 5, 9, 12, 15, 24914075-80RN-xx12S(H)3.3, 5, 9, 12, 15, 241210479-82RN-xx15S(H)3.3, 5, 9, 12, 15, 24158480-84 RN-xx24S(H)3.3, 5, 9, 12, 15, 24245280-85xx = Input Voltage* add Suffix “P” for Continuous Short Circuit Protection, e.g. RN-0505S/P, RN-0505S/HP

Output Power (%)100602040100500-4085150Operating Temperature °C080Safe Operating Area30Specifications(Core Operating Area)Input Voltage Range±10%Output Voltage Accuracy±5%Line Voltage Regulation1.2%/1% of Vin typ.Load Voltage Regulation3.3V output types20% max.(10% to 100% full load)5V output type15% max.9V, 12V, 15V, 24V output types10% max.Output Ripple and Noise (20MHz limited)75mVp-p max.Operating Frequency50kHz min. / 100kHz typ. / 105kHz max.Efficiency at Full Load70% min. / 75% typ.No Load Power Consumption106mW min. / 153mW typ. / 210mW max.Isolation Voltage(tested for 1 second)1000VDC min.Rated Working Voltage(long term isolation)see Application NotesIsolation VoltageH-Suffix(tested for 1 second)2000VDC min.Rated Working VoltageH-Suffix(long term isolation)see Application NotesIsolation Capacitance30pF min. / 95pF max.Isolation Resistance10 GΩmin.Short Circuit Protection1 SecondP-SuffixContinuousOperating Temperature Range (free air convection)-40°C to +85°C (see Graph)Storage Temperature Range-55°C to +125°CRelative Humidity95% RHPackage Weight1.9gMTBF (+25°C)using MIL-HDBK 217F955 x 103 hours(+85°C) using MIL-HDBK 217F132 x 103 hours1.25 WattDIP8 Single Output

124-August-20052, 3, 4 AMPSIP12 Vertical &HorizontalINNOLINEDC/DC-ConverterR-7xxxP_DSeries●Non-Isolated●Synchronous rectification design●Adjustable Output voltage●2, 3, 4AMP Adjustable Positive Step Down Integrated Switching Regulator●Over load protection (125% full load typical)●Remote ON/OFF Control(Ground Off)●Wide Input Range●Continuous short circuit protection (Very low short current Iin<50mA)●Input voltage range 4.5V~28V●Efficiency to 97%Features

Selection GuidePartInputNominalVoutOutputEfficiency (%)NumberRangeOutput VoltageAdjust RangeCurrentMin.Vin12VMax.VinSIP12(V)(V)(V)(A)R-723.3x4.5 – 283.32.5 – 5.52959389R-725.0x6.5 – 285.03.0 – 6.02969591R-726.5x8.5 – 286.55.0 – 8.02979693R-729.0x12 – 289.07.0 – 11296-93R-7212x15 – 281210 – 14297-95R-7215x19 – 281513 – 17297-96R-733.3x4.5 – 283.32.5 – 5.53949389R-735.0x6.5 – 285.03.0 – 6.03959592R-736.5x8.5 – 286.55.0 – 8.03979693R-739.0x12 – 289.07.0 – 11396-94R-7312x15 – 281210 – 14397-96R-7315x19 – 281513 – 17397-96R-743.3x4.5 – 283.32.5 – 5.54939288R-745.0x6.5 – 285.03.0 – 6.04959491R-746.5x8.5 – 286.55.0 – 7.54969693Note:Vin-Vout ≥1.5V~4.0V depending on Vout if adjust function is used! Suffix x:(see mechanical drawing for details)x = P pins vertical through holex = D pins bent for horizontal through hole mounting The R-7XXX series is a high performance 2.5V to 15V ,2Amp to 4Amp,12-Pin SIP (single in-line package).Integrated switching regulator (ISR),Synchronuous - rectified design yields excellent efficien-cies up to 97%.Short circuit protection with crowbar function to reduce the short circuit current tounder 50mA of input current.Description元器件交易网

July-2006Selection GuidePartInputOutputOutputEfficiencyNumberVoltageVoltageCurrentSIP 7(VDC)(VDC)(mA)(%)RxxP23.3S5, 9, 12, 15, 243.360070RxxP205S5, 9, 12, 15, 24540070-75RxxP209S5, 9, 12, 15, 24922270-75RxxP212S5, 9, 12, 15, 241216770-75RxxP215S5, 9, 12, 15, 241513275-80RxxP23.3D5, 9, 12, 15, 24±3.3±30070RxxP205D5, 9, 12, 15, 24±5±20070-75RxxP209D5, 9, 12, 15, 24±9±11170-75RxxP212D5, 9, 12, 15, 24±12±8570-75RxxP215D5, 9, 12, 15, 24±15±6675-80xx = Input Voltage* add Suffix “P” for Continuous Short Circuit Protection, e.g. R05P205S/P, R05P205D/P

Output Power (%)100602040100500-4085150Operating Temperature °C080Safe Operating AreaSpecifications (measured at TA = 25°C, at nominal input voltage and rated output current unless otherwise specified)Input Voltage Range±10%Output Voltage Accuracy±5%Line Voltage Regulation1.2%/1% of Vin typ.Load Voltage Regulation3.3, 5V output types15% max.(10% to 100% full load)other output types10% max.Output Ripple and Noise (20MHz BW)200mVp-p max.Operating Frequency20kHz min. / 50kHz typ. / 85kHz max.Efficiency at Full Load65% min. / 80% max.No Load Power Consumption148mW min. / 220mW typ. / 355mW max.Isolation Voltage(tested for 1 minute)5200VDC min.Rated Working Voltage(long term isolation)see Application NotesIsolation Capacitance1.5pF min. / 10pF max.Isolation Resistance15 GΩmin.Short Circuit Protection1 SecondP-SuffixContinuousOperating Temperature Range (free air convection)-40°C to +85°C (see Graph)Storage Temperature Range-55°C to +125°CRelative Humidity95% RHPackage Weight4.3gcontinued on next page2 WattSIP 7 Single &DualOutput

EC

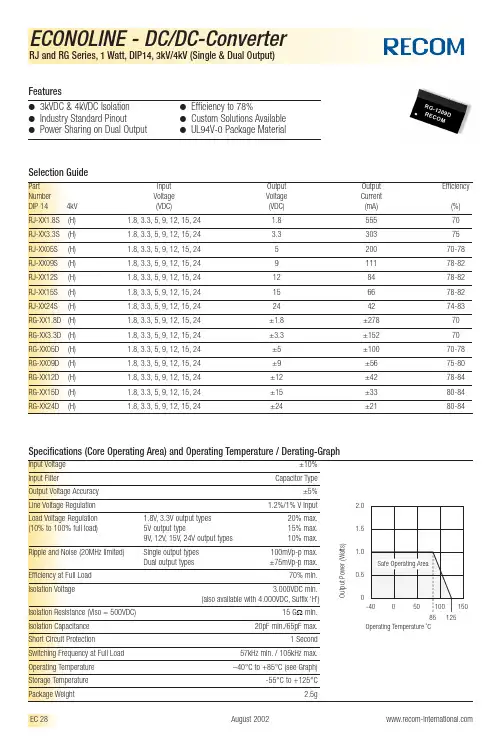

August 2002Selection GuideECONOLINE - DC/DC-Converter

RJ and RG Series,1 Watt,DIP14,3kV/4kV (Single & Dual Output)

Specifications (Core Operating Area) and Operating Temperature / Derating-GraphPartInputOutputOutputEfficiency

NumberVoltageVoltageCurrent

DIP 144kV(VDC)(VDC)(mA)(%)

RJ-XX1.8S(H)1.8,3.3,5,9,12,15,241.855570

RJ-XX3.3S(H)1.8,3.3,5,9,12,15,243.330375

RJ-XX05S(H)1.8,3.3,5,9,12,15,24520070-78

RJ-XX09S(H)1.8,3.3,5,9,12,15,24911178-82

RJ-XX12S(H)1.8,3.3,5,9,12,15,24128478-82

RJ-XX15S(H)1.8,3.3,5,9,12,15,24156678-82

RJ-XX24S(H)1.8,3.3,5,9,12,15,24244274-83

RG-XX1.8D(H)1.8,3.3,5,9,12,15,24±1.8±27870

RG-XX3.3D(H)1.8,3.3,5,9,12,15,24±3.3±15270

RG-XX05D(H)1.8,3.3,5,9,12,15,24±5±10070-78

RG-XX09D(H)1.8,3.3,5,9,12,15,24±9±5675-80

RG-XX12D(H)1.8,3.3,5,9,12,15,24±12±4278-84

RG-XX15D(H)1.8,3.3,5,9,12,15,24±15±3380-84
