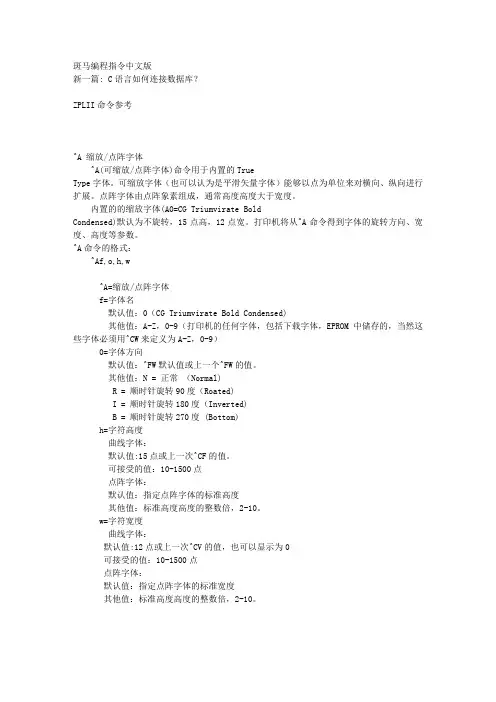

斑马编程指令中文版

新一篇: C语言如何连接数据库？

ZPLII命令参考

^A 缩放/点阵字体

^A(可缩放/点阵字体)命令用于内置的True

Type字体。可缩放字体（也可以认为是平滑矢量字体）能够以点为单位来对横向、纵向进行扩展。点阵字体由点阵象素组成，通常高度高度大于宽度。

内置的的缩放字体(A0=CG Triumvirate Bold

Condensed)默认为不旋转，15点高，12点宽。打印机将从^A命令得到字体的旋转方向、宽度、高度等参数。

^A命令的格式：

^Af,o,h,w

^A=缩放/点阵字体

f=字体名

默认值：0（CG Triumvirate Bold Condensed)

其他值：A-Z，0-9（打印机的任何字体，包括下载字体，EPROM中储存的，当然这些字体必须用^CW来定义为A-Z，0-9）

0=字体方向

默认值：^FW默认值或上一个^FW的值。

其他值：N = 正常 （Normal)

R = 顺时针旋转90度（Roated)

I = 顺时针旋转180度（Inverted)

B = 顺时针旋转270度 (Bottom)

h=字符高度

曲线字体：

默认值:15点或上一次^CF的值。

可接受的值：10-1500点

点阵字体：

默认值：指定点阵字体的标准高度

其他值：标准高度高度的整数倍，2-10。

w=字符宽度

曲线字体：

默认值:12点或上一次^CV的值，也可以显示为0

可接受的值：10-1500点

点阵字体：

默认值：指定点阵字体的标准宽度

/fwzc/tiaomazhishi/BarocdeTechnology/Zebra_ZPLII.html

斑马Zebra ZPLII指令集中文说明解释

东莞立象条码技术公司 更新时间：2012-1-2 16:54:43

我们最常用的斑马(Zebra)条码打印机，应用ZPLII命令来控制打印，说明书中有每条指令的详细说明及相关示例，下面是各指令的中文释义：

^A 对Zebra内置点阵字体缩放

^A(可缩放/点阵字体)命令用于内置的True Type字体。可缩放字体（也可以认为是平滑矢量字体）能够以点为单位来对横向、纵向进行扩展。点阵字体由点阵象素组成，通常高度高度大于宽度。

内置的的缩放字体(A0=CG Triumvirate Bold Condensed)默认为不旋转，15点高，12点宽。打印机将从^A命令得到字体的旋转方向、宽度、高度等参数。

^A命令的格式：

^Af,o,h,w

^A = 缩放/点阵字体

f = 字体名

默认值：0（CG Triumvirate Bold Condensed)

其他值：A-Z，0-9（打印机的任何字体，包括下载字体，EPROM中储存的，当然这些字体必须用^CW来定义为A-Z，0-9）

0 = 字体方向

默认值：^FW默认值或上一个^FW的值。

其他值： N = 正常 （Normal)

R = 顺时针旋转90度（Roated)

I = 顺时针旋转180度（Inverted)

B = 顺时针旋转270度 (Bottom)

h = 字符高度

曲线字体：

默认值: 15点或上一次^CF的值。

可接受的值： 10-1500点

点阵字体：

默认值： 指定点阵字体的标准高度

其他值： 标准高度高度的整数倍，2-10。

w = 字符宽度

曲线字体：
