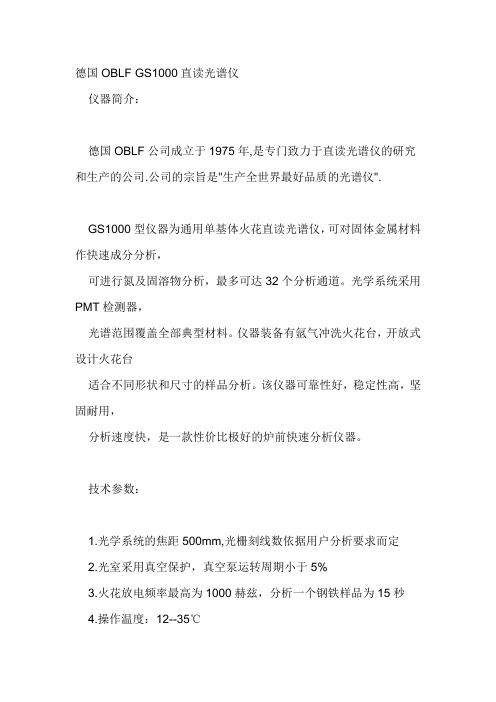

德国OBLF GS1000直读光谱仪
仪器简介：
德国OBLF公司成立于1975年,是专门致力于直读光谱仪的研究和生产的公司.公司的宗旨是"生产全世界最好品质的光谱仪".
GS1000型仪器为通用单基体火花直读光谱仪，可对固体金属材料作快速成分分析，
可进行氮及固溶物分析，最多可达32个分析通道。

光学系统采用PMT检测器，
光谱范围覆盖全部典型材料。

仪器装备有氩气冲洗火花台，开放式设计火花台
适合不同形状和尺寸的样品分析。

该仪器可靠性好，稳定性高，坚固耐用，
分析速度快，是一款性价比极好的炉前快速分析仪器。

技术参数：
1.光学系统的焦距500mm,光栅刻线数依据用户分析要求而定
2.光室采用真空保护，真空泵运转周期小于5%
3.火花放电频率最高为1000赫兹，分析一个钢铁样品为15秒
4.操作温度：12--35℃
5.WINDOWS Vista操作系统
6.长600mm x 宽1050mm x 高1210mm
7.重量:300kg。

SVA1000X 系列频谱分析仪产品综述鼎阳科技SVA1000X 系列频谱分析仪，测量频率范围9 kHz 至1.5 GHz，配置跟踪信号源，同时具有频谱分析和矢量网络分析功能，以及电缆故障点定位，ASK/FSK 数字调制分析和EMI 预兼容测试等功能，拥有优异的性能指标，适用于企业研发、工厂生产、教育教学等诸多领域，满足广泛的应用需求。

特性与优点采用全数字中频技术频率范围从9 kHz 到1.5 GHz显示平均噪声电平DANL 可达-155 dBm/Hz（典型值）相位噪声低于-99 dBc/Hz（1 GHz，偏移10 kHz，典型值）最小分辨率带宽（RBW）1 Hz 全幅度精度优于 1.2 dB 标配前置放大器配置1.5 GHz 跟踪源（Tracking Generator）选配矢量网络分析套件（Vector Network Analyzer）选配电缆故障点定位测试套件（Distance To Fault）选配数字调制分析套件（ASK/FSK Modulation Analysis）选配高级测量套件（Advanced Measurement）选配EMI 预兼容测试套件（EMI Pre-Compliance Test）配置10.1 英寸（1024x600）触摸屏，支持鼠标和键盘控制SVA1000X 系列频谱分析仪型号与主要指标设计特色10.1寸电容触摸屏，支持鼠标和键盘在RBW 为10 Hz 时测量低至-145 dBm 的小信号最小分辨率带宽1 Hz相位噪声 -99 dBc/Hz@1 GHz，偏移10 kHzSVA1000X 系列频谱分析仪矢量网络分析模式下的史密斯圆图，支持S11和S21测量电缆故障点定位测试数字调制分析模式下的眼图测量测量套件中的邻道抑制比免费的Easy Spectrum 上位机软件EMI 预兼容测试测量套件中的瀑布图EMI预兼容测试上位机软件SVA1000X 系列频谱分析仪参数规格本规格适用条件为仪器处于校准周期内，在0℃至50℃温度环境下存放至少两小时，并且预热40分钟。

June 2017 DocID15521 Rev 3 1/15This is information on a product in full production.STPS20M100SPower Schottky rectifierDatasheet - production dataFeatures∙ Low forward voltage drop meaning very small conduction losses ∙Avalanche rated∙ High frequency operation ∙ High current capability ∙ Insulated package:- Insulating voltage = 2000 V RMS sine ∙ECOPACK ®2 compliant component for D²PAK on demandDescriptionThis single Schottky rectifier is suited for high frequency switch mode power supply.Packaged in TO-220AB, TO-220FPAB, D²PAK and I²PAK, this device is intended to be used in notebook, game station and desktop adaptors, providing in these applications a good efficiency at both low and high load.Figure 1: Electrical characteristicsV ARM and I ARM must respect the reverse safe operating area defined in Figure 11. V AR and I AR are pulse measurements (t p < 1 μs). V R , I R , V RRM and V F , are static characteristics.Characteristics STPS20M100S1 CharacteristicsTable 2: Absolute ratings (limiting values with terminals 1 and 3 short circuited, at 25 °CNotes:(1)For pulse time duration deratings, refer to Figure 4 . More details regarding the avalanche energymeasurements and diode validation in the avalanche are provided in the application notes AN1768 and AN2025.(2)Refer to Figure 11(3)(dP tot/dT j) < (1/R th(j-a)) condition to avoid thermal runaway for a diode on its own heatsink.STPS20M100S CharacteristicsNotes:(1)Pulse test: t p= 5 ms, δ < 2%(2)Pulse test: t p= 380 µs, δ < 2%To evaluate the conduction losses, use the following equation:P = 0.425 x I F(AV) + 0.0088 x I F2(RMS)Characteristics STPS20M100S 1.1 Characteristics (curves)Package information STPS20M100S2 Package informationIn order to meet environmental requirements, ST offers these devices in different grades ofECOPACK® packages, depending on their level of environmental compliance. ECOPACK®specifications, grade definitions and product status are available at: .ECOPACK® is an ST trademark.∙Cooling method: by conduction (C)∙Epoxy meets UL 94,V0∙Recommended torque value: 0.55 N·m (for TO-220AB and TO-220FPAB)∙Maximum torque value: 0.7 N·m (for TO-220AB and TO-220FPAB)2.1 TO-220AB package informationSTPS20M100S Package informationPackage information STPS20M100S 2.2 TO-220FPAB package informationSTPS20M100S Package informationPackage information STPS20M100S 2.3 I²PAK package informationSTPS20M100SPackage information2.4 D²PAK package informationThis package drawing may slightly differ from the physical package. However, all the specified dimensions are guaranteed.Package information STPS20M100SSTPS20M100S Package informationFigure 16: D²PAK recommended footprint (dimensions in mm)Ordering information STPS20M100S 3 Ordering information4 Revision historySTPS20M100SIMPORTANT NOTICE – PLEASE READ CAREFULLYSTMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of or der acknowledgement.Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products.No license, express or implied, to any intellectual property right is granted by ST herein.Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.Information in this document supersedes and replaces information previously supplied in any prior versions of this document.© 2017 STMicroelectronics – All rights reserved。

Data Sheet1FINITY™ S100 SwitchLayer 2 switch delivers dense Ethernet aggregation Product OverviewThe 1FINITY S100 Layer 2 switch is a compact, carrier-gradeplatform that delivers dense 1 GbE or 10 GbE to 100 GbE aggregation in a 1RU blade. The S100 solves space and power challenges, delivers high-performance scalable services, and reduces operating costs. Solving the Problems of ConvergenceOptical and switching technologies are advancing rapidly, and new platforms often integrate the two. In recent years, vendors have created sophisticated, converged, chassis-based platforms. This approach has been successful, but it has also inflated initial costs; slowed innovation; reduced space efficiency and flexibility; and encouraged vendor lock-in. Solutions to these problems can be found in a modular, disaggregated product that employs pluggable elements. One of these is the 1FINITY™S100 Switch, an innovative, modular Layer 2 switch that combines high density and simplicity.Modular Blade-Based DesignThe modular design results in maximum pay-as-you-grow flexibility. This design offers efficient scaling by adding additional 1RU systems as needed. The small, dense form factor allows full utilization of rack space in 1RU increments, and the absence of a large, multislot chassiseliminates the need for rack partitioning.Operationally, the 1FINITY architecture is as close as possible to zero intercept—with no chassis, there is zero space and zero cost prior to initial service. The modular design enhances availability by minimizing Mean Time To Repair (MTTR), since most sources of failure can be quickly repaired. Additionally, the blade-based design is future-proof and evergreen; modules can be upgraded as new technology becomes available. Finally, with support for open optics, there is no vendor lock-in; optics can be purchased either from Fujitsu or from third parties.1FINITY: A Revolutionary, Disaggregated PlatformFor network operators seeking an open, simple, scalable architecture to meet escalating bandwidth demand, Fujitsu provides 1FINITY, a revolutionary disaggregated platform that delivers unprecedented flexibility, scalability, and efficiency. Unlike the traditional converged systems other vendors provide, the programmable, blade-centric design of 1FINITY offers operators a pay-as-you grow approach with low initial investment. Additional benefits include high rack space utilization, evergreen technology design, operational convergence, open pluggable optics, open APIs, and open protocols.Efficient 1 GbE or 10 GbE to 100 GbE AggregationLayer 2 SwitchingThe 1FINITY S100 is a modular Ethernet switching platform ideal for networks that require 1 GbE or 10 GbE to 100 GbE aggregation for Carrier Ethernet 2.0–compliant E-Line services. The 1RU blade provides 1.2 Tbps bidirectional switching with four Plug-In Units (PIUs). The S100 blade supports 12 × SFP+ 10 GbE/OTU2, 3 × CPF4 100 GbE, 12 × SFP+ 1 GbE/10 GbE, or 1 × CFP2-ACO 100 GbE DWDM PIUs.With the 1 × 100 GbE DWDM PIU, a 100 GbE signal can be provisioned directly into a ROADM, eliminating the need for a standalone transponder and thus reducing cost.Metro to Long-Haul ApplicationsThe 1FINITY S100 is ideal for 10 GbE to 100 GbE aggregation in mobile backhaul and business services applications. Its scalable blade architecture can be used with existing FLASHWAVE® 9500 and FLASHWAVE CDS deployments, and with the 1FINITY Transport blade family. The combination of an S100 and a DWDM optical transport device such as the FLASHWAVE 9500 can efficiently transport 10 GbE and 100 GbE services on 100G optical wavelengths. Additionally, with the 100 GbE DWDM PIU, the S100 blade can provide economical 100G wavelengths with a direct connection to an L100 ROADM without the need for a standalone transponder.For long-haul transport up to 200G per lambda, the S100 can be teamed with the FLASHWAVE 9500 and the 1FINITY T200 blade. For dense metro DCI applications requiring up to 200G per lambda transport, the S100 can be deployed with the 1FINITY T100 blade. Simplified Network OperationsThe 1FINITY S100 blade has a Linux-based operating system and can be managed with a Web-GUI, CLI scripts, SNMP, or a NETCONF interface. The GUI or CLI script can provision various service options. The NETCONF management API makes it easy to use the 1FINITY S100 with SDN network controllers, including Fujitsu Virtuora® Network Controller (NC). The S100 Switch also enables simpler operations with ITU-T Y.1731 for performance monitoring, ITU-T G.8031 and G.8032 for sub-50 millisecond Ethernet linear and ring protection switching, and link aggregation for facility protection.Up to 3 × CFP4 100 GbE portsUp to 12 × SFP+1 GbE/10GbE portsUp to 12 × SFP+10 GbE/OTU2 portsUp to 1 × CFP2-ACO100 GbE DWDM portBase System HardwareSystem Configuration1RU bladePIU per Blade4Local Management Port(LMP)NoneManagement Port (LCN) 2 × Gigabit Ethernet SFP (T, SX, LX, EX, ZX) Front LEDs System Status, Severity, PortFans 3 hot-swappable fan units,alarm monitoredPower Supply Dual-feed fixed DC power supply Software OS LinuxService Ports10 GbE/ OTU2100 GbE100 GbEDWDM1 GbE/10 GbEService Ports per Blade12 per PIU 3 per PIU 1 per PIU12 per PIU Optical/Electrical Interface SFP+CFP4CFP2-ACO SFP/SFP+Supported Interfaces SR, ER, LR,ZR, DWDM SR4, LR4,ERL, ERL,ER4DWDM SX, LX,EX, ZX,SR, ER,LR, ZR,CWDM(EthernetOnly)Performance MonitoringService PMs24-hour, 15-minute, and 5-minute bins Thresholds and TCA Support (user assignable)Ethernet SLA PMs (Y.1731)• Frame delay• Delay variation• Loss ratioEthernet Port PMs• Rx, Tx and error statistics• Input and output rate per port• Input and output utilization per port ManagementVirtuora NC YesWeb GUI YesCLI YesNETCONF/YANG YesSNMP SNMPv2NTP, SNTP, Telnet, and FTP SSH, SFTP, FTP, Telnet, HTTP, HTTPS Timing NTPIn-Band Management MVLANOSMINE SupportCLEI Physical CharacteristicsOperating EnvironmentOperating Temperature 5 to 40 °COperating Humidity 5 to 85%PowerPower Supply Dual-feed, fixed DC power supply120 V AC No–48 V DC–40 V DC to –57 V DCPower Consumption700 WRegulatory and ComplianceFCC FCC Part 15, Class ANEBS NEBS Level 3UL and CB Safety UL60950-1 & IEC60950-1CE CEROHS ROHSCISPR CISPR 24 & CISPR 32ETSI EN 300-019, EN 300-132, EN 300-753, EN 300-386 WEEE WEEERCM RCMCDRH FDA CDRH© Copyright 2018 Fujitsu Network Communications, Inc. FLASHWAVE ® is a trademark of Fujitsu Network Communications, Inc. (USA).1FINITY ™, VIRTUORA ®, FUJITSU (and design)® and “shaping tomorrow with you” are trademarks of Fujitsu Limited in the United States and other countries. All Rights Reserved. All other trademarks are the property of their respective owners. Configuration requirements for certain uses are described in the product documentation. Features and specifications subject to change without notice.Fujitsu Network Communications, Inc.2801 Telecom Parkway, Richardson, TX 75082Tel: 888.362.7763/telecomEthernet Switching Switch Fabric 1.2 Tbps Packets per Second 1.44 GbpsMAC Address Table • 750 K table entries• Enable/disable learning per portJumbo Frames 9608 bytes VLAN Tagging 802.1Q 4094 C-VLANs Provider Bridging 802.1ad 4094 S-VLANsTagging• CVLAN translation • Double tagging• Tagging, de-tagging, swapping • Virtual untaggedTraffic QoS Priority Queues 8 queues per port/4 queues per flowTraffic Classification• IEEE 802.1Q, Port, VLAN, ToS, DSCP • CIR/CBS and PIR/PBS • 2-rate, 3-color (2R3C)Bandwidth Meters• Bandwidth profiles• Ingress and egress filters• Per service in 1 Mbps incrementsEthernet OAM Fault Management• IEEE 802.1ag, CFM, ITU-T Y.1731• Loopback and link trace• Ethernet fault propogation shutdown Loopbacks• Station loopback• Loopback based on L2 and L3 filter • MAC address swap for RFC 2544Topology Discovery LLDPEthernet Services E-Line/E-LAN Yes E-Line MEF CE 2.0Yes E-LAN MEF CE 2.0*YesNetwork Protection Ethernet Protection• <50 ms protection switching • 3.3 ms CCMs in hardware • Nonrevertive/revertive • ITU-T G.8031• ITU-T G.8032• Multiple instances/laddered ringsLink Aggregation0:N LAG N<=161+1 LAG*LAG over G.8032MC-LAG*Security• L2 loop monitoring • L2 loop protocol • Filtering* Supported in R2.3。

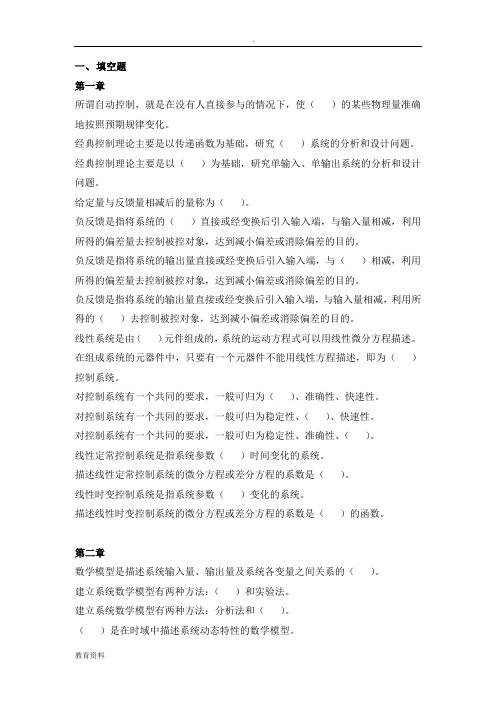

一、填空题第一章所谓自动控制，就是在没有人直接参与的情况下，使（）的某些物理量准确地按照预期规律变化。
